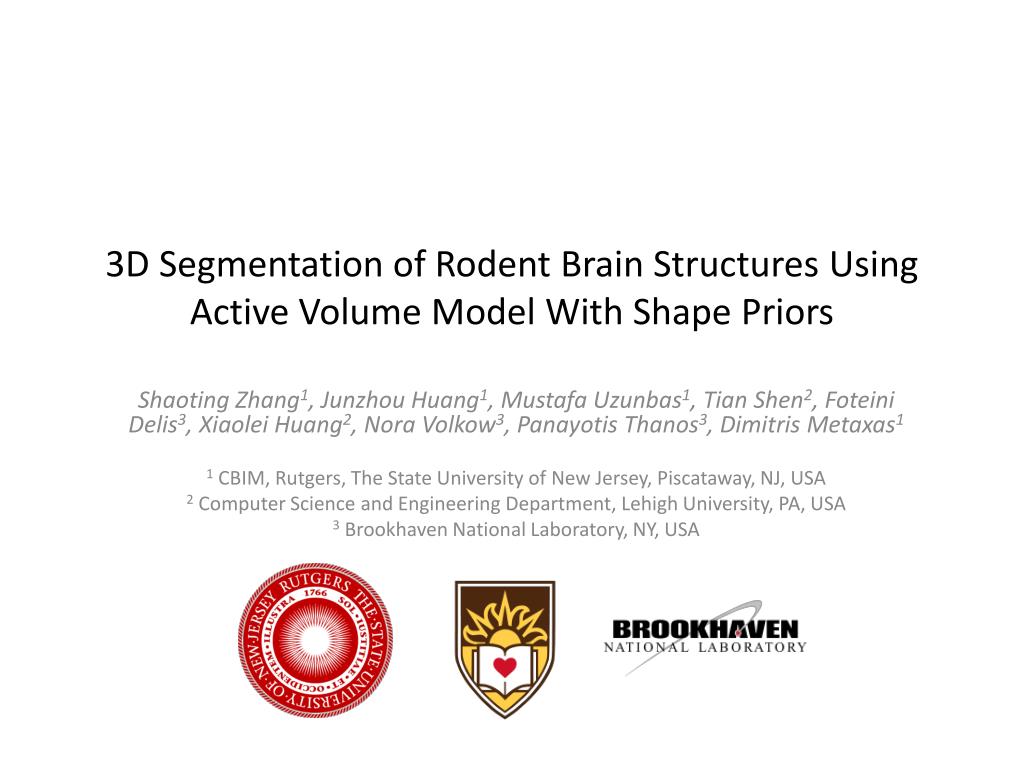

  1. 3D Segmentation of Rodent Brain Structures Using Active Volume Model With Shape Priors Shaoting Zhang1, Junzhou Huang1, Mustafa Uzunbas1, Tian Shen2, Foteini Delis3, Xiaolei Huang2, Nora Volkow3, Panayotis Thanos3, Dimitris Metaxas1 1 CBIM, Rutgers, The State University of New Jersey, Piscataway, NJ, USA 2 Computer Science and Engineering Department, Lehigh University, PA, USA 3 Brookhaven National Laboratory, NY, USA

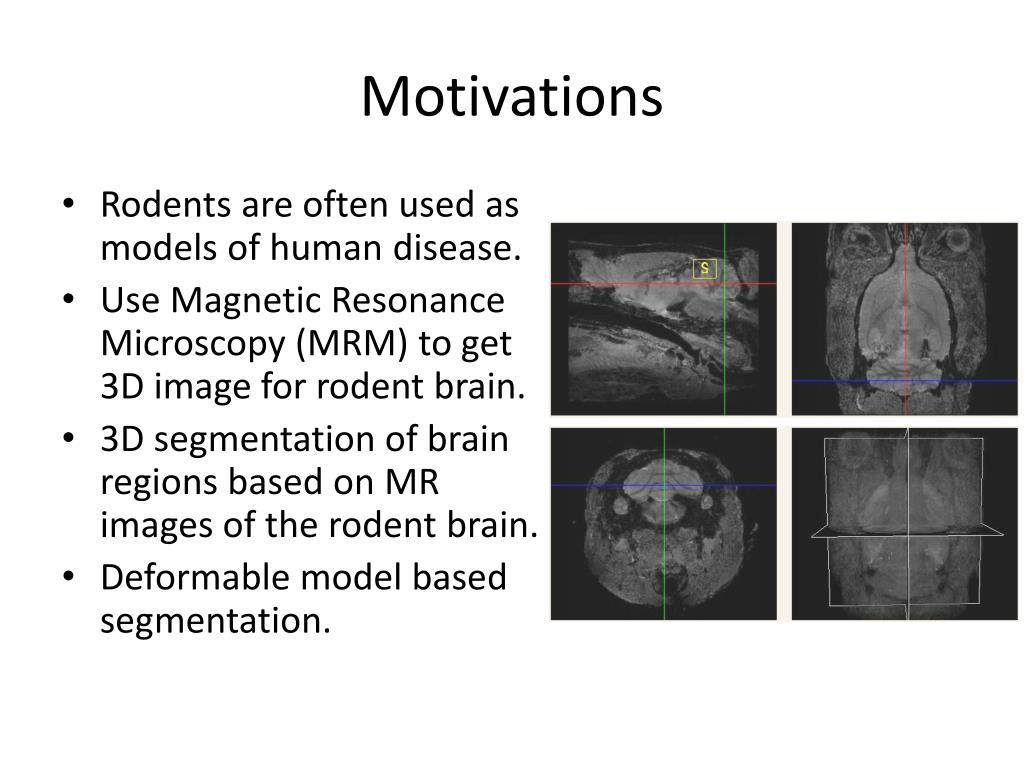

  2. Motivations • Rodents are often used as models of human disease. • Use Magnetic Resonance Microscopy (MRM) to get 3D image for rodent brain. • 3D segmentation of brain regions based on MR images of the rodent brain. • Deformable model based segmentation.

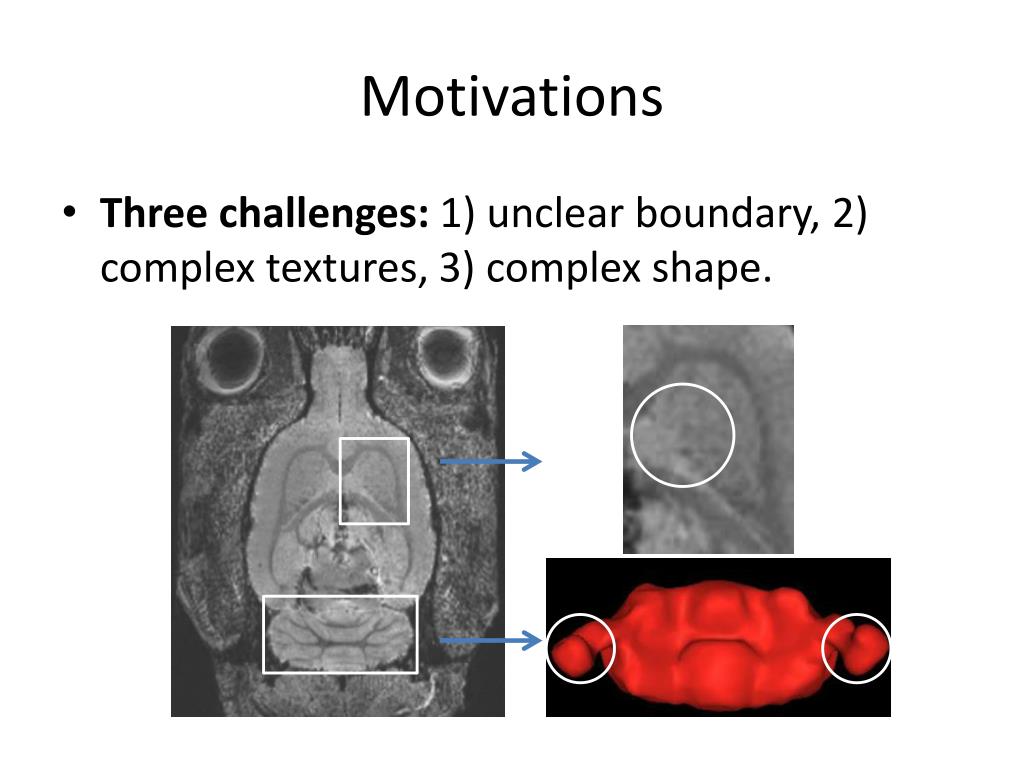

  3. Motivations • Three challenges: 1) unclear boundary, 2) complex textures, 3) complex shape.

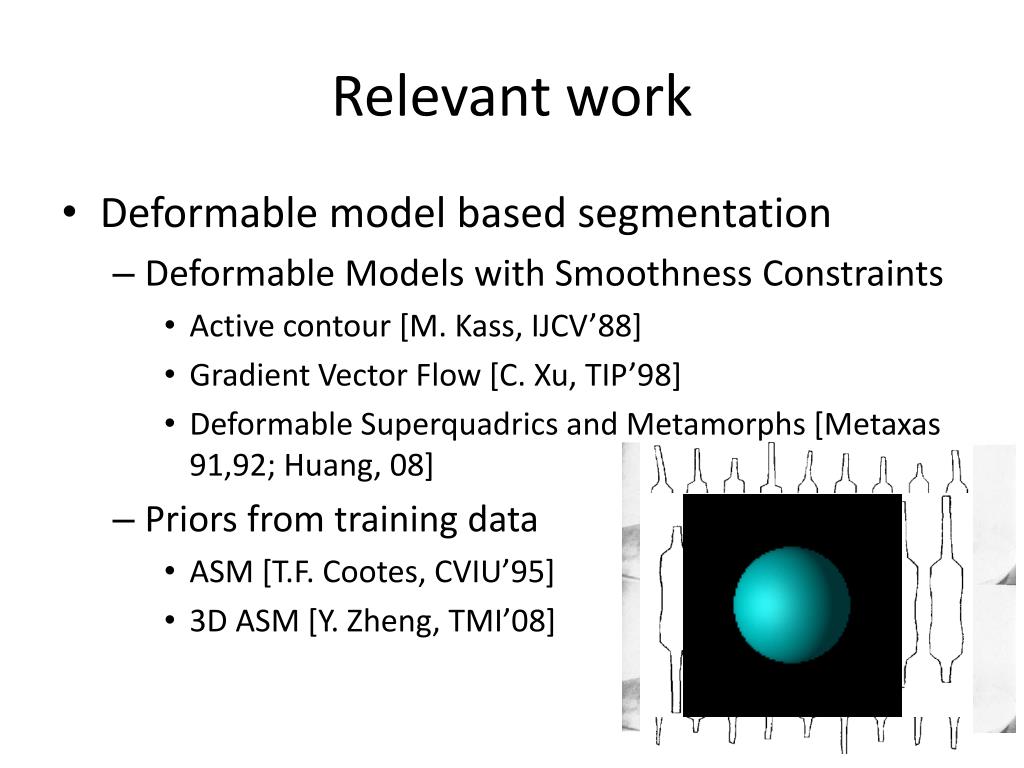

  4. Relevant work • Deformable model based segmentation • Deformable Models with Smoothness Constraints • Active contour [M. Kass, IJCV’88] • Gradient Vector Flow [C. Xu, TIP’98] • Deformable Superquadrics and Metamorphs [Metaxas 91,92; Huang, 08] • Priors from training data • ASM [T.F. Cootes, CVIU’95] • 3D ASM [Y. Zheng, TMI’08]

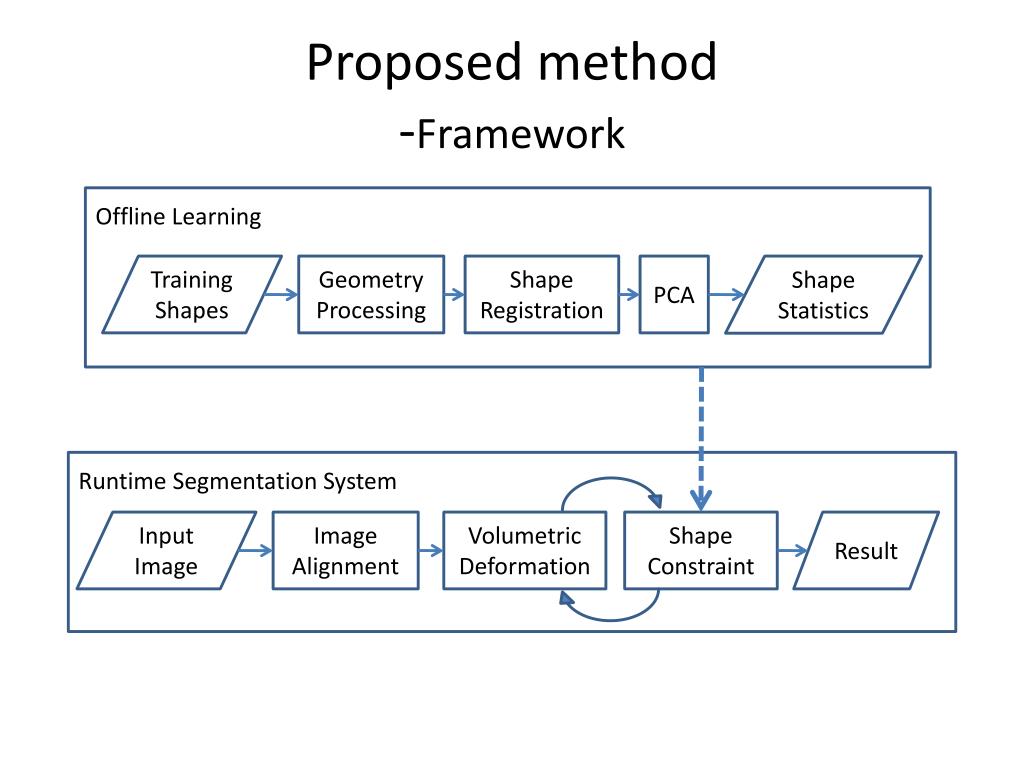

  5. Proposed method-Framework Offline Learning Training Shapes Geometry Processing Shape Registration PCA Shape Statistics Runtime Segmentation System Input Image Image Alignment Volumetric Deformation Shape Constraint Result

  6. Proposed method-Build Shape Statistics • Geometry processing (decimation, detail-preserved smoothing) Nealen, et.al.: LMO, GRAPHITE’06

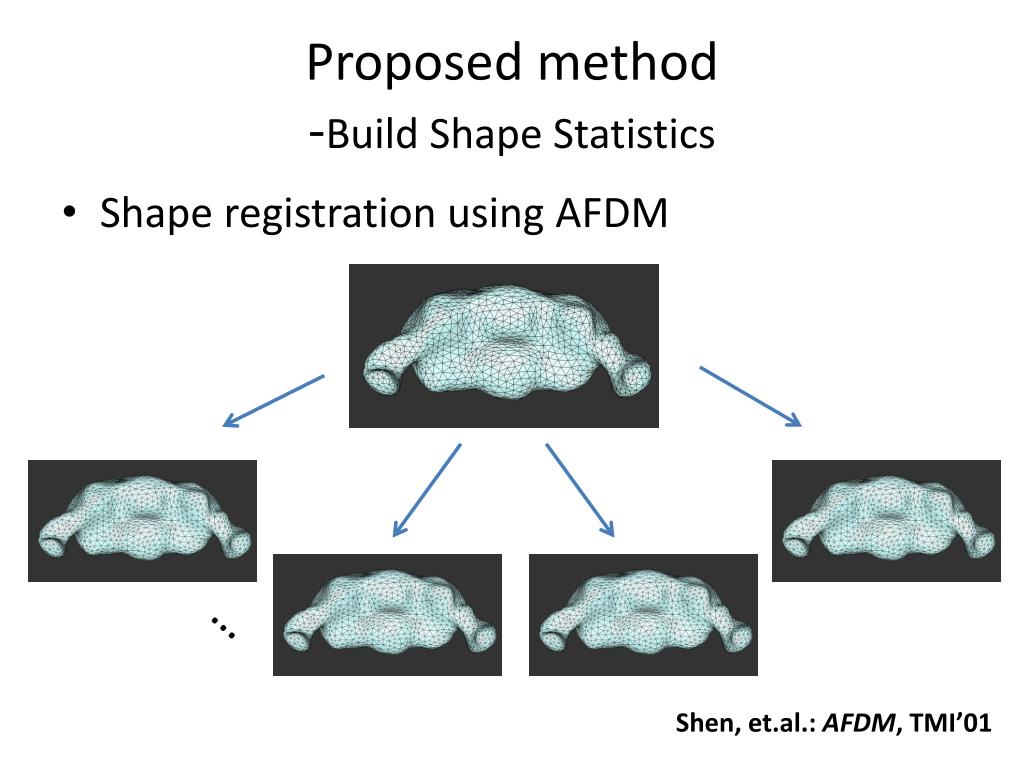

  7. Proposed method-Build Shape Statistics • Shape registration using AFDM … Shen, et.al.: AFDM, TMI’01

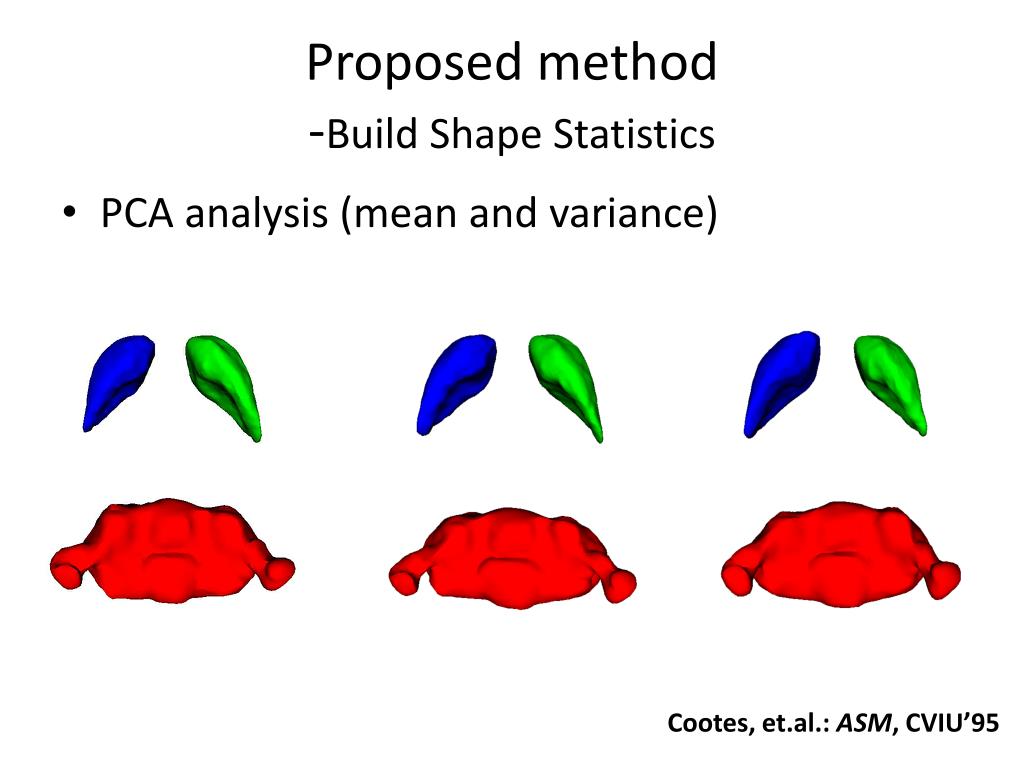

  8. Proposed method-Build Shape Statistics • PCA analysis (mean and variance) Cootes, et.al.: ASM, CVIU’95

  9. Proposed method-Deformation module • Evolution of probability density function computed from region information Huang, et.al.: Metamorphs, PAMI’08

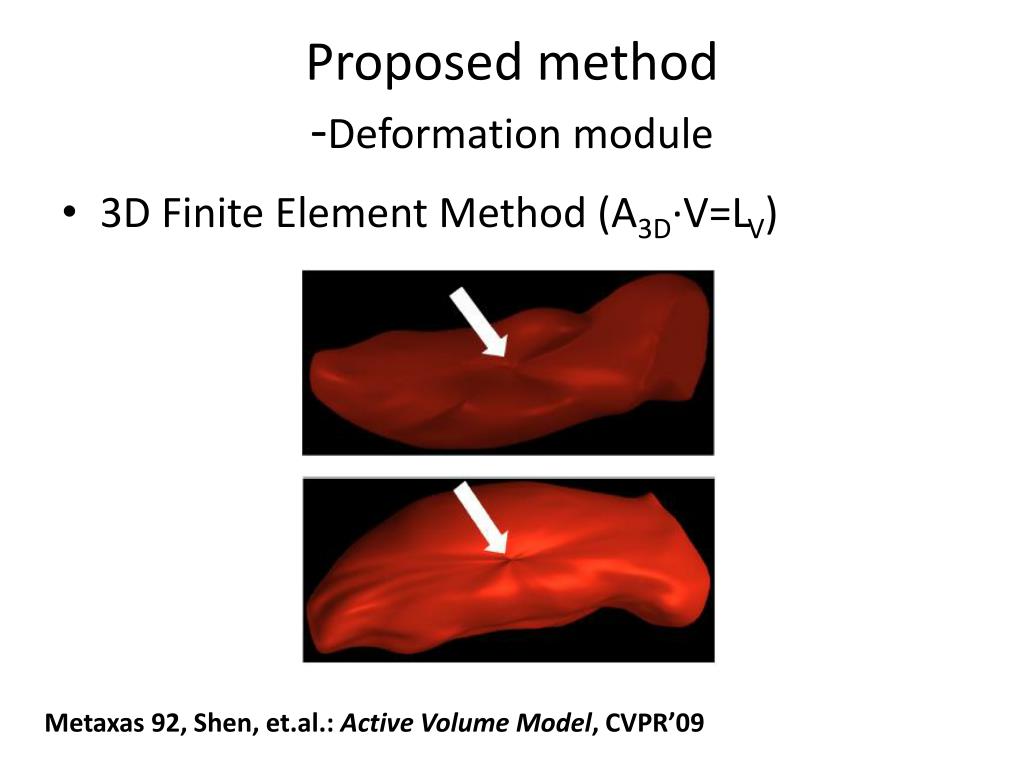

  10. Proposed method-Deformation module • 3D Finite Element Method (A3D·V=LV) Metaxas 92, Shen, et.al.: Active Volume Model, CVPR’09

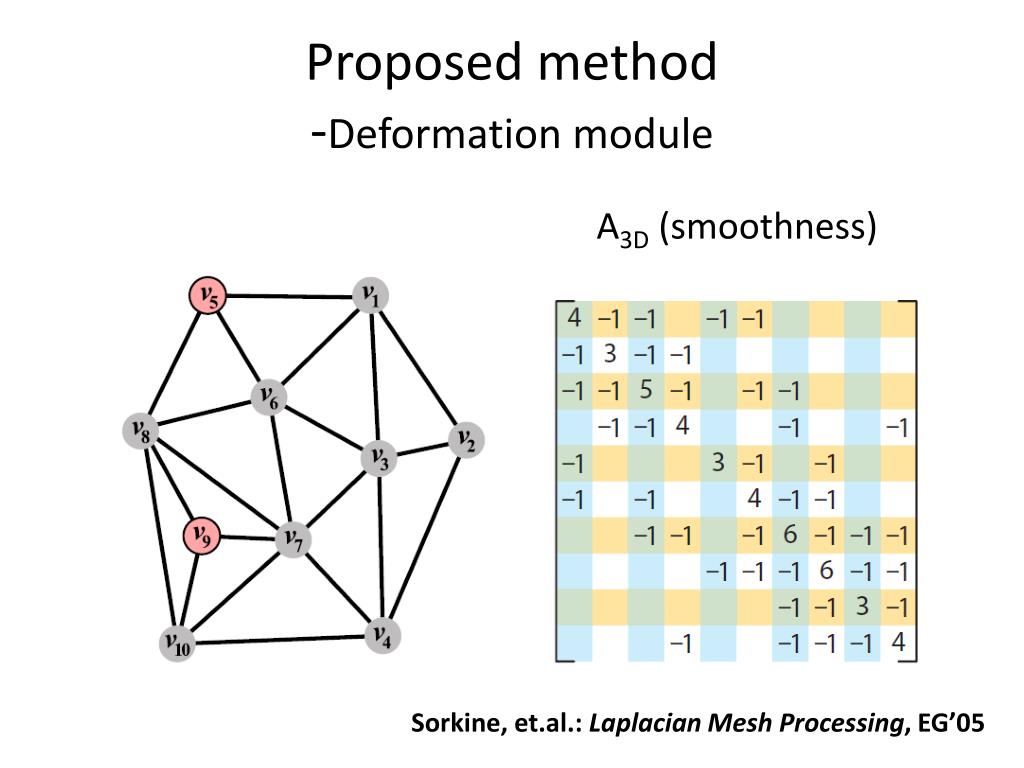

  11. Proposed method-Deformation module A3D (smoothness) Sorkine, et.al.: Laplacian Mesh Processing, EG’05

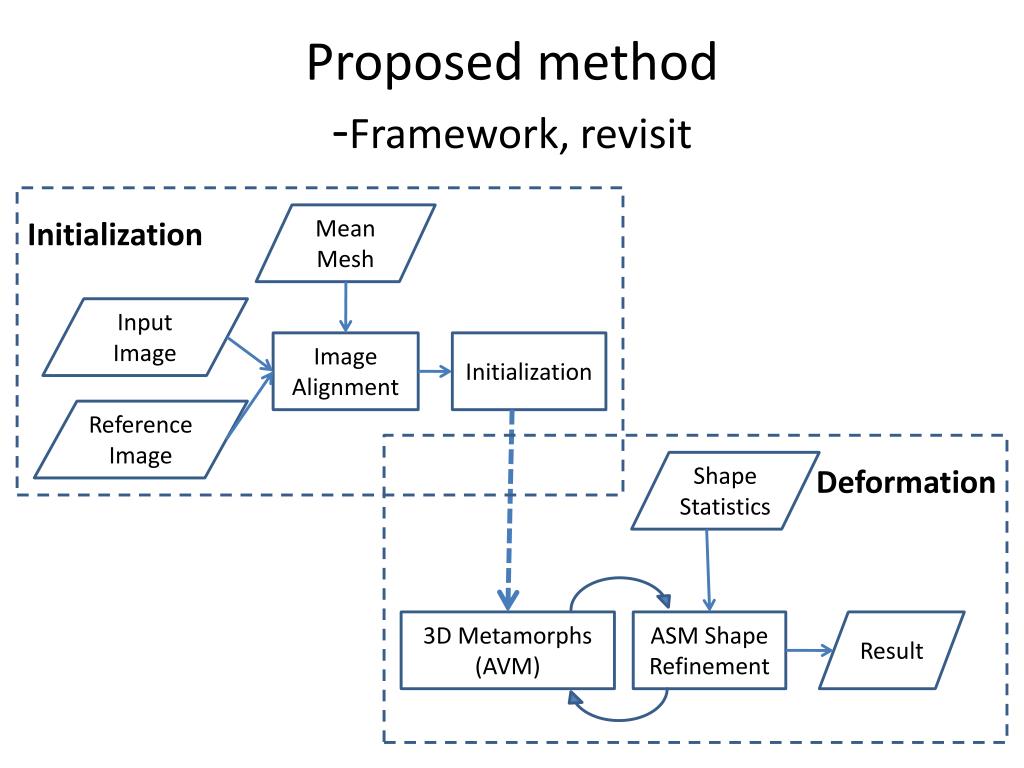

  12. Proposed method-Framework, revisit Initialization Mean Mesh Input Image Image Alignment Initialization Reference Image Deformation Shape Statistics 3D Metamorphs (AVM) ASM Shape Refinement Result

  13. Experiments • Settings • Adult male Sprague-Dawley rats • 21.1T Bruker Biospin Avance scanner • FOV of 3.4 × 3.2 × 3.0mm, voxel size 0.08mm • Data: 2/3 training and 1/3 for testing • All normal cases • Segment the cerebellum, the left and right striatum. • C++ and Python2.6 and tested on a 2.40 GHz Intel Core2 Quad computer with 8G RAM.

  14. Experiments • Cerebellum (complex texture and shape details) Our method No prior

  15. Experiments • Striatum (unobvious boundaries) Our method No prior

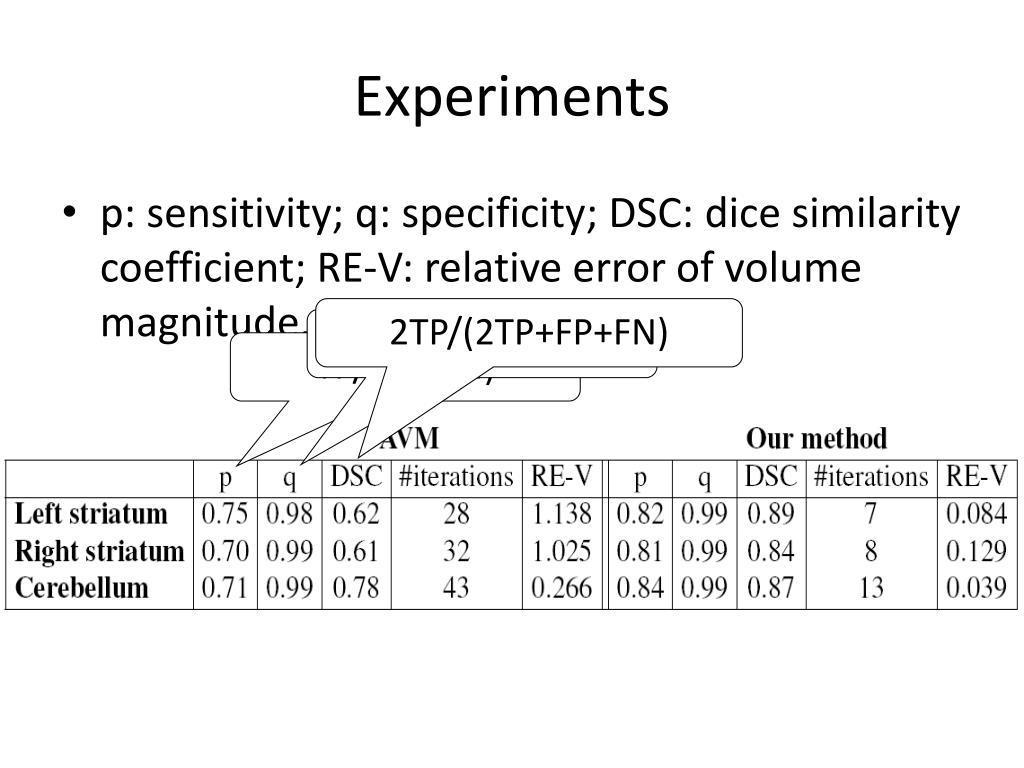

  16. Experiments • p: sensitivity; q: specificity; DSC: dice similarity coefficient; RE-V: relative error of volume magnitude. 2TP/(2TP+FP+FN) TN/(TN+FP) TP/(TP+FN)

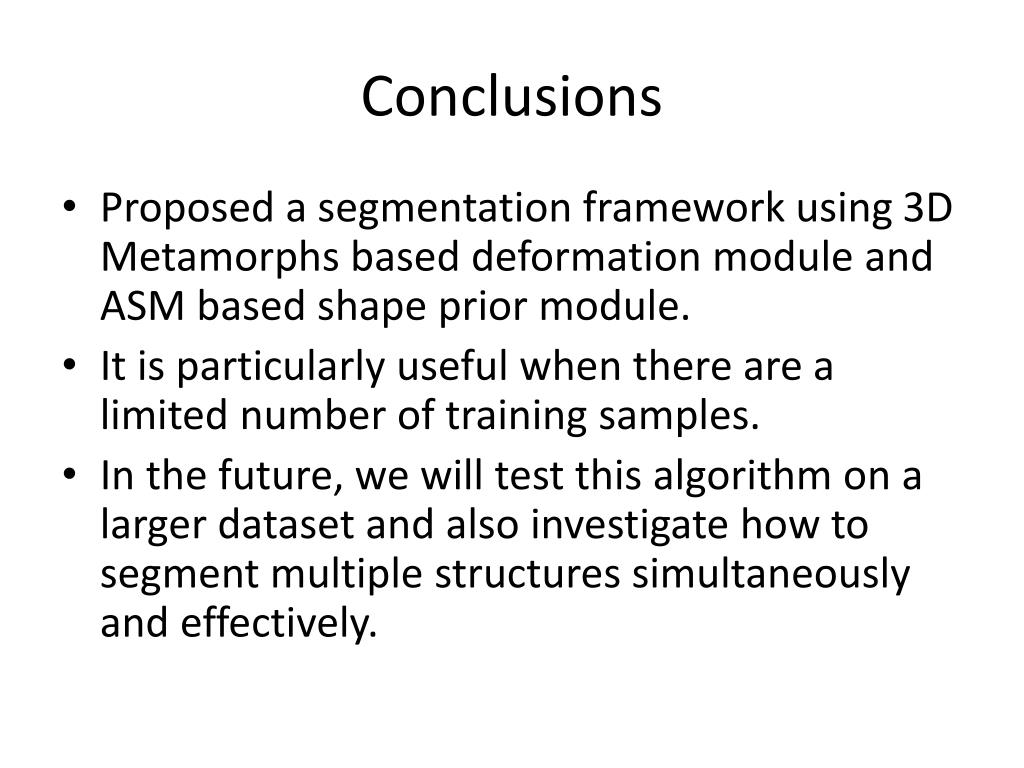

  17. Conclusions • Proposed a segmentation framework using 3D Metamorphs based deformation module and ASM based shape prior module. • It is particularly useful when there are a limited number of training samples. • In the future, we will test this algorithm on a larger dataset and also investigate how to segment multiple structures simultaneously and effectively.
