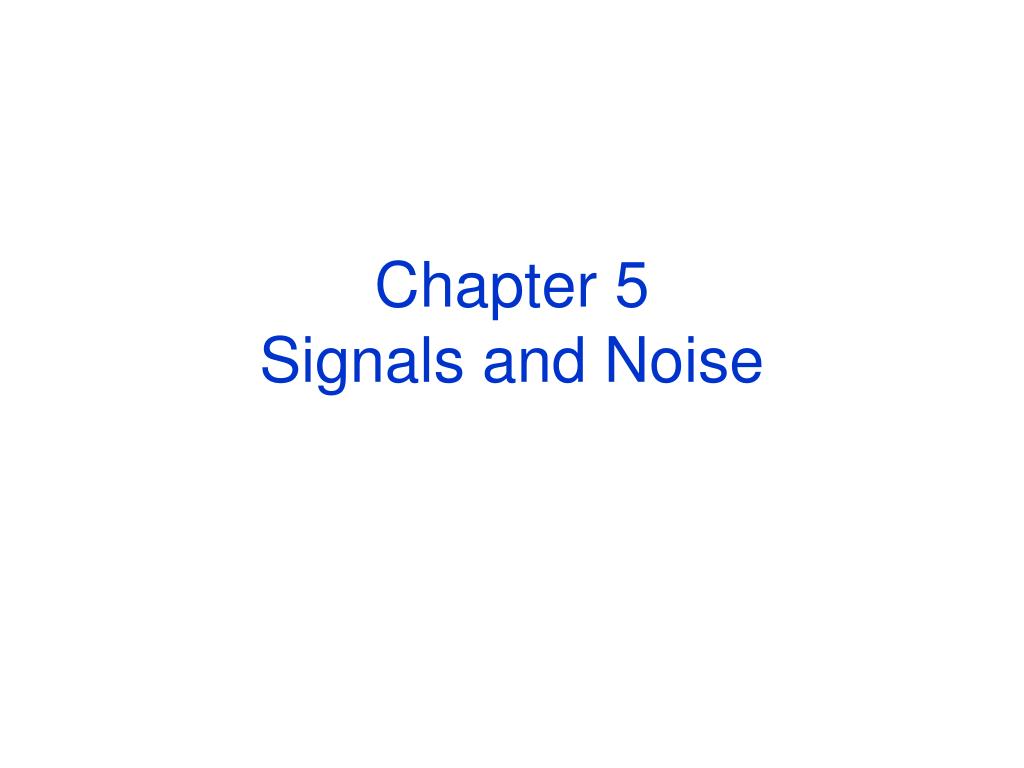

  1. Chapter 5Signals and Noise

  2. Modulation – Converting a dc signal to a higher frequency • 1/f noise is less troublesome at higher frequencies

  3. Choppers

  4. Lock-in amplifier

  5. After 9 repeat measurements S/N increased by 3

  6. Signal Averaging Click graph

  7. Moving average

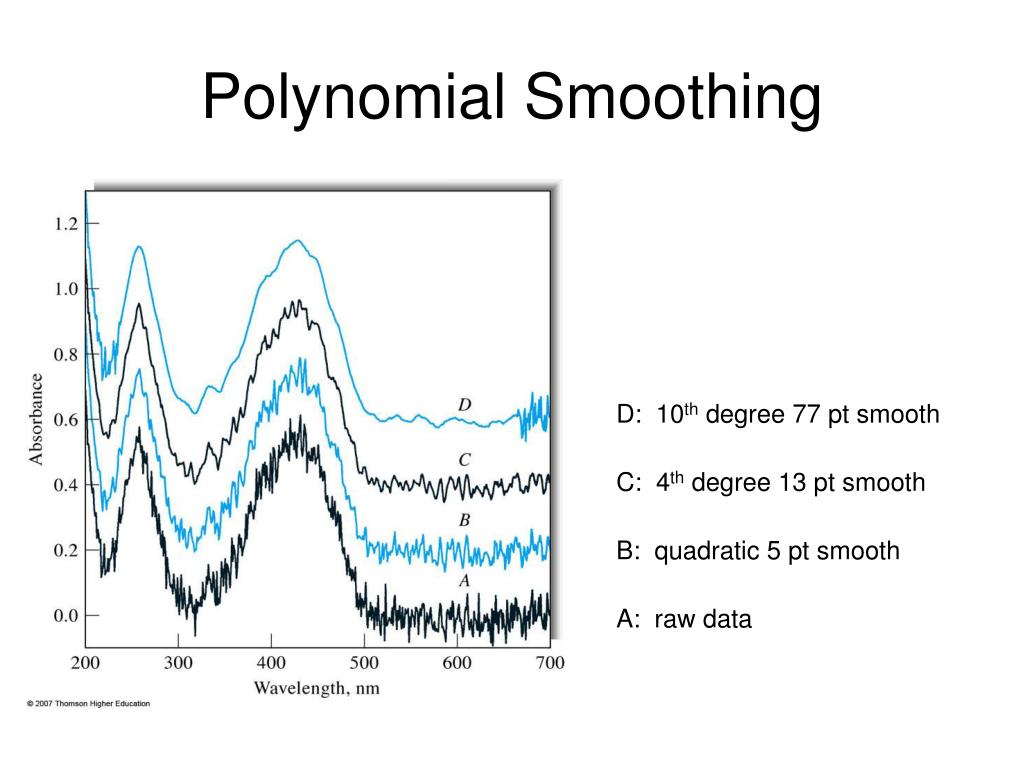

  8. Polynomial Smoothing D: 10th degree 77 pt smooth C: 4th degree 13 pt smooth B: quadratic 5 pt smooth A: raw data

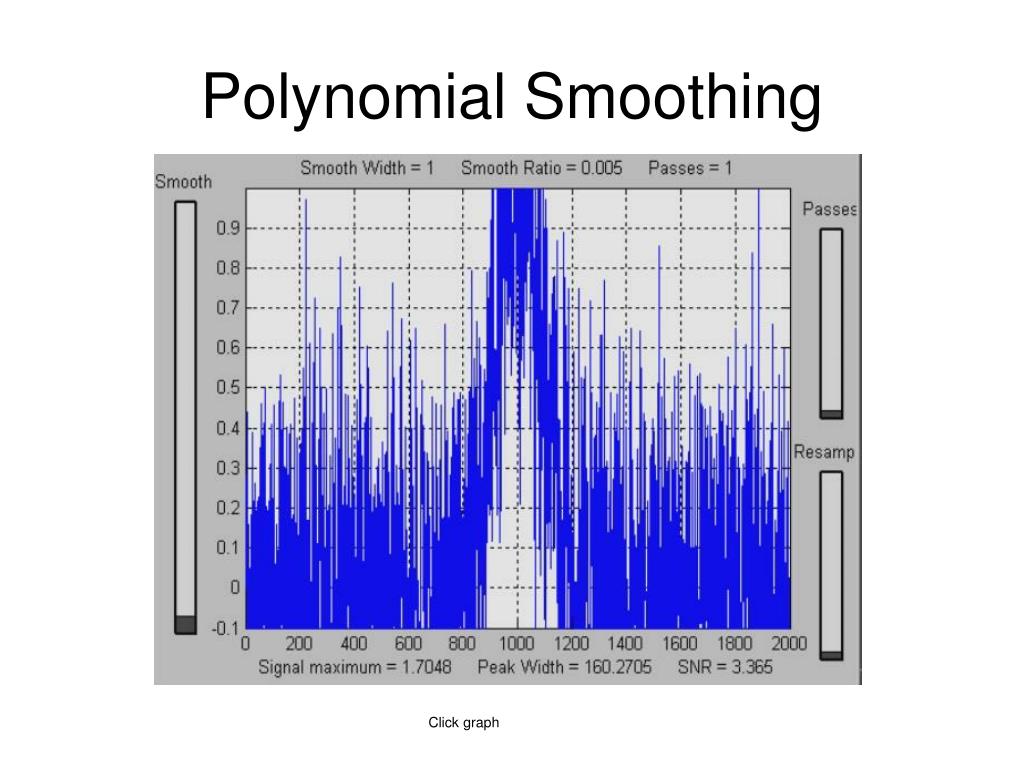

  9. Polynomial Smoothing Click graph
