ME 6405 Student Lecture: Transistors

ME 6405 Student Lecture:Transistors Chester OngAjeyaKarajgikarEmanuel Jones Thursday September 30, 2010Georgia Institute of Technology

Presentation Outline 1 Transistor Fundamentals Chester Ong 2 Bipolar Junction Transistors AjeyaKarajgikar 3 Power Transistors AjeyaKarajgikar 4 Field Effect Transistors Emanuel Jones 5 Applications of Transistor (covered by each speaker in respective topic)

Transistors BJT (PNP) Electrical Diagram Representation Transistors of various type & size First Transistor Model, 1947 Used in all modern electronics FET Transistor BJT Transistor

Understanding Transistors (conceptually) • 1. What is a Transistor? • Basic Purpose of a Transistor • Recognize Transistor Role in Modern Electronics • Understand Reason(s) for its Invention • Comparison to its “predecessor,” the Vacuum Tube • 2. How are transistors made? • “Doping” Manufacturing Process • Effect of Doping on Semiconductors • Creation of a P-N Junction via Doping • 3. How do transistors work? • Depletion Region of a P-N Junction • How to Control Current through a Depletion Region • How a P-N Junction can act as an Electrical Switch • Combination of P-N Junctions -> Transistors

What is a Transistor? • Basic Purpose • [1] To amplify signals • [2] To electronically switch (no moving parts) a signal on or off (high/low) • Role in Modern Electronics • Basic building blocks for all modern electronics • Microprocessors, Microcontrollers, Computers, Digital watches, Digital Logic Circuits, Cell Phones…. Motor Controllers Microprocessor PC & Cell Phones Headphones

Reason for Transistor’s Invention: • Early 20th century, vacuum tube was used for signal amplifier & switch. • Use of vacuum tube* resulted in extremely large, fragile, energy inefficient, and expensive electronics. • Evolution of electronics required device that was small, light weight, robust, reliable, cheap to manufacture, energy efficient: • *Vacuum tube advantages: operation at higher voltages (10K region vs. 1K region of transistors); high power, high frequency operation (over-the-air TV broadcasting) better suited for vacuum tubes; and silicon transistors more vulnerable to electromagnetic pulses than vacuum tubes Vacuum Tube Radios ENIAC : 17, 468 vacuum tubes

…and the TRANSISTOR was born! • Invention • In 1947, John Bardeen, Walter Brattain, and William Schockly, researchers at Bell Lab, invented Transistor. • They found Transistor Effect: “when electrical contacts were applied to a crystal of germanium, the output power was larger than the input.” • Awarded the Nobel Prize in physics (1956) • Transistor • is a semiconductor device commonly used to amplify or switch electronic signals. John Bardeen, Walter Brattain, and William Schockly First model of Transistor, 1947

Historical Development 1941, Vacuum Tube 1948, the first (Germanium) TR John Bardeen, Walter Brattain, and William Schockly 1954, Silicon TR At TI Lab, Ease of processing, lower cost, greater power handling, more stable temperature characteristics 1958, Integrated Circuit Individual electronic components were soldered on to printed circuit boards. IC placed all components in one chip. Sep 2009, 22nm silicon wafer more than 2.9 billion transistors is packed into an area of fingernail Intel CEO Paul Otellini, Sep 23 2009

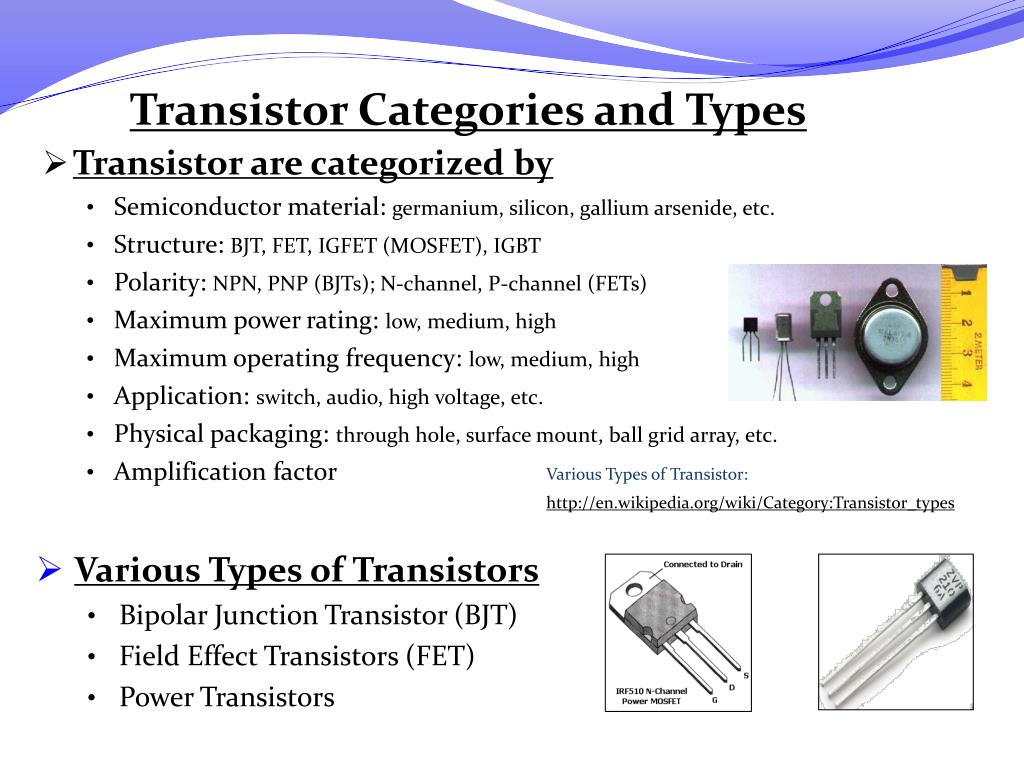

Transistor Categories and Types • Transistor are categorized by • Semiconductor material: germanium, silicon, gallium arsenide, etc. • Structure: BJT, FET, IGFET (MOSFET), IGBT • Polarity: NPN, PNP (BJTs); N-channel, P-channel (FETs) • Maximum power rating: low, medium, high • Maximum operating frequency: low, medium, high • Application: switch, audio, high voltage, etc. • Physical packaging: through hole, surface mount, ball grid array, etc. • Amplification factor Various Types of Transistor: http://en.wikipedia.org/wiki/Category:Transistor_types • Various Types of Transistors • Bipolar Junction Transistor (BJT) • Field Effect Transistors (FET) • Power Transistors

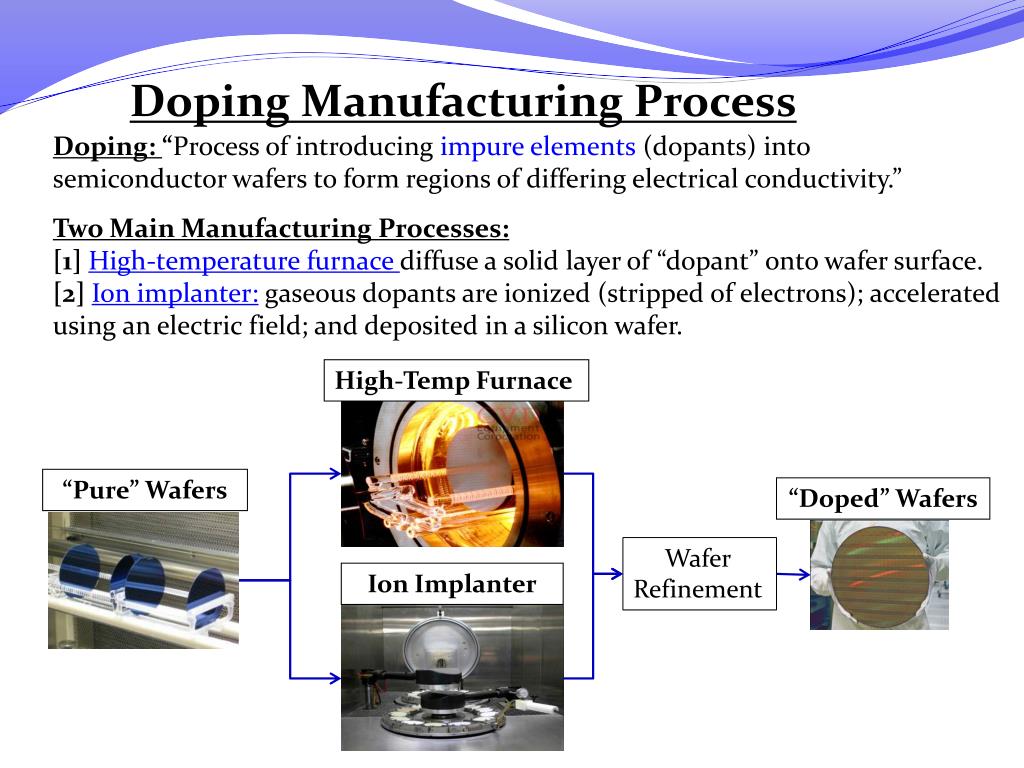

Doping Manufacturing Process Doping: “Process of introducing impure elements (dopants) into semiconductor wafers to form regions of differing electrical conductivity.” Two Main Manufacturing Processes:[1] High-temperature furnace diffuse a solid layer of “dopant” onto wafer surface.[2] Ion implanter:gaseous dopants are ionized (stripped of electrons); accelerated using an electric field; and deposited in a silicon wafer. High-Temp Furnace “Pure” Wafers “Doped” Wafers Wafer Refinement Ion Implanter

Effect of Doping on Semi-Conductors(1/3) • General Characteristics of Semiconductors: • Possesses an electrical conductivity somewhere between • insulators & conductors • Typical material composition is either silicon or germanium • Semiconductors are more “insulators” than “conductors,” since semiconductors possess few free electrons (as opposed to conductors, which have many free electrons) • Doping impurities into a “pure”semiconductorwill increase conductivity. • Doping results in an “N-Type” or “P-Type” semiconductor.

Effect of Doping on Semi-Conductors(2/3) P-Type Semiconductors : Positively charged SemiconductorDopant Material: Boron, Aluminum, GalliumEffect of Dopant: • “takes away” weakly-bound outer orbit electrons from semiconductor atom. • Semiconductor now has “missing” electron or “hole” in its lattice structure. • Overall material is now positively charged , because material has fewer electrons but still wants to acceptelectrons to fill holesin its lattice structure

Effect of Doping on Semi-Conductors(3/3) N-Type Semiconductors : Negatively charged SemiconductorDopant Material: Phosphorous, Arsenic, Antimony (Sb)Effect of Dopant: • “adds” electrons to semiconductor atom • Semiconductor is now negatively charged, because of electron abundance • Overall material (semiconductor + dopant) wants to donate“extra” electrons to make lattice structure at its lowest energy state

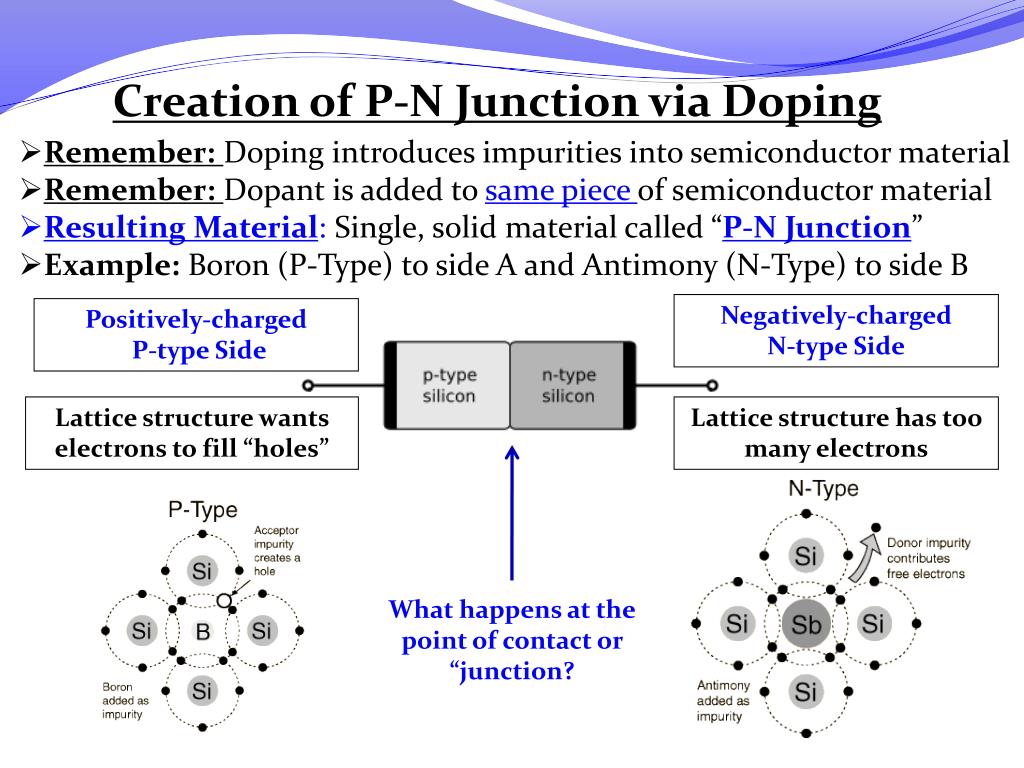

Creation of P-N Junction via Doping • Remember: Doping introduces impurities into semiconductor material • Remember: Dopant is added to same piece of semiconductor material • Resulting Material: Single, solid material called “P-N Junction” • Example: Boron (P-Type) to side A and Antimony (N-Type) to side B Negatively-charged N-type Side Positively-charged P-type Side Lattice structure wants electrons to fill “holes” Lattice structure has too many electrons What happens at the point of contact or “junction?

Depletion Region of P-N Junction • At equilibrium with no external voltage, a thin and constant-thickness • “depletion region” forms between P-type and N-type semiconductors. • In depletion region,free electrons from N-type will “fill” the electron • holes in the P-typeuntil equilibrium. • Negative and positive ions are subsequently created in depletion region. • Ions exhibit a (Coulomb) force which inhibits further electron flow (i.e. current) across the P-N Junction unless a forward bias external voltage is applied.

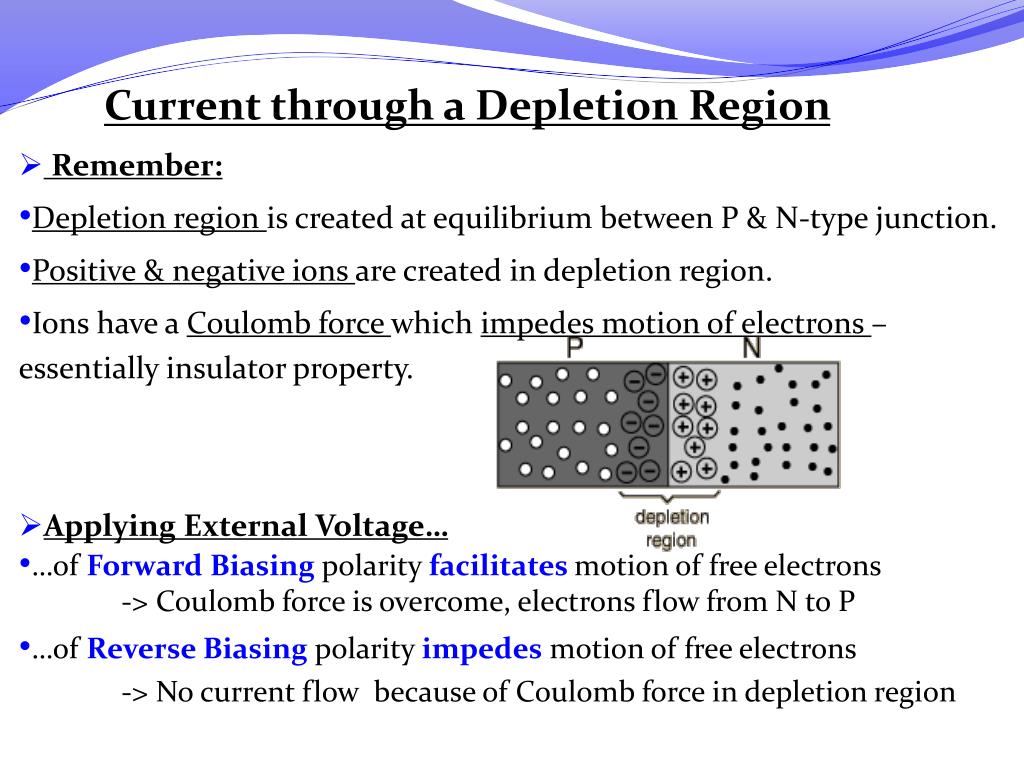

Current through a Depletion Region • Remember: • Depletion region is created at equilibrium between P & N-type junction. • Positive & negative ions are created in depletion region. • Ions have a Coulomb force which impedes motion of electrons – essentially insulator property. • Applying External Voltage… • …of Forward Biasing polarity facilitates motion of free electrons -> Coulomb force is overcome, electrons flow from N to P • …of Reverse Biasing polarity impedesmotion of free electrons -> No current flow because of Coulomb force in depletion region

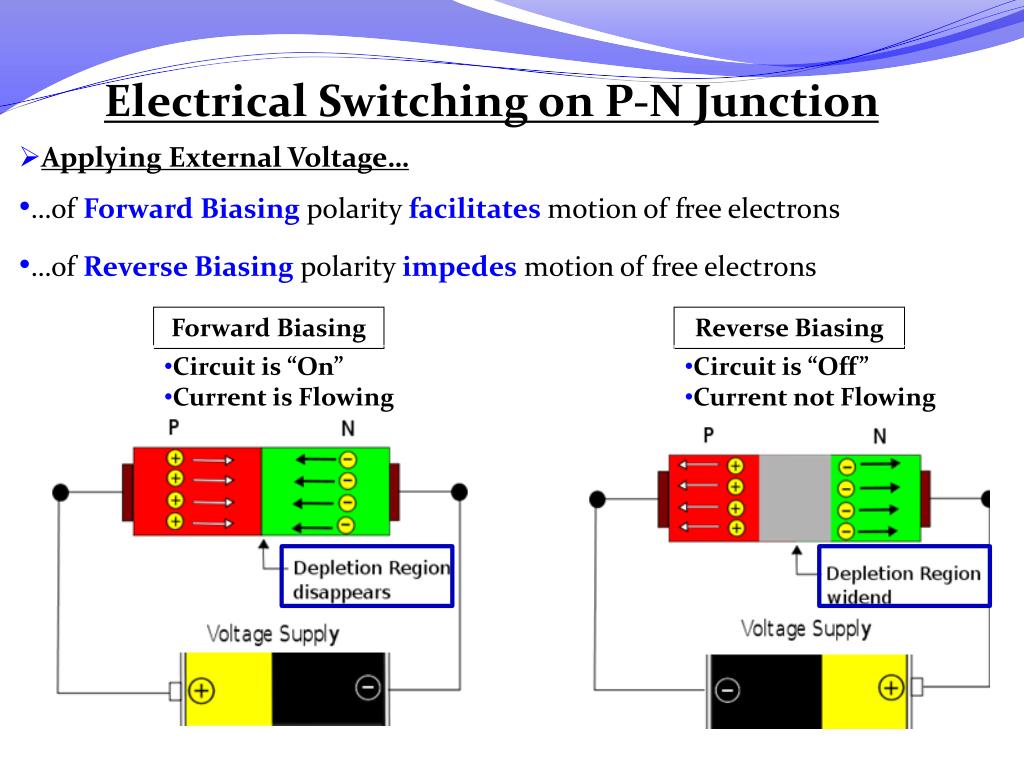

Electrical Switching on P-N Junction • Applying External Voltage… • …of Forward Biasing polarity facilitates motion of free electrons • …of Reverse Biasing polarity impedesmotion of free electrons Forward Biasing Reverse Biasing • Circuit is “On” • Current is Flowing • Circuit is “Off” • Current not Flowing

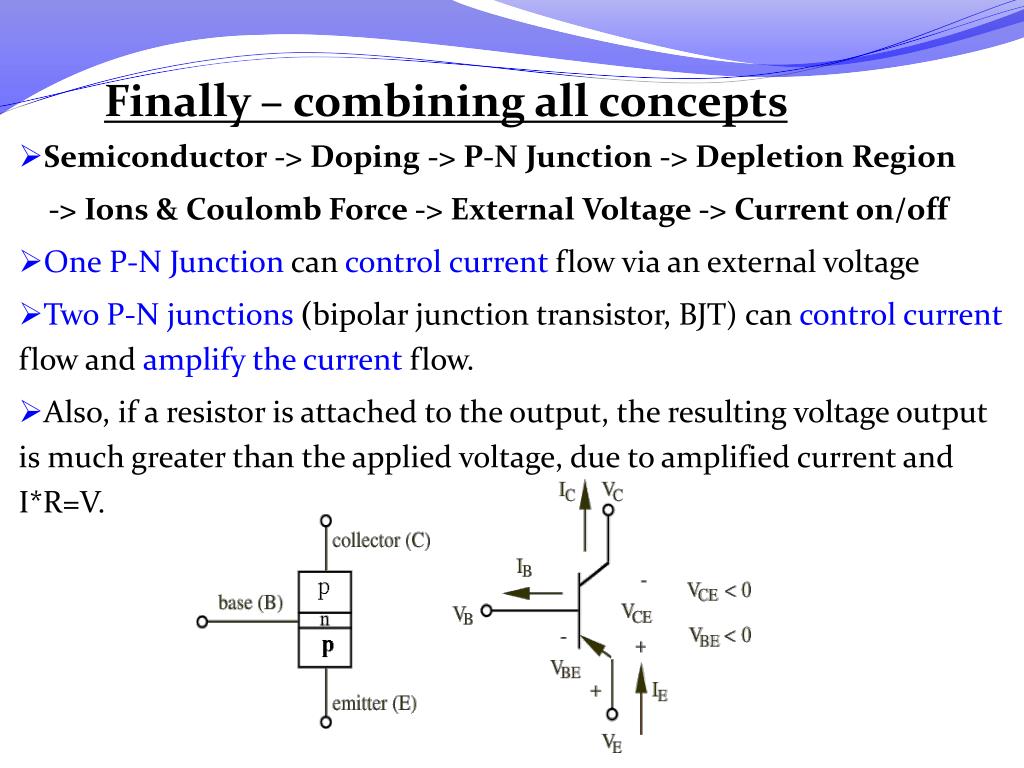

Finally – combining all concepts • Semiconductor -> Doping -> P-N Junction -> Depletion Region • -> Ions & Coulomb Force -> External Voltage -> Current on/off • One P-N Junction can control current flow via an external voltage • Two P-N junctions (bipolar junction transistor, BJT) can control current flow and amplify the current flow. • Also, if a resistor is attached to the output, the resulting voltage output is much greater than the applied voltage, due to amplified current and I*R=V.

BJT introduction • BJT = Bipolar Junction Transistor • 3 Terminals • Base (B) • Collector (C) • Emitter (E)

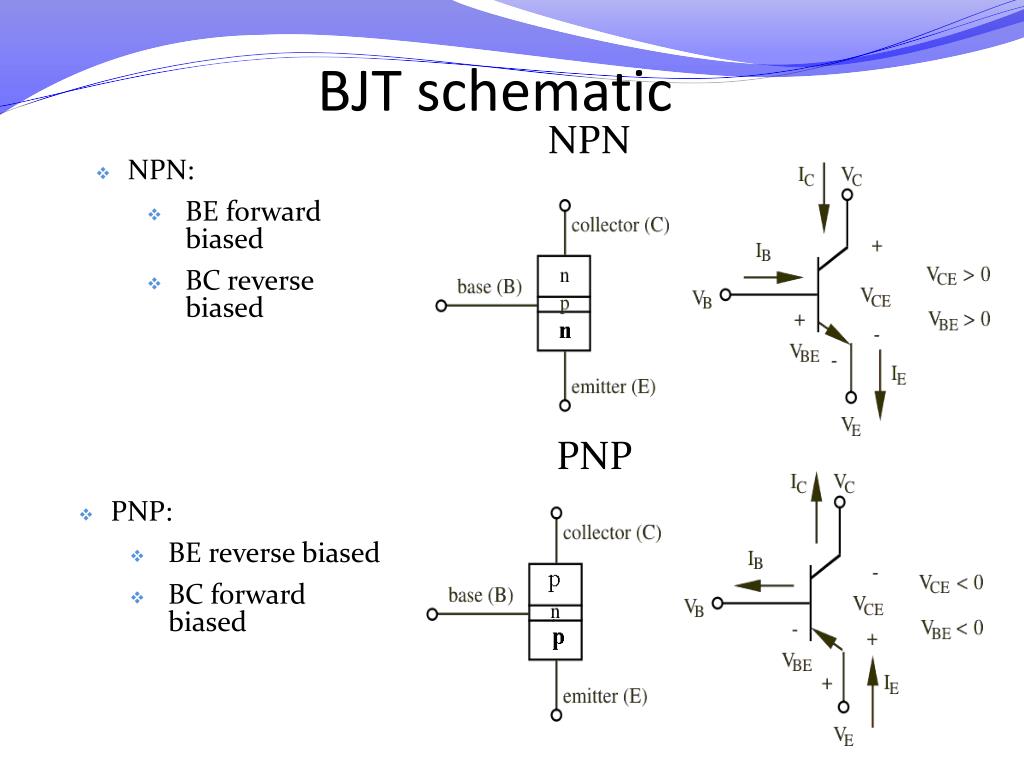

BJT schematic NPN • NPN: • BE forward biased • BC reverse biased PNP • PNP: • BE reverse biased • BC forward biased

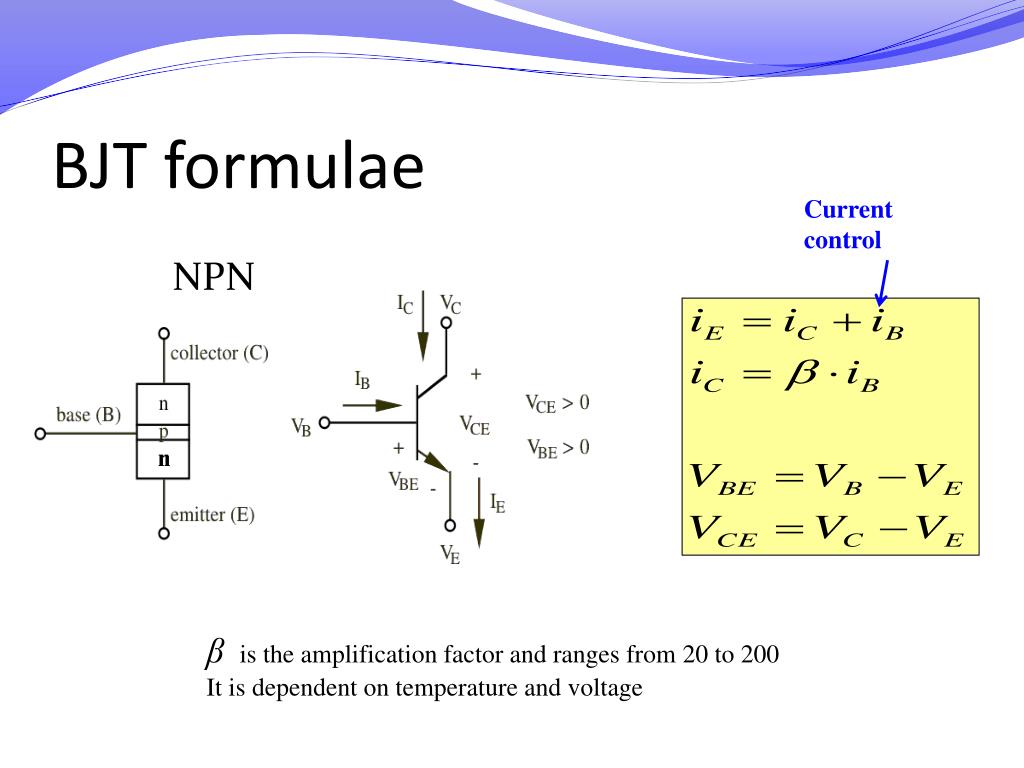

BJT formulae Current control NPN βis the amplification factor and ranges from 20 to 200 It is dependent on temperature and voltage

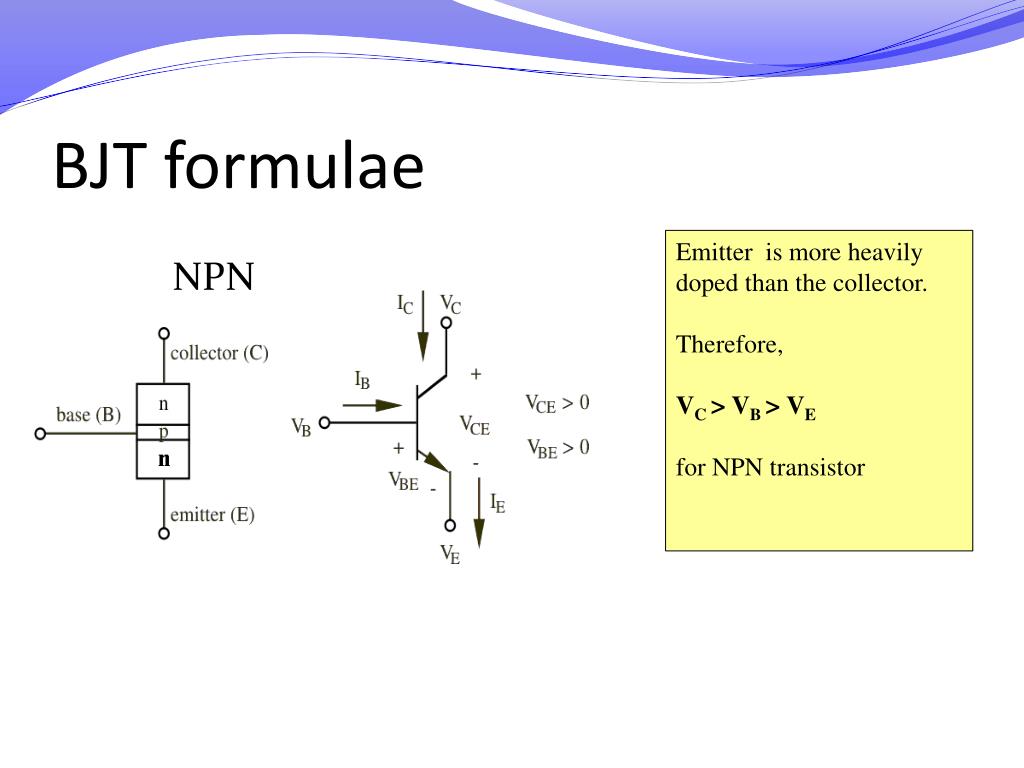

BJT formulae Emitter is more heavily doped than the collector. Therefore, VC > VB > VE for NPN transistor NPN

BJT formulae NPN αis the fraction of electrons that diffuse across the narrow base region 1– αis the fraction of electrons that recombine with holes in the base region to create base current

Common Emitter Transistor Circuit • Emitter is grounded and input voltage is applied to Base • Base-Emitter starts to conduct when VBEis about0.6V, iCflows with iC= β.iB • As iBfurther increases, VBE slowly increases to 0.7V, iCrises exponentially • As iCrises, voltage drop across RC increases and VCE drops toward ground (transistor in saturation, no more linear relation between iCand iB)

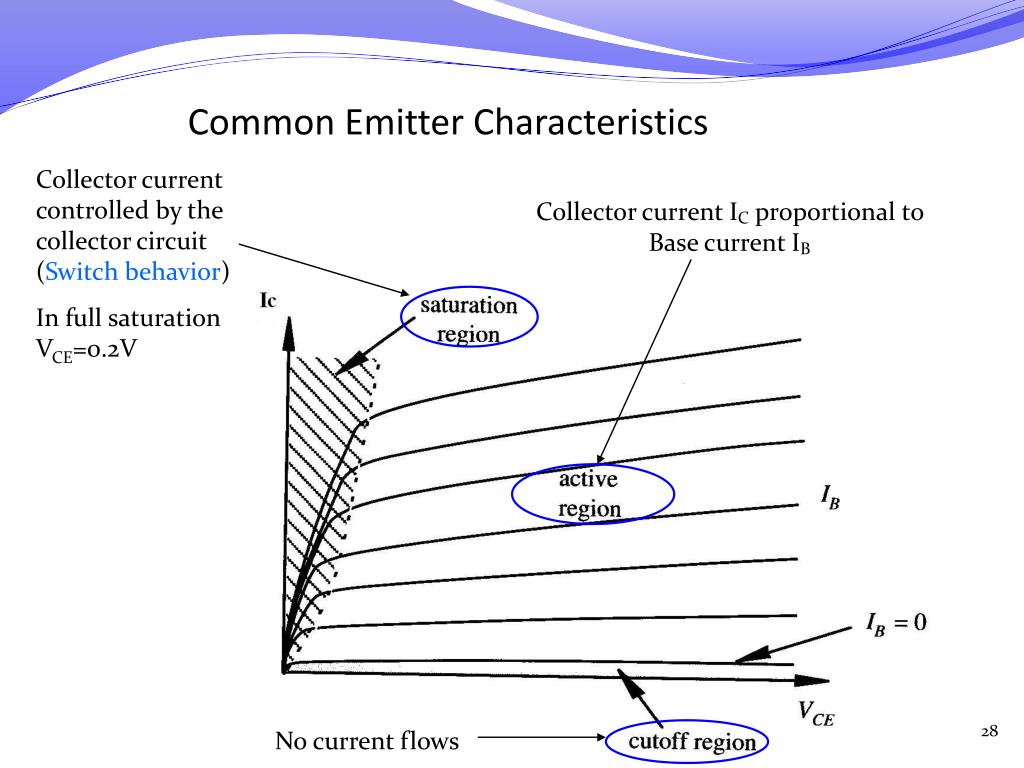

Common Emitter Characteristics Collector current controlled by the collector circuit (Switch behavior) In full saturation VCE=0.2V Collector current IC proportional to Base current IB No current flows

BJT operating regions

BJT as an amplifier • Question: What is the minimum Vin that makes the transistor act as an amplifier? Given: • RB = 10 kΩ • RC = 1 kΩ • β= 100 • VSupply = 10 V • Vcut-in= 0.7 V • Vsat= 0.2 V • Vsupply – iC. RC– VCE = 0 I • iC = (Vsupply – VCE) / RC • Set VCE = Vsat = 0.2V RC • iC = (10 – 0.2) / 1000 = 9.8mA VSupply • iC = β . iB Vin • iB = iC / β = 0.0098/100 = 0.098mA RB II • Vin– iB. RB– VBE = 0 • Vin = iB . RB+ VBE I • Set VBE = Vcut-in = 0.7V • Vin = (0.098) .(10-3).(10000 )+ 0.7V II • Vin = 1.68V or greater.

BJT as a switch • From exercise 3 • Turns on/off coils digitally

Power Transistors • Concerned with delivering high power • Used in high voltage and high current application • In general • Fabrication process different in order to: • Dissipate more heat • Avoid breakdown • Different types: Power BJTs, power MOSFETS, etc.

Field-Effect Transistor (FET) Presented by: Emanuel Jones

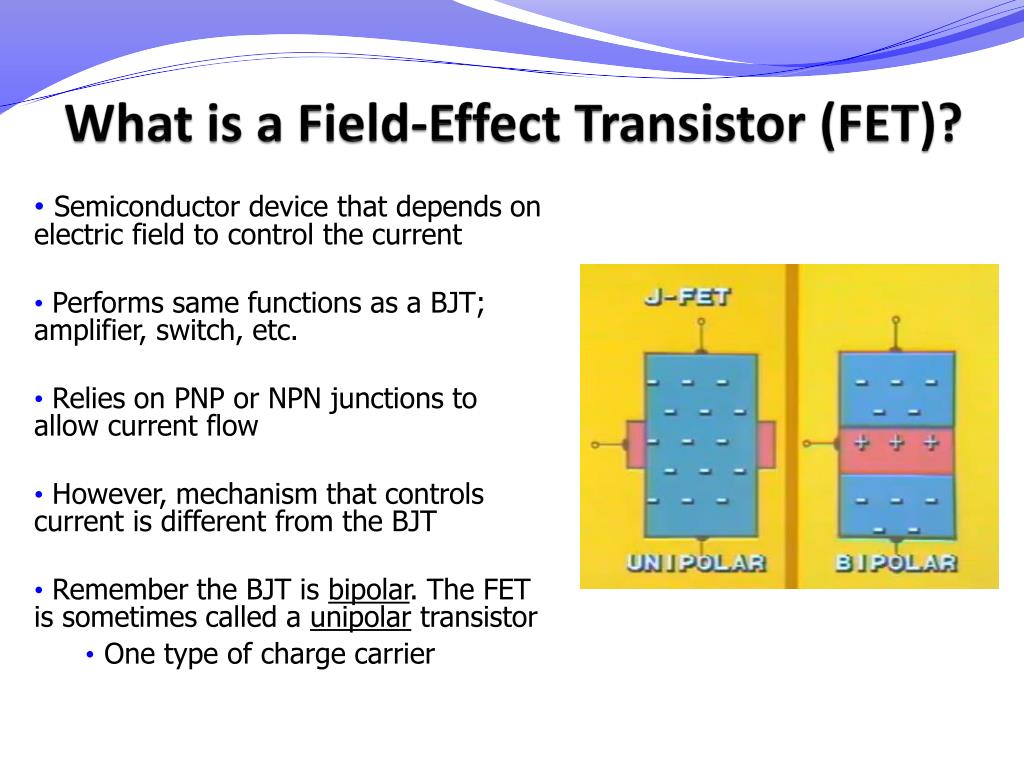

What is a Field-Effect Transistor (FET)? Semiconductor device that depends on electric field to control the current Performs same functions as a BJT; amplifier, switch, etc. Relies on PNP or NPN junctions to allow current flow However, mechanism that controls current is different from the BJT Remember the BJT is bipolar. The FET is sometimes called a unipolar transistor One type of charge carrier

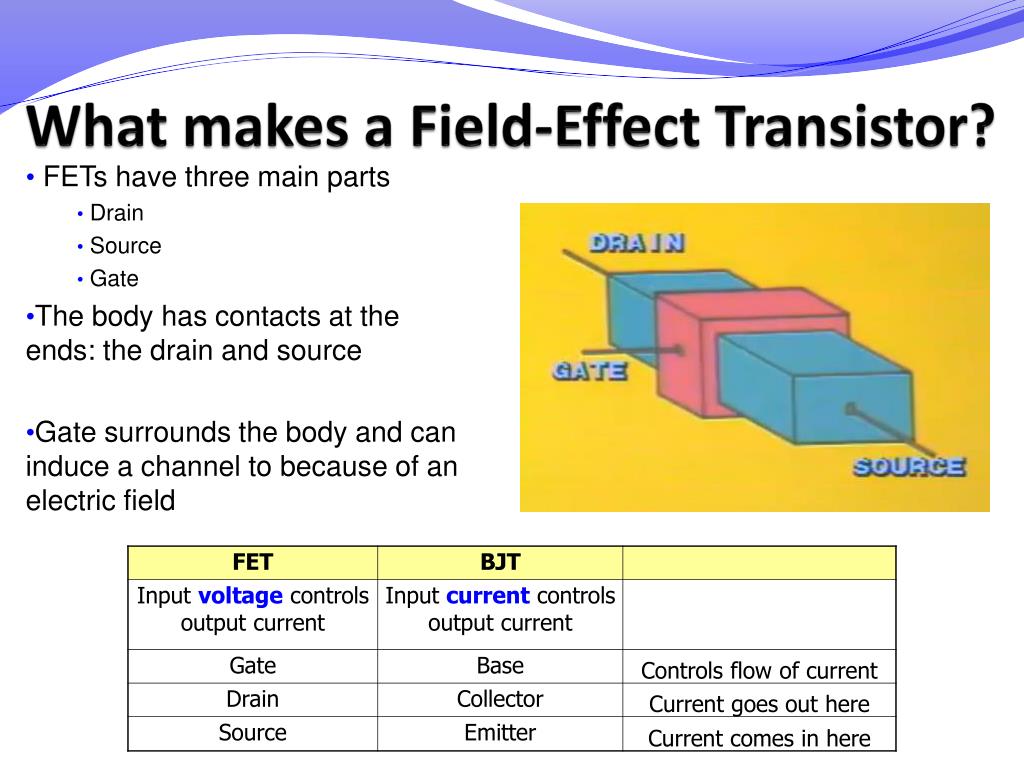

What makes a Field-Effect Transistor? FETs have three main parts Drain Source Gate The body has contacts at the ends: the drain and source Gate surrounds the body and can induce a channel to because of an electric field

How does a FET work? No Voltage to Gate Voltage to Gate Source Drain Source Drain n n Simplified Notation MOSFET shown here No current flow “Short” allows current flow

Types of Field-Effect Transistors MOSFET IGBT

JFET • A single channel of single doped SC material with terminals at end • Gate surrounds channel with doping that is opposite of the channel, making the PNP or NPN type • Uses reversed biased p-n junction to separate gate from body • Flow of current is similar to water flow through a garden hose • Pinch the hose (decrease current channel width) to decrease flow • Open the hose (increase channel width) to increase flow • Also, the pressure differential from the front and back of the hose (synonymous with the voltage from drain to source) effects the flow n-channel JFET p-channel JFET

JFET analysis I–V characteristics and output plot of a JFET n-channel transistor.

JFET analysis IDS:Drain current in saturation region VGS : Voltage at the gate Vth : Threshold voltage VDS : Voltage from drain to source VP : Pinch-off voltage [1] [1] - This "pinch-off voltage" varies considerably, even among devices of the same type. For example, VGS(off) for the Temic J201 device varies from -0.8V to -4V. Typical values vary from -0.3V to -10V.

MOSFET • Similar to JFET – remember… • A single channel of single doped SC material with terminals at end • Gate surrounds channel with doping that is opposite of the channel, making the PNP or NPN type • BUT, the MOSFET uses an insulator to separate gate from body, while JFET uses a reverse-bias p-n junction p-channel n-channel MOSFETenhanced mode MOSFETdepleted mode

MOSFET FETs vary voltage to control current. This illustrates how that works MOSFET drain current vs. drain-to-source voltage for several values of VGS − Vth; the boundary between linear (Ohmic) and saturation (active) modes is indicated by the upward curving parabola.

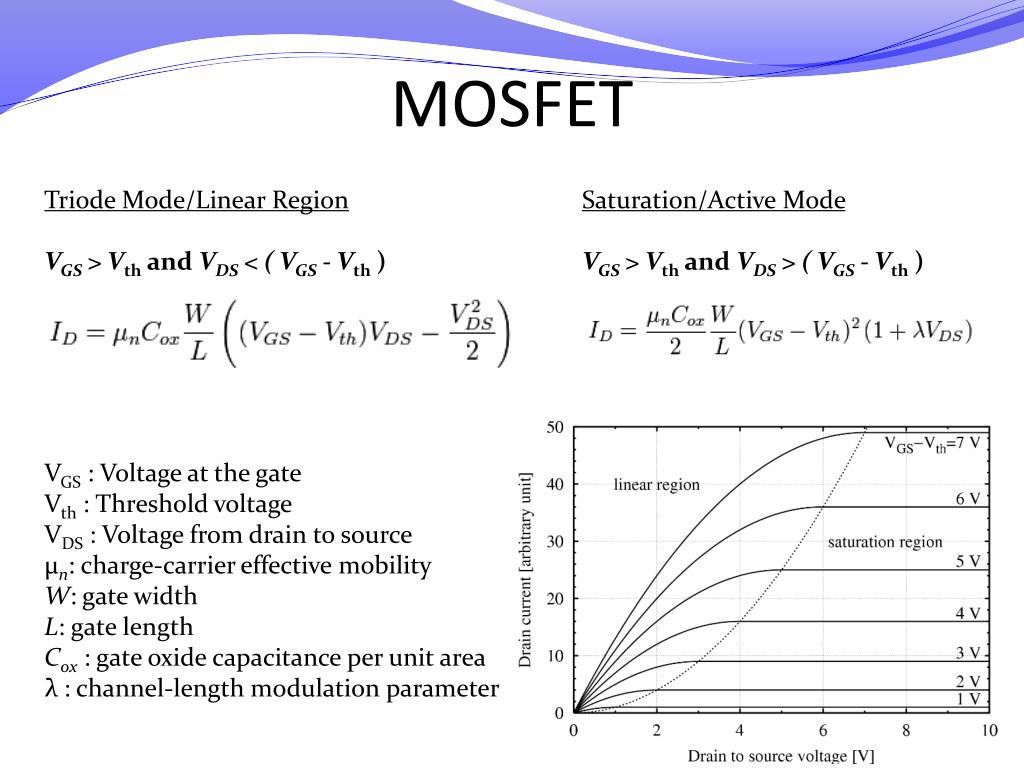

MOSFET Triode Mode/Linear Region VGS > Vth and VDS < ( VGS - Vth ) Saturation/Active Mode VGS > Vth and VDS > ( VGS - Vth ) VGS : Voltage at the gate Vth : Threshold voltage VDS : Voltage from drain to source μn: charge-carrier effective mobility W: gate width L: gate length Cox : gate oxide capacitance per unit area λ : channel-length modulation parameter

Characteristics and Applications of FETs JFETs • Simplest type of FET – easy to make • High input resistance • Low Capacitance • High input impedance • Slower speed in switching • Uses? • Displacement sensor • High input impedance amplifier • Low-noise amplifier • Analog switch • Voltage controlled resistor

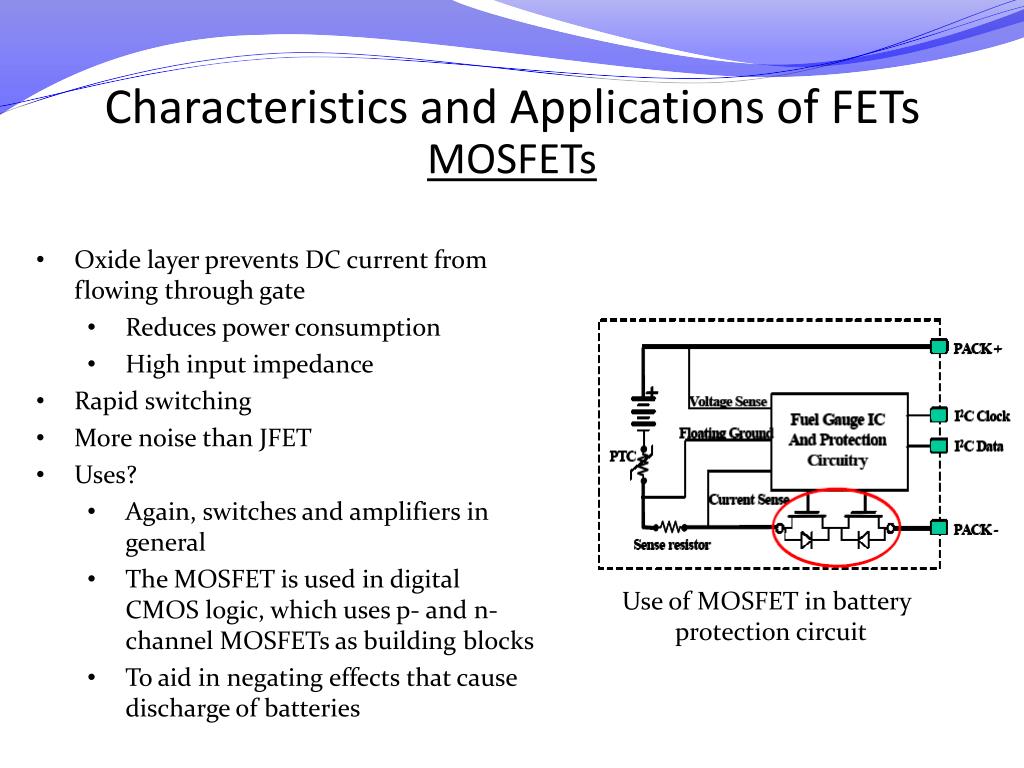

Characteristics and Applications of FETs MOSFETs • Oxide layer prevents DC current from flowing through gate • Reduces power consumption • High input impedance • Rapid switching • More noise than JFET • Uses? • Again, switches and amplifiers in general • The MOSFET is used in digital CMOS logic, which uses p- and n-channel MOSFETs as building blocks • To aid in negating effects that cause discharge of batteries Use of MOSFET in battery protection circuit

Presentation Summary 1 Transistor Fundamentals Chester Ong • Qualitative explanation of the what & how behind transistors • General application and history of transistors • “Physics” behind transistors : Doping Process, Effect on Semiconductors, & Formation of P-N Junction Electrical Properties of P-N Junction & using P-N to control / amplify current 2 Bipolar Junction TransistorsAjeyaKarajgikar • Introduction & Formulae • Explain function and characteristics of common emitter transistor • Describe BJT operating regions • Applications of BJTs 3 Power TransistorsAjeyaKarajgikar • Definition and Applications Field Effect Transistor Emanuel Jones 4 • Use of electric field to change the output current • JFETs and MOSFETs are most common, and accomplish similar goals as BJTs • Used for switches, amplification, applications for protecting electronics 5 Applications of Transistor (covered by each speaker in respective topic)
