  1. MT-RJ CONNECTOR SYSTEM Duplex SFF for FTTx applications

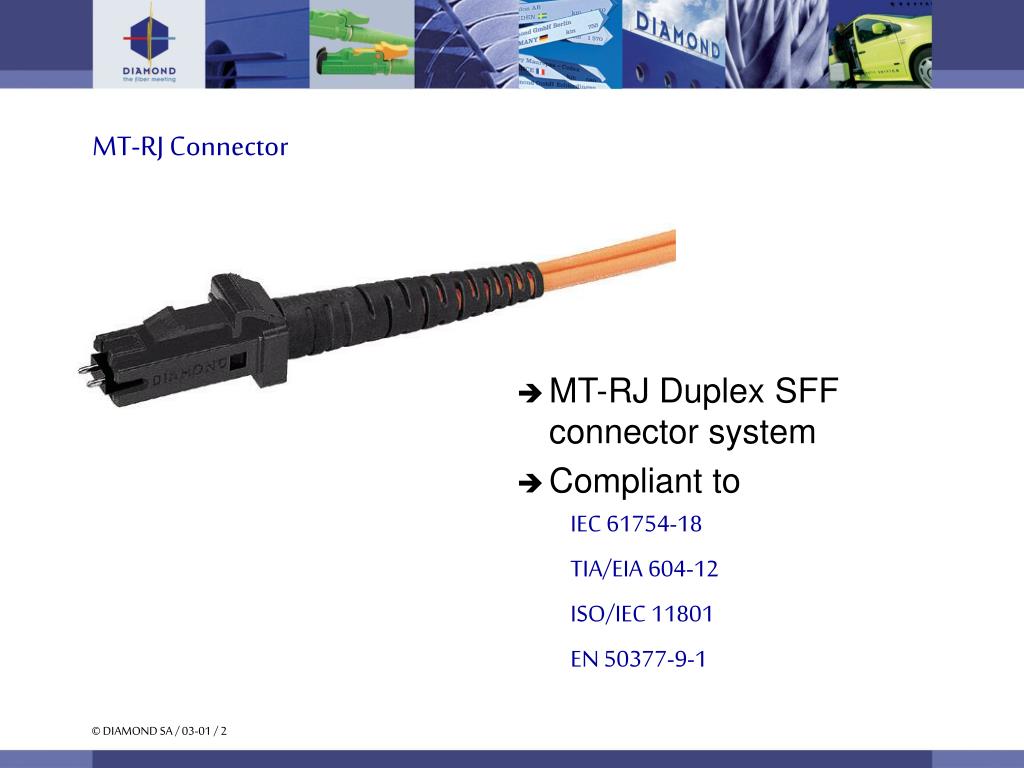

  2. MT-RJ Duplex SFF connector system Compliant to IEC 61754-18 TIA/EIA 604-12 ISO/IEC 11801 EN 50377-9-1 MT-RJ Connector

  3. The MT-RJ has a molded body with two fibers spaced 750 µm apart. Mini-MT double fiber ferrules High precision guiding pins Construction

  4. Reduced dimensions • MT-RJ connector allows the same transmission capacity within half the space. • The MT-RJ connector is half the size of duplex SC or ST-style connectors.

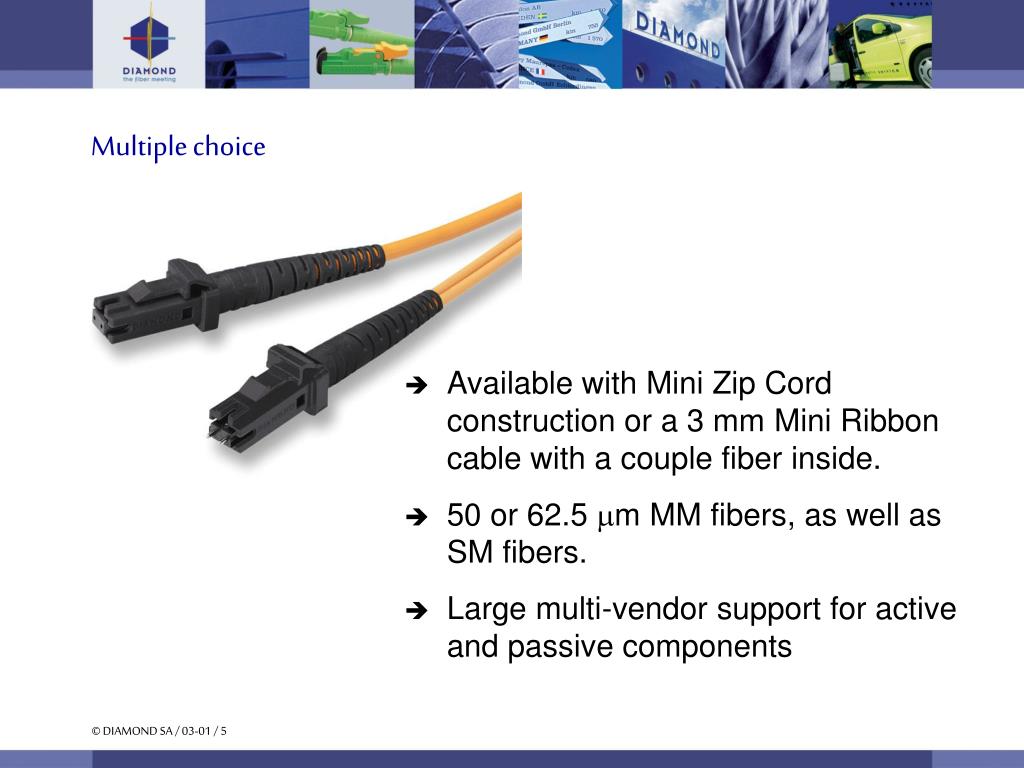

  5. Multiple choice • Available with Mini Zip Cord construction or a 3 mm Mini Ribbon cable with a couple fiber inside. • 50 or 62.5 mm MM fibers, as well as SM fibers. • Large multi-vendor support for active and passive components

  6. Excellent performance • The DIAMOND MT-RJ connector is our special solution for 10-100 Mbit Ethernet up to applications in Gigabit Ethernet. • ideal solution for FTT-X applications (including FTTC, FTTH and FTTD).

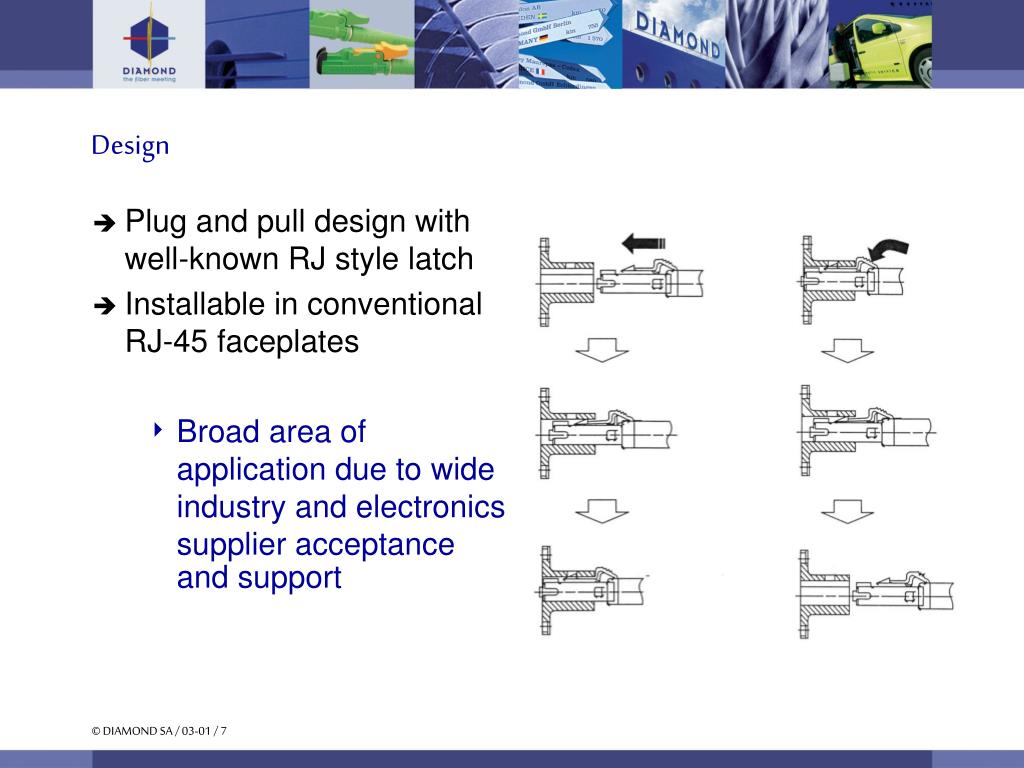

  7. Design • Plug and pull design with well-known RJ style latch • Installable in conventional RJ-45 faceplates • Broad area of application due to wide industry and electronics supplier acceptance and support

  8. MT-RJ Multimode values MM 0° PC Testing TIA/EIA 568 Measured Unit Insertion Loss Max. 0.75 Max. 0.5 dB (IL) (typ. 0.2) Return Loss Min. 20 Min. 20 dB (RL) (typ. 30) Repeatability of IL N/A ± 0.2 dB (500 mating cycles)

  9. MM Designation • Connector MT-RJ MM PC (male) • Connector MT-RJ MM PC (female) • MT-RJ Mating adapter

  10. MT-RJ Single Mode values SM 0° PC Requirements Measured Unit Insertion Loss Max. 0.75 Max. 1 dB (IL) Typ. (0.4) Return Loss Min. 20 Min. 40 dB (RL) Typ.(50) Repeatability of IL N/A Max. ± 0.2 dB

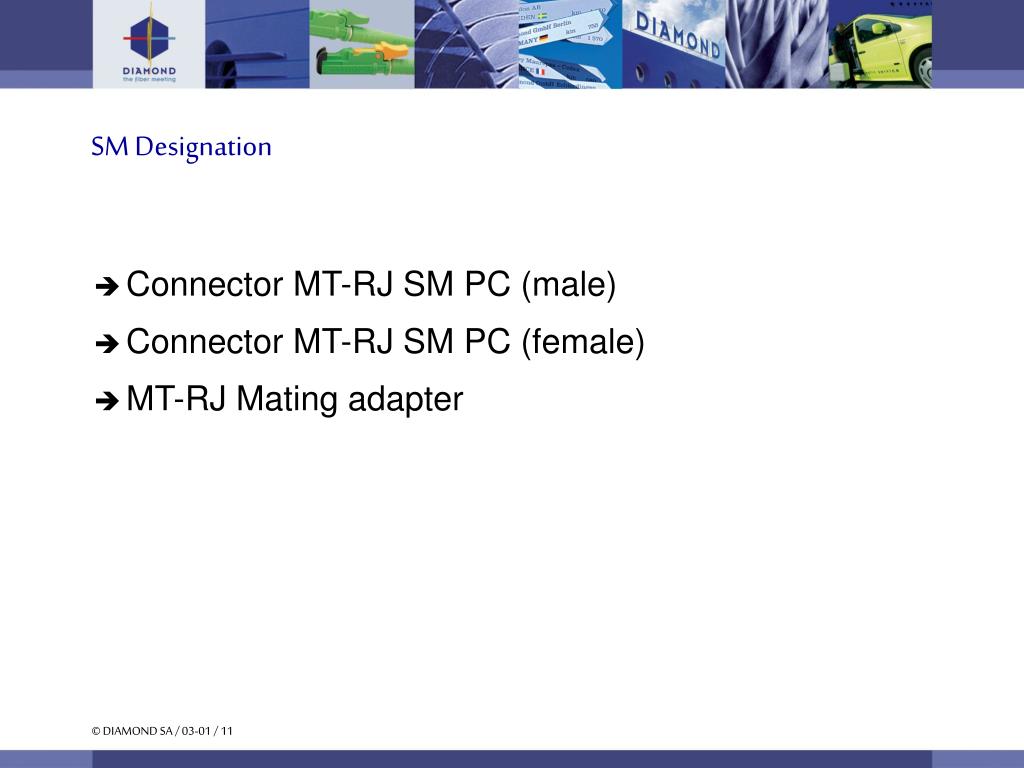

  11. SM Designation • Connector MT-RJ SM PC (male) • Connector MT-RJ SM PC (female) • MT-RJ Mating adapter
