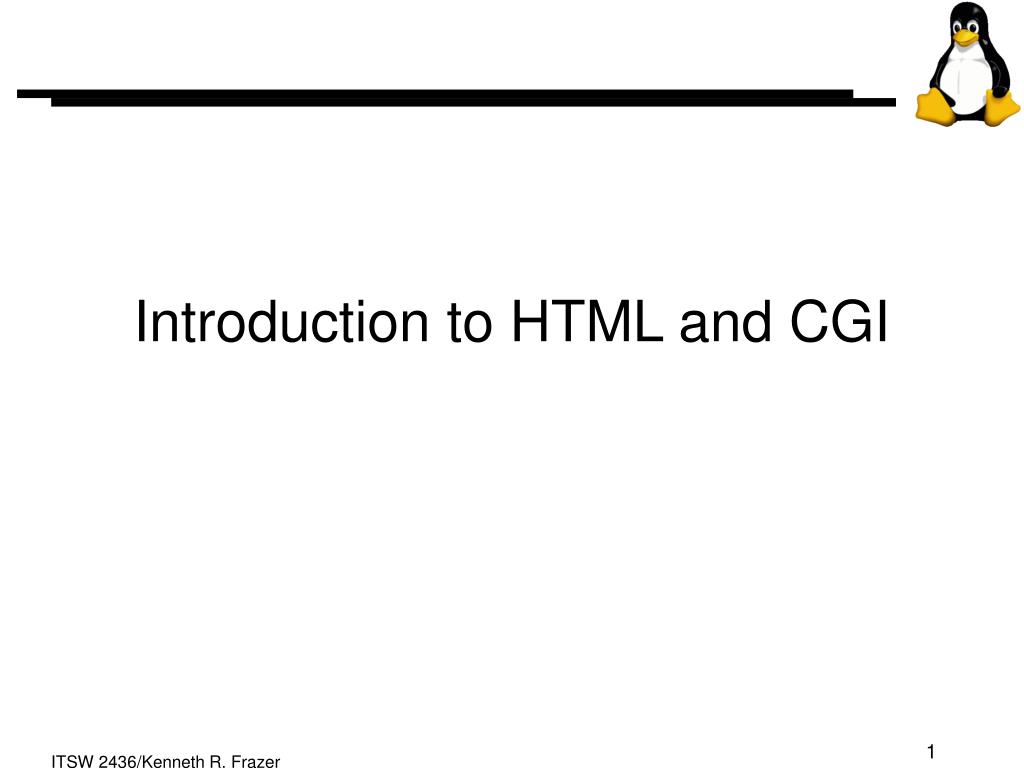

1. Introduction to HTML and CGI

2. HTML • HTML is simply a text markup language, similar to nroff, that is used for creating Web pages • Most HTML commands are like bookends; they have a start command and a corresponding stop command • <HTML> </HTML> • <BODY></BODY> • <TITLE></TITLE> • <H1></H1>

3. Parts of a Web Page • <HTML></HTML> specifies the start and stop of embedded HTML codes. This tells the browser to interpret the codes rather than treat them as normal text. Everything following the </HTML> tag is supposed to be ignored by the browser. • <BODY></BODY> contains the information you want to display in your page • Can consist of paragraphs of text, graphics, pictures, numbered and bulleted lists, and headers

4. Forms • Forms are a way to collect data from a user for processing by the server via your CGI script. • They are accessed by a <FORM> tag like this: <FORM action="http://abc.def.com/cgi-bin/script.cgi" method="POST" > • Forms are similar to paper forms we use every day. They consist of: • TEXT and TEXTAREA fields • CHECKBOXes • RADIO buttons • OPTION lists

5. Forms also have a submit button. • When the button is selected, the action associated with the FORM tag is executed • Additionally, the data associated with the form is sent to the server using the method indicated by the method keyword of the FORM tag • MAILTO: mails the data • GET sends the data as part of the URL • POST sends the data as name=value pairs; cgi script gets the data from STDIN

6. FORM Elements • TEXTAREA creates a field for entering large amounts (multiple lines) of text • INPUT can have one of the following: • TEXT creates a field for entering a single line of text • CHECKBOX allows users to select one or more items. Each item has an individual name. • RADIO buttons allow the user to select only one of several items. All items have the same name but each has a different value. • RESET sets all checkboxes and radio buttons back to their initial state

7. OPTIONS • OPTION is part of a SELECT tag • Used to generate a drop-down list of possible selections • <SELECT name="varname"> • <OPTION> Doodlebug</OPTION> • <OPTION>Unixbug</OPTION> • <OPTION>VWbug</OPTION> • </SELECTION>

8. CGI • Common Gateway Interface - used to communicate between the Web and your programs • Provides a way to make your Web pages more interactive • Provides a way for you to customize your Web pages for the individual user

9. How CGI Works • The web browser requests a form from the server • The user fills out the form and "presses" the submit button • The browser sends the form's data to the server • The server recognizes the CGI call and passes the script name and the data to the set of programs known as CGI • The CGI application massages the data, creates a set of environmental variables, and starts the script

10. The CGI script runs, usually generating a response to the user as well as other actions • The CGI software passes the response created by the script back to the server • The server passes the response back to the browser • The browser displays the response to the user

11. CGI in Action User requests a form Server sends form CGI Process Data forwarded to CGI app User submits form CGI response to server Response to user

12. CGI Scripts • CGI scripts can be written in shell, Perl, C, or any other language the server's CGI software is "aware" of • In shell, the scripts usually consist of shell commands to read the data returned from the form from stdin and parse it into shell variables • The script also generates HTML formatting commands which are sent to stdout • Along with this, the input data is processed, a response is generated, and it is sent to stdout

13. Since the CGI script is a shell script in our case, virtually anything you can do with shell can be used for processing your script • Things to note: • The CGI software passes the data received from the form to your script via stdin when using the POST method • Output from your script is sent to stdout where the CGI software receives it for forwarding to the user's browser

14. Input Format • The input, for a POST method, is sent as a line of data with the name=value pairs separated by &s • Special characters are sent in hexadecimal as %xx where xx is the hex code for the character • %40 - @ • %5B - [ • %5D - ] • %3D - =

15. Security • Since CGI scripts are executable, you are letting any user run a program on your system which may not be the safest thing to do • Any script interacting with a user has the possibility of the user doing something malicious to obtain unauthorized access to your system • Even innocent looking scripts can be dangerous

16. Security Precautions • Never trust your guests • Put cgi scripts in a special directory: cgi-bin • Avoid "~filename" inclusions in email • Watch out for eval statements which allow you to construct a string and have the shell execute the string • Special characters can confuse a script. Remove any special characters from the input string that might do things you don't want such as : or |
