  1. What Do We Know About Water And Sewage Management?By Munilogic SE

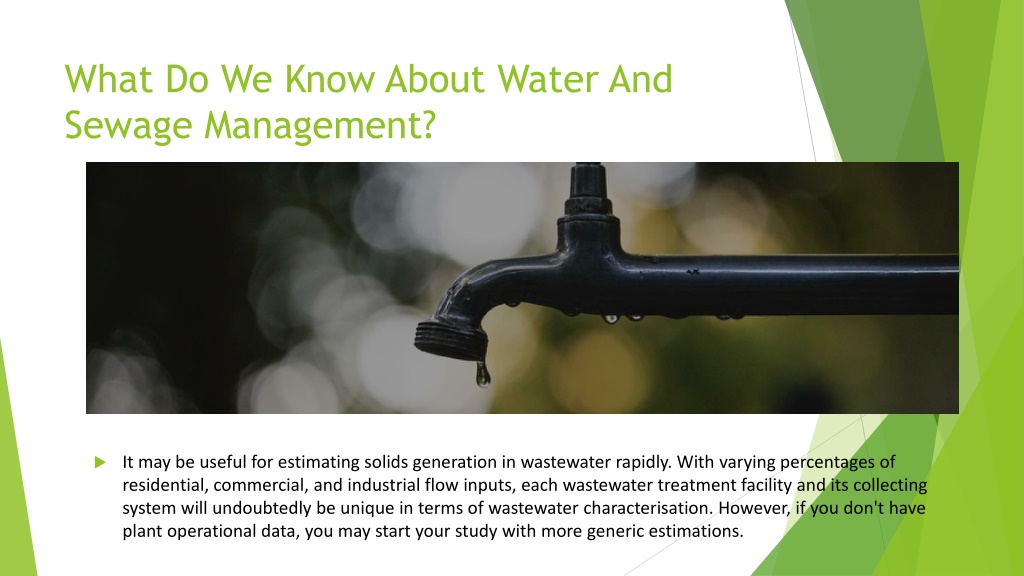

  2. What Do We Know About Water And Sewage Management? • It may be useful for estimating solids generation in wastewater rapidly. With varying percentages of residential, commercial, and industrial flow inputs, each wastewater treatment facility and its collecting system will undoubtedly be unique in terms of wastewater characterisation. However, if you don't have plant operational data, you may start your study with more generic estimations.

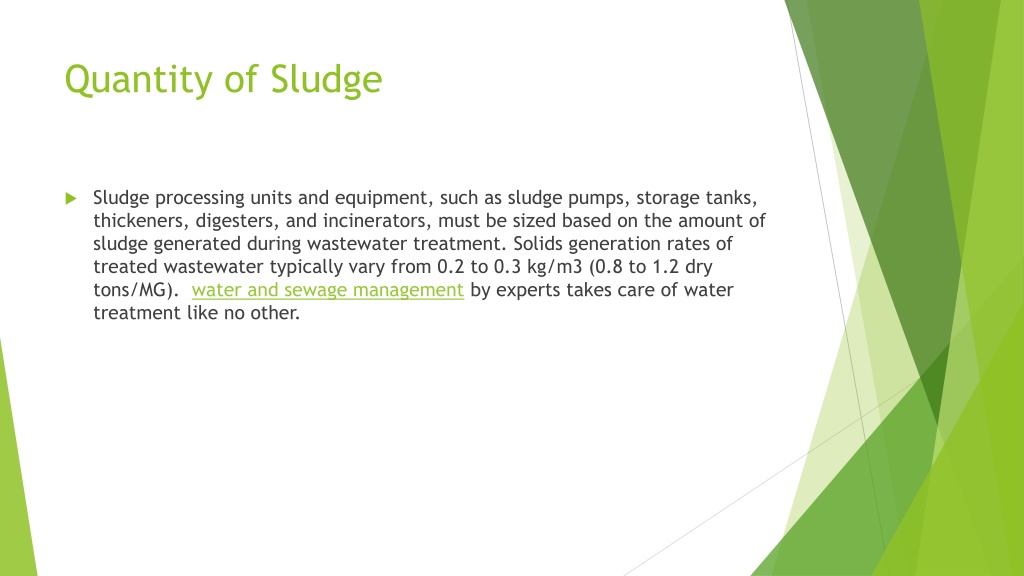

  3. Quantity of Sludge • Sludge processing units and equipment, such as sludge pumps, storage tanks, thickeners, digesters, and incinerators, must be sized based on the amount of sludge generated during wastewater treatment. Solids generation rates of treated wastewater typically vary from 0.2 to 0.3 kg/m3 (0.8 to 1.2 dry tons/MG). water and sewage management by experts takes care of water treatment like no other.

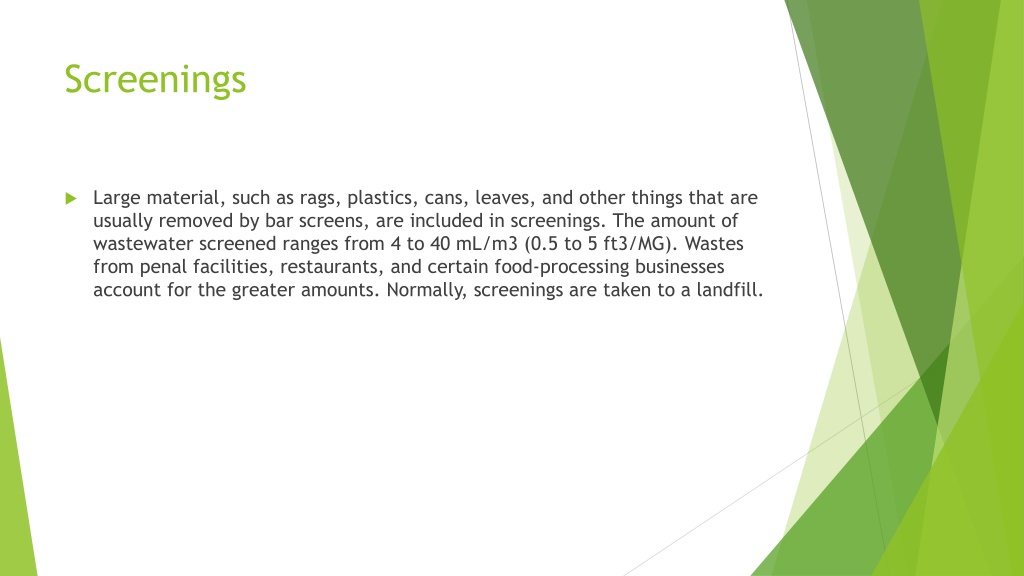

  4. Screenings • Large material, such as rags, plastics, cans, leaves, and other things that are usually removed by bar screens, are included in screenings. The amount of wastewater screened ranges from 4 to 40 mL/m3 (0.5 to 5 ft3/MG). Wastes from penal facilities, restaurants, and certain food-processing businesses account for the greater amounts. Normally, screenings are taken to a landfill.

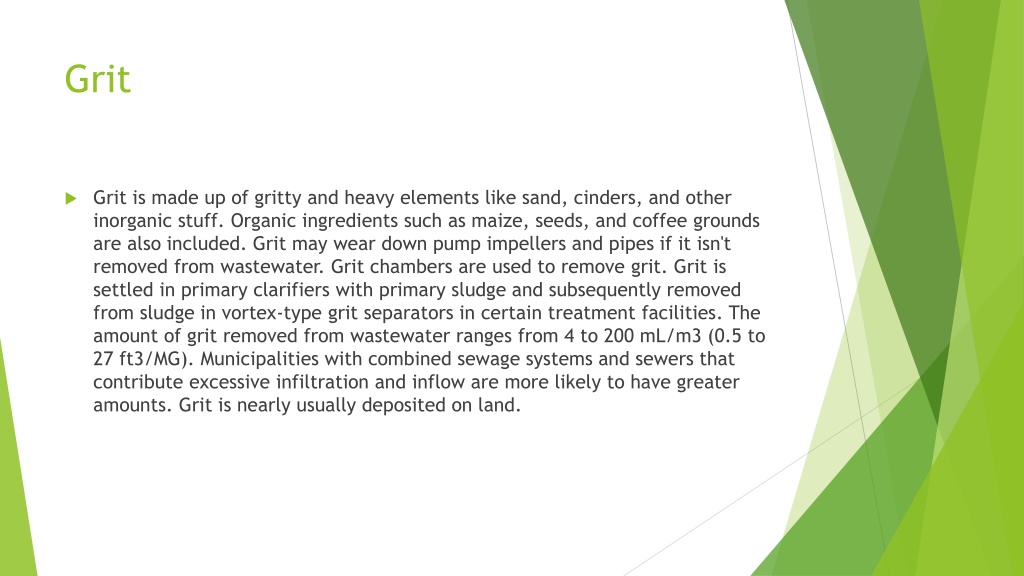

  5. Grit • Grit is made up of gritty and heavy elements like sand, cinders, and other inorganic stuff. Organic ingredients such as maize, seeds, and coffee grounds are also included. Grit may wear down pump impellers and pipes if it isn't removed from wastewater. Grit chambers are used to remove grit. Grit is settled in primary clarifiers with primary sludge and subsequently removed from sludge in vortex-type grit separators in certain treatment facilities. The amount of grit removed from wastewater ranges from 4 to 200 mL/m3 (0.5 to 27 ft3/MG). Municipalities with combined sewage systems and sewers that contribute excessive infiltration and inflow are more likely to have greater amounts. Grit is nearly usually deposited on land.

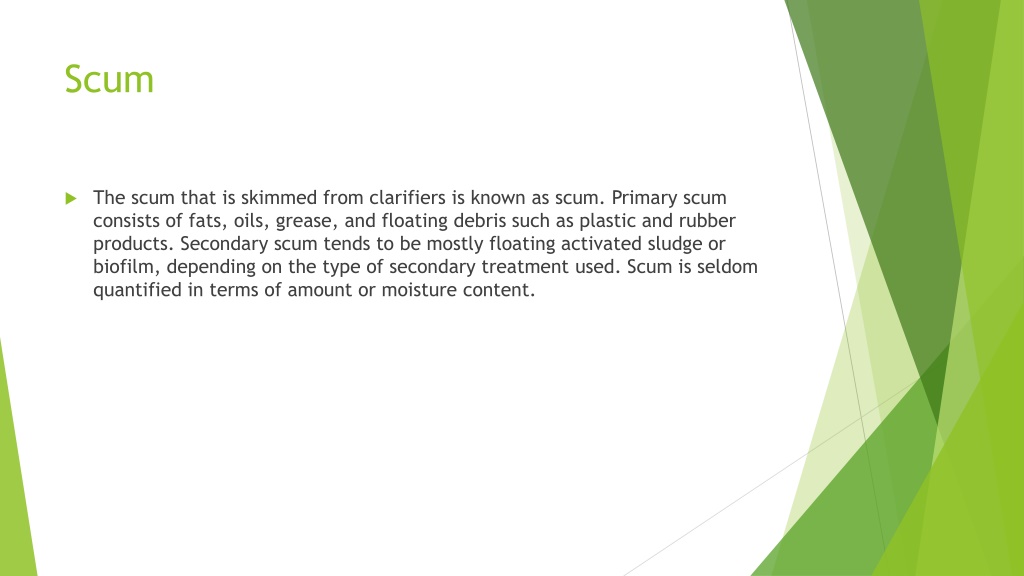

  6. Scum • The scum that is skimmed from clarifiers is known as scum. Primary scum consists of fats, oils, grease, and floating debris such as plastic and rubber products. Secondary scum tends to be mostly floating activated sludge or biofilm, depending on the type of secondary treatment used. Scum is seldom quantified in terms of amount or moisture content.

  7. Thank You • For more Visit : https://munilogic.com/blog/
