First Come, First Served (FCFS)

munin avatar
munin
24 diapositives · 1.7K Views · Jul 02, 2012

First Come, First Served (FCFS). The simplest algorithm When a process becomes ready, it enters the FIFO queue. When the currently-running process ceases to execute, the oldest process in the queue is selected for running. Non-preemptive. FIFO Ready Queue. CPU. dispatched.

#place #appetizer #airspeed ambassador #pope adeodatus i #william throsby bridges #lennox danielson #snakebite #thomas adams
First Come, First Served (FCFS) - slide 1
01 / 24First Come, First Served (FCFS)
1 / 17

Télécharger la présentation

First Come, First Served (FCFS)
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

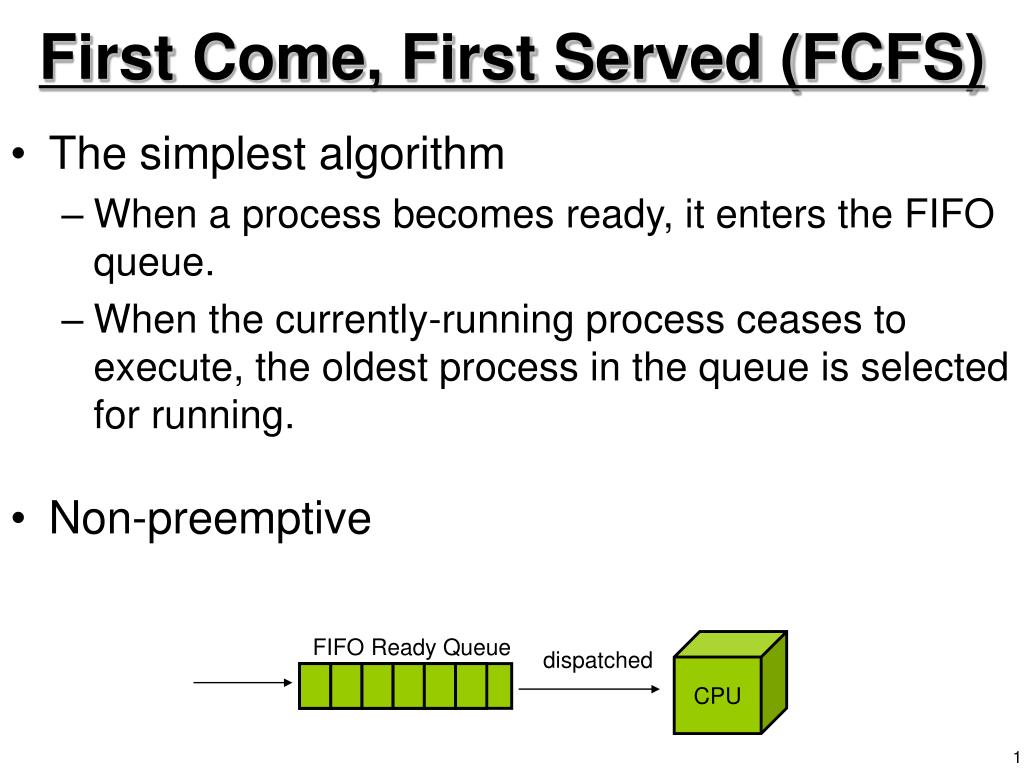

  1. First Come, First Served (FCFS) • The simplest algorithm • When a process becomes ready, it enters the FIFO queue. • When the currently-running process ceases to execute, the oldest process in the queue is selected for running. • Non-preemptive FIFO Ready Queue CPU dispatched

  2. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 P3 P4 P5

  3. The average waiting time is not minimal and varies substantially if the process execution times vary. • ex 1 Process Arrival Time Process Exec Time P1 0 24 msec P2 1 3 msec P3 2 3 msec • Calculate the average waiting time, turnaround time and throughput. • ex 2 Process Arrival Time Process Exec Time P2 0 3 msec P3 1 3 msec P1 2 24 msec • Calculate the average waiting time, turnaround time and throughput.

  4. Exercises • Process Arrival T Exec TimeP1 0 24 msecP2 1 3 msecP3 2 3 msec • Process Arrival T Exec TimeP2 0 3 msecP3 1 3 msecP1 2 24 msec 6 0 24 27 30 0 3 30 P1 P2 P2 P3 P3 P1 Waiting time = (0 + 23 + 25) / 3 = 16 sec Turnaround t = (24 + 26 + 28) / 3 = 26 sec Throughput = 3/30 = 0.1 Waiting time = (0 + 2 + 4) / 3 = 2 sec Turnaround t = (3 + 5 + 28) / 3 = 14.3 sec Throughput = 3/30 = 0.1

  5. Normalized turnaround time • The ratio of turnaround time to process exec time. • A relative delay experienced by a process • The longer process exec time, the greater absolute amount of tolerable delay. • ex 1 Process Arrival Time Process Exec Time P1 0 24 msec P2 1 3 msec P3 2 3 msec • ex 2 Process Arrival Time Process Exec Time P2 0 3 msec P3 1 3 msec P1 2 24 msec • Calculate the turnaround time and the normalized turnaround time for each process.

  6. Exercises • Process Arrival T Exec TimeP1 0 24 msecP2 1 3 msecP3 2 3 msec • Process Arrival T Exec TimeP2 0 3 msecP3 1 3 msecP1 2 24 msec 6 0 24 27 30 0 3 30 P1 P2 P2 P3 P3 P1 Waiting time = (0 + 23 + 25) / 3 = 16 sec Turnaround t = (24 + 26 + 28) / 3 = 26 sec NT = 24/24 + 26/3 + 28/3 = 1 + 8.6 + 9.3 = 18.9 sec Throughput = 3/30 = 0.1 Waiting time = (0 + 2 + 4) / 3 = 2 sec Turnaround t = (3 + 5 + 28) / 3 = 12 sec NT = 3/3 + 5/3 + 28/24 = 1 + 1.6 + 1.1 = 3.7 sec Throughput = 3/30 = 0.1

  7. The normalized turnaround times for P2 and P3 are intolerable. • This problem occurs whenever a short-lived process arrives right after a long-lived process. • When the variance of process exec time is high, FCFS penalizes short processes. • FCFS is not a fair scheduling algorithm; it does not treat long-lived and short-lived processes equally.

  8. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 T NT 3-0 = 3 3/3=1… 9-2=7 7/6=1… 13-4=7 7/4=1… 18-6=12 12/5=2… 20-8=12 12/2=6 Avg T Avg NT 8.60 2.56 P1 P2 P3 P4 P5

  9. Round Robin • Clock-based preemption of process (time slicing) • When a clock interrupt occurs, the currently-running process is placed in the end of the Ready queue, and the next ready process is executed. • A straightforward way to reduce the penalty that short-lived processes suffer with FCFS. • A fairer algorithm than FCFS Ready Queue FIFO and Circular Queue CPU dispatched timeout

  10. A Key Design Issue in RR • How to determine the length of time quantum (time slice)? • If it’s too short, • Processing overhead becomes high to handle clock interrupts and perform context switches. • (the time to handle a clock interrupt and perform a context switch) / (time quantum) should be small enough. • If it’s too long, • RR degenerates to FCFS.

  11. Exercise 1 • Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 RRtq=1 P3 P4 P5

  12. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 RRtq=1 P3 P4 P5

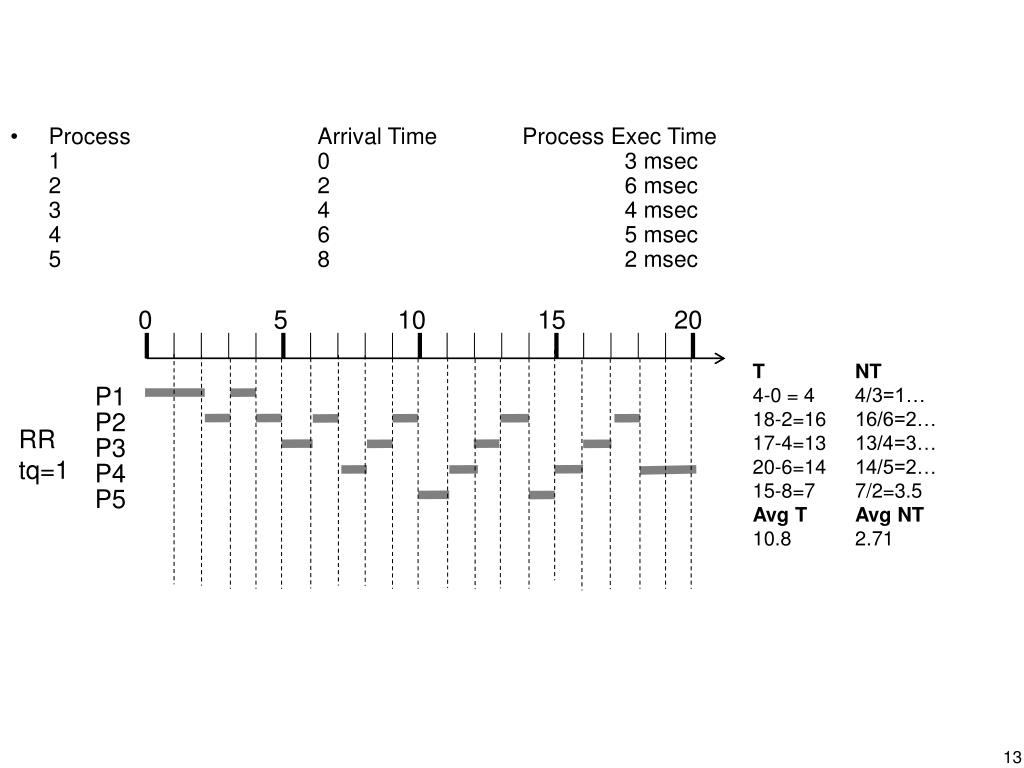

  13. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 T NT 4-0 = 4 4/3=1… 18-2=16 16/6=2… 17-4=13 13/4=3… 20-6=14 14/5=2… 15-8=7 7/2=3.5 Avg T Avg NT 10.8 2.71 P1 P2 RRtq=1 P3 P4 P5

  14. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 T NT 4-0 = 4 4/3=1… 18-2=16 16/6=2… 17-4=13 13/4=3… 20-6=14 14/5=2… 15-8=7 7/2=3.5 Avg T Avg NT 10.8 2.71 P1 P2 RRtq=1 P3 P4 P5 17 context switches 0 5 10 15 20 T NT 3-0 = 3 3/3=1… 9-2=7 7/6=1… 13-4=7 7/4=1… 18-6=12 12/5=2… 20-8=12 12/2=6 Avg T Avg NT 8.60 2.56 P1 P2 FCFS P3 P4 P5

  15. Exercise 2 • Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec Avg process exec time = 4 msec 0 5 10 15 20 P1 P2 RRtq=4 P3 P4 P5

  16. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 RRtq=4 P3 P4 P5

  17. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 T NT 4-0 = 4 4/3=1… 18-2=16 16/6=2… 17-4=13 13/4=3… 20-6=14 14/5=2… 15-8=7 7/2=3… Avg T Avg NT 10.8 2.71 P1 P2 RRtq=1 P3 P4 P5 17 context switches 0 5 10 15 20 T NT 3-0 = 3 3/3=1 17-2=15 15/6=2… 11-4=7 7/4=1… 20-6=14 14/5=2… 19-8=11 11/2=5.5 Avg T Avg NT 10 2.71 P1 P2 RRtq=4 P3 P4 P5 6 context switches

  18. Exercise 3 • Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 RRtq=6 P3 P4 P5

  19. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 RRtq=6 P3 P4 P5

  20. Process Arrival Time Process Exec Time1 0 3 msec2 2 6 msec3 4 4 msec4 6 5 msec5 8 2 msec 0 5 10 15 20 P1 P2 RRtq=6 P3 P4 P5 0 5 10 15 20 P1 P2 FCFS P3 P4 P5

  21. Time Quantum • Should be slightly longer than typical process execution time • Should be shorter than the longest process exec time. • Generally 10 to 100 msec

  22. Another Fairness Issue • RR treats long-lived and short-lived processes equally. • However, it does not treat CPU-bound and I/O-bound processes equally. • CPU-bound process • Mainly performs computational work and occasionally uses I/O devises • I/O-bound process • spends more time using I/O devises than using the CPU.

  23. I/O-bound processes use less CPU time than CPU-bound processes. • An I/O-bound process uses for a short period and then is blocked for an I/O operation. It returns to the Ready queue when the I/O operation is completed. • A CPU-bound process uses a complete time quantum and returns to the Ready queue. Ready Queue CPU exit dispatched admitted interrupted CPU-bound processes tend touse more CPU time, whichleads to poor performancein I/O-bound processes. I/O 1completed I/O 1 Blocked Queue I/O type 1 wait I/O N completed I/O N Blocked Queue I/O type N wait

  24. HW • Read Paper #1 (see the course web site), and summarize how the proposed scheduling algorithm addresses this fairness issue. • Use a queuing diagram in your explanation.
