Comparing and Contrasting C#, Scheme, and T-SQL

1. Comparing and Contrasting C#, Scheme, and T-SQL Joseph P. Mohr

2. Outline • C# Overview • Scheme Overview • T-SQL Overview • Language Comparisons • Conclusions

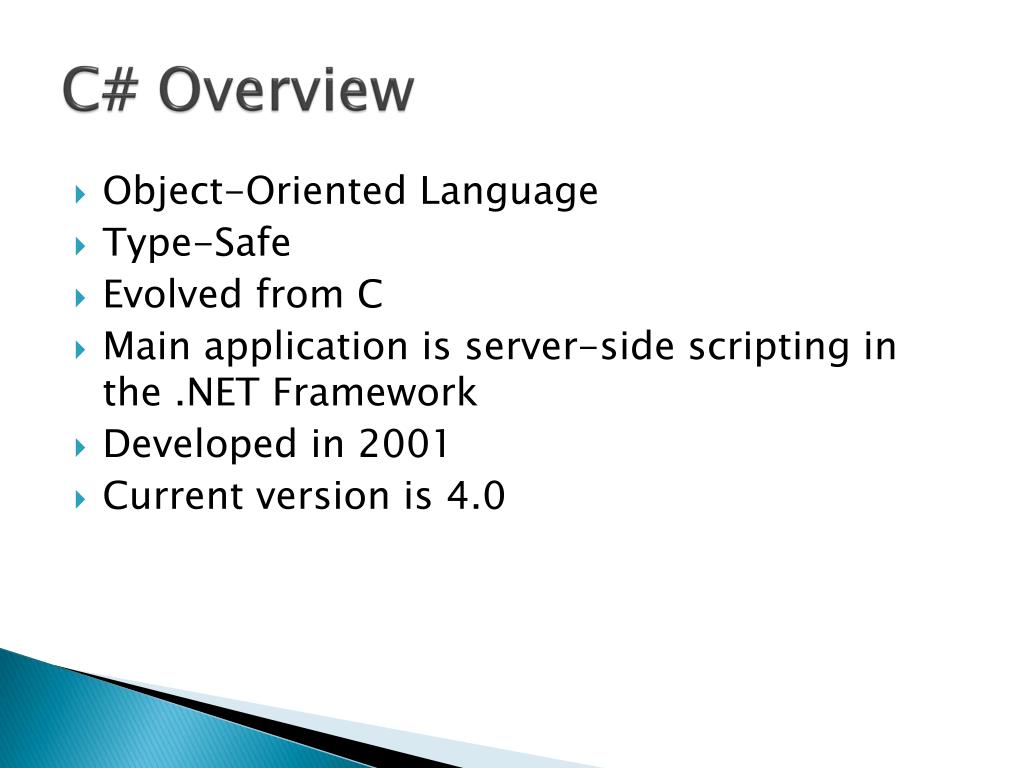

3. C# Overview • Object-Oriented Language • Type-Safe • Evolved from C • Main application is server-side scripting in the .NET Framework • Developed in 2001 • Current version is 4.0

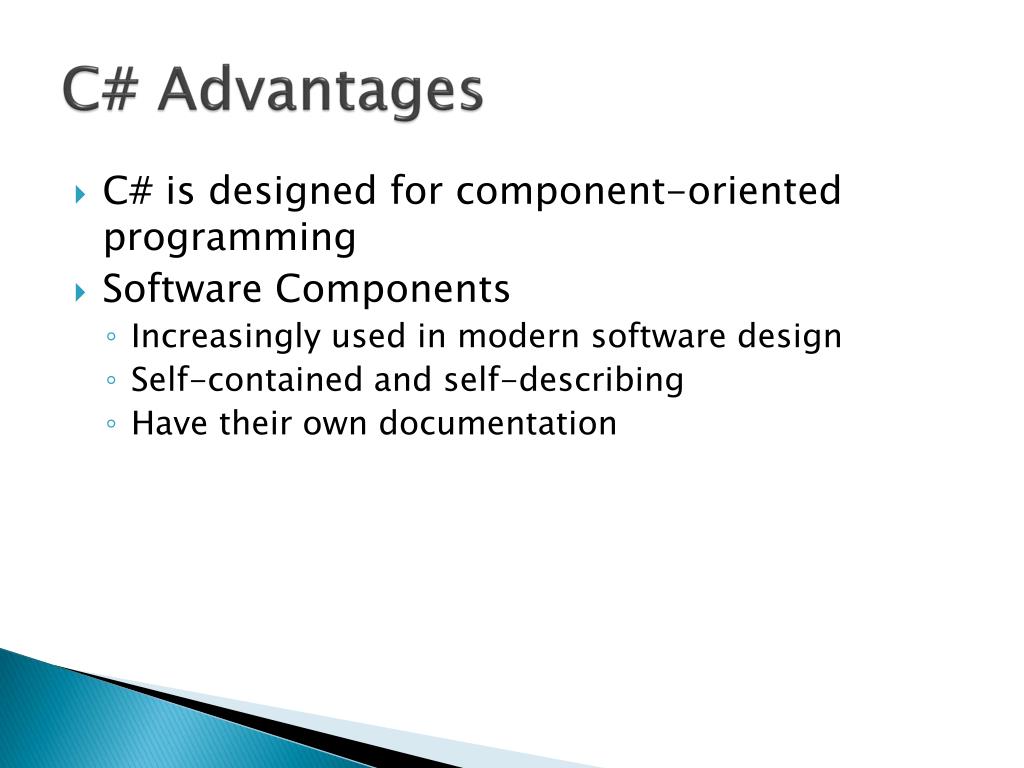

4. C# Advantages • C# is designed for component-oriented programming • Software Components • Increasingly used in modern software design • Self-contained and self-describing • Have their own documentation

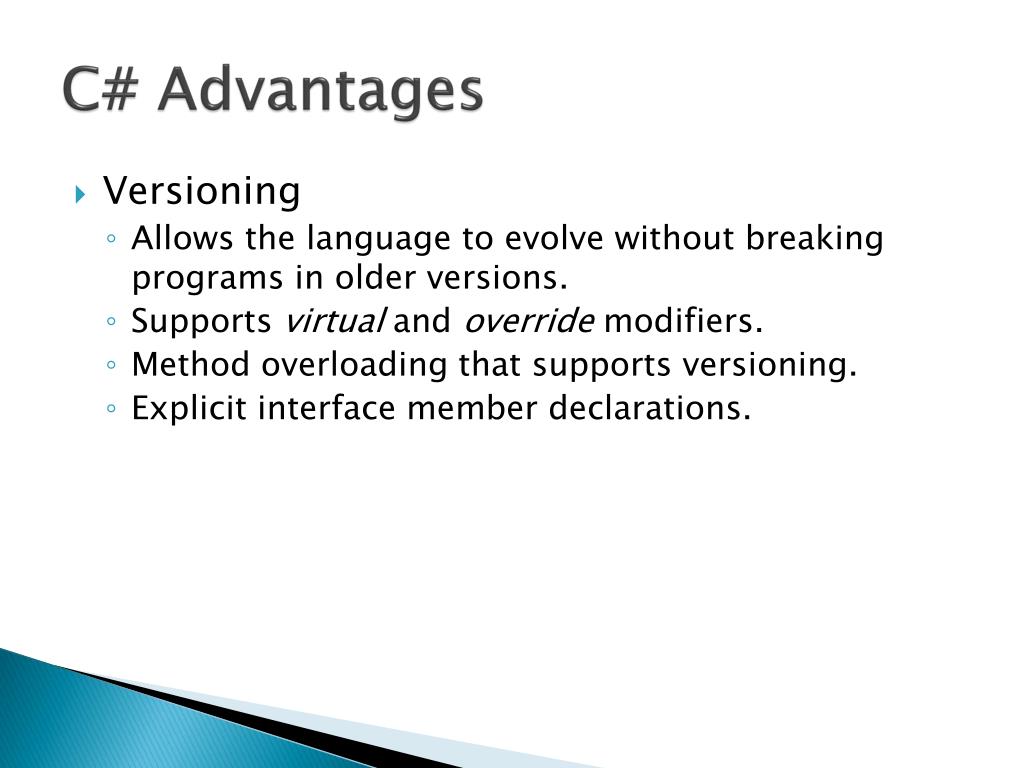

5. C# Advantages • Versioning • Allows the language to evolve without breaking programs in older versions. • Supports virtual and override modifiers. • Method overloading that supports versioning. • Explicit interface member declarations.

6. C# Advantages • Virtual and Override • If a method is declared virtual, then the implementation evokes is determined at run-time. • Non-Virtual methods have the implementation determined at compile-time. • The override modifier can be used to provide another implementation for an existing virtual method.

7. C# Program Structure • C# programs are comprised of the following: • Programs • Namespaces • Types • Members • Assemblies

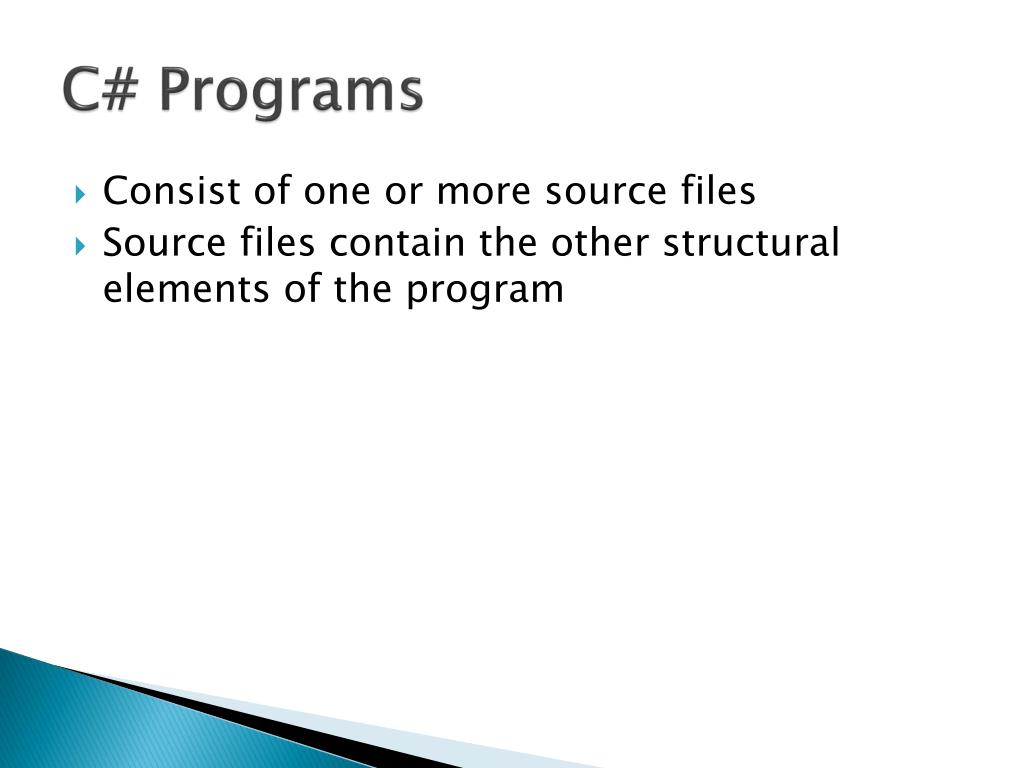

8. C# Programs • Consist of one or more source files • Source files contain the other structural elements of the program

9. C# Namespaces • Declared at the top of the source file with the using directive • Avoid having to use the fully qualified names in the source code.

10. C# Types • Most common types: • Classes • Interfaces • Can contain members and namespaces • Either reference or value • With reference type, two variables can affect the same object.

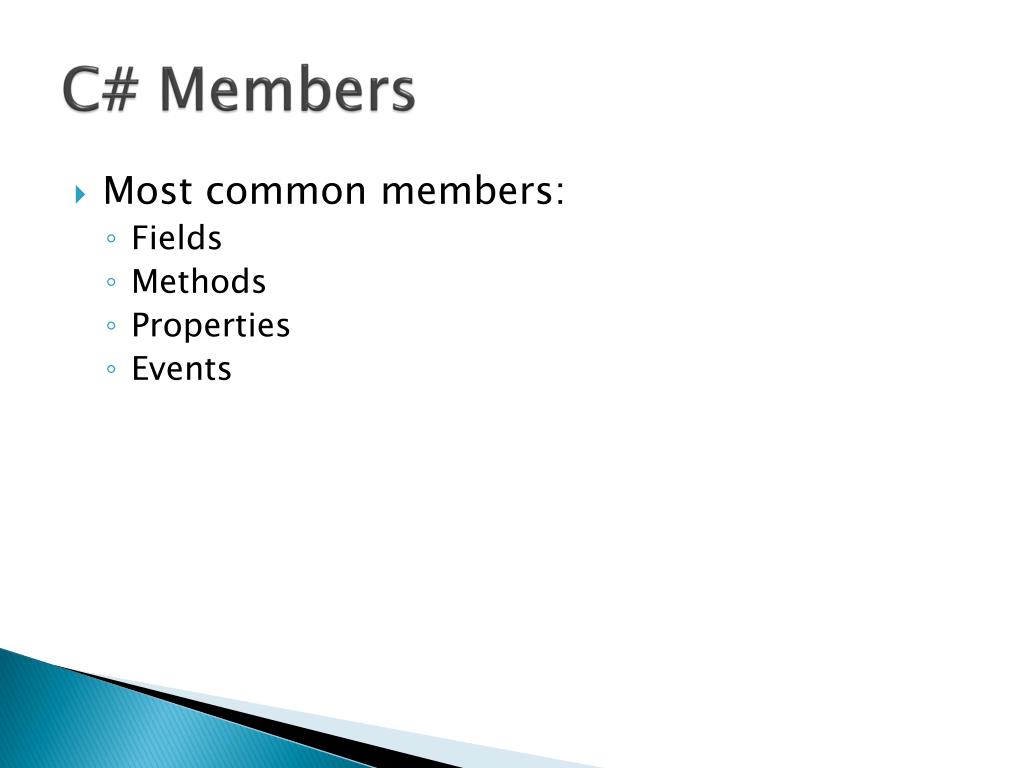

11. C# Members • Most common members: • Fields • Methods • Properties • Events

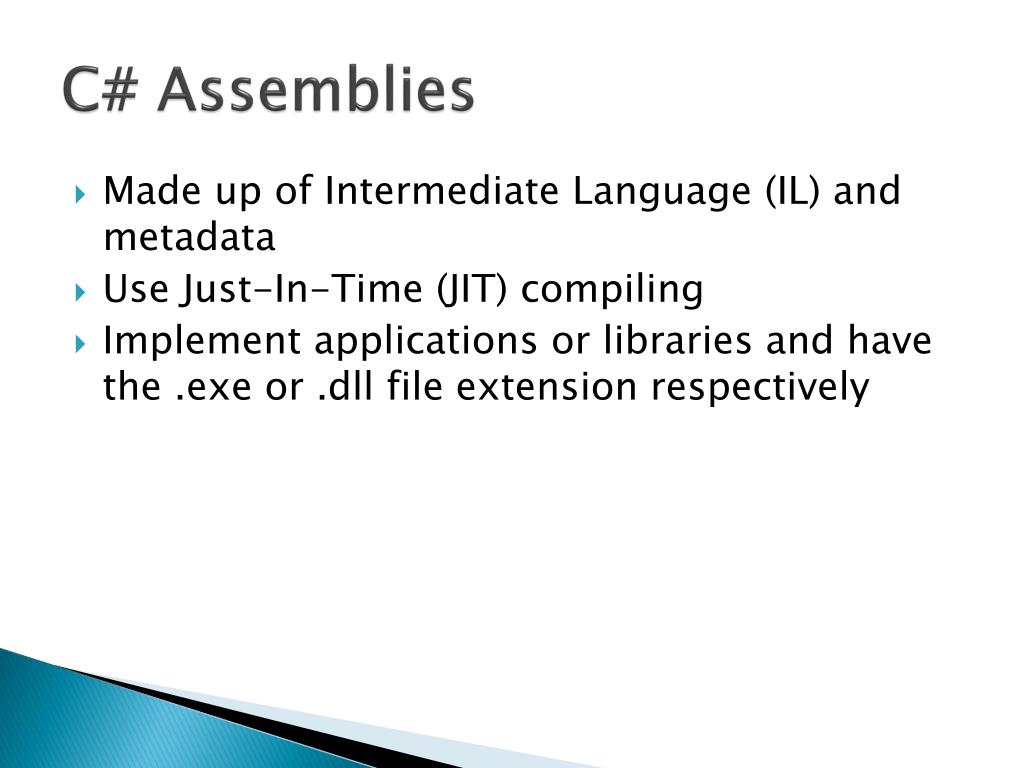

12. C# Assemblies • Made up of Intermediate Language (IL) and metadata • Use Just-In-Time (JIT) compiling • Implement applications or libraries and have the .exe or .dll file extension respectively

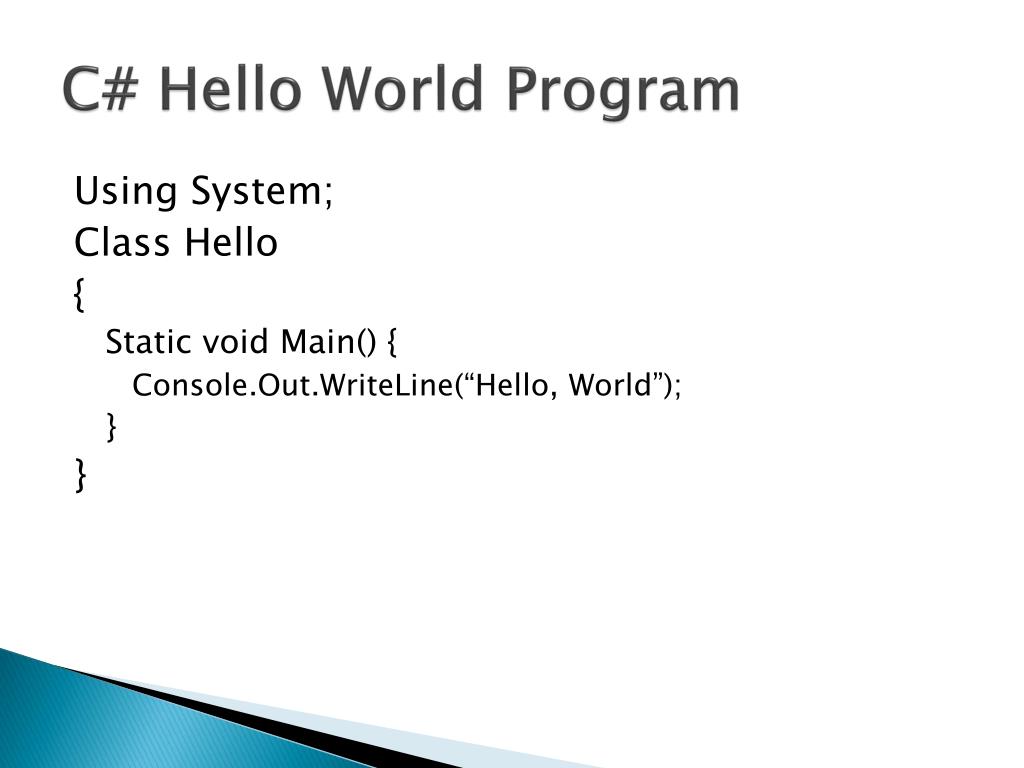

13. C# Hello World Program Using System; Class Hello { Static void Main() { Console.Out.WriteLine(“Hello, World”); } }

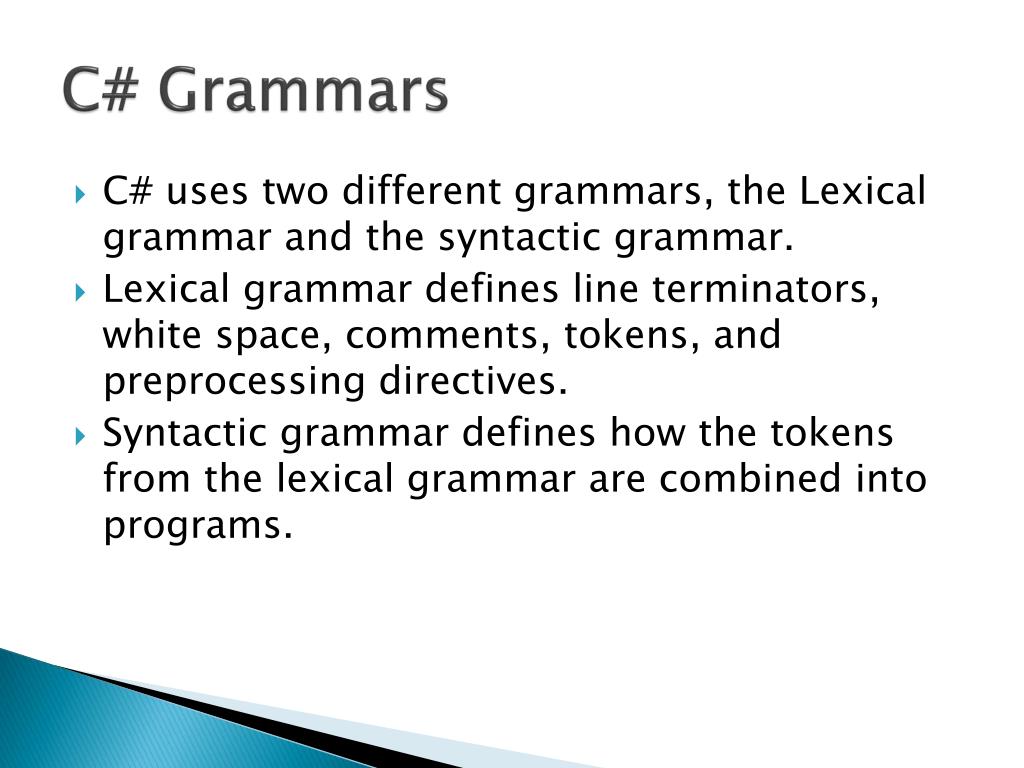

14. C# Grammars • C# uses two different grammars, the Lexical grammar and the syntactic grammar. • Lexical grammar defines line terminators, white space, comments, tokens, and preprocessing directives. • Syntactic grammar defines how the tokens from the lexical grammar are combined into programs.

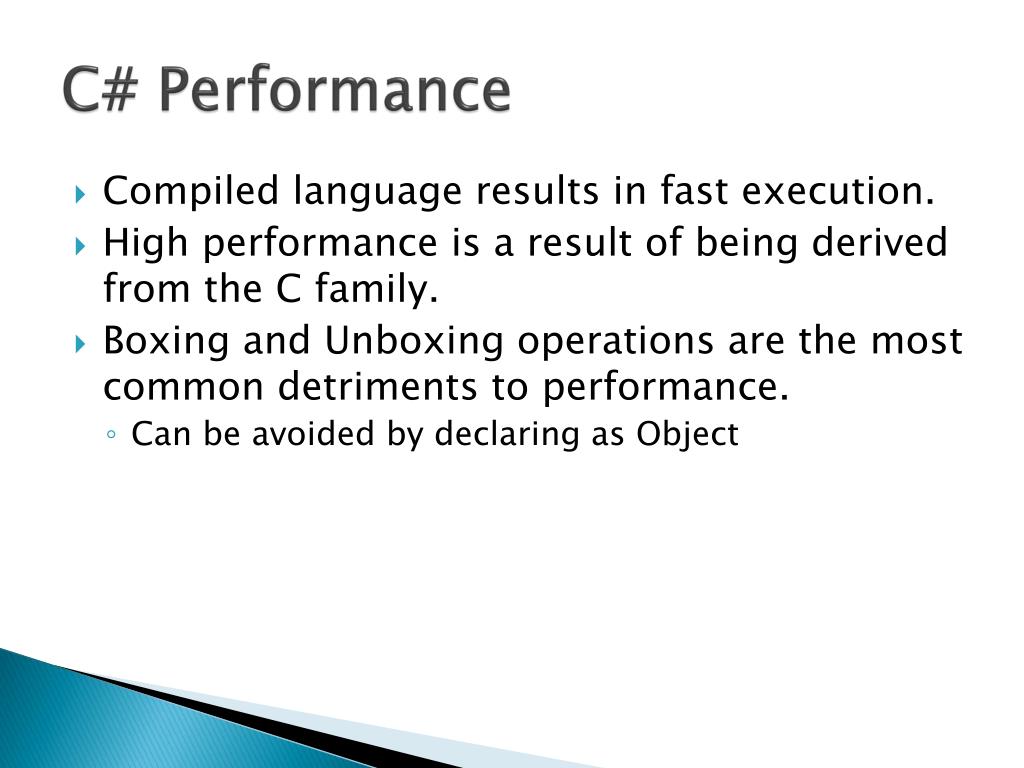

15. C# Performance • Compiled language results in fast execution. • High performance is a result of being derived from the C family. • Boxing and Unboxing operations are the most common detriments to performance. • Can be avoided by declaring as Object

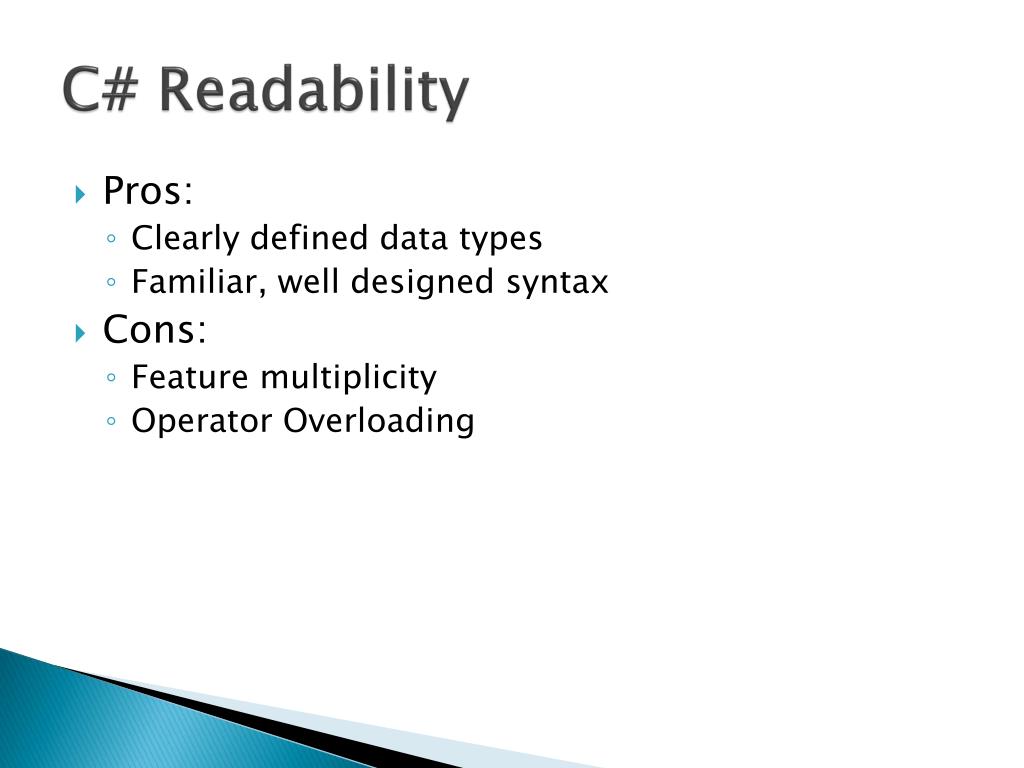

16. C# Readability • Pros: • Clearly defined data types • Familiar, well designed syntax • Cons: • Feature multiplicity • Operator Overloading

17. C# Writability • Pros: • Excellent support for abstraction • Strong expressivity with control sections • Cons: • Large number of different contstructs

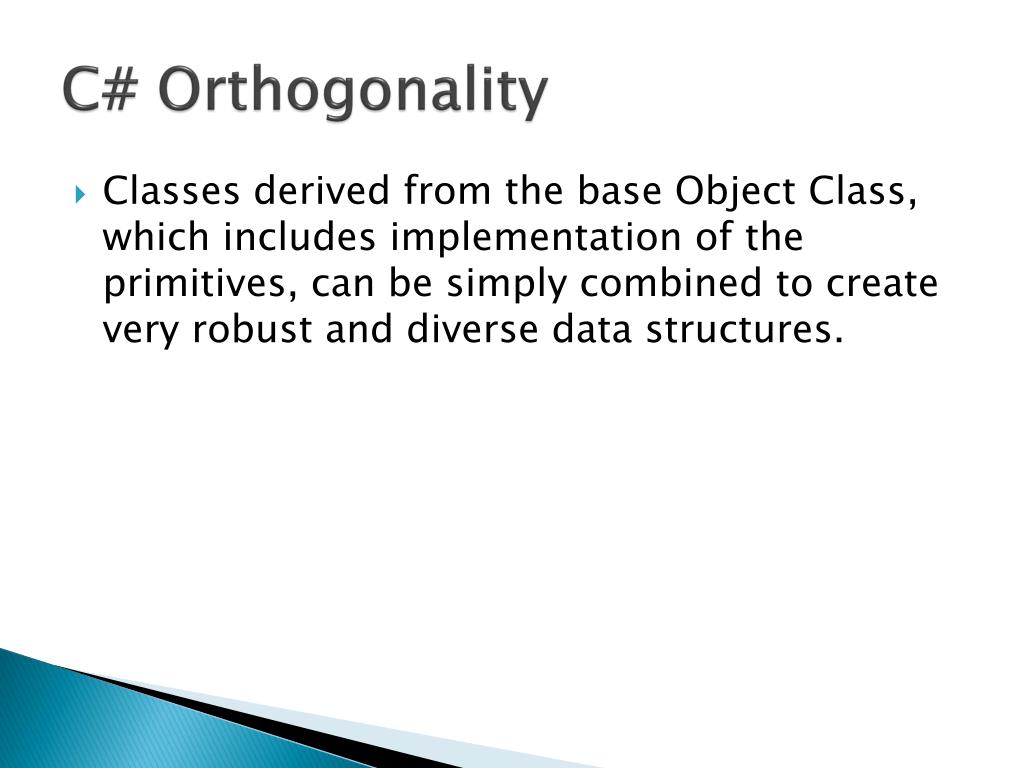

18. C# Orthogonality • Classes derived from the base Object Class, which includes implementation of the primitives, can be simply combined to create very robust and diverse data structures.

19. C# Reliability Pros • Type-Checking: • C# is considered a type-safe language and the compiler can catch type errors in almost all cases. • There are pointers supported by the language which can prevent the compiler from catching type-errors. • Exception Handling: • Highly functional and similar to Java

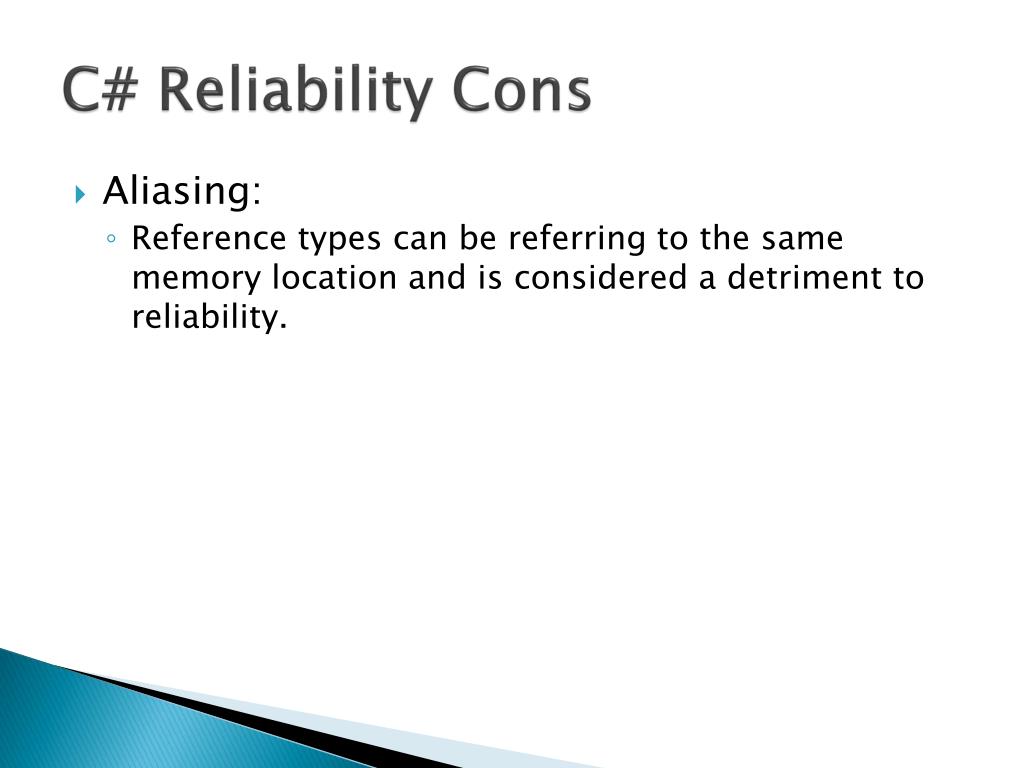

20. C# Reliability Cons • Aliasing: • Reference types can be referring to the same memory location and is considered a detriment to reliability.

21. C# Portability • The modular design considerations of C# makes the code highly portable. • Self-contained documentation in all the modules makes for easier portability amongst different software developers.

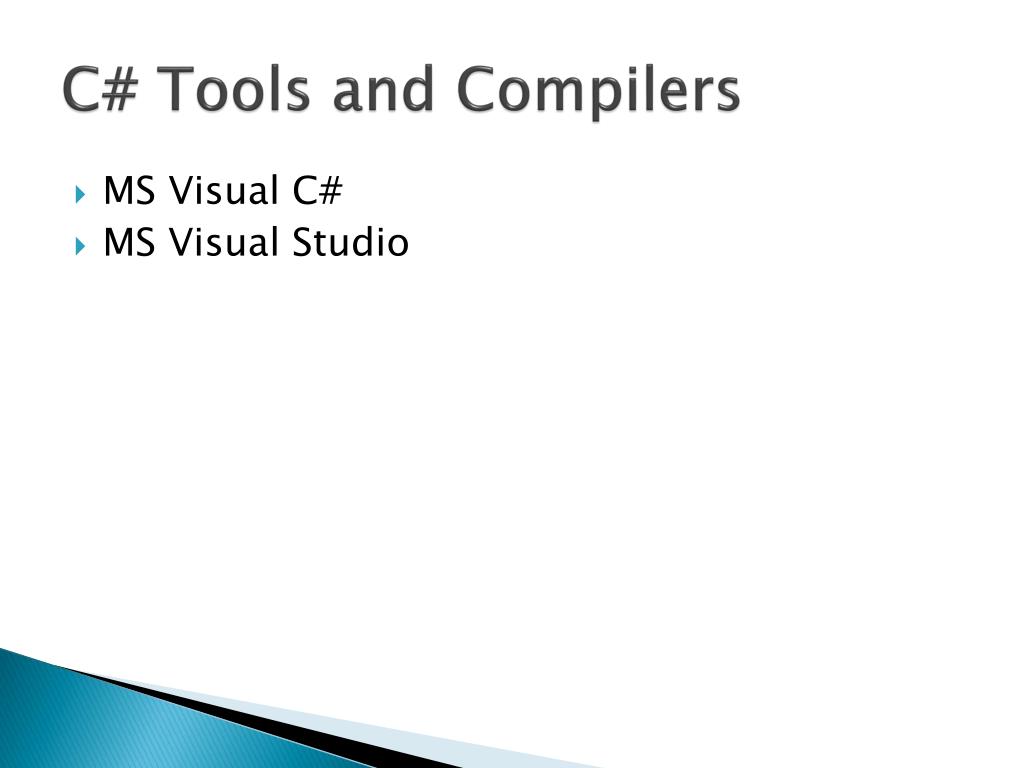

22. C# Tools and Compilers • MS Visual C# • MS Visual Studio

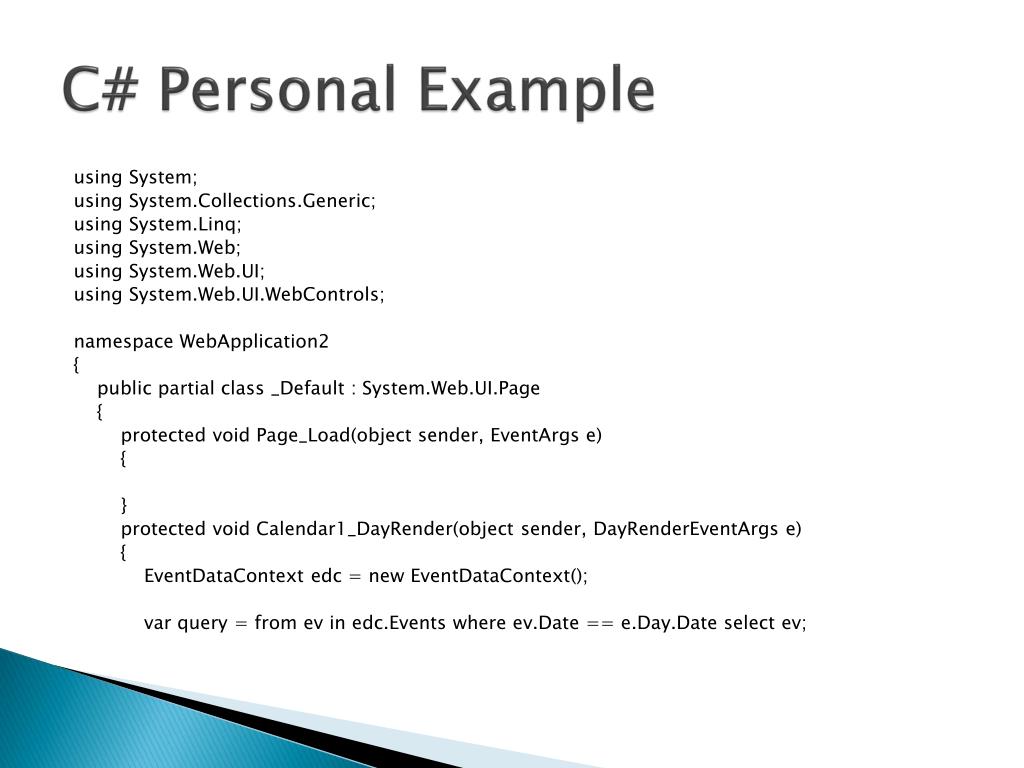

23. C# Personal Example using System; using System.Collections.Generic; using System.Linq; using System.Web; using System.Web.UI; using System.Web.UI.WebControls; namespace WebApplication2 { public partial class _Default : System.Web.UI.Page { protected void Page_Load(object sender, EventArgs e) { } protected void Calendar1_DayRender(object sender, DayRenderEventArgs e) { EventDataContextedc = new EventDataContext(); var query = from ev in edc.Events where ev.Date == e.Day.Date select ev;

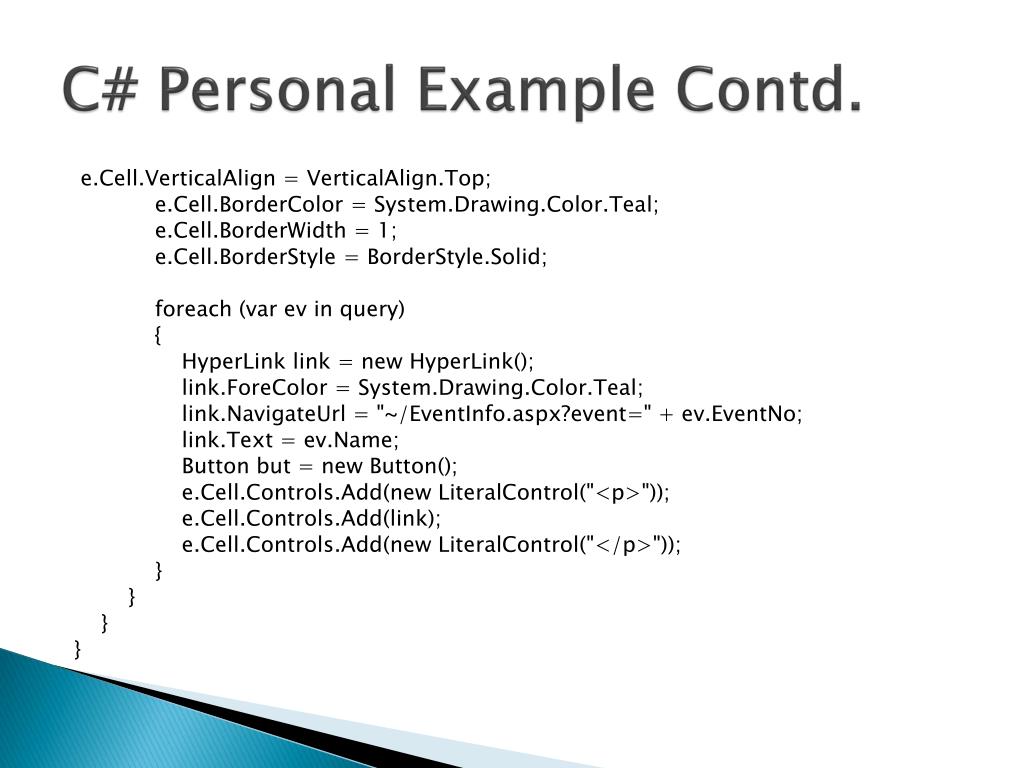

24. C# Personal Example Contd. e.Cell.VerticalAlign = VerticalAlign.Top; e.Cell.BorderColor = System.Drawing.Color.Teal; e.Cell.BorderWidth = 1; e.Cell.BorderStyle = BorderStyle.Solid; foreach (var ev in query) { HyperLink link = new HyperLink(); link.ForeColor = System.Drawing.Color.Teal; link.NavigateUrl = "~/EventInfo.aspx?event=" + ev.EventNo; link.Text = ev.Name; Button but = new Button(); e.Cell.Controls.Add(new LiteralControl("<p>")); e.Cell.Controls.Add(link); e.Cell.Controls.Add(new LiteralControl("</p>")); } } } }

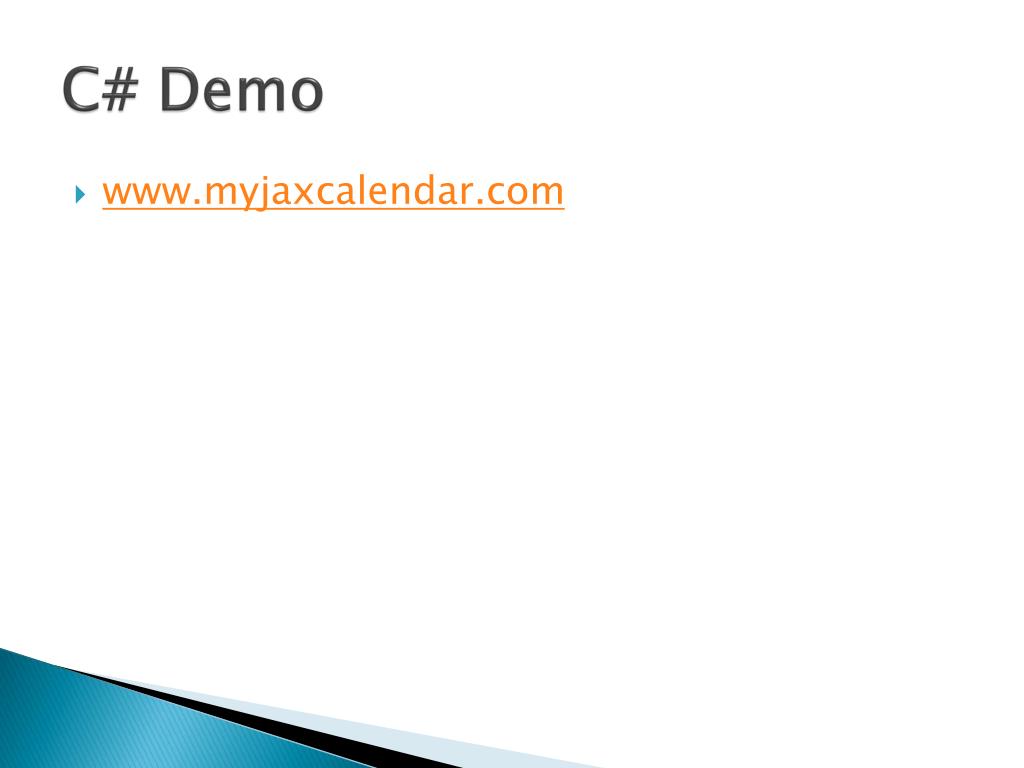

25. C# Demo • www.myjaxcalendar.com

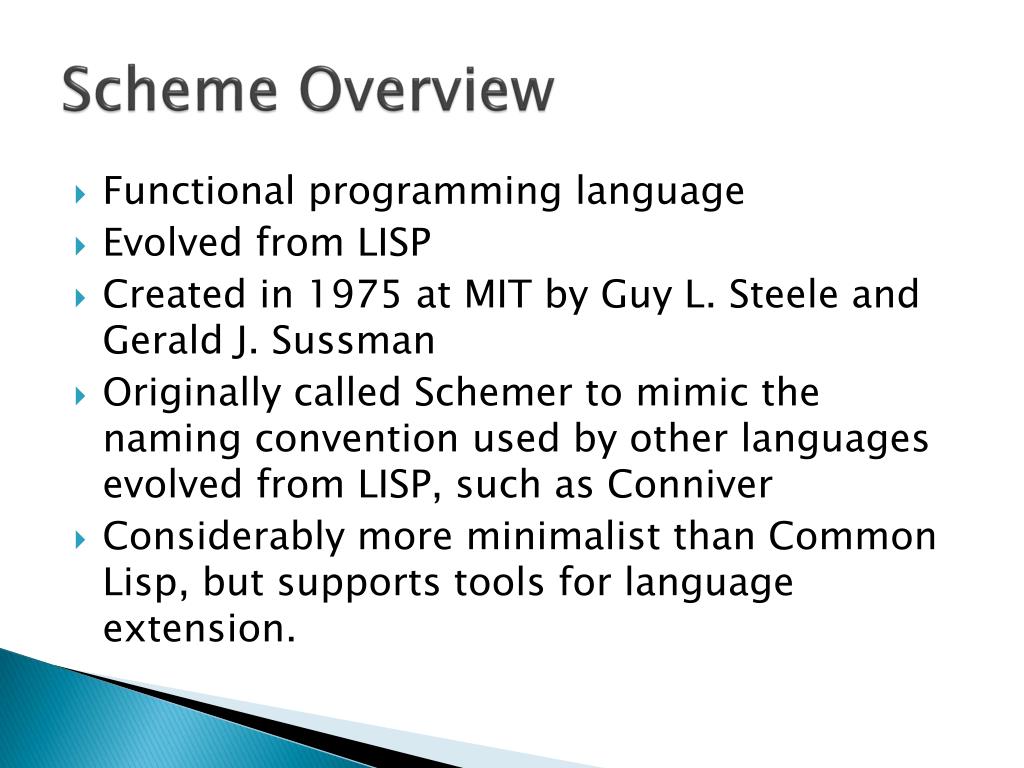

26. Scheme Overview • Functional programming language • Evolved from LISP • Created in 1975 at MIT by Guy L. Steele and Gerald J. Sussman • Originally called Schemer to mimic the naming convention used by other languages evolved from LISP, such as Conniver • Considerably more minimalist than Common Lisp, but supports tools for language extension.

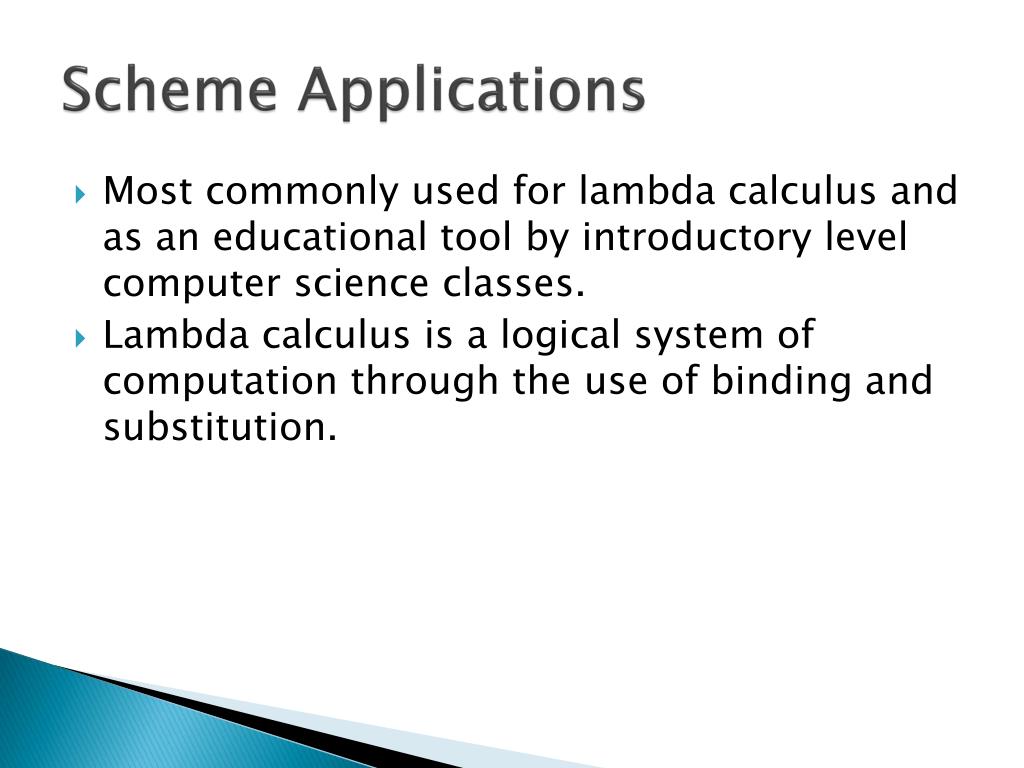

27. Scheme Applications • Most commonly used for lambda calculus and as an educational tool by introductory level computer science classes. • Lambda calculus is a logical system of computation through the use of binding and substitution.

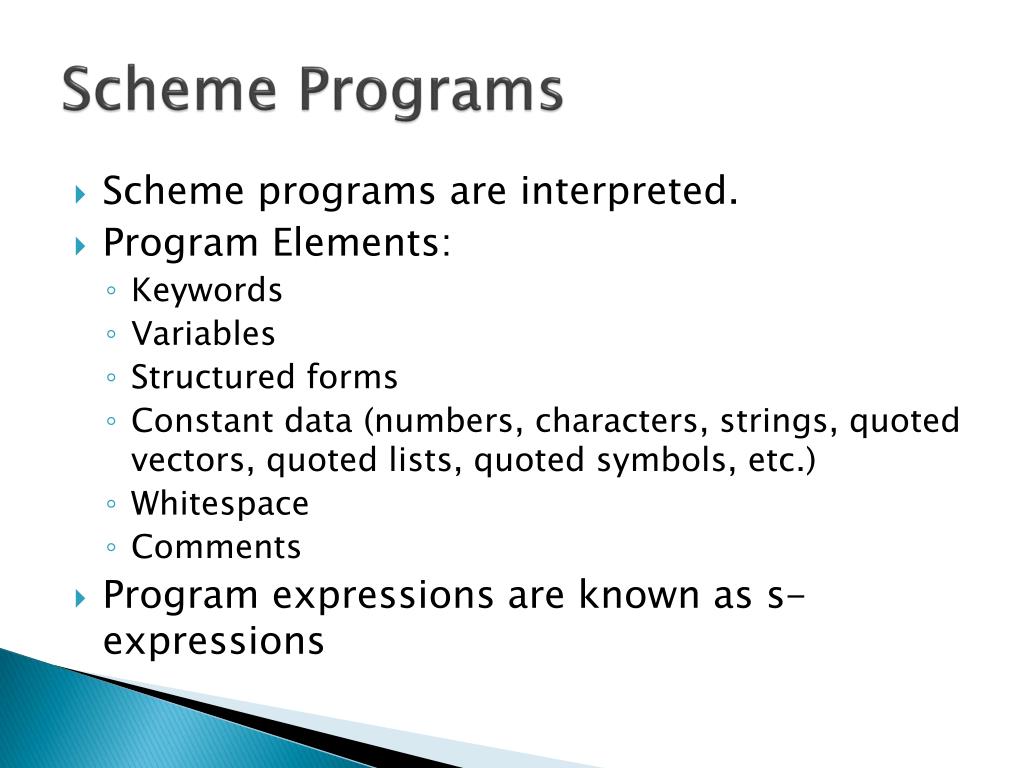

28. Scheme Programs • Scheme programs are interpreted. • Program Elements: • Keywords • Variables • Structured forms • Constant data (numbers, characters, strings, quoted vectors, quoted lists, quoted symbols, etc.) • Whitespace • Comments • Program expressions are known as s-expressions

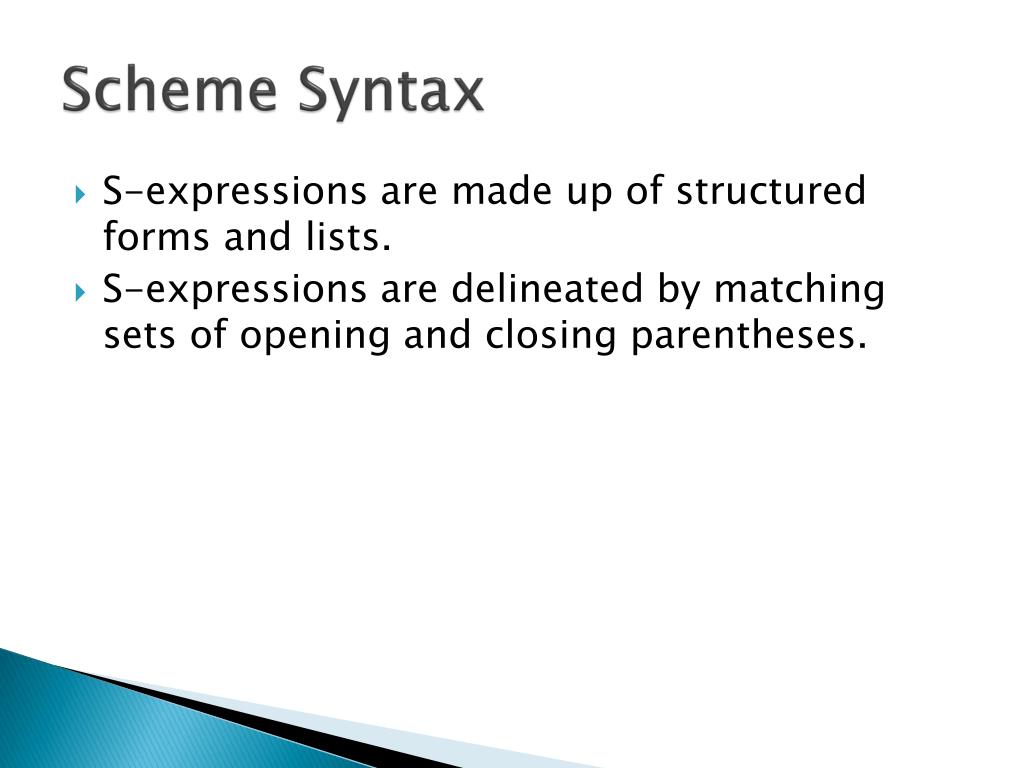

29. Scheme Syntax • S-expressions are made up of structured forms and lists. • S-expressions are delineated by matching sets of opening and closing parentheses.

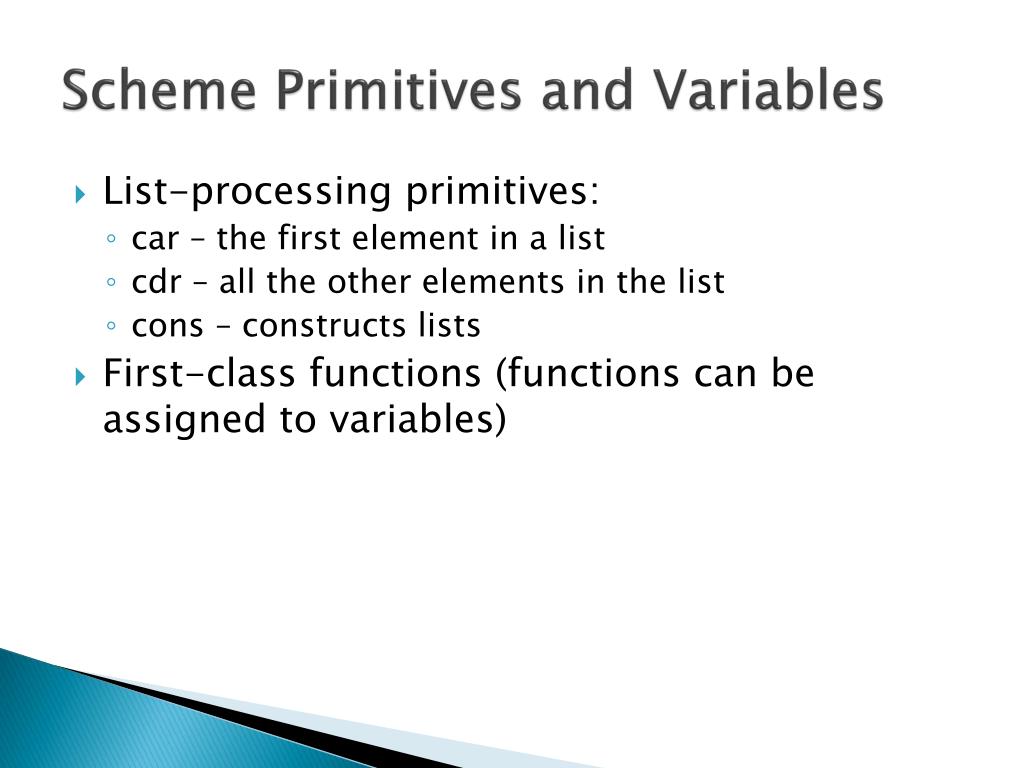

30. Scheme Primitives and Variables • List-processing primitives: • car – the first element in a list • cdr – all the other elements in the list • cons – constructs lists • First-class functions (functions can be assigned to variables)

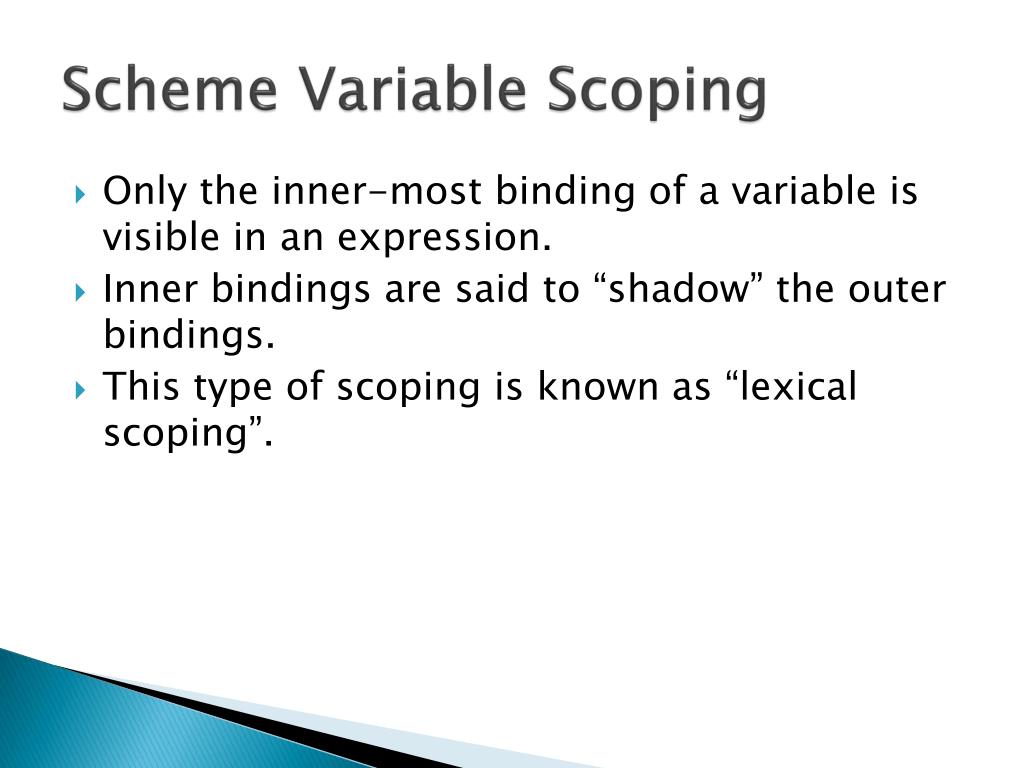

31. Scheme Variable Scoping • Only the inner-most binding of a variable is visible in an expression. • Inner bindings are said to “shadow” the outer bindings. • This type of scoping is known as “lexical scoping”.

32. Scheme Example Expression • Expression: • (cdr (car ‘((1 2 3) 4 5))) • Result: • (2 3)

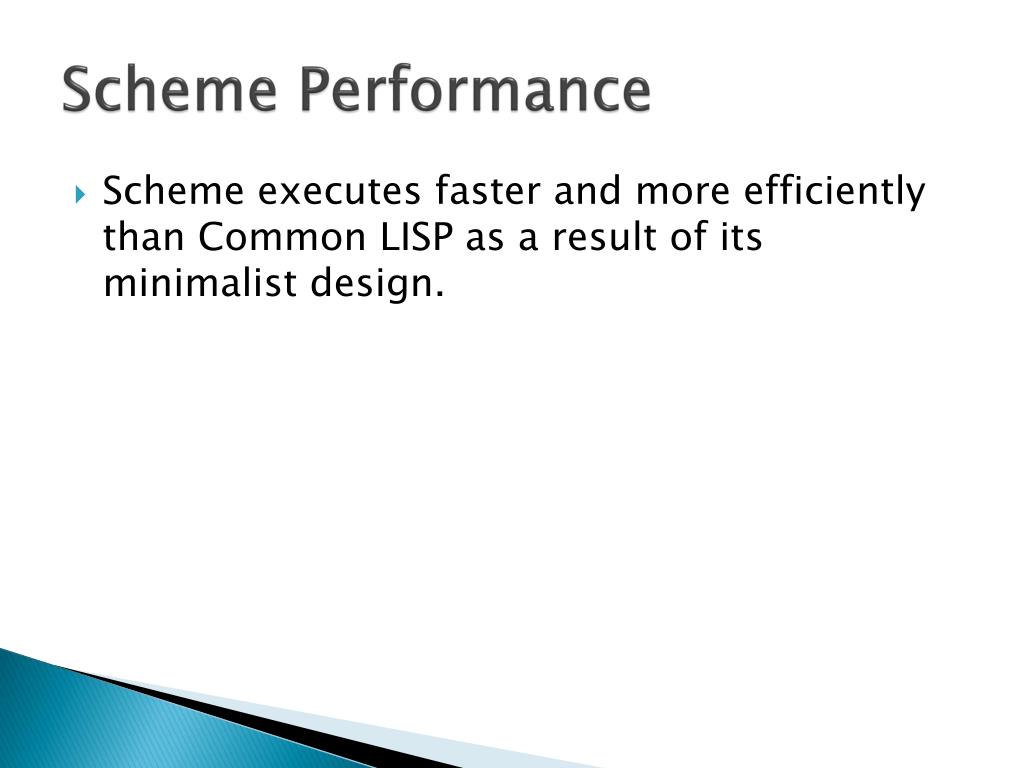

33. Scheme Performance • Scheme executes faster and more efficiently than Common LISP as a result of its minimalist design.

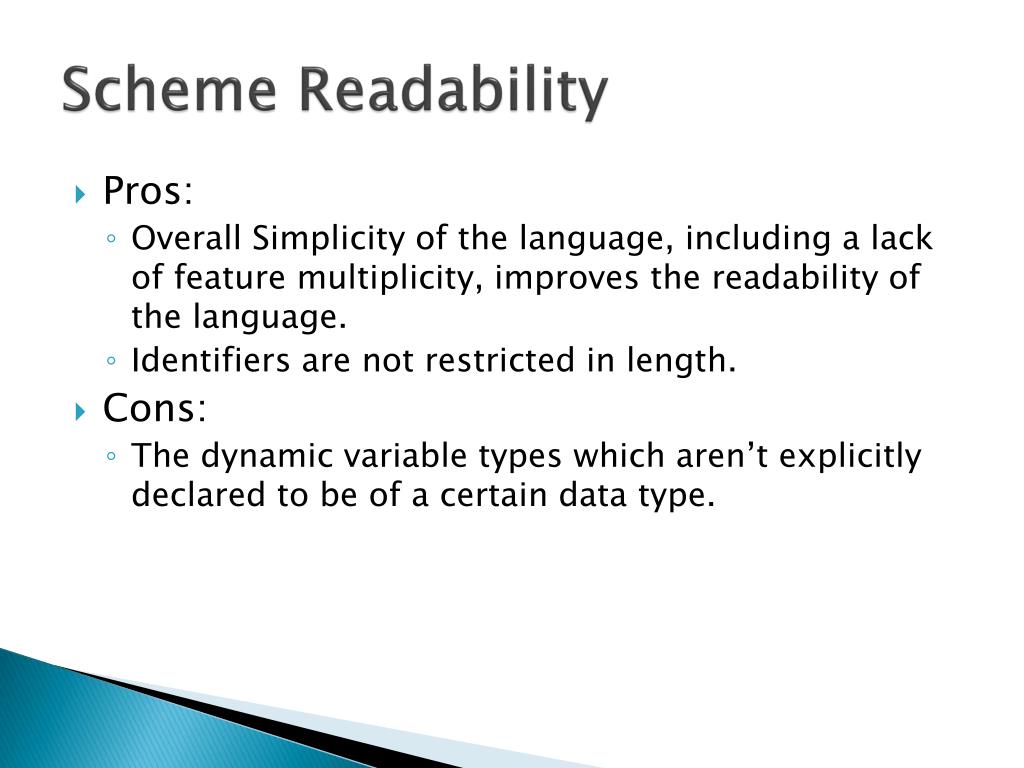

34. Scheme Readability • Pros: • Overall Simplicity of the language, including a lack of feature multiplicity, improves the readability of the language. • Identifiers are not restricted in length. • Cons: • The dynamic variable types which aren’t explicitly declared to be of a certain data type.

35. Scheme Writability • Pros: • The overall simplicity of the language, especially over that of Common LISP • Cons: • Weak support for abstraction • Lacking expressivity

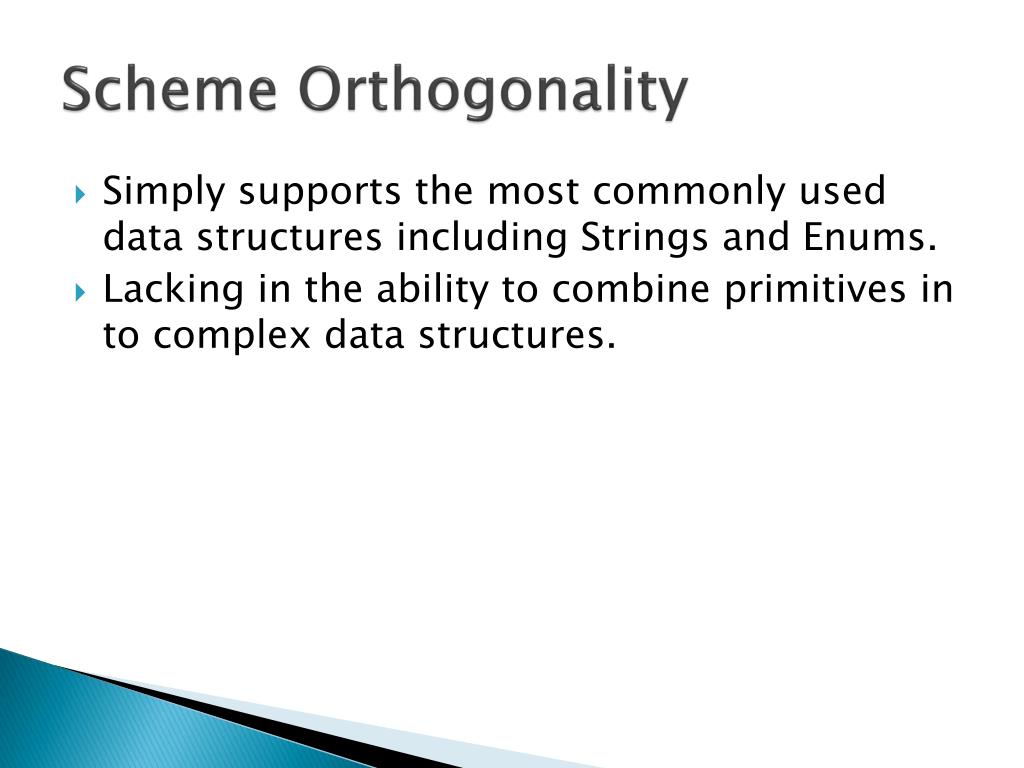

36. Scheme Orthogonality • Simply supports the most commonly used data structures including Strings and Enums. • Lacking in the ability to combine primitives in to complex data structures.

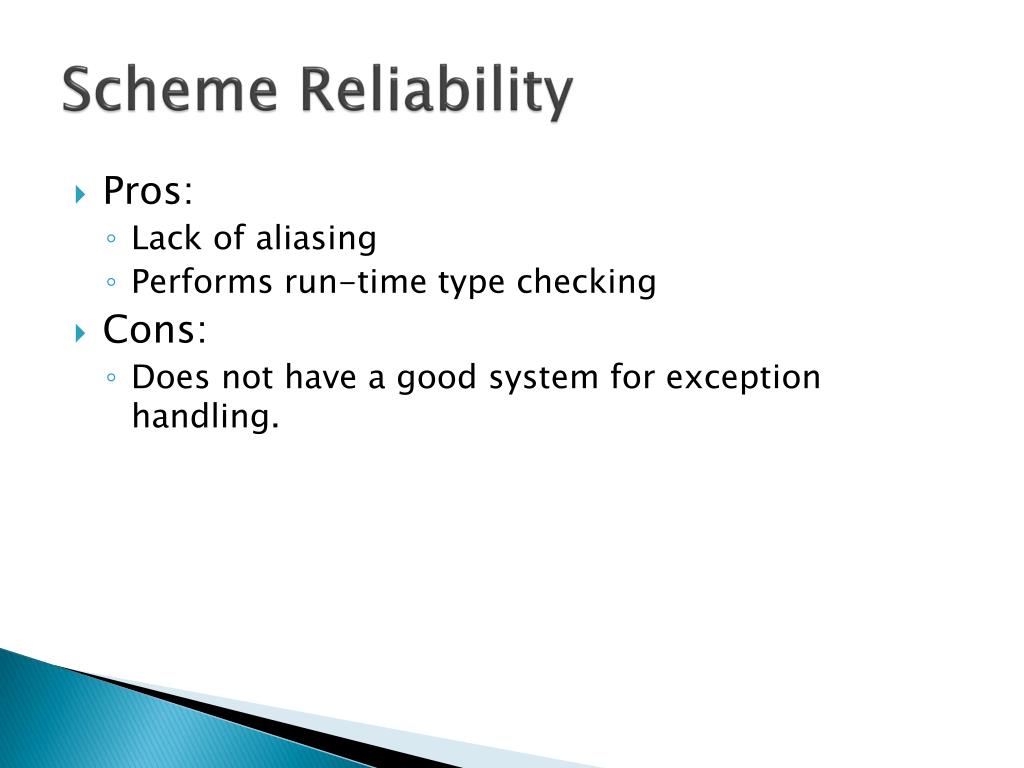

37. Scheme Reliability • Pros: • Lack of aliasing • Performs run-time type checking • Cons: • Does not have a good system for exception handling.

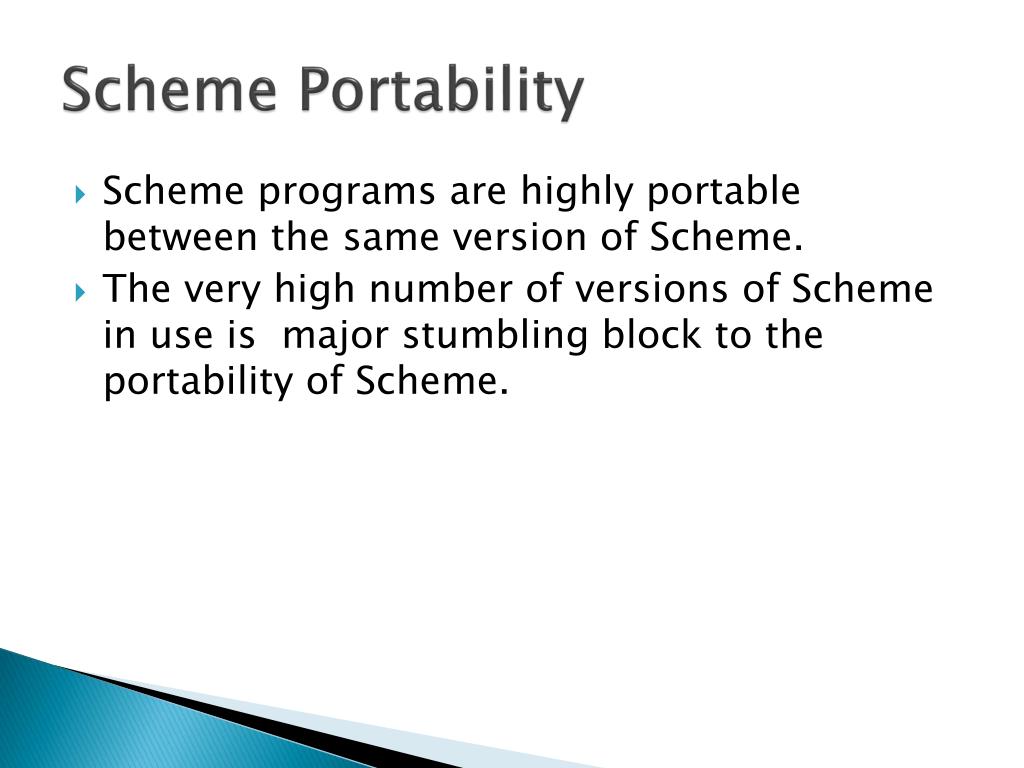

38. Scheme Portability • Scheme programs are highly portable between the same version of Scheme. • The very high number of versions of Scheme in use is major stumbling block to the portability of Scheme.

39. Scheme Flavors • Some of the many flavors of scheme are: • SISC – runs off of the JVM • DrRacket – Student friendly interface • MIT Scheme – very widely used

40. Scheme Demo

41. T-SQL Overview • Query Language • Uses statements that are interpreted by the database server. • Used with relational databases • Relational databases are based off of first order predicate logic. • Used by MS SQL Server database and Sybase database. • Main application is the construction and manipulation of enterprise databases.

42. T-SQL Overview • History: • Evolved from SEQUEL. • SEQUEL (Structured English Query Language) is a query language developed by IBM in the 1970’s and they later renamed it to SQL (Structured Query Language) • T-SQL (Transact SQL) is an extension to SQL developed by a partnership between Microsoft and Sybase.

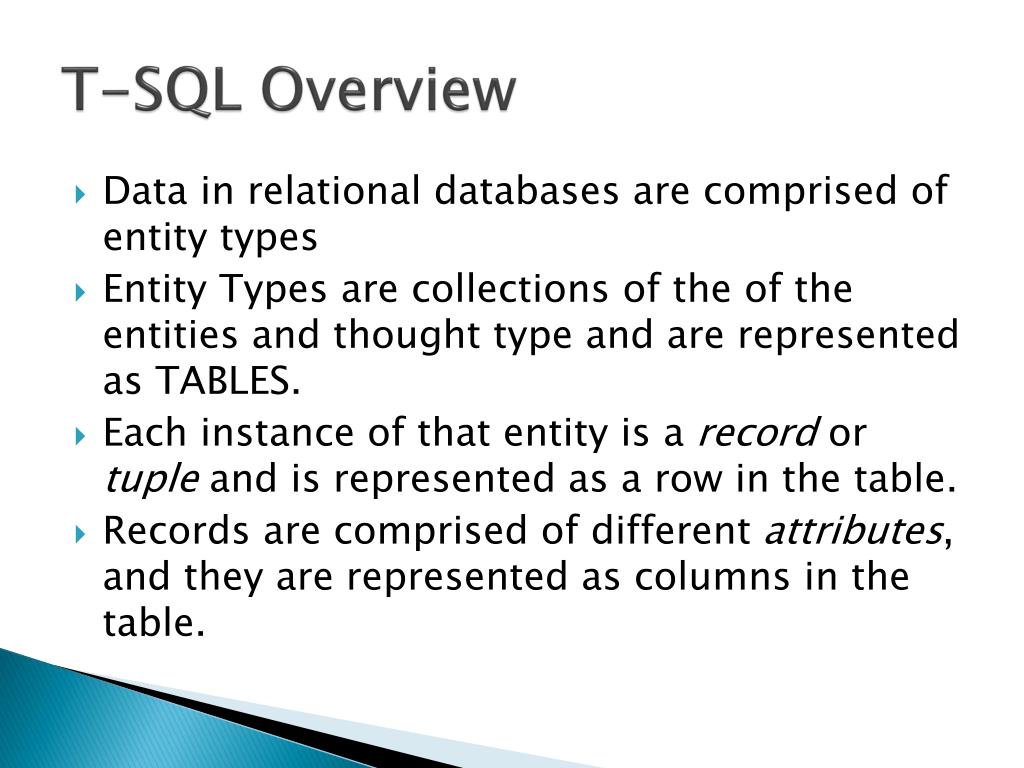

43. T-SQL Overview • Data in relational databases are comprised of entity types • Entity Types are collections of the of the entities and thought type and are represented as TABLES. • Each instance of that entity is a record or tuple and is represented as a row in the table. • Records are comprised of different attributes, and they are represented as columns in the table.

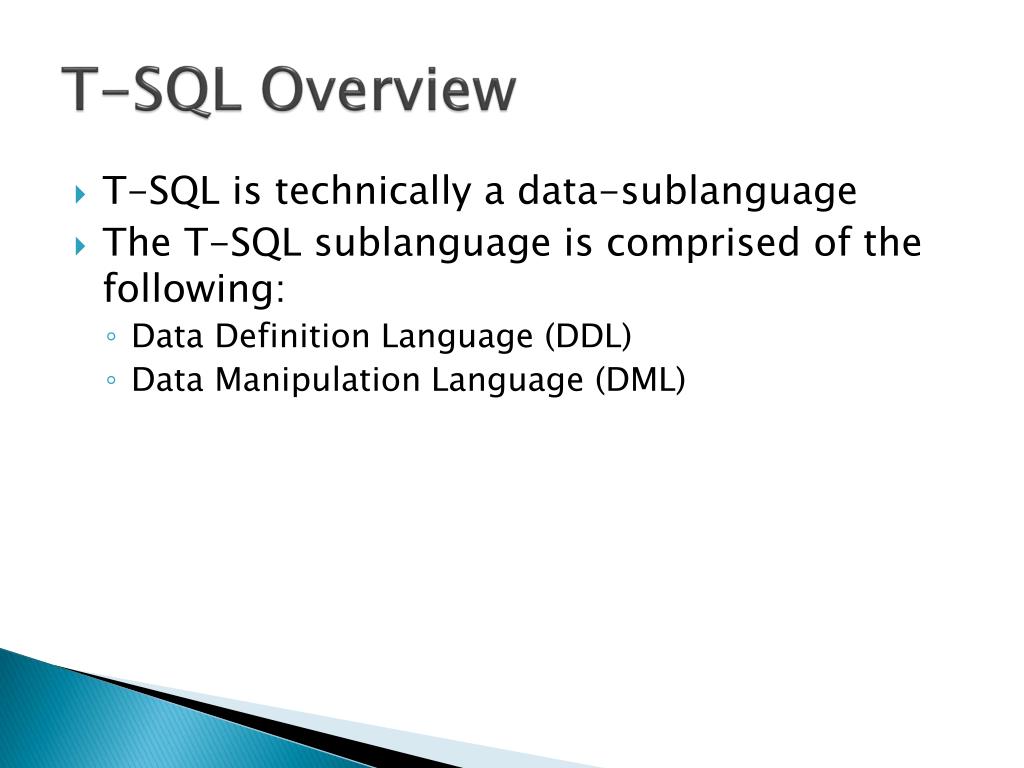

44. T-SQL Overview • T-SQL is technically a data-sublanguage • The T-SQL sublanguage is comprised of the following: • Data Definition Language (DDL) • Data Manipulation Language (DML)

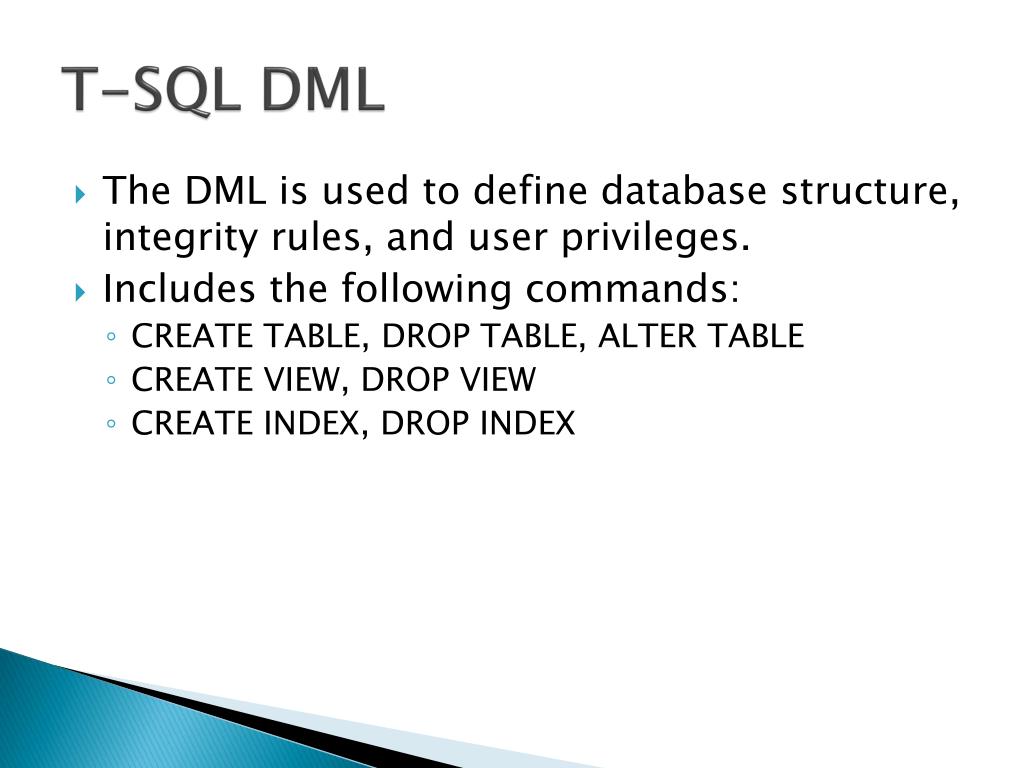

45. T-SQL DML • The DML is used to define database structure, integrity rules, and user privileges. • Includes the following commands: • CREATE TABLE, DROP TABLE, ALTER TABLE • CREATE VIEW, DROP VIEW • CREATE INDEX, DROP INDEX

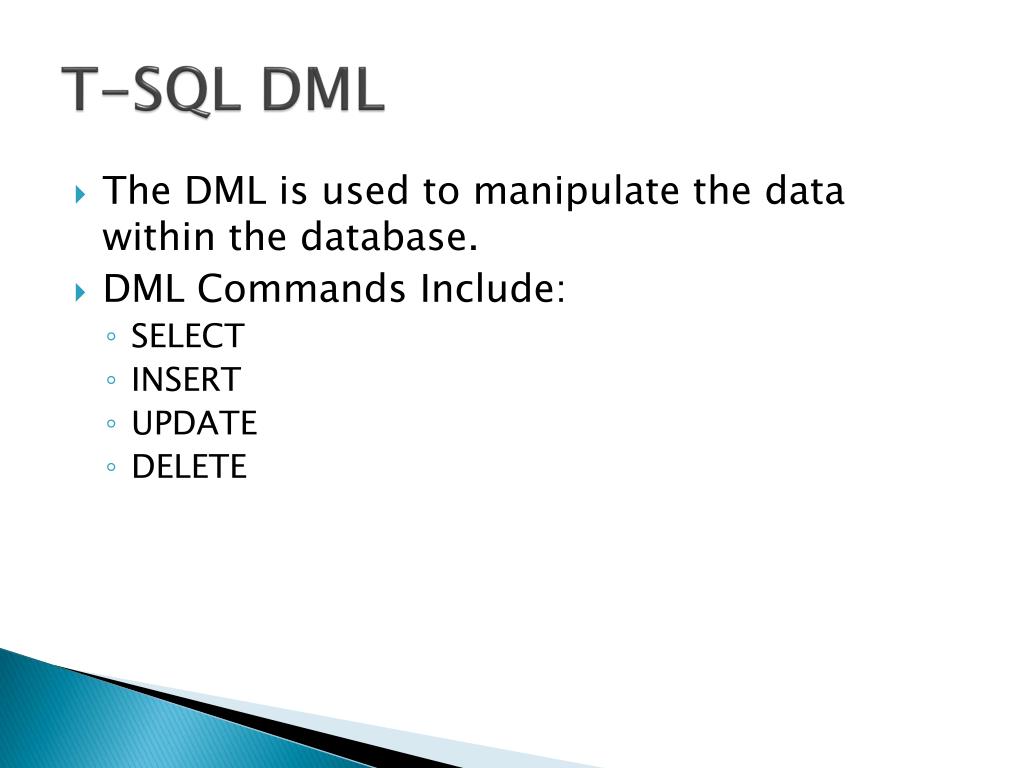

46. T-SQL DML • The DML is used to manipulate the data within the database. • DML Commands Include: • SELECT • INSERT • UPDATE • DELETE

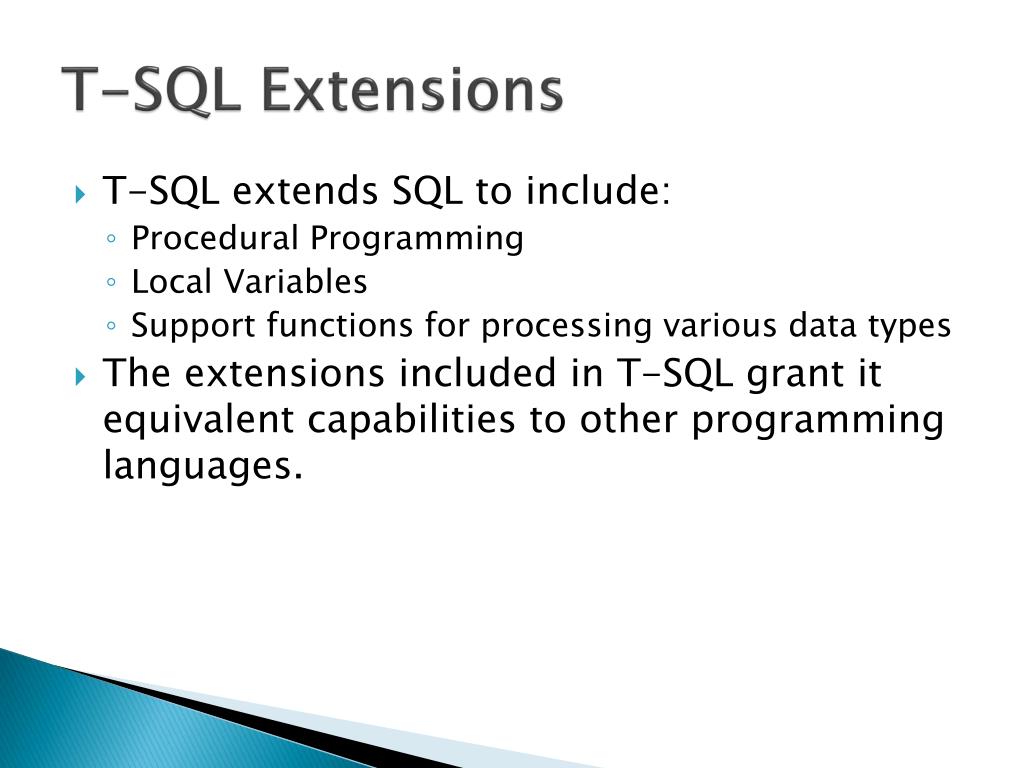

47. T-SQL Extensions • T-SQL extends SQL to include: • Procedural Programming • Local Variables • Support functions for processing various data types • The extensions included in T-SQL grant it equivalent capabilities to other programming languages.

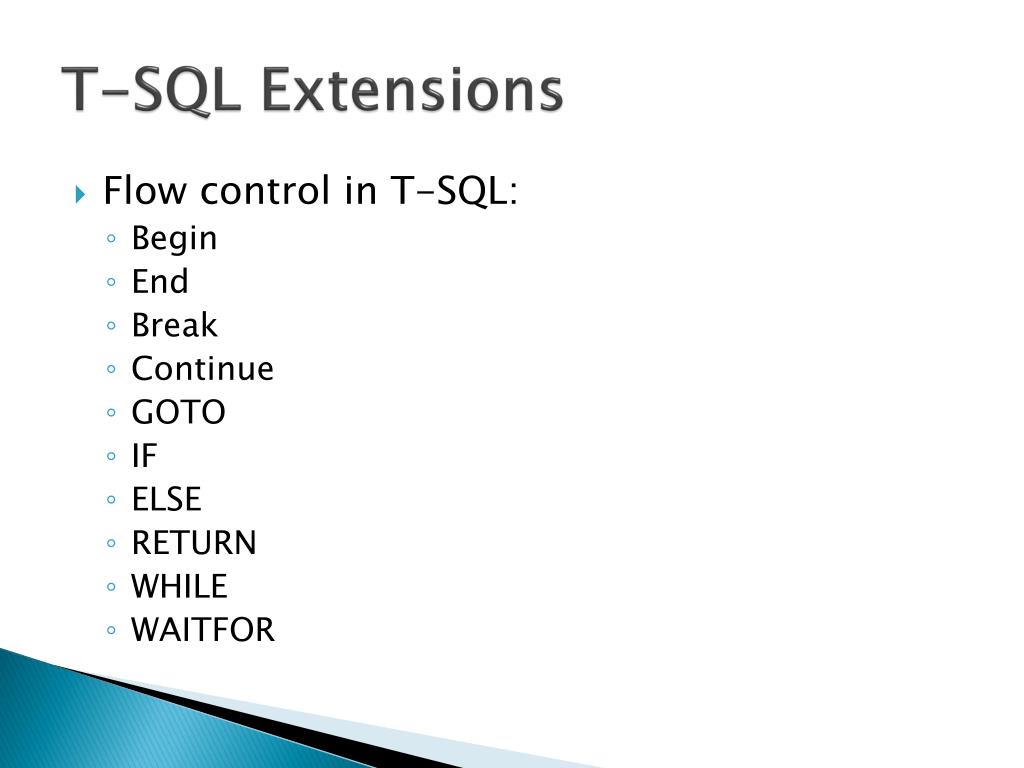

48. T-SQL Extensions • Flow control in T-SQL: • Begin • End • Break • Continue • GOTO • IF • ELSE • RETURN • WHILE • WAITFOR

49. T-SQL Exception Handling • T-SQL contains try-catch blocks, unlike SQL • Example: BEGIN TRY //STATEMENTS END TRY BEGIN CATCH //STATEMENTS TO HANDLE EXCEPTION END CATCH

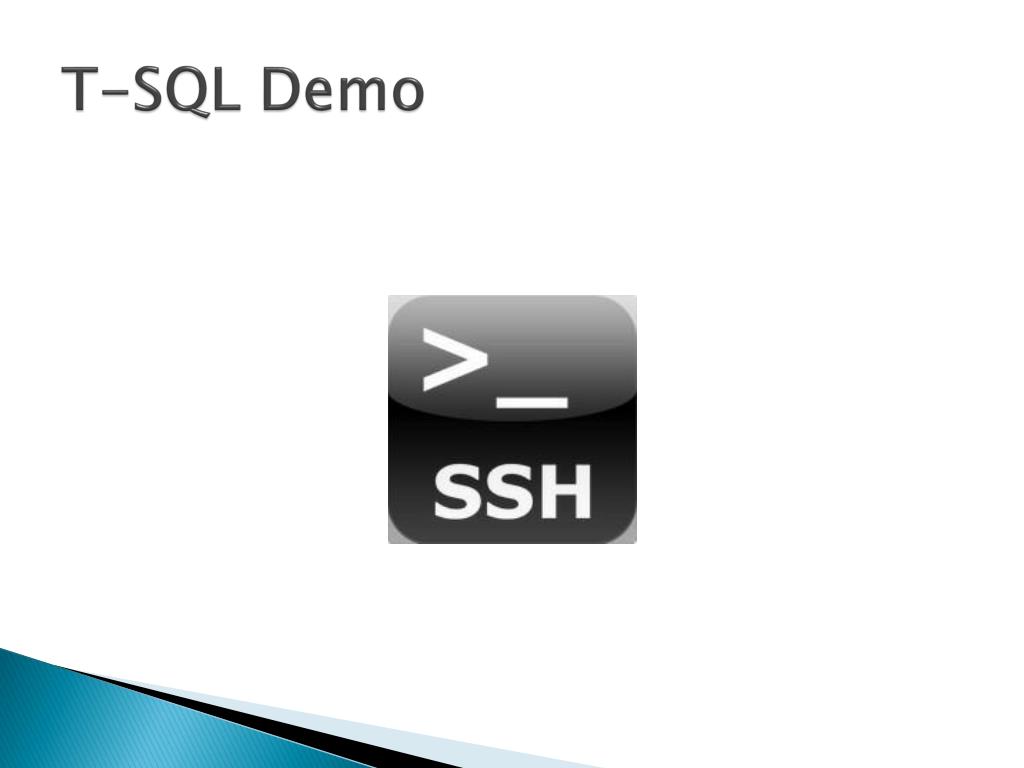

50. T-SQL Demo
