1 / 9

PHYSICS CLASS ACTIVITY

This physics class activity focuses on measuring the muzzle velocity of a marble launcher using three distinct methods: vertical shoot, photogate timer, and horizontal shoot. Students will analyze the maximum height and time of flight for vertical launches, use a photogate timer to record the time of the marble's travel, and calculate the velocity from horizontal projectile motion. Emphasis is placed on clear calculations and documenting results to reinforce the understanding of kinematic equations in projectile motion.

myra-christian
Télécharger la présentation

PHYSICS CLASS ACTIVITY

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PHYSICS CLASS ACTIVITY

  2. C.A.: Vo of Marble Launcher

  3. C.A. #6: Marble Launcher Vmuzzle • Determine muzzle velocity of launcher 3 ways: • 1) Vertical shoot • 2) Photogate timer • 3) Horizontal shoot

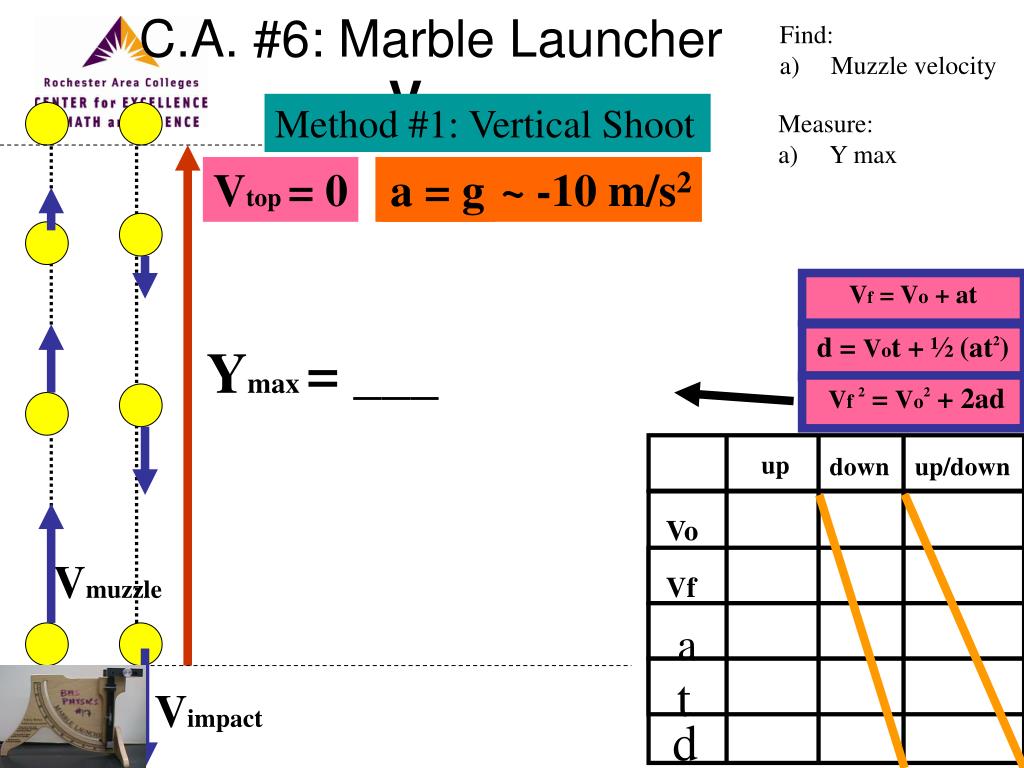

  4. Vo Vf a t d • Find: • Muzzle velocity C.A. #6: Marble Launcher Vmuz Method #1: Vertical Shoot • Measure: • Y max Vtop = 0 a = ? a = g ~ -10 m/s2 Vf = Vo + at d = Vot + ½ (at2) Ymax = ___ Vf 2 = Vo2 + 2ad up down up/down Vmuzzle Vimpact

  5. Photogate Timer Vmuz Photogate Light beam Marble Time ??? Overhead View

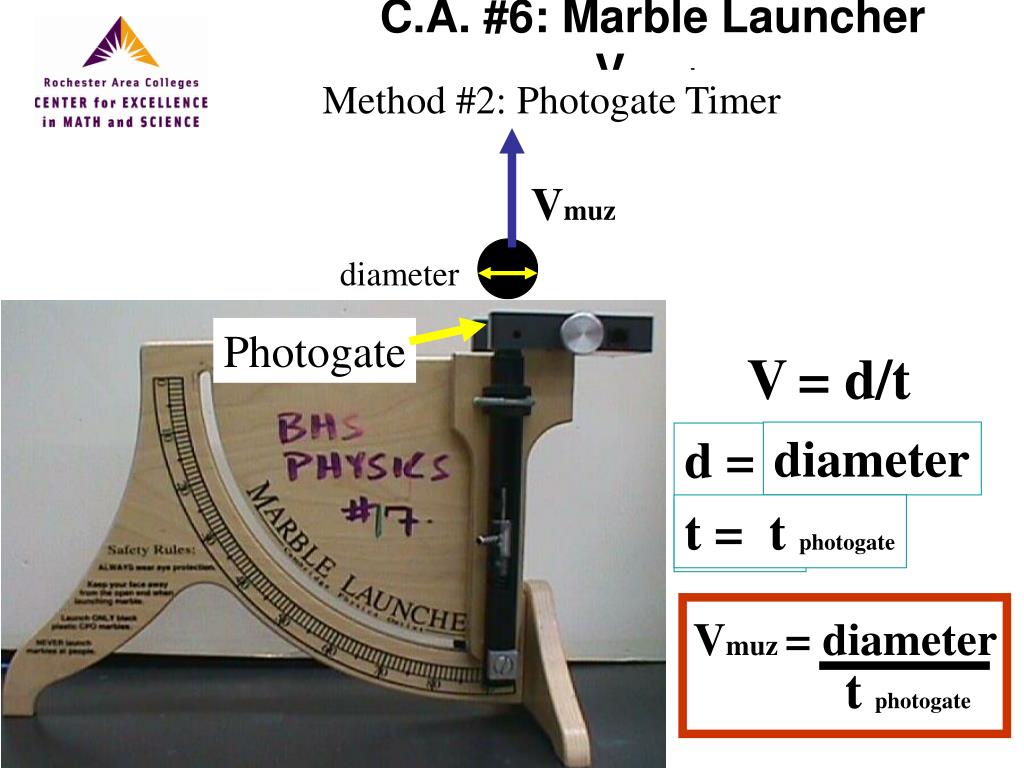

  6. C.A. #6: Marble Launcher Vmuzzle Method #2: Photogate Timer Vmuz diameter Photogate V= d/t diameter d = ? t = t photogate t = ? Vmuz = diameter t photogate

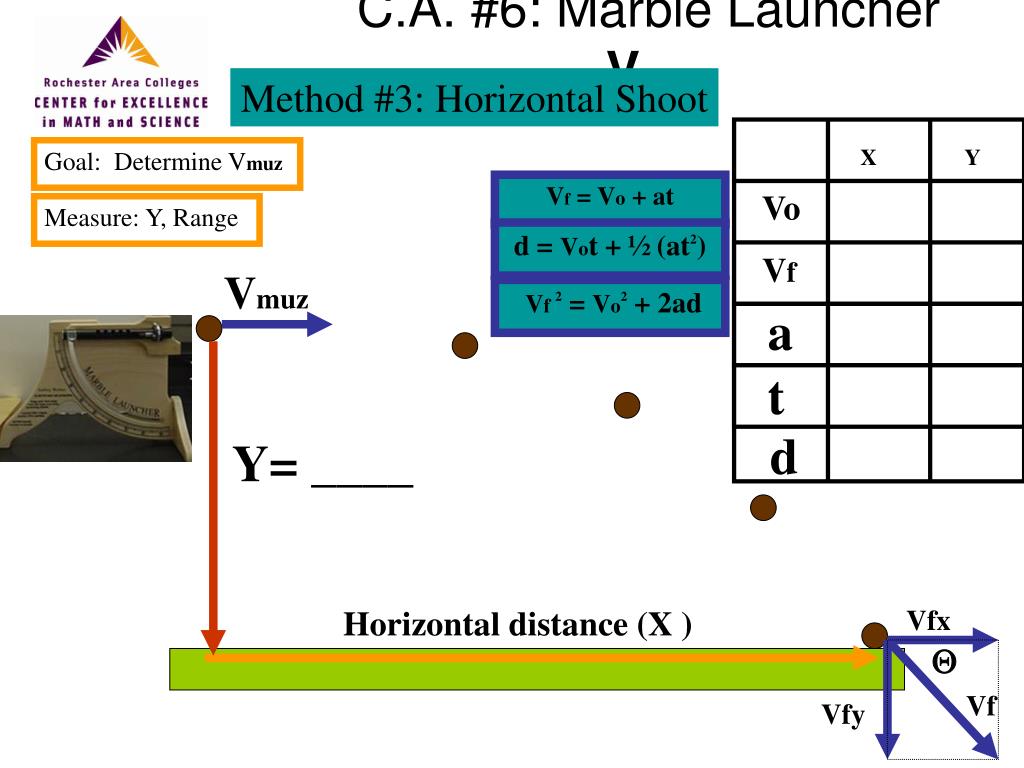

  7. Vf = Vo + at d = Vot + ½ (at2) Vf 2 = Vo2 + 2ad X Y Vo Vf a t d C.A. #6: Marble Launcher Vmuz Method #3: Horizontal Shoot Goal: Determine Vmuz Measure: Y, Range Vmuz Y= ____ Horizontal distance (X ) Vfx Q Vf Vfy

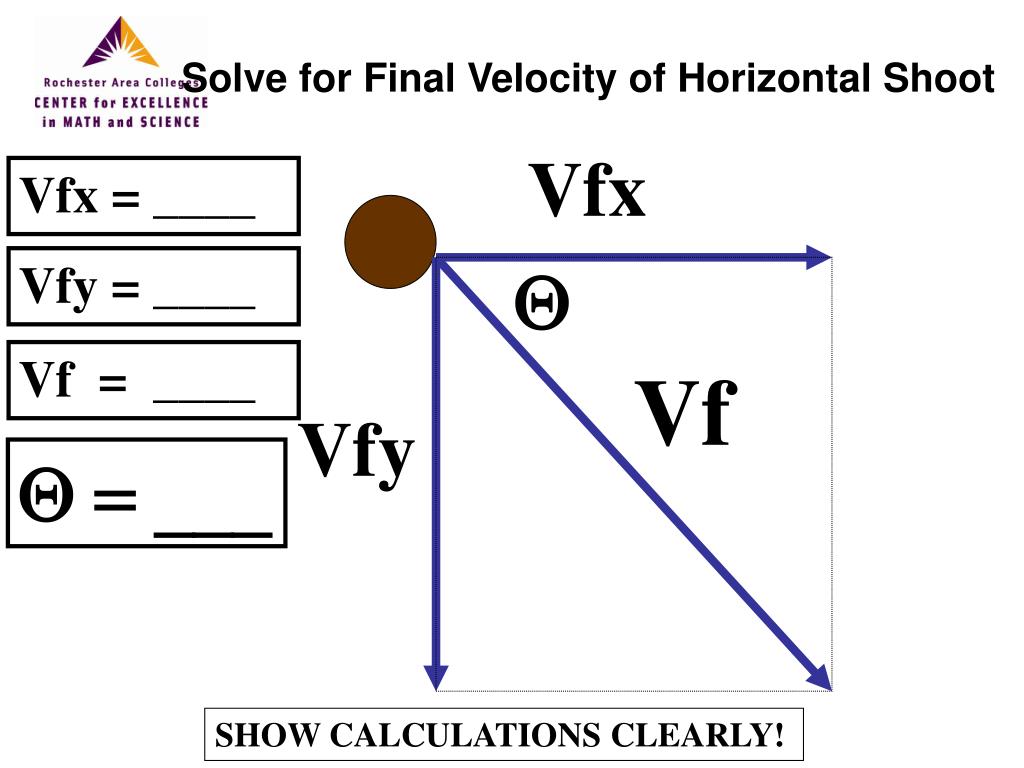

  8. Solve for Final Velocity of Horizontal Shoot Vfx Vfx = ____ Q Vfy = ____ Vf = ____ Vf Vfy Q = ___ SHOW CALCULATIONS CLEARLY!

  9. Summary of Results

More Related
