  1. Domain 4 Energy Transformations

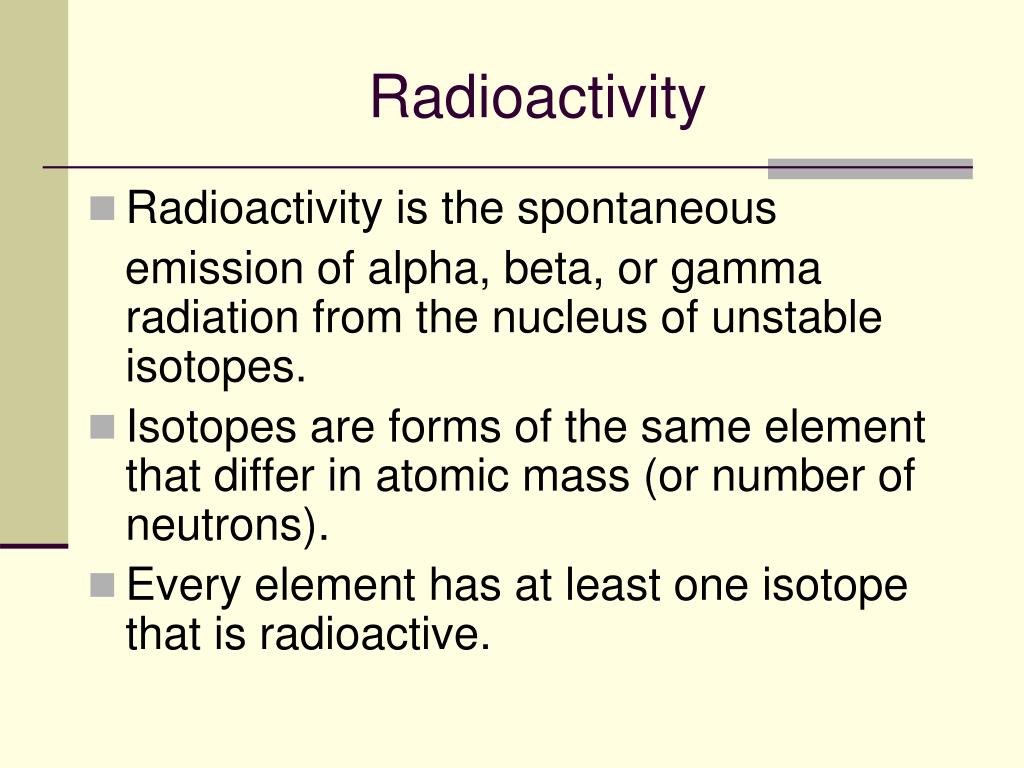

  2. Radioactivity • Radioactivity is the spontaneous emission of alpha, beta, or gamma radiation from the nucleus of unstable isotopes. • Isotopes are forms of the same element that differ in atomic mass (or number of neutrons). • Every element has at least one isotope that is radioactive.

  3. Video Clip

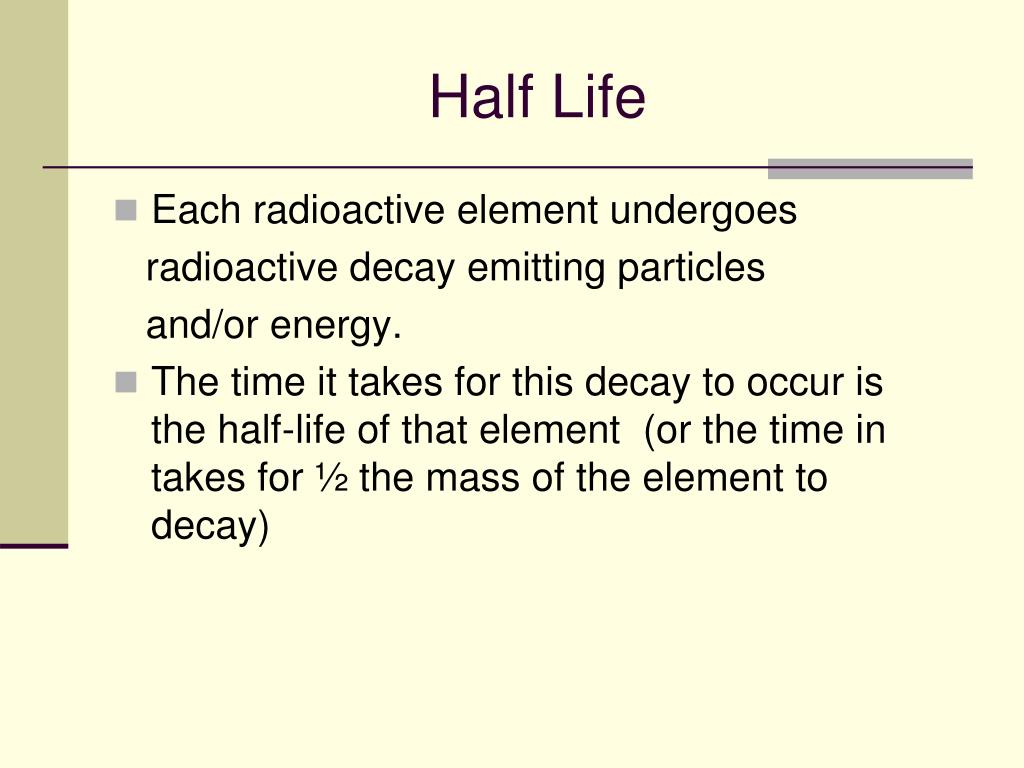

  4. Half Life • Each radioactive element undergoes radioactive decay emitting particles and/or energy. • The time it takes for this decay to occur is the half-life of that element (or the time in takes for ½ the mass of the element to decay)

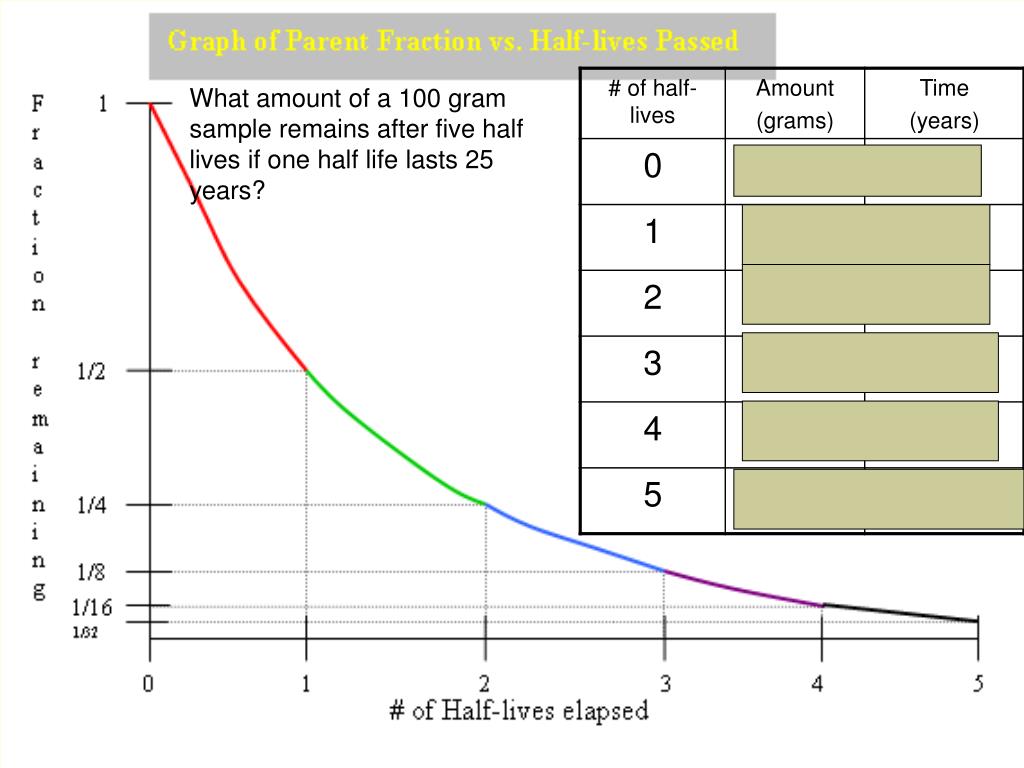

  5. What amount of a 100 gram sample remains after five half lives if one half life lasts 25 years?

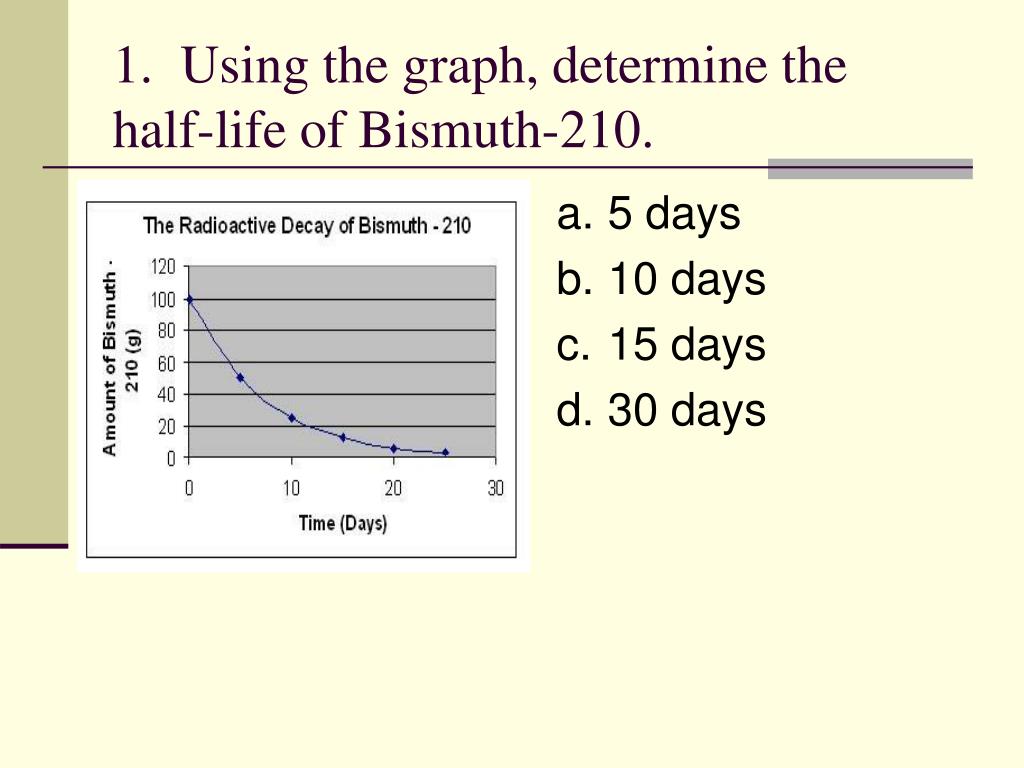

  6. 1. Using the graph, determine the half-life of Bismuth-210. • 5 days • 10 days • 15 days • 30 days

  7. 1. Using the graph, determine the half-life of Bismuth-210. • 5 days • 10 days • 15 days • 30 days

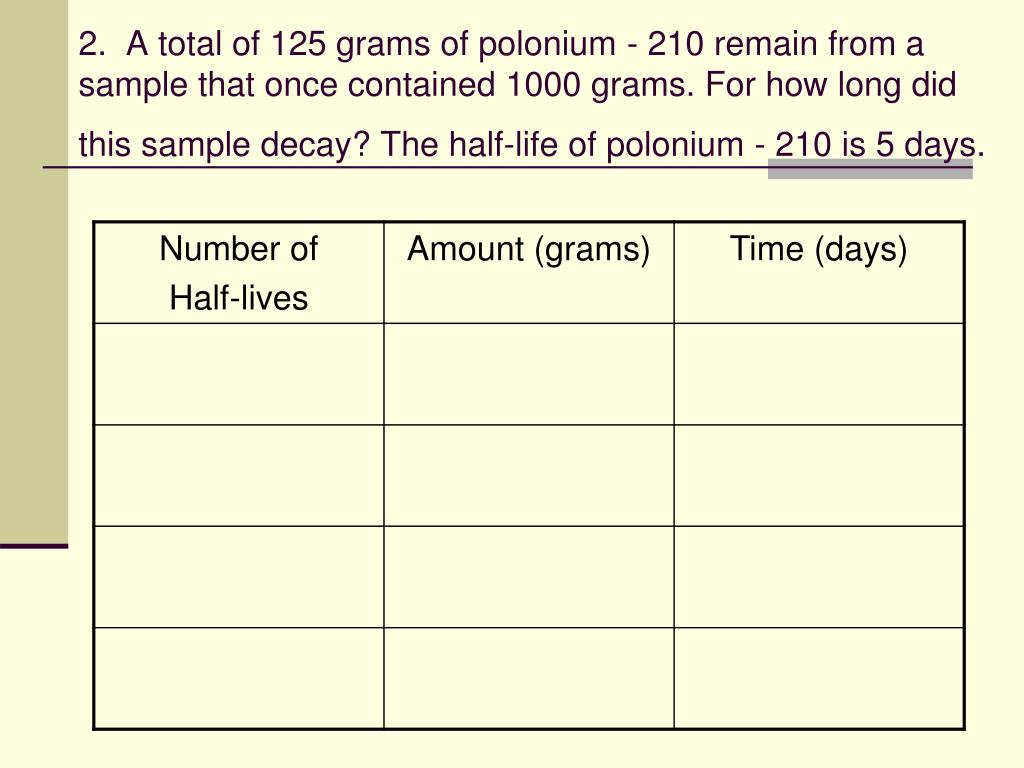

  8. 2. A total of 125 grams of polonium - 210 remain from a sample that once contained 1000 grams. For how long did this sample decay? The half-life of polonium - 210 is 5 days.

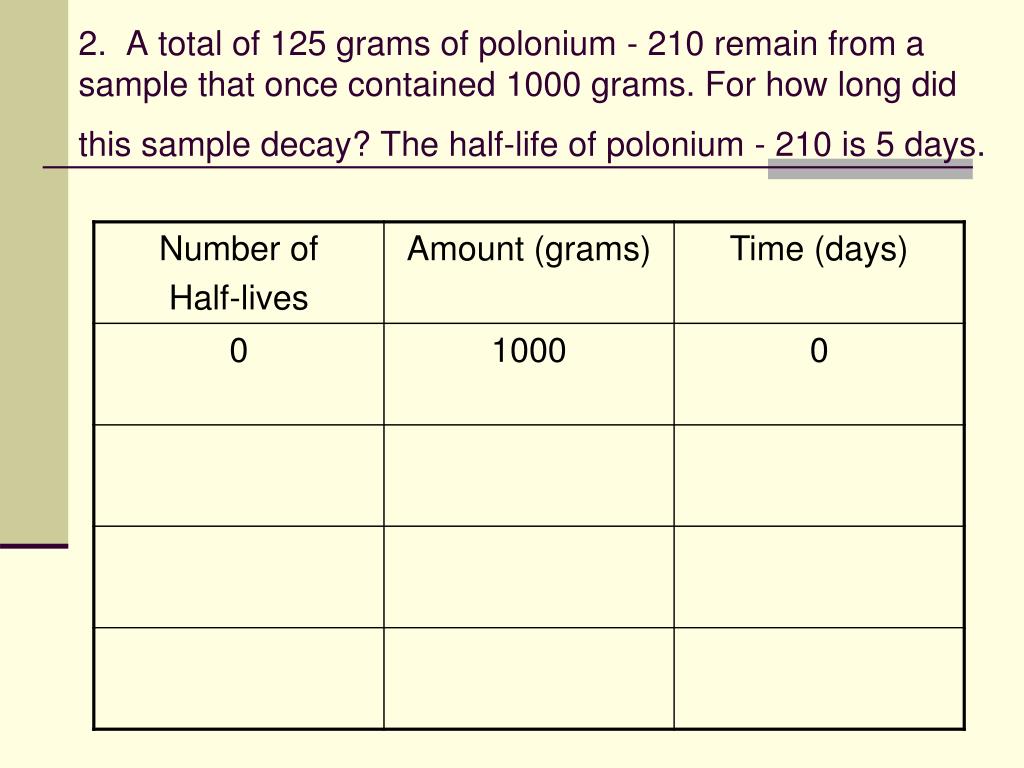

  9. 2. A total of 125 grams of polonium - 210 remain from a sample that once contained 1000 grams. For how long did this sample decay? The half-life of polonium - 210 is 5 days.

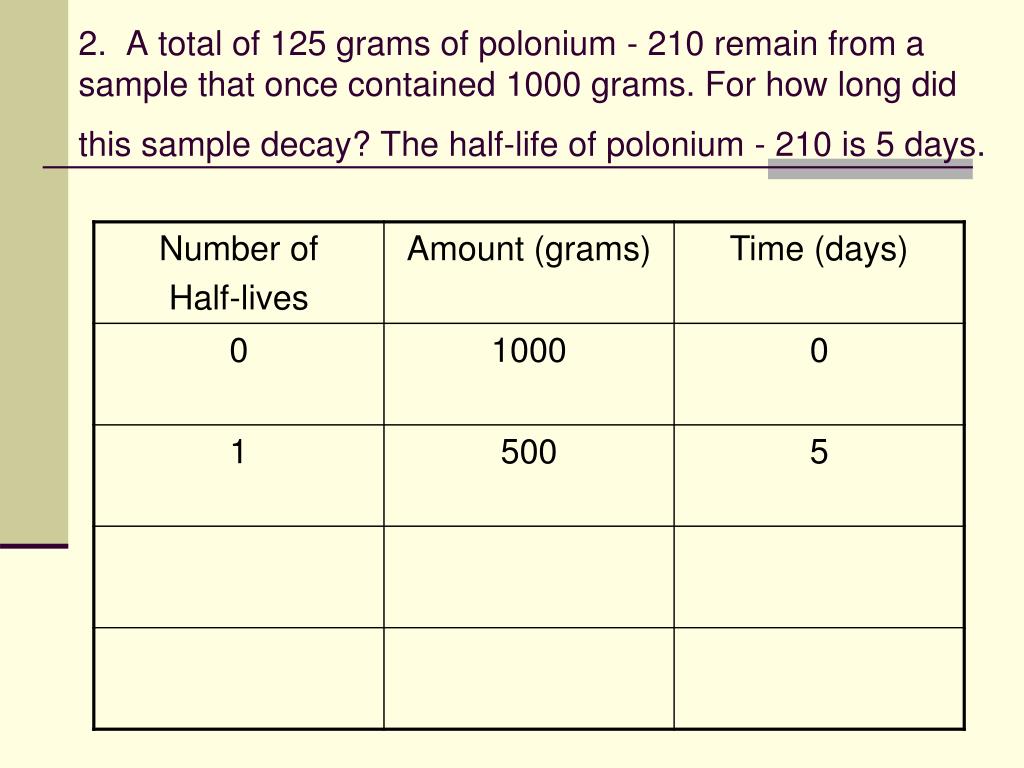

  10. 2. A total of 125 grams of polonium - 210 remain from a sample that once contained 1000 grams. For how long did this sample decay? The half-life of polonium - 210 is 5 days.

  11. 2. A total of 125 grams of polonium - 210 remain from a sample that once contained 1000 grams. For how long did this sample decay? The half-life of polonium - 210 is 5 days.

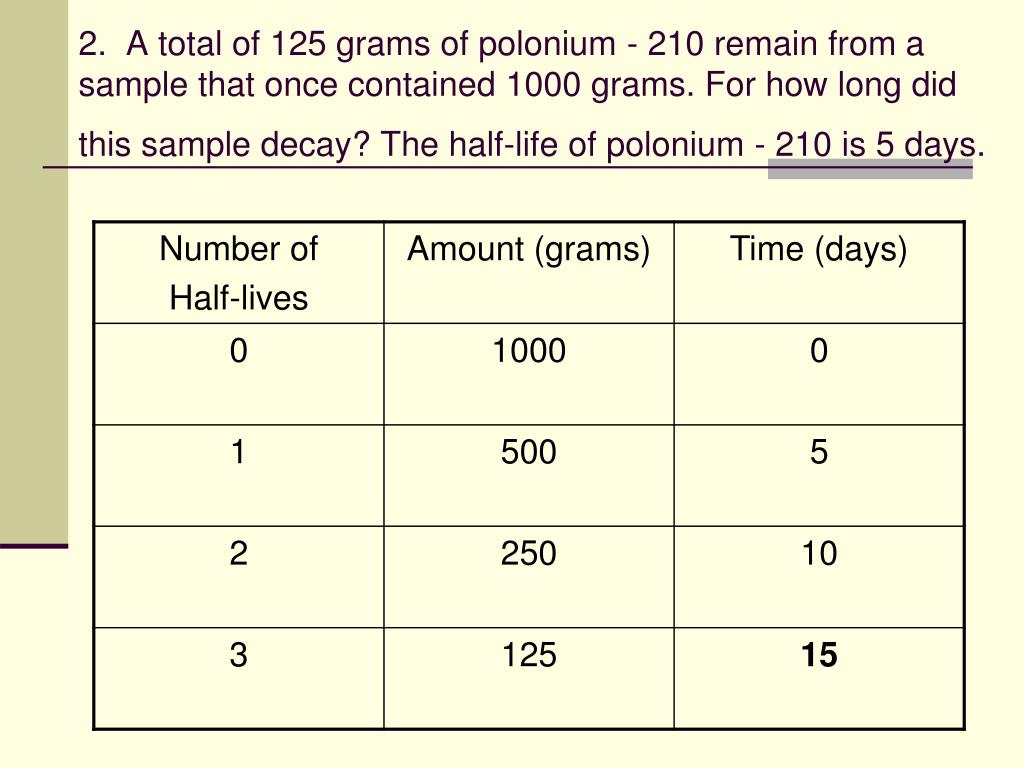

  12. 2. A total of 125 grams of polonium - 210 remain from a sample that once contained 1000 grams. For how long did this sample decay? The half-life of polonium - 210 is 5 days.

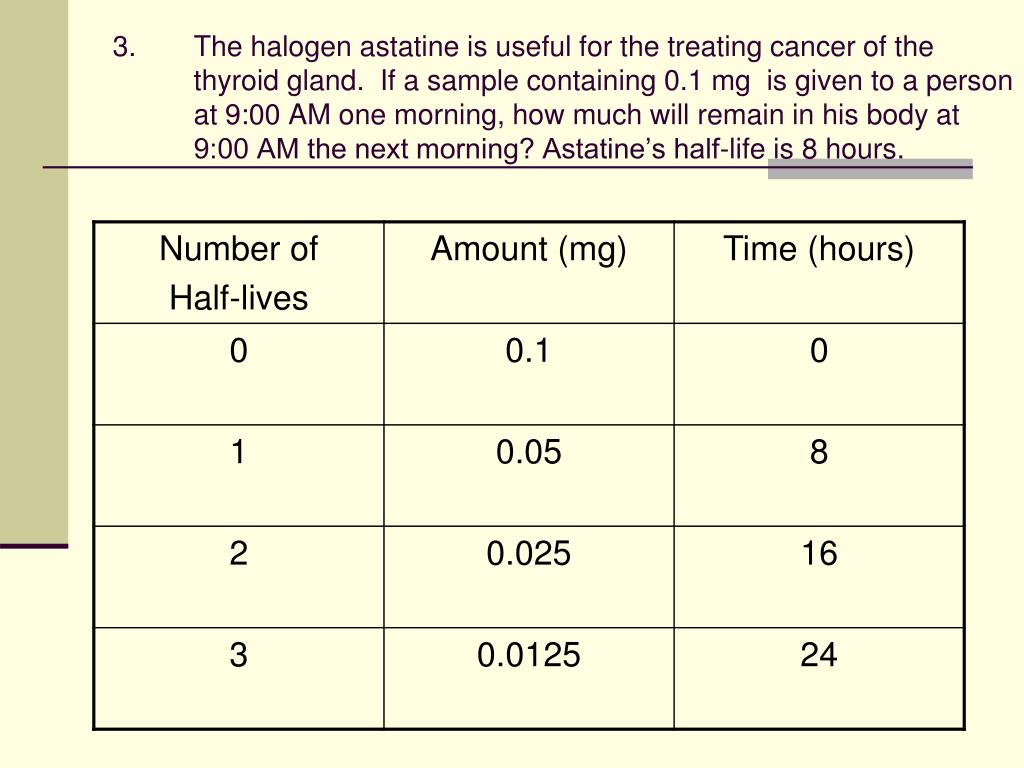

  13. The halogen astatine is useful for the treating cancer of the thyroid gland. If a sample containing 0.1 mg is given to a person at 9:00 AM one morning, how much will remain in his body at 9:00 AM the next morning? Astatine’s half-life is 8 hours. (Completed chart on next page)

  14. The halogen astatine is useful for the treating cancer of the thyroid gland. If a sample containing 0.1 mg is given to a person at 9:00 AM one morning, how much will remain in his body at 9:00 AM the next morning? Astatine’s half-life is 8 hours.

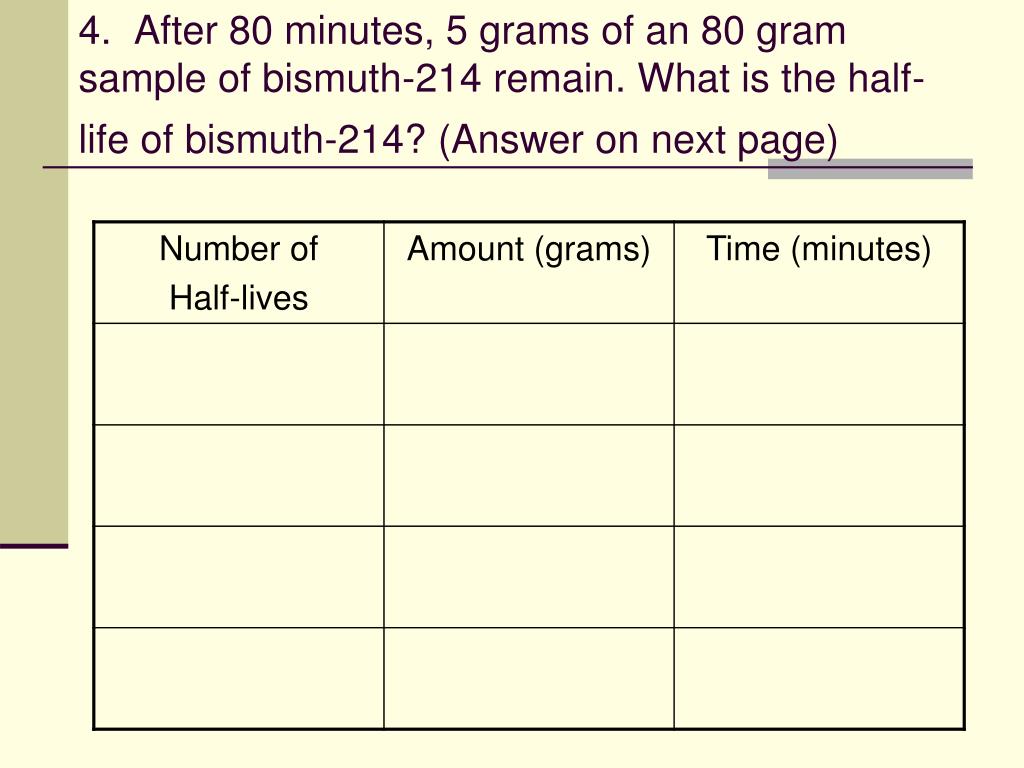

  15. 4. After 80 minutes, 5 grams of an 80 gram sample of bismuth-214 remain. What is the half-life of bismuth-214? (Answer on next page)

  16. After 80 minutes, 5 grams of an 80 gram sample of bismuth-214 remain. What is the half-life of bismuth-214?

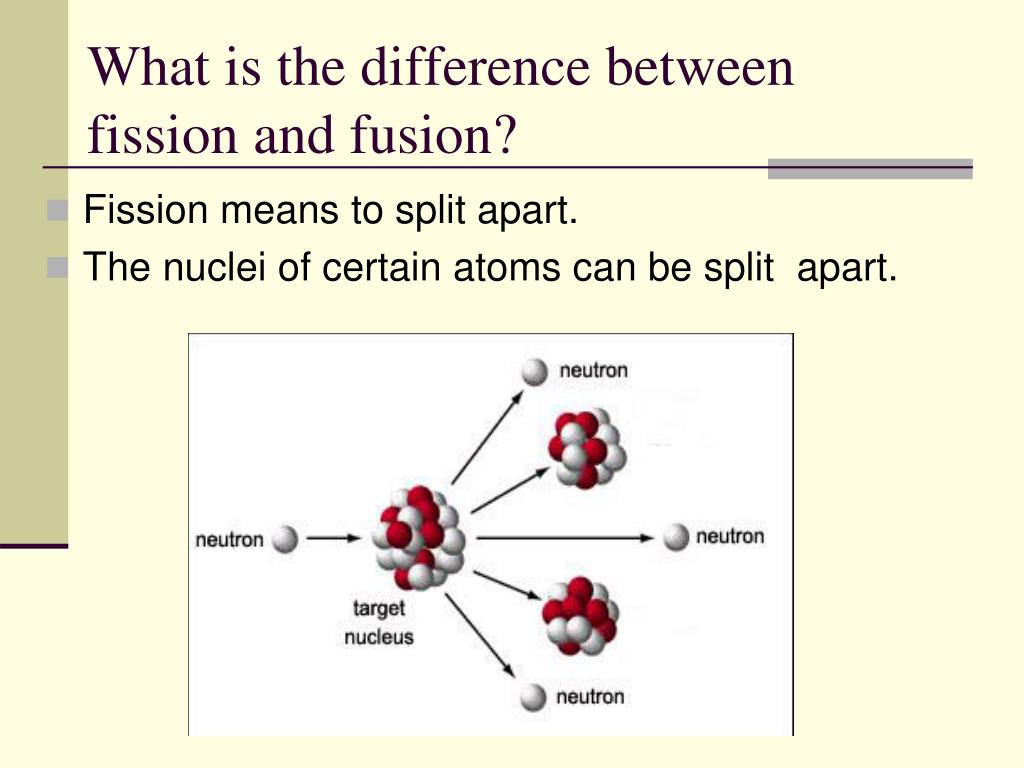

  17. What is the difference between fission and fusion? • Fission means to split apart. • The nuclei of certain atoms can be split apart.

  18. Fusion involves joining smaller nuclei to make a larger nucleus. • The sun uses nuclear fusion of hydrogen atoms into helium atoms.

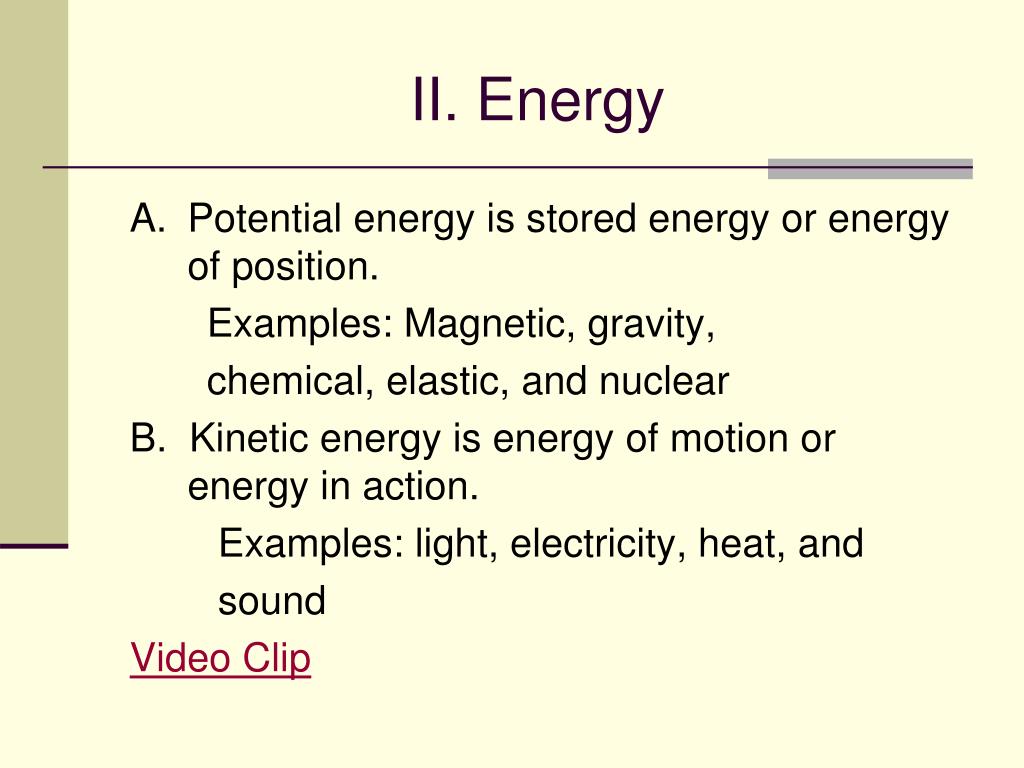

  19. II. Energy • Potential energy is stored energy or energy of position. Examples: Magnetic, gravity, chemical, elastic, and nuclear B. Kinetic energy is energy of motion or energy in action. Examples: light, electricity, heat, and sound Video Clip

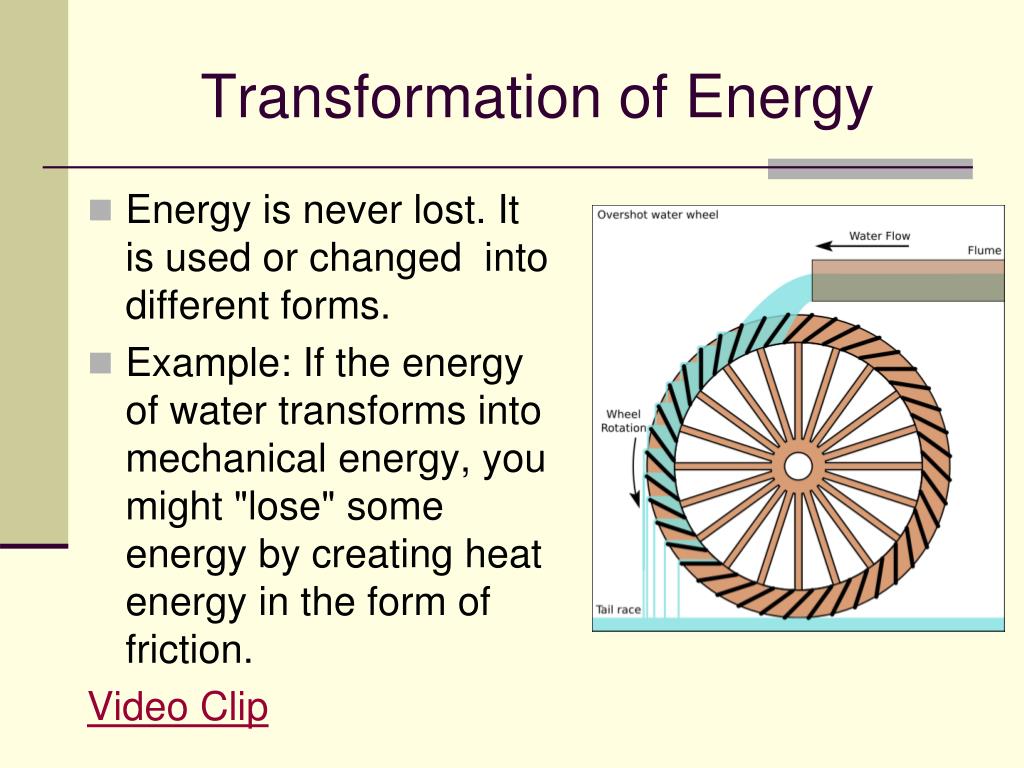

  20. Transformation of Energy • Energy is never lost. It is used or changed into different forms. • Example: If the energy of water transforms into mechanical energy, you might "lose" some energy by creating heat energy in the form of friction. Video Clip

  21. What energy transformations are these? • Turning on a lamp electrical energy to light energy (and heat energy) Chemical energy to electrical energy Nuclear energy (fusion) to solar energy (light and heat)

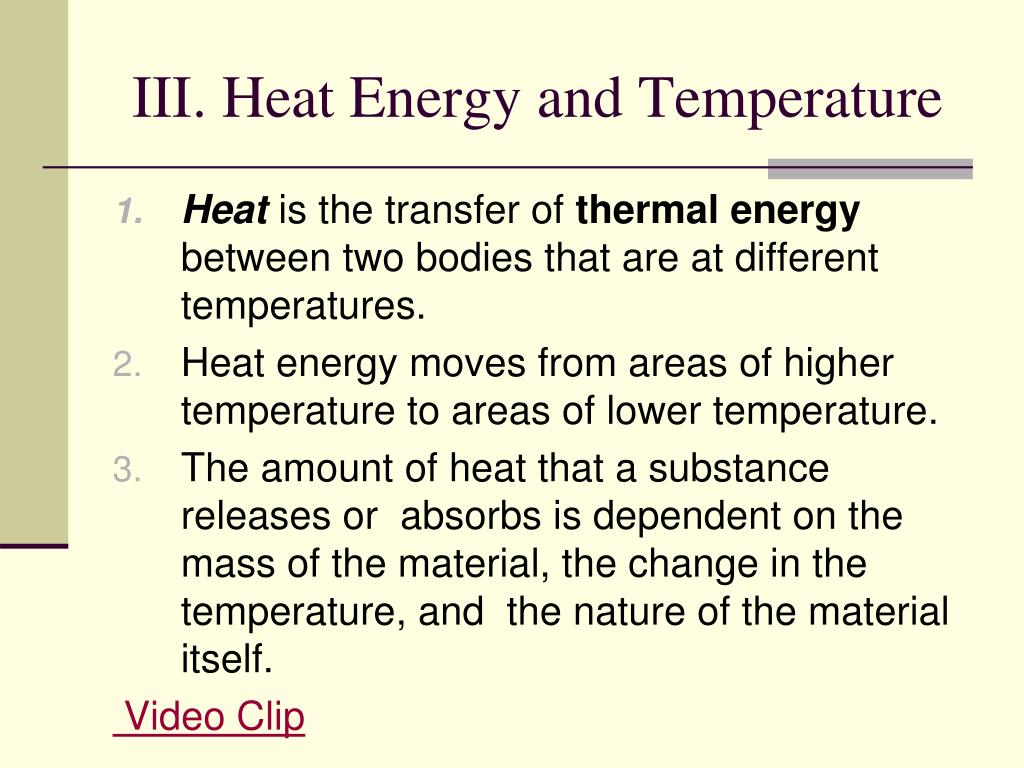

  22. III. Heat Energy and Temperature • Heat is the transfer of thermal energy between two bodies that are at different temperatures. • Heat energy moves from areas of higher temperature to areas of lower temperature. • The amount of heat that a substance releases or absorbs is dependent on the mass of the material, the change in the temperature, and the nature of the material itself. Video Clip

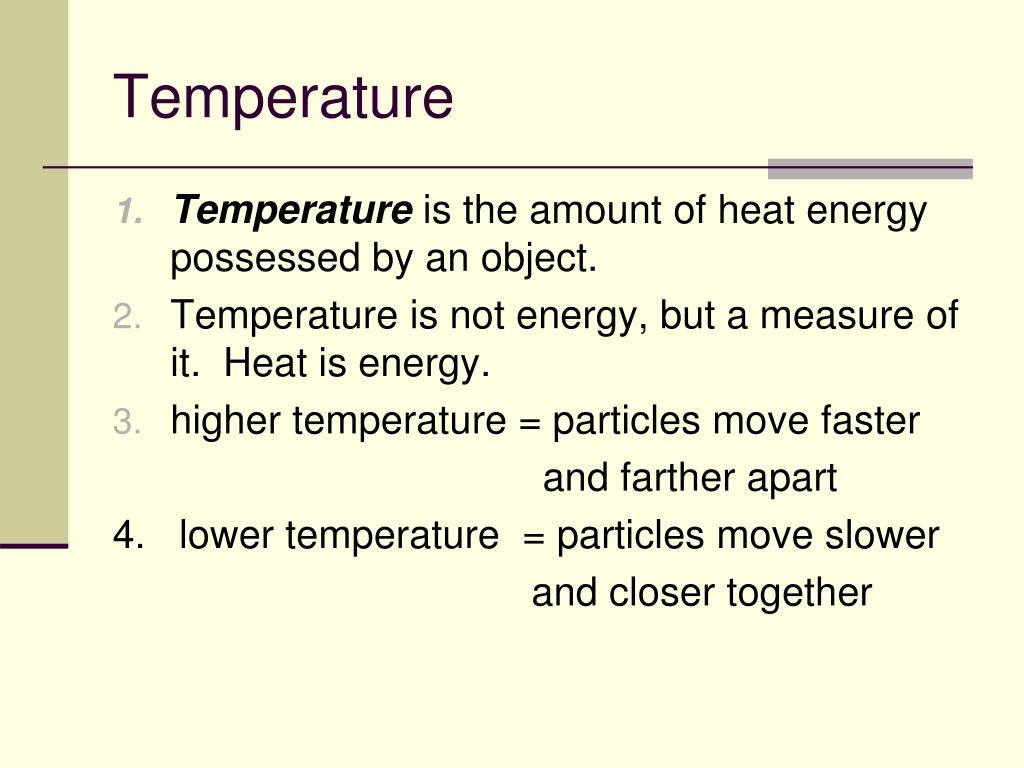

  23. Temperature • Temperature is the amount of heat energy possessed by an object. • Temperature is not energy, but a measure of it. Heat is energy. • higher temperature = particles move faster and farther apart 4. lower temperature = particles move slower and closer together

  24. Calculating Heat Capacity • The amount of heat energy necessary to raise a given mass of a substance by a specific unit of temperature is called the specific heat. • This equation will allow you to calculate heat gained or lost. • q = c X m XT

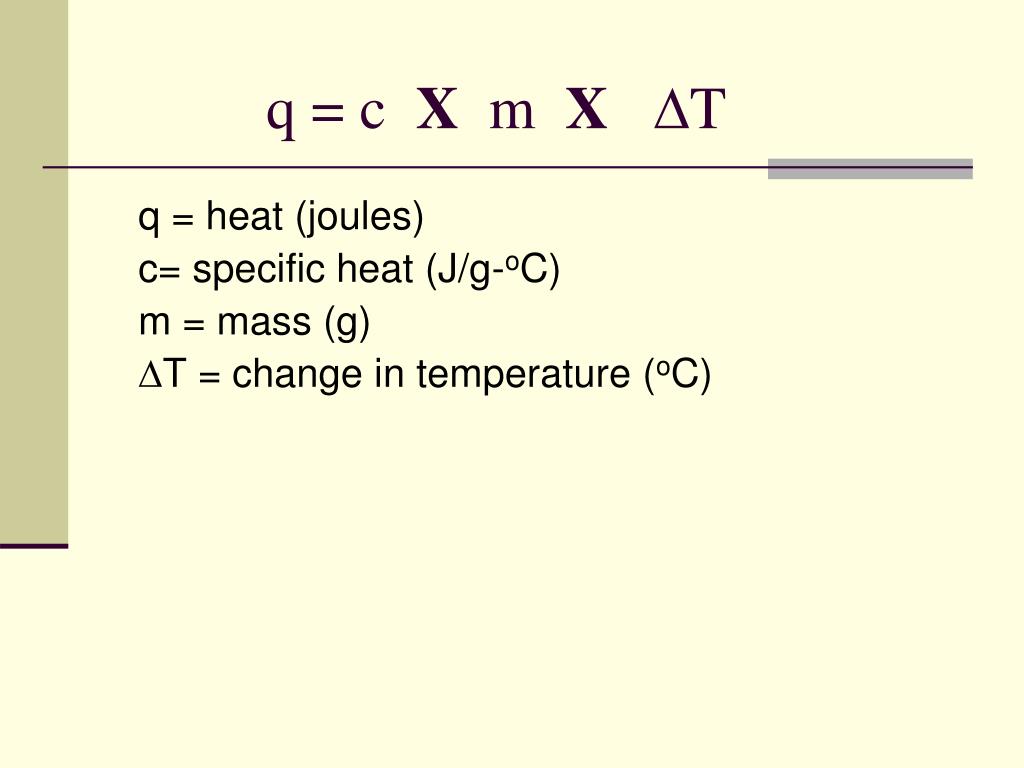

  25. q = c X m XT q = heat (joules) c= specific heat (J/g-oC) m = mass (g) DT = change in temperature (oC)

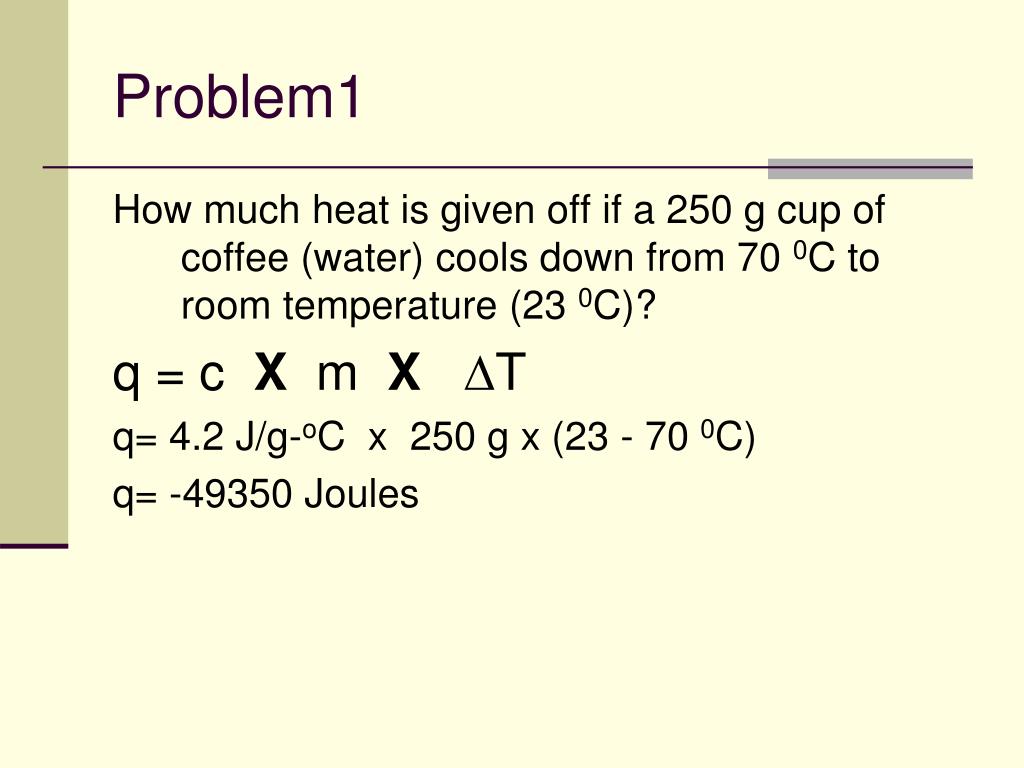

  26. Problem1 How much heat is given off if a 250 g cup of coffee (water) cools down from 70 0C to room temperature (23 0C)? q = c X m XT q= 4.2 J/g-oC x 250 g x (23 - 70 0C) q= -49350 Joules

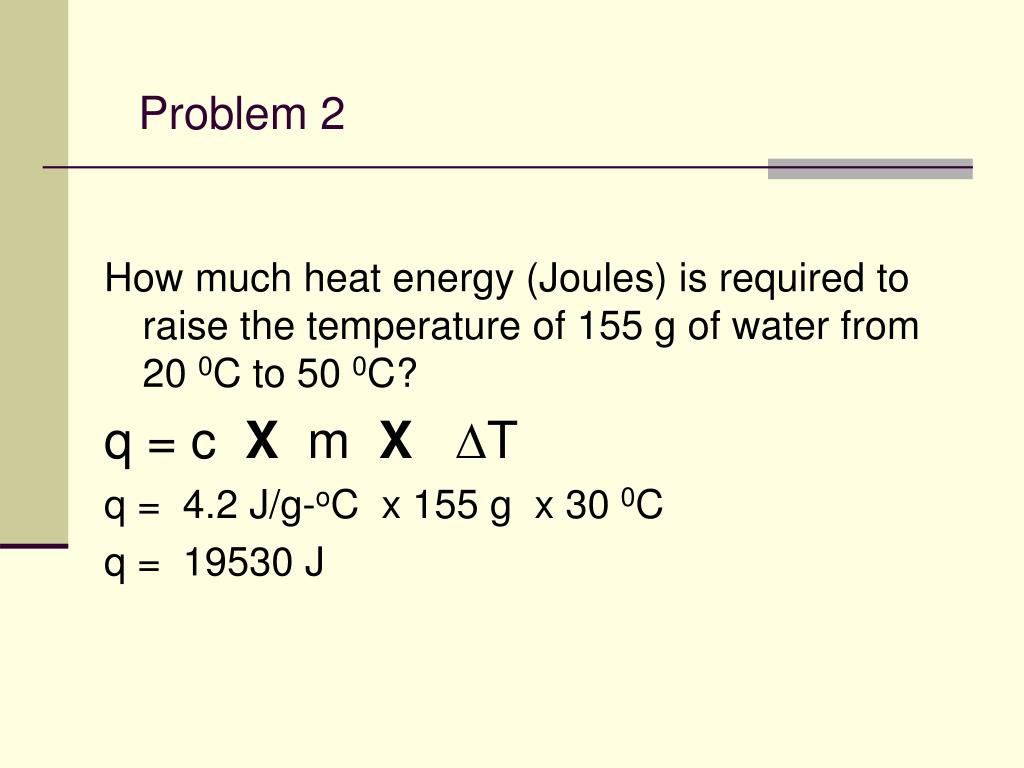

  27. Problem 2 How much heat energy (Joules) is required to raise the temperature of 155 g of water from 20 0C to 50 0C? q = c X m XT q = 4.2 J/g-oC x 155 g x 30 0C q = 19530 J
