  1. Wireless Telemetry for Solar Powered Car Heather Chang FarhanFarooqui William Mann December 13, 2010 School of Electrical and Computer Engineering

  2. Project Overview

  3. Objectives • Real-time processing of vital information: • Measure vehicle speed • Measure battery pack voltage and current • Measure motor controller voltages andcurrents • Measure outdoor andcabin ambient temperature • Receive vehicle location (GPS) • Receive motor controller status (on/off) • Receive currents, voltages, temperature readings from solar panels • Wireless link with solar car (at least 100 ft) • GUI displaying data on LCD to driver and on laptop in chase car • Storage of data in solar car

  4. Design Overview

  5. Data Acquisition: Vehicle Speed • Two part system • Hall effect sensor • Temperature-stable • Stress-resistant • Supply voltages of 3 to 24 V • Magnet

  6. Vehicle Speed Process • Vout switches from 2.8V to -0.022V as a south pole comes in close proximity (ca. 25mm) to the sensor • SBC keeps track of ‘LOWS’ to return a RPM measurement

  7. Vehicle Speed Test Results

  8. Data Acquisition: Current (I) Sensor • HASS 200-S Sensor: • Nominal current: 200 A • Measurement range: ± 600 A • Low power consumption (5V, 22 mA)

  9. Current (I) Sensor Process Vout (Analog) = Vref ± (0.625·Ip/Ipn) where Vref = 2.487V Ip = measured current Ipn = 200 (HASS 200 model)

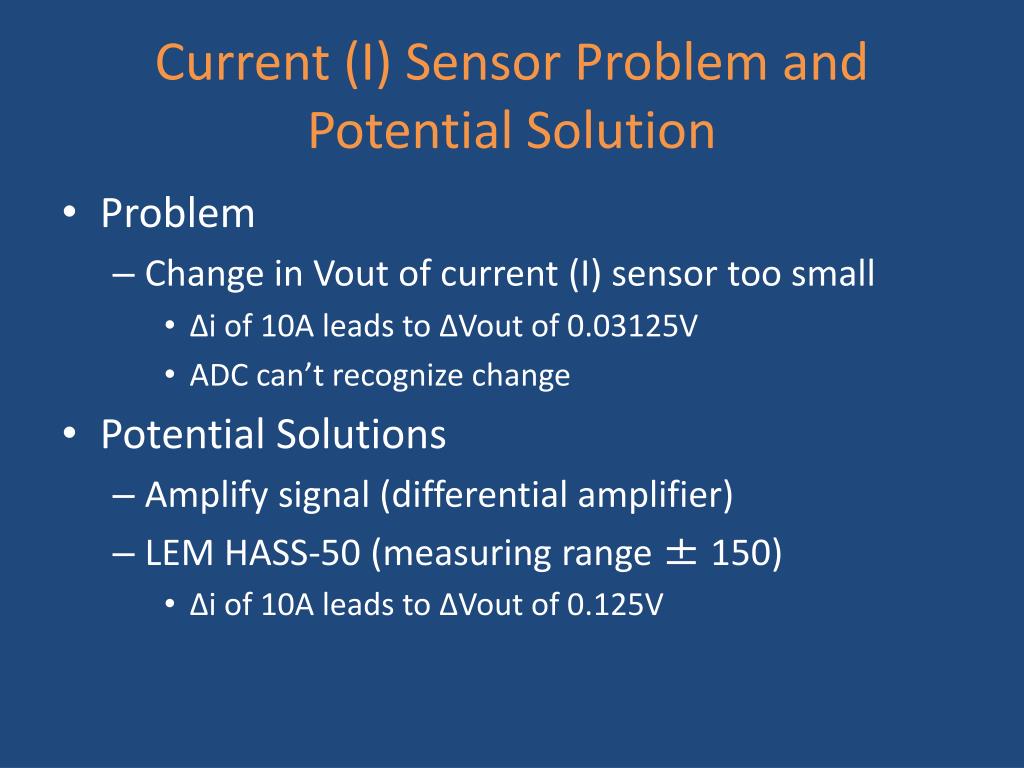

  10. Current (I) Sensor Problem and Potential Solution • Problem • Change in Vout of current (I) sensor too small • Δi of 10A leads to ΔVout of 0.03125V • ADC can’t recognize change • Potential Solutions • Amplify signal (differential amplifier) • LEM HASS-50 (measuring range ± 150) • Δi of 10A leads to ΔVout of 0.125V

  11. Current (I) Sensor Potential Solution • Differential Amplifier Circuit

  12. Current (I) Sensor Results

  13. Data Acquisition: AC Voltage Schematic of AC Voltage divider circuit:

  14. DC Voltage Schematic of DC voltage divider circuit:

  15. Voltage Process

  16. Voltage Measurement Motor Controller Results • Max voltage Reading on SBC: 96 V • Max Voltage Reading on Oscilloscope: 94 V

  17. Voltage Measurement Battery Pack Results

  18. Data Acquisition: Temperature • Temperature sensor outputs a binary value • SBC sees binary value as an integer • Divide integer value by 8 to get Kelvin scale • Convert Kelvin scale to Fahrenheit scale

  19. Temperature Results

  20. Data Acquisition: GPS • GPS Tracking • Plugs into the SBC’s USB port • Outputs longitude, latitude and altitude data as ASCII text • Data captured by the SBC and forwarded to a laptop • Has a 5 ft long wire

  21. GPS Output • $GPRMC,201740.394,V,,,,,,,101110,,,N*43$GPRMC,201741.394,V,,,,,,,101110,,,N*42$GPRMC,201742.407,V,,,,,,,101110,,,N*4C$GPRMC,201743.394,V,,,,,,,101110,,,N*40$GPRMC,201744.394,V,,,,,,,101110,,,N*47

  22. Single-Board Computer (SBC) • Running Linux at 200 Mhz • Programmed using C • Allows for multi-process scheduling • Full socket connection available via network. • Start-up script to load drivers for hardware when powered on.

  23. Asus Wireless-G USB Module • Easier to interface with SBC than previous ZigBee module. • Allows full network connection • Built in encryption/checksum • Socket programming • Remote debugging (Telnet/FTP) • Outdoor range up to 1085 ft • Compatible with standard Wi-Fi equipment

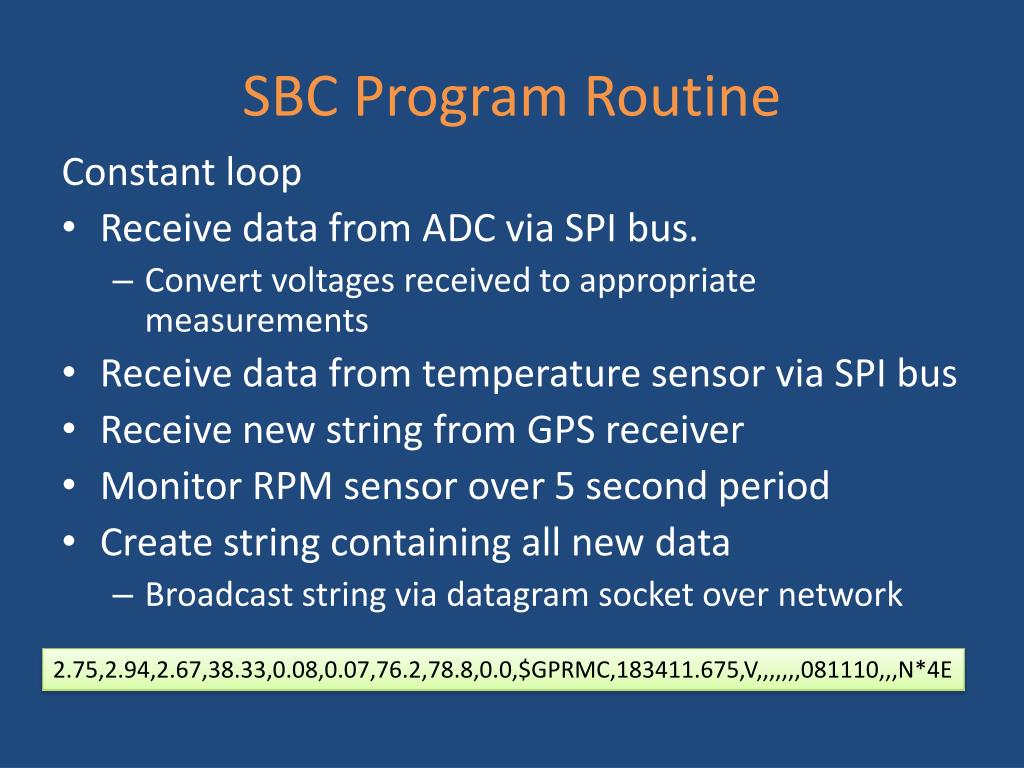

  24. SBC Program Routine Constant loop • Receive data from ADC via SPI bus. • Convert voltages received to appropriate measurements • Receive data from temperature sensor via SPI bus • Receive new string from GPS receiver • Monitor RPM sensor over 5 second period • Create string containing all new data • Broadcast string via datagram socket over network 2.75,2.94,2.67,38.33,0.08,0.07,76.2,78.8,0.0,$GPRMC,183411.675,V,,,,,,,081110,,,N*4E

  25. Remote Laptop Program • Runs on Linux • Listen for any packets being sent through socket on specified port • Format and display received strings in console • Save received string to CSV file on laptop • CSV file readable using text editor, Excel, Matlab, etc…

  26. Data Storage • USB thumb drive attached to SBC • Saves to FAT16 formatted drive • Saves every string broadcasted out in CSV file • 200 byte strings saved every second • ~700kB/hour • Remote laptop storage • Listening program on remote laptop saves every string received

  27. Code: Suggestions For Improvement • Increased compatibility: Listener program could be easily ported to Windows API’s. • Enhanced GUI or addition of threshold warnings for some measurements could be added to listener program. • Multiple listeners: Additional addresses could be added to broadcast to more than one laptop.

  28. Problems • Temperature Sensor • Driver • SPI • Zigbee Module for Wireless Data Transfer • Compatability • Range • Power Consumption

  29. Future Work • Current Sensor • RS-232 Data Reception • LCD • Range • Power Consumption • Printed Circuit Board

  30. Cost

  31. Questions?
