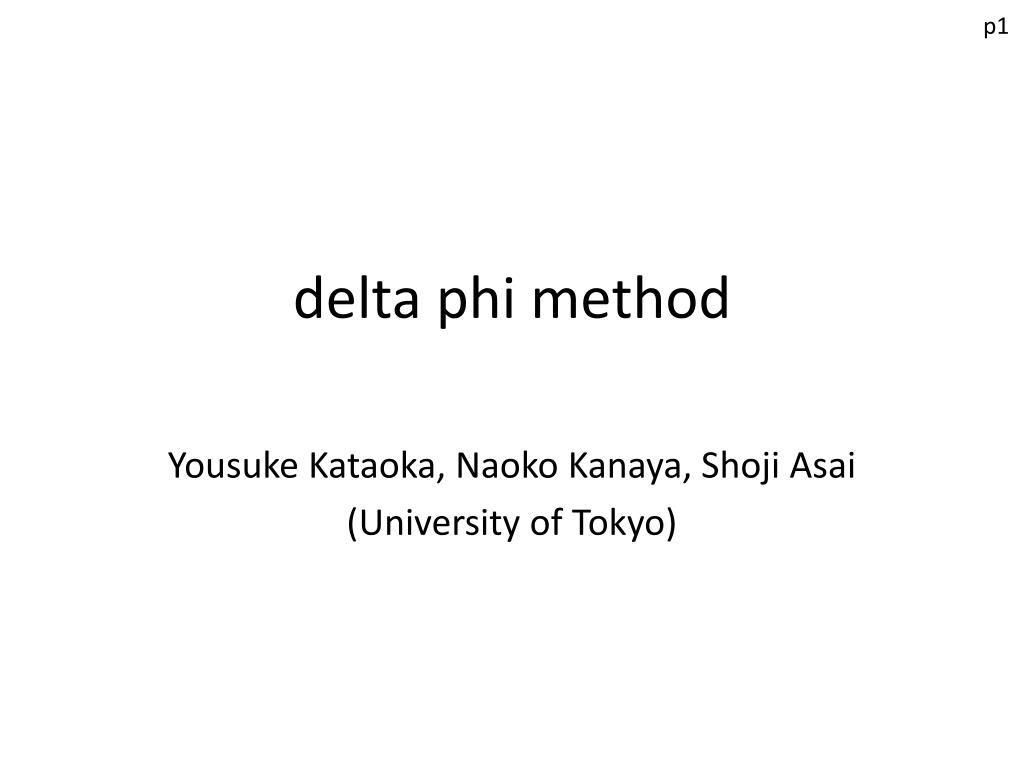

  1. p1 delta phi method Yousuke Kataoka, Naoko Kanaya, Shoji Asai (University of Tokyo)

  2. p2 introduction • motivation • Currently delta phi control region is used to determine global QCD factor • We extend the method to estimate the shape, • in other words, QCD numbers in any MET, Meff region • advantages • there is no extrapolation in MET, Meff • control region is exactly the same with signal region in MET, Meff • most systematics (JES, cut bias, etc) doesn’t propagate • almost pure data-driven and no assumption on the MET source, • so respect all detector, heavy flavor, shower leak, even unknown sources • simple, easy, no extra data (just keep the events dphi<0.4 from SR) • disadvantage • statistics error contributes (several events in 1TeV region) •  due to large factor of dphi ratio, error is suppressed and gives reasonable estimation • difficult to understand(validate) dphi ratio at high MET, Meff region •  we use conservative value or low MET value (asymptotic sharpened)

  3. Brief outline of dphi method p3 Signal region (dphi>0.4) Control region (dphi<0.2) Side-band region (dphi=0.2~0.4) typical shape of min dphi (4jet, met>130) x R (QCD) step4 QCD Nside QCD Nsig Ncont step3 x R (non-QCD) step1 step2 Non-QCD non-QCD (SM,SUSY) in signal region except for min dphi cut step1. get number of non-QCD(SM,SUSY) events in side-band region (dphi=0.2~0.4) assume Nside (non-QCD) ~ Nside (data) step2. get number of non-QCD events in control region (dphi<0.2) by multiplying the ratio Ncont (non-QCD) = Nside (non-QCD) x R(non-QCD:cont/side) step3. get number of QCD events in control region Ncont (QCD) = Ncont (data) - Ncont (non-QCD) step4. get number of QCD events in signal region (dphi>0.4) by multiplying the ratio Nsig (QCD) = Ncont (QCD) x R(QCD:sig/cont) contamination of QCD not propagate so much Inputs Ncont, Nside from data R(non-QCD:cont/side) R(QCD:sig/cont)

  4. p4 R(non-QCD:cont/side) = Ncont(non-QCD) / Nside(non-QCD) • non-QCD events have similar distribution among processes, even in SUSY signals • due to the fact that “real-MET not correlate jets” •  R is almost determined by probability(not physics) soMC is relatively reliable • R is similar and we can treat non-QCD BG (and even SUSY) as a whole • futhermore, systematics related to R is suppress by factor R(non-QCD) x R(QCD) ~ O(10) R = N_s / N_c Ncont Nside  R = 1.09 +- 10% number here is an example, we prepare the number for each signal region (see last slide)

  5. p5 R(QCD:sig/cont) = Nsig(QCD) / Ncont(QCD) It’s difficult to understand(validate) especially high MET, Meff region(signal region) because no pure QCD distribution available in data and MC is statistically limited  but we can use conservative value R in low MET region for data and MC distribution gets sharpened at higher MET because large MET is rigid againt fake MET smearing  we can use low MET value as conservative MET = 130GeV ~ 150GeV (4jets) Ncont Nsig Ncont Nsig MC(QCD) R = 0.11+-0.05 <0.16 Data - nonSM(MC) R = 0.07 +0.05 (20% sys. of nonSM) conservative value for high MET region * 0.16 for 4jets, 0.08 for 3jets, 0.11 for 2jets pour stat.

  6. Estimation for each signal regions @ 163pb-1 p6 Inputs for each signal regions • pour statistics in MC • use conservative • 0.16 for 4jets • 0.08 for 3jets • 0.11 for 2jets Xsec from MC Estimation for each signal regions
