Scattering by an atom

Scattering by an atom. Atomic Scattering Factor. dE a. S - S o. S. dV. 2 q. r. S o. charge in dV:. Scattering by dV:. spherical cloud of electrons (assumed). Notes: 11/2/99 pg. 1 pg. 2. Notes: 10/28/99 pg. 1 pg. 2. Scattering by an atom. Atomic Scattering Factor.

nami
Télécharger la présentation

Scattering by an atom

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Scattering by an atom Atomic Scattering Factor dEa S-So S dV 2q r So charge in dV: Scattering by dV: spherical cloud of electrons (assumed) Notes: 11/2/99 pg. 1 pg. 2 Notes: 10/28/99 pg. 1 pg. 2

  2. Scattering by an atom Atomic Scattering Factor

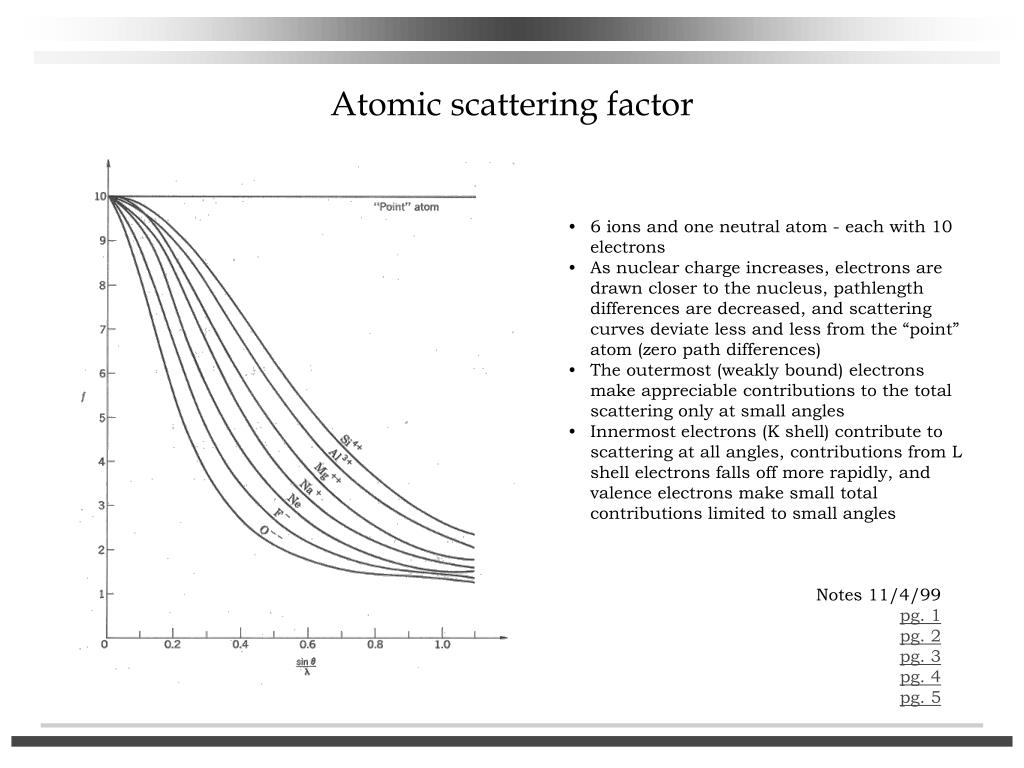

  3. Atomic scattering factor • 6 ions and one neutral atom - each with 10 electrons • As nuclear charge increases, electrons are drawn closer to the nucleus, pathlength differences are decreased, and scattering curves deviate less and less from the “point” atom (zero path differences) • The outermost (weakly bound) electrons make appreciable contributions to the total scattering only at small angles • Innermost electrons (K shell) contribute to scattering at all angles, contributions from L shell electrons falls off more rapidly, and valence electrons make small total contributions limited to small angles Notes 11/4/99 pg. 1 pg. 2 pg. 3 pg. 4 pg. 5

  4. Atomic scattering factor Lithium (Z = 3) Hydrogen (Z = 1)

  5. Scattering Summarized

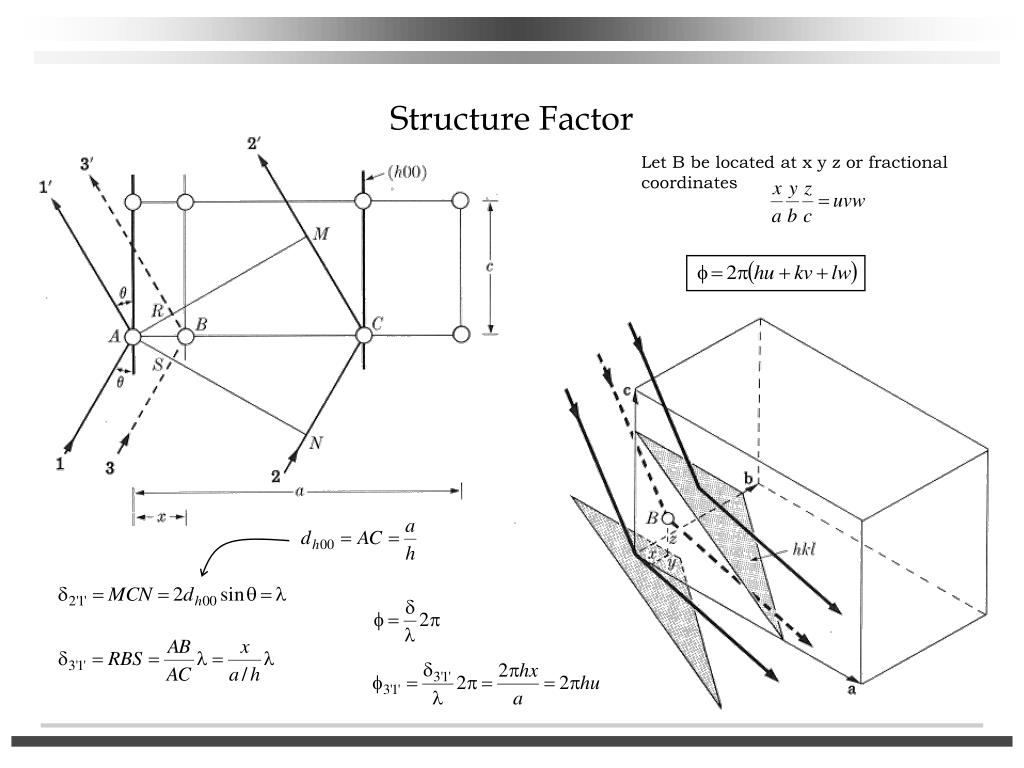

  6. Structure Factor Let B be located at x y z or fractional coordinates

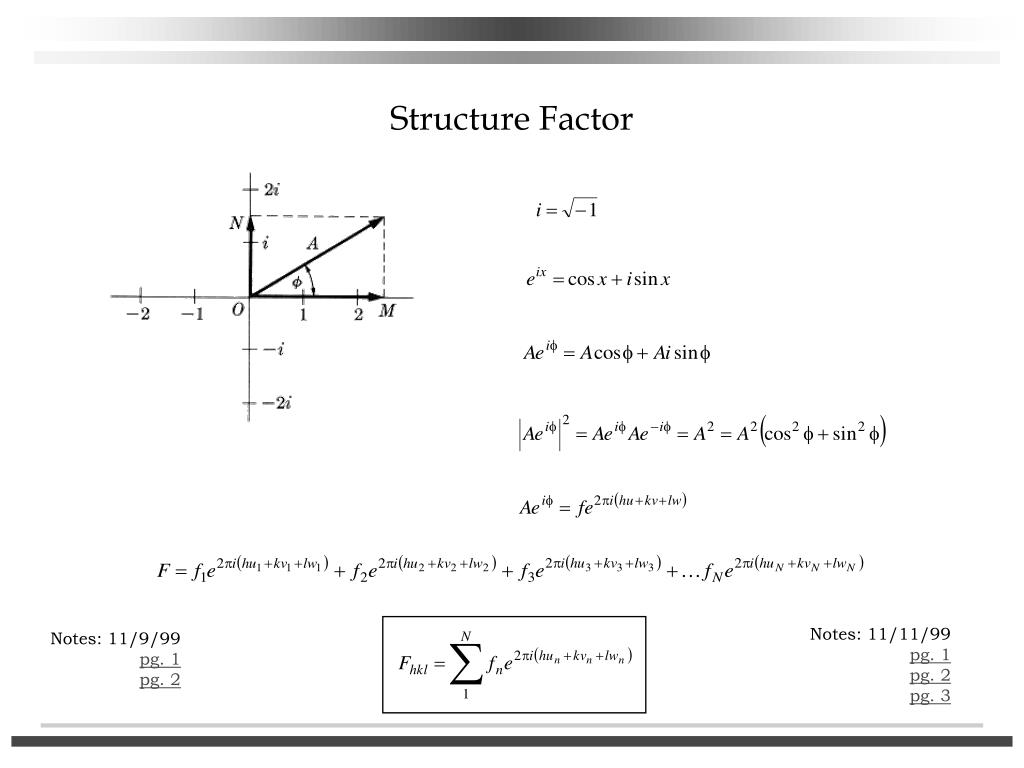

  7. Structure Factor Vector summation of E1 and E2

  8. Structure Factor Notes: 11/11/99 pg. 1 pg. 2 pg. 3 Notes: 11/9/99 pg. 1 pg. 2
