Presentation Transcript

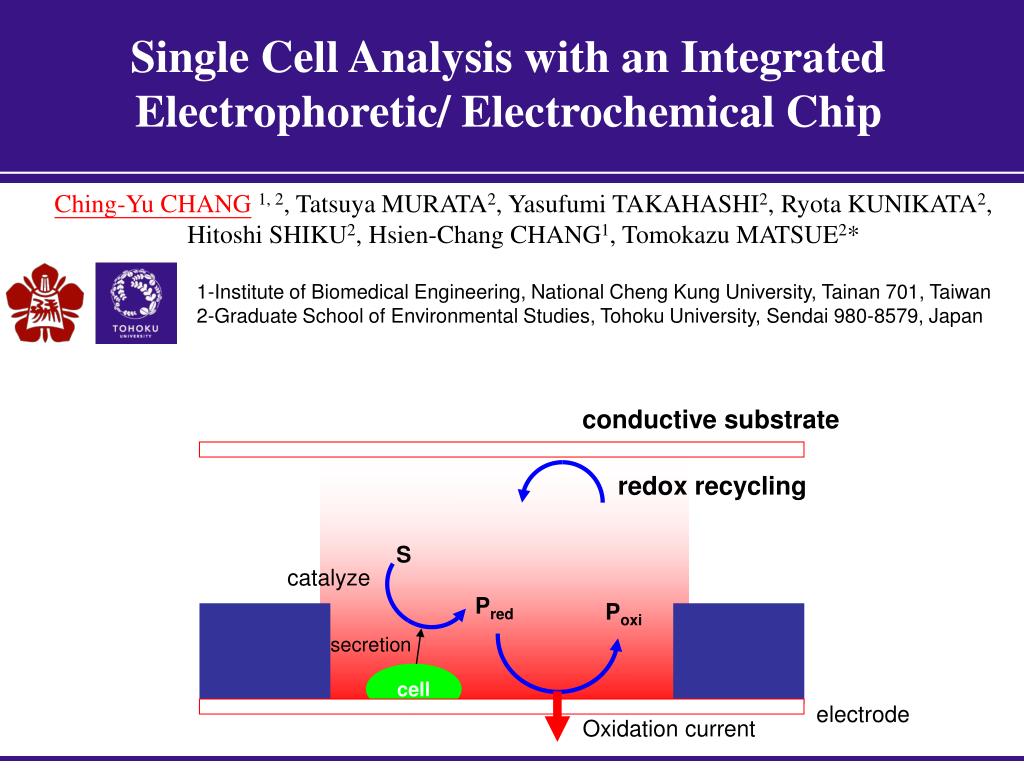

  1. Single Cell Analysis with an Integrated Electrophoretic/ Electrochemical Chip Ching-Yu CHANG1, 2, Tatsuya MURATA2, Yasufumi TAKAHASHI2, Ryota KUNIKATA2, Hitoshi SHIKU2, Hsien-Chang CHANG1, Tomokazu MATSUE2* 1-Institute of Biomedical Engineering, National Cheng Kung University, Tainan 701, Taiwan 2-Graduate School of Environmental Studies, Tohoku University, Sendai 980-8579, Japan conductive substrate redox recycling S catalyze Pred Poxi secretion cell electrode Oxidation current

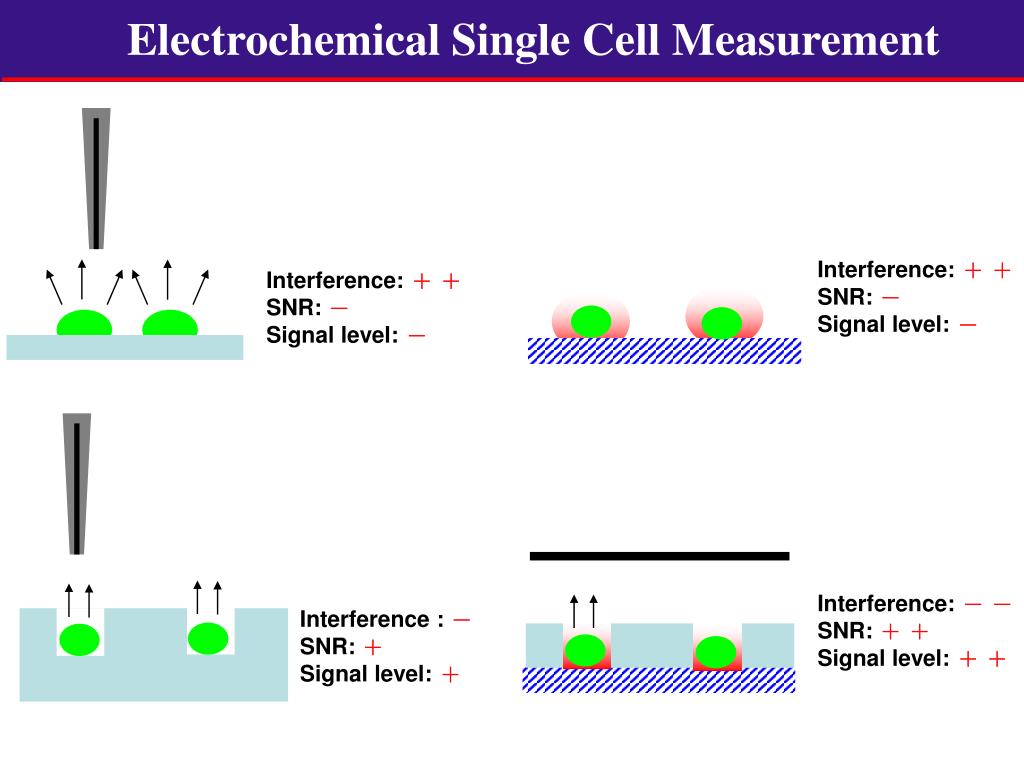

  2. Electrochemical Single Cell Measurement Interference: ＋ ＋ SNR: － Signal level: － Interference: ＋ ＋ SNR: － Signal level: － Interference: － － SNR: ＋ ＋ Signal level: ＋ ＋ Interference : － SNR: ＋ Signal level: ＋

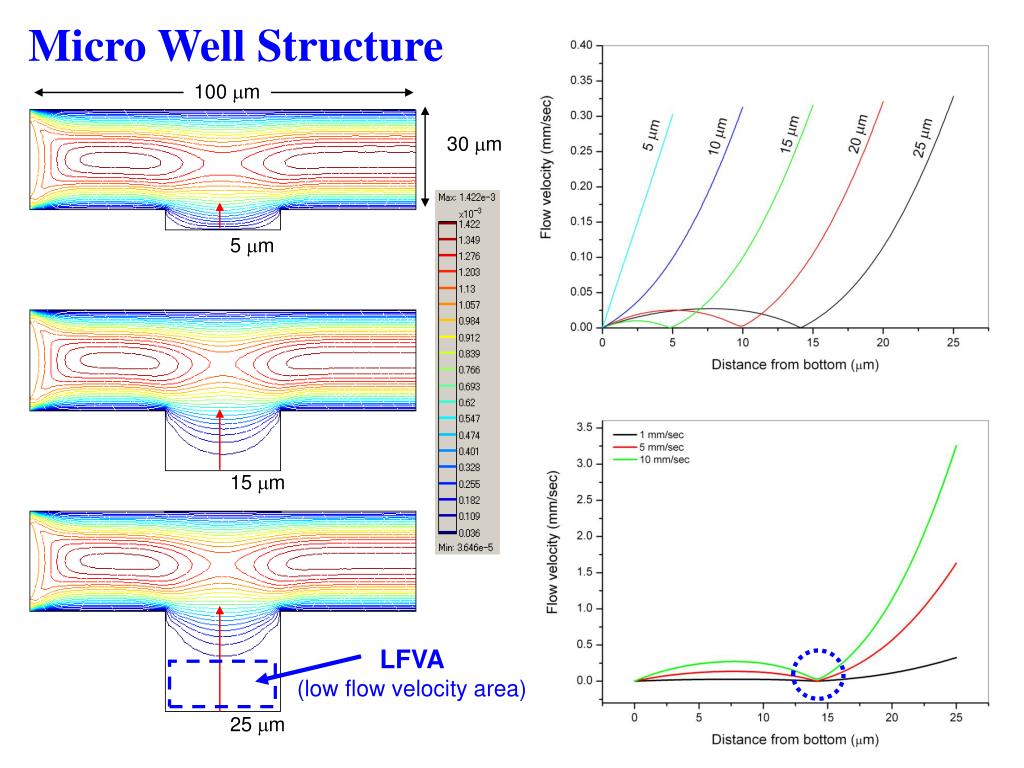

  3. Micro Well Structure 100 mm 30 mm 5 mm 15mm LFVA (low flow velocity area) 25 mm

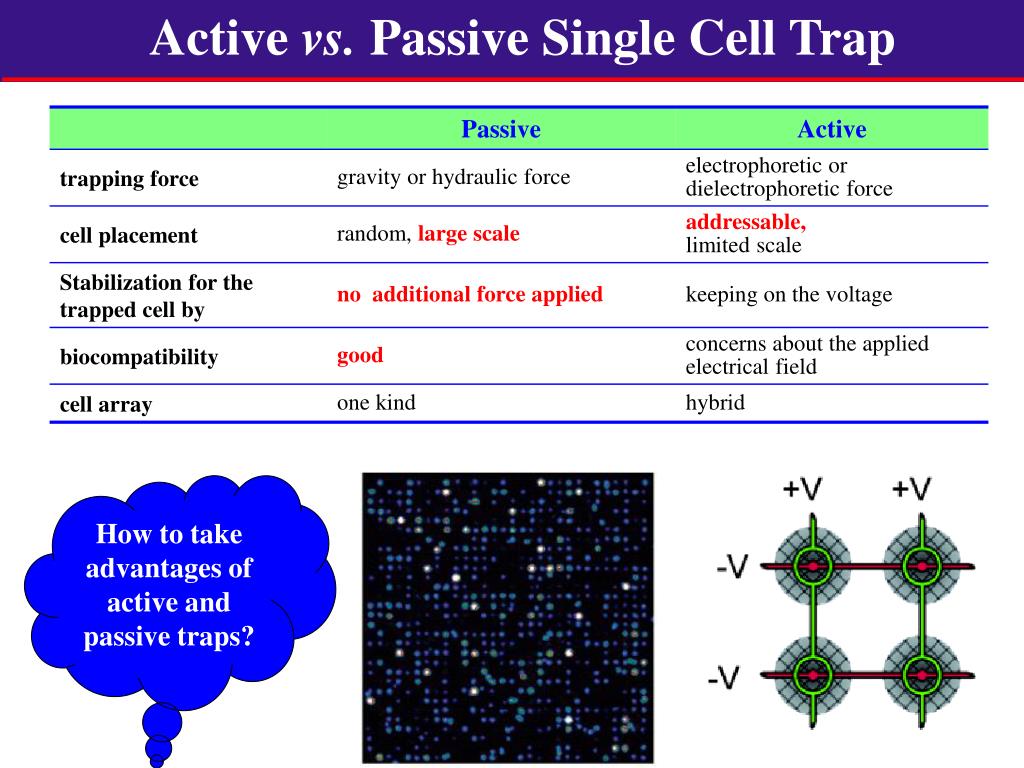

  4. Active vs. Passive Single Cell Trap How to take advantages of active and passive traps?

  5. Chip Design 30 mm SU- 8 ITO 25 mm Pt 30 mm ＋ － +2.0 V tape SU-8 electrode Trapping solution: 0.2 M sucrose Trapping voltage: 2.0 V vs. ITO

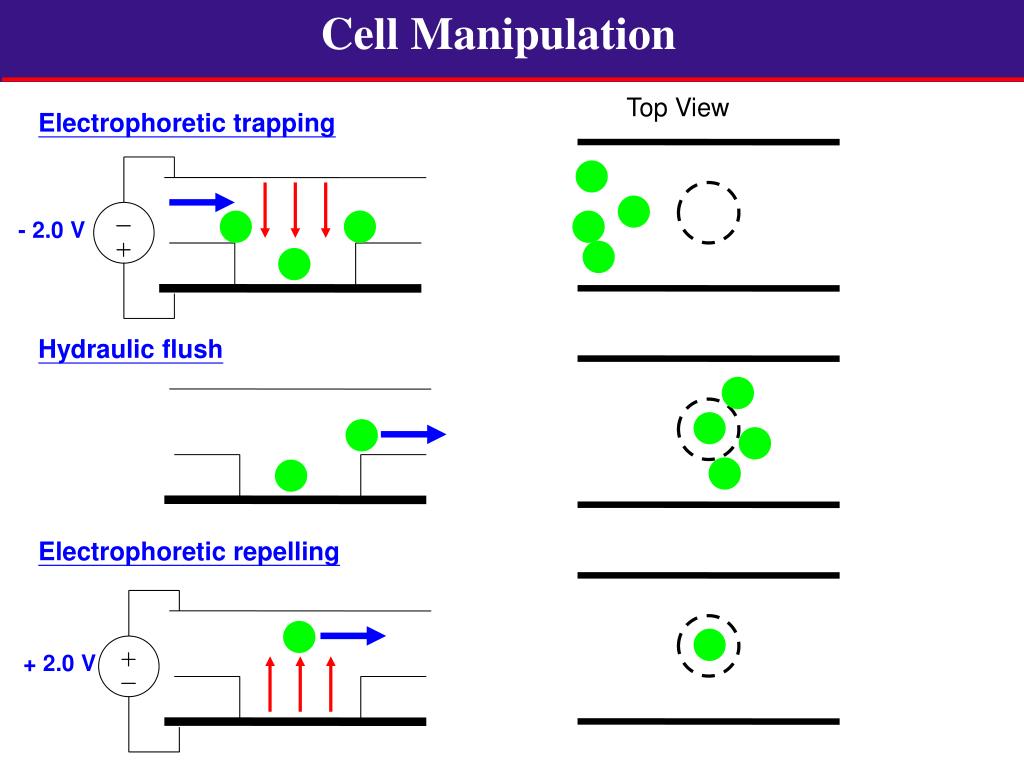

  6. Cell Manipulation Top View Electrophoretic trapping － ＋ - 2.0 V Hydraulic flush Electrophoretic repelling ＋ － + 2.0 V

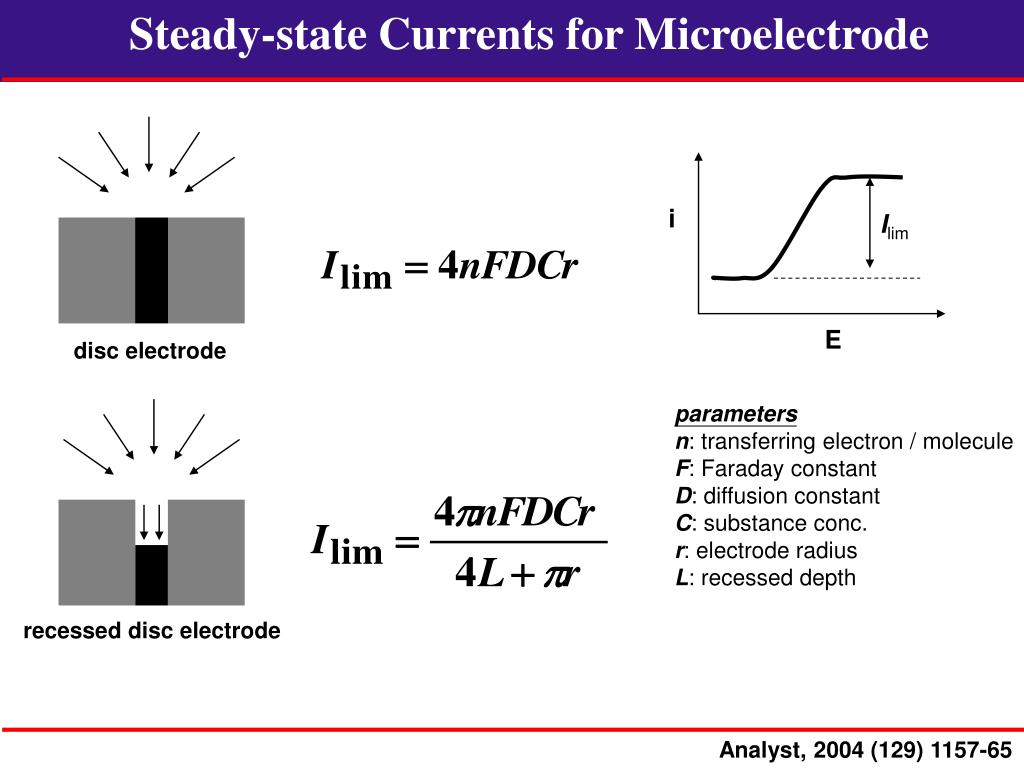

  7. Steady-state Currents for Microelectrode i Ilim E disc electrode parameters n: transferring electron / molecule F: Faraday constant D: diffusion constant C: substance conc. r: electrode radius L: recessed depth recessed disc electrode Analyst, 2004 (129) 1157-65

  8. Model for Recessed UME on a Conductive Substrate l r d conductive substrate redox normalized parameter H=l/r, L=d/r UME Chip Electrode Anal. Chem., 2007 (79) 5809-16

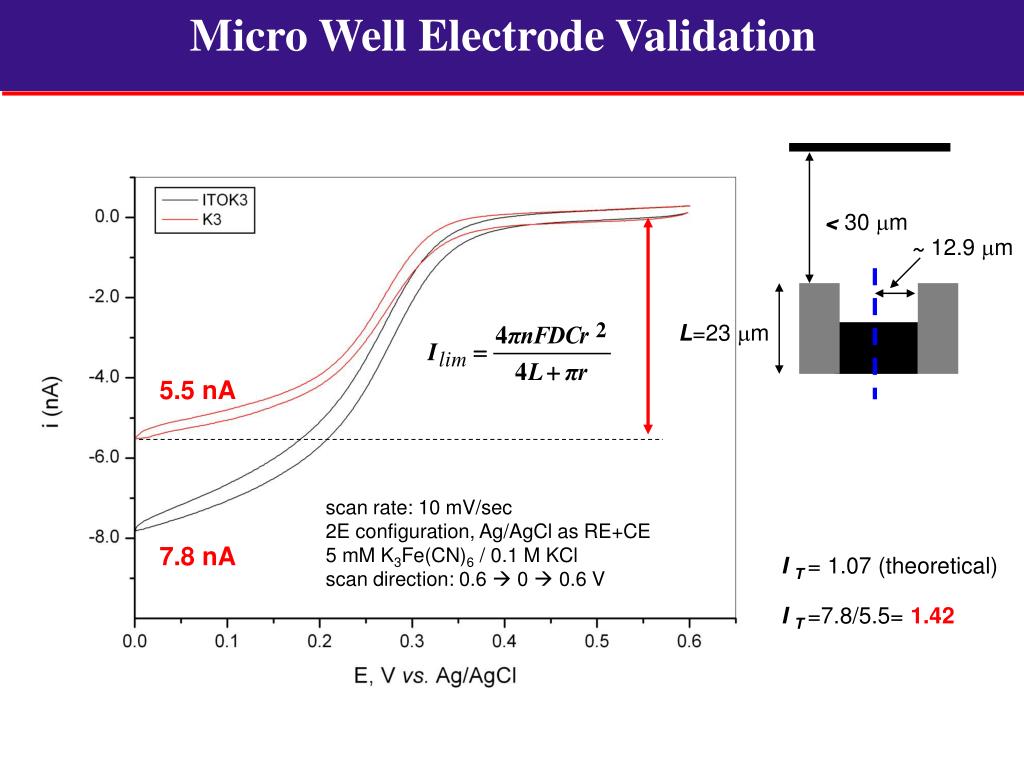

  9. Micro Well Electrode Validation < 30 mm ~ 12.9 mm L=23 mm 5.5 nA scan rate: 10 mV/sec 2E configuration, Ag/AgCl as RE+CE 5 mM K3Fe(CN)6 / 0.1 M KCl scan direction: 0.6  0  0.6 V 7.8 nA I T = 1.07 (theoretical) I T =7.8/5.5= 1.42

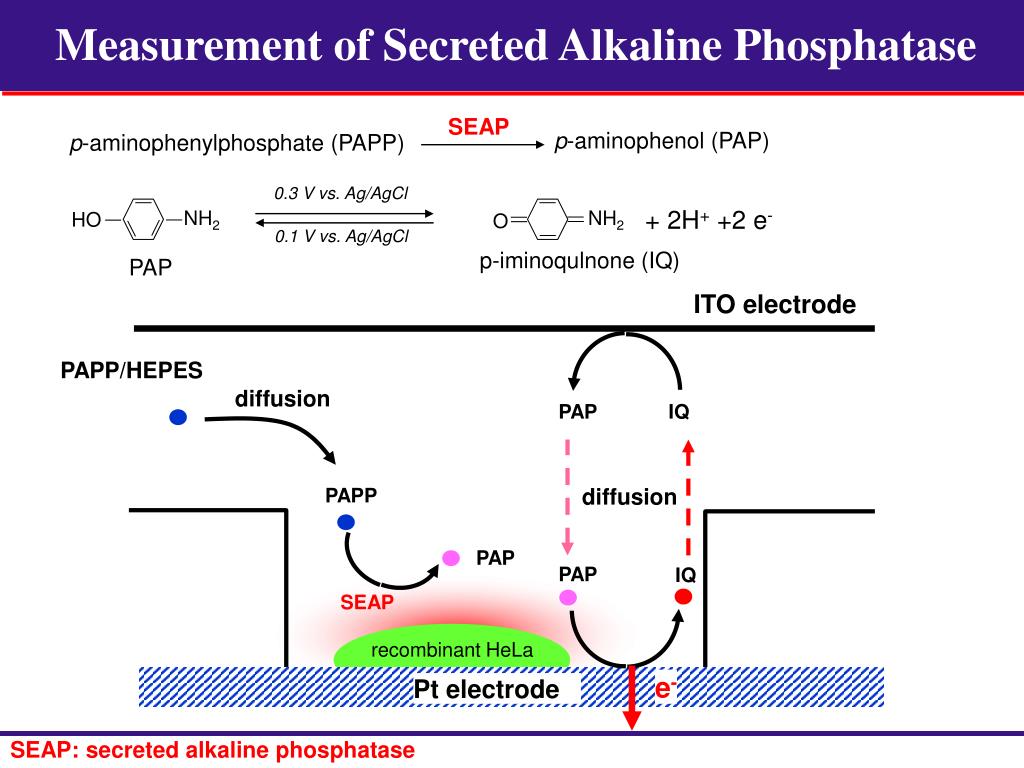

  10. SEAP p-aminophenol (PAP) p-aminophenylphosphate (PAPP) 0.3 V vs. Ag/AgCl + 2H+ +2 e- 0.1 V vs. Ag/AgCl p-iminoqulnone (IQ) PAP NH2 HO NH2 O Measurement of Secreted Alkaline Phosphatase ITO electrode PAPP/HEPES diffusion PAP IQ diffusion PAPP PAP PAP IQ SEAP recombinant HeLa e- Pt electrode SEAP: secreted alkaline phosphatase

  11. Redox Recycling on ITO Electrode detection voltage Dot line RE+CE ITO PAP WE Solid line RE+CE WE PAPP Measuring condition PAP 4.7 mM /HEPES (line a &b) PAPP 4.7 mM /HEPES (line c &d) HEPES buffer: HEPES 20 mM, NaCl 153 mM, KCl 5 mM, glucose 5 mM, pH 9.5 scan rate: 20 mV/sec scan direction: 0  0.6  0 V

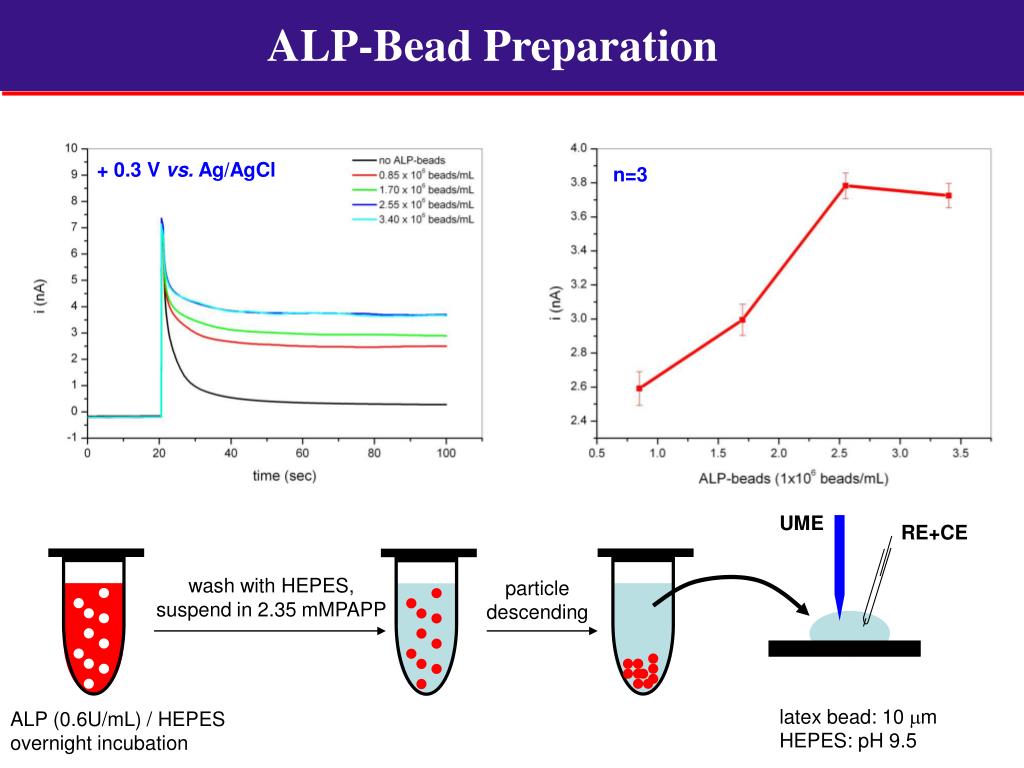

  12. ALP-Bead Preparation + 0.3 V vs. Ag/AgCl n=3 UME RE+CE wash with HEPES, suspend in 2.35 mMPAPP particle descending latex bead: 10 mm HEPES: pH 9.5 ALP (0.6U/mL) / HEPES overnight incubation

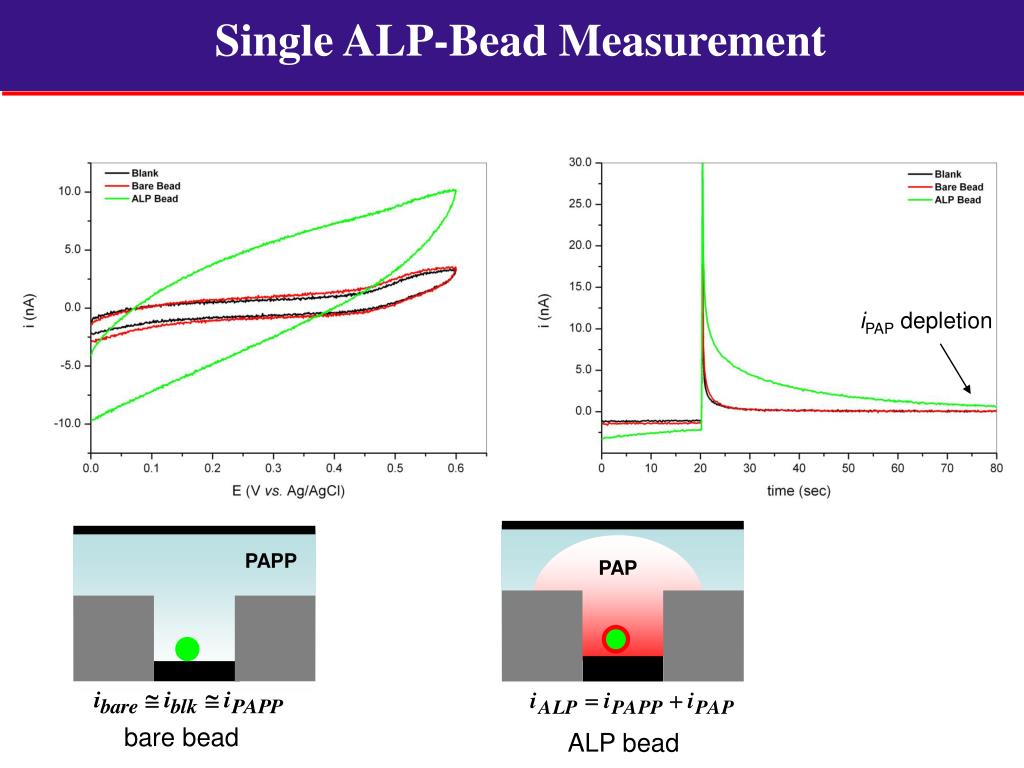

  13. Single ALP-Bead Measurement iPAP depletion PAPP PAP bare bead ALP bead

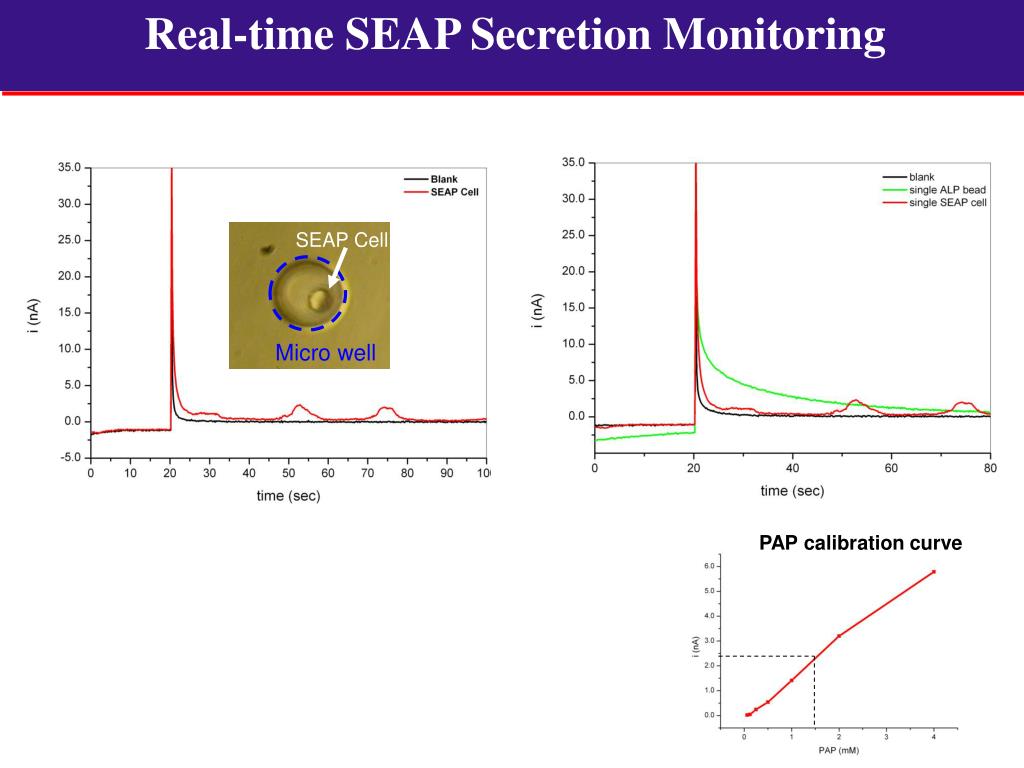

  14. Real-time SEAP Secretion Monitoring SEAP Cell Micro well PAP calibration curve

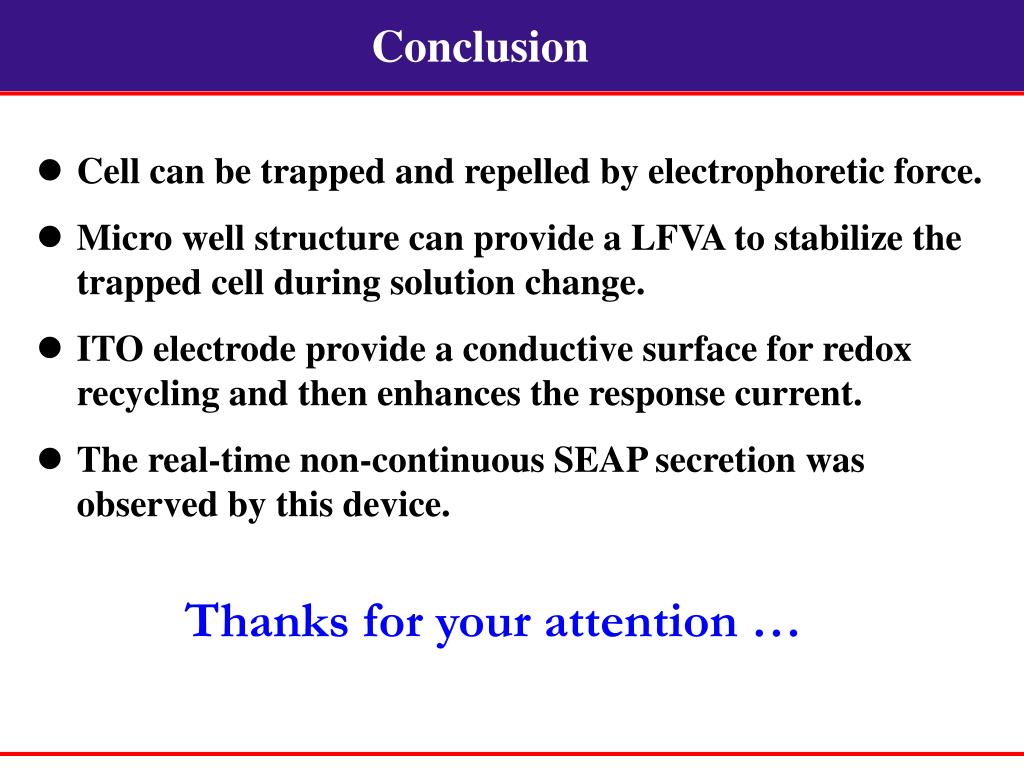

  15. Conclusion • Cell can be trapped and repelled by electrophoretic force. • Micro well structure can provide a LFVA to stabilize the trapped cell during solution change. • ITO electrode provide a conductive surface for redox recycling and then enhances the response current. • The real-time non-continuous SEAP secretion was observed by this device. Thanks for your attention …

  16. Entrapment and measurement of a biologically functionalized microbead with a microwell electrodeChing-Yu Chang, Yasufumi Takahashi, Tatsuya Murata, Hitoshi Shiku, Hsien-Chang Chang* and Tomokazu Matsue* Lab Chip, 2009, 9, 1185–92

  17. 1 M H2SO4 1 M NaOH

  18. Pd微粒電析於GC表面之電位窗

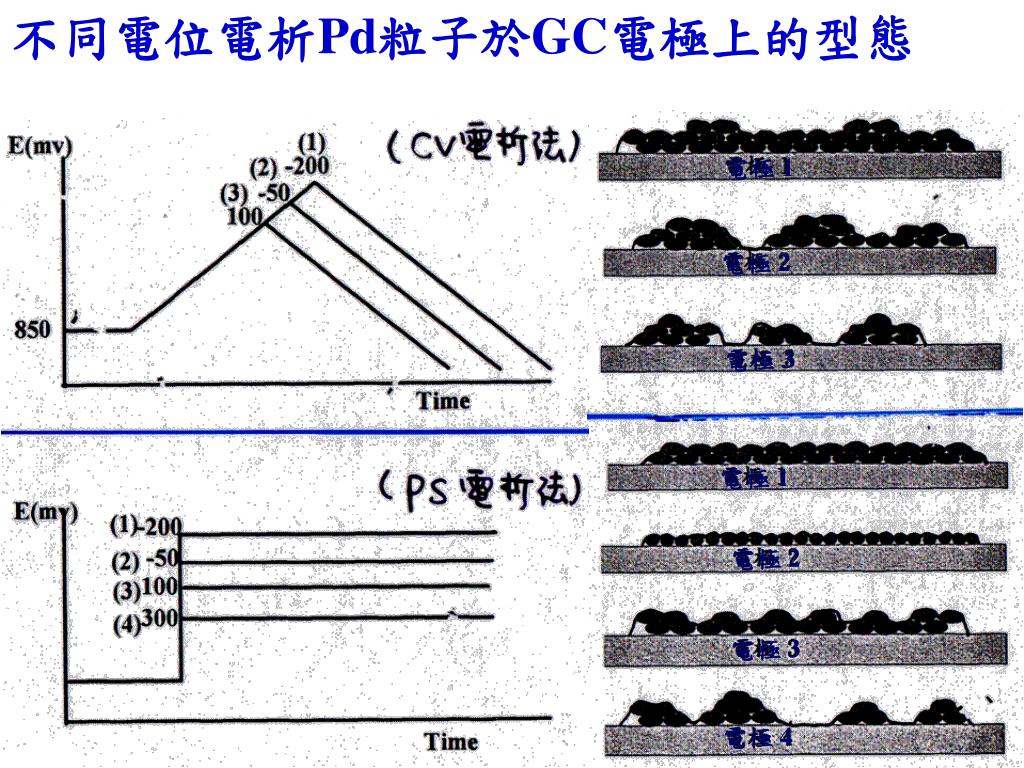

  19. 不同電位電析Pd粒子於GC電極上的型態 電極 1 電極 2 電極 3 電極 1 電極 2 電極 3 電極 4

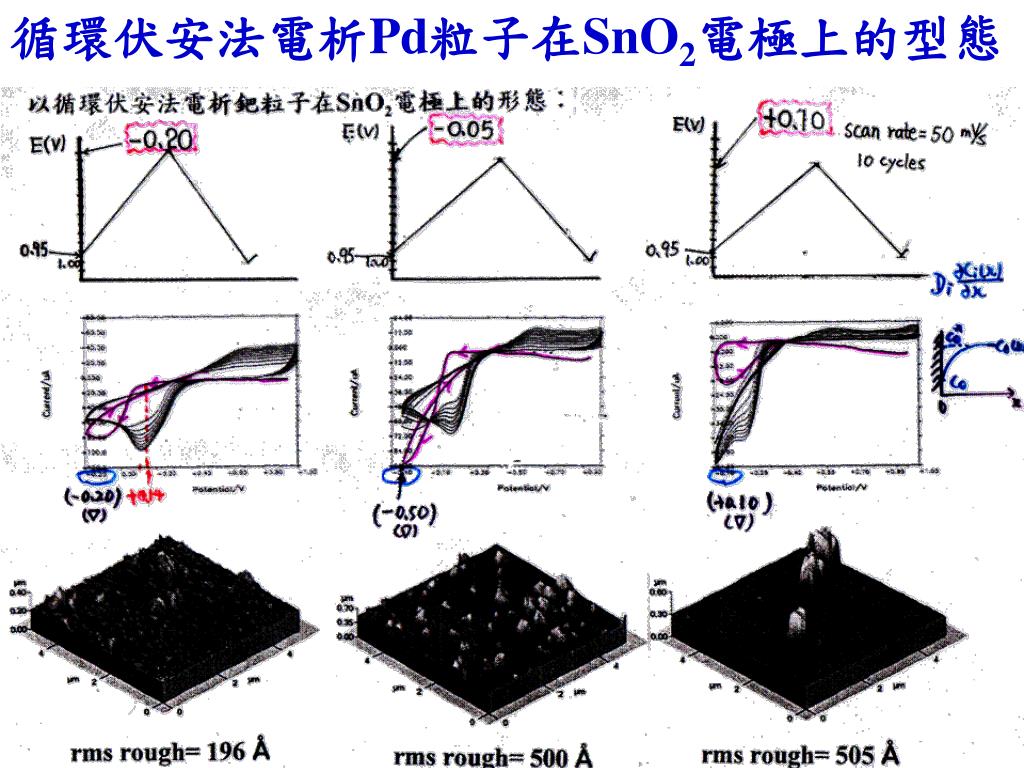

  20. 循環伏安法電析Pd粒子在SnO2電極上的型態

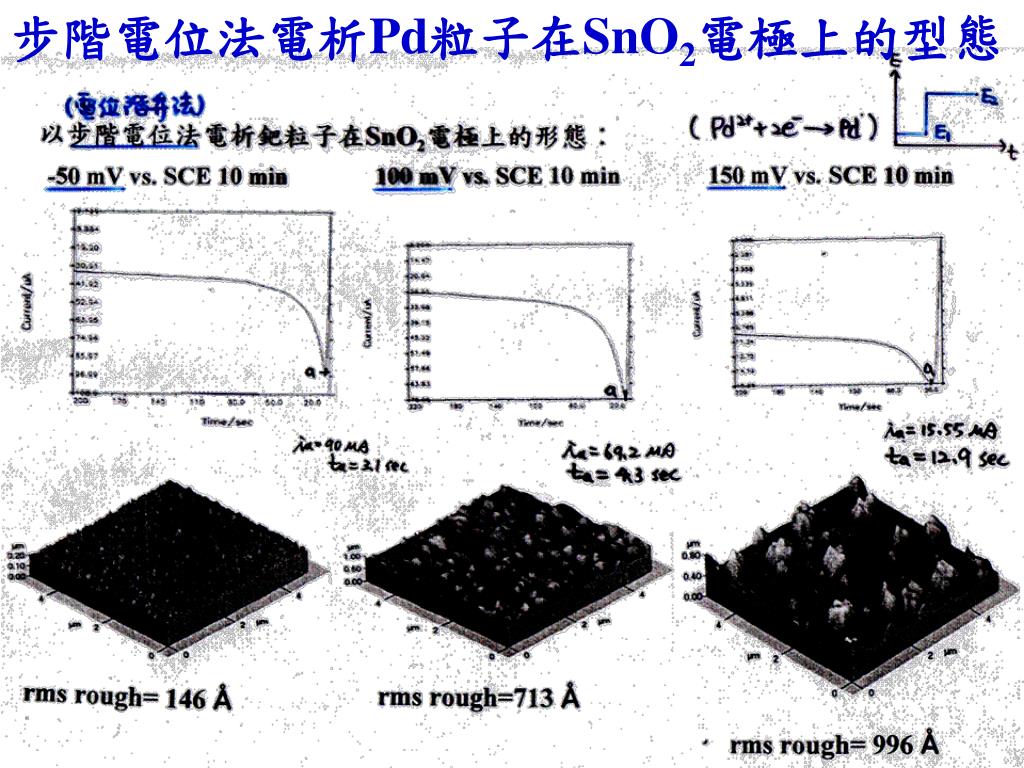

  21. 步階電位法電析Pd粒子在SnO2電極上的型態

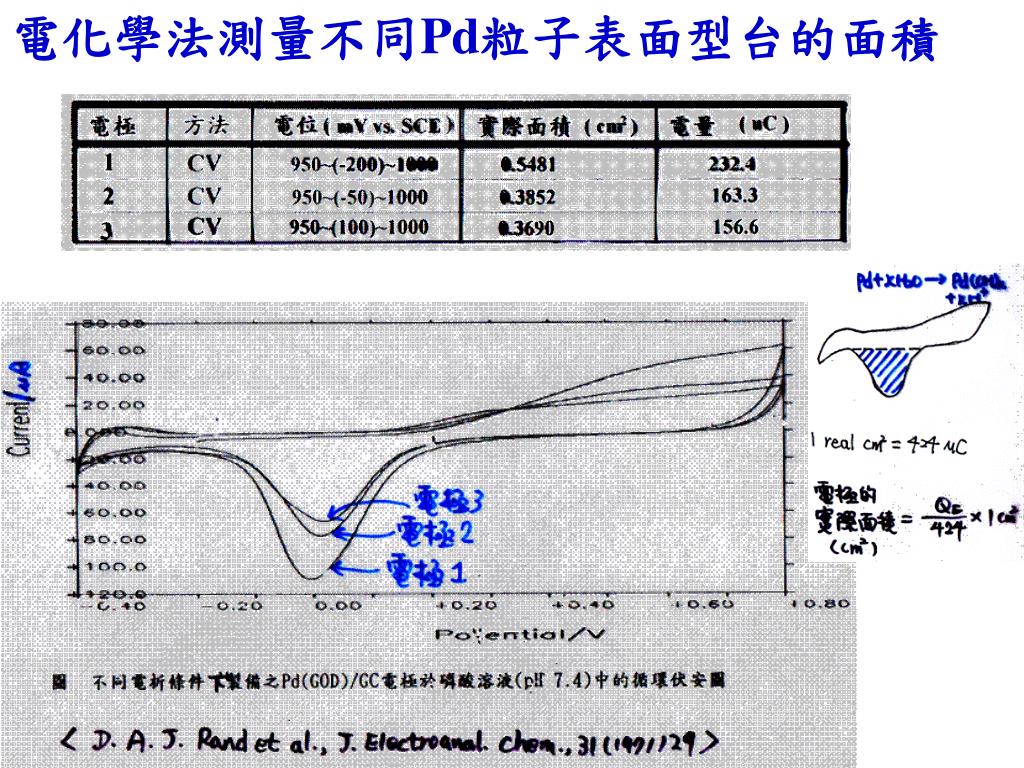

  22. 電化學法測量不同Pd粒子表面型台的面積

  23. 電位階昇法：不同電透析條件下Pd(GOD)/GC電極於PBS(pH 7.4)中的循環伏安圖

  24. 酵素電極偵測葡萄糖的檢量線

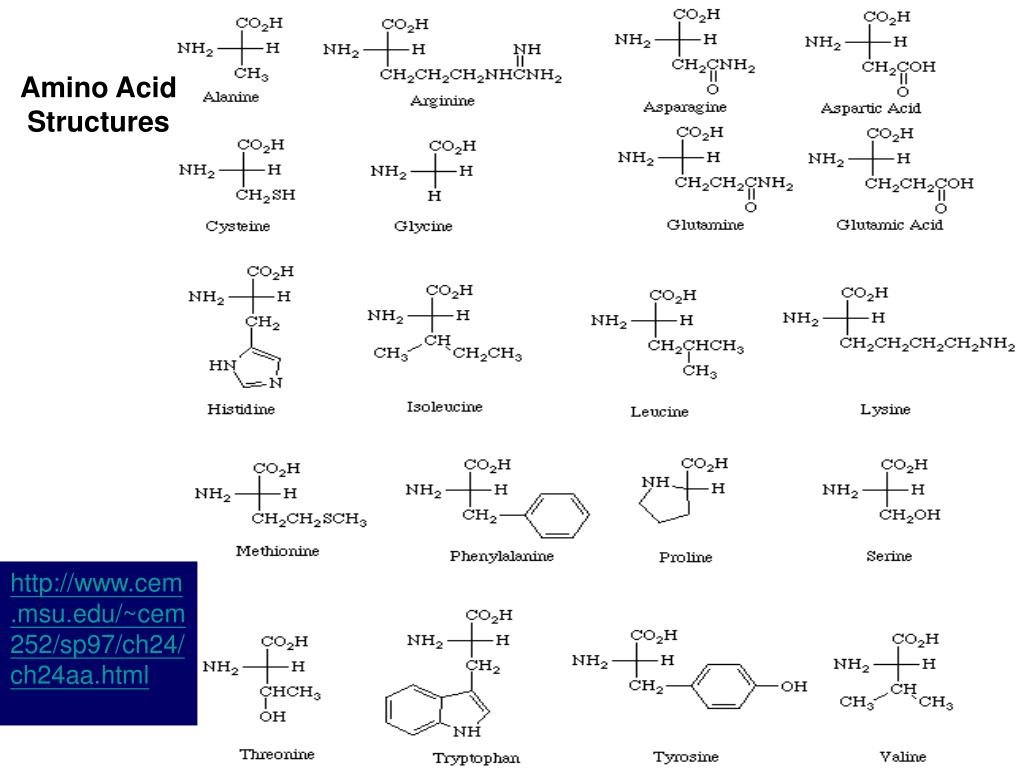

  25. Amino Acid Structures http://www.cem.msu.edu/~cem252/sp97/ch24/ch24aa.html

  26. pKa Values of Amino Acid http://www.cem.msu.edu/~cem252/sp97/ch24/ch24aa.html
