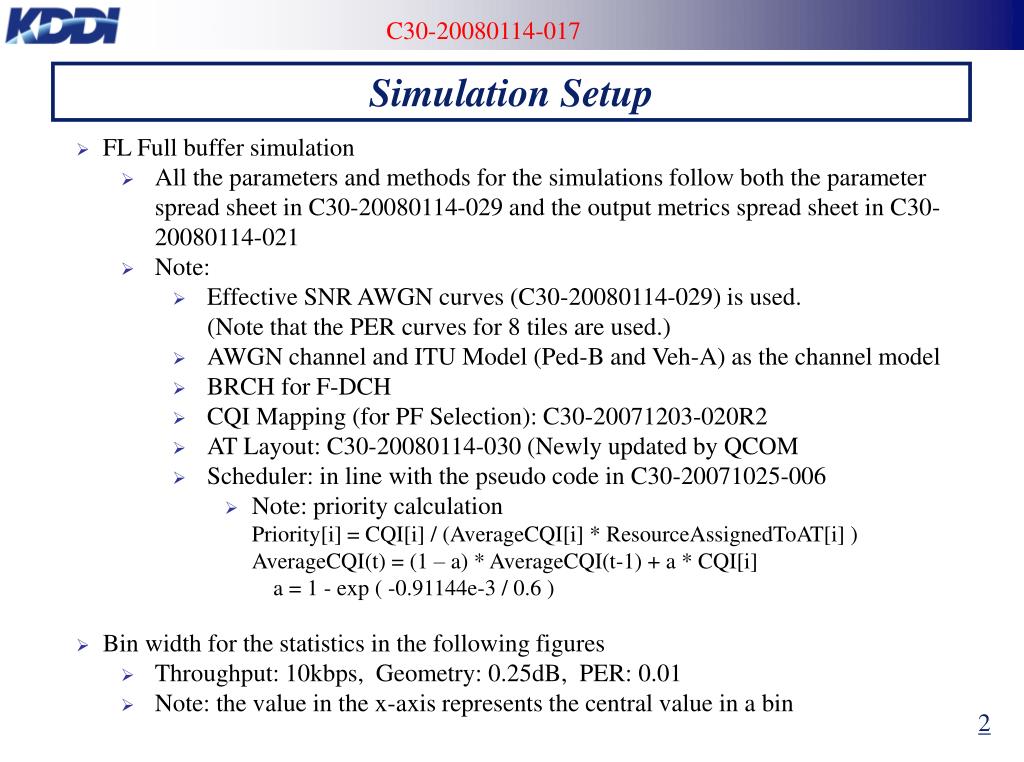

  1. Simulation Setup • FL Full buffer simulation • All the parameters and methods for the simulations follow both the parameter spread sheet in C30-20080114-029 and the output metrics spread sheet in C30-20080114-021 • Note: • Effective SNR AWGN curves (C30-20080114-029) is used. (Note that the PER curves for 8 tiles are used.) • AWGN channel and ITU Model (Ped-B and Veh-A) as the channel model • BRCH for F-DCH • CQI Mapping (for PF Selection): C30-20071203-020R2 • AT Layout: C30-20080114-030 (Newly updated by QCOM • Scheduler: in line with the pseudo code in C30-20071025-006 • Note: priority calculationPriority[i] = CQI[i] / (AverageCQI[i] * ResourceAssignedToAT[i] ) AverageCQI(t) = (1 – a) * AverageCQI(t-1) + a * CQI[i] a = 1 - exp ( -0.91144e-3 / 0.6 ) • Bin width for the statistics in the following figures • Throughput: 10kbps, Geometry: 0.25dB, PER: 0.01 • Note: the value in the x-axis represents the central value in a bin

  2. Geometry

  3. AWGN Channel

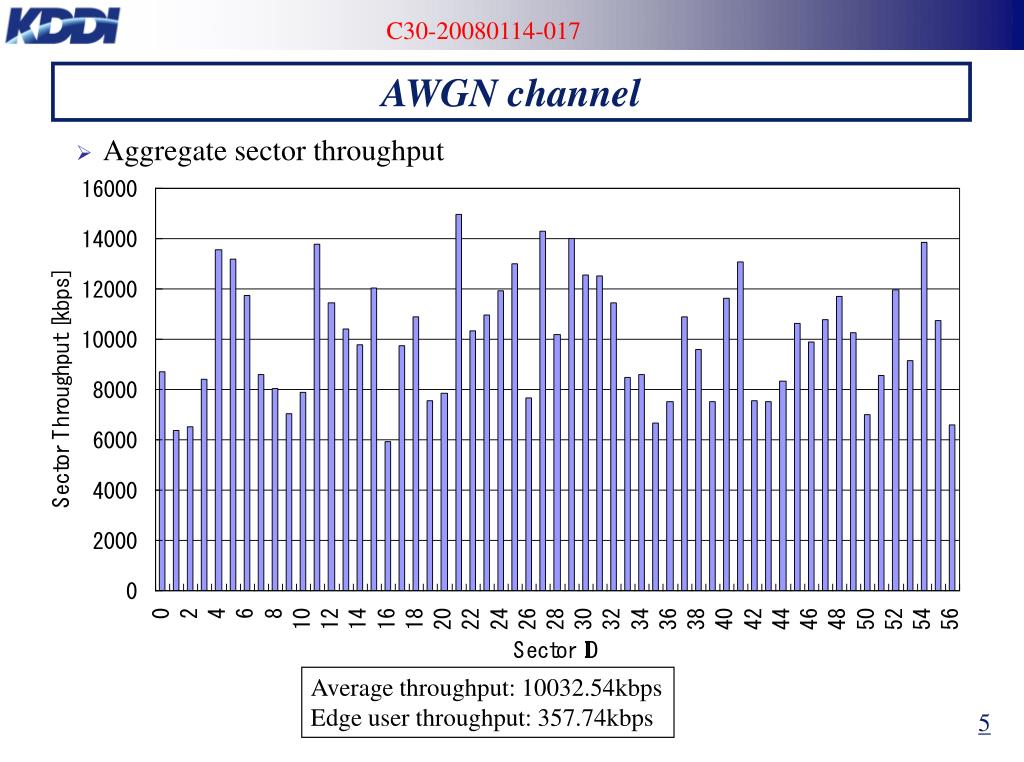

  4. AWGN channel • Aggregate sector throughput Average throughput: 10032.54kbps Edge user throughput: 357.74kbps

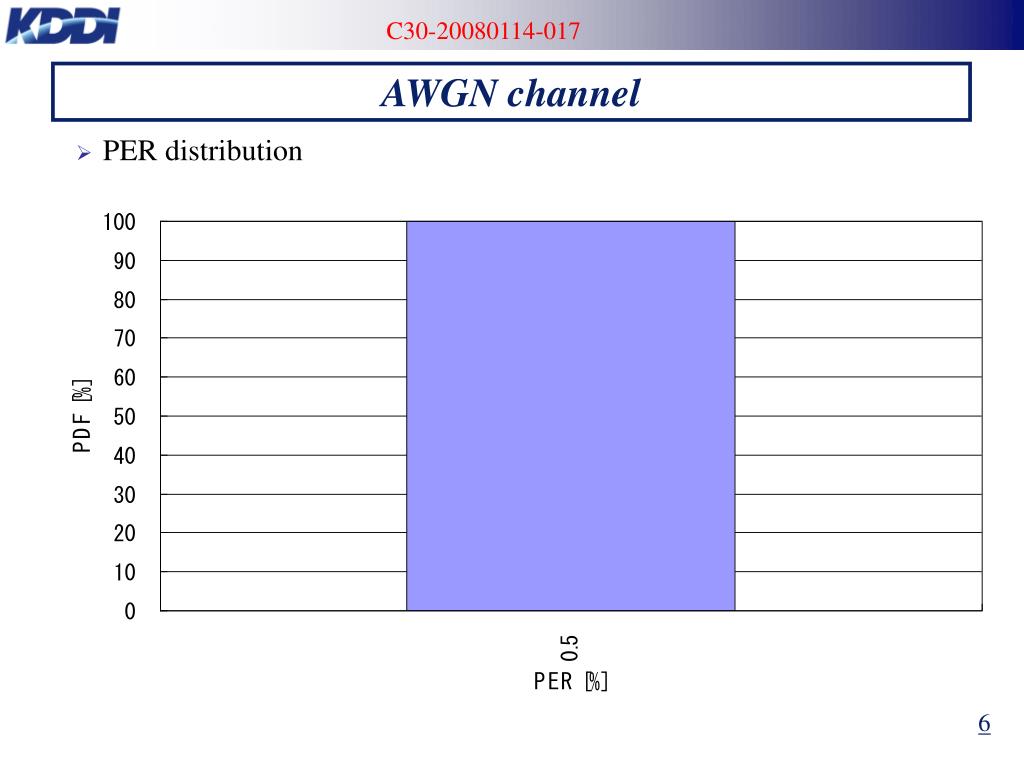

  5. AWGN channel • PER distribution

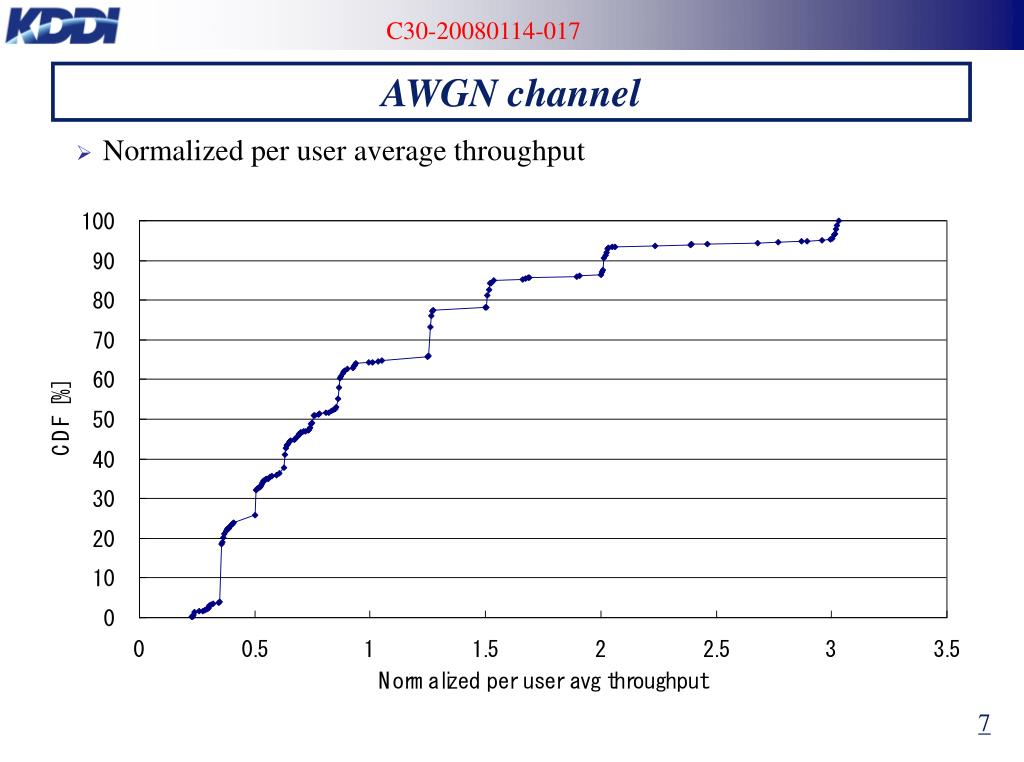

  6. AWGN channel • Normalized per user average throughput

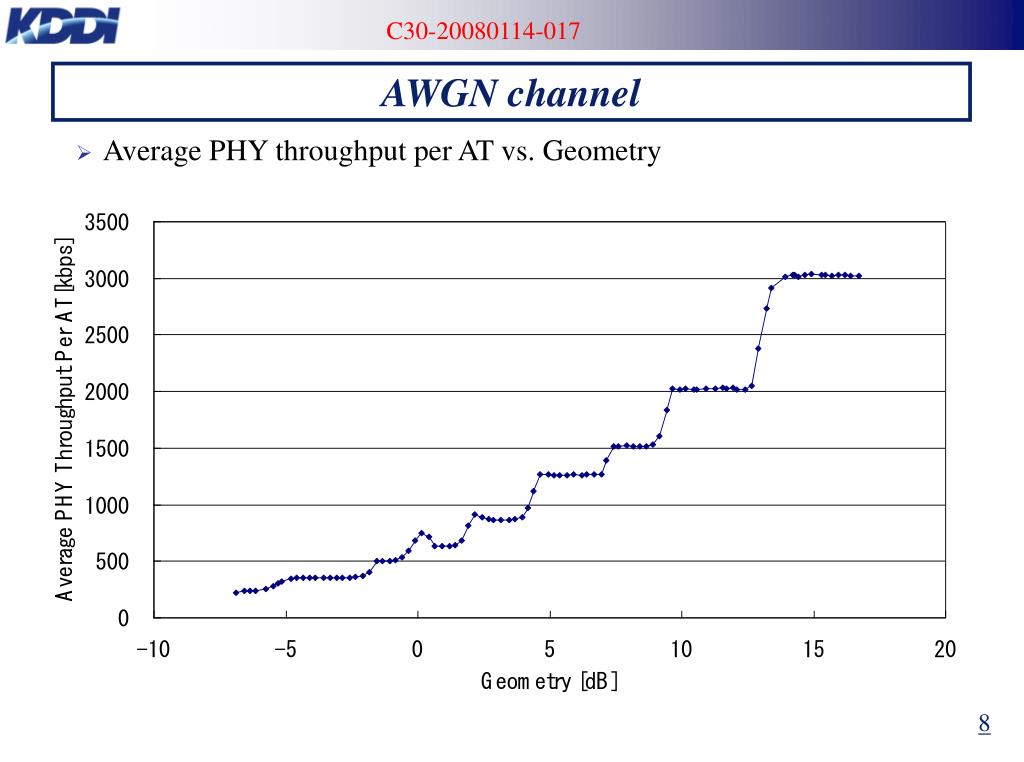

  7. AWGN channel • Average PHY throughput per AT vs. Geometry

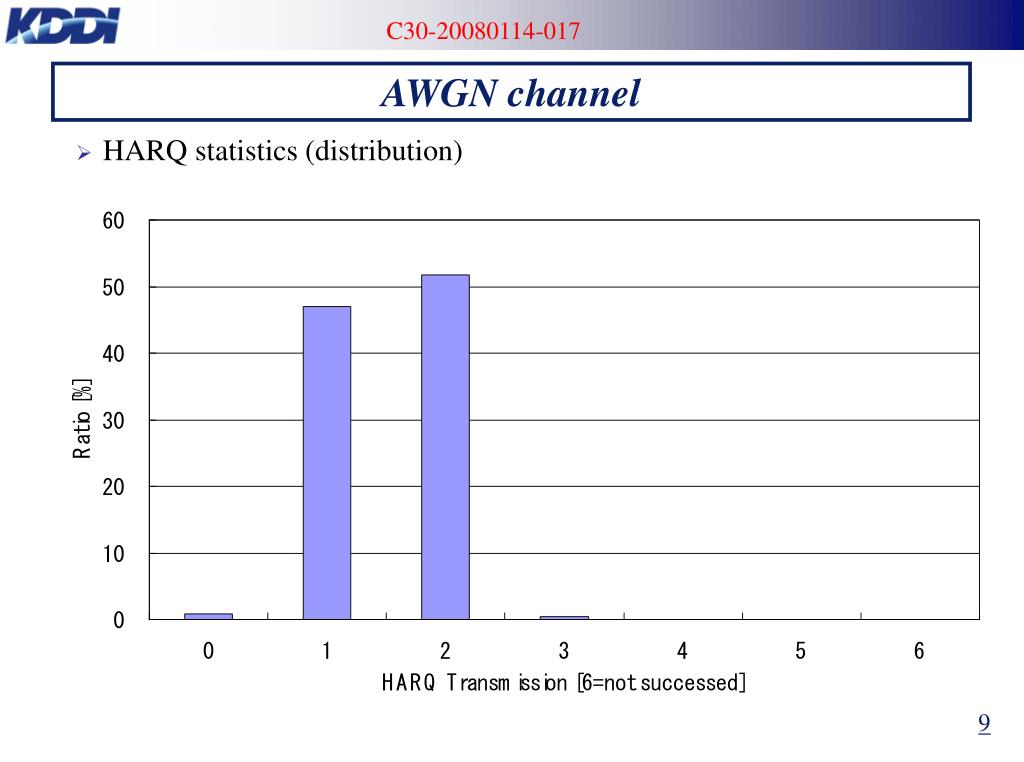

  8. AWGN channel • HARQ statistics (distribution)

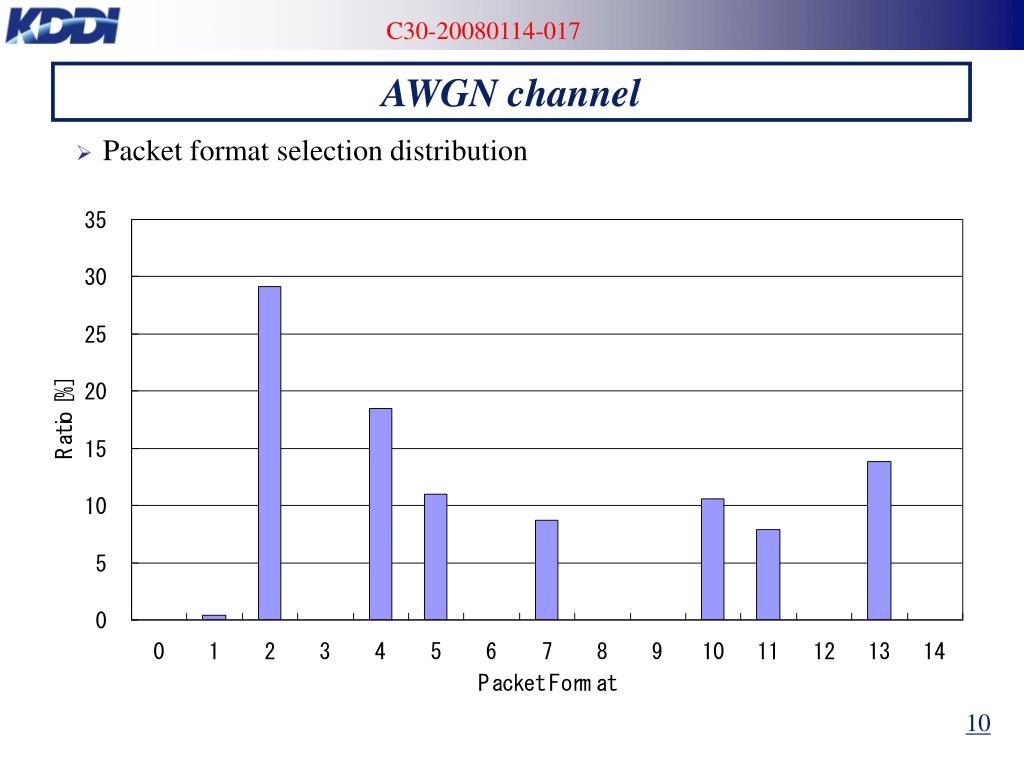

  9. AWGN channel • Packet format selection distribution

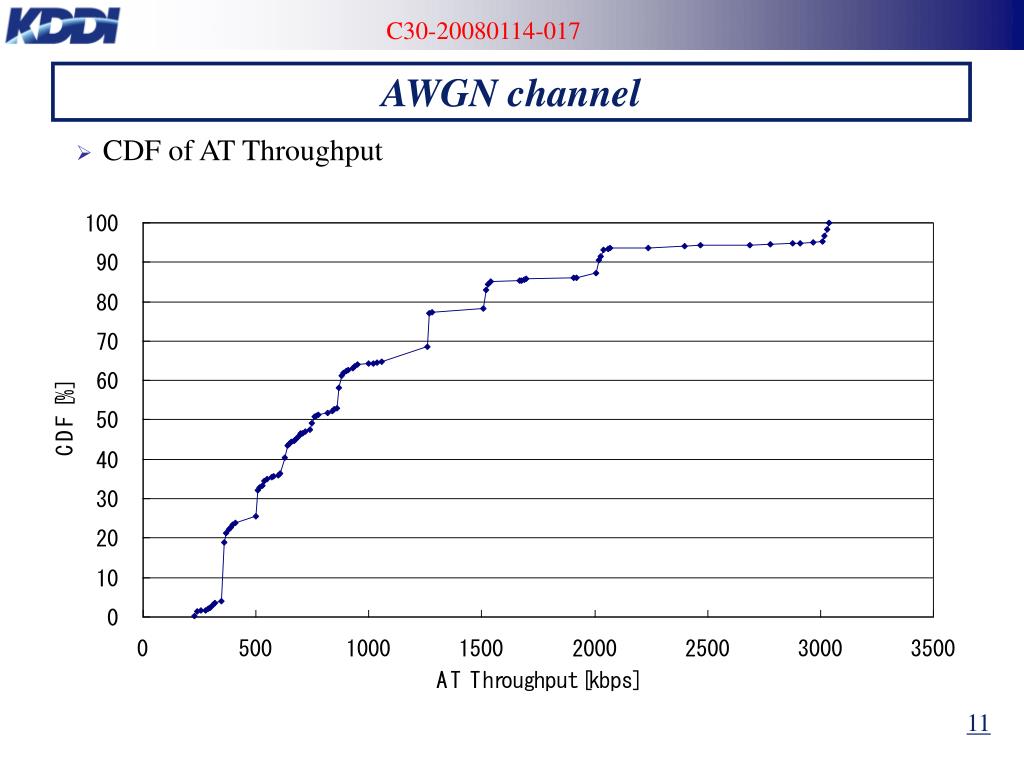

  10. AWGN channel • CDF of AT Throughput

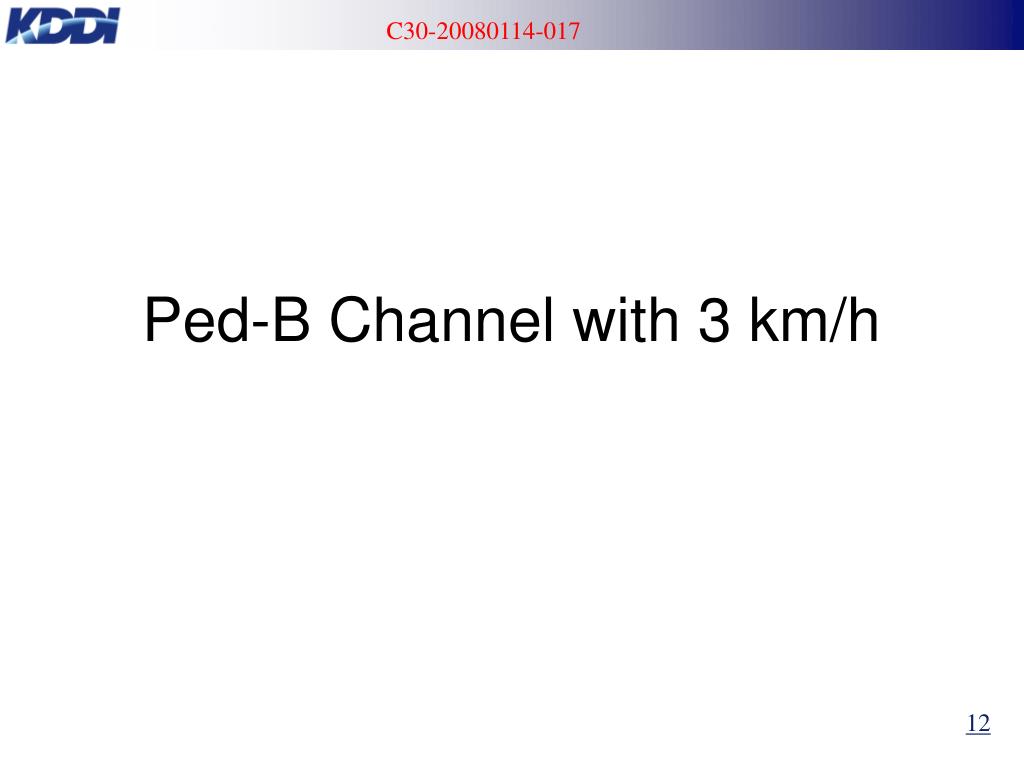

  11. Ped-B Channel with 3 km/h

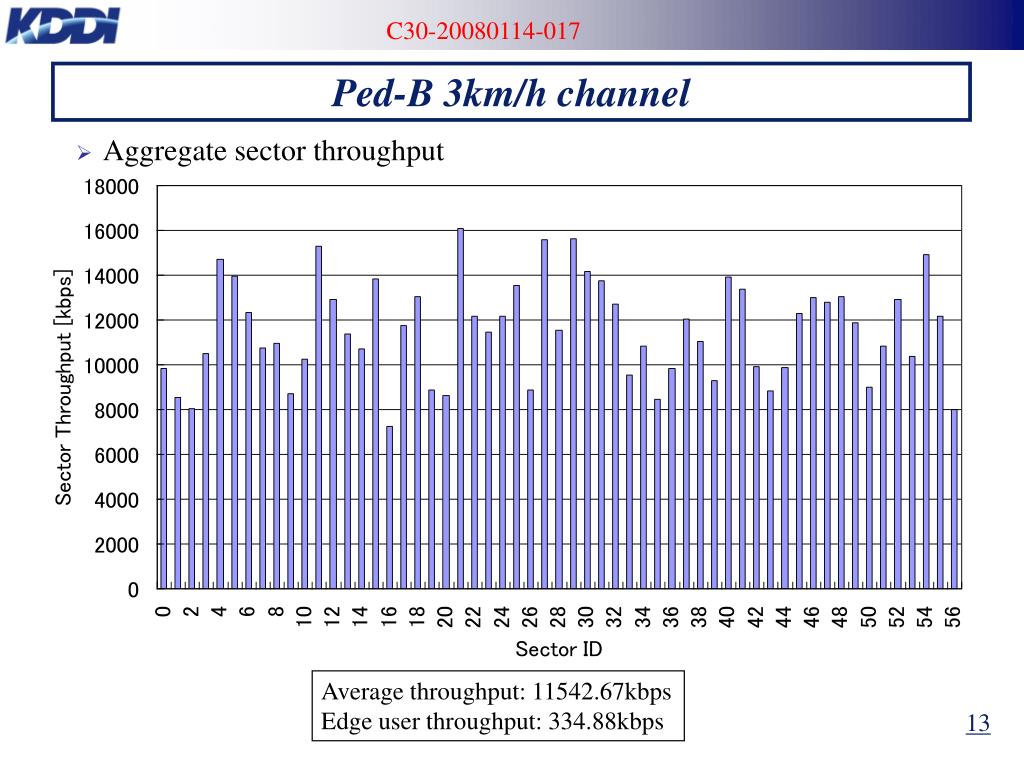

  12. Ped-B 3km/h channel • Aggregate sector throughput Average throughput: 11542.67kbps Edge user throughput: 334.88kbps

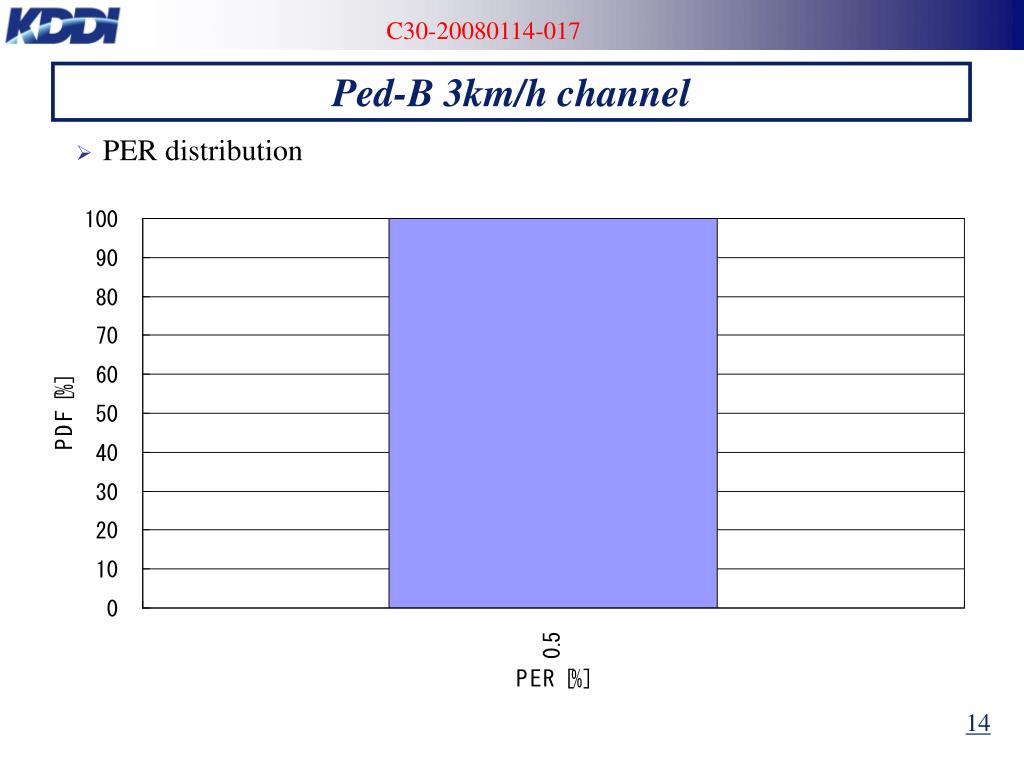

  13. Ped-B 3km/h channel • PER distribution

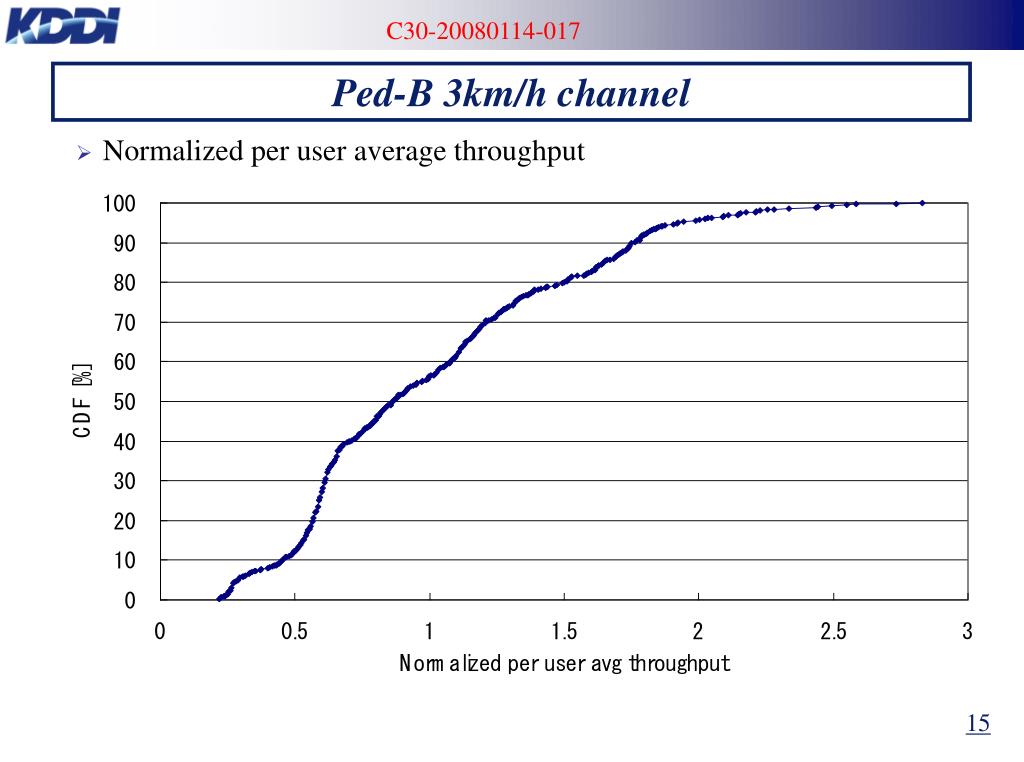

  14. Ped-B 3km/h channel • Normalized per user average throughput

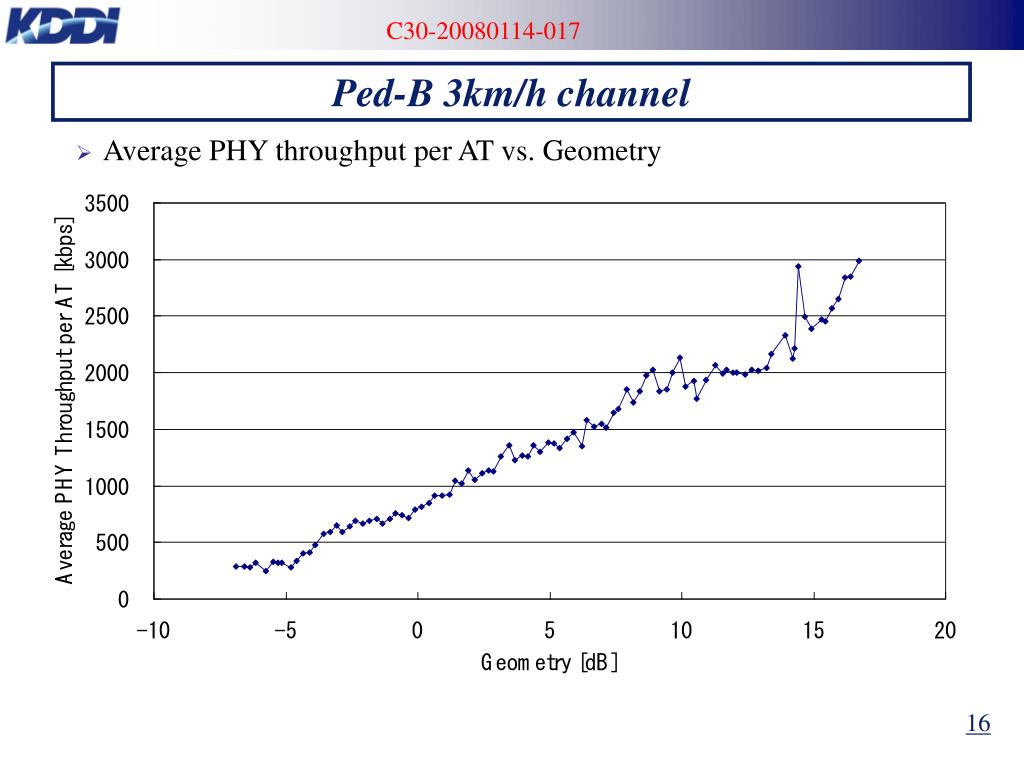

  15. Ped-B 3km/h channel • Average PHY throughput per AT vs. Geometry

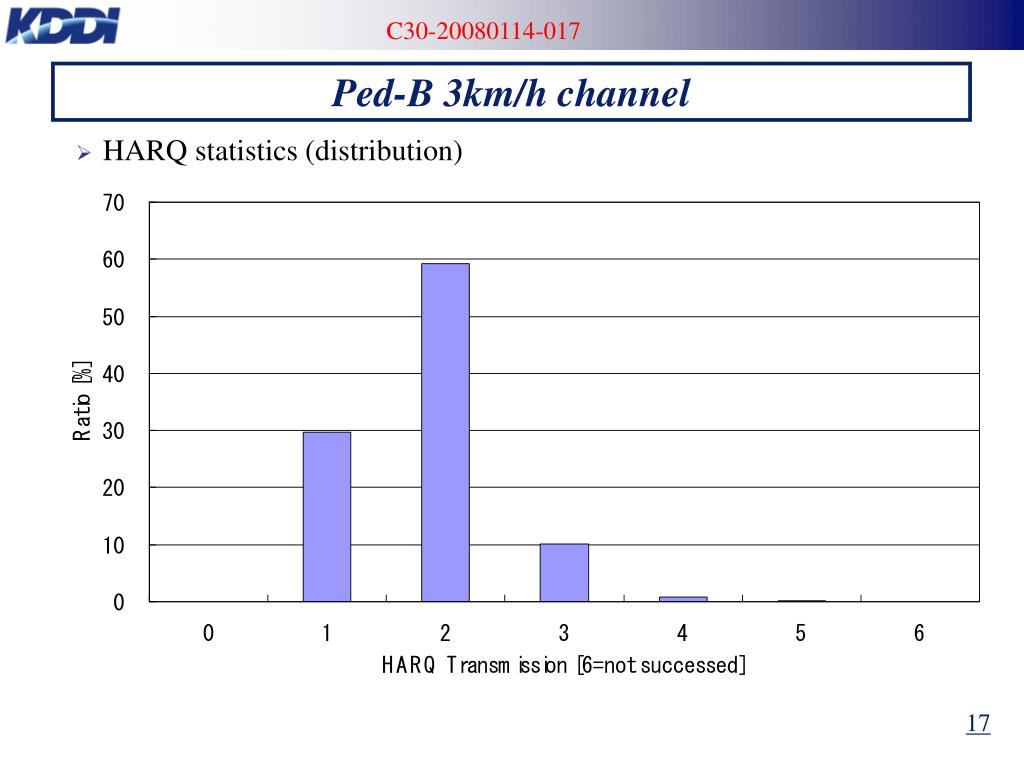

  16. Ped-B 3km/h channel • HARQ statistics (distribution)

  17. Ped-B 3km/h channel • Packet format selection distribution

  18. Ped-B 3km/h channel • CDF of AT Throughput

  19. Veh-A Channel with 120 km/h

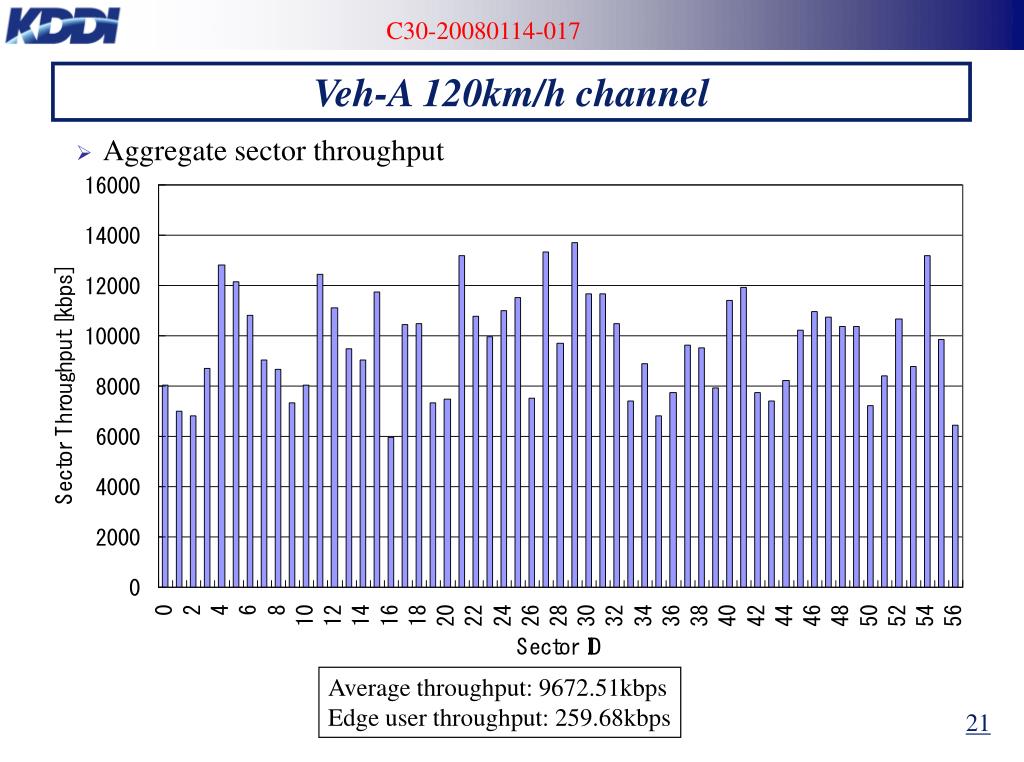

  20. Veh-A 120km/h channel • Aggregate sector throughput Average throughput: 9672.51kbps Edge user throughput: 259.68kbps

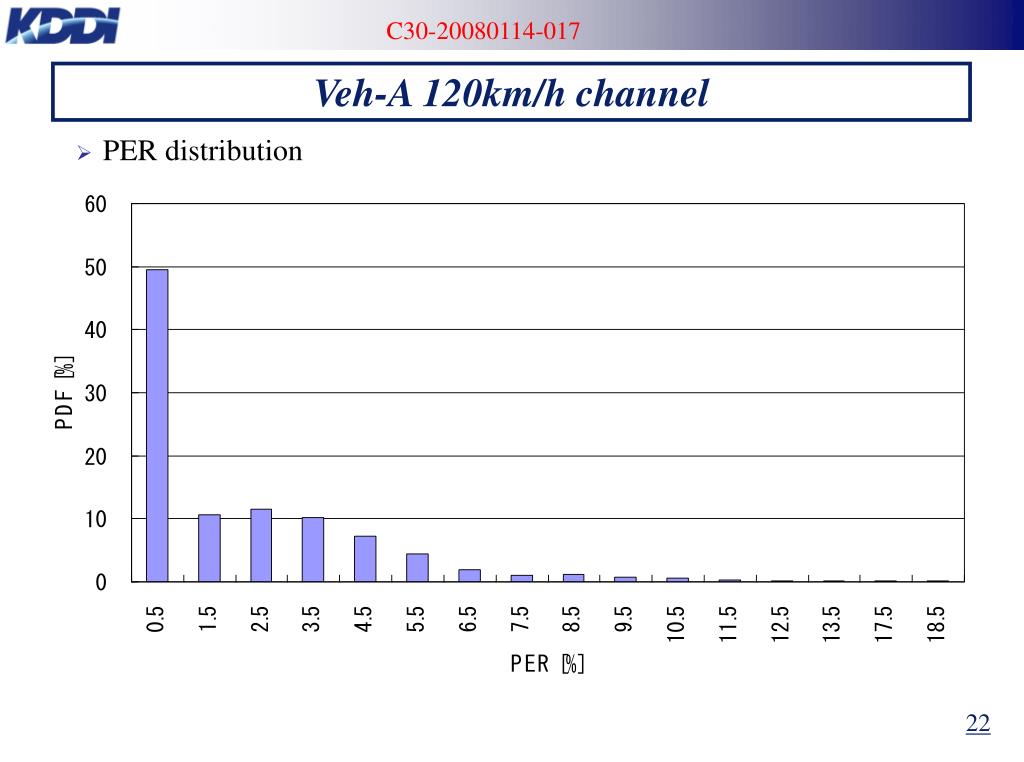

  21. Veh-A 120km/h channel • PER distribution

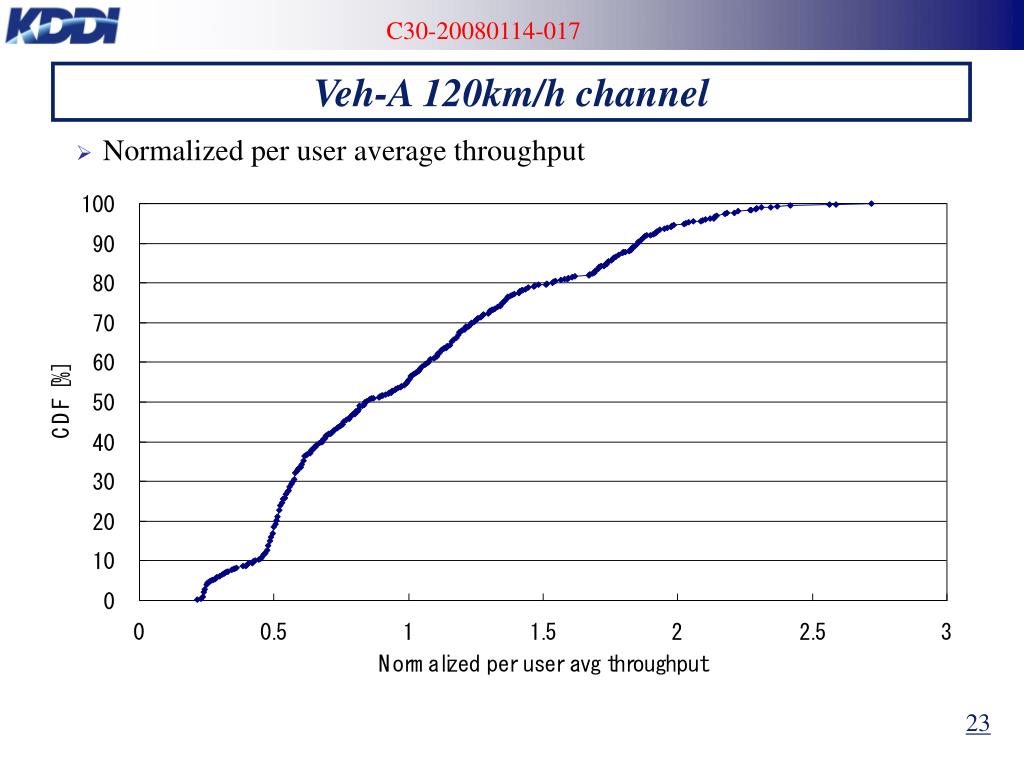

  22. Veh-A 120km/h channel • Normalized per user average throughput

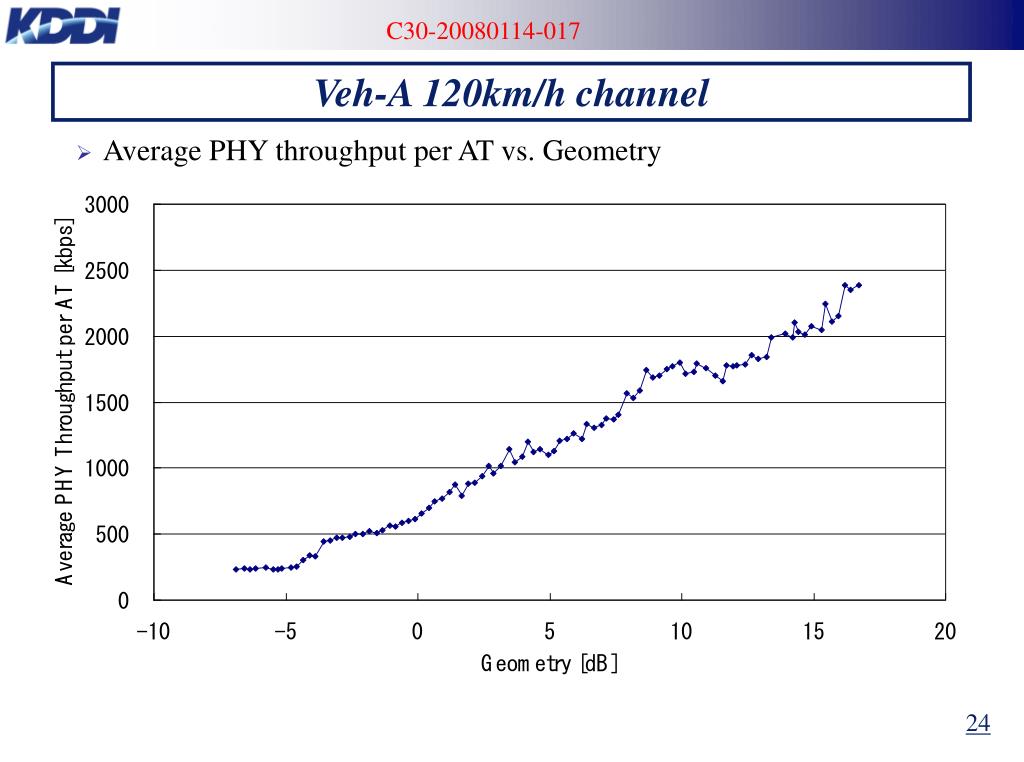

  23. Veh-A 120km/h channel • Average PHY throughput per AT vs. Geometry

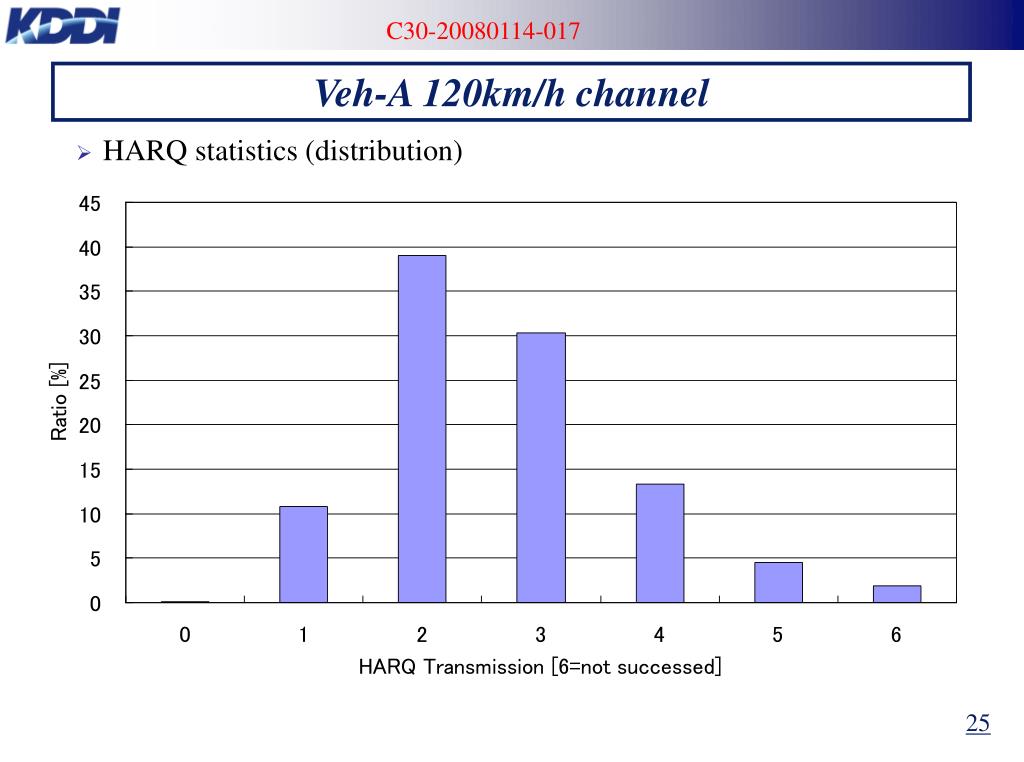

  24. Veh-A 120km/h channel • HARQ statistics (distribution)

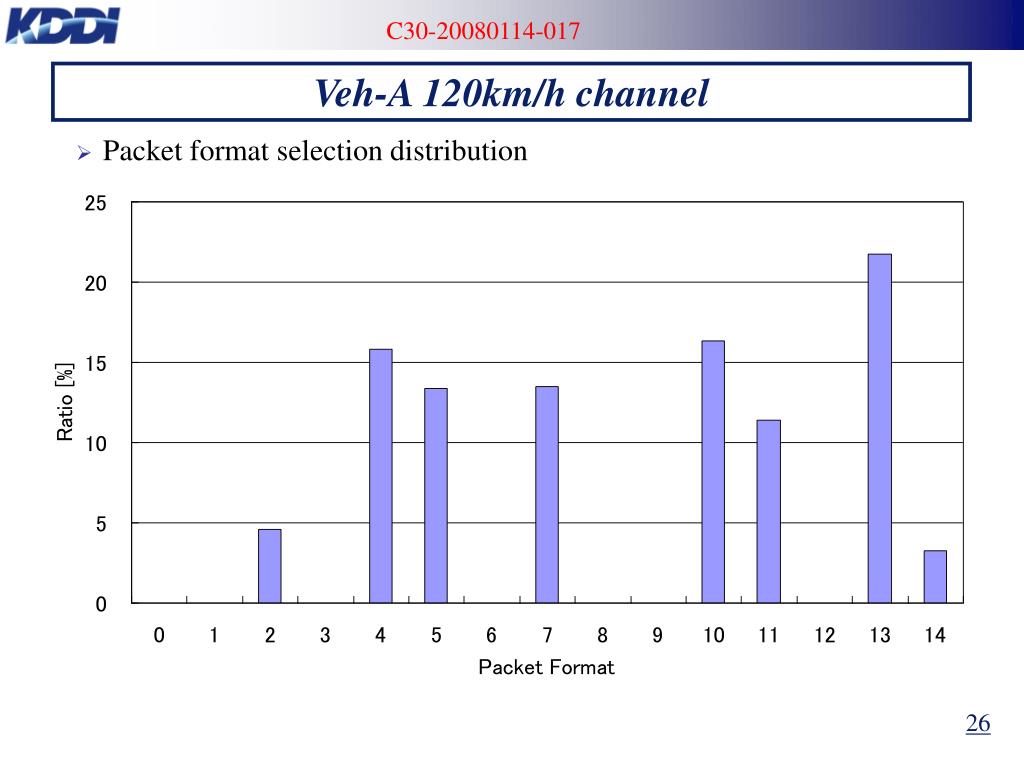

  25. Veh-A 120km/h channel • Packet format selection distribution

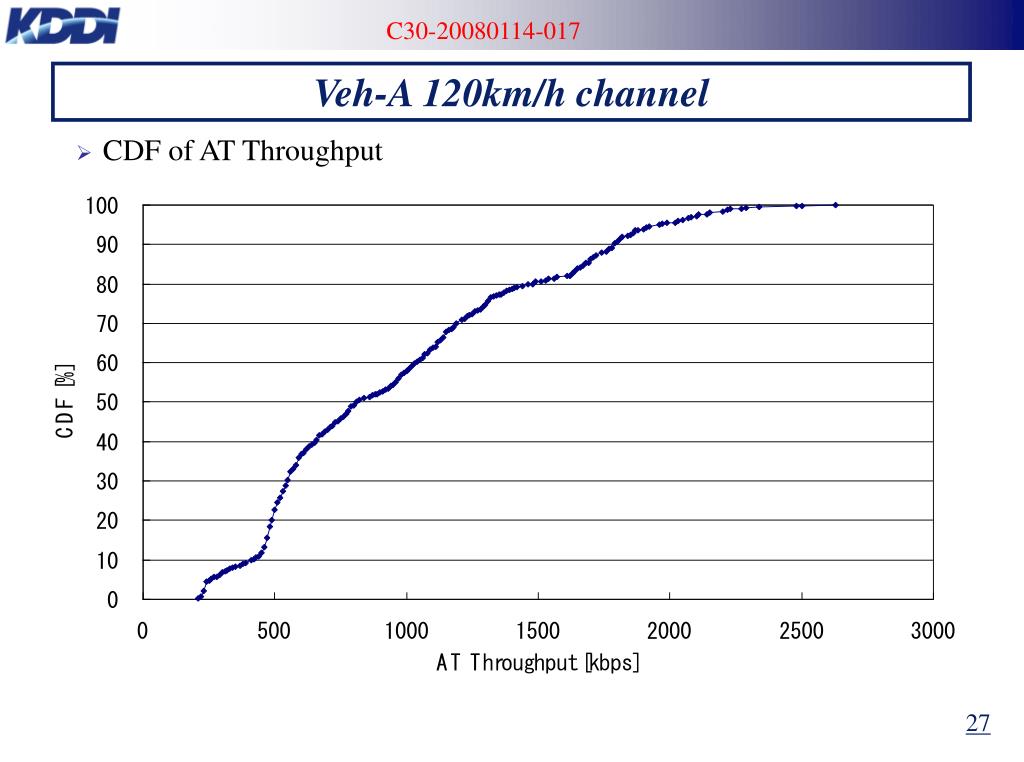

  26. Veh-A 120km/h channel • CDF of AT Throughput

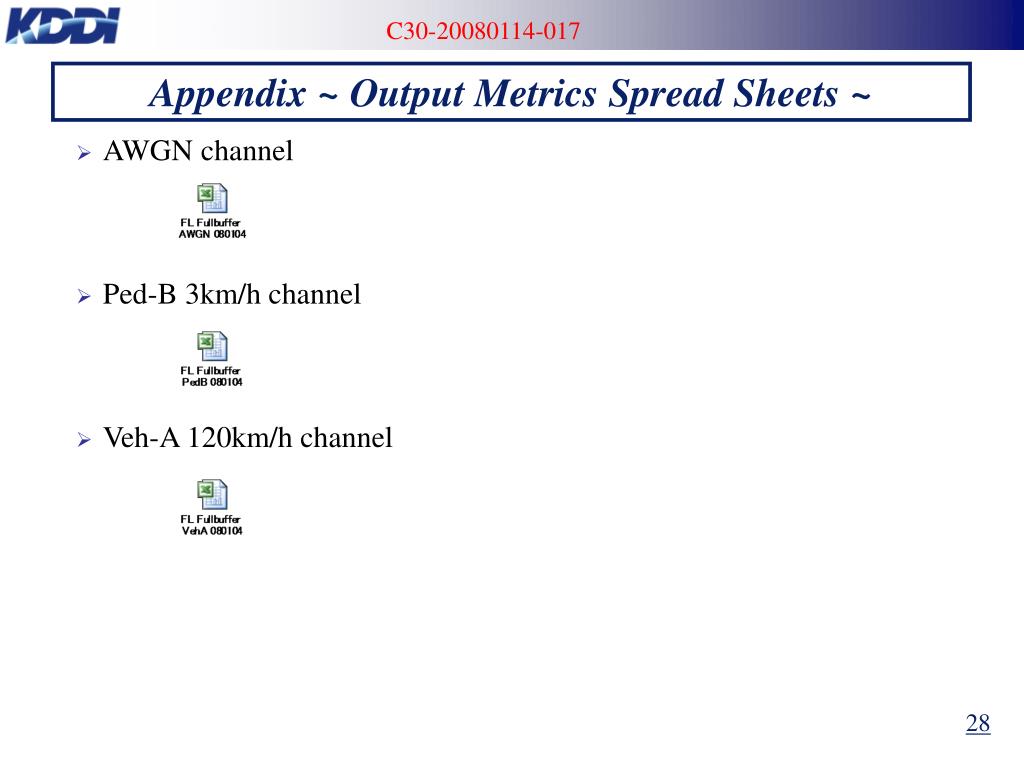

  27. Appendix ~ Output Metrics Spread Sheets ~ • AWGN channel • Ped-B 3km/h channel • Veh-A 120km/h channel
