Kinematics – The motion part of Mechanics.

MOTION. MECHANICS – The branch of Physics that deals with the motion of objects and the forces that change this motion. Kinematics – The motion part of Mechanics. Dynamics – The force part of Mechanics. POSITION – The separation between an object and a reference point.

nascha
Télécharger la présentation

Kinematics – The motion part of Mechanics.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. MOTION MECHANICS – The branch of Physics that deals with the motion of objects and the forces that change this motion. Kinematics – The motion part of Mechanics. Dynamics – The force part of Mechanics.

  2. POSITION – The separation between an object and a reference point. DISTANCE (d) – The length of the path an object took as it moved between positions. SCALAR QUANTITY – A measurement with magnitude but no direction. SIZE

  3. DISPLACEMENT (d) – The straight line distance and direction between an object’s starting position and its stopping position. VECTOR QUANTITY– A measurement that has magnitude and direction. Represented by bold face variable (text book) or an arrow above the variable. (Notes)

  4. PRACTICE Larry the minion walks 25.0 m, east to visit Agnus. They then walk 8.0m, west to visit Dr. Gru. They then all walk 12.0m, east to go to Super happy fun land. L A 25.0 m G 8.0 m 12.0 m A. What is their final position with respect to Agnus’ initial position? B. What is Larry’s total displacement? C. What distance did each person travel? If Larry now travels back home, what is his displacement now?

  5. SPEED – The RATE of distance. SCALAR

  6. VELOCITY – The RATE of displacement. VECTOR

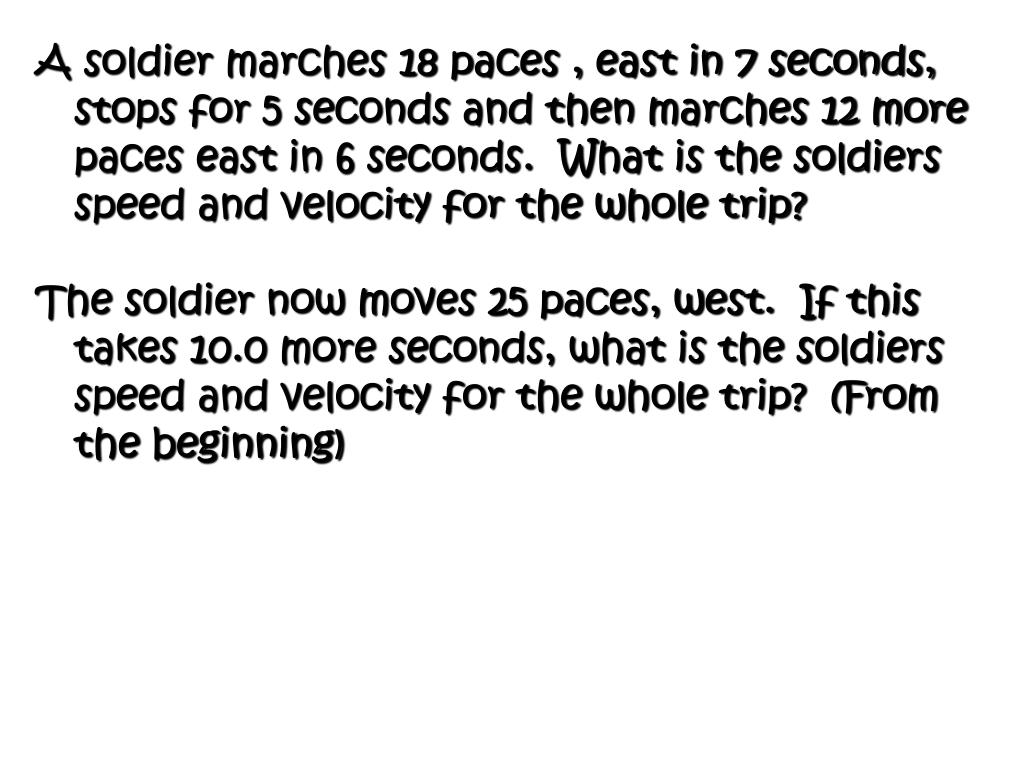

  7. A soldier marches 18 paces , east in 7 seconds, stops for 5 seconds and then marches 12 more paces east in 6 seconds. What is the soldiers speed and velocity for the whole trip? The soldier now moves 25 paces, west. If this takes 10.0 more seconds, what is the soldiers speed and velocity for the whole trip? (From the beginning)

  8. Agnus does the following: 1m/s for 3 seconds, then rests for 3 seconds, then 2 m/s for 3 seconds Larry travels at Agnus’ average speed Dr. Gru travels at Agnus’ average velocity 1m 3m 5m 7m 11m 9m

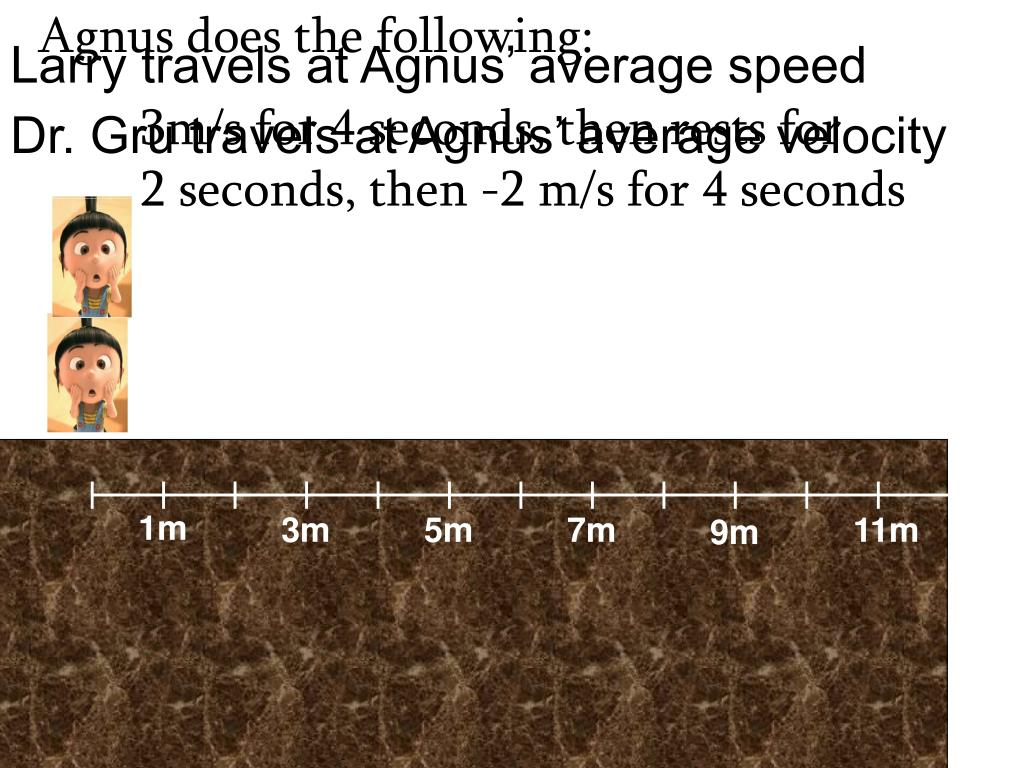

  9. Agnus does the following: 3m/s for 4 seconds, then rests for 2 seconds, then -2 m/s for 4 seconds Larry travels at Agnus’ average speed Dr. Gru travels at Agnus’ average velocity 1m 3m 5m 7m 11m 9m

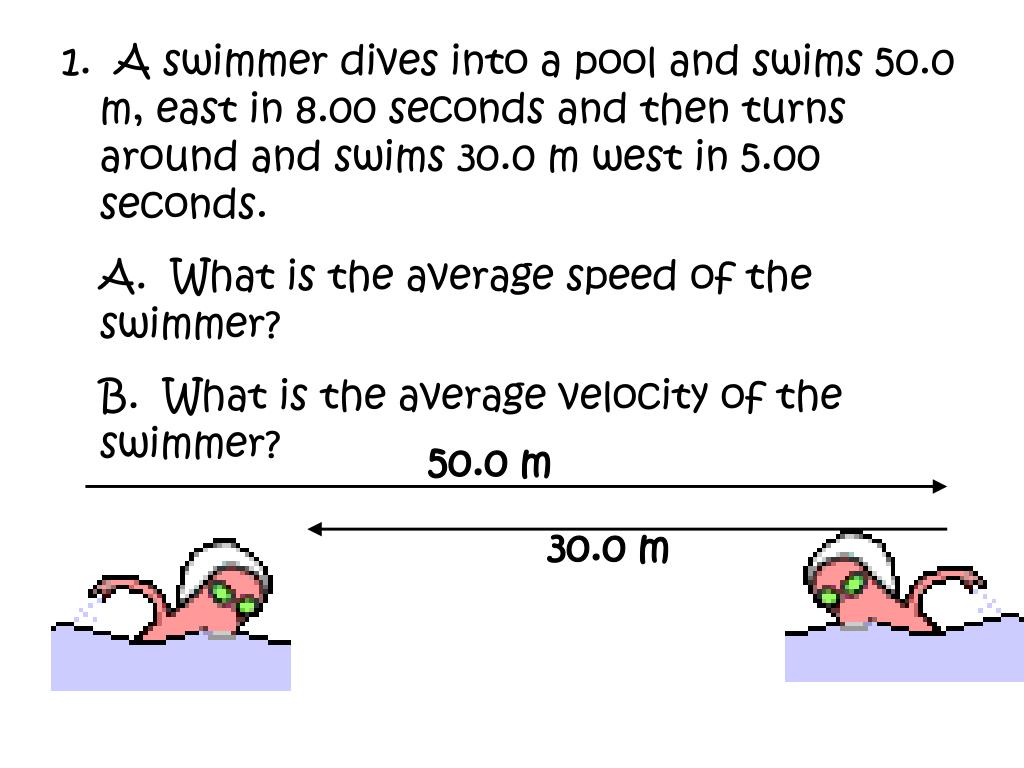

  10. 1. A swimmer dives into a pool and swims 50.0 m, east in 8.00 seconds and then turns around and swims 30.0 m west in 5.00 seconds. A. What is the average speed of the swimmer? B. What is the average velocity of the swimmer? 50.0 m 30.0 m

  11. A car travels 100 miles, east in 5.0 hours, then travels 75 miles, west in another 5 hours and then does one more thing that takes 5 more hours. If the car’s average velocity for the whole trip is 25 miles/hour, east, what displacement did the car have in the third part of the trip?

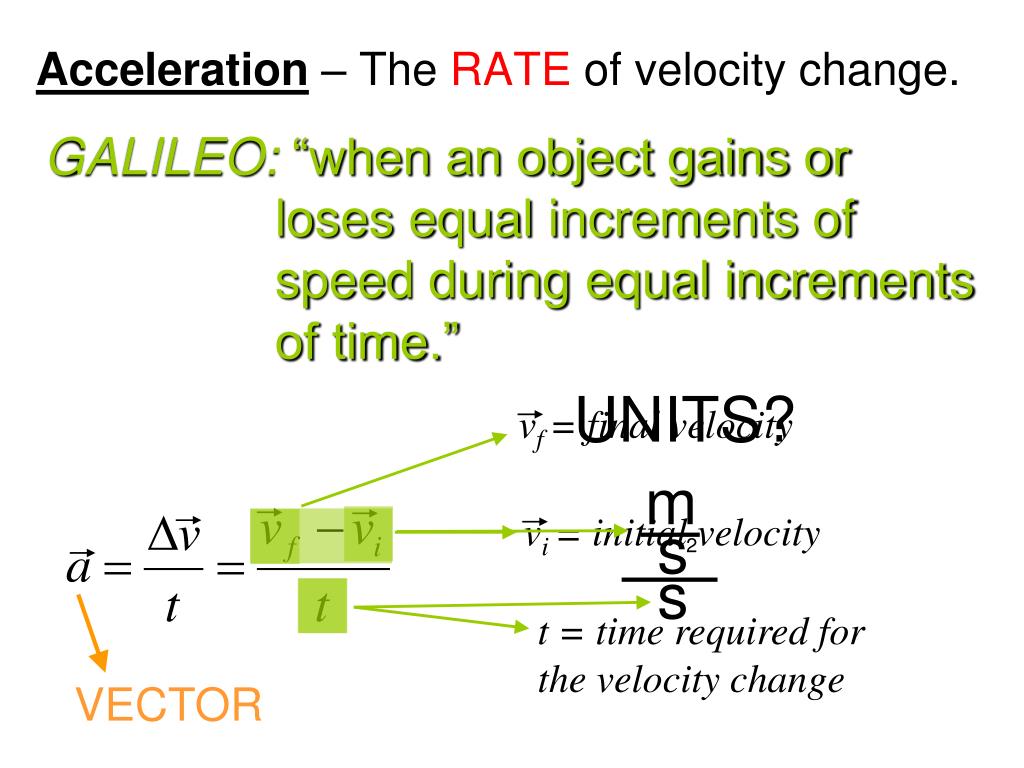

  12. vf = final velocity vi = initial velocity GALILEO: “when an object gains or loses equal increments of speed during equal increments of time.” Acceleration – The RATE of velocity change. UNITS? m s 2 s t = time required for the velocity change VECTOR

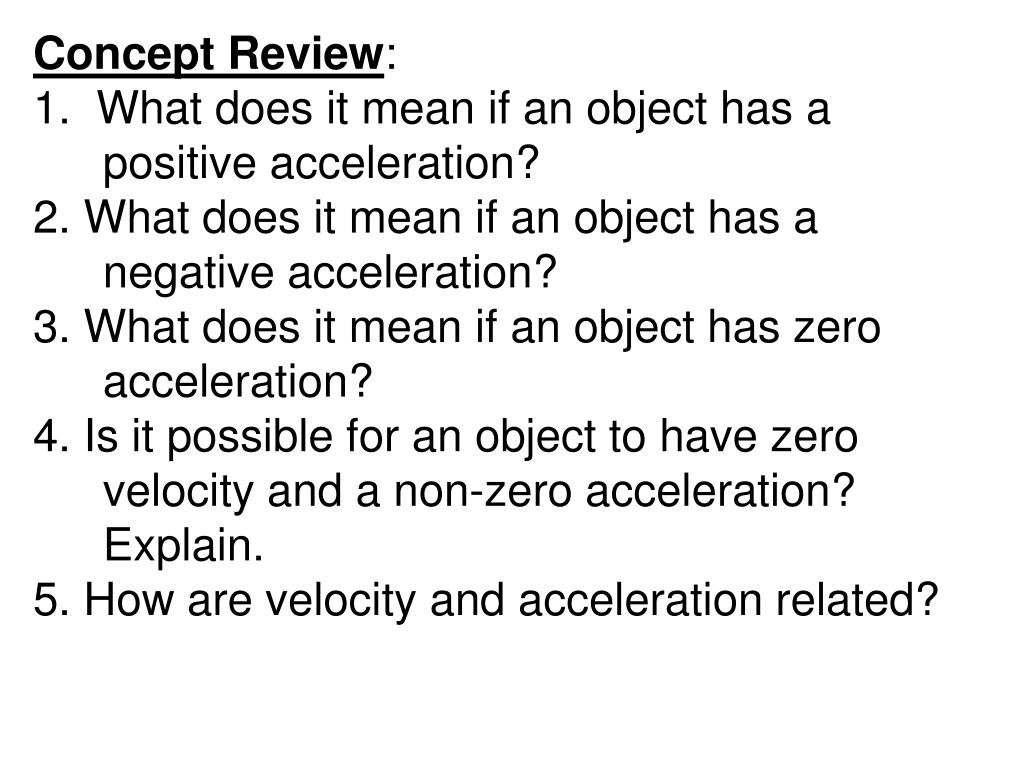

  13. Concept Review: 1. What does it mean if an object has a positive acceleration? 2. What does it mean if an object has a negative acceleration? 3. What does it mean if an object has zero acceleration? 4. Is it possible for an object to have zero velocity and a non-zero acceleration? Explain. 5. How are velocity and acceleration related?

  14. Concept Review 2: 1. Describe the motion of an object that has an acceleration of 5 m/s2, north? 2. Describe the motion of an object that has an acceleration of 2 m/s2, east and an initial velocity of 10 m/s, west. 3. Describe the motion of an object that has a = 0 m/s2? 4. What would be the velocities each second for the next 10 seconds for an object that has vi = 10 m/s west and a = 3 m/s2, east? Describe what this motion would look like. 5. How are velocity and acceleration related?

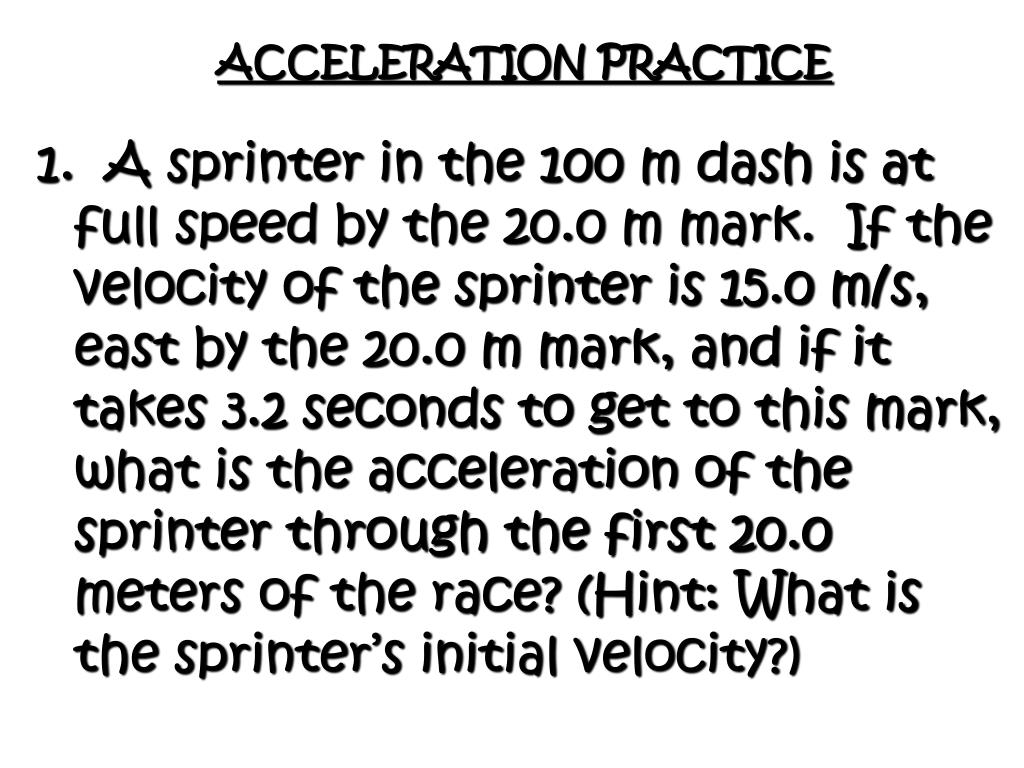

  15. ACCELERATION PRACTICE 1. A sprinter in the 100 m dash is at full speed by the 20.0 m mark. If the velocity of the sprinter is 15.0 m/s, east by the 20.0 m mark, and if it takes 3.2 seconds to get to this mark, what is the acceleration of the sprinter through the first 20.0 meters of the race? (Hint: What is the sprinter’s initial velocity?)

  16. 2. A car accelerates at 7.0 m/s2, North for 8.0 seconds. What is the final velocity of the car if its initial velocity is: • 0.0 m/s? • 10.0 m/s, North? • 7.o m/s, South? For problem #2, what would the answers be if the acceleration was 7.0 m/s2, South?

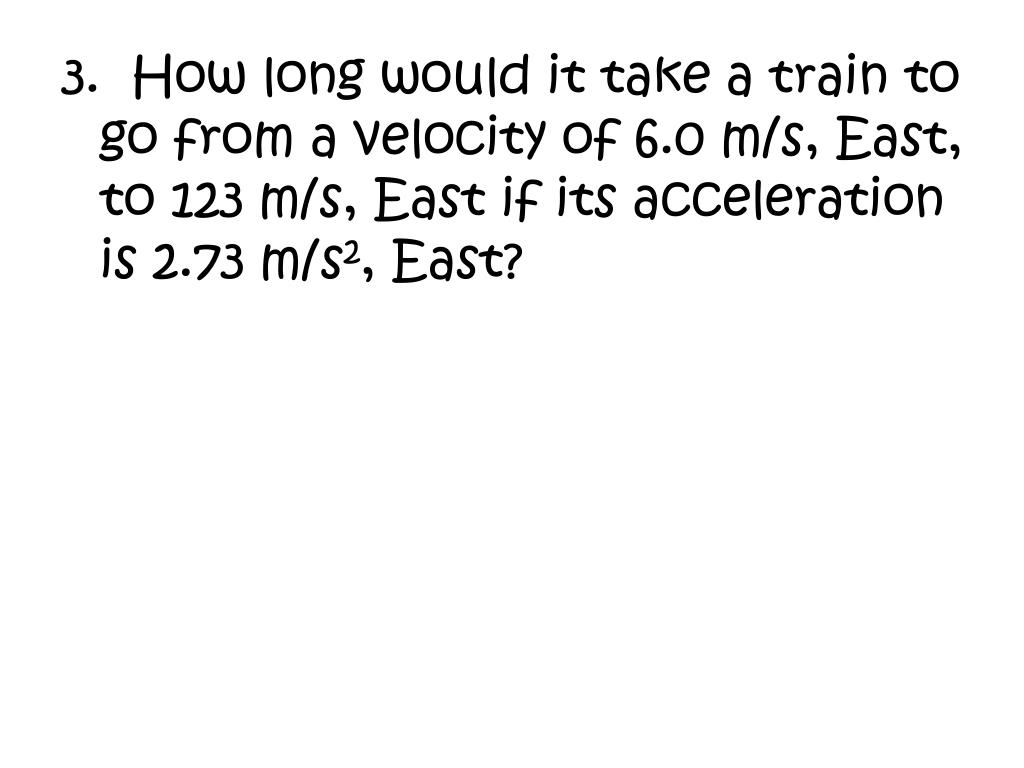

  17. 3. How long would it take a train to go from a velocity of 6.0 m/s, East, to 123 m/s, East if its acceleration is 2.73 m/s2, East?
