The Private Pilot

1. The Private Pilot

2. Class 2 - Aerodynamics and Airplanes

3. Objective: To introduce the basic principles of aircraft performance, aerodynamics and flight controls.

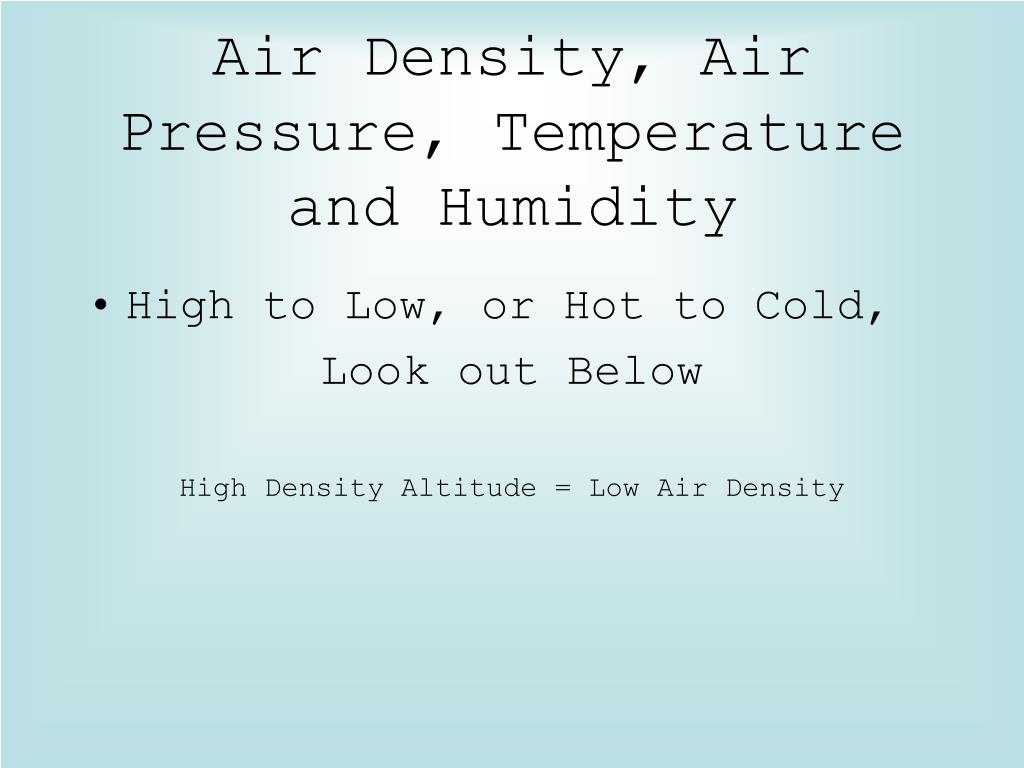

4. Air Density, Air Pressure, Temperature and Humidity • High to Low, or Hot to Cold, Look out Below High Density Altitude = Low Air Density

6. DENSITY ALTITUDE— This altitude is pressure altitude corrected for variations from standard temperature. When conditions are standard, pressure altitude and density altitude are the same. If the temperature is above standard, the density altitude is higher than pressure altitude. If the temperature is below standard, the density altitude is lower than pressure altitude. This is an important altitude because it is directly related to the airplane’s performance.

7. Standard Atmospheric Conditions(Follow the Lines) At sea level, the standard atmosphere consists of a barometric pressure of 29.92 inches of mercury (in. Hg.) or 1013.2 millibars, and a temperature of 15°C (59°F).

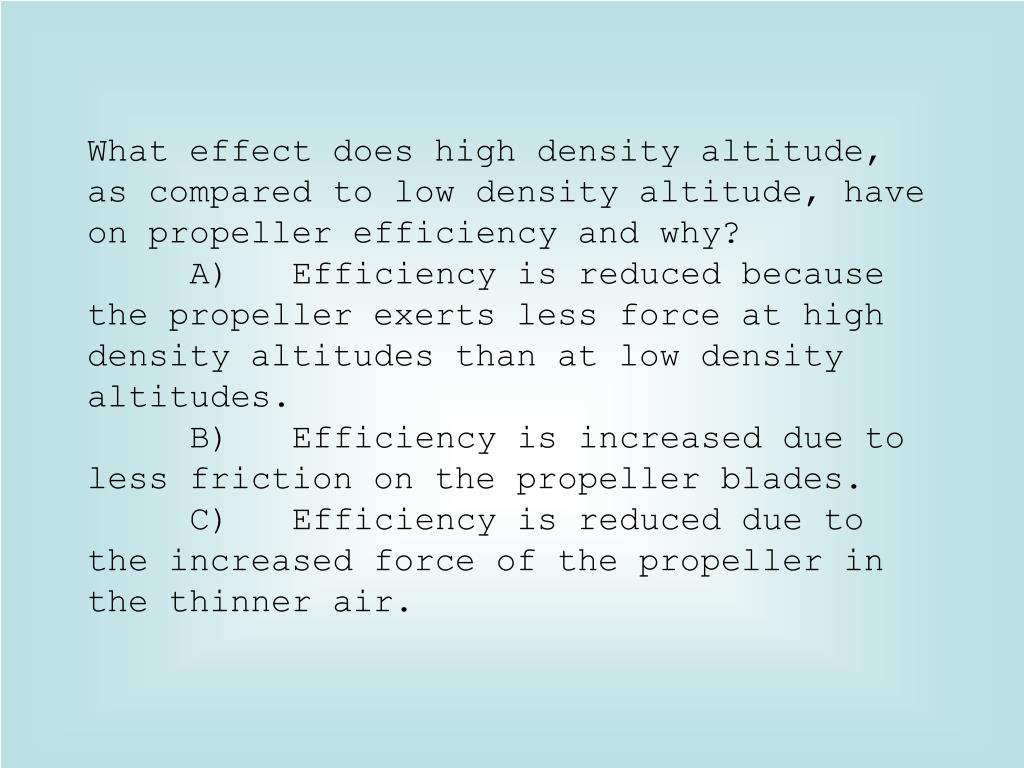

8. What effect does high density altitude, as compared to low density altitude, have on propeller efficiency and why? A) Efficiency is reduced because the propeller exerts less force at high density altitudes than at low density altitudes. B) Efficiency is increased due to less friction on the propeller blades. C) Efficiency is reduced due to the increased force of the propeller in the thinner air.

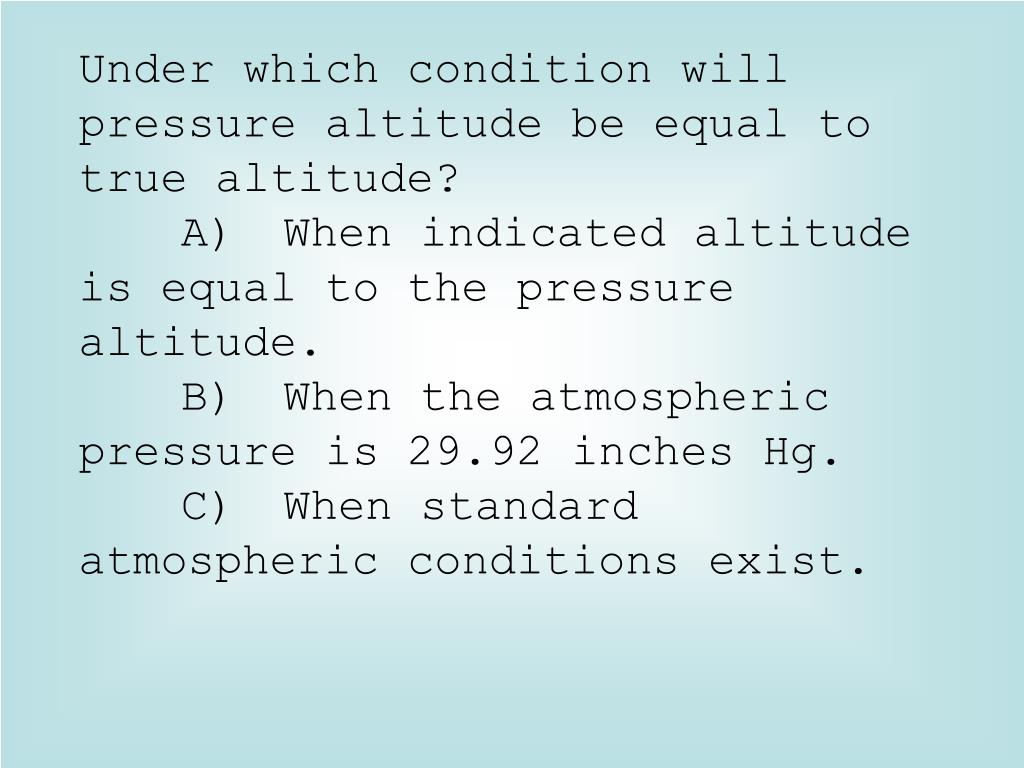

9. Under which condition will pressure altitude be equal to true altitude? A) When indicated altitude is equal to the pressure altitude. B) When the atmospheric pressure is 29.92 inches Hg. C) When standard atmospheric conditions exist.

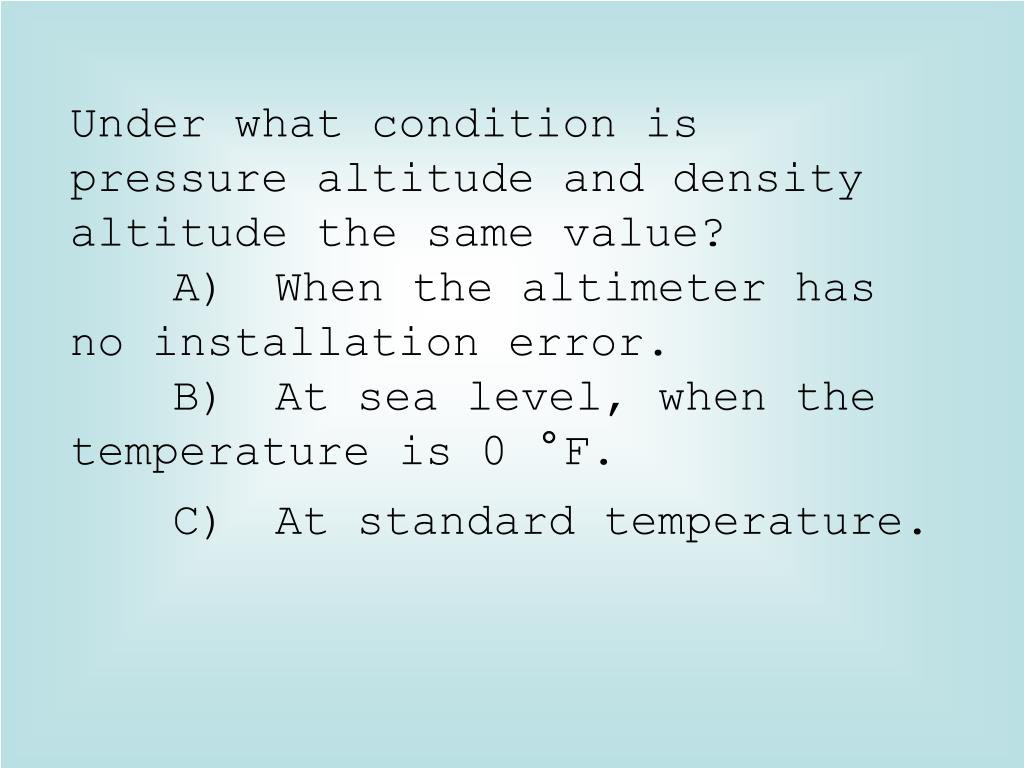

10. Under what condition is pressure altitude and density altitude the same value? A) When the altimeter has no installation error. B) At sea level, when the temperature is 0 °F. C) At standard temperature.

11. If a flight is made from an area of low pressure into an area of high pressure without the altimeter setting being adjusted, the altimeter will indicate A) higher than the actual altitude above sea level. B) the actual altitude above sea level. C) lower than the actual altitude above sea level.

12. Under what condition will true altitude be lower than indicated altitude? A) In warmer than standard air temperature. B) In colder than standard air temperature. C) When density altitude is higher than indicated altitude.

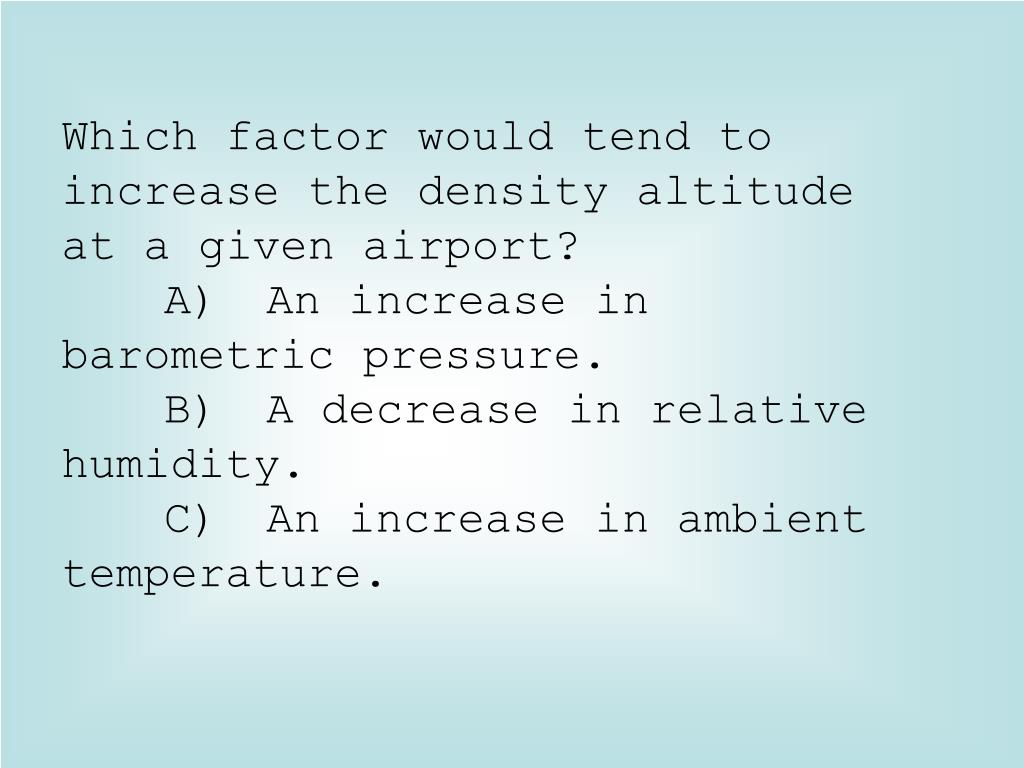

13. Which factor would tend to increase the density altitude at a given airport? A) An increase in barometric pressure. B) A decrease in relative humidity. C) An increase in ambient temperature.

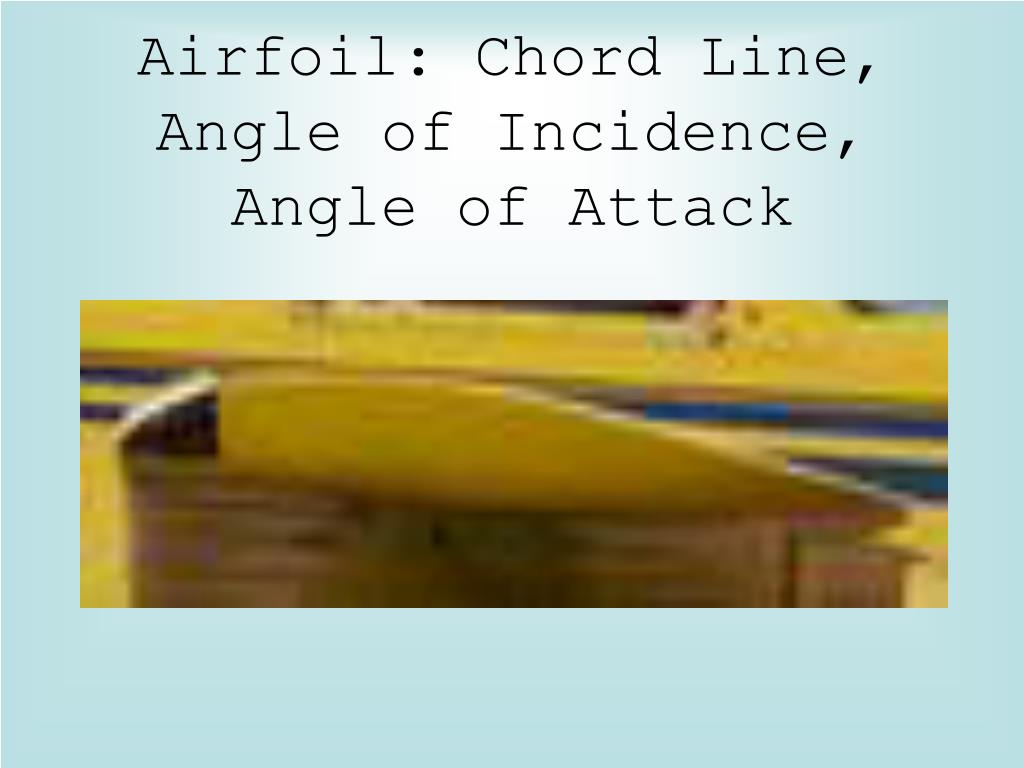

14. Airfoil: Chord Line, Angle of Incidence, Angle of Attack

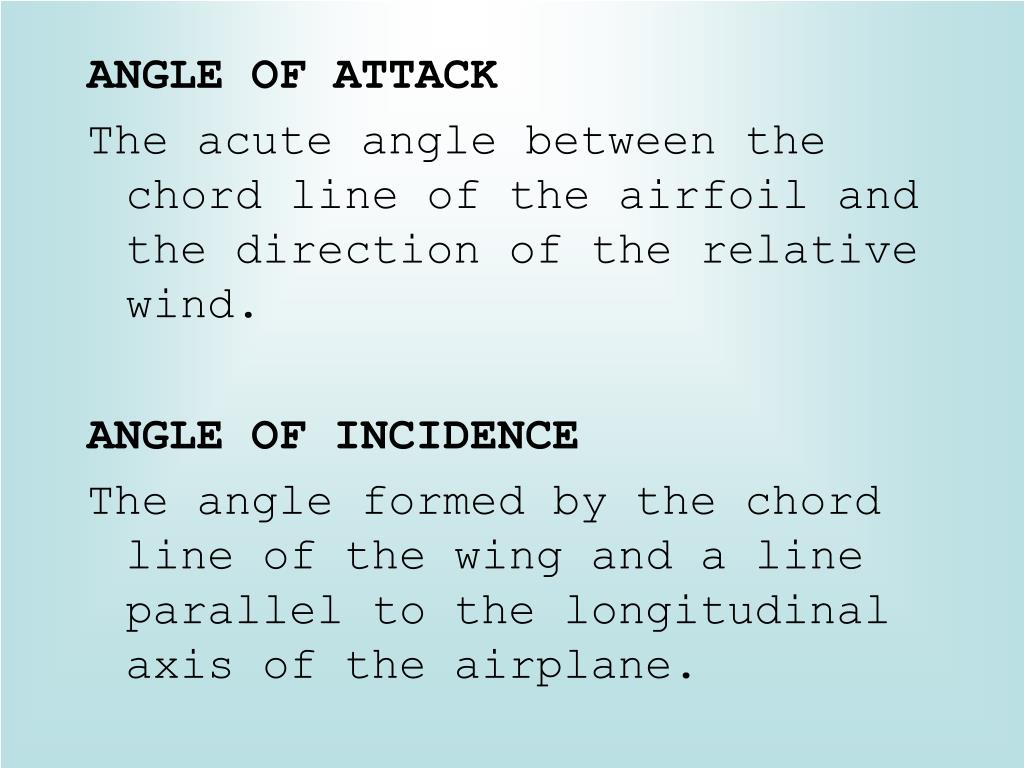

15. ANGLE OF ATTACK The acute angle between the chord line of the airfoil and the direction of the relative wind. ANGLE OF INCIDENCE The angle formed by the chord line of the wing and a line parallel to the longitudinal axis of the airplane.

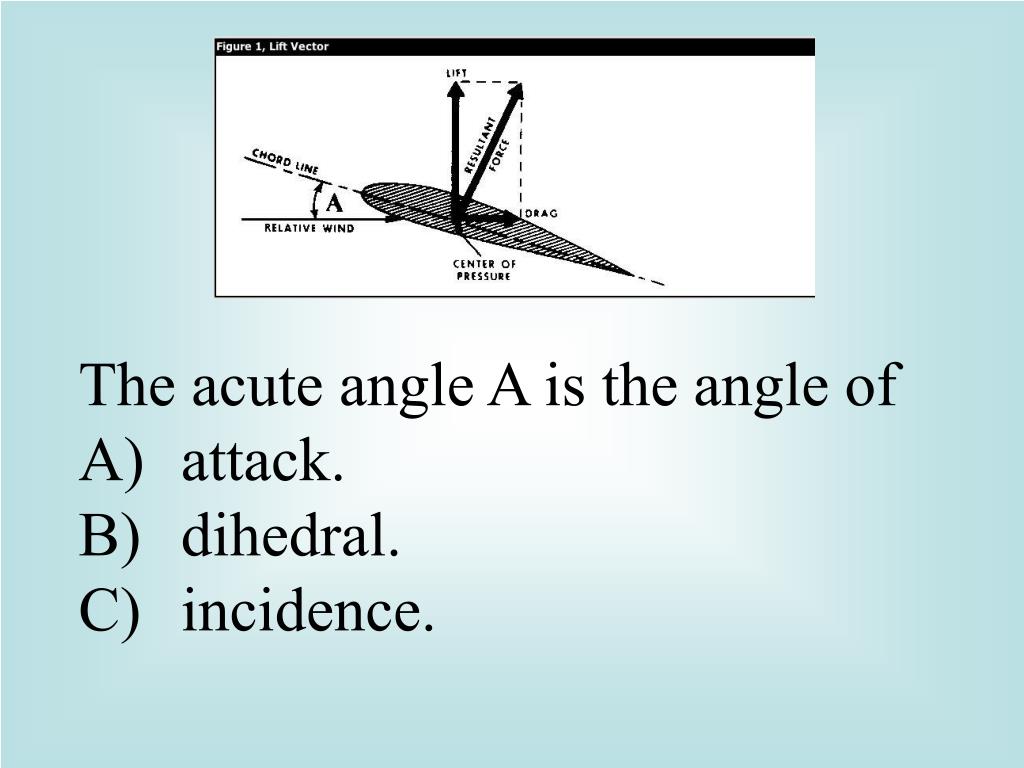

17. The acute angle A is the angle ofA) attack.B) dihedral.C) incidence.

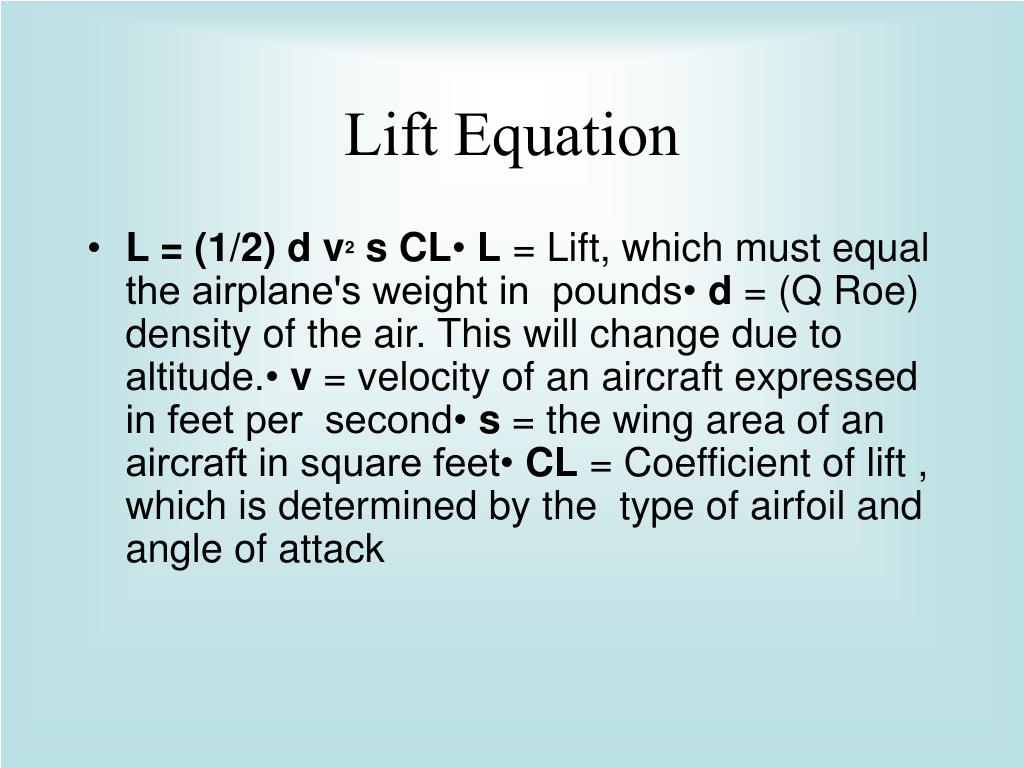

18. Lift Equation • L = (1/2) d v2 s CL• L = Lift, which must equal the airplane's weight in pounds• d = (Q Roe) density of the air. This will change due to altitude.• v = velocity of an aircraft expressed in feet per second• s = the wing area of an aircraft in square feet• CL = Coefficient of lift , which is determined by the type of airfoil and angle of attack

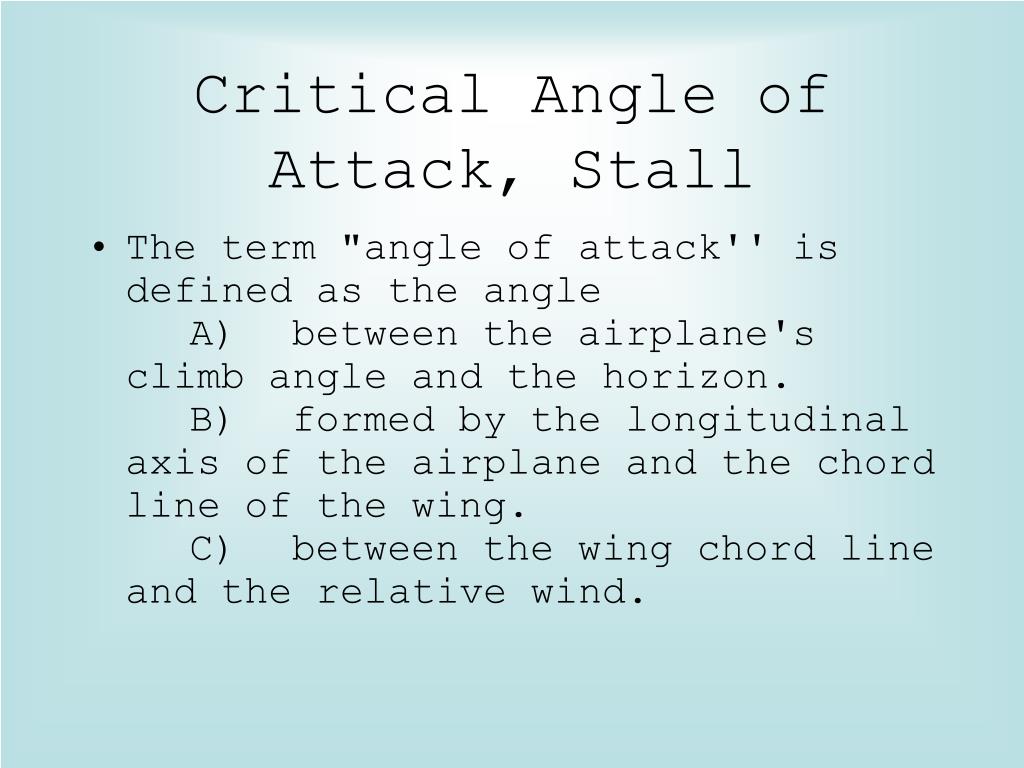

19. Critical Angle of Attack, Stall • The term "angle of attack'' is defined as the angle A) between the airplane's climb angle and the horizon. B) formed by the longitudinal axis of the airplane and the chord line of the wing. C) between the wing chord line and the relative wind.

20. What is the “Critical” Angle of Attack?

21. The angle of attack at which an airplane wing stalls will A) change with an increase in gross weight. B) remain the same regardless of gross weight. C) increase if the CG is moved forward.

22. The four forces acting on an airplane in flight are A) lift, weight, thrust, and drag. B) lift, weight, gravity, and thrust. C) lift, gravity, power, and friction.

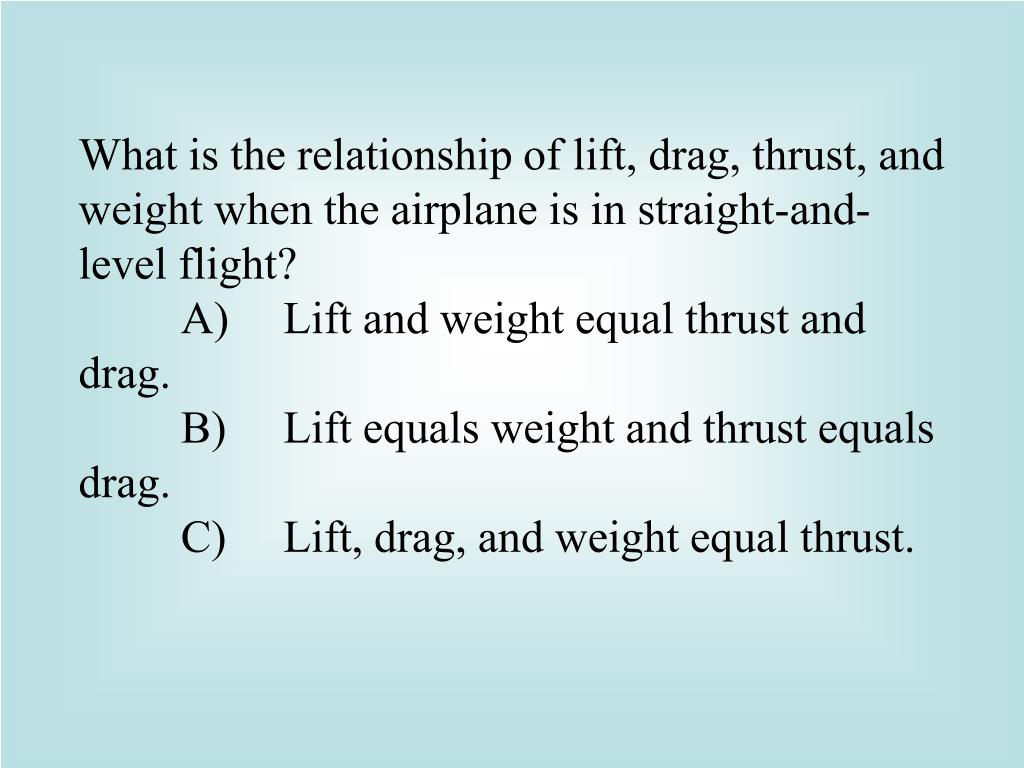

23. What is the relationship of lift, drag, thrust, and weight when the airplane is in straight-and-level flight? A) Lift and weight equal thrust and drag. B) Lift equals weight and thrust equals drag. C) Lift, drag, and weight equal thrust.

24. Straight and Level

25. When are the four forces that act on an airplane in equilibrium? A) When the aircraft is at rest on the ground. B) When the aircraft is accelerating. C) During un-accelerated flight.

26. How will frost on the wings of an airplane affect takeoff performance? A) Frost will disrupt the smooth flow of air over the wing, adversely affecting its lifting capability. B) Frost will change the camber of the wing, increasing its lifting capability. C) Frost will cause the airplane to become airborne with a higher angle of attack, decreasing the stall speed.

27. Stability, Controllability and Flight Control • Lateral Stability on the Longitudinal Axis • Longitudinal Stability on the Lateral Axis

28. Stability The inherent quality of an airplane to correct for conditions that may disturb its equilibrium, and to return or to continue on the original flightpath. It is primarily an airplane design characteristic.

29. Maneuverability The quality of an airplane that permits it to be maneuvered easily and to withstand the stresses imposed by maneuvers. It is governed by the airplane’s weight, inertia, size and location of flight controls, structural strength, and powerplant. It too is an airplane design characteristic.

30. Controllability The capability of an airplane to respond to the pilot’s control, especially with regard to flightpath and attitude. It is the quality of the airplane’s response to the pilot’s control application when maneuvering the airplane, regardless of its stability characteristics.

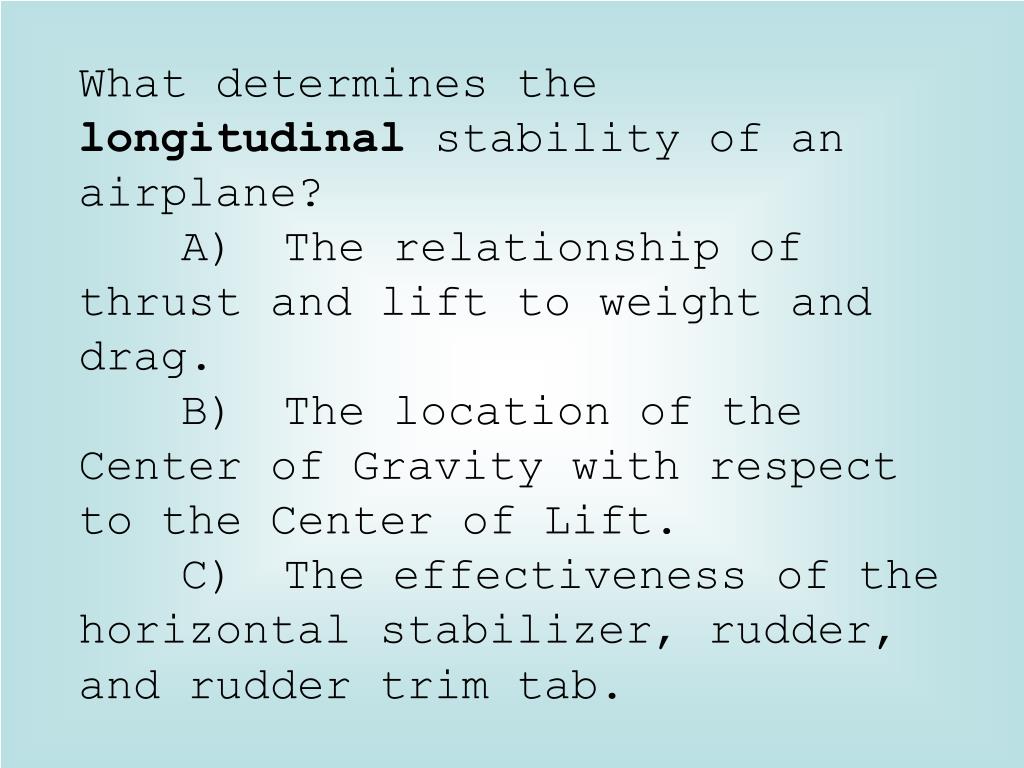

31. What determines the longitudinal stability of an airplane? A) The relationship of thrust and lift to weight and drag. B) The location of the Center of Gravity with respect to the Center of Lift. C) The effectiveness of the horizontal stabilizer, rudder, and rudder trim tab.

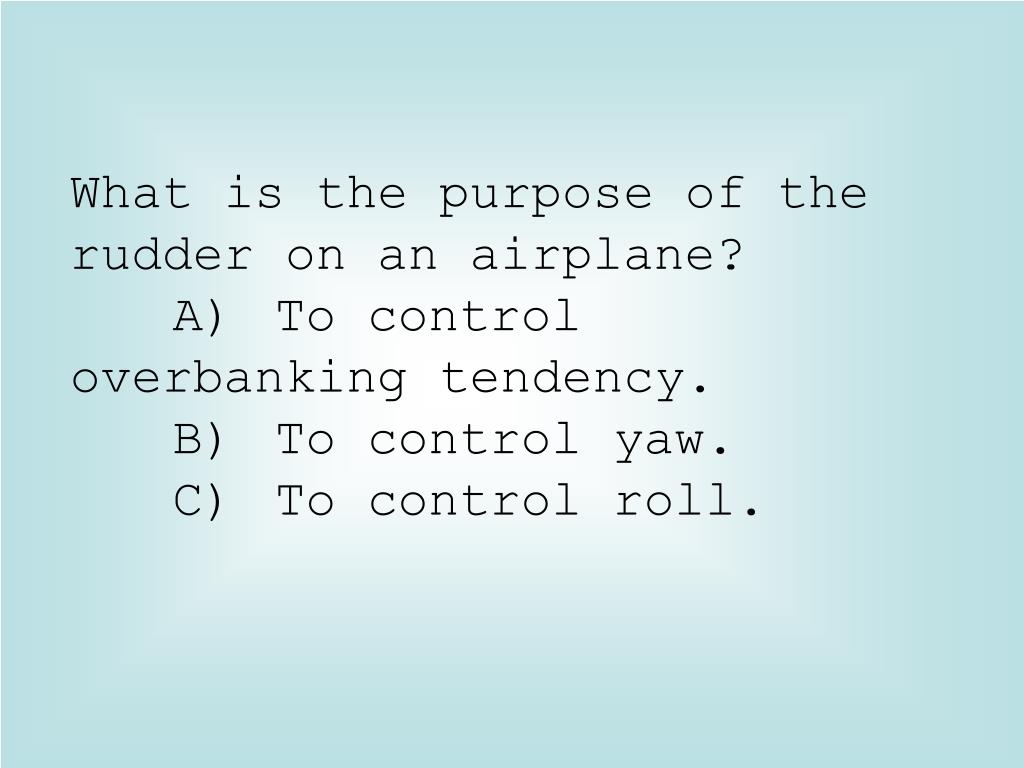

32. What is the purpose of the rudder on an airplane? A) To control overbanking tendency. B) To control yaw. C) To control roll.

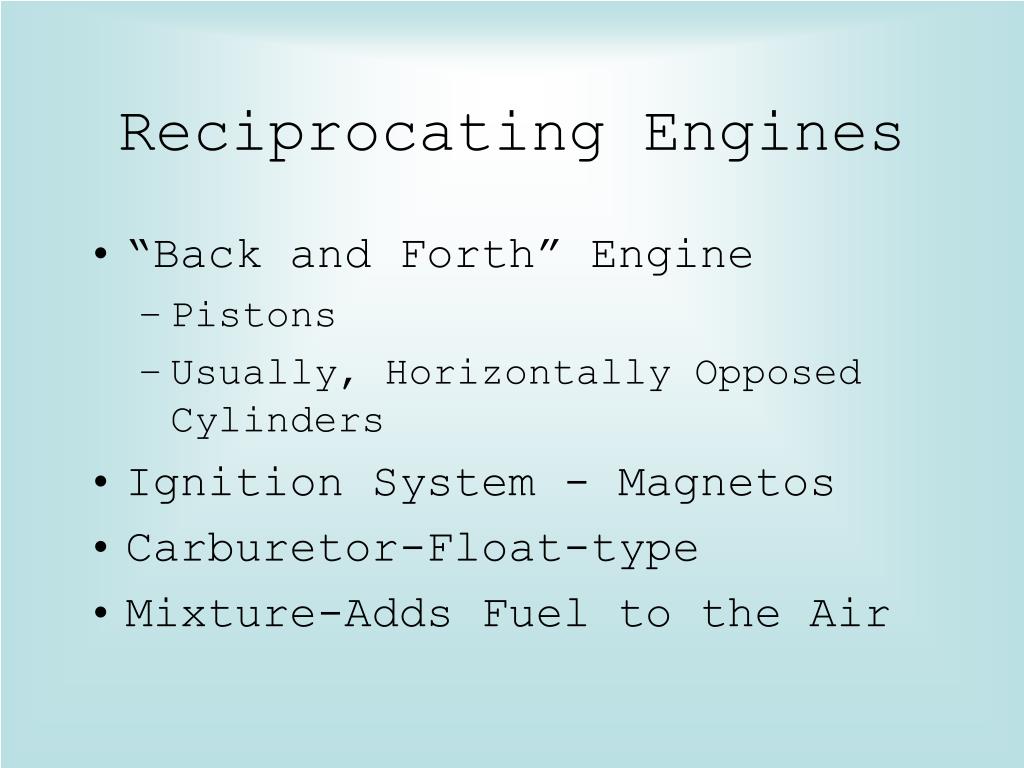

33. Reciprocating Engines • “Back and Forth” Engine • Pistons • Usually, Horizontally Opposed Cylinders • Ignition System - Magnetos • Carburetor-Float-type • Mixture-Adds Fuel to the Air

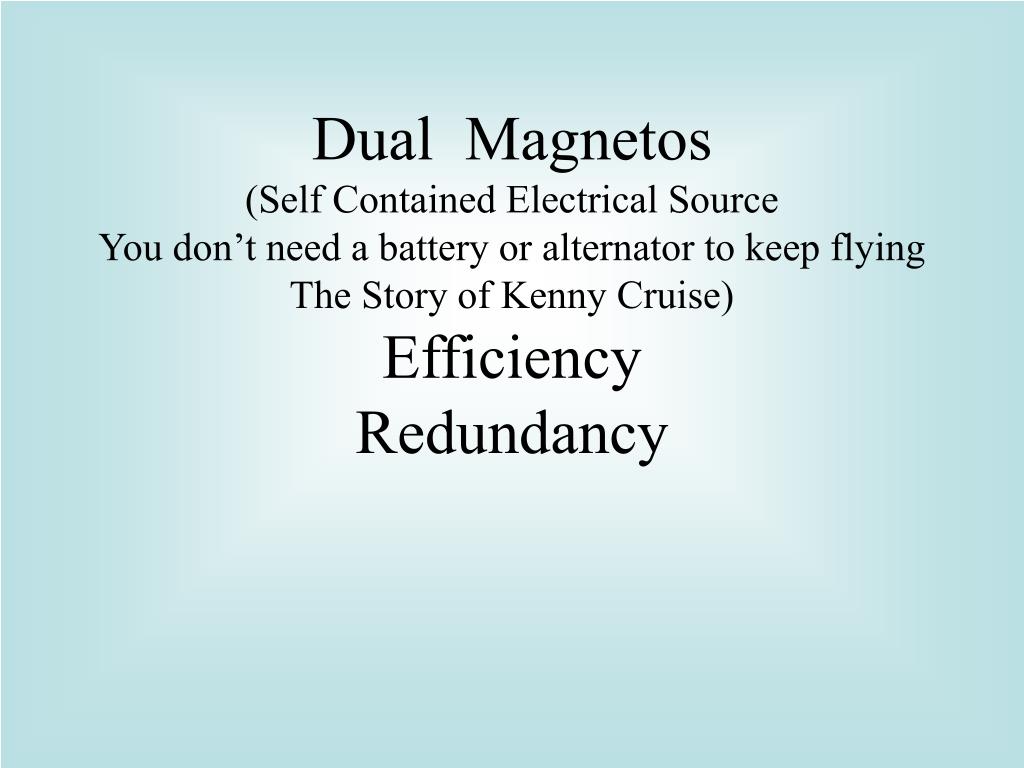

36. Dual Magnetos(Self Contained Electrical SourceYou don’t need a battery or alternator to keep flyingThe Story of Kenny Cruise)EfficiencyRedundancy

39. Detonation is an uncontrolled, explosive ignition of the fuel/air mixture within the cylinder’s combustion chamber. It causes excessive temperatures and pressures which, if not corrected, can quickly lead to failure of the piston, cylinder, or valves. In less severe cases, detonation causes engine overheating, roughness, or loss of power.

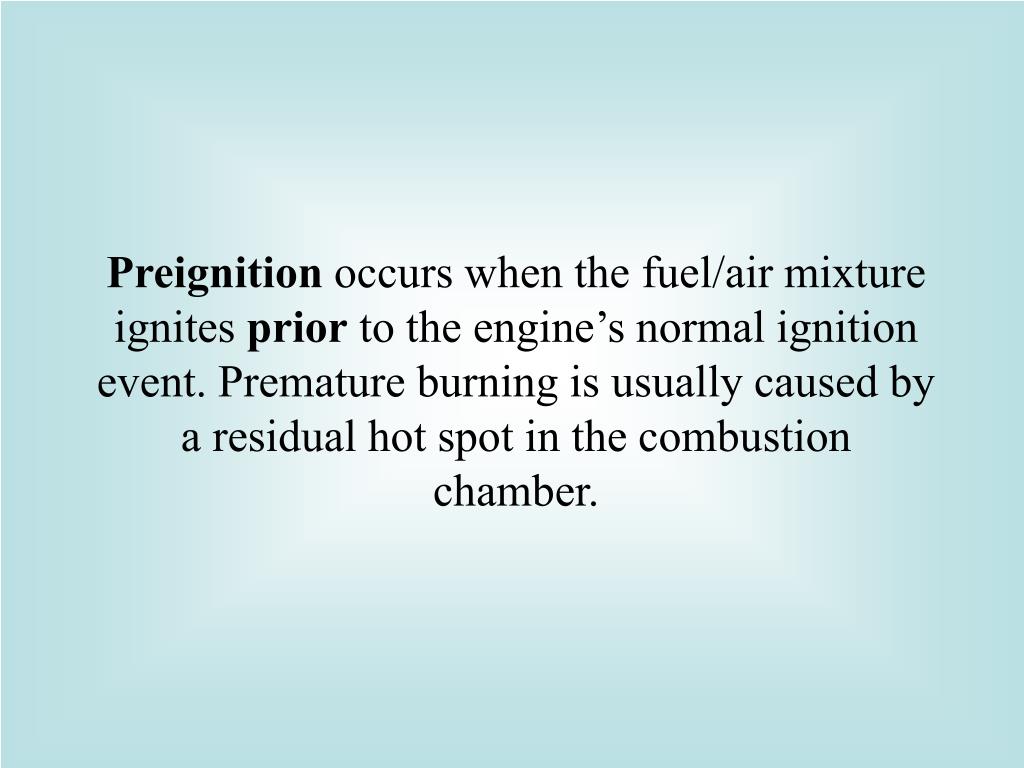

40. Preignition occurs when the fuel/air mixture ignites prior to the engine’s normal ignition event. Premature burning is usually caused by a residual hot spot in the combustion chamber.

41. Detonation may occur at high-power settings when A) an excessively rich fuel mixture causes an explosive gain in power. B) the fuel mixture ignites instantaneously instead of burning progressively and evenly. C) the fuel mixture is ignited too early by hot carbon deposits in the cylinder.

42. If the grade of fuel used in an aircraft engine is lower than specified for the engine, it will most likely cause A) detonation. B) lower cylinder head temperatures. C) a mixture of fuel and air that is not uniform in all cylinders.

43. Detonation occurs in a reciprocating aircraft engine when A) the unburned charge in the cylinders explodes instead of burning normally. B) the spark plugs are fouled or shorted out or the wiring is defective. C) hot spots in the combustion chamber ignite the fuel/air mixture in advance of normal ignition.

44. If a pilot suspects that the engine (with a fixed-pitch propeller) is detonating during climb-out after takeoff, the initial corrective action to take would be to A) lean the mixture. B) lower the nose slightly to increase airspeed. C) apply carburetor heat.

45. The uncontrolled firing of the fuel/air charge in advance of normal spark ignition is known as A) detonation. B) pre-ignition. C) combustion.

46. Which would most likely cause the cylinder head temperature and engine oil temperature gauges to exceed their normal operating ranges? A) Using fuel that has a lower-than-specified fuel rating. B) Using fuel that has a higher-than-specified fuel rating. C) Operating with higher-than-normal oil pressure.

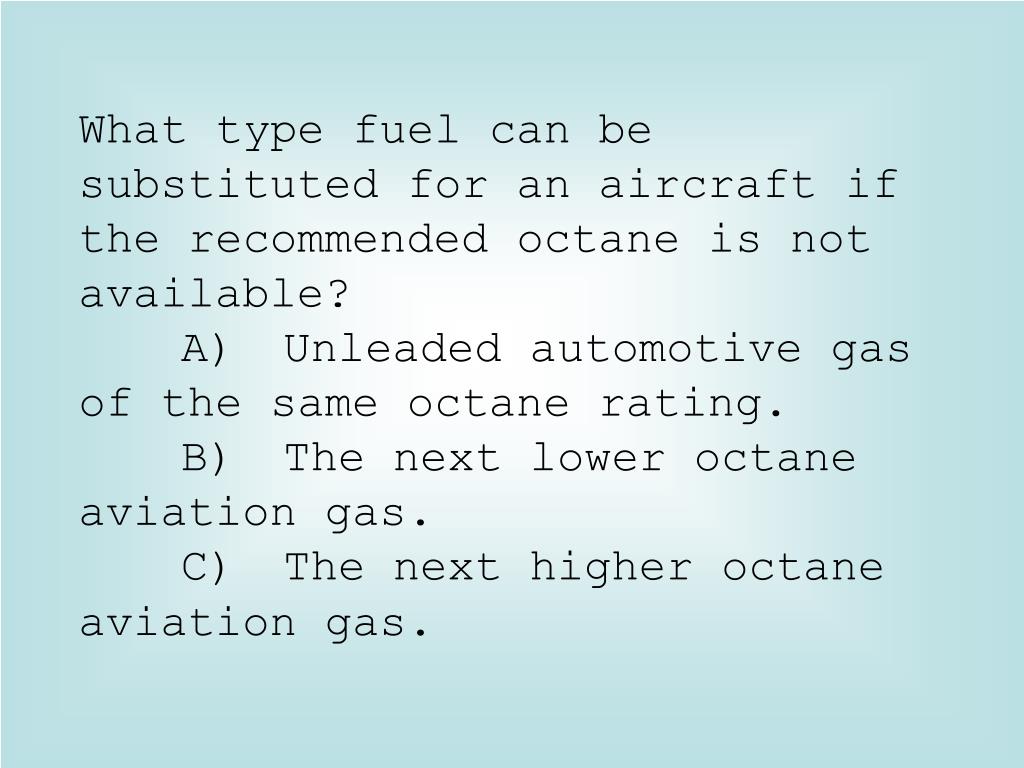

47. What type fuel can be substituted for an aircraft if the recommended octane is not available? A) Unleaded automotive gas of the same octane rating. B) The next lower octane aviation gas. C) The next higher octane aviation gas.

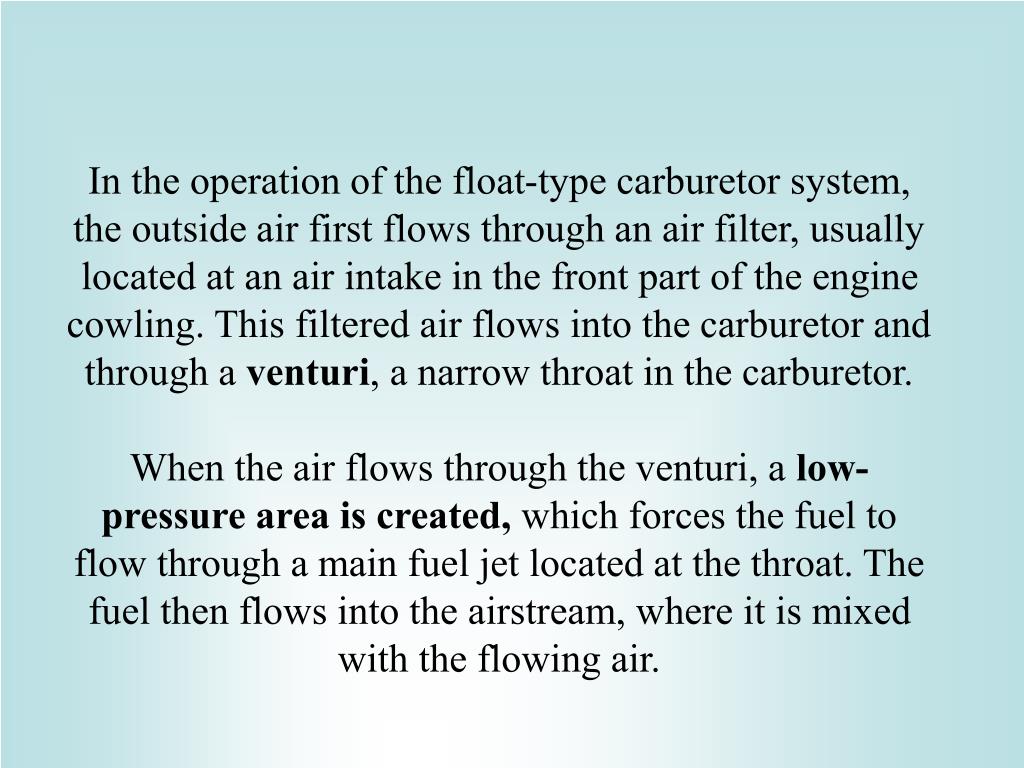

48. In the operation of the float-type carburetor system, the outside air first flows through an air filter, usually located at an air intake in the front part of the engine cowling. This filtered air flows into the carburetor and through a venturi, a narrow throat in the carburetor. When the air flows through the venturi, a low-pressure area is created, which forces the fuel to flow through a main fuel jet located at the throat. The fuel then flows into the airstream, where it is mixed with the flowing air.

50. One disadvantage of the float-type carburetor is its icing tendency.Carburetor ice occurs due to the effect of fuel vaporization and the decrease in air pressure in the venturi, which causes a sharp temperature drop in the carburetor. If water vapor in the air condenses when the carburetor temperature is at or below freezing, ice may form on internal surfaces of the carburetor.
