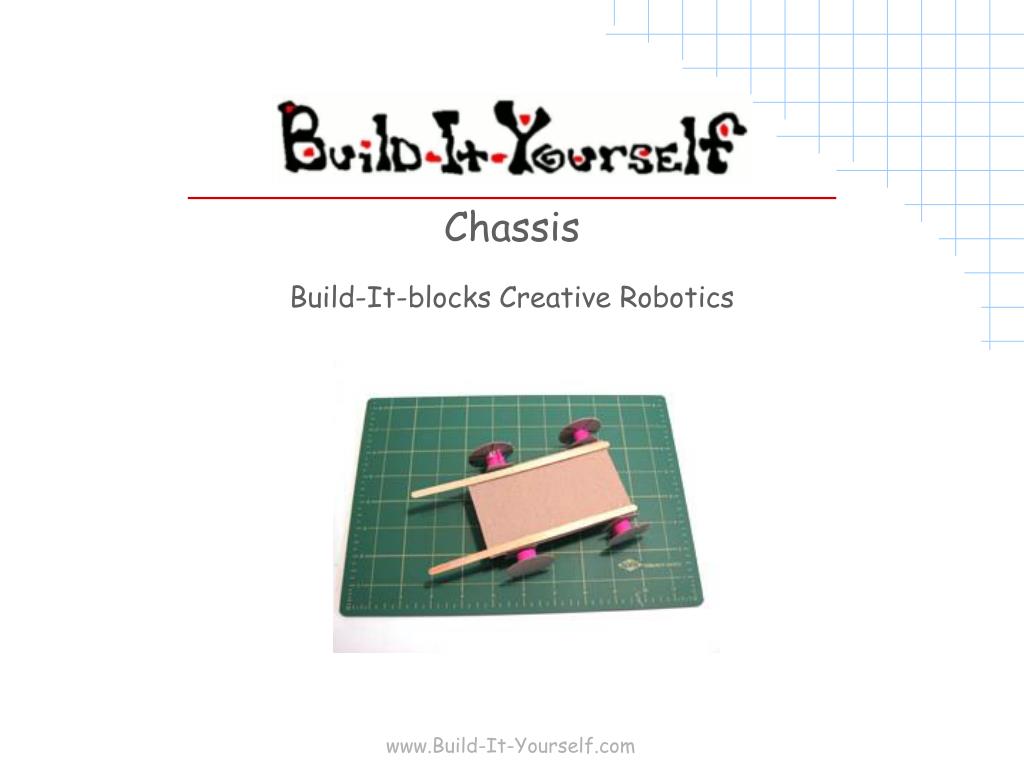

Chassis. Build-It-blocks Creative Robotics. 1. Materials - 3 piece of cardboard - 1 orange straw - 1 green straw - 2 coffee stirrer sticks. Materials. 2. Tools - tape - scissors - pencil - hot glue gun - glue stick - ruler -cutting matt. 3. Mark and Cut wheels

natalya-penda
Télécharger la présentation

Chassis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chassis Build-It-blocks Creative Robotics

  2. 1. Materials - 3 piece of cardboard - 1 orange straw - 1 green straw - 2 coffee stirrer sticks Materials 2. Tools - tape - scissors - pencil - hot glue gun - glue stick - ruler -cutting matt

  3. 3. Mark and Cut wheels - Mark 2”x2” inch square out of cardboard. - Mark X down center, draw circle 4. Cut out squares and cut out circles Cut Pieces

  4. 5. -Mark a line down the center and across the center like a T -Cut in to 4 equal parts -Punch hole in the center of cut pieces Washers for wheels

  5. 6. -Mark 6 inches on green straw and cut -Cut 6inch green straw into 2 even pieces -Cut orange straw into 2 even pieces Cut straws

  6. 7. Foam Washers -Cut 4 long strips out of your 2x2 piece of foam -Take one of the long strips and wrap it around the end of your short Orange straw -Hot glue the foam strip into place, this foam washer will be what your wheel is sitting on. Foam washers for wheels

  7. 8. 4 wheels 4 square cardboard washers 2 cut green straws 2 orange straws with foam washers on the end Cut and glued materials

  8. 9. -Put cardboard washer on to the orange straw -Slide green straw over the orange on to keep the washer in place. -Hot glue foam strip to the other end of your axel to complete your axel (repeat step 7) Putting together the axel

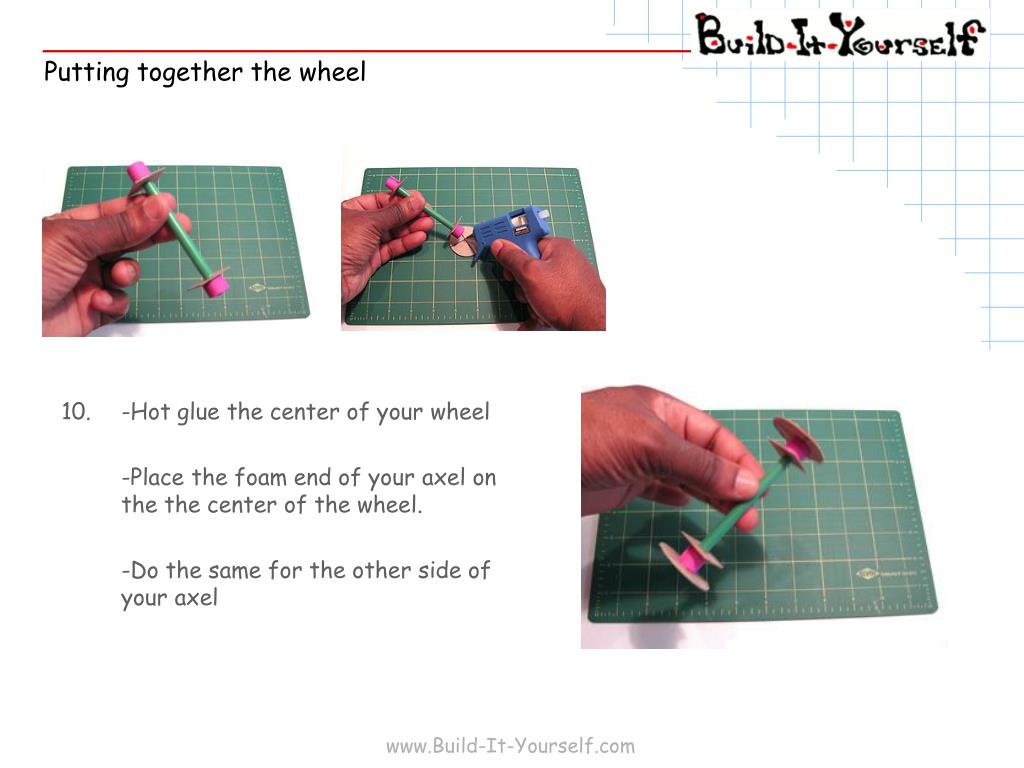

  9. 10. -Hot glue the center of your wheel -Place the foam end of your axel on the the center of the wheel. -Do the same for the other side of your axel Putting together the wheel

  10. 11. -Hot glue the completed axels with wheels to the bottom end of your chasis -Hot glue coffee stirrer stick on to the top of your chasis -Take your complete chassis for a test run and make adjustments as needed Complete your Chasis
