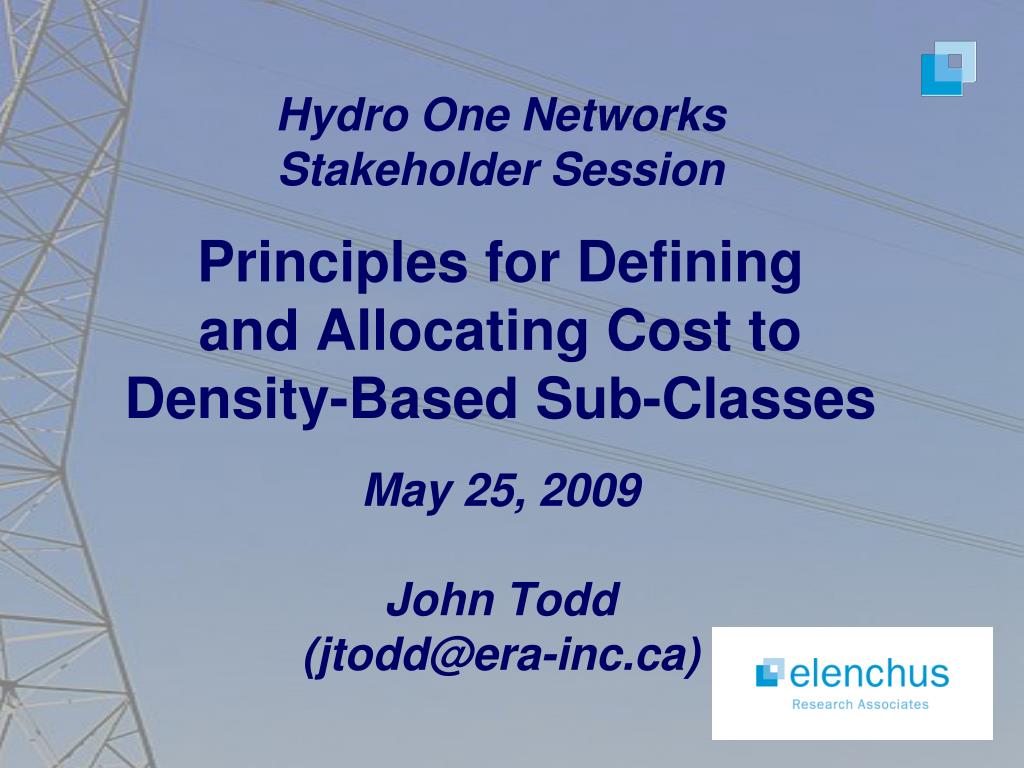

1. Hydro One NetworksStakeholder SessionPrinciples for Definingand Allocating Cost toDensity-Based Sub-ClassesMay 25, 2009John Todd(jtodd@era-inc.ca)

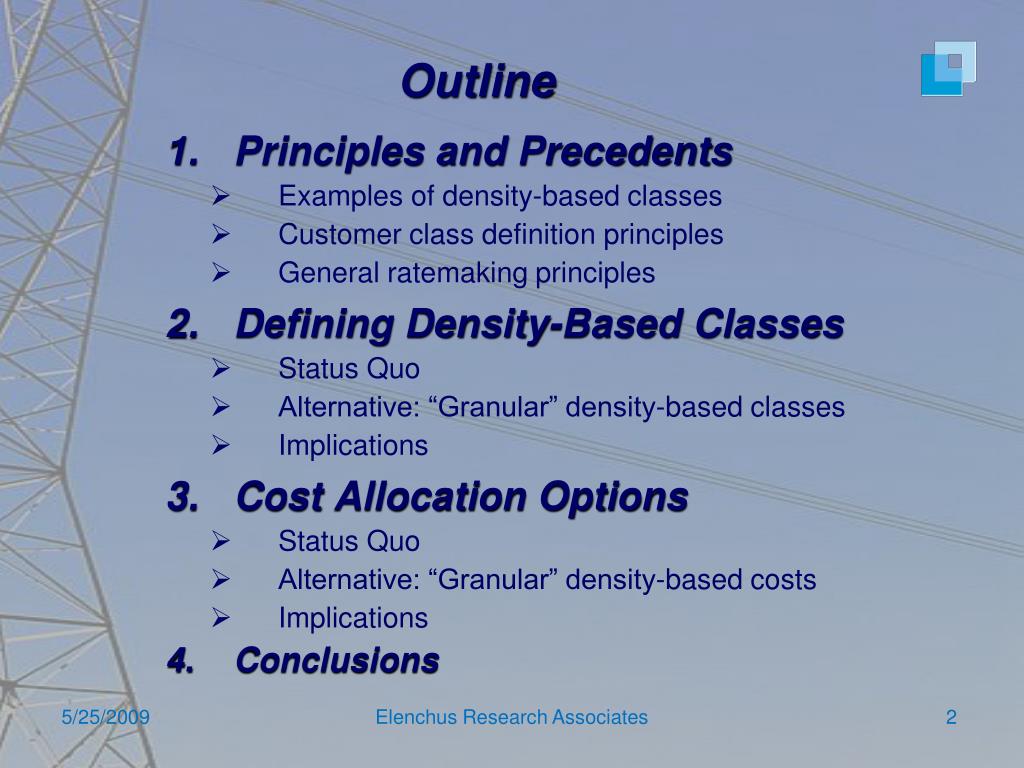

2. Outline • Principles and Precedents • Examples of density-based classes • Customer class definition principles • General ratemaking principles • Defining Density-Based Classes • Status Quo • Alternative: “Granular” density-based classes • Implications • Cost Allocation Options • Status Quo • Alternative: “Granular” density-based costs • Implications • Conclusions Elenchus Research Associates

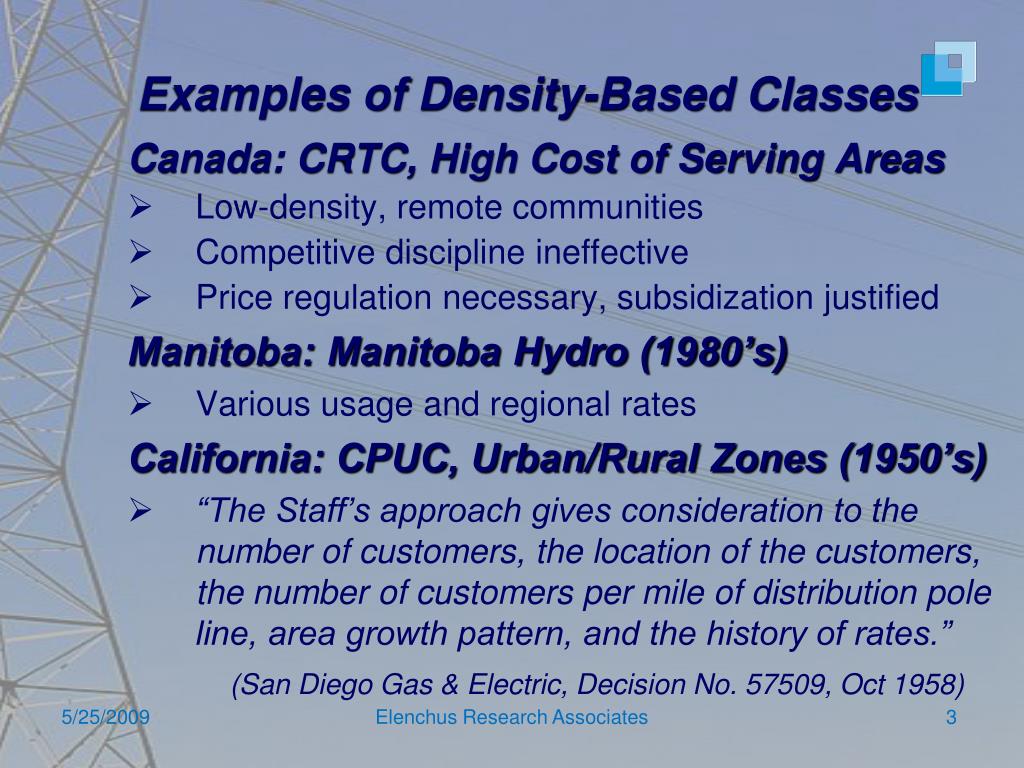

3. Examples of Density-Based Classes Canada: CRTC, High Cost of Serving Areas • Low-density, remote communities • Competitive discipline ineffective • Price regulation necessary, subsidization justified Manitoba: Manitoba Hydro (1980’s) • Various usage and regional rates California: CPUC, Urban/Rural Zones (1950’s) • “The Staff’s approach gives consideration to the number of customers, the location of the customers, the number of customers per mile of distribution pole line, area growth pattern, and the history of rates.” (San Diego Gas & Electric, Decision No. 57509, Oct 1958) Elenchus Research Associates

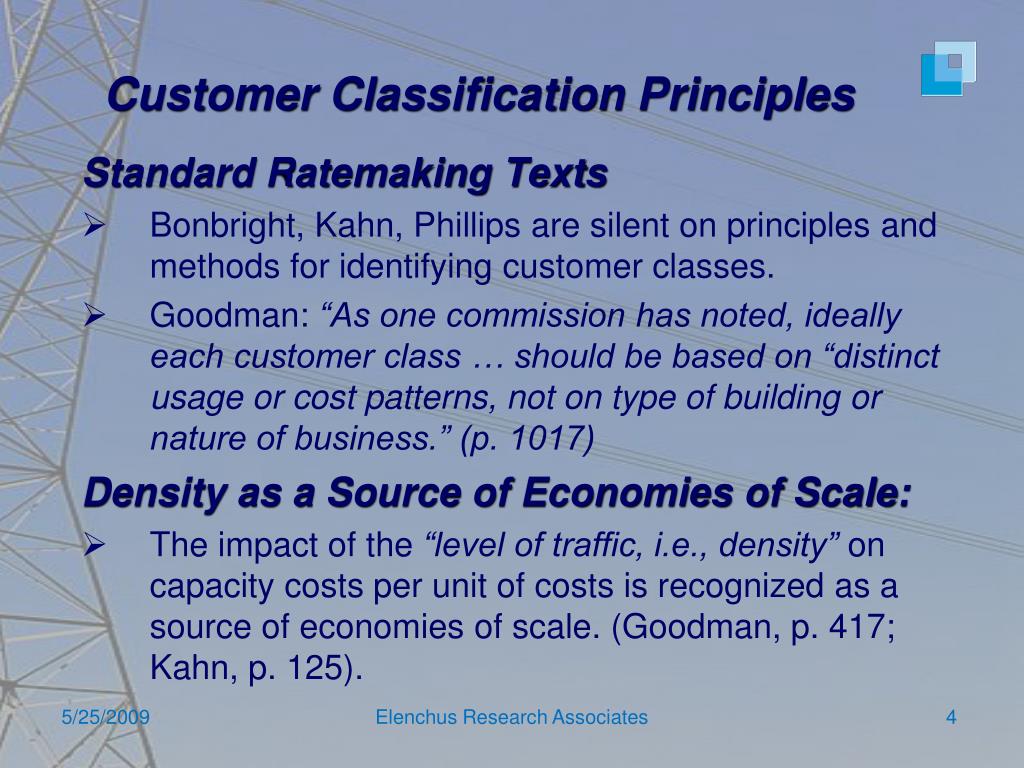

4. Customer Classification Principles Standard Ratemaking Texts • Bonbright, Kahn, Phillips are silent on principles and methods for identifying customer classes. • Goodman: “As one commission has noted, ideally each customer class … should be based on “distinct usage or cost patterns, not on type of building or nature of business.” (p. 1017) Density as a Source of Economies of Scale: • The impact of the “level of traffic, i.e., density” on capacity costs per unit of costs is recognized as a source of economies of scale. (Goodman, p. 417; Kahn, p. 125). Elenchus Research Associates

5. Relevant Bonbright Principles Bonbright et al (1988): 10 Attributes of a Sound Rate Structure. Most relevant are: • 4. Static efficiency of the rate classes and rate blocks .. • 6. Fairness of the specific rates in the apportionment of total costs of service … • 7. Avoidance of undue discrimination … OEB identified three rate design principle in Rate Design Review: • Full Cost Recovery Principle • Fairness Principle • Efficiency Principle Elenchus Research Associates

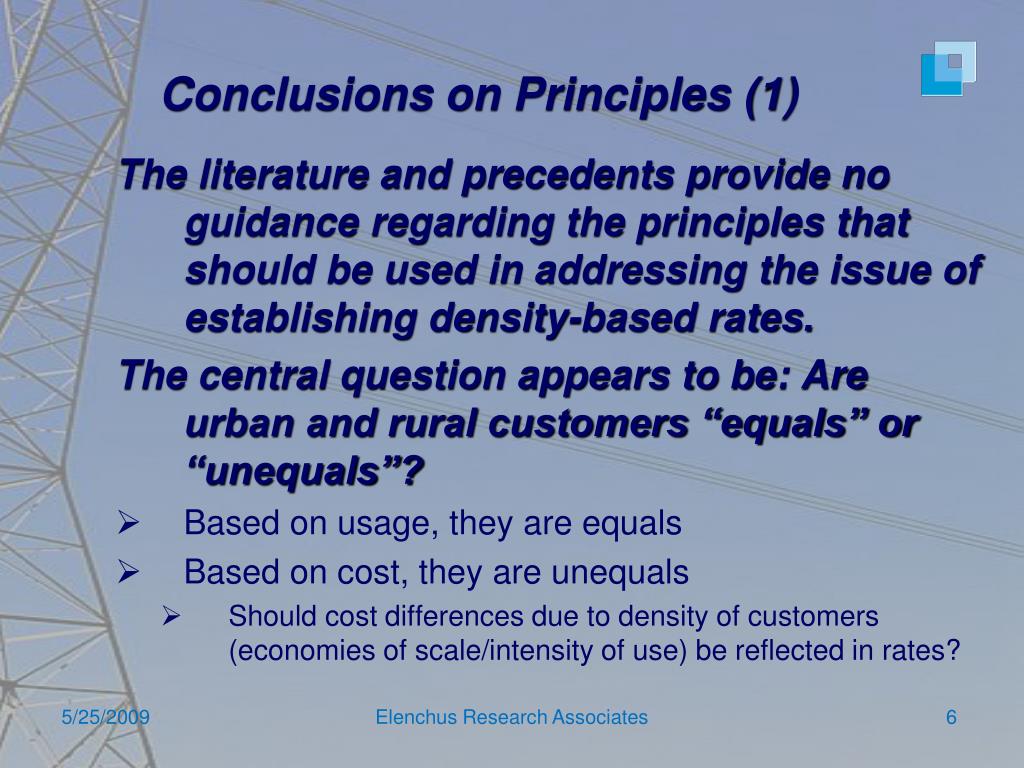

6. Conclusions on Principles (1) The literature and precedents provide no guidance regarding the principles that should be used in addressing the issue of establishing density-based rates. The central question appears to be: Are urban and rural customers “equals” or “unequals”? • Based on usage, they are equals • Based on cost, they are unequals • Should cost differences due to density of customers (economies of scale/intensity of use) be reflected in rates? Elenchus Research Associates

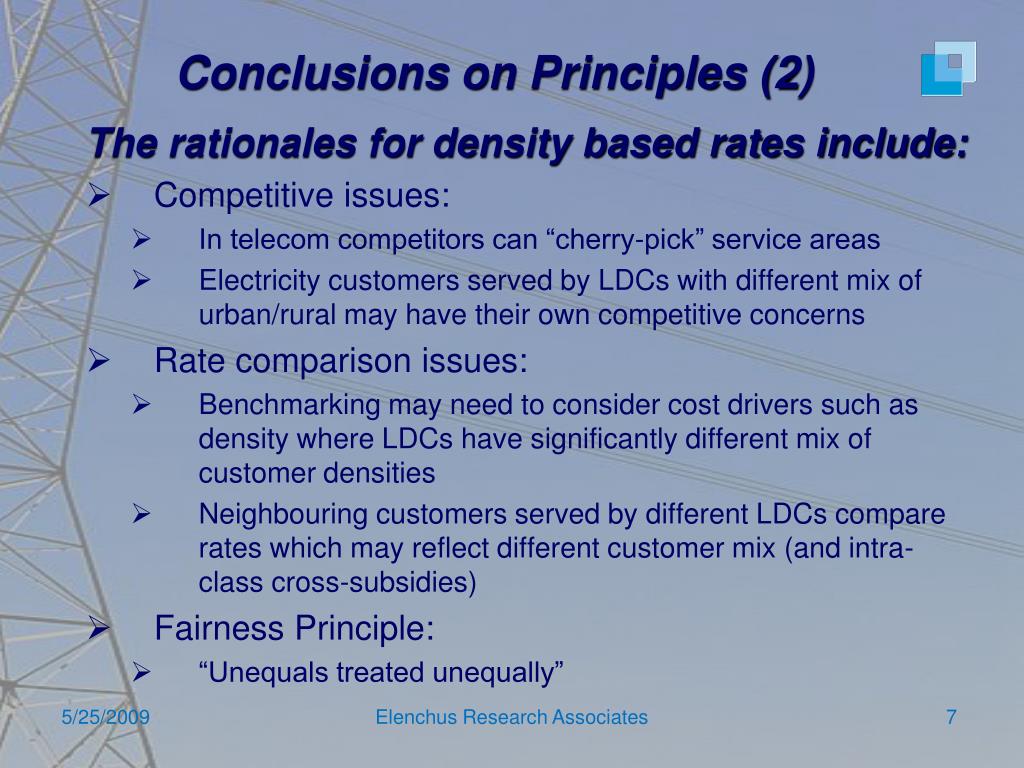

7. Conclusions on Principles (2) The rationales for density based rates include: • Competitive issues: • In telecom competitors can “cherry-pick” service areas • Electricity customers served by LDCs with different mix of urban/rural may have their own competitive concerns • Rate comparison issues: • Benchmarking may need to consider cost drivers such as density where LDCs have significantly different mix of customer densities • Neighbouring customers served by different LDCs compare rates which may reflect different customer mix (and intra-class cross-subsidies) • Fairness Principle: • “Unequals treated unequally” Elenchus Research Associates

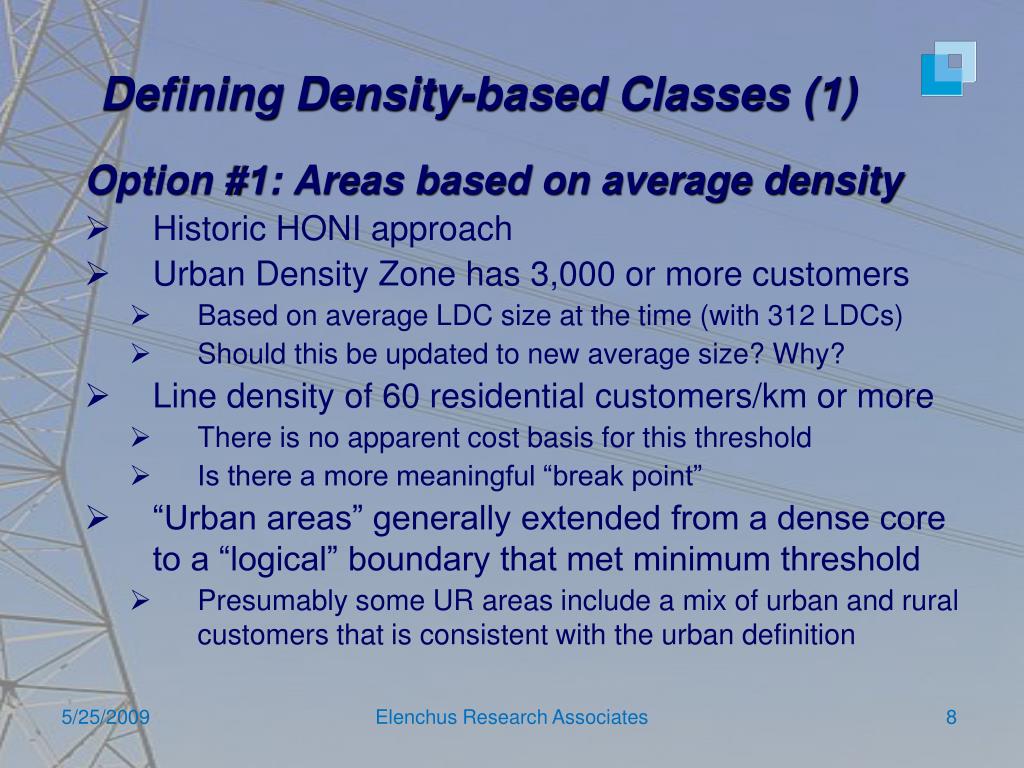

8. Defining Density-based Classes (1) Option #1: Areas based on average density • Historic HONI approach • Urban Density Zone has 3,000 or more customers • Based on average LDC size at the time (with 312 LDCs) • Should this be updated to new average size? Why? • Line density of 60 residential customers/km or more • There is no apparent cost basis for this threshold • Is there a more meaningful “break point” • “Urban areas” generally extended from a dense core to a “logical” boundary that met minimum threshold • Presumably some UR areas include a mix of urban and rural customers that is consistent with the urban definition Elenchus Research Associates

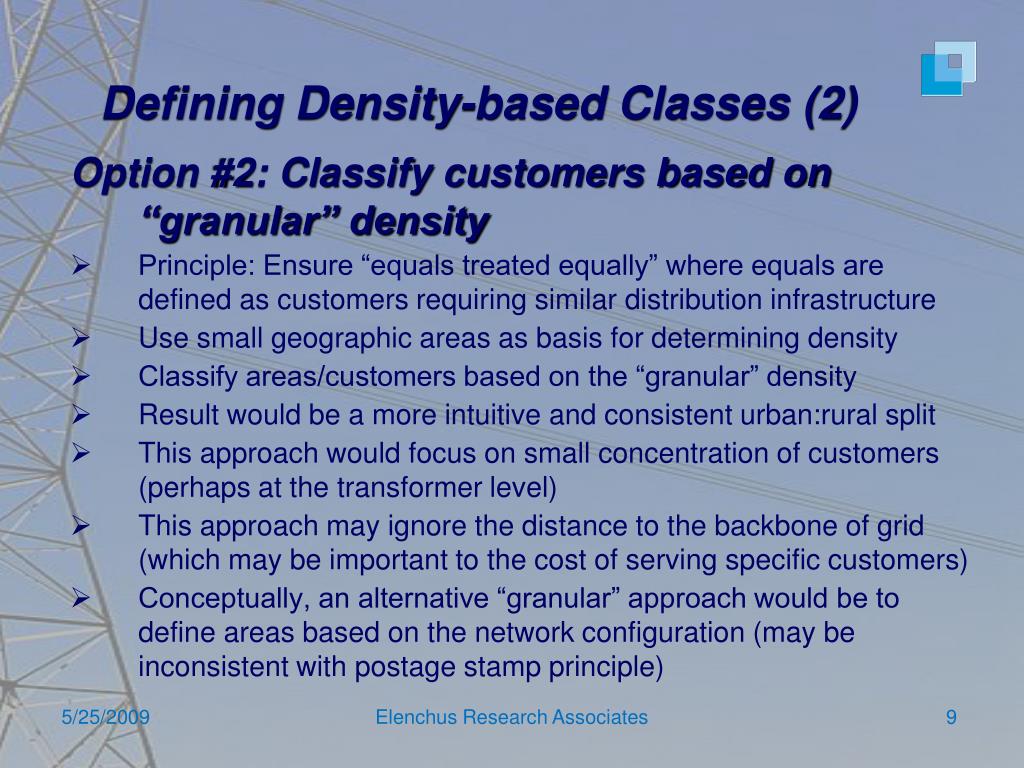

9. Defining Density-based Classes (2) Option #2: Classify customers based on “granular” density • Principle: Ensure “equals treated equally” where equals are defined as customers requiring similar distribution infrastructure • Use small geographic areas as basis for determining density • Classify areas/customers based on the “granular” density • Result would be a more intuitive and consistent urban:rural split • This approach would focus on small concentration of customers (perhaps at the transformer level) • This approach may ignore the distance to the backbone of grid (which may be important to the cost of serving specific customers) • Conceptually, an alternative “granular” approach would be to define areas based on the network configuration (may be inconsistent with postage stamp principle) Elenchus Research Associates

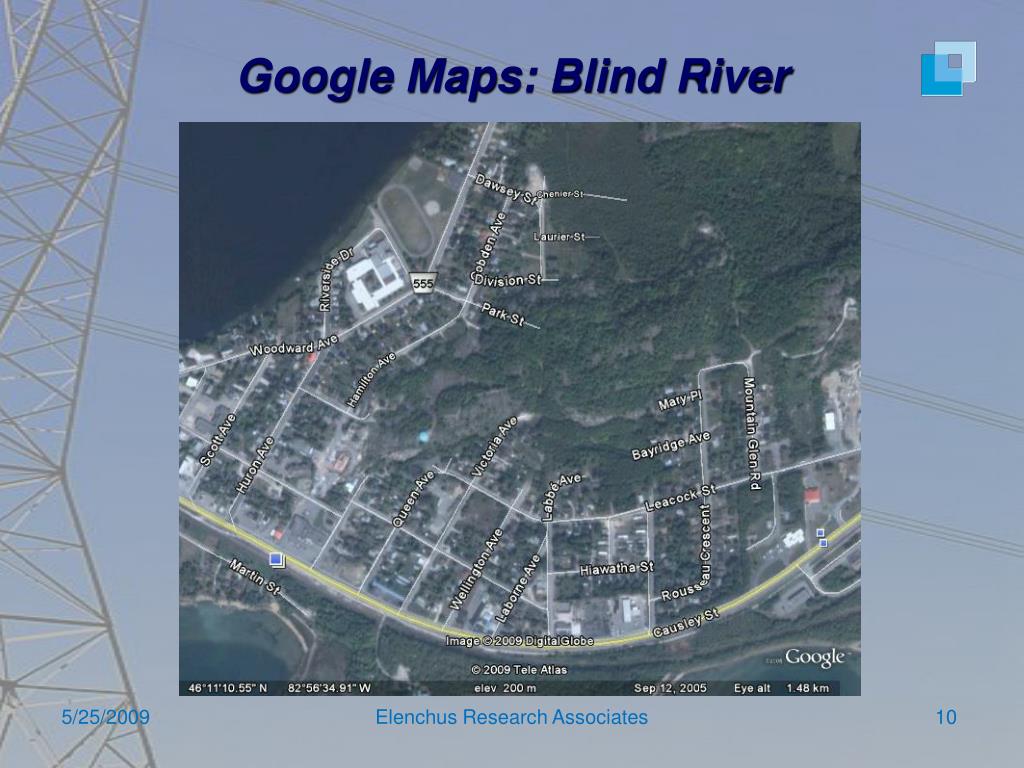

10. Google Maps: Blind River Elenchus Research Associates

11. Implications of Redefining Classes 11/17/2014 Rural or Remote Rate Protection (RRRP) The customers benefiting and magnitude of subsidy may change Total value of the RRRP may change Service Quality indicators (SQI) Different SQIs apply in urban and rural areas SQI standards may have to be reviewed if composition of urban and rural regions is changed (e.g., response time; reliability; SAIDI; SAIFI) Significant effort (costs) will be required Elenchus Research Associates Elenchus Research Associates 11

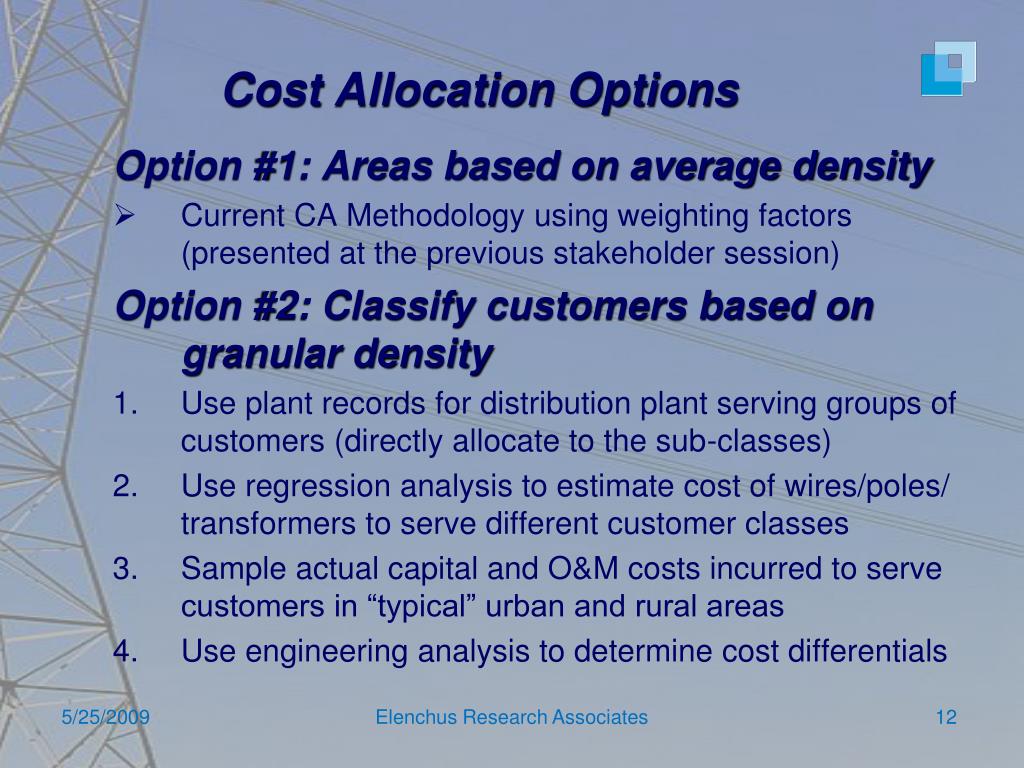

12. Cost Allocation Options Option #1: Areas based on average density • Current CA Methodology using weighting factors (presented at the previous stakeholder session) Option #2: Classify customers based on granular density • Use plant records for distribution plant serving groups of customers (directly allocate to the sub-classes) • Use regression analysis to estimate cost of wires/poles/ transformers to serve different customer classes • Sample actual capital and O&M costs incurred to serve customers in “typical” urban and rural areas • Use engineering analysis to determine cost differentials Elenchus Research Associates

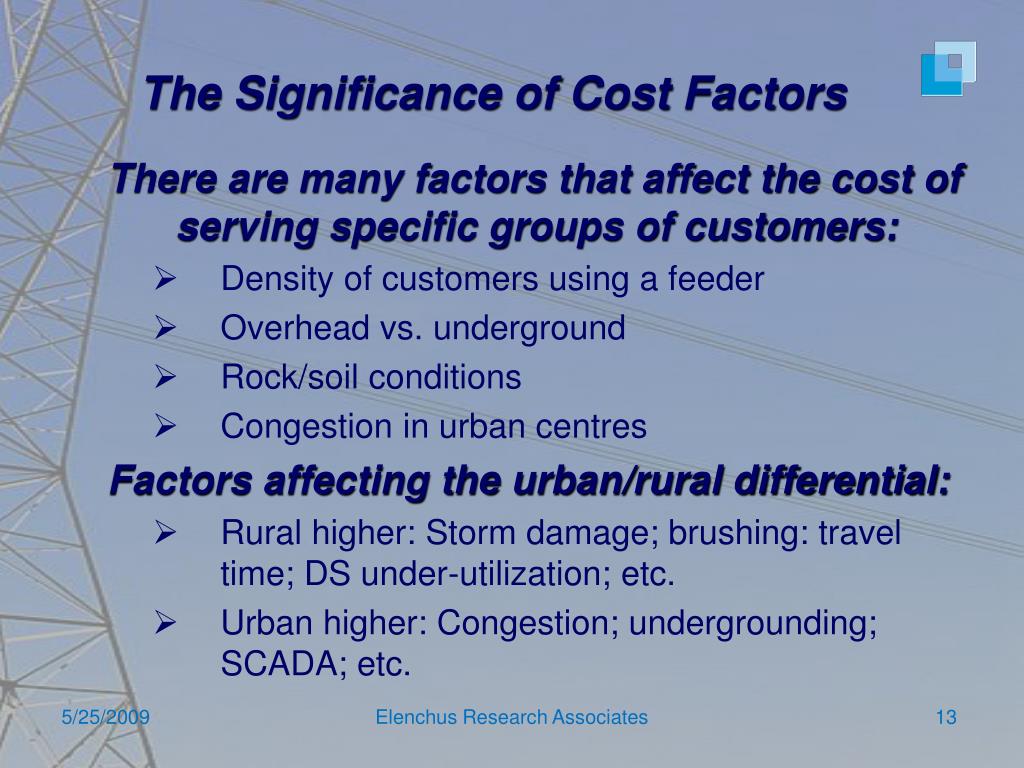

13. The Significance of Cost Factors There are many factors that affect the cost of serving specific groups of customers: • Density of customers using a feeder • Overhead vs. underground • Rock/soil conditions • Congestion in urban centres Factors affecting the urban/rural differential: • Rural higher: Storm damage; brushing: travel time; DS under-utilization; etc. • Urban higher: Congestion; undergrounding; SCADA; etc. Elenchus Research Associates

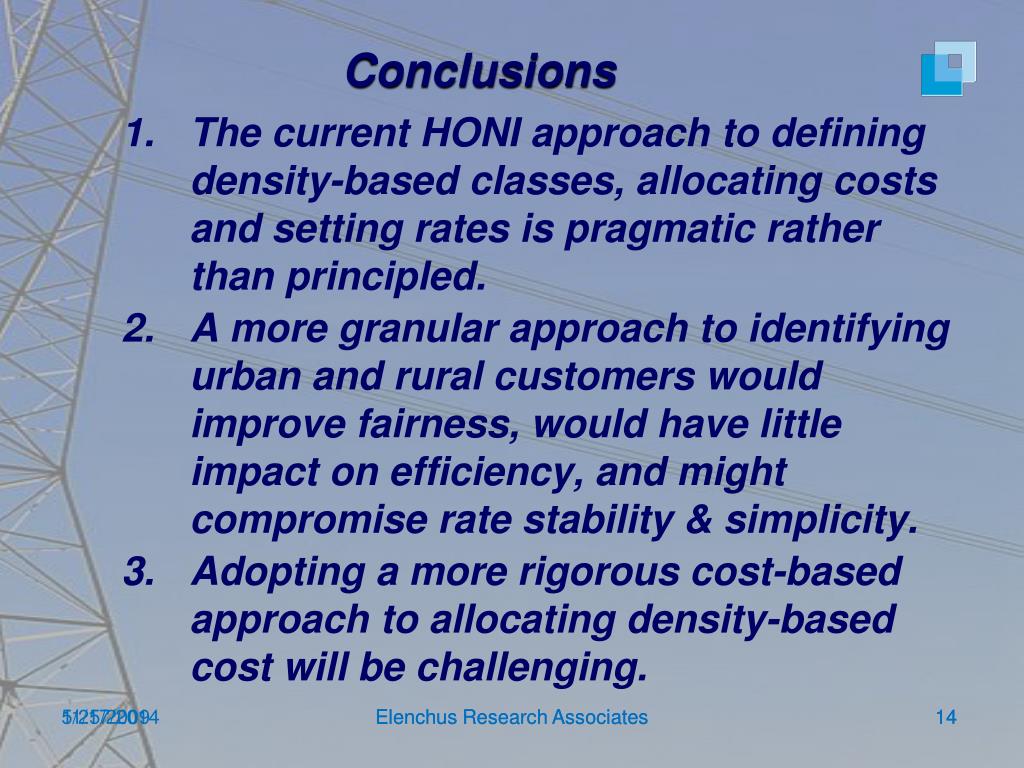

14. Conclusions 11/17/2014 The current HONI approach to defining density-based classes, allocating costs and setting rates is pragmatic rather than principled. A more granular approach to identifying urban and rural customers would improve fairness, would have little impact on efficiency, and might compromise rate stability & simplicity. Adopting a more rigorous cost-based approach to allocating density-based cost will be challenging. Elenchus Research Associates Elenchus Research Associates 14

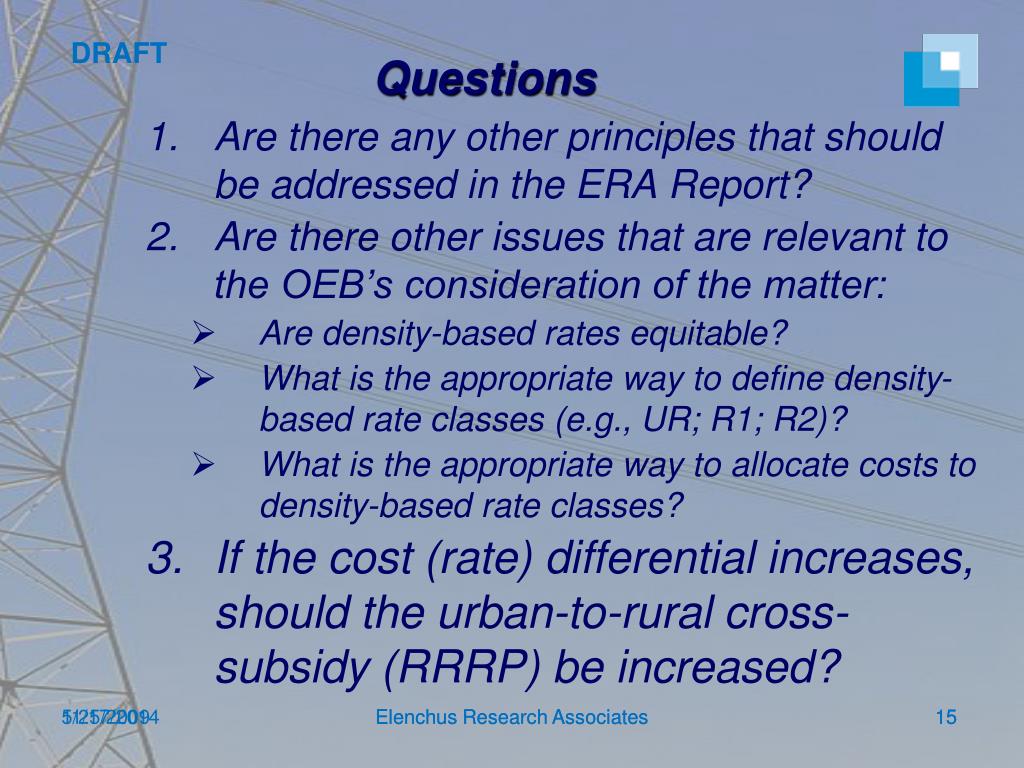

15. Questions 11/17/2014 Are there any other principles that should be addressed in the ERA Report? Are there other issues that are relevant to the OEB’s consideration of the matter: • Are density-based rates equitable? • What is the appropriate way to define density-based rate classes (e.g., UR; R1; R2)? • What is the appropriate way to allocate costs to density-based rate classes? If the cost (rate) differential increases, should the urban-to-rural cross-subsidy (RRRP) be increased? Elenchus Research Associates Elenchus Research Associates 15
