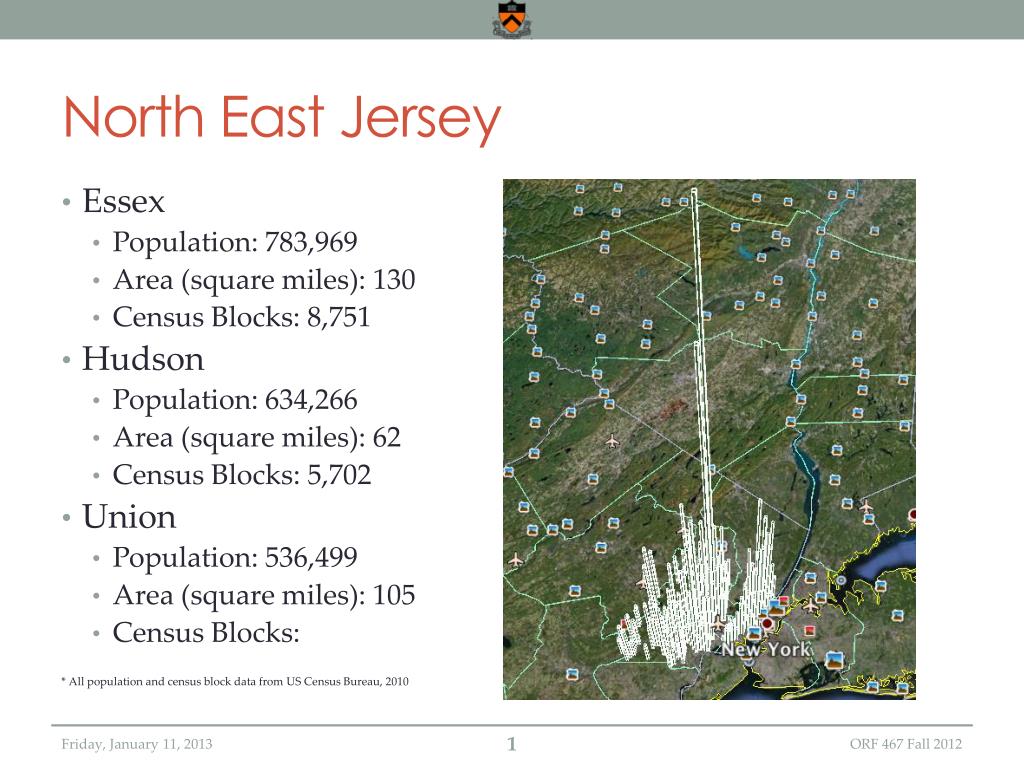

  1. Essex • Population: 783,969 • Area (square miles): 130 • Census Blocks: 8,751 • Hudson • Population: 634,266 • Area (square miles): 62 • Census Blocks: 5,702 • Union • Population: 536,499 • Area (square miles): 105 • Census Blocks: * All population and census block data from US Census Bureau, 2010 North East Jersey ORF 467 Fall 2012

  2. North East Jersey Essex County Essex County Source: “Essex County, New Jersey”, Wikipedia ORF 467 Fall 2012

  3. North East Jersey Essex County aTaxi Trips ORF 467 Fall 2012

  4. North East Jersey Essex County aTaxi Trips: Volume 1, 2, 3: Newark Central Business District 4: Newark Beth Israel Medical Center 5: Newark Business District/Downtown 517: Newark Liberty Airport Highway Highest Volume: Newark Central Business District; 144, 696 trips

  5. North East Jersey Essex County aTaxi Trips: Volume Downtown Newark, NJ • This pixel includes the largest volume and corresponds to the central business district of Newark with areas such as: • New Jersey Performing Arts Center (NJPAC) • Prudential Center

  6. North East Jersey Essex County Walk Trip - Volume • The 3 highest walk volumes are all located in Newark’s Central Business District

  7. North East Jersey Essex County Distance and Time • Cumulative distribution of aTaxi trips vs. distance • Cumulative distribution of aTaxi trips vs. time of day

  8. North East Jersey Essex County Ride Share Potential • All Stands in Essex County • All Day • CD = 1 ORF 467 Fall 2012

  9. North East Jersey Essex County Ride Share Potential Analysis • Busiest county in NJ • As DD increases, AVO increases Newark Central Business District ORF 467 Fall 2012

  10. Hudson County Hudson County Summary Data Item Value Area(sq. miles) 62.31 # of pixels generating O_Trips 197 Area of pixels 49 % “Open Space” 21.4% # of pixels generating 95% of O_Trips 127 # of pixels generating 50% of O_Trips 34 # of Intra-pixelTrips 60,664 # of O_WalkTrips 195,067 # of All_O_Trips 2,547,350 Average All_O_TripLength 19.2 # of O_aTaxiTrips 2,291,619 Average O_aTaxiTripLength11 Median O_aTaxiTripLength 9.0 95% O_aTaxiTripLength12

  11. North East Jersey Hudson County Origin Trip Volumes Top 100 Volume Pixels Hudson County Grid

  12. North East Jersey Hudson County aTaxi Trips ORF 467 Fall 2012

  13. North East Jersey Hudson County aTaxi: Highest Origin Volume Pixel This area includes downtown Hoboken, a location with several businesses, shopping areas, and transit locations. Hoboken: 57,680 trips

  14. North East Jersey Hudson County aTaxi: 2nd Highest Origin Volume Pixel This area is a highly residential area that also includes Secaucus Junction, the NJ Transit station. Secaucus Junction: 55,618 trips

  15. North East Jersey Hudson County aTaxi: 2nd Highest Origin Volume Pixel This area is a highly residential area that also includes Secaucus Junction, the NJ Transit station. Secaucus Junction: 55,618 trips

  16. North East Jersey Hudson County Distance and Time • Cumulative distribution of aTaxi trips vs. distance • Cumulative distribution of aTaxi trips vs. time of day

  17. North East Jersey Hudson County • All Stands in Hudson County • All Day • CD = 1 Ride Share Potential ORF 467 Fall 2012

  18. North East Jersey Hudson County Ride Share Potential Analysis • Downtown residential area • High outflow to work Downtown Hoboken ORF 467 Fall 2012

  19. Union County Union County Summary Data Item Value Area(sq. miles) 102.86 # of pixels generating O_Trips 419 Area of pixels 105 % “Open Space” 0% # of pixels generating 95% of O_Trips 291 # of pixels generating 50% of O_Trips 71 # of Intra-pixelTrips 41,466 # of O_WalkTrips 179,980 # of All_O_Trips 2,723,360 Average All_O_TripLength 21.6 # of O_aTaxiTrips 2,501,914 Average O_aTaxiTripLength11 Median O_aTaxiTripLength 9.5 95% O_aTaxiTripLength 14

  20. North East Jersey Union County Google Earth View View of Union County with Pixel Grid Top 100 Trip Volume Pixels

  21. North East Jersey Union County aTaxi: Highest Volume Pixel • This location is in downtown Elizabeth, which includes: • Municipal buildings • Public libraries • Local businesses • Retail shopping and attractions Elizabeth: 58,017 trips

  22. North East Jersey Union County aTaxi: 2nd Highest Volume Pixel This location is also in downtown Elizabeth, including the Elizabeth train station. Elizabeth: 51,293 trips

  23. North East Jersey Union County aTaxi: 3rd Highest Volume Pixel This location is the industrial area associated with Port Newark-Elizabeth Marine Terminal. Port Elizabeth: 43,106 trips

  24. North East Jersey Union County aTaxi: 4th Highest Volume Pixel • This location is downtown Summit, which includes: • Summit train station • Restaurants • Municipal buildings Summit: 33,301 trips

  25. North East Jersey Union County aTaxi: 5th Highest Volume Pixel This location is a large shopping complex in Clark. Clark: 31,537 trips

  26. North East Jersey Union County aTaxi Trips ORF 467 Fall 2012

  27. North East Jersey Union County Distance and Time • Cumulative distribution of aTaxi trips vs. distance • Cumulative distribution of aTaxi trips vs. time of day

  28. North East Jersey Union County • All Stands in Union County • All Day • CD = 1 Ride Share Potential ORF 467 Fall 2012

  29. North East Jersey Union County Ride Share Potential Analysis • High AVO (average vehicle occupancy) • Commuters come to work in Union • Close proximity to New York Elizabeth Train Station ORF 467 Fall 2012

  30. North East Jersey Union County Ride Share Potential Analysis • AVO = 1 • Extremely low number of origin trips • Demonstrates importance of temporal distribution Port Newark-Elizabeth Marine Terminal ORF 467 Fall 2012
