5. CSC 212 – Data Structures Lecture 37:Complete Binary Trees & Heaps

6. Heaps • Binary-tree implementation with add & remove • Still structured using parent-child relationship • At most 2 children & 1 parent for each node in tree • Heaps must also satisfy 2 additional properties • Parent’s value smaller than its children’s values • Structure must form a complete binary tree 2 5 9 7 6

7. D C B A Picturing Linked BinaryTree B A C      D

8. Complete Binary Tree • Specific way to organize a BinaryTree • Add & remove location defined so can be discussed • For this idea, trees must maintain specific shape • Fill lowest level first, then can start new level below it Legal Illegal 2 2 5 9 5 9 6 7 6 7

9. Complete Binary Tree • Specific way to organize a BinaryTree • Add & remove location defined so can be discussed • For this idea, trees must maintain specific shape • Fill lowest level first, then can start new level below it • Lowest level must be filled in from left-to-right Legal Illegal 2 2 5 9 5 9 7 6 7 6

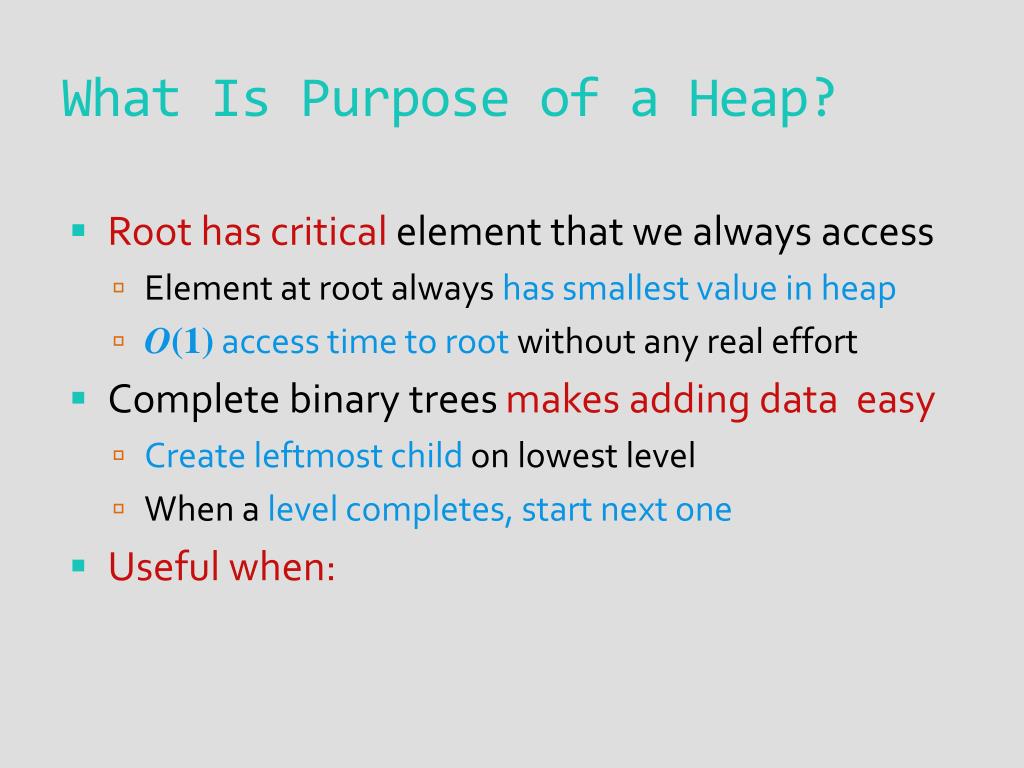

10. What Is Purpose of a Heap? • Root has critical element that we always access • Element at root always has smallest value in heap • O(1)access time to root without any real effort • Complete binary trees makes adding data easy • Create leftmost child on lowest level • When a level completes, start next one • Useful when:

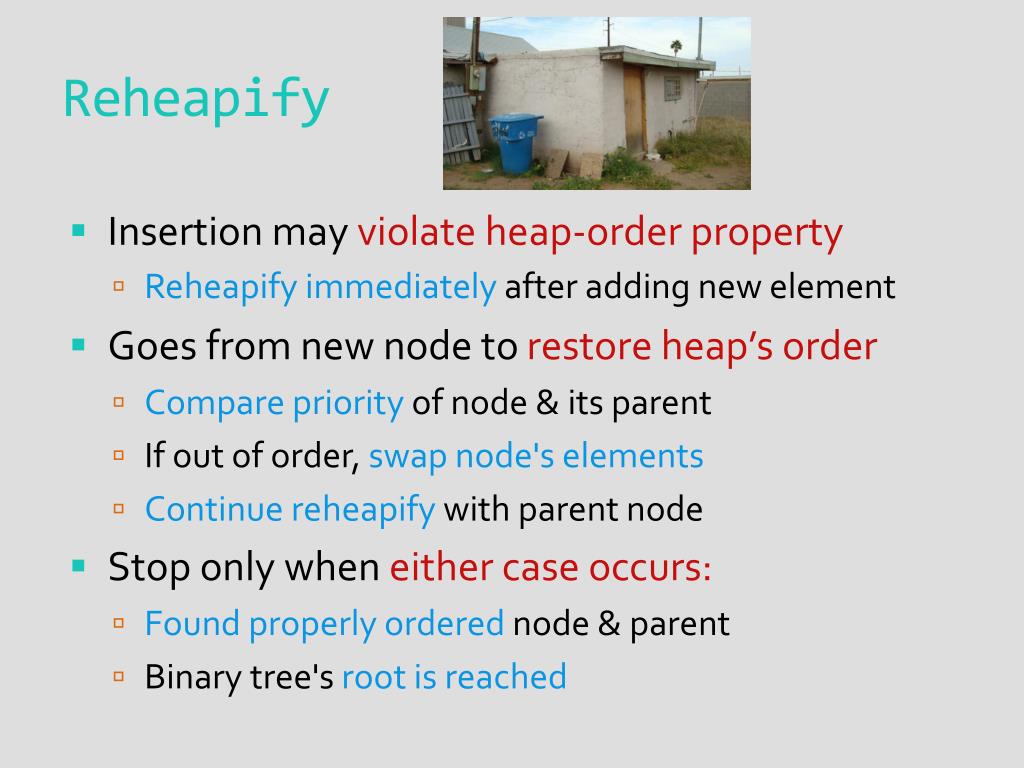

11. Reheapify • Insertion may violate heap-order property • Reheapify immediately after adding new element • Goes from new node to restore heap’s order • Compare priority of node & its parent • If out of order, swap node's elements • Continue reheapifywith parent node • Stop only when either case occurs: • Found properly ordered node & parent • Binary tree's root is reached

12. addElement() in a Heap 2 5 6 9 7

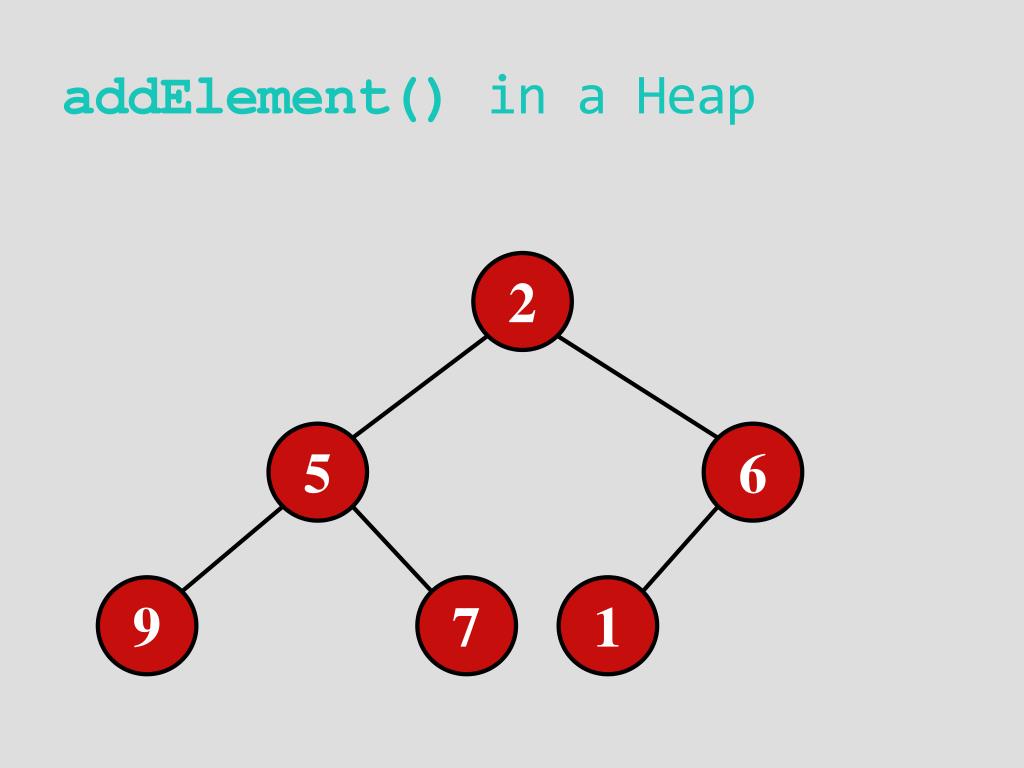

13. addElement() in a Heap 2 5 6 9 7 1

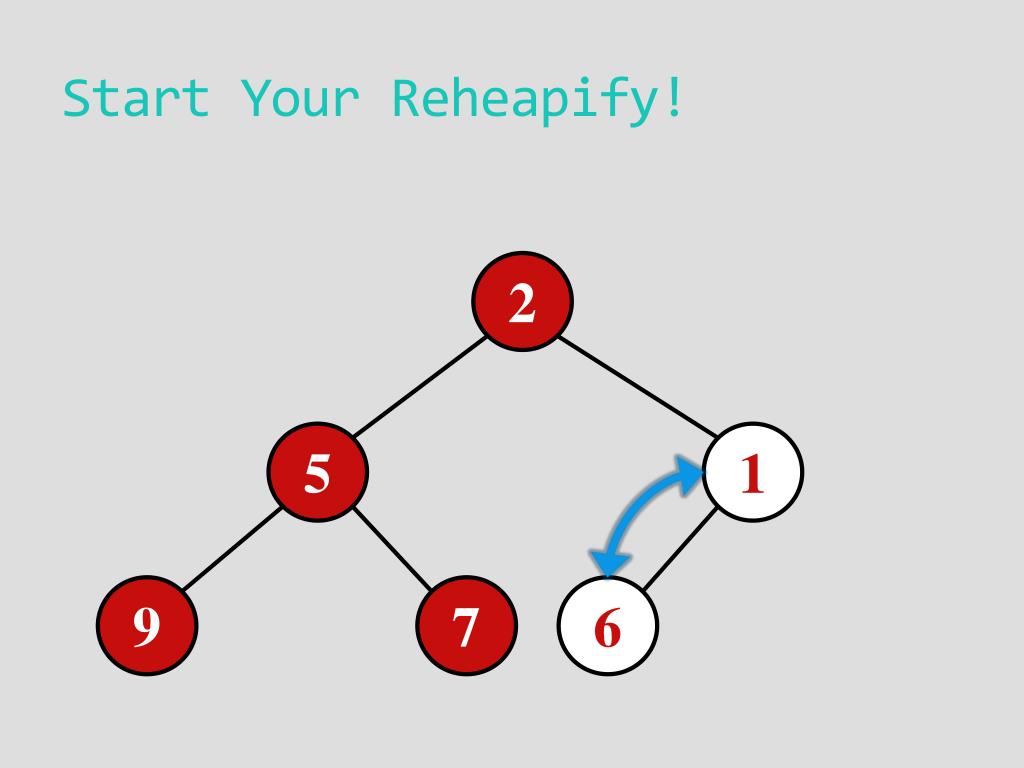

14. Start Your Reheapify! 2 5 6 9 7 1

15. Start Your Reheapify! 2 5 6 9 7 1

16. Start Your Reheapify! 2 5 1 9 7 6

17. Reheapify Must Continue 2 5 1 9 7 6

18. Reheapify Must Continue 2 5 1 9 7 6

19. Reheapify Sounds Icky 1 5 2 9 7 6

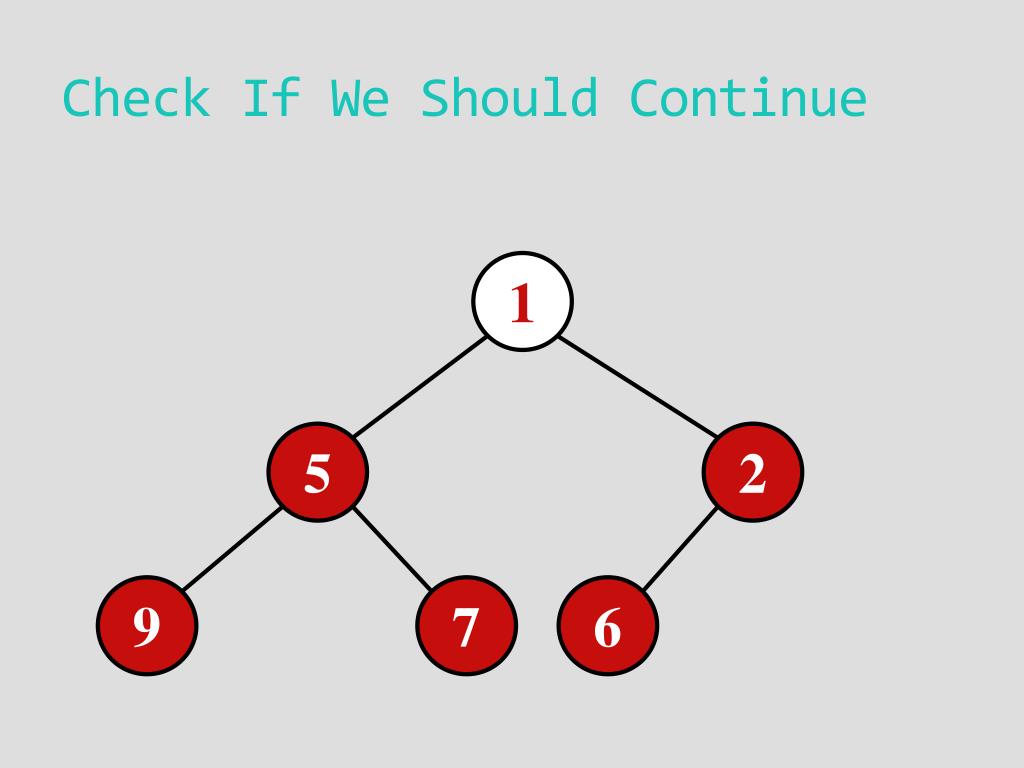

20. Check If We Should Continue 1 5 2 9 7 6

21. Stop At The Root 1 5 2 9 7 6

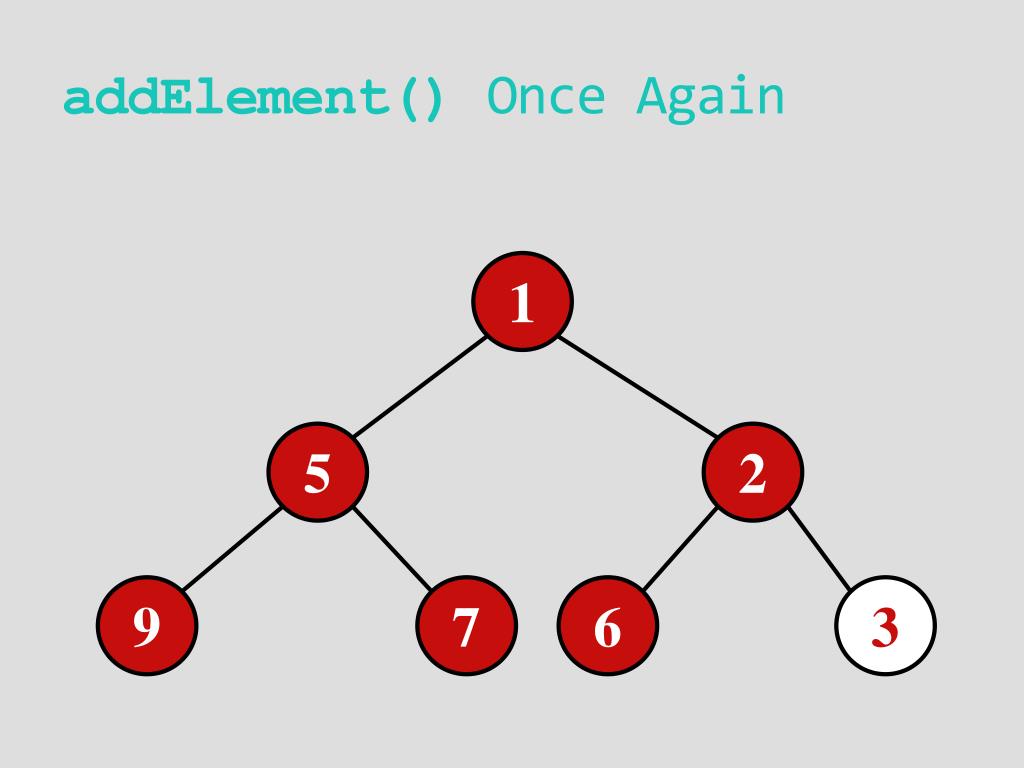

22. addElement() Once Again 1 5 2 9 7 6 3

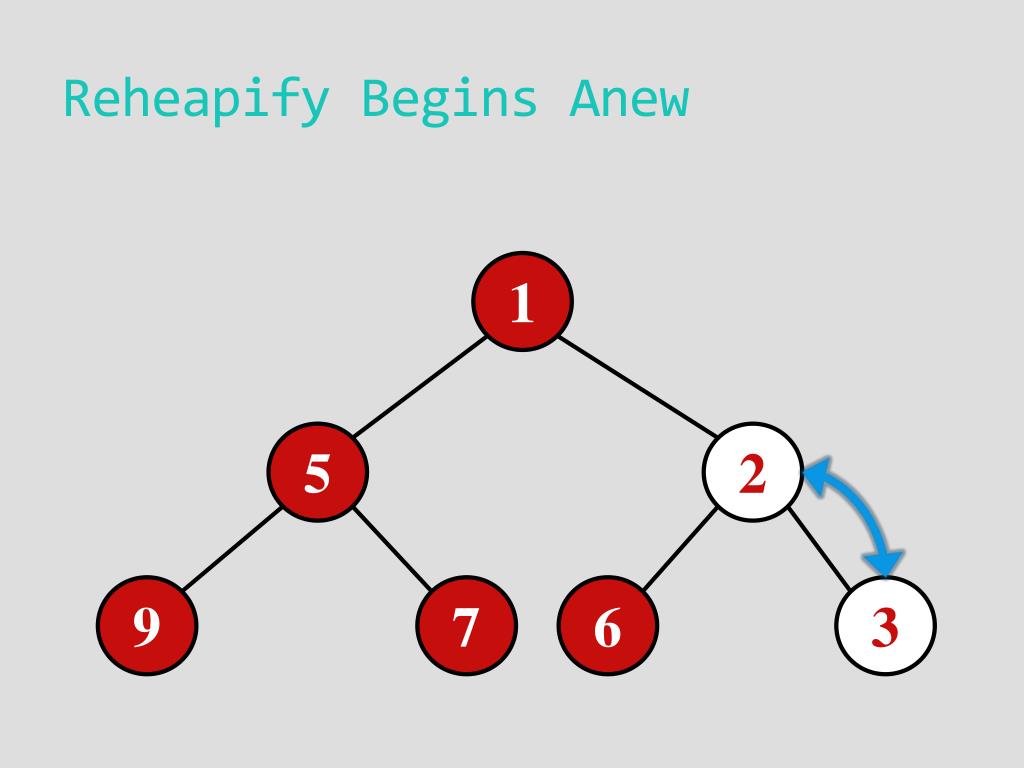

23. Reheapify Begins Anew 1 5 2 9 7 6 3

24. Heap-Order Property Maintained 1 5 2 9 7 6 3

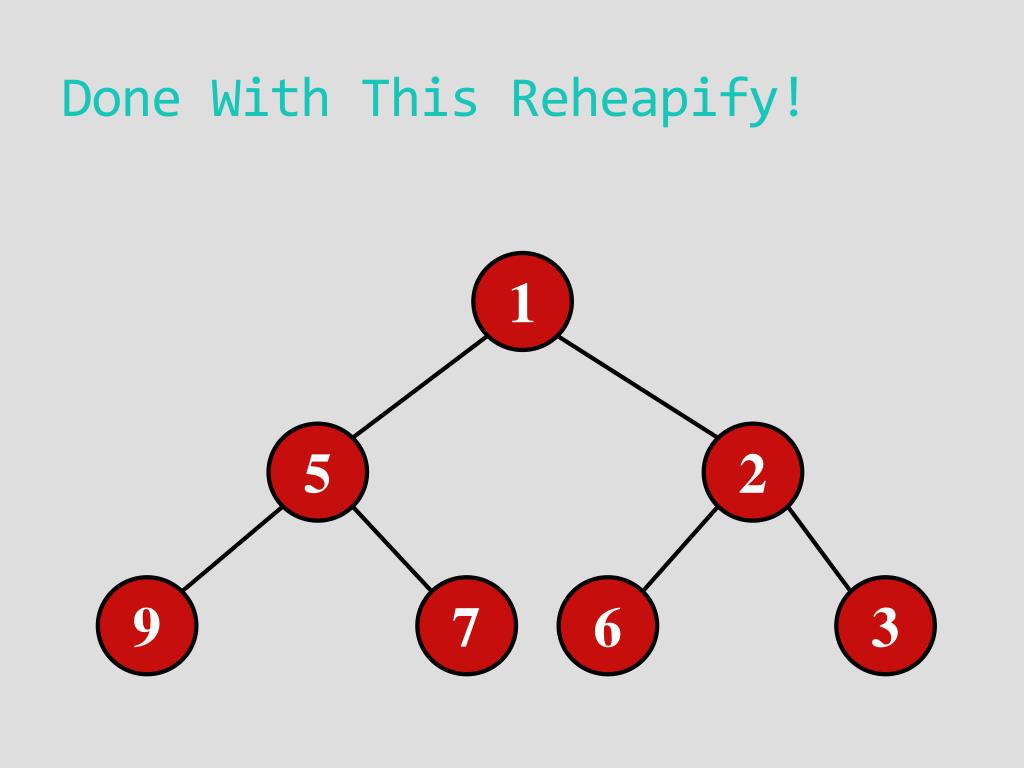

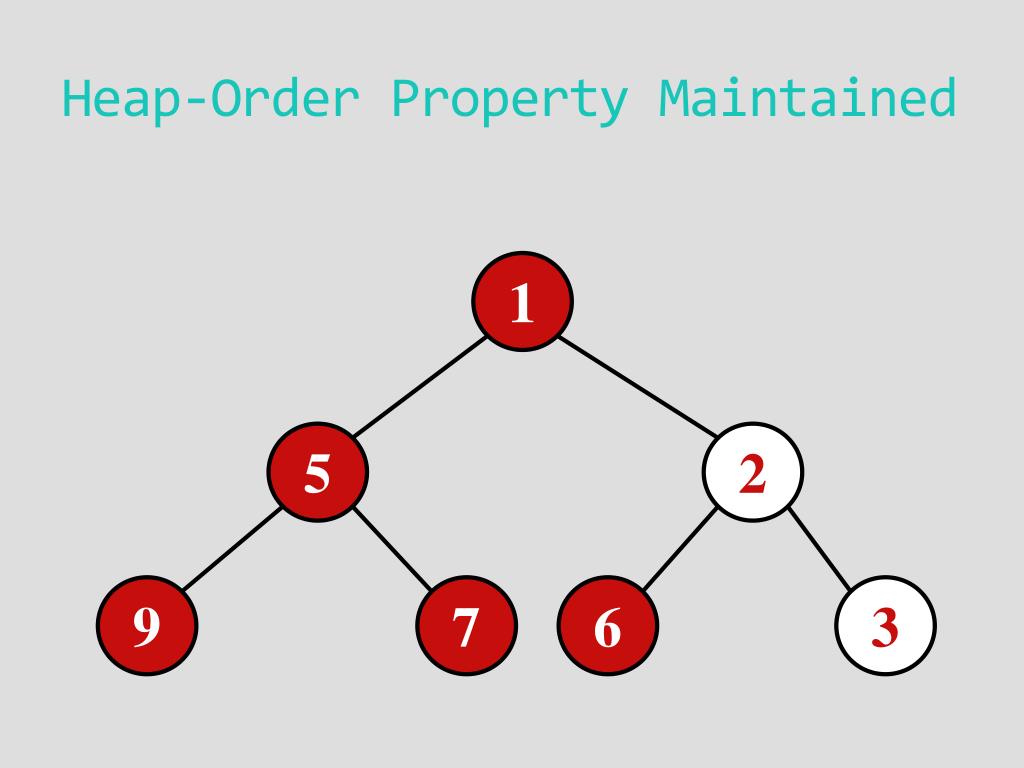

25. Done With This Reheapify! 1 5 2 9 7 6 3

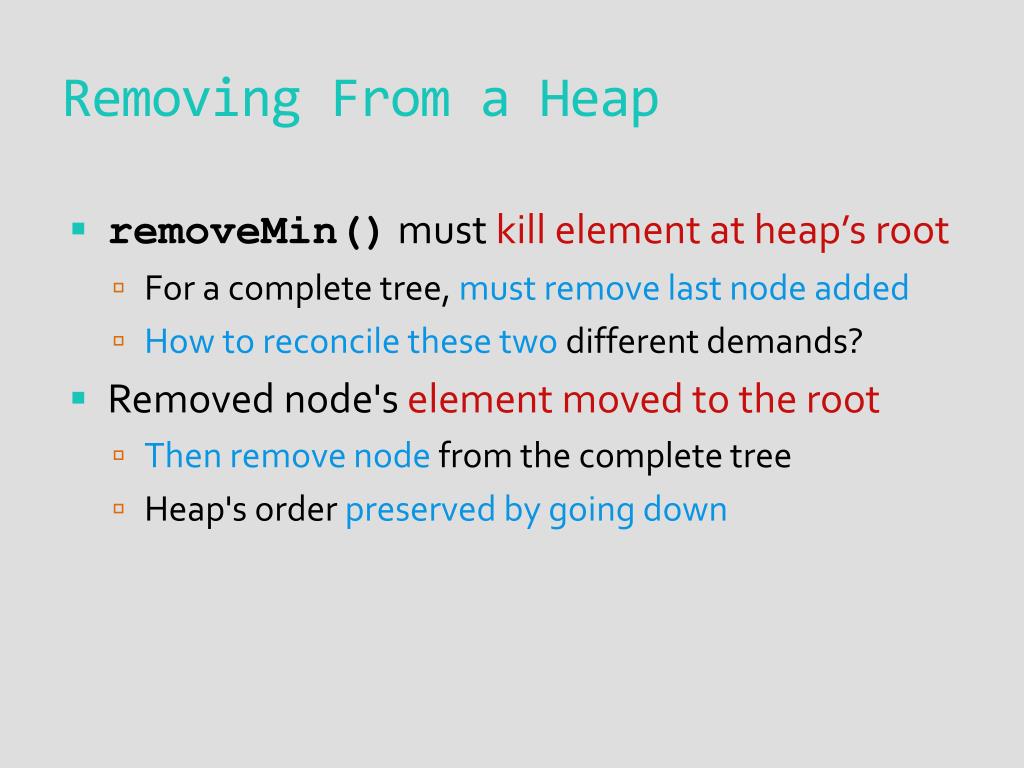

26. Removing From a Heap • removeMin()must kill element at heap’s root • For a complete tree, must remove last node added • How to reconcile these two different demands? • Removed node's element moved to the root • Then remove node from the complete tree • Heap's order preserved by going down

27. Removing From a Heap • removeMin()must kill element at heap’s root • For a complete tree, must remove last node added • How to reconcile these two different demands? • Removed node's element moved to the root • Then remove node from the complete tree • Heap's order preserved by going down Censored

28. Removal Reheapify • Restores heap’s order during removeMin() • Reheapify removal work starts at root • Swap with smallest child, if out-of-order • Process then continues with old smallest child • Stop at leaf or when node is legal

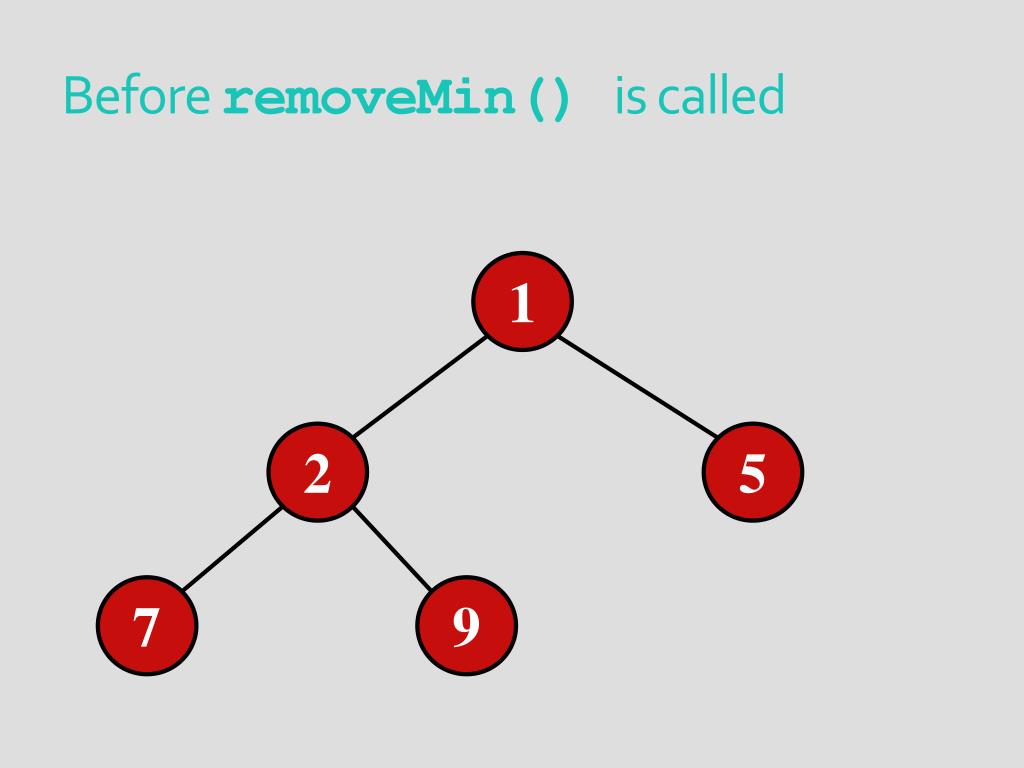

29. Before removeMin() is called 1 2 5 7 9

30. Move Last Element Up To Root 1 2 5 7 9

31. Move Last Element Up To Root 1 2 5 7 9

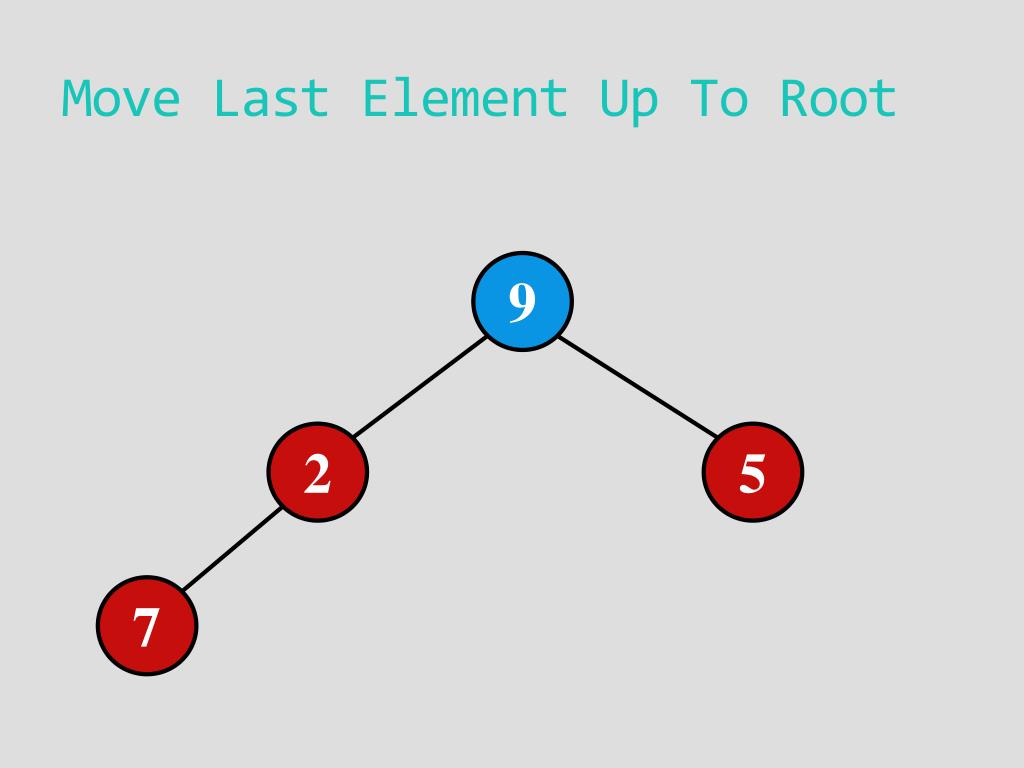

32. Move Last Element Up To Root 9 2 5 7

33. Compare Parent W/Smaller Child 9 2 5 7

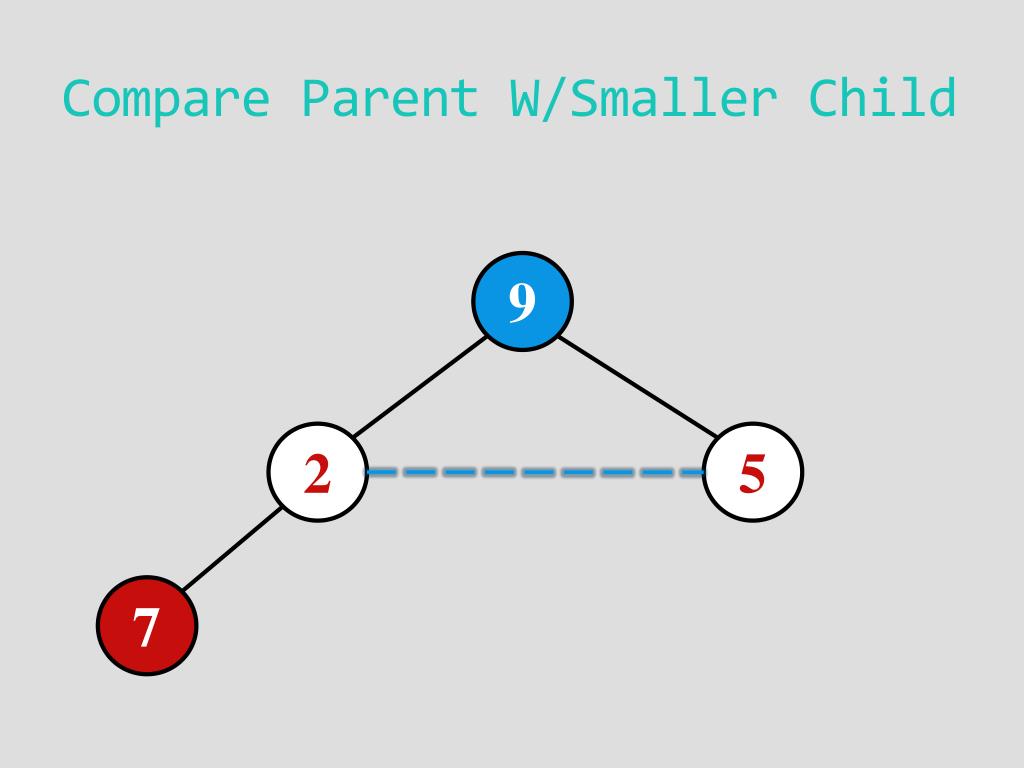

34. Compare Parent W/Smaller Child 9 2 5 7

35. Compare Parent W/Smaller Child 2 9 5 7

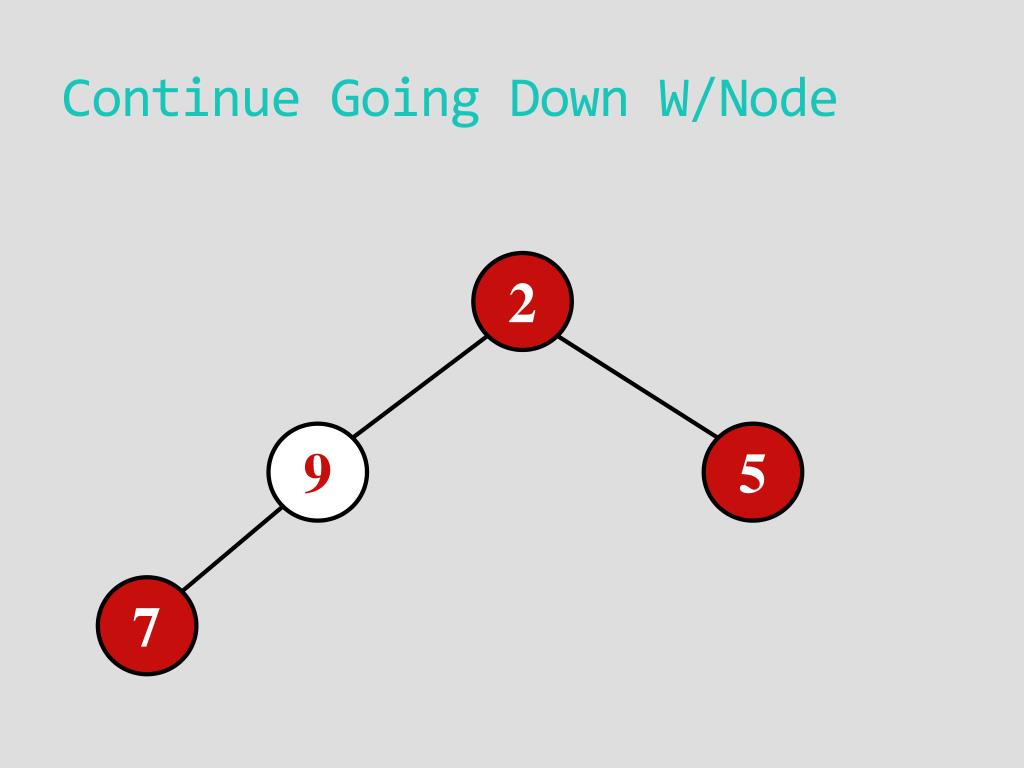

36. Continue Going Down W/Node 2 9 5 7

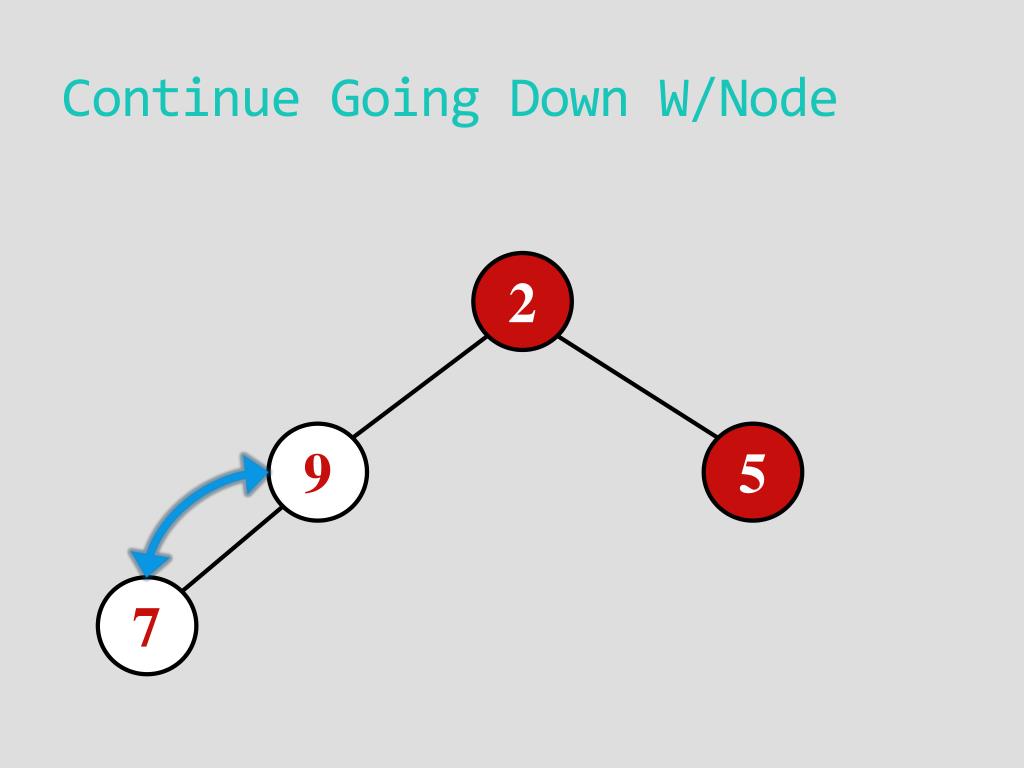

37. Continue Going Down W/Node 2 9 5 7

38. Swap If Out Of Order 2 7 5 9

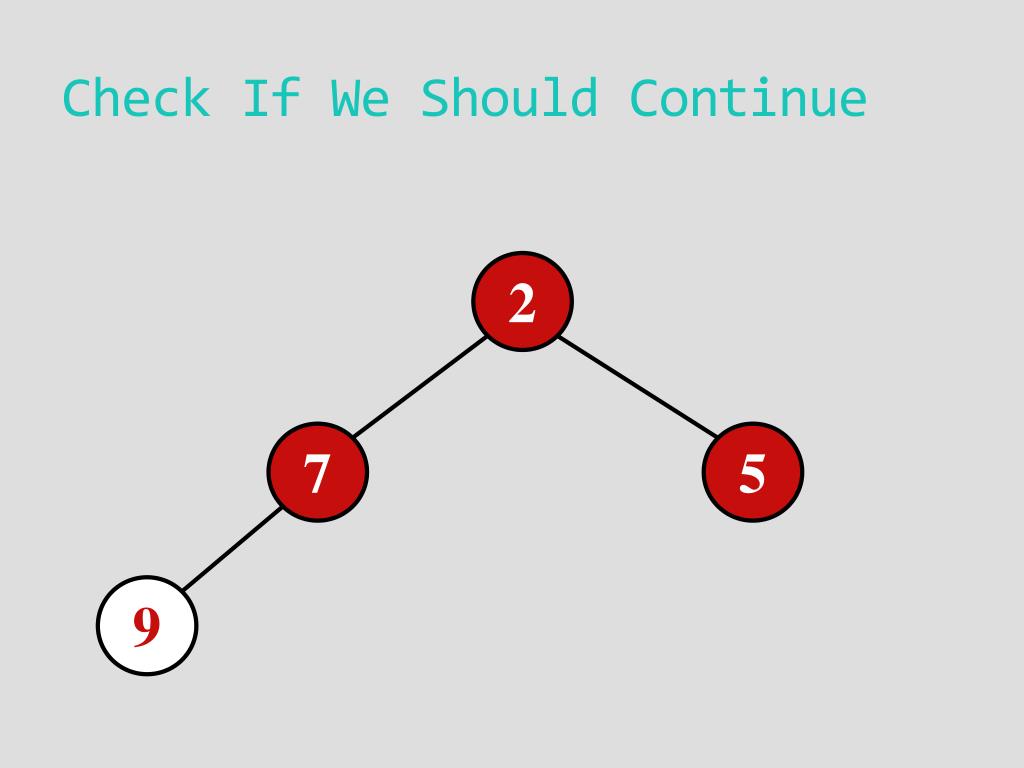

39. Check If We Should Continue 2 7 5 9

40. Stop When We Reach a Leaf 2 7 5 9

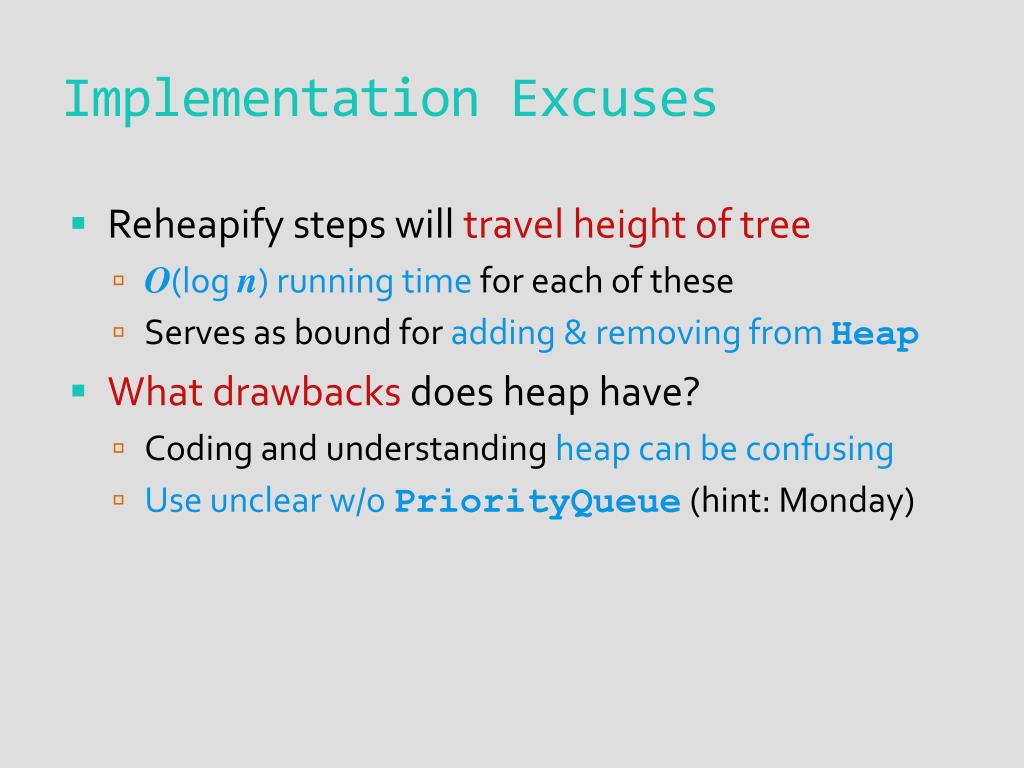

41. Implementation Excuses • Reheapifysteps willtravel height of tree • O(logn) running time for each of these • Serves as bound for adding & removing from Heap • What drawbacks does heap have? • Coding and understanding heap can be confusing • Use unclear w/o PriorityQueue(hint: Monday)

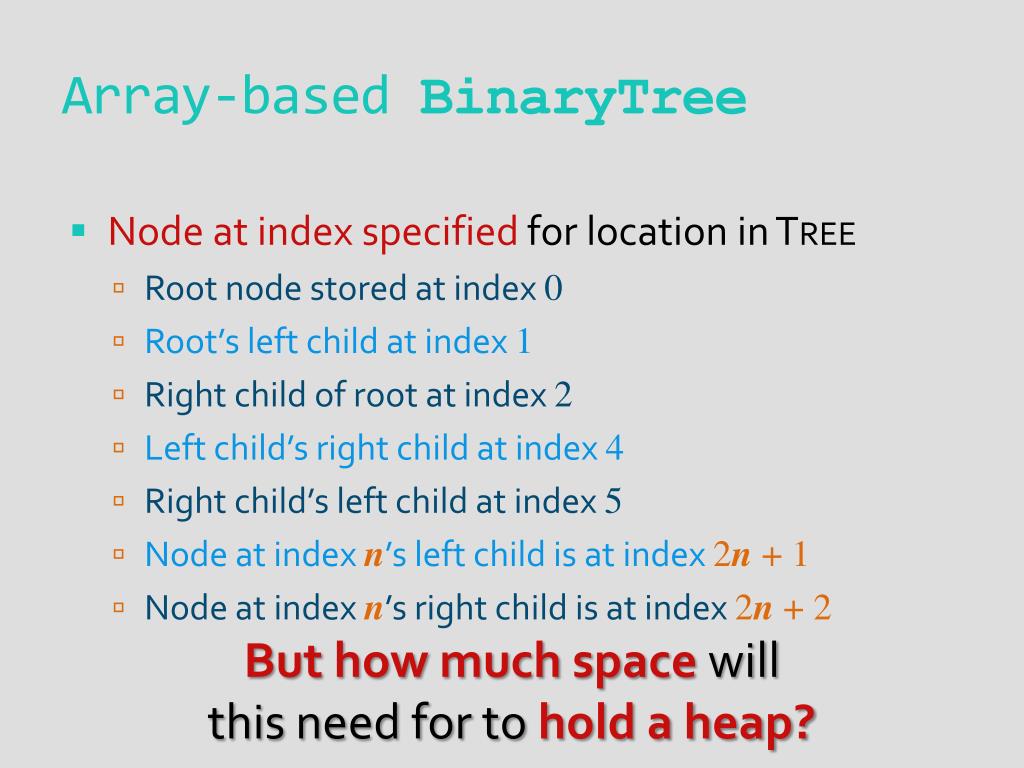

42. Array-based BinaryTree • Node at index specified for location in Tree • Root node stored at index 0 • Root’s left child at index 1 • Right child of root at index 2 • Left child’s right child at index 4 • Right child’s left child at index 5 • Node at index n’s left child is at index 2n + 1 • Node at index n’s right child is at index 2n + 2

43. Array-based BinaryTree • Node at index specified for location in Tree • Root node stored at index 0 • Root’s left child at index 1 • Right child of root at index 2 • Left child’s right child at index 4 • Right child’s left child at index 5 • Node at index n’s left child is at index 2n + 1 • Node at index n’s right child is at index 2n + 2 But how much space will this need for to hold a heap?

44. Array to Implement Heap 2 2 0 0

45. Array to Implement Heap 2 9 2 0 1 9 0 1

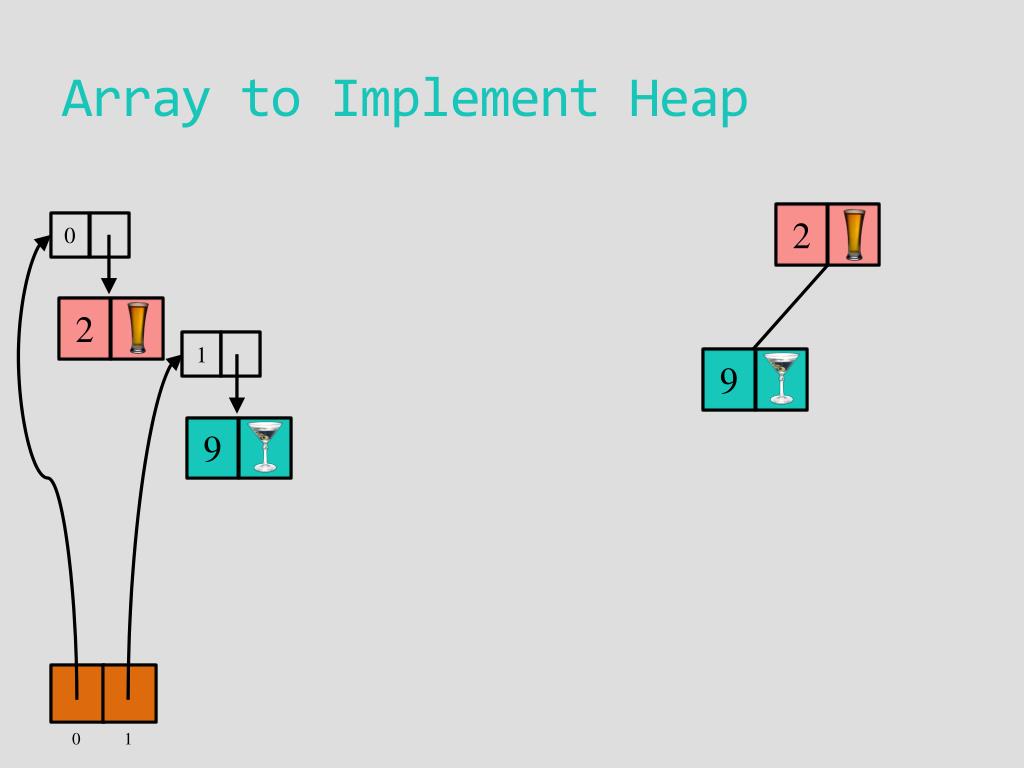

46. Array to Implement Heap 2 9 3 2 0 1 9 2 3 ` 0 1 2

47. Array to Implement Heap 9 1 0 2 2 99 3 99 3 9 2 3 ` 0 1 2 3

48. Array to Implement Heap 2 9 3 2 0 99 9 2 3 3 99 1 Add nodes to end of the Sequence Similarly, remove node at end NO space is wasted for this! ` 0 1 2 3

49. Heaps • Binary-tree implementation with add & remove • Still structured using parent-child relationship • At most 2 children & 1 parent for each node in tree • Heaps must also satisfy 2 additional properties • Parent’s value smaller than its children’s values • Structure must form a complete binary tree 2 5 9 7 6
