  1. Aviv Rosenberg Ben-Ami Zilber Supervisor: Boaz Mizrachi (Zoran)‏ Portable Control & Measurement DeviceD0727 End of Part A Presentation12/2008

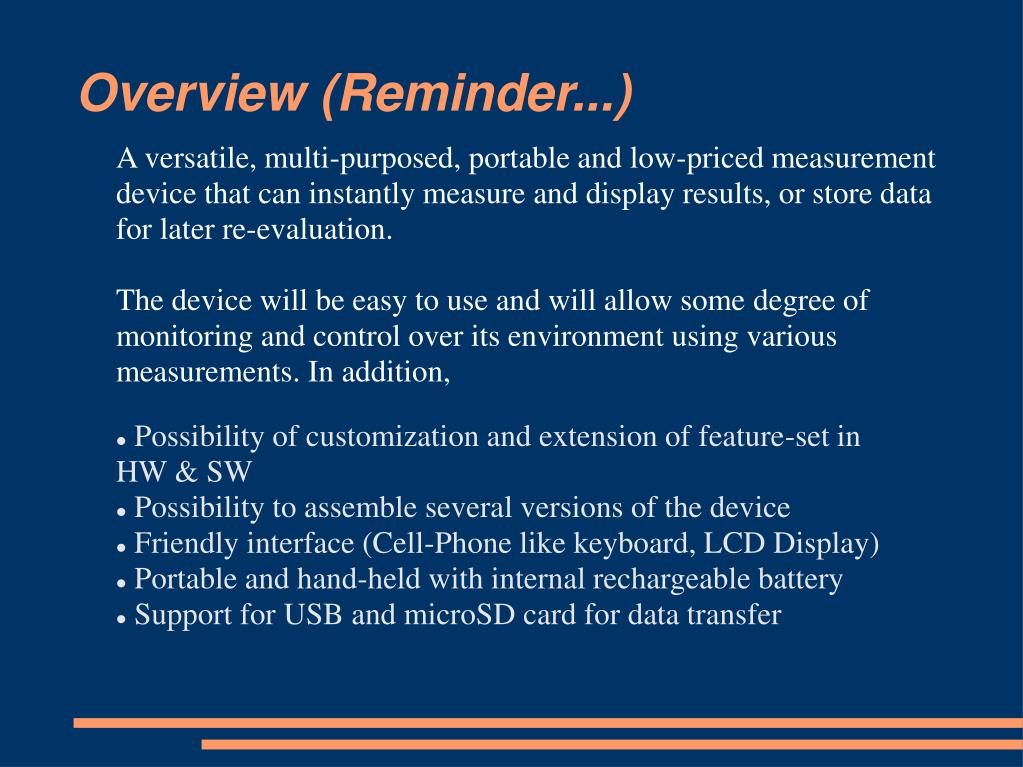

  2. Possibility of customization and extension of feature-set in HW & SW Possibility to assemble several versions of the device Friendly interface (Cell-Phone like keyboard, LCD Display)‏ Portable and hand-held with internal rechargeable battery Support for USB and microSD card for data transfer Overview (Reminder...)‏ A versatile, multi-purposed, portable and low-priced measurement device that can instantly measure and display results, or store data for later re-evaluation. The device will be easy to use and will allow some degree of monitoring and control over its environment using various measurements. In addition,

  3. So Far... • Preliminary design and characterization. • Found necessary HW for all features. • Detailed mechanical design in a 6.1x10x2.5cm box, with 3D model ensuring all HW can fit in such a small device. • Electrical design for all possible hardware. • (in progress) Layout.

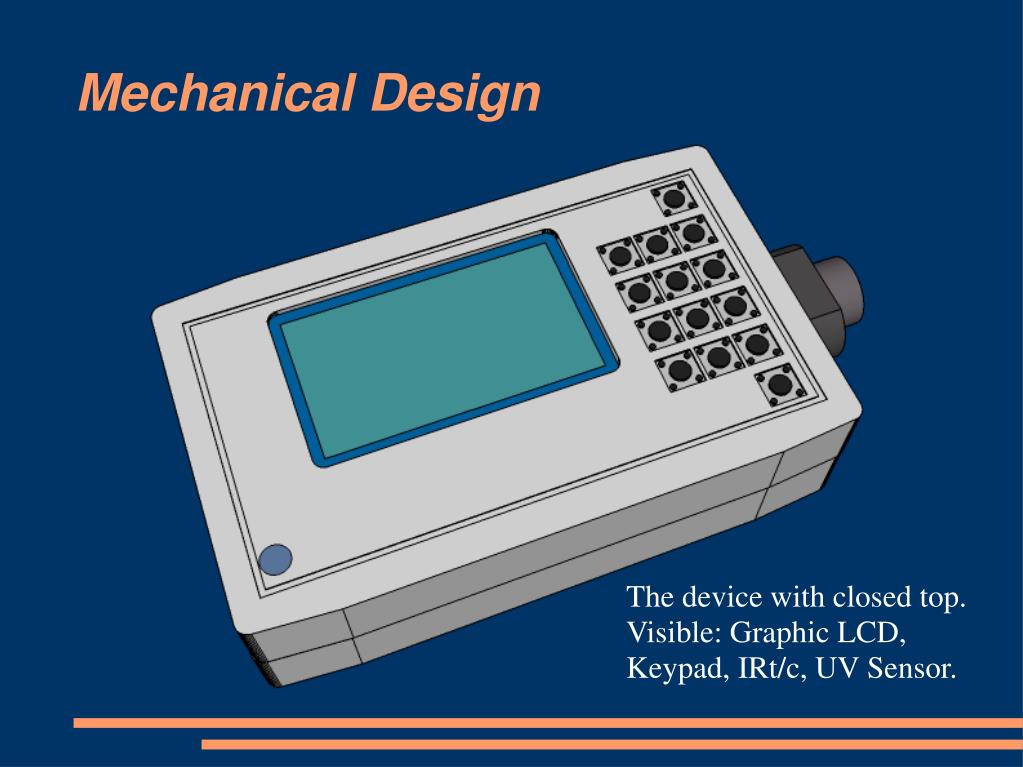

  4. Mechanical Design The device with closed top. Visible: Graphic LCD, Keypad, IRt/c, UV Sensor.

  5. Mechanical Design The device with open top. Visible: Graphic LCD, Keypad and Main PCB, USB Port.

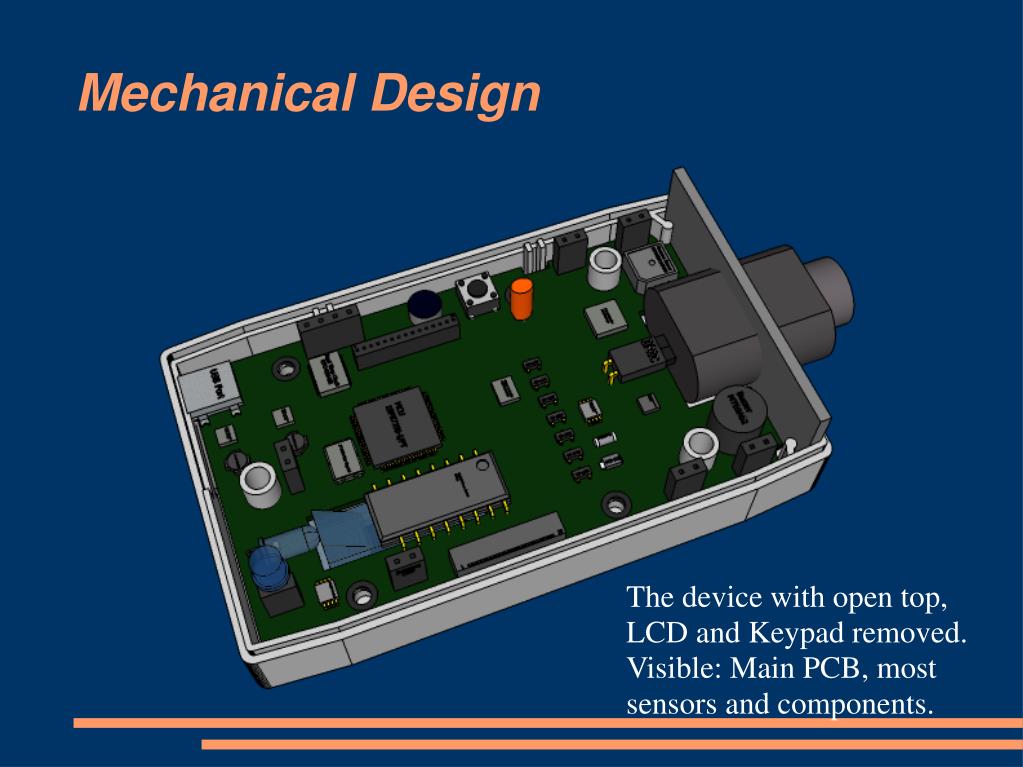

  6. Mechanical Design The device with open top, LCD and Keypad removed. Visible: Main PCB, most sensors and components.

  7. Electrical Design Functional Block Diagram:

  8. Electrical Design Example Schematic: Accelerometer

  9. Electrical Design Example Simulation: Pressure Sensor

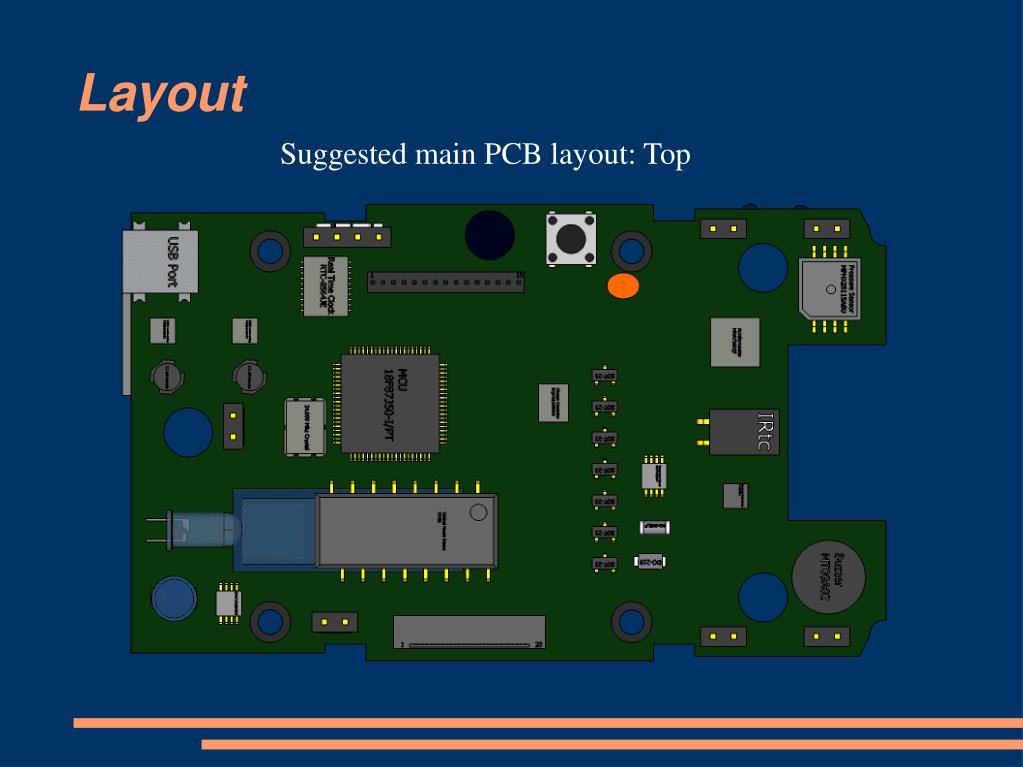

  10. Layout Suggested main PCB layout: Top

  11. Layout Suggested main PCB layout: Bottom

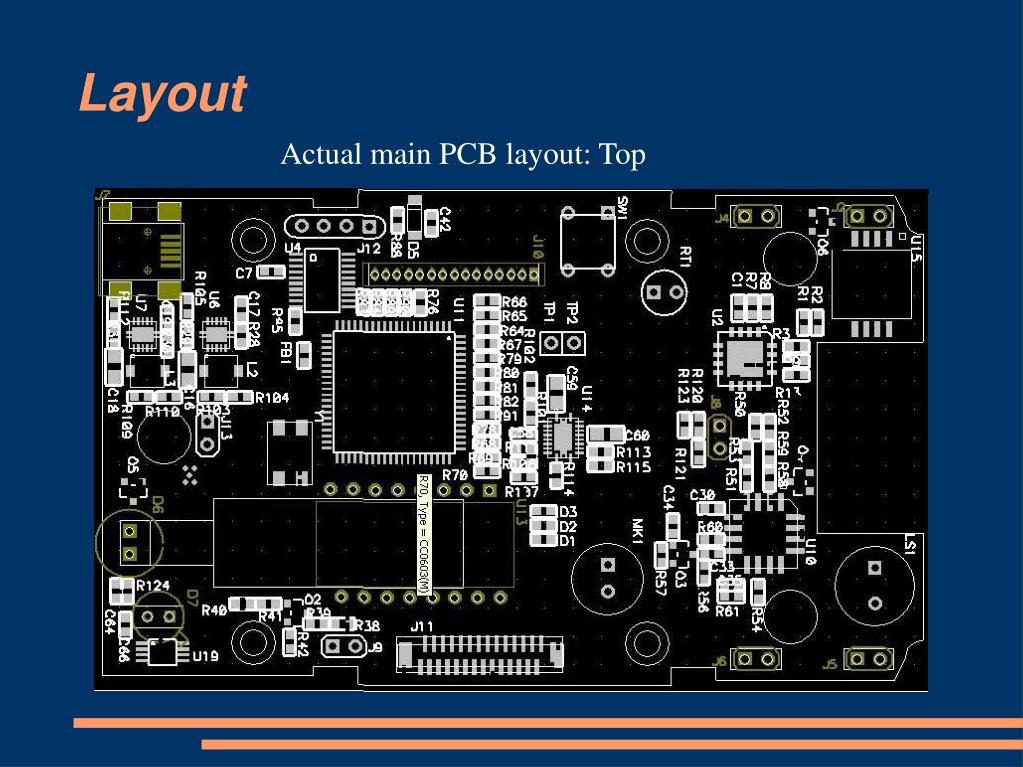

  12. Layout Actual main PCB layout: Top

  13. Layout Actual main PCB layout: Bottom

  14. To Do... • Finish PCB layout (mid of December)‏ • Send to production (January)‏ • Start basic SW while in production (~1 Month)‏ • End of production (before end of January)‏ • HW Test and Debug (1-2 Months)‏ • More SW (all remaining time)‏

  15. Any Questions...?
