  1. 70-270, 70-290 MCSE/MCSA Guide to Installing and Managing Microsoft Windows XP Professional and Windows Server 2003 Chapter Seven Creating and Managing Domain User and Group Accounts

  2. Objectives • Explain the purpose of domain user accounts • Describe the domain user authentication process • Create and manage user accounts • Configure roaming and mandatory user profiles Guide to MCSE 70-270, 70-290

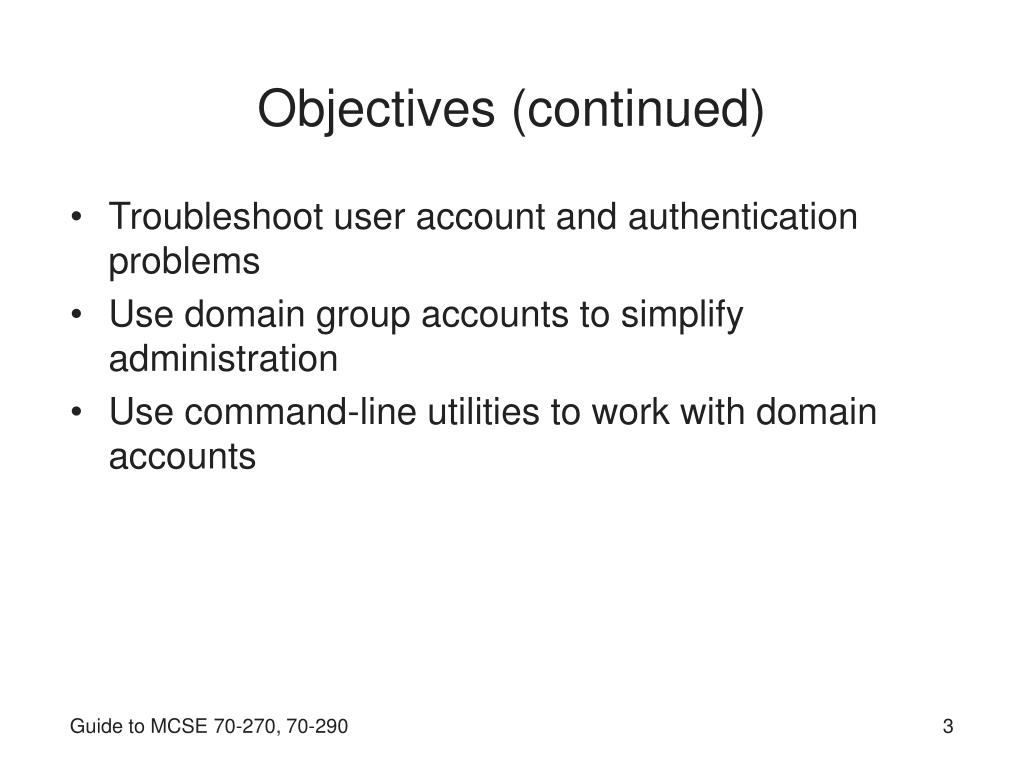

  3. Objectives (continued) • Troubleshoot user account and authentication problems • Use domain group accounts to simplify administration • Use command-line utilities to work with domain accounts Guide to MCSE 70-270, 70-290

  4. Introduction to Domain User Accounts • Domain user account: Active Directory object • Gives domain controllers access to user information • Make it possible to: • Require authentication for users • Control access to network resources • Monitor access to resources • Standards for elements of user objects: • Establishing a naming convention • Controlling password policy and ownership • Including additional required attributes Guide to MCSE 70-270, 70-290

  5. User Account Properties • Active Directory Users and Computers: Primary tool for creating and managing user accounts • Properties that can be set for a user account: • General • Address • Account • Profile • Telephones • Organization • Member Of • Dial-in Guide to MCSE 70-270, 70-290

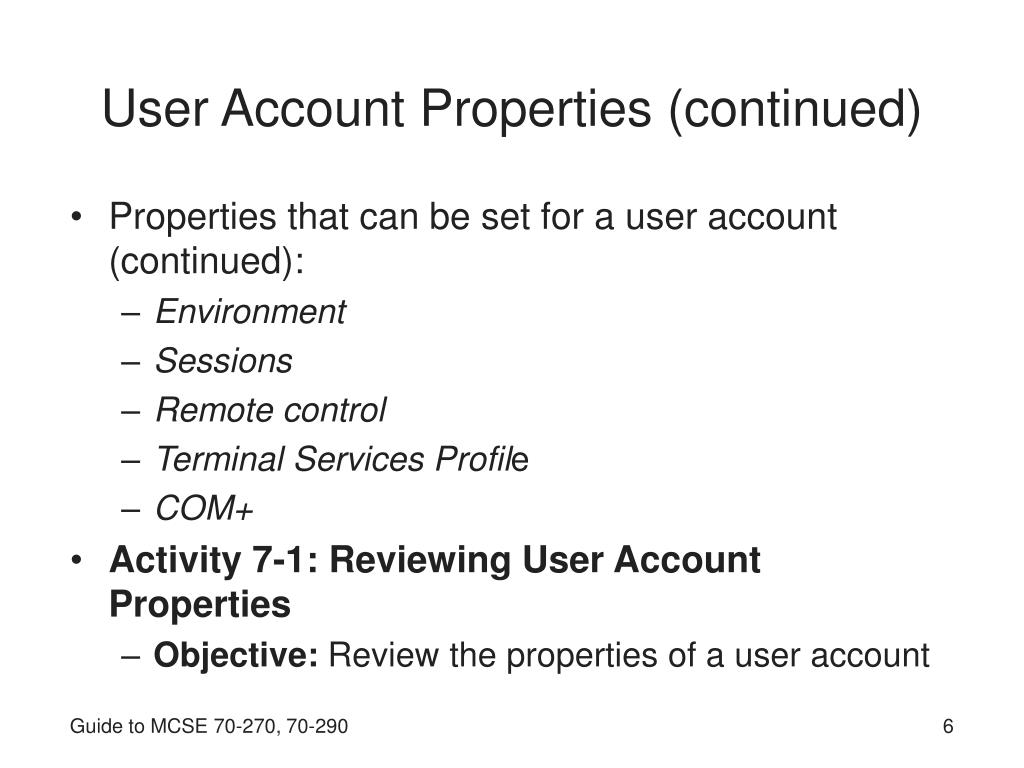

  6. User Account Properties (continued) • Properties that can be set for a user account (continued): • Environment • Sessions • Remote control • Terminal Services Profile • COM+ • Activity 7-1: Reviewing User Account Properties • Objective: Review the properties of a user account Guide to MCSE 70-270, 70-290

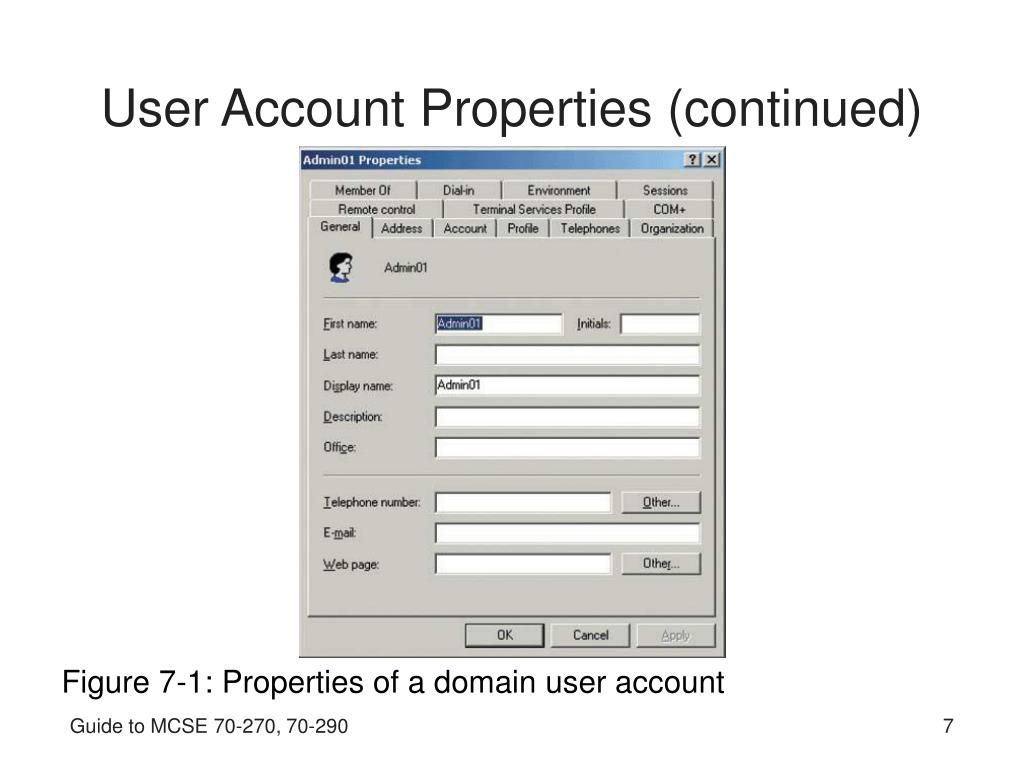

  7. User Account Properties (continued) Figure 7-1: Properties of a domain user account Guide to MCSE 70-270, 70-290

  8. User Authentication • Authentication: Process of validating a user’s identity • Unique access token created for user • Users enter user names and passwords • In Active Directory environment, users generally log on to a domain • Authenticated by domain controller • In a workgroup, local computer’s SAM database handles authentication Guide to MCSE 70-270, 70-290

  9. Authentication Methods • Two main processes: • Interactive authentication: Users enter user names and passwords • Network authentication: Network resource or service confirms user’s identity • Process differs depending on whether logging on to a domain or a local computer Guide to MCSE 70-270, 70-290

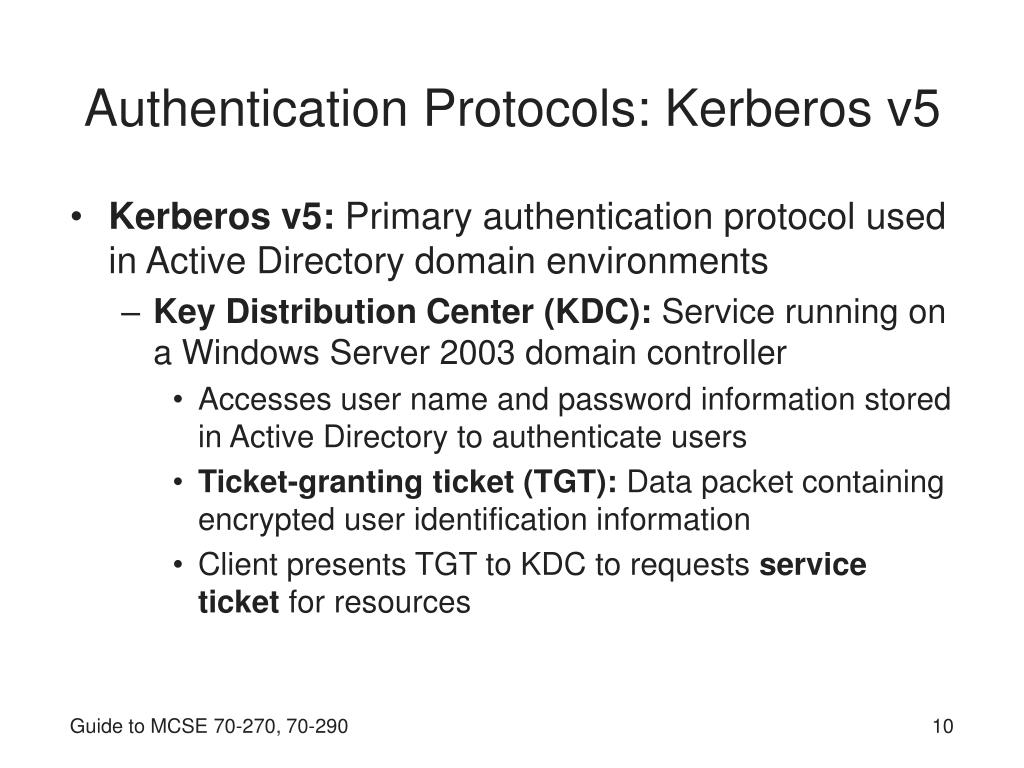

  10. Authentication Protocols: Kerberos v5 • Kerberos v5: Primary authentication protocol used in Active Directory domain environments • Key Distribution Center (KDC): Service running on a Windows Server 2003 domain controller • Accesses user name and password information stored in Active Directory to authenticate users • Ticket-granting ticket (TGT): Data packet containing encrypted user identification information • Client presents TGT to KDC to requests service ticket for resources Guide to MCSE 70-270, 70-290

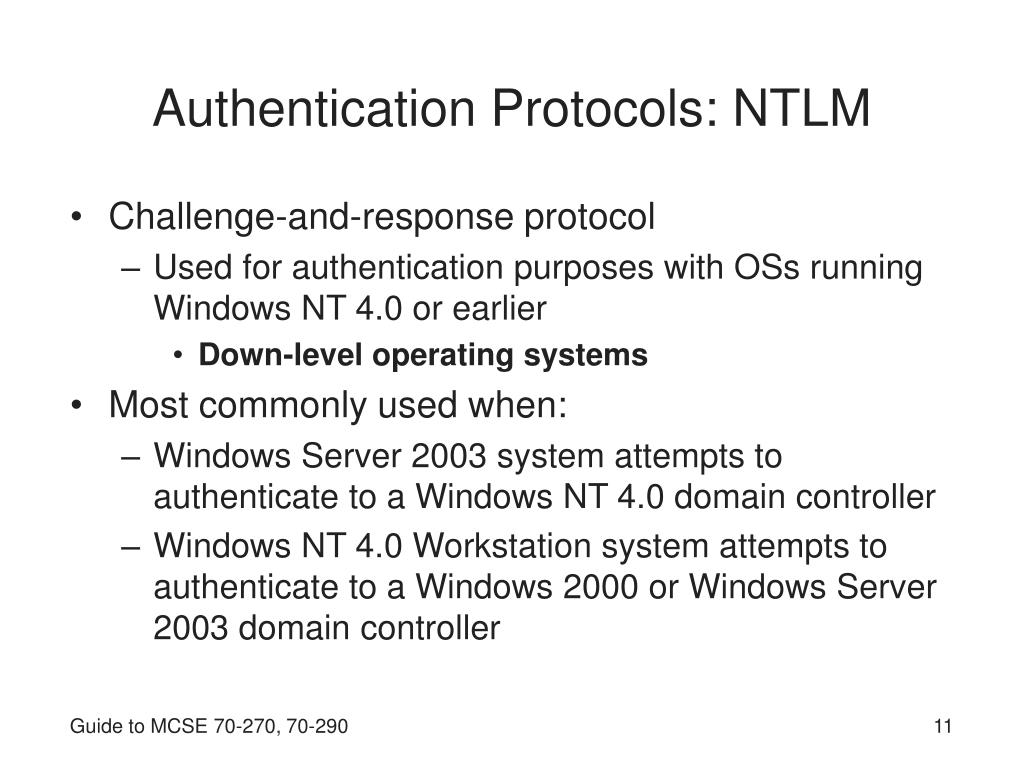

  11. Authentication Protocols: NTLM • Challenge-and-response protocol • Used for authentication purposes with OSs running Windows NT 4.0 or earlier • Down-level operating systems • Most commonly used when: • Windows Server 2003 system attempts to authenticate to a Windows NT 4.0 domain controller • Windows NT 4.0 Workstation system attempts to authenticate to a Windows 2000 or Windows Server 2003 domain controller Guide to MCSE 70-270, 70-290

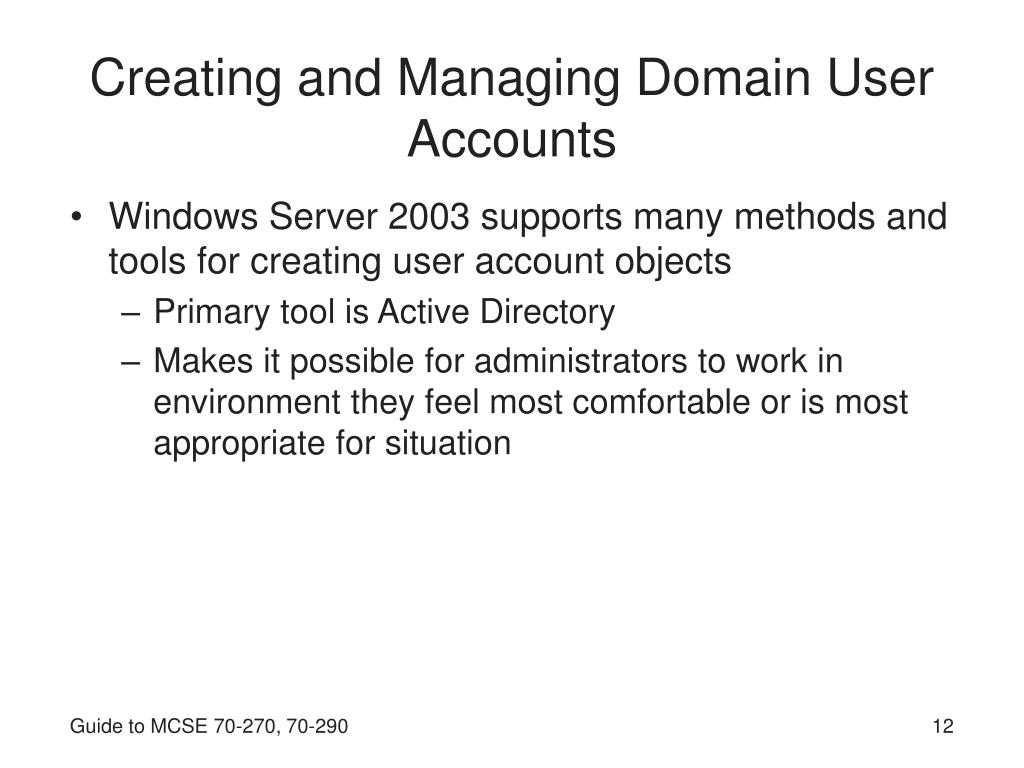

  12. Creating and Managing Domain User Accounts • Windows Server 2003 supports many methods and tools for creating user account objects • Primary tool is Active Directory • Makes it possible for administrators to work in environment they feel most comfortable or is most appropriate for situation Guide to MCSE 70-270, 70-290

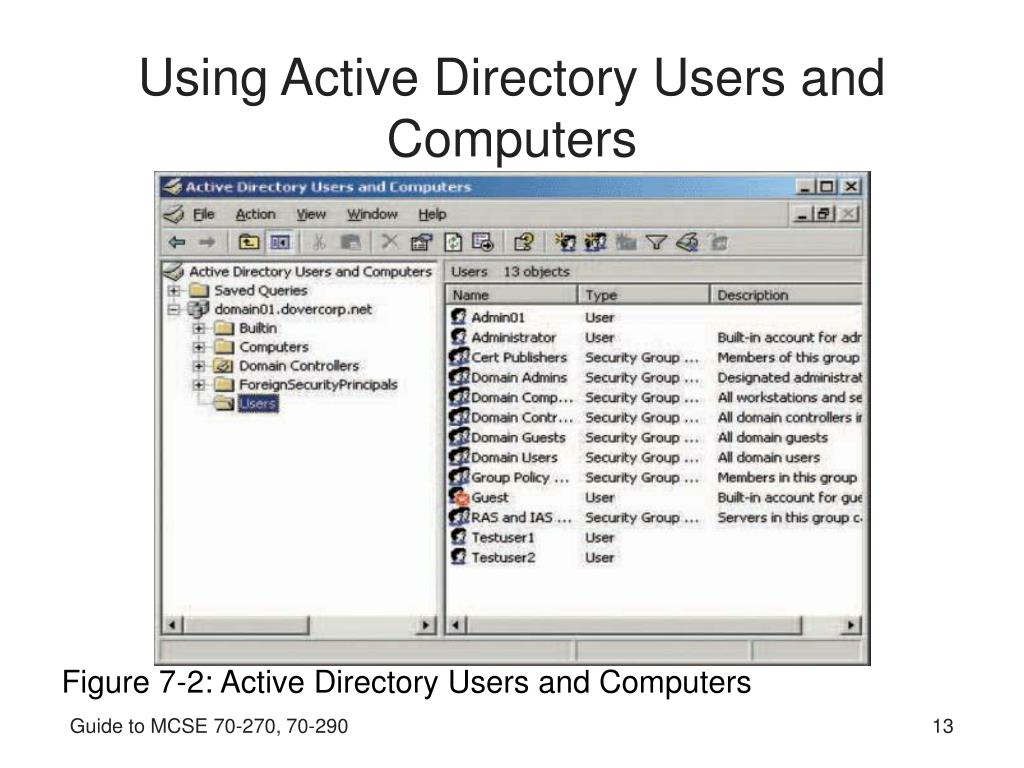

  13. Using Active Directory Users and Computers Figure 7-2: Active Directory Users and Computers Guide to MCSE 70-270, 70-290

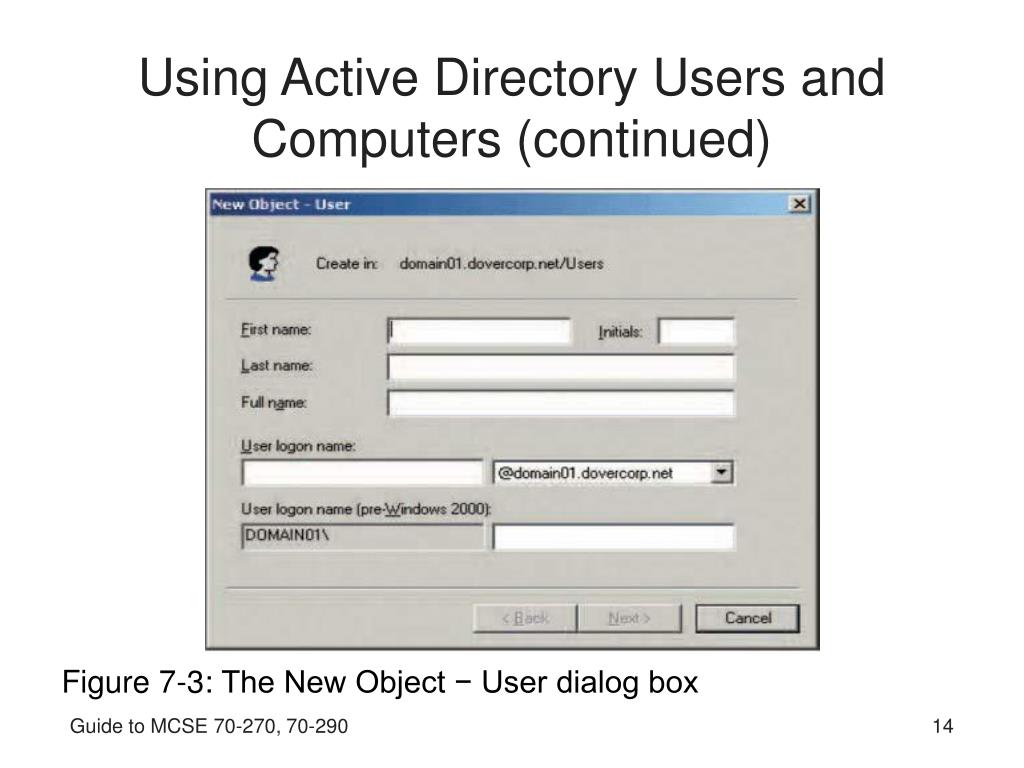

  14. Using Active Directory Users and Computers (continued) Figure 7-3: The New Object − User dialog box Guide to MCSE 70-270, 70-290

  15. Using Active Directory Users and Computers (continued) • Activity 7-2: Creating User Accounts with Active Directory Users and Computers • Objective: Use Active Directory Users and Computers to create user accounts • To increase security, default policy on server is to restrict logging on at server console to Administrators, Account Operators, Print Operators Guide to MCSE 70-270, 70-290

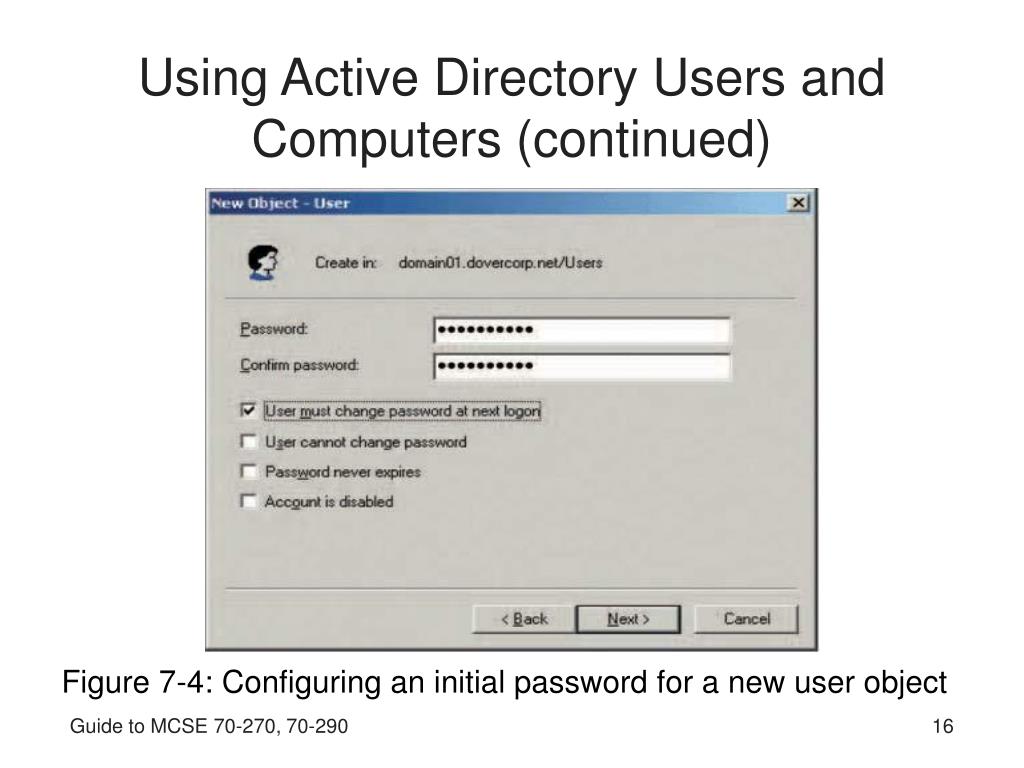

  16. Using Active Directory Users and Computers (continued) Figure 7-4: Configuring an initial password for a new user object Guide to MCSE 70-270, 70-290

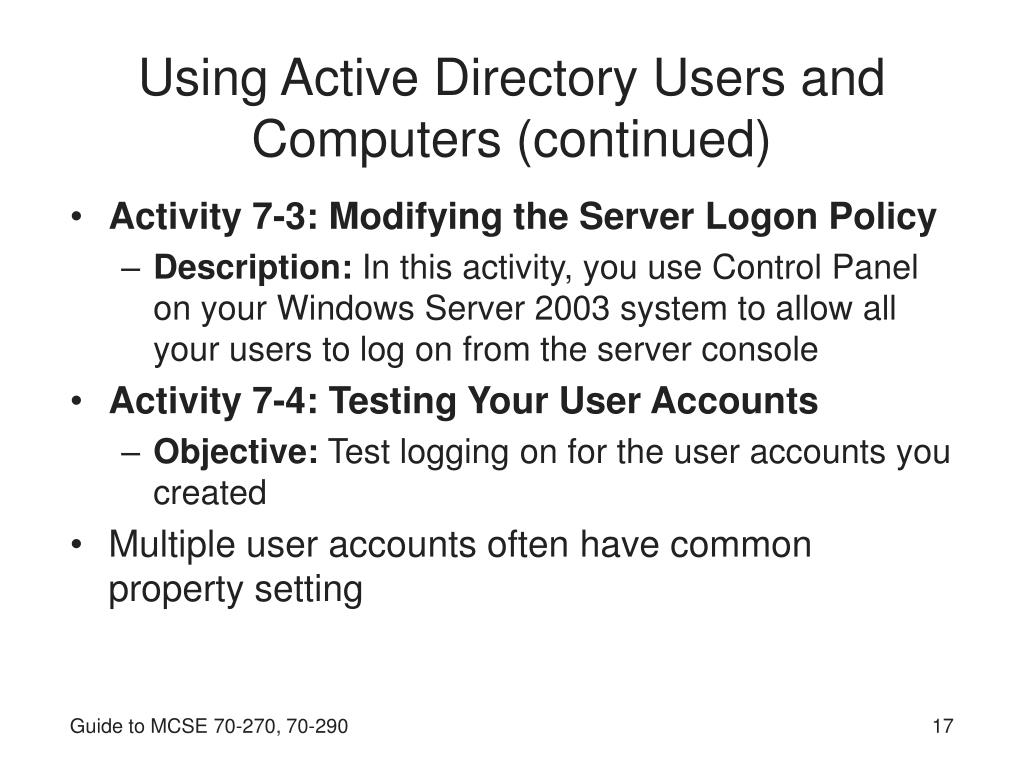

  17. Using Active Directory Users and Computers (continued) • Activity 7-3: Modifying the Server Logon Policy • Description: In this activity, you use Control Panel on your Windows Server 2003 system to allow all your users to log on from the server console • Activity 7-4: Testing Your User Accounts • Objective: Test logging on for the user accounts you created • Multiple user accounts often have common property setting Guide to MCSE 70-270, 70-290

  18. Using Active Directory Users and Computers (continued) Figure 7-5: Configuring properties for multiple user objects simultaneously Guide to MCSE 70-270, 70-290

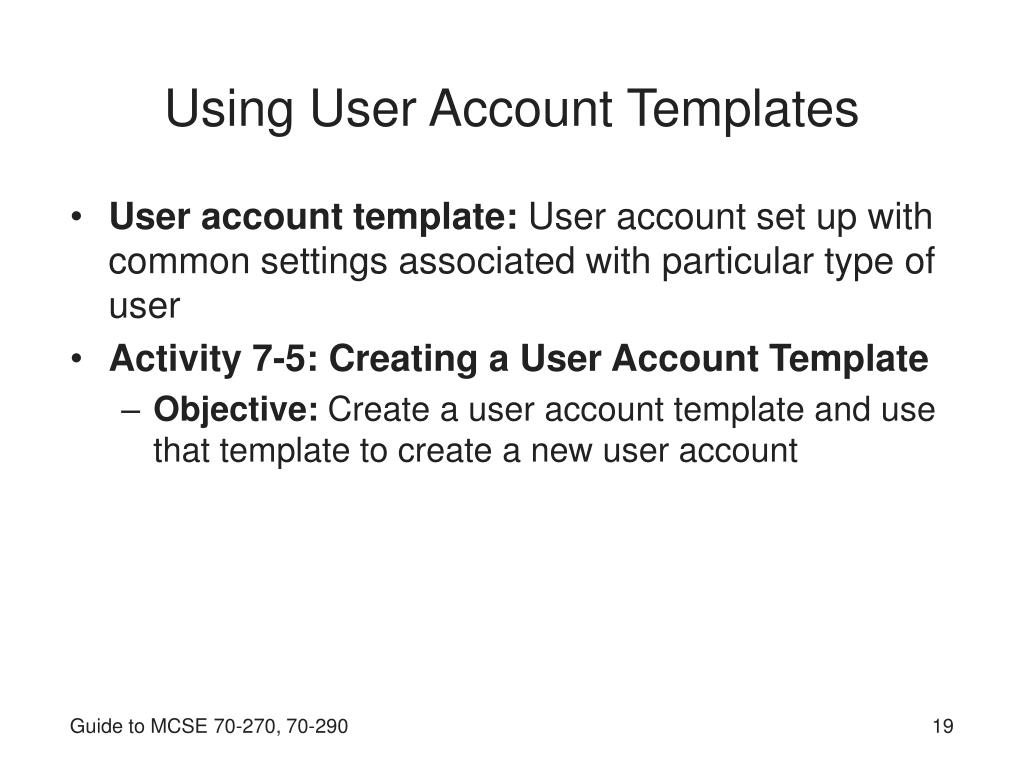

  19. Using User Account Templates • User account template: User account set up with common settings associated with particular type of user • Activity 7-5: Creating a User Account Template • Objective: Create a user account template and use that template to create a new user account Guide to MCSE 70-270, 70-290

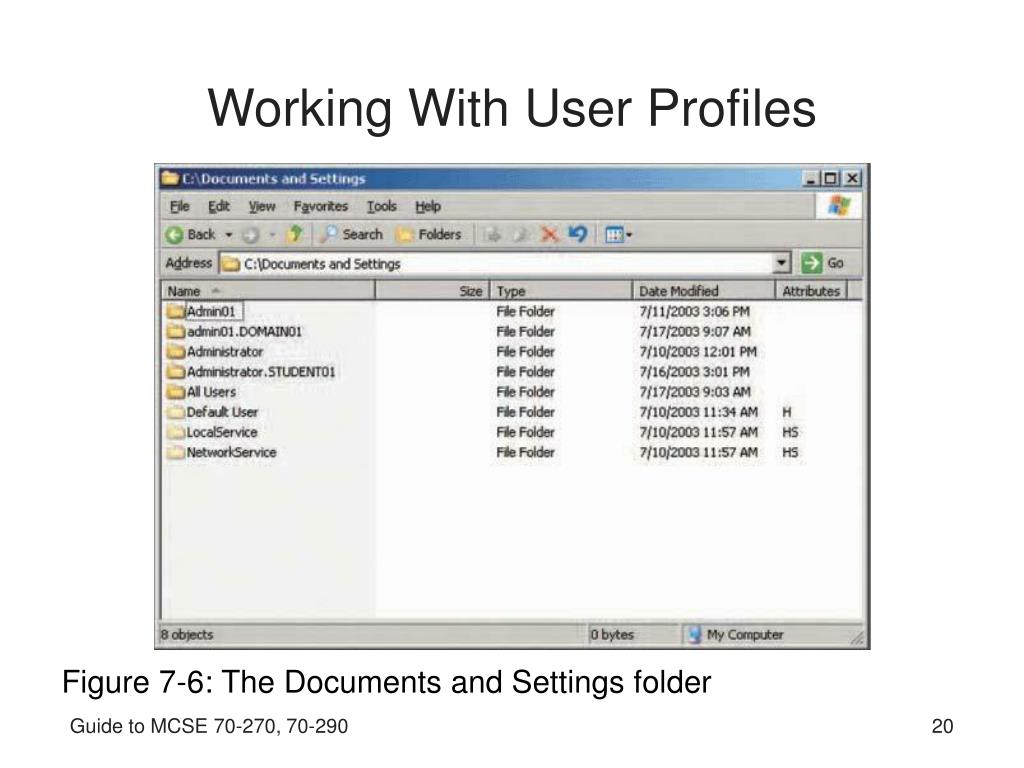

  20. Working With User Profiles Figure 7-6: The Documents and Settings folder Guide to MCSE 70-270, 70-290

  21. Roaming Profiles • Make it possible to have profiles follow users to different computers • Store user desktop settings in single, centralized location • Configured in Profiles tab of user account’s Properties dialog box via Active Directory Users and Computers • Activity 7-6: Configuring and Testing a Roaming Profile • Objective: Configure and test a roaming user profile Guide to MCSE 70-270, 70-290

  22. Mandatory Profiles • Allow users to change their profiles while logged on, but changes not permanently saved • Roaming and local user profiles can be configured as mandatory profiles • Renaming Ntuser.dat file stored in profile to Ntuser.man • Activity 7-7: Configuring a Mandatory Profile • Objective: Configure and test a mandatory user profile Guide to MCSE 70-270, 70-290

  23. Troubleshooting User Account and Authentication Problems • Number of issues can affect user’s ability to log on to a Windows Server 2003 Active Directory network • Some related to configuring a user account • e.g., Account lockout • Some related to policy settings Guide to MCSE 70-270, 70-290

  24. Solving User Logon Problems • Common logon problems: • Incorrect user name or password: Reset password • Account lockout: Unlocked manually • Account disabled: Use Active Directory Users and Computers or Dsmod User command • Logon hour restrictions: Reconfigure • Workstation restrictions: Change user’s permissions • Domain controllers: Make sure DNS settings correct • Client time settings: Synchronize with domain controller Guide to MCSE 70-270, 70-290

  25. Solving User Logon Problems (continued) • Common logon problems (continued): • Down-level client issues: Consider installing Active Directory Client Extensions • UPN logon issues: Ensure that global catalog server configured and accessible • Users unable to log on locally: Grant rights to log on locally in policy settings on server • Remote access logon issues: Ensure account configured to allow access • Terminal Services logon issues: Ensure Allow logon to terminal server check box selected in Terminal Services Profile tab Guide to MCSE 70-270, 70-290

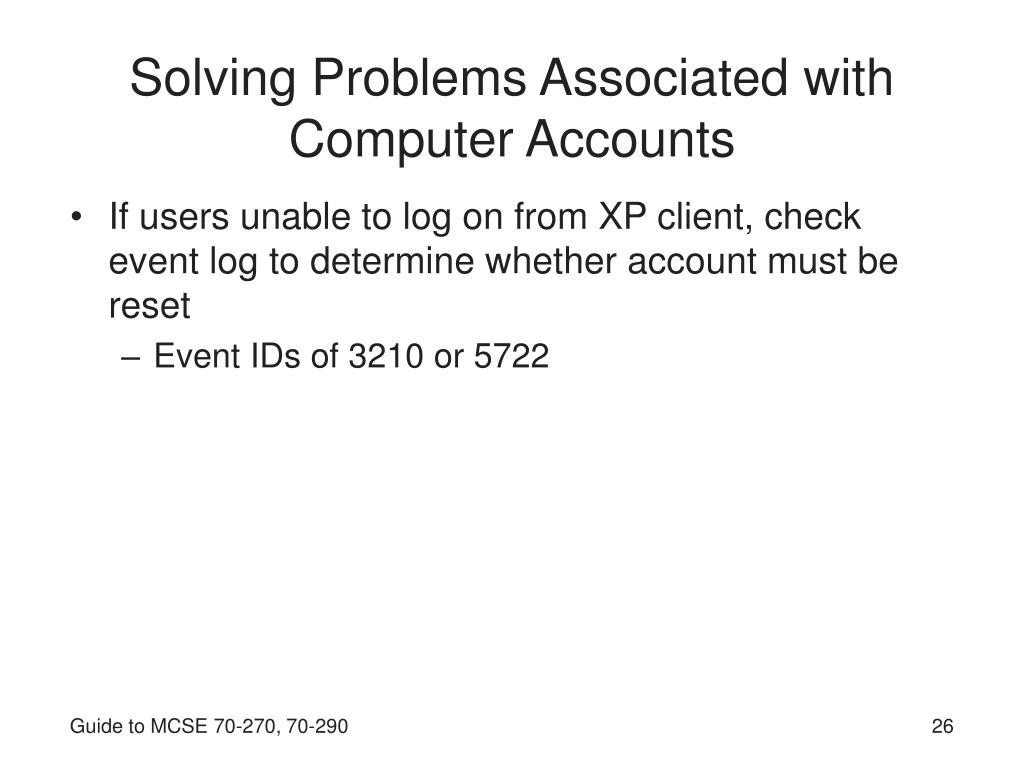

  26. Solving Problems Associated with Computer Accounts • If users unable to log on from XP client, check event log to determine whether account must be reset • Event IDs of 3210 or 5722 Guide to MCSE 70-270, 70-290

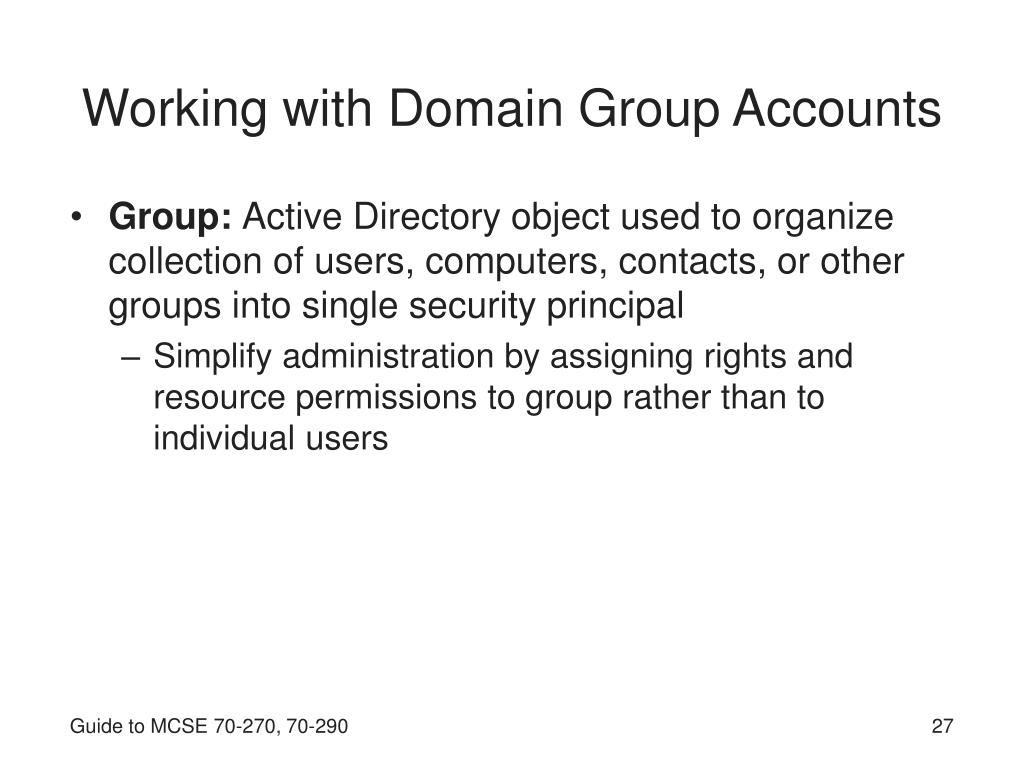

  27. Working with Domain Group Accounts • Group: Active Directory object used to organize collection of users, computers, contacts, or other groups into single security principal • Simplify administration by assigning rights and resource permissions to group rather than to individual users Guide to MCSE 70-270, 70-290

  28. Group Types • Defines how group can be used in Active Directory domain or forest • Security groups: Usually most common group type in an Active Directory environment • Defined by SID that allows them to be assigned permissions for resources in discretionary access control lists (DACLs) • Any group that will be assigned permissions or rights must be a security group • Can be e-mail entities Guide to MCSE 70-270, 70-290

  29. Group Types (continued) • Distribution groups: For use with e-mail applications • No SID • Don’t affect user authentication process unnecessarily Guide to MCSE 70-270, 70-290

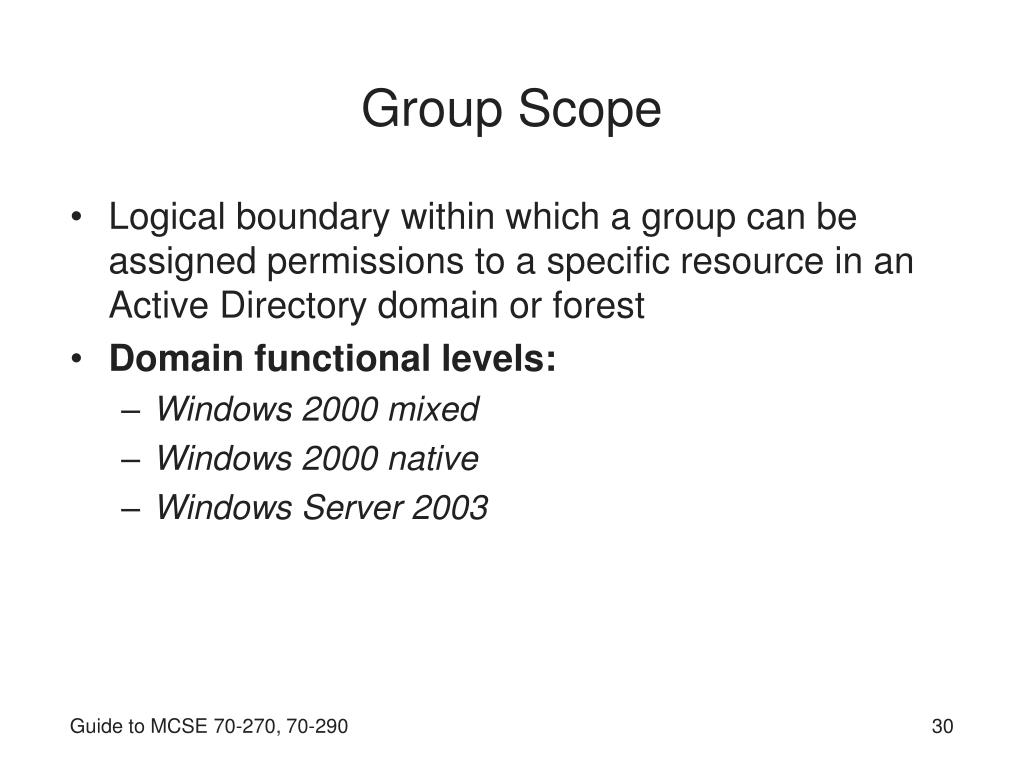

  30. Group Scope • Logical boundary within which a group can be assigned permissions to a specific resource in an Active Directory domain or forest • Domain functional levels: • Windows 2000 mixed • Windows 2000 native • Windows Server 2003 Guide to MCSE 70-270, 70-290

  31. Group Scope (continued) Table 7-1: Windows Server 2003 group summary Guide to MCSE 70-270, 70-290

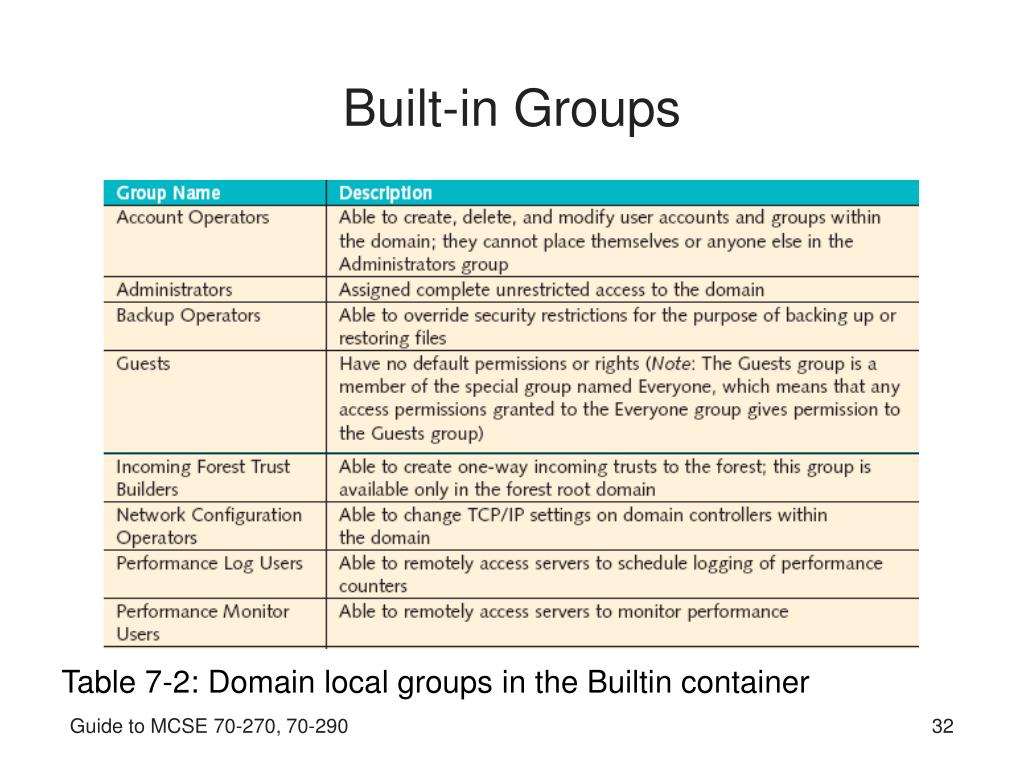

  32. Built-in Groups Table 7-2: Domain local groups in the Builtin container Guide to MCSE 70-270, 70-290

  33. Built-in Groups (continued) Table 7-2 (continued): Domain local groups in the Builtin container Guide to MCSE 70-270, 70-290

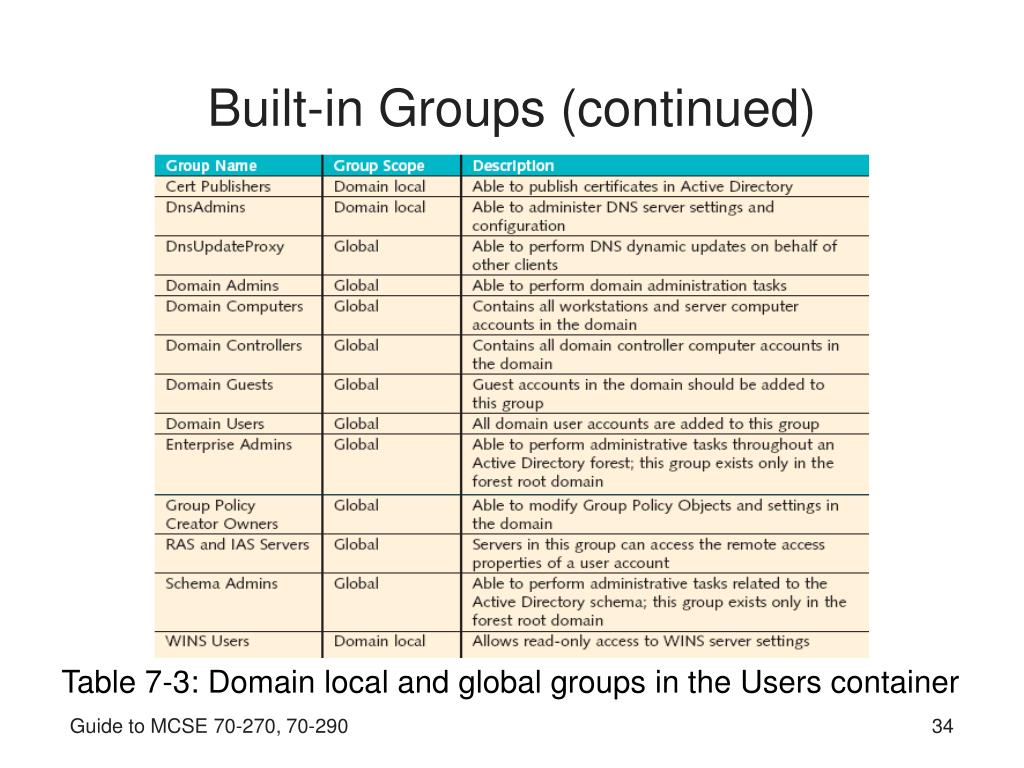

  34. Built-in Groups (continued) Table 7-3: Domain local and global groups in the Users container Guide to MCSE 70-270, 70-290

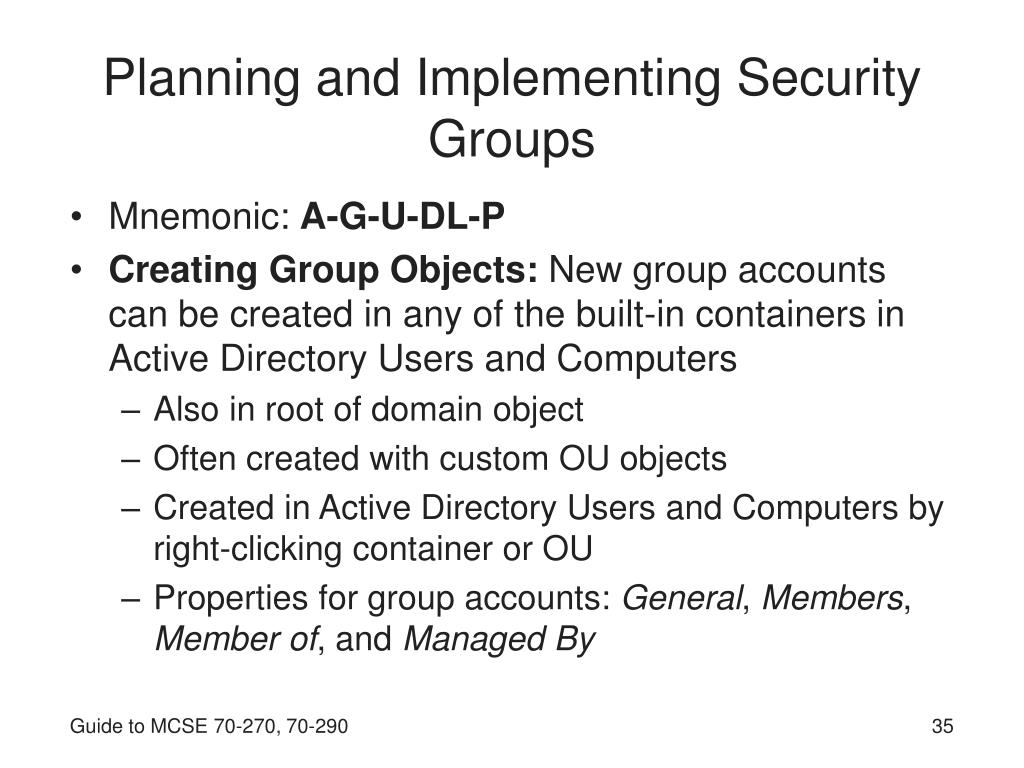

  35. Planning and Implementing Security Groups • Mnemonic: A-G-U-DL-P • Creating Group Objects: New group accounts can be created in any of the built-in containers in Active Directory Users and Computers • Also in root of domain object • Often created with custom OU objects • Created in Active Directory Users and Computers by right-clicking container or OU • Properties for group accounts: General, Members, Member of, and Managed By Guide to MCSE 70-270, 70-290

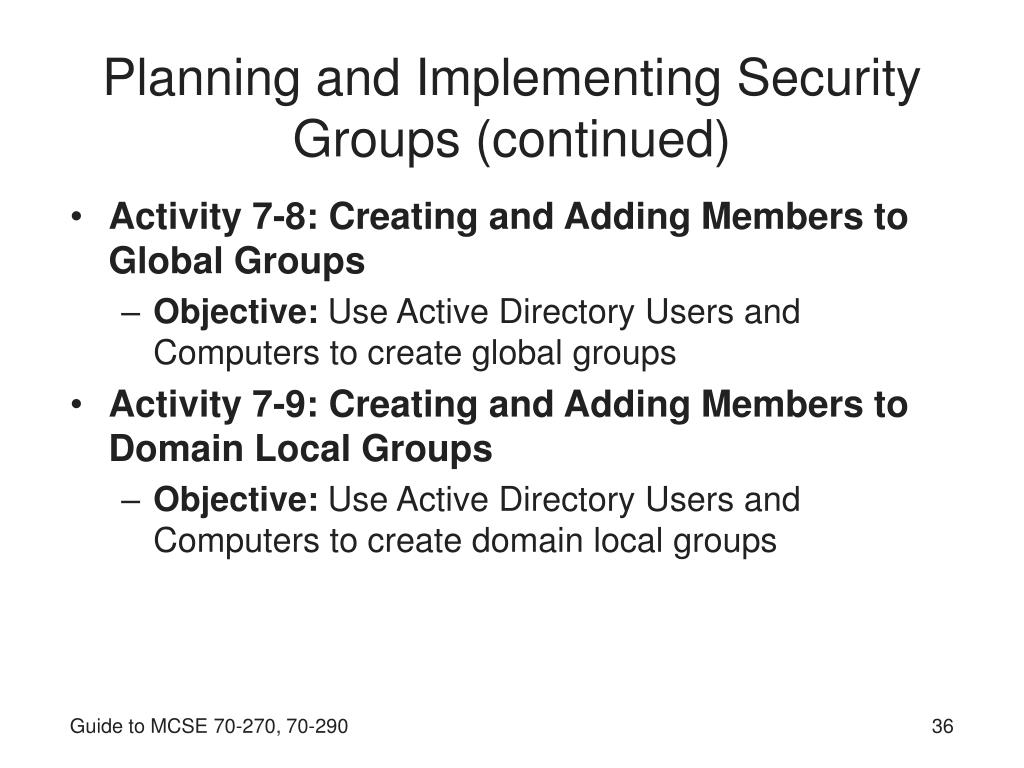

  36. Planning and Implementing Security Groups (continued) • Activity 7-8: Creating and Adding Members to Global Groups • Objective: Use Active Directory Users and Computers to create global groups • Activity 7-9: Creating and Adding Members to Domain Local Groups • Objective: Use Active Directory Users and Computers to create domain local groups Guide to MCSE 70-270, 70-290

  37. Planning and Implementing Security Groups (continued) Figure 7-7: The New Object − Group dialog box Guide to MCSE 70-270, 70-290

  38. Planning and Implementing Security Groups (continued) Figure 7-9: The Members tab in the Properties dialog box of a global group Guide to MCSE 70-270, 70-290

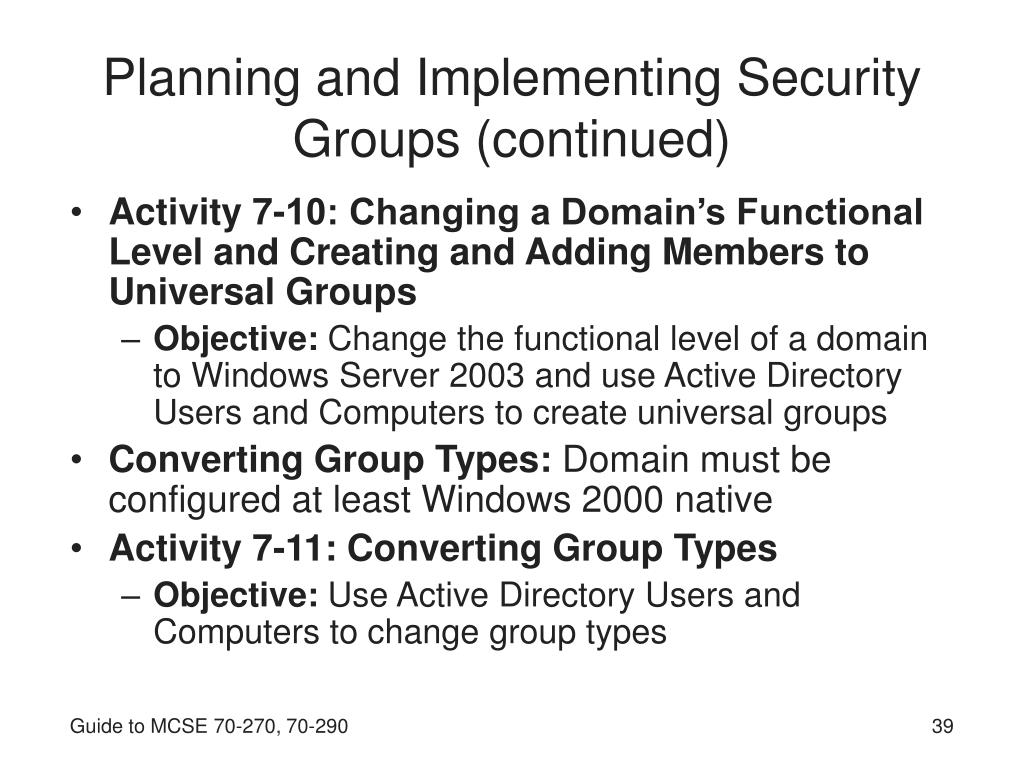

  39. Planning and Implementing Security Groups (continued) • Activity 7-10: Changing a Domain’s Functional Level and Creating and Adding Members to Universal Groups • Objective: Change the functional level of a domain to Windows Server 2003 and use Active Directory Users and Computers to create universal groups • Converting Group Types: Domain must be configured at least Windows 2000 native • Activity 7-11: Converting Group Types • Objective: Use Active Directory Users and Computers to change group types Guide to MCSE 70-270, 70-290

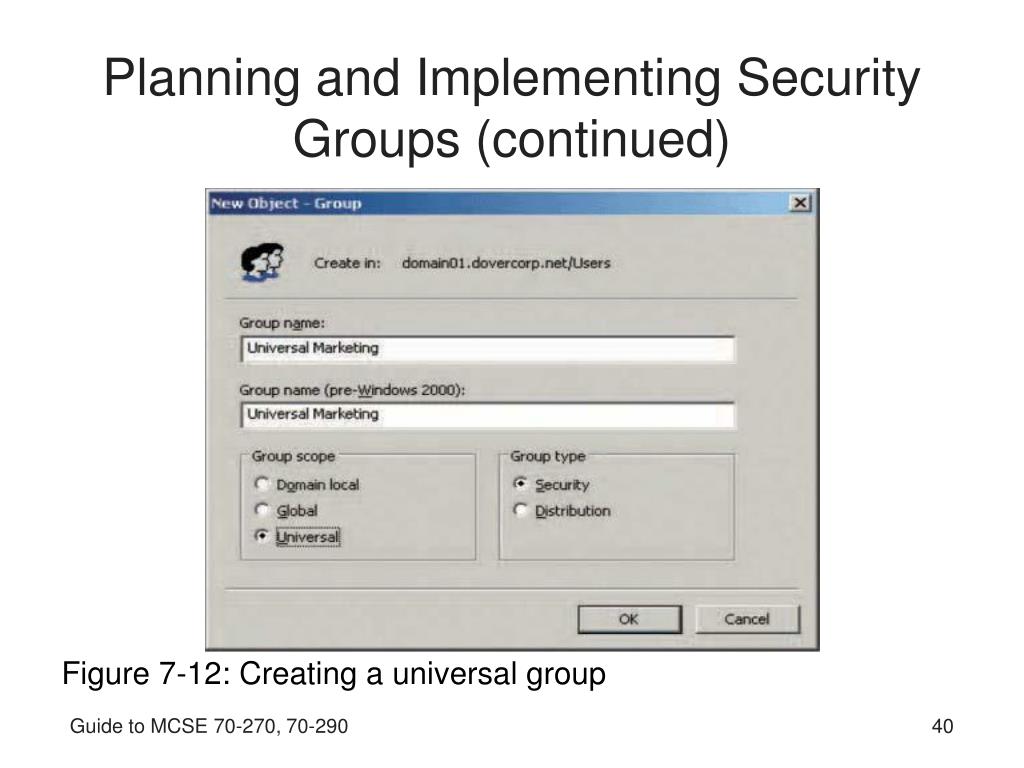

  40. Planning and Implementing Security Groups (continued) Figure 7-12: Creating a universal group Guide to MCSE 70-270, 70-290

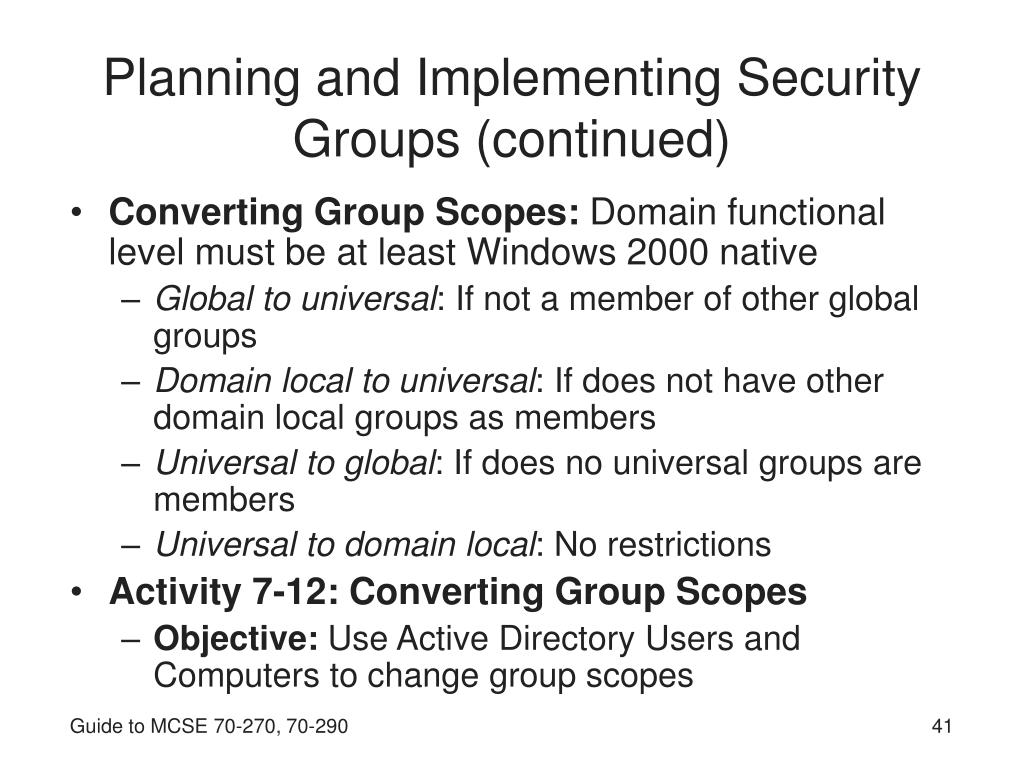

  41. Planning and Implementing Security Groups (continued) • Converting Group Scopes: Domain functional level must be at least Windows 2000 native • Global to universal:If not a member of other global groups • Domain local to universal: If does not have other domain local groups as members • Universal to global: If does no universal groups are members • Universal to domain local: No restrictions • Activity 7-12: Converting Group Scopes • Objective: Use Active Directory Users and Computers to change group scopes Guide to MCSE 70-270, 70-290

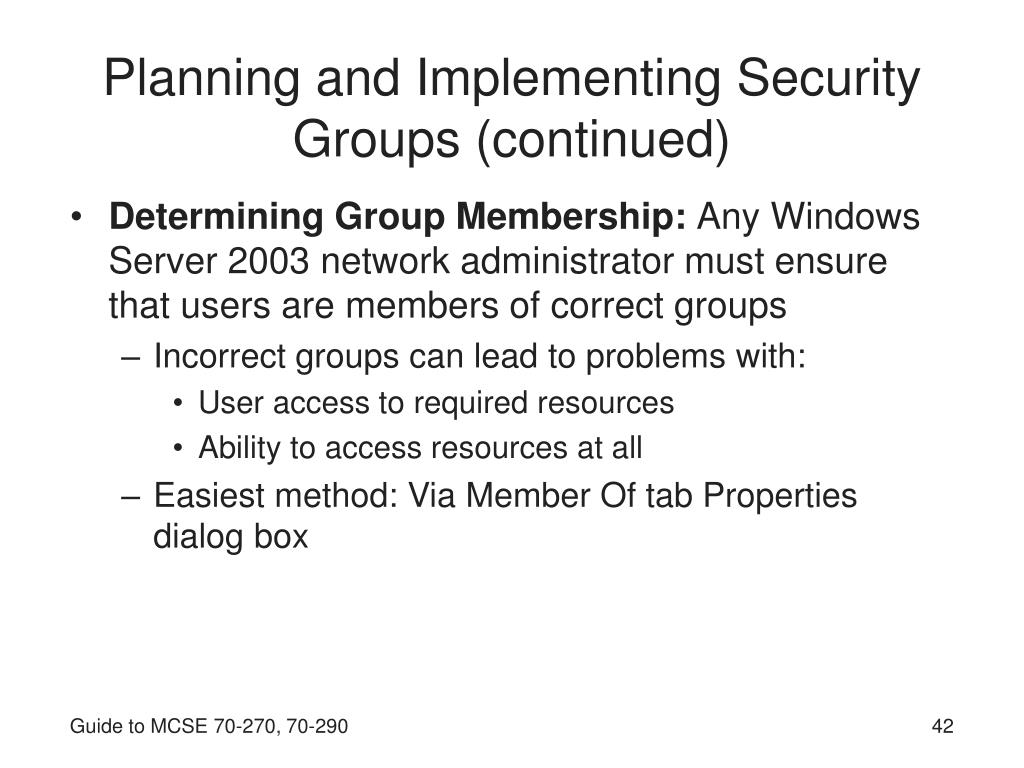

  42. Planning and Implementing Security Groups (continued) • Determining Group Membership: Any Windows Server 2003 network administrator must ensure that users are members of correct groups • Incorrect groups can lead to problems with: • User access to required resources • Ability to access resources at all • Easiest method: Via Member Of tab Properties dialog box Guide to MCSE 70-270, 70-290

  43. Using Command-line Utilities • Dsadd command: Allows object types to be added to the directory • Computer accounts, contacts, quotas, groups, OUs, and users • Activity 7-13: Creating Groups with Dsadd Group • Objective: Use the Dsadd Group command to add groups of different types and scopes • Dsget command: Determine a user’s group memberships Guide to MCSE 70-270, 70-290

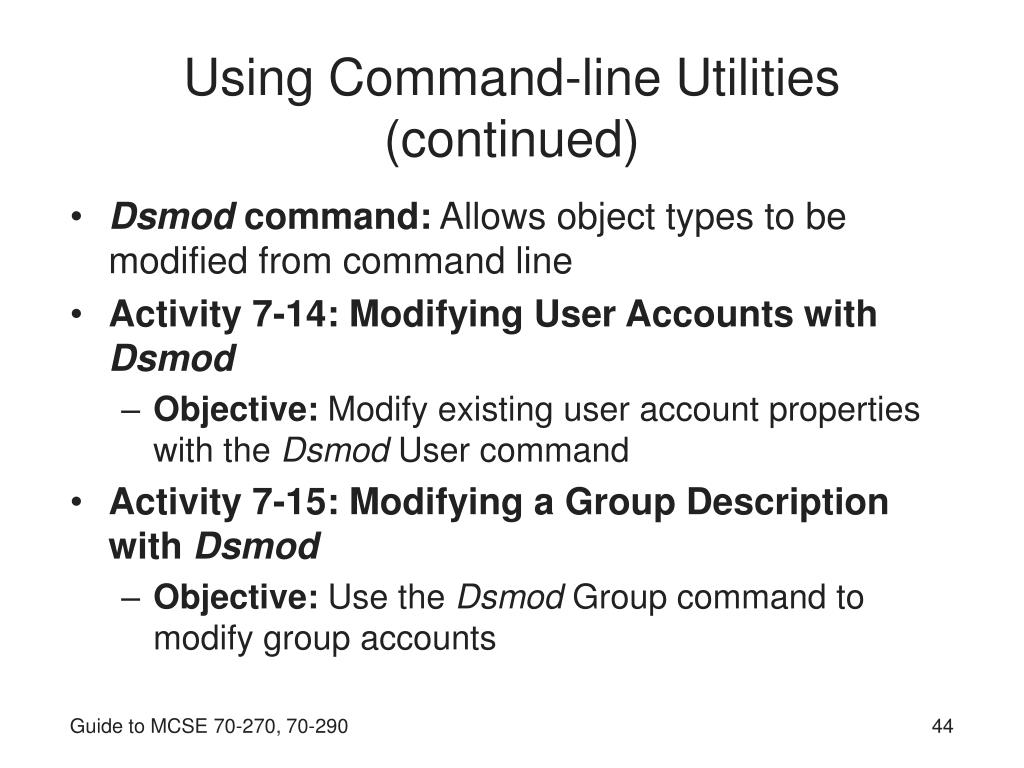

  44. Using Command-line Utilities (continued) • Dsmod command: Allows object types to be modified from command line • Activity 7-14: Modifying User Accounts with Dsmod • Objective: Modify existing user account properties with the Dsmod User command • Activity 7-15: Modifying a Group Description with Dsmod • Objective: Use the Dsmod Group command to modify group accounts Guide to MCSE 70-270, 70-290

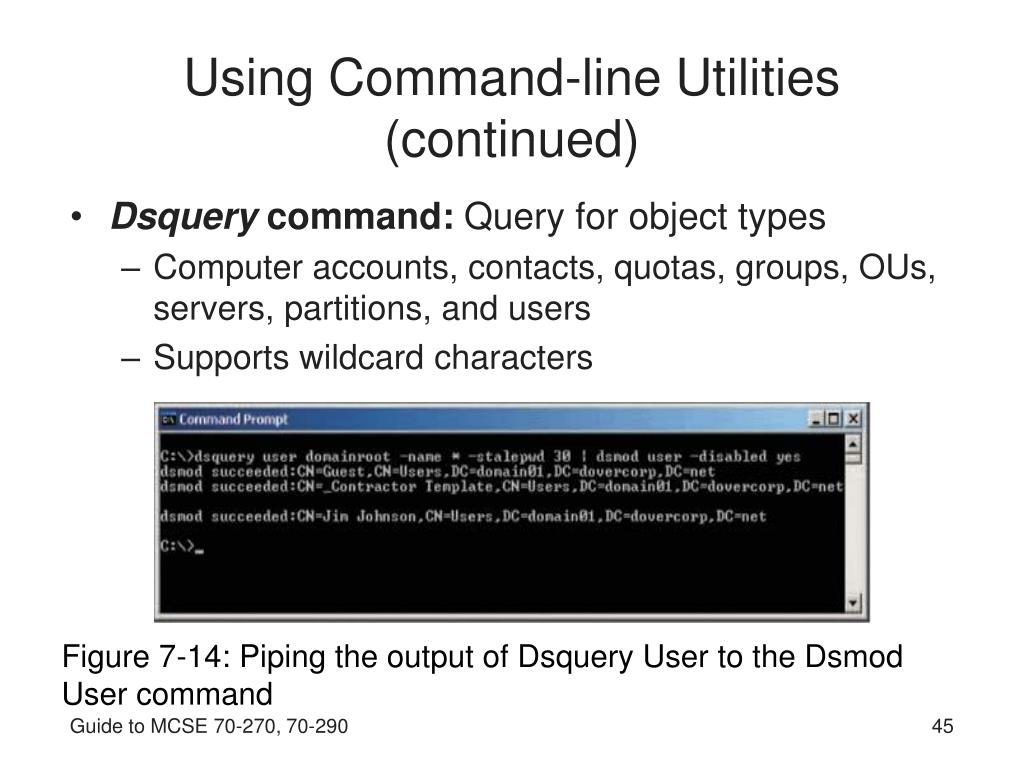

  45. Using Command-line Utilities (continued) • Dsquery command: Query for object types • Computer accounts, contacts, quotas, groups, OUs, servers, partitions, and users • Supports wildcard characters Figure 7-14: Piping the output of Dsquery User to the Dsmod User command Guide to MCSE 70-270, 70-290

  46. Using Command-line Utilities (continued) • Dsmove command: Allows object types to be moved from current location to new location • Or renamed the object • Can be used only to move objects within same domain • Dsrm command: Delete objects from directory • Supports deleting entire subtrees • Can delete an existing object and its contents Guide to MCSE 70-270, 70-290

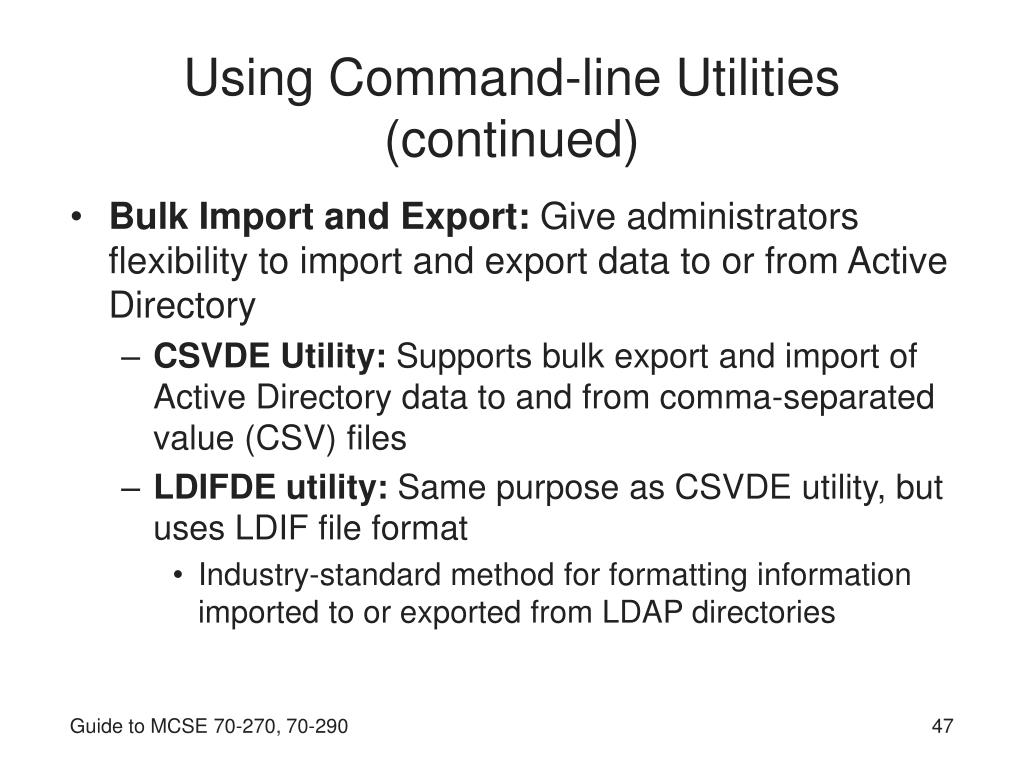

  47. Using Command-line Utilities (continued) • Bulk Import and Export: Give administrators flexibility to import and export data to or from Active Directory • CSVDE Utility: Supports bulk export and import of Active Directory data to and from comma-separated value (CSV) files • LDIFDE utility: Same purpose as CSVDE utility, but uses LDIF file format • Industry-standard method for formatting information imported to or exported from LDAP directories Guide to MCSE 70-270, 70-290

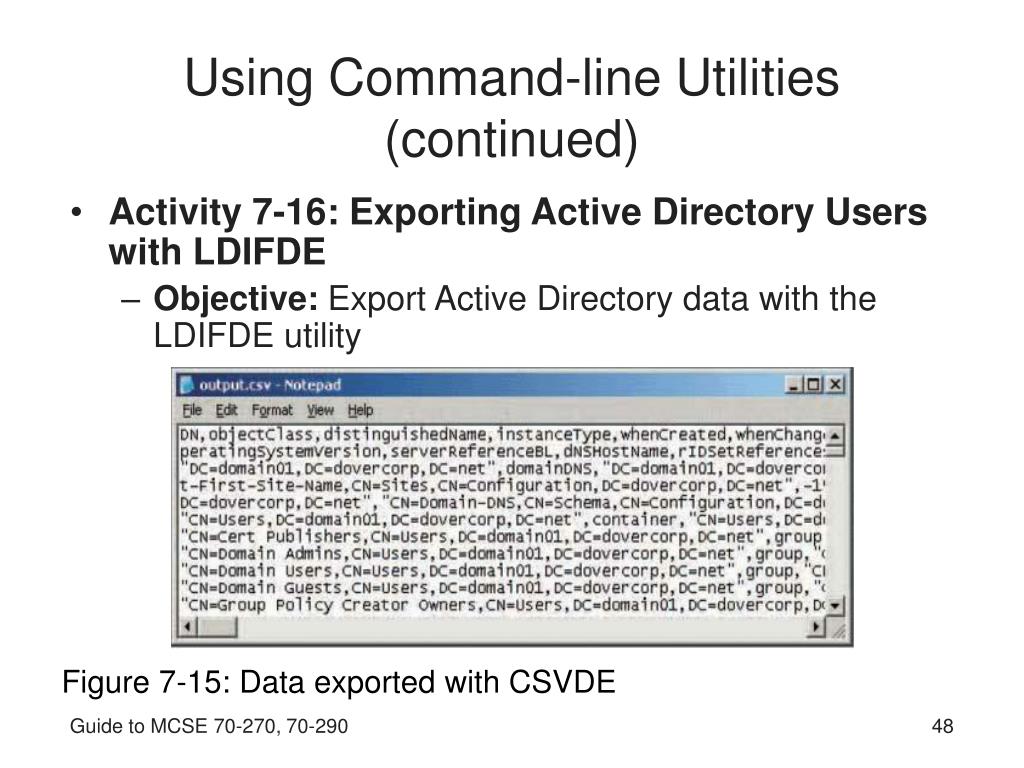

  48. Using Command-line Utilities (continued) • Activity 7-16: Exporting Active Directory Users with LDIFDE • Objective: Export Active Directory data with the LDIFDE utility Figure 7-15: Data exported with CSVDE Guide to MCSE 70-270, 70-290

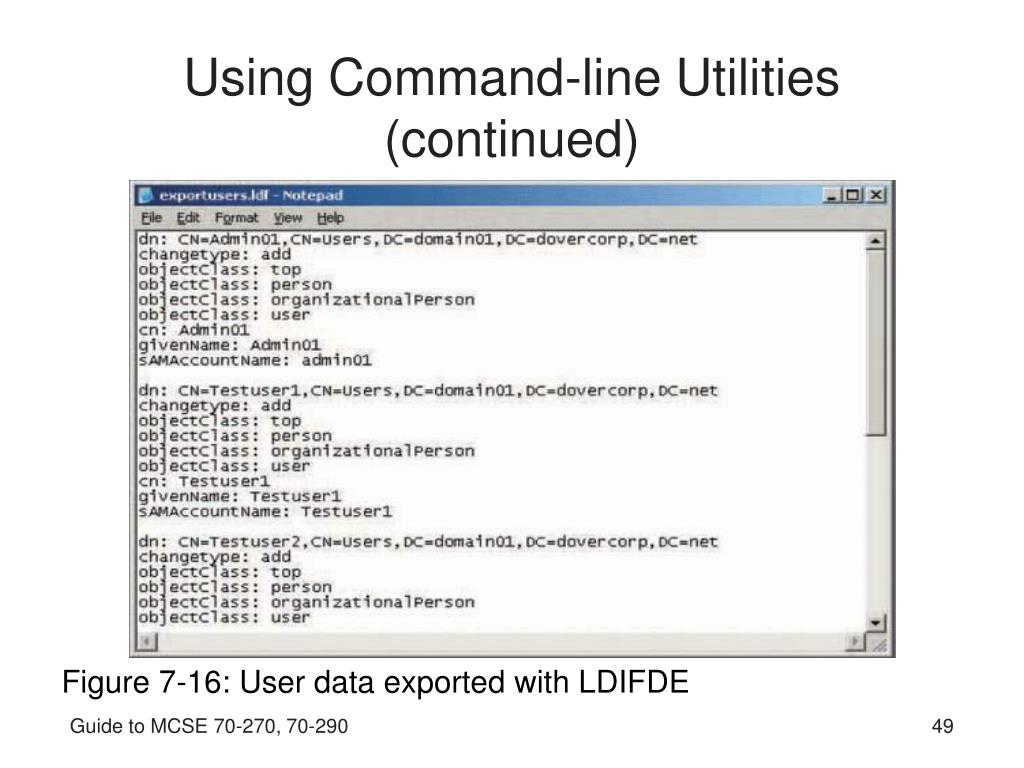

  49. Using Command-line Utilities (continued) Figure 7-16: User data exported with LDIFDE Guide to MCSE 70-270, 70-290

  50. Summary • The two primary authentication protocols used in Windows Server 2003 Active Directory environments are Kerberos v5 and NTLM • Windows Server 2003 supports three different types of user profiles: local, roaming, and mandatory • The primary tool for creating and managing user and groups accounts in a Windows Active Directory environment is Active Directory Users and Computers Guide to MCSE 70-270, 70-290
