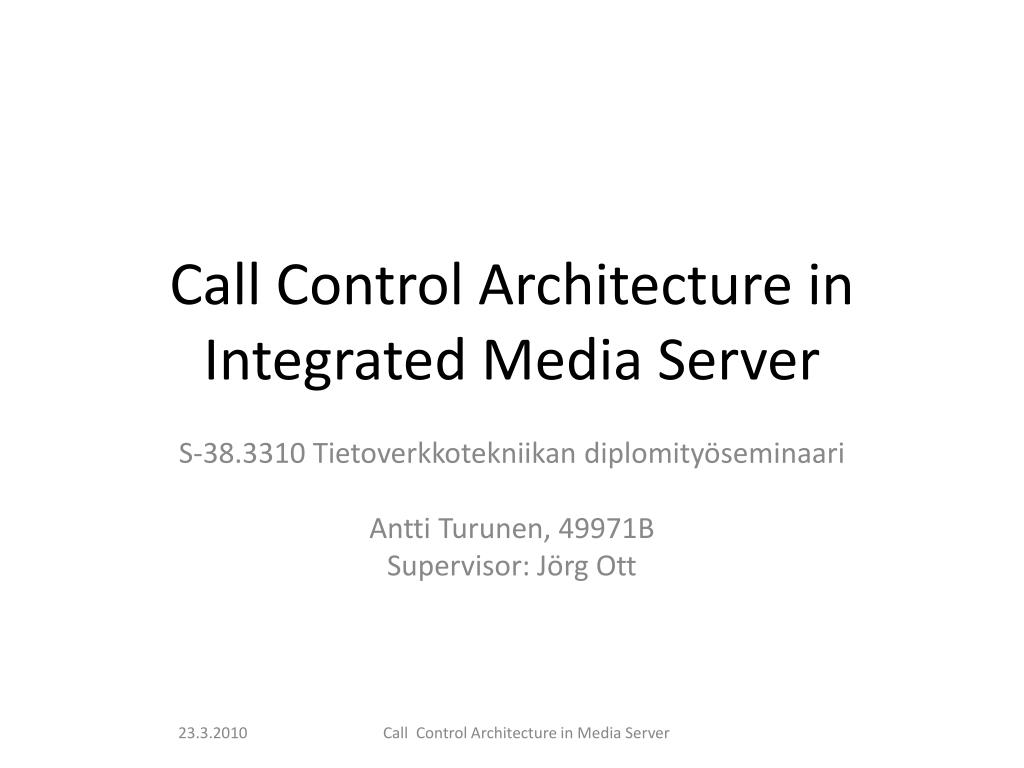

  1. Call Control Architecture in Integrated Media Server S-38.3310 Tietoverkkotekniikandiplomityöseminaari Antti Turunen, 49971B Supervisor: Jörg Ott 23.3.2010 Call Control Architecture in Media Server

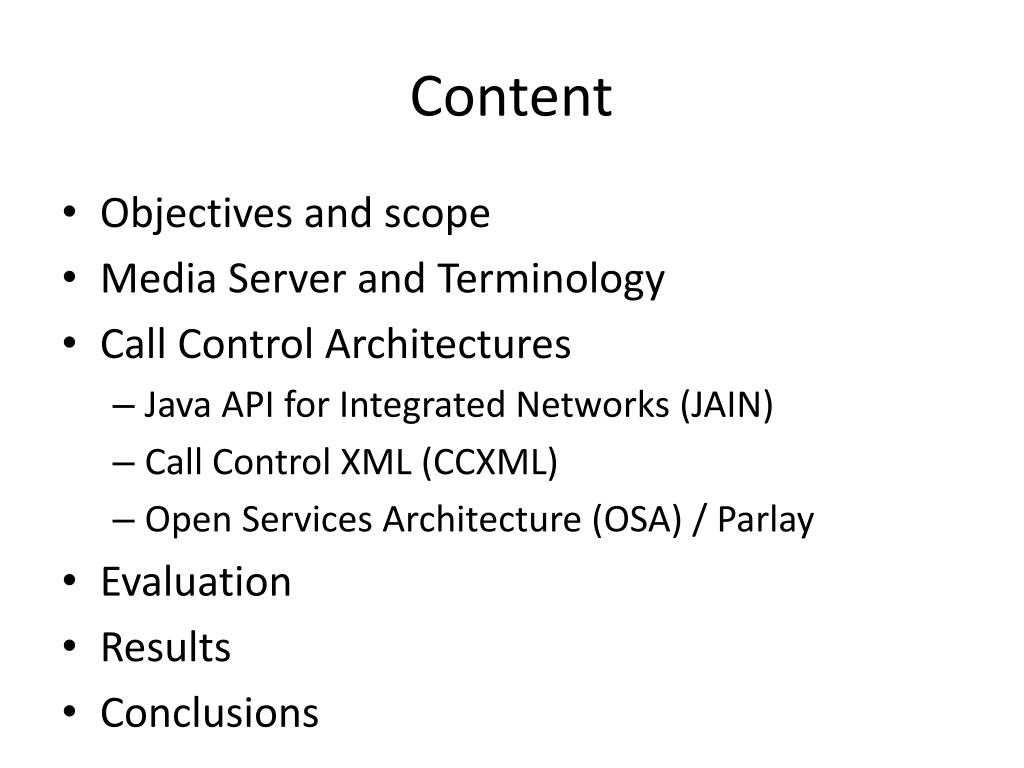

  2. Content • Objectives and scope • Media Server and Terminology • Call Control Architectures • Java API for Integrated Networks (JAIN) • Call Control XML (CCXML) • Open Services Architecture (OSA) / Parlay • Evaluation • Results • Conclusions

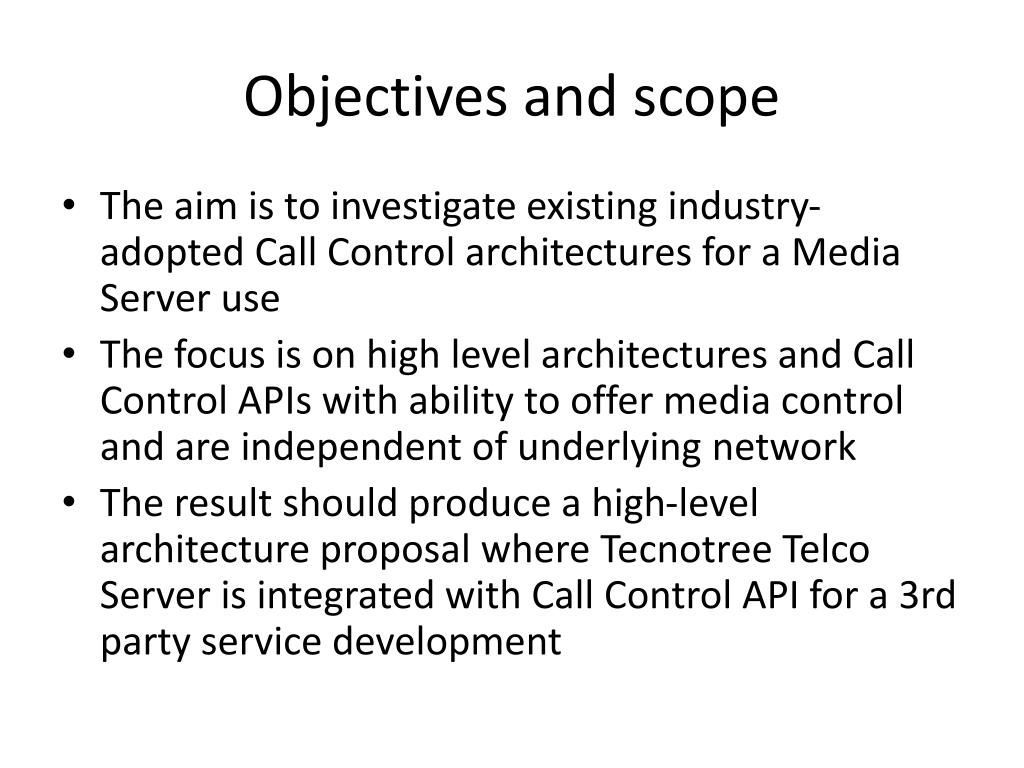

  3. Objectives and scope • The aim is to investigate existing industry-adopted Call Control architectures for a Media Server use • The focus is on high level architectures and Call Control APIs with ability to offer media control and are independent of underlying network • The result should produce a high-level architecture proposal where Tecnotree Telco Server is integrated with Call Control API for a 3rd party service development

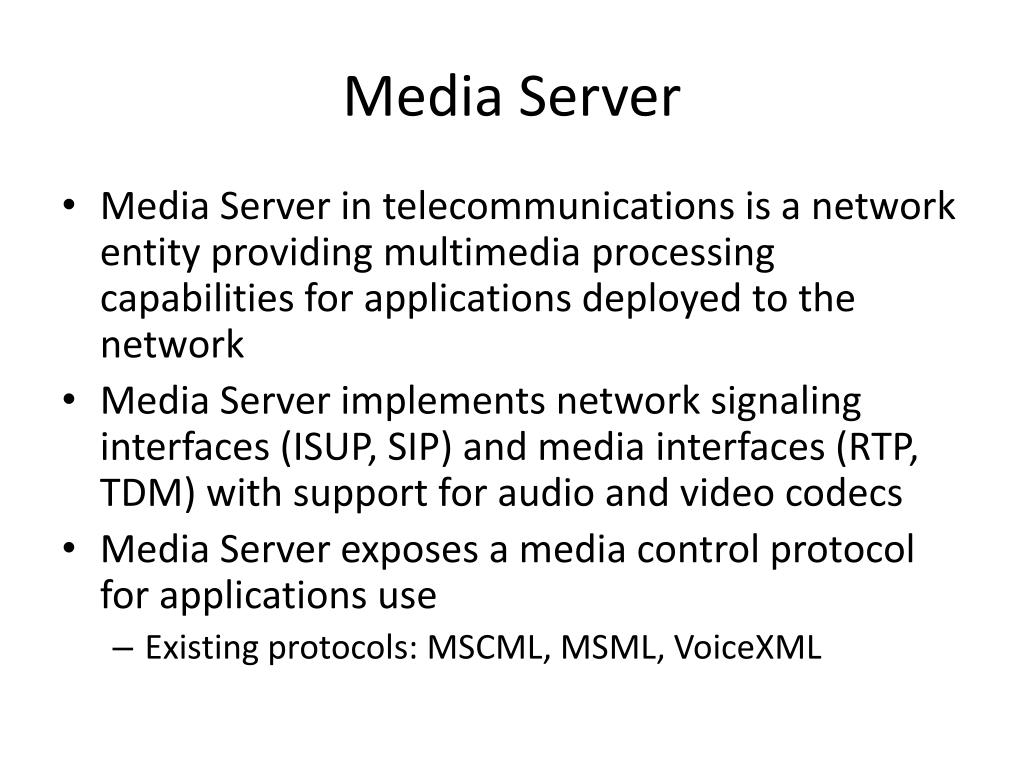

  4. Media Server • Media Server in telecommunications is a network entity providing multimedia processing capabilities for applications deployed to the network • Media Server implements network signaling interfaces (ISUP, SIP) and media interfaces (RTP, TDM) with support for audio and video codecs • Media Server exposes a media control protocol for applications use • Existing protocols: MSCML, MSML, VoiceXML

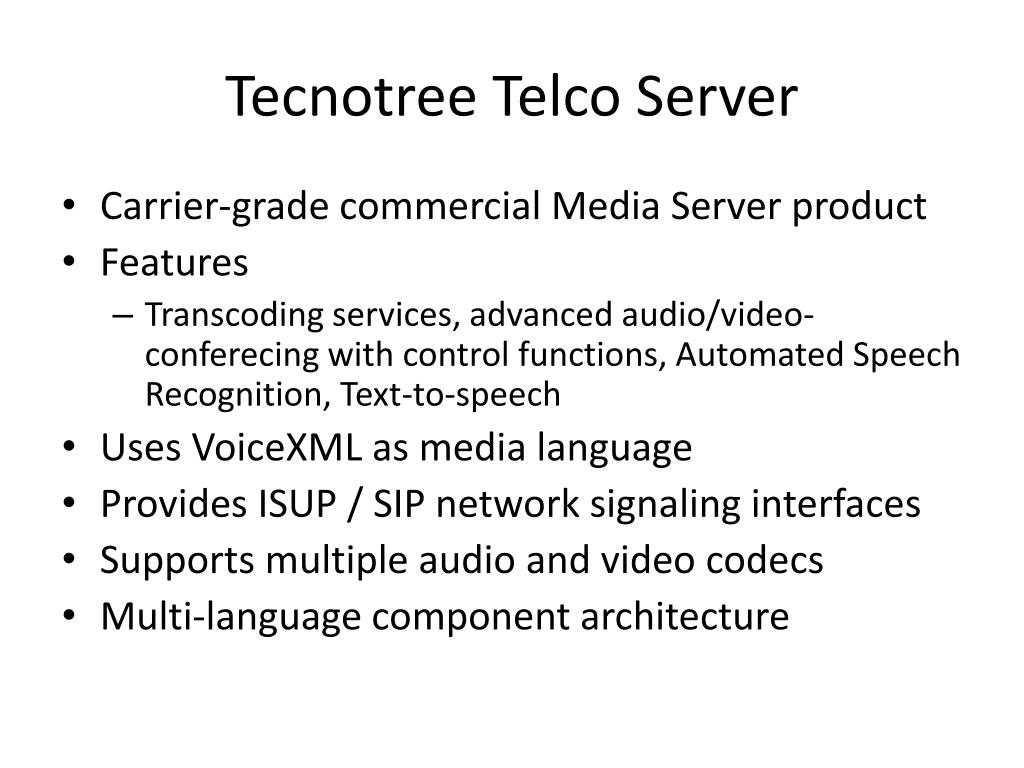

  5. Tecnotree Telco Server • Carrier-grade commercial Media Server product • Features • Transcoding services, advanced audio/video-conferecing with control functions, Automated Speech Recognition, Text-to-speech • Uses VoiceXML as media language • Provides ISUP / SIP network signaling interfaces • Supports multiple audio and video codecs • Multi-language component architecture

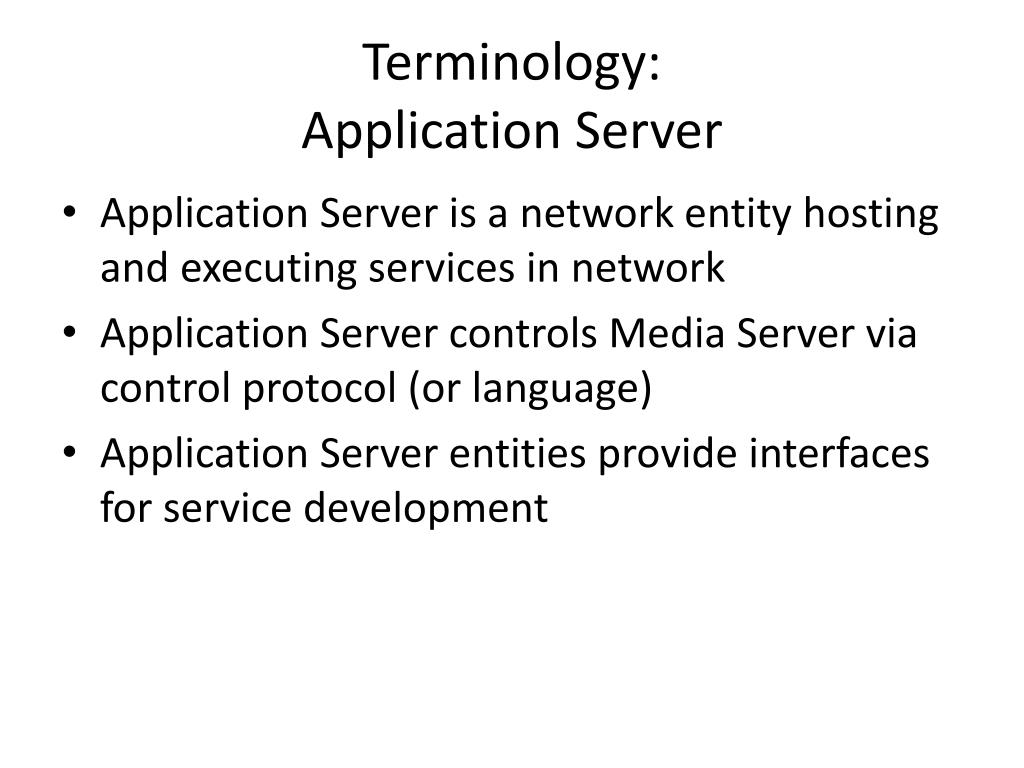

  6. Terminology:Application Server • Application Server is a network entity hosting and executing services in network • Application Server controls Media Server via control protocol (or language) • Application Server entities provide interfaces for service development

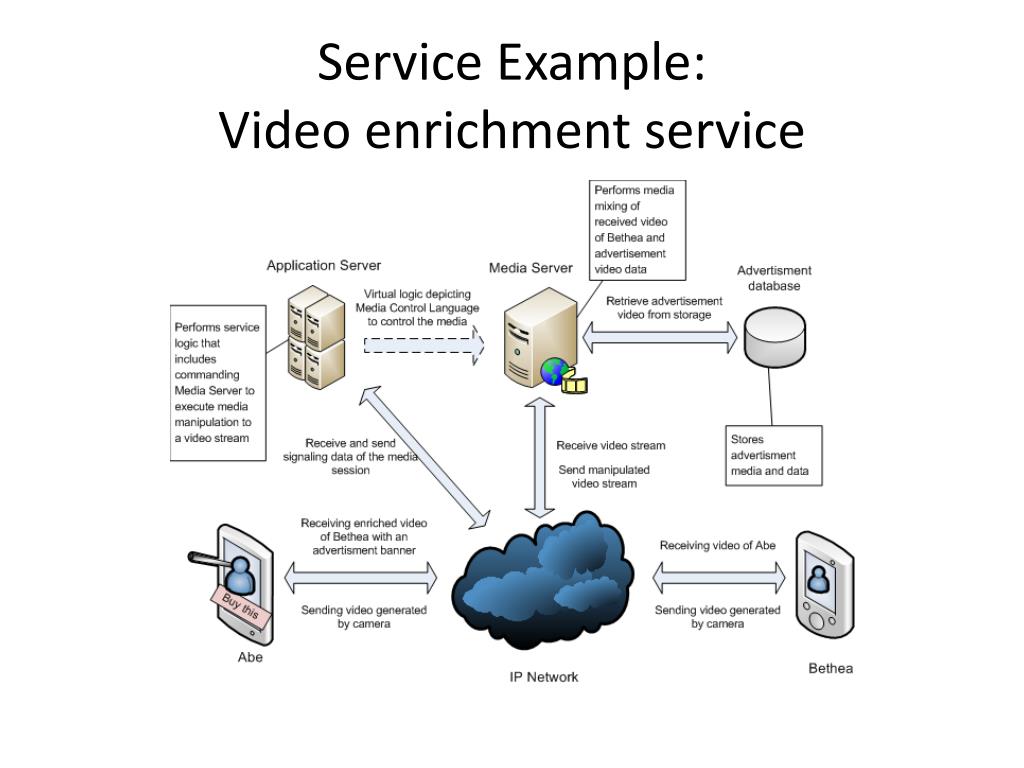

  7. Service Example:Video enrichment service

  8. Why Call Control APIs? • Traditionally services have been developed on top of user level signaling protocols • Protocol messages are mapped to functions in protocol stack implementation • APIs hide the complexity of the underlying network from the developer of the service • Application developers should be software engineers and not network engineers • Infrastructure for rapid development of services required by next generation networks • Developers use ”Call” objects modelling a real life call instead of encoded call initiation request

  9. Java Architecture for Integrated Networks (JAIN) • Originally JAIN aimed to integrate IP networks and Intelligent Network (IN) architecture • Current de facto Java architecture for providing telephony applications • JAIN protocol suite offers an API for several telephony protocols and concepts • JAIN SIP, JAIN SDP, JAIN ENUM, JAIN INAP • Strong developer community and object-oriented nature ease the service development

  10. JAIN • Java Call Control (JCC) API provides means for call control • Event / Listener design model for asynchronous events from network mapped to Call objects • JAIN Service Logic Execution Environment (SLEE) is a high-level application development environment for JAIN • Network signaling interfaces are modeled as Resource Adapters (RA) • Strong media integration with Media Server Control API (JSR 309)

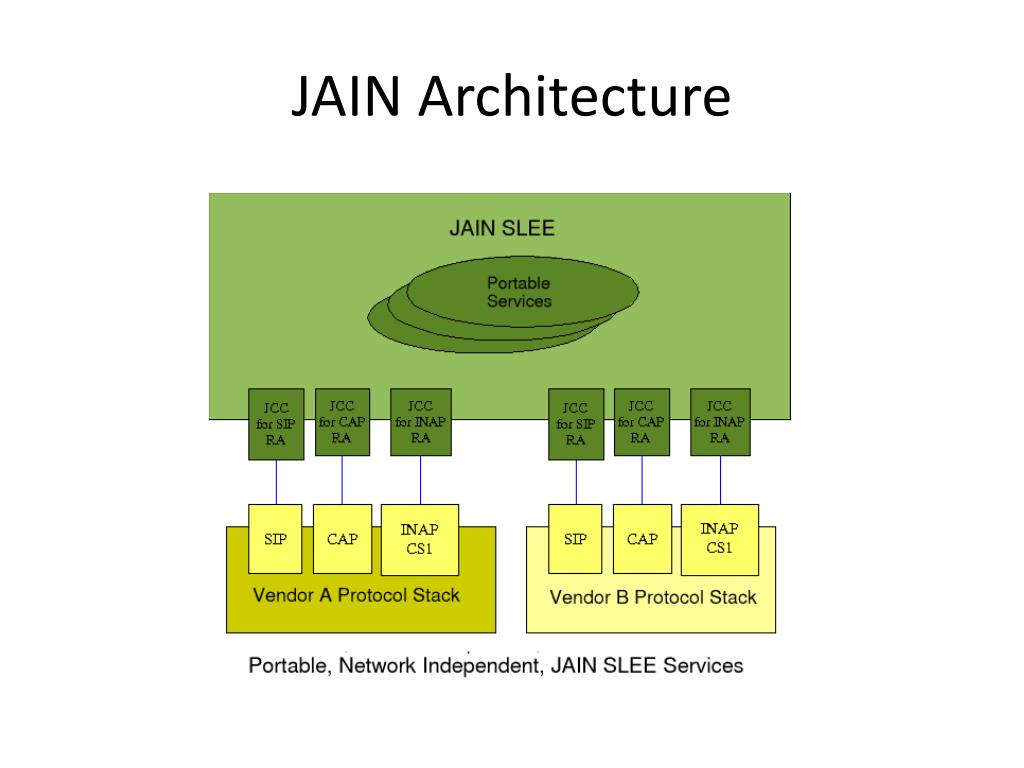

  11. JAIN Architecture

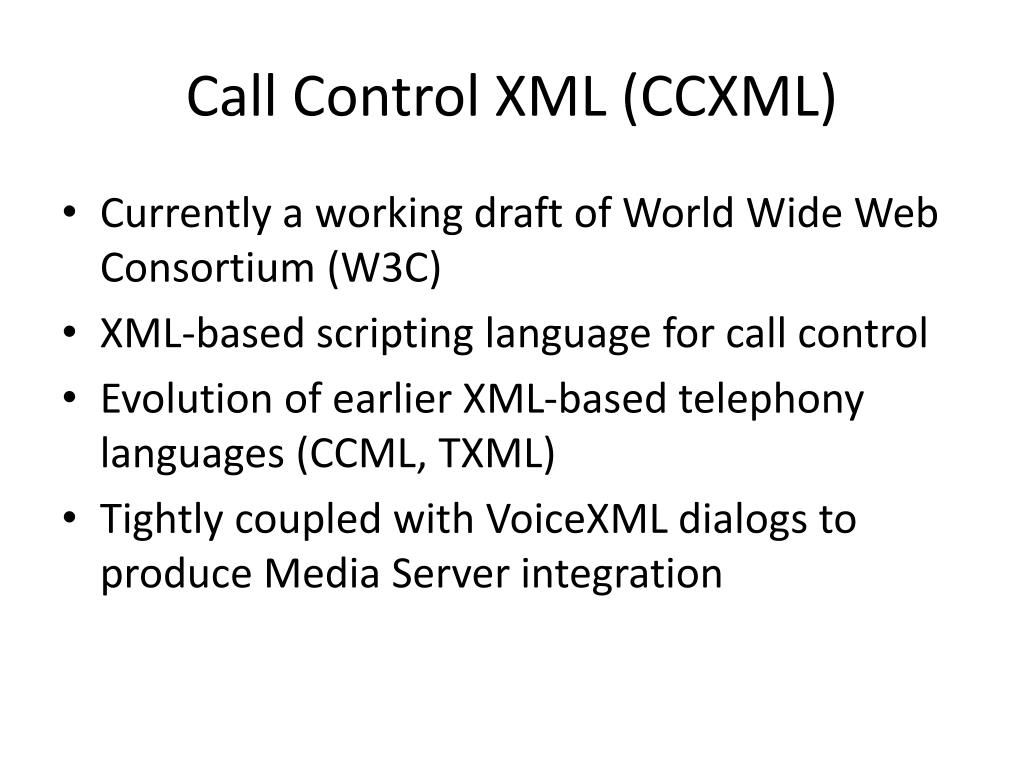

  12. Call Control XML (CCXML) • Currently a working draft of World Wide Web Consortium (W3C) • XML-based scripting language for call control • Evolution of earlier XML-based telephony languages (CCML, TXML) • Tightly coupled with VoiceXML dialogs to produce Media Server integration

  13. CCXML • CCXML-scripts can be dynamically loaded by CCXML-browser in runtime analogously to HTML documents in WWW • Flexibility to provide personalized call control • Finite state machine design • Network events -> State Transitions -> Actions • A single CCXML script models state machine of the service • Inlined ECMAScript provides basic computational semantics to CCXML

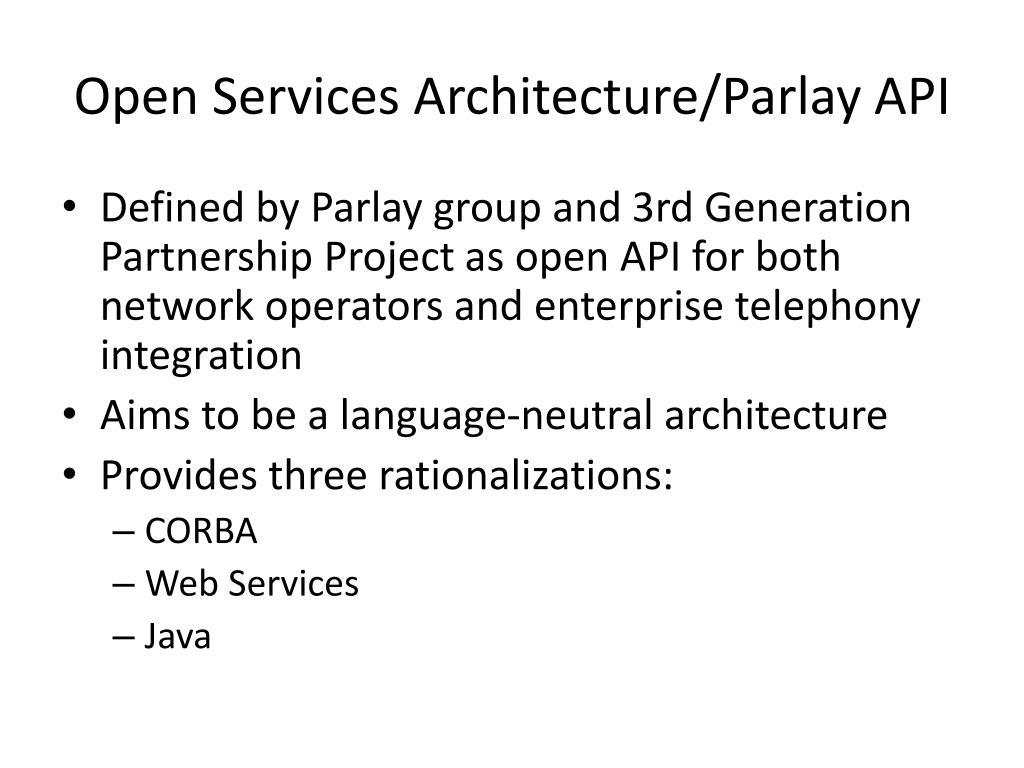

  14. Open Services Architecture/Parlay API • Defined by Parlay group and 3rd Generation Partnership Project as open API for both network operators and enterprise telephony integration • Aims to be a language-neutral architecture • Provides three rationalizations: • CORBA • Web Services • Java

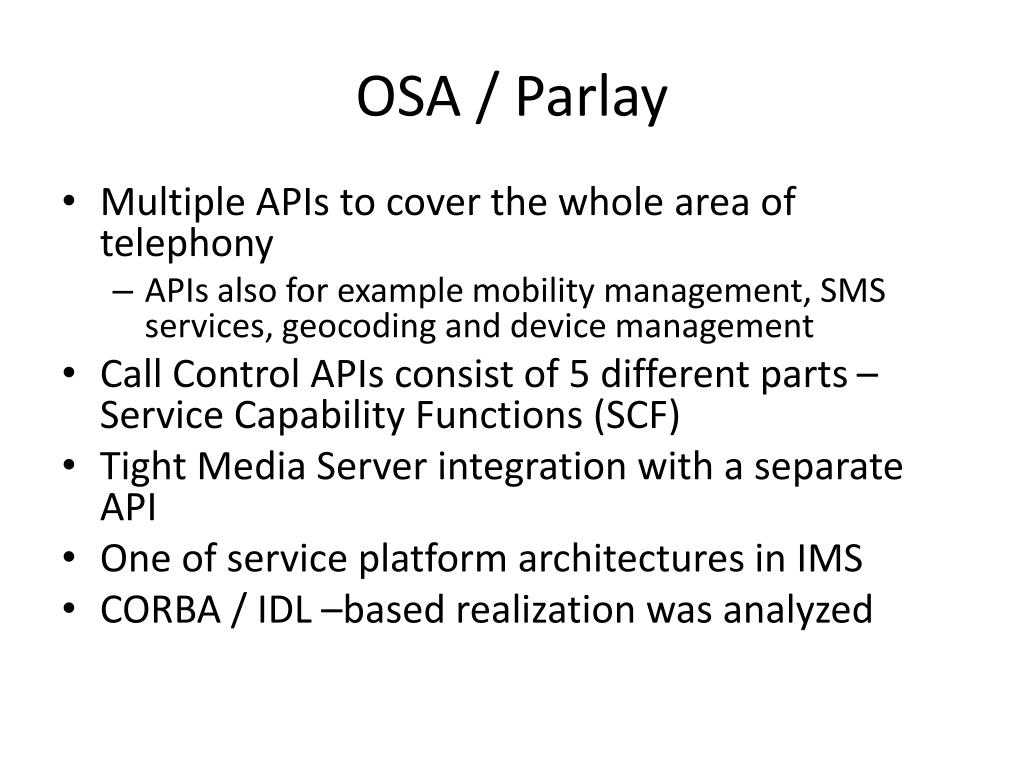

  15. OSA / Parlay • Multiple APIs to cover the whole area of telephony • APIs also for example mobility management, SMS services, geocoding and device management • Call Control APIs consist of 5 different parts – Service Capability Functions (SCF) • Tight Media Server integration with a separate API • One of service platform architectures in IMS • CORBA / IDL –based realization was analyzed

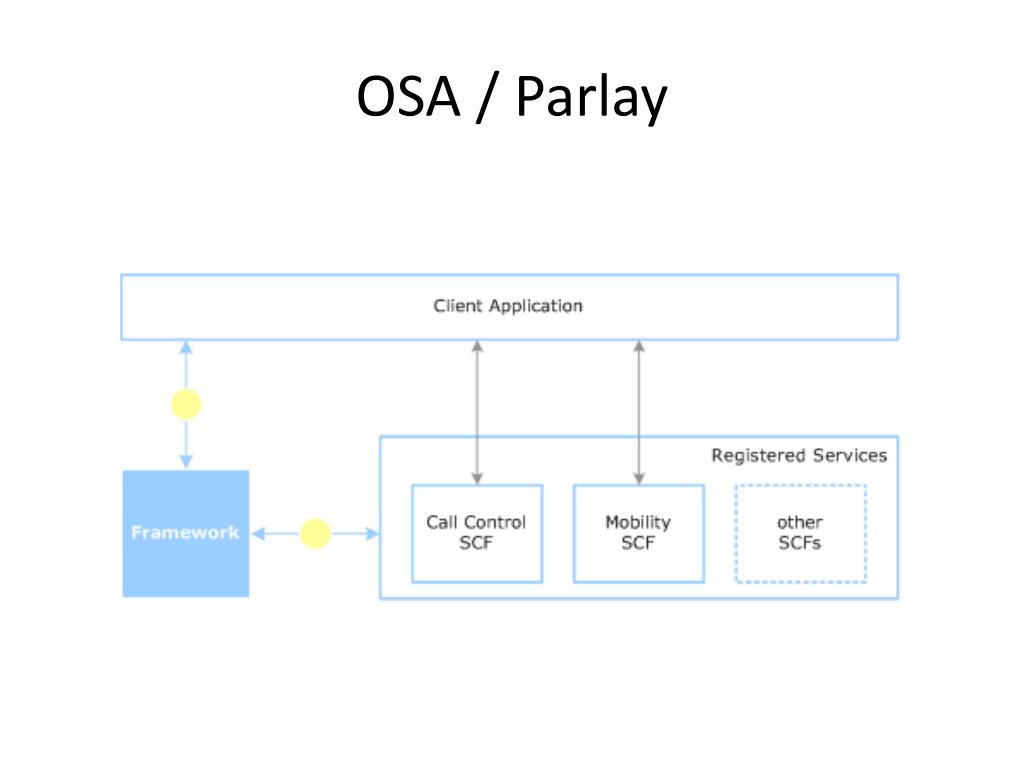

  16. OSA / Parlay

  17. Evaluation • Architecture / API evaluation aspects: • Capabilities • Level of Abstraction • Extensibility • Scalability • Security • Industry-adoptedness • Adaptability • Programmability

  18. Evaluation • Table of high-level evaluation results:

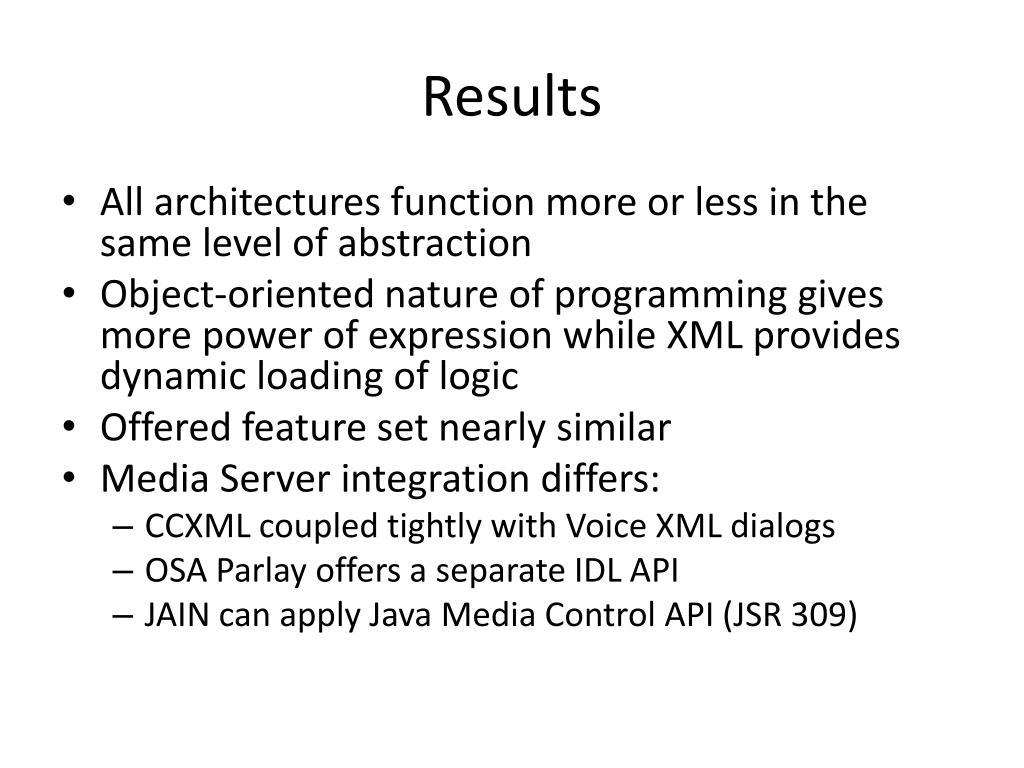

  19. Results • All architectures function more or less in the same level of abstraction • Object-oriented nature of programming gives more power of expression while XML provides dynamic loading of logic • Offered feature set nearly similar • Media Server integration differs: • CCXML coupled tightly with Voice XML dialogs • OSA Parlay offers a separate IDL API • JAIN can apply Java Media Control API (JSR 309)

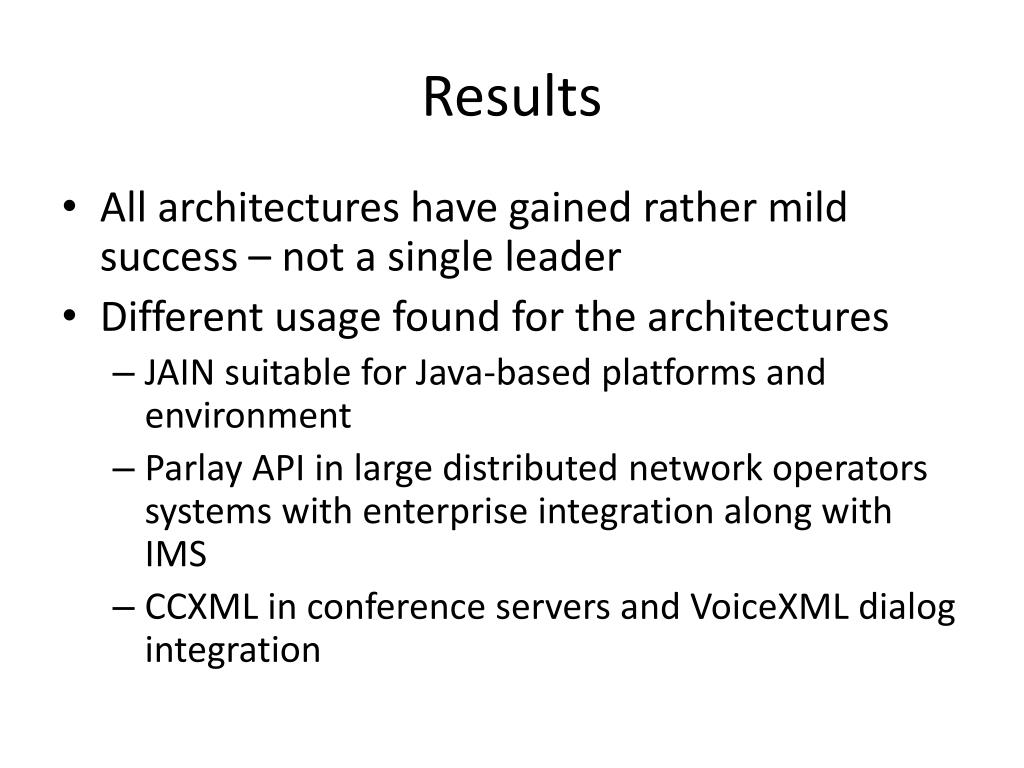

  20. Results • All architectures have gained rather mild success – not a single leader • Different usage found for the architectures • JAIN suitable for Java-based platforms and environment • Parlay API in large distributed network operators systems with enterprise integration along with IMS • CCXML in conference servers and VoiceXML dialog integration

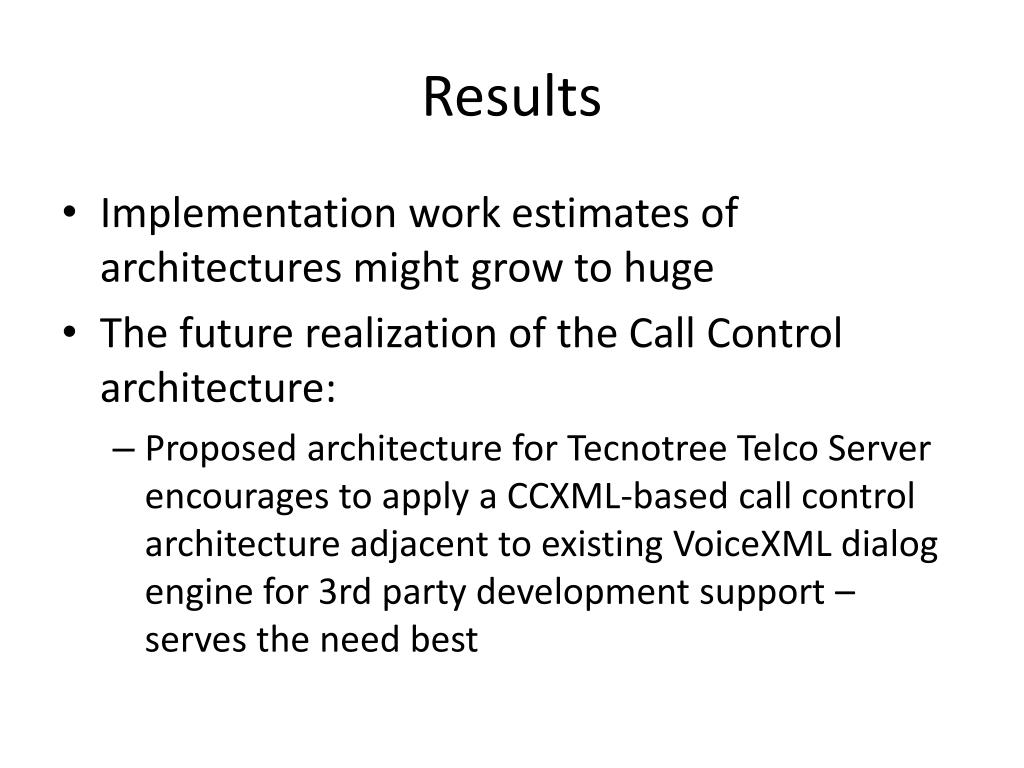

  21. Results • Implementation work estimates of architectures might grow to huge • The future realization of the Call Control architecture: • Proposed architecture for Tecnotree Telco Server encourages to apply a CCXML-based call control architecture adjacent to existing VoiceXML dialog engine for 3rd party development support – serves the need best

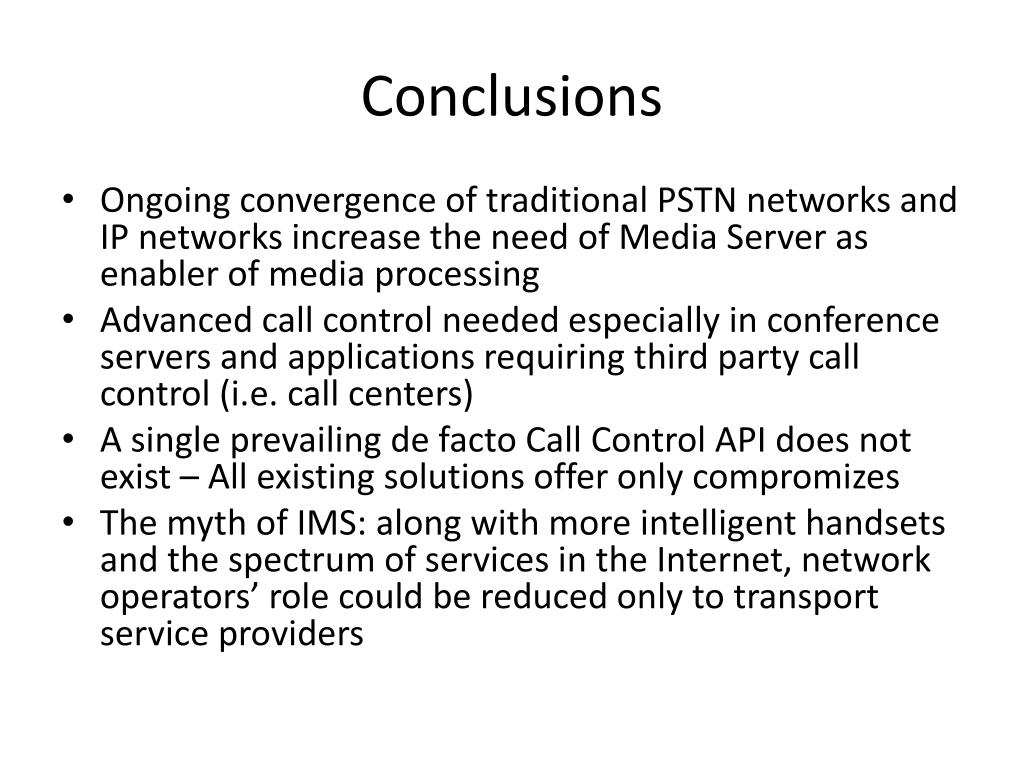

  22. Conclusions • Ongoing convergence of traditional PSTN networks and IP networks increase the need of Media Server as enabler of media processing • Advanced call control needed especially in conference servers and applications requiring third party call control (i.e. call centers) • A single prevailing de facto Call Control API does not exist – All existing solutions offer only compromizes • The myth of IMS: along with more intelligent handsets and the spectrum of services in the Internet, network operators’ role could be reduced only to transport service providers

  23. Questions?
