1. National Institute of Building Sciences National Building Information Model Standard Industry Foundation Classes Information Delivery Manuals and International Framework for Dictionaries Based on and supporting Overview National BIM Standard NIBS National BIM Standard Project Committee November 2006 This presentation is a collaborative product of the NIBS NBIMS Project Committee.

2. Why NBIMS? Having standardized information for a facility: • Defines facility information exchanges and resulting BIM data • Organizes facility life-cycle information • Provides basis for longevity to the information

3. Agenda • The NBIMS Initiative • Organization • Participation • Method of working • What is a National BIM Standard? • Goal scenario - What does an NBIMS look like and how will NBIMS function • How will NBIMS be developed? • What is happening now?

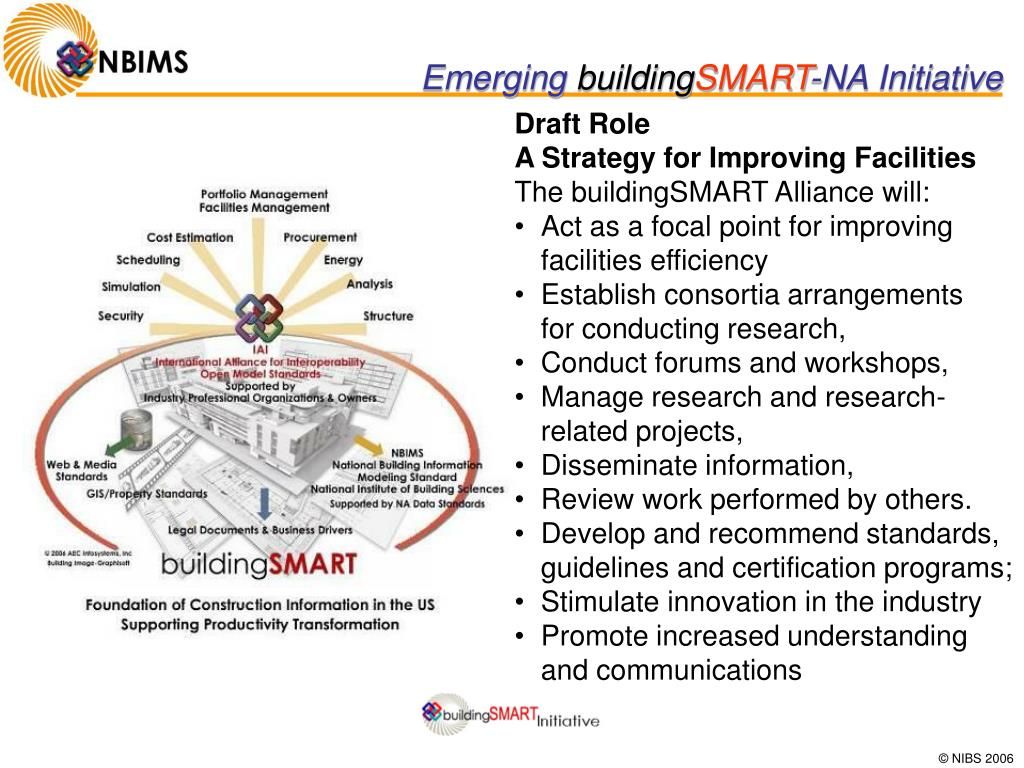

4. EmergingbuildingSMART-NAInitiative • Draft Role • A Strategy for Improving Facilities • The buildingSMART Alliance will: • Act as a focal point for improving facilities efficiency • Establish consortia arrangements for conducting research, • Conduct forums and workshops, • Manage research and research-related projects, • Disseminate information, • Review work performed by others. • Develop and recommend standards, guidelines and certification programs; • Stimulate innovation in the industry • Promote increased understanding and communications

5. NBIMS Organization Chart NIBS Board of Directors Facility Information Council NBIMS Project Executive Committee Fundraising Task Team Scoping Task Team Development Task Team Testing Task Team Model View Task Team Communications Task Team Business Process Integration Task Team Consensus Committee NBIMS Community of Interest

6. AEC Infosystems Groups Supporting NBIMS OmniClasstm

7. Community of interest Membership on the listserv and participation in BIM related discussions Consensus Committee A cross-sectional subset of the Community of Interest that will actually participate in the voting on the standard. Task Teams Open membership for those who want to be involved in the drafting of the standard which will go to the Consensus Committee NBIMS Executive Committee Management and oversight of the entire project committee effort with cross sectional representation Facility Information Council The NIBS Council under which the NBIMS and NCS efforts operate. They determine what other projects may be necessary in the future NBIMS Levels of involvement

8. Committees and Charters BIM Standards Requires an Integrated, Multi-Disciplinary Focus • Executive Committee – Deke Smith, Chairman NBIMS • Provides oversight, direction, and guidance on all aspects of the NBIMS initiative • Scoping Committee – Dianne Davis, Committee Chair • BIM/IDM Implementation “Roadmap” and North American Standards Mapping • Model View Team – Richard See, Committee Chair • Supports rapid deployment of IDM and IE schemas into IAI/IFC model • Development Team – Bill East, Committee Chair • Supports creation of IFC based Information Delivery Manuals • Testing Team – Patrick Suermann, P.E., Committee Chair • Support the testing of commercial-off-the-shelf (COTS) and “best practices” • Business Integration & Legal – David Jordani, Committee Chair • Focus on “Building Lifecycle” legal and business documentation • Communications – Allan Edgar, Committee Chair • Supports the distribution of information about the NBIMS activity

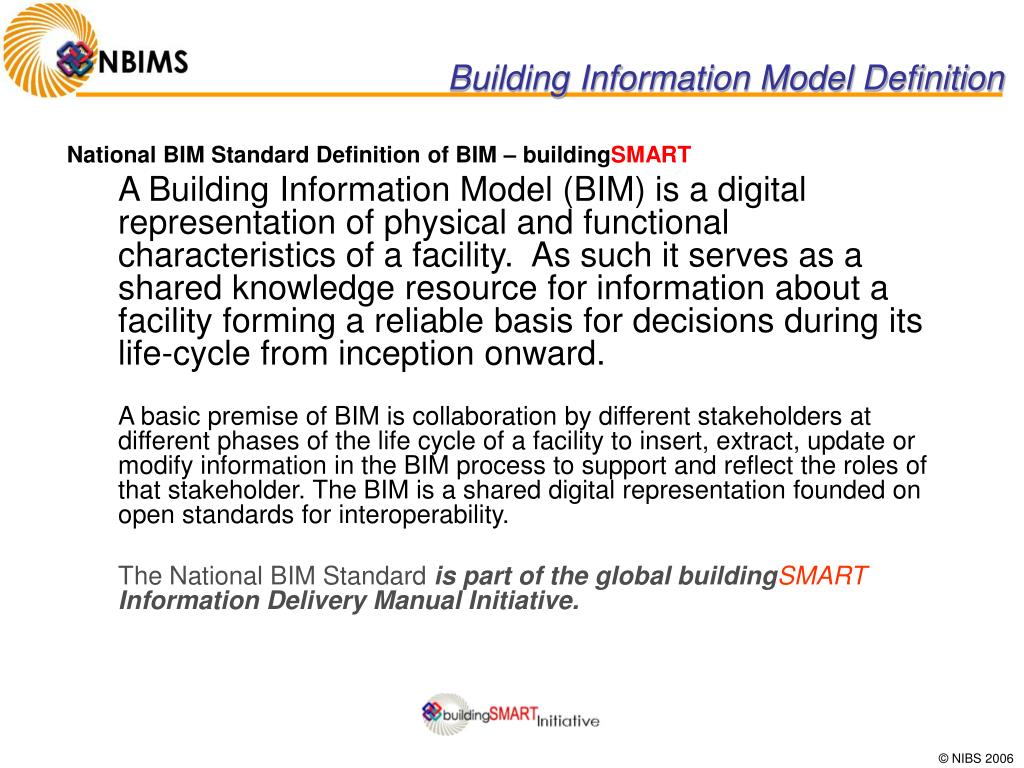

9. Building Information Model Definition National BIM Standard Definition of BIM – buildingSMART A Building Information Model (BIM) is a digital representation of physical and functional characteristics of a facility.  As such it serves as a shared knowledge resource for information about a facility forming a reliable basis for decisions during its life-cycle from inception onward. A basic premise of BIM is collaboration by different stakeholders at different phases of the life cycle of a facility to insert, extract, update or modify information in the BIM process to support and reflect the roles of that stakeholder. The BIM is a shared digital representation founded on open standards for interoperability. The National BIM Standard is part of the global buildingSMART Information Delivery Manual Initiative.

10. NBIMS Goals • Define expansive scope of BIM • Everyone starting from different points of view • Breaking down stovepipes • Developing awareness and appreciation of life-cycle approach • Define first and subsequent versions of the Standard • Can’t boil the ocean • Need to know when and what information will be available • Need to identify authoritative sources and ensure accuracy

11. Products of NBIMS Version 1.0 • Appreciation for the potential scope of BIM • Break out of the stovepipes • Help reduce some of the industry fragmentation • Provides a compendium of tools available to the BIM user • Help ensure that one adopts practices that are accepted throughout the industry • An absolute critical aspect of communicating information • Identifies areas for necessary improvement • Will identify where resources are required in order to take full advantage of BIM • Provide a format for developing information exchanges • Work will be required to identify the various use cases • With a standard format and approach training can be developed and specific projects created to capture the required information • Will provide a vision and strategic plan for the National Standard

12. Content of NBIMS - Version 1.0 Version 1.0 will be a starting point and will potentially identify as many problems as it will solutions Transforming an industry will not be a quick fix but require dedication to long term goals

13. Developing the BIM Value-Chain IDM Information Value-Chain Planning Workflow Processes for an Integrated Team IDM – Part of the NBIMS IDM’s provide inform software companies of the processes to support Architecture Engineering BIM Applications Analysis Provider Requestor BIM applications Incorporating NA Data Standards Including OMNI-Class, Uniformat, International Building Code Estimating Construction IFC Facilities Management IFC’s are the machine interpretable exchange mechanism supporting IFC interoperable applications

14. Planned Products For Each Exchange Standard • The NBIM Standard is a collection of standards published as human-readable documents containing guidance for users and for application developers: • A non-technical description of the standard & its intended use. • A diagram illustrating the process the standard addresses. • A technical description for application developers to use. • Contract language for incorporating the exchange requirement into building process agreements. • Results of test-bed activities including participants, results and any issues. • Instructions & other change management materials. • Statements as to the maturity of the Standard and any plans for additional development.

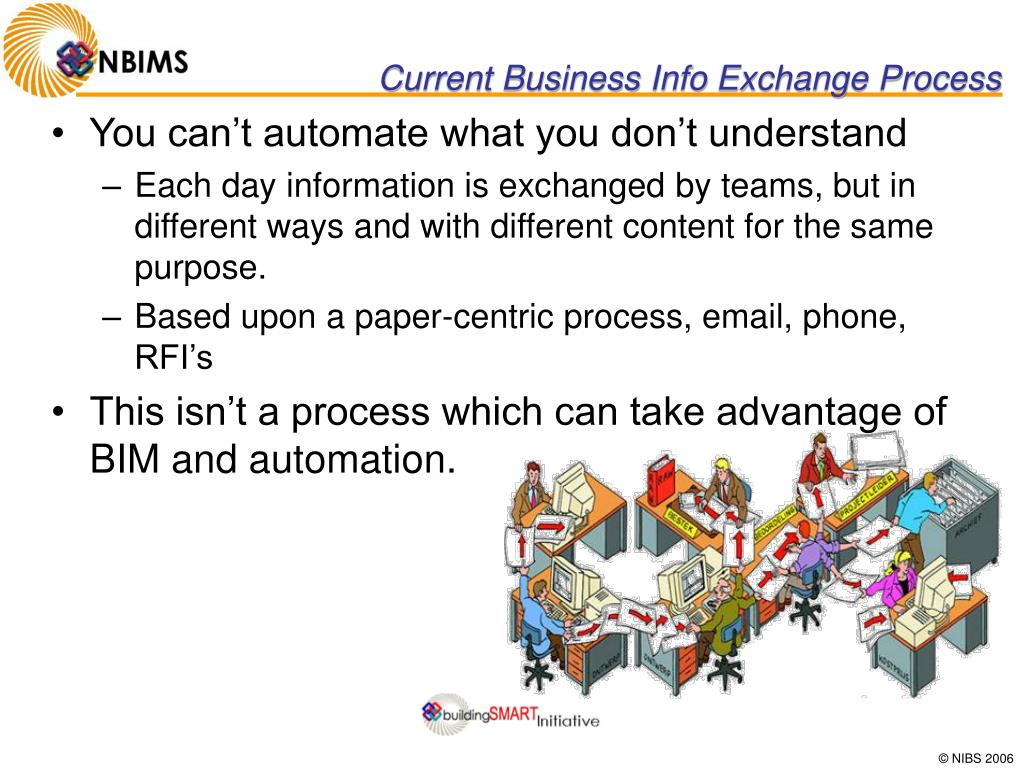

15. Current Business Info Exchange Process • You can’t automate what you don’t understand • Each day information is exchanged by teams, but in different ways and with different content for the same purpose. • Based upon a paper-centric process, email, phone, RFI’s • This isn’t a process which can take advantage of BIM and automation.

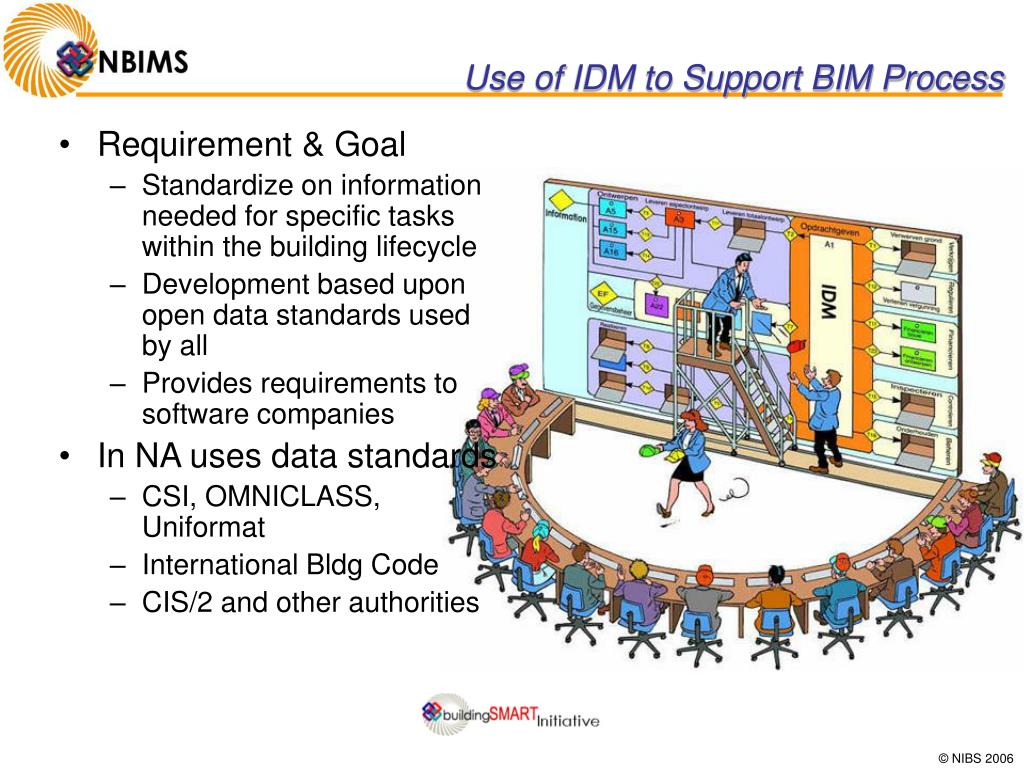

16. Use of IDM to Support BIM Process • Requirement & Goal • Standardize on information needed for specific tasks within the building lifecycle • Development based upon open data standards used by all • Provides requirements to software companies • In NA uses data standards • CSI, OMNICLASS, Uniformat • International Bldg Code • CIS/2 and other authorities

17. Information Exchange Requirement The information exchange requirements are part of the Information Delivery Manual (IDM)

18. Process • Who? Table 14 - Spaces by Form (Room, courtyard, city block) • When? Table 31 – Phases (Conception, design, occupancy) • Why? Table 32 – Services (Designing, constructing, inspecting) • To Whom? Table 33, 34 – Disciplines, Organizational roles (General Construction, cost estimator) • Interoperability • IFC/IFD Mapping – for machine to machine exchanges • Content (What) • Table 14 - Spaces by Form • Table 21 – Elements (walls, HVAC distr., furniture • Table 23 – Products (conc., paint, partitions. • Table 41 – Materials (rock, plastic, glass) • Table 49 - Properties (color, width, fire resistance) +300 more Information Exchange Requirement OmniClasstm

19. Products using IFC’s Slide information from: International Alliance for Interoperability

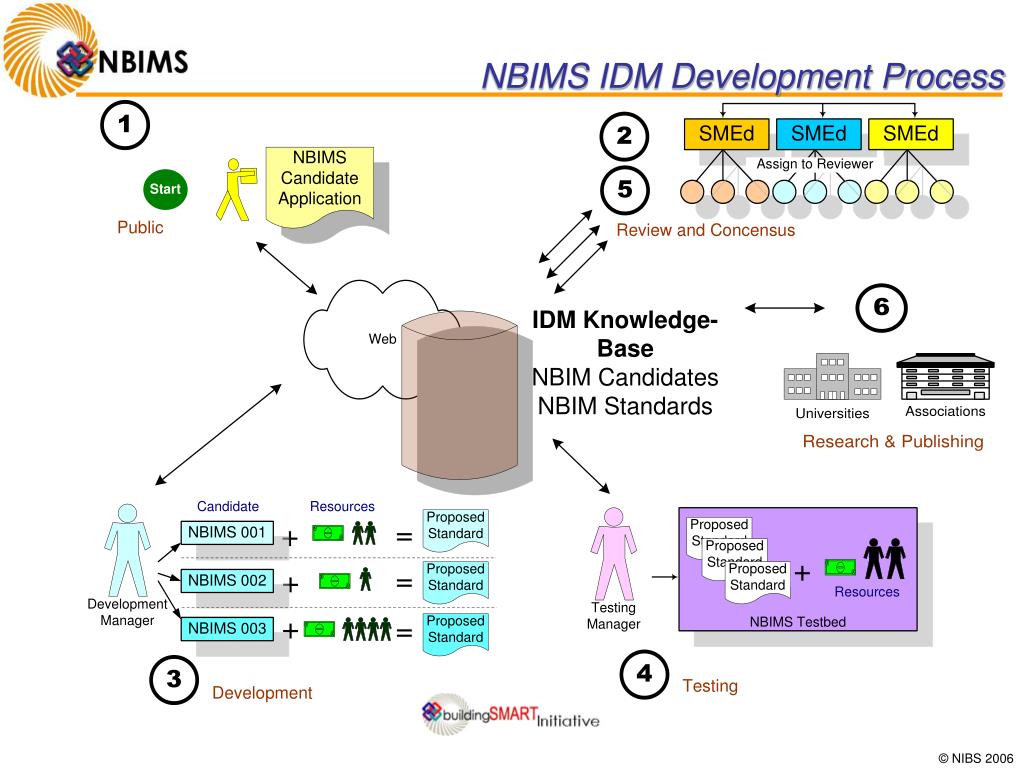

20. NBIMS IDM Development Process

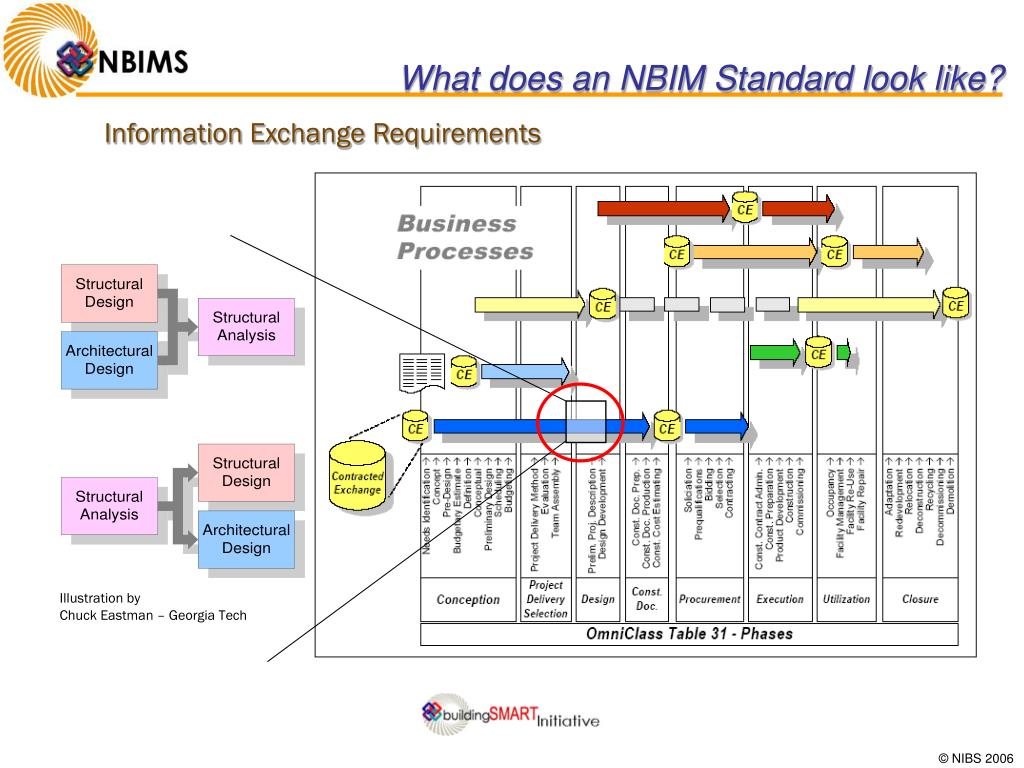

21. Illustration by Chuck Eastman – Georgia Tech What does an NBIM Standard look like? Information Exchange Requirements

22. In a CAD system In a briefing document BARBi - Norway LexiCon - Nederland NBS - England SDC - France NBIMS – North America Properties Properties Properties Properties Properties Properties Properties In a calculation system In product catalogues Properties Properties In a Facility management system In classification systems Properties Properties For demolition and reconstruction In building specifications Properties Properties IFC/IFD - One object exists in multiple contexts One concept carries the same unique identification in every language 78AF4E98C8D4406B873DBB85E1FE7DB Courtesy of Lars Bjørkhaug, Norwegian Building Research Institute

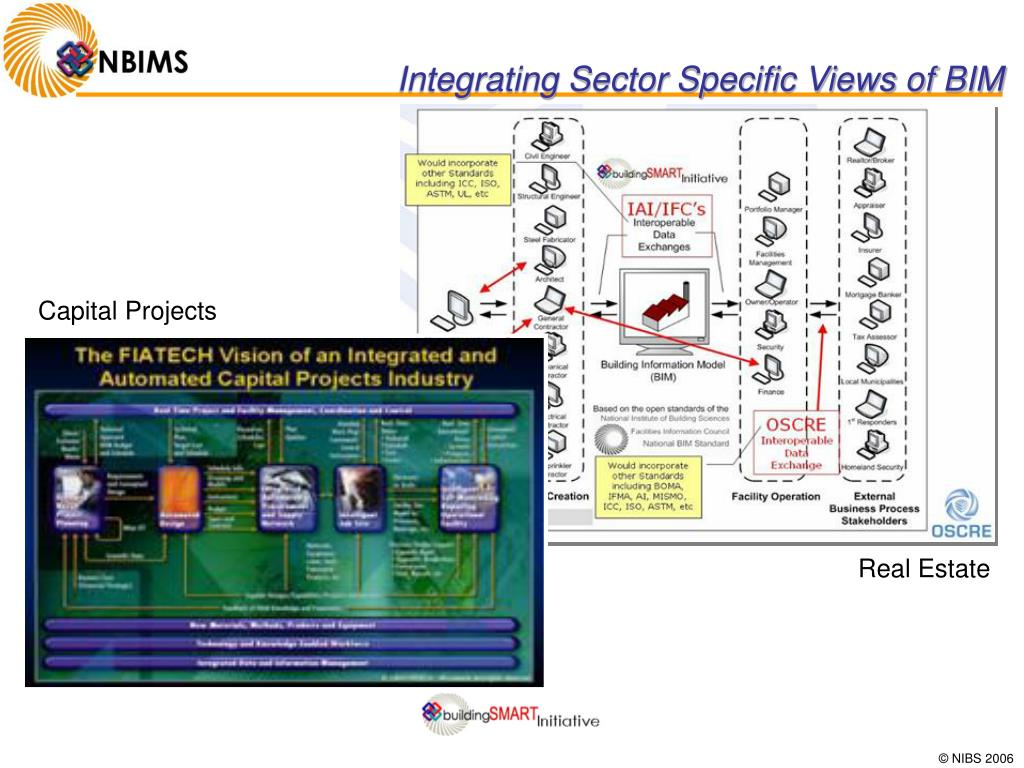

23. Integrating Sector Specific Views of BIM Capital Projects Real Estate

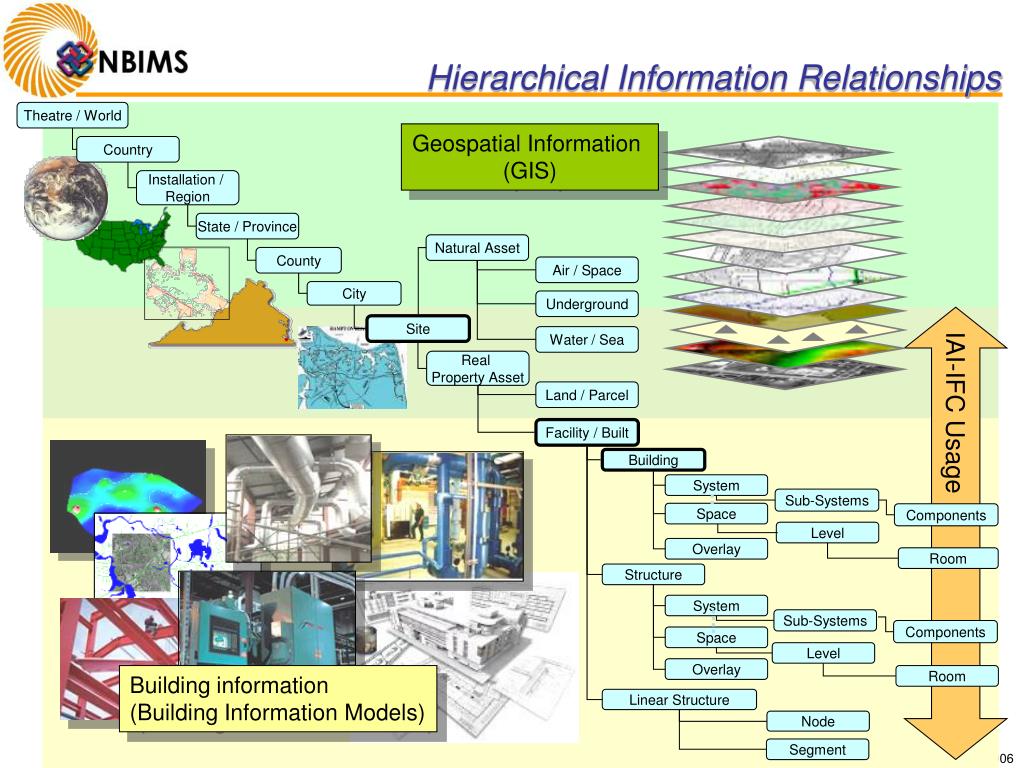

24. Theatre / World Geospatial Information (GIS) Country Installation / Region State / Province Natural Asset County Air / Space City Underground IAI-IFC Usage Site Water / Sea Real Property Asset Land / Parcel Facility / Built Building System Sub-Systems Space Components Level Overlay Room Structure System Sub-Systems Components Space Level Overlay Building information (Building Information Models) Room Linear Structure Node Segment Hierarchical Information Relationships

25. Hierarchical Building Information Relationships Systemsrepresent the physical entities of the building. Systems use NA classifications such as Omni-Class and Uniformat and are transported/exchanged via IFCs Attributes BUILDING Or Structure Metrics IFC objects, relationships, space SYSTEMS –Ex. Structural, MEP, Flooring, Ceiling, Exterior, Walls Spaceis physical in nature, but can be unbounded (have no or cross physical boundaries) but it will always be tied to the physical structure or systems in some way Attributes Attributes Metrics Sub-Systems (part of systems) Metrics Components Overlaysare more abstract data - organizational, operational, functional, financial, non-fixed assets, resources, personnel, etc. that is data tied to the Systems and Space SPACE-Vertical Horizontal, Empty Example SUI,CI Metrics Level (Stories) Room Attributes Standards Void Metrics Vertical Reports or Extracted Data from BIM (examples from all classifications) Attributes Area Gross OVERLAYS – Typically associated with building hierarchy elements. Example Furniture Equipment Phone Net Example Rentable Space Circulation Area Volume Financial Classifications Assets Usable Surface Example Space Assignment Business Group Sq. Ftg. Example Secure Areas Systems Quantities Personnel Zones Linear Ft. Materials & Types Example Marketing Administration Example FCA,MDI Business Groups Metrics

26. Capability Maturity Model

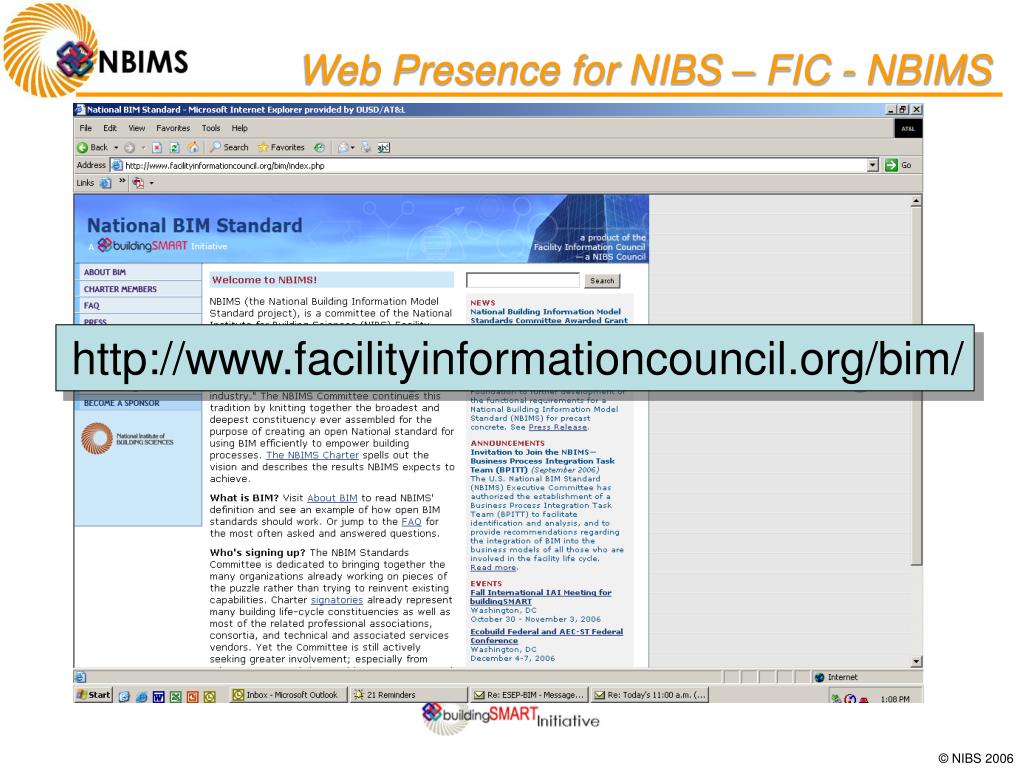

27. Web Presence for NIBS – FIC - NBIMS http://www.facilityinformationcouncil.org/bim/

28. Conclusion • Contact Information • NIBS: Earle Kennett - ekennett@nibs.org • Chairman: Deke Smith - deke@dksic.net • Task Team Chairpersons • Fundraising: Ric Jackson - jackson@fiatech.org • Business Process Integration: Dave Jordani - djordani@jordani.com • Scoping: Dianne Davis - d.davis@aecinfosystems.com • Development: Bill East - Bill.W.East@erdc.usace.army.mil • Models: Richard See - RichSee@digitalalchemypro.com • Testing: Patrick Suermann - suermann@ufl.edu • Communications: Alan Edgar – aredgar@facilitygenetics.com • NBMIS: www.facilityinformationcouncil.org/bim/index.php • Questions Please Thank You
