PA46 Malibu/Mirage Flight Controls

PA46 Malibu/Mirage Flight Controls. Overview. Primary Flight Controls:

nguyet
Télécharger la présentation

PA46 Malibu/Mirage Flight Controls

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PA46 Malibu/MirageFlightControls Overview Primary Flight Controls: Elevator, Rudder and Ailerons are conventional, utilizing dual control wheels and foot pedals that are manually activated and mechanically actuated through a series of levers, cables, pulleys, push/pull rods and bellcranks to provide pitch, roll and yaw control. Note: Rudder/Aileron are interconnected through a spring system which activates only when these controls are out of harmony. Secondary Flight Controls: Flaps: Electrically activated, mechanically actuated through jack screw, torque tube, push/pull rods and bellcranks. Pitch Trim: Electrically and manually activated, mechanically actuated through cables, pullies and bellcranks controlling a trailing edge trim tab. Yaw Trim: Electrically activated, mechanically actuated

  2. PA46 Malibu/MirageFlightControls Rudder

  3. PA46 Malibu/MirageFlightControls Rudder Trim Trim Tab Electrically Operated Mechanically Activated

  4. PA46 Malibu/MirageFlightControls Aileron Controls

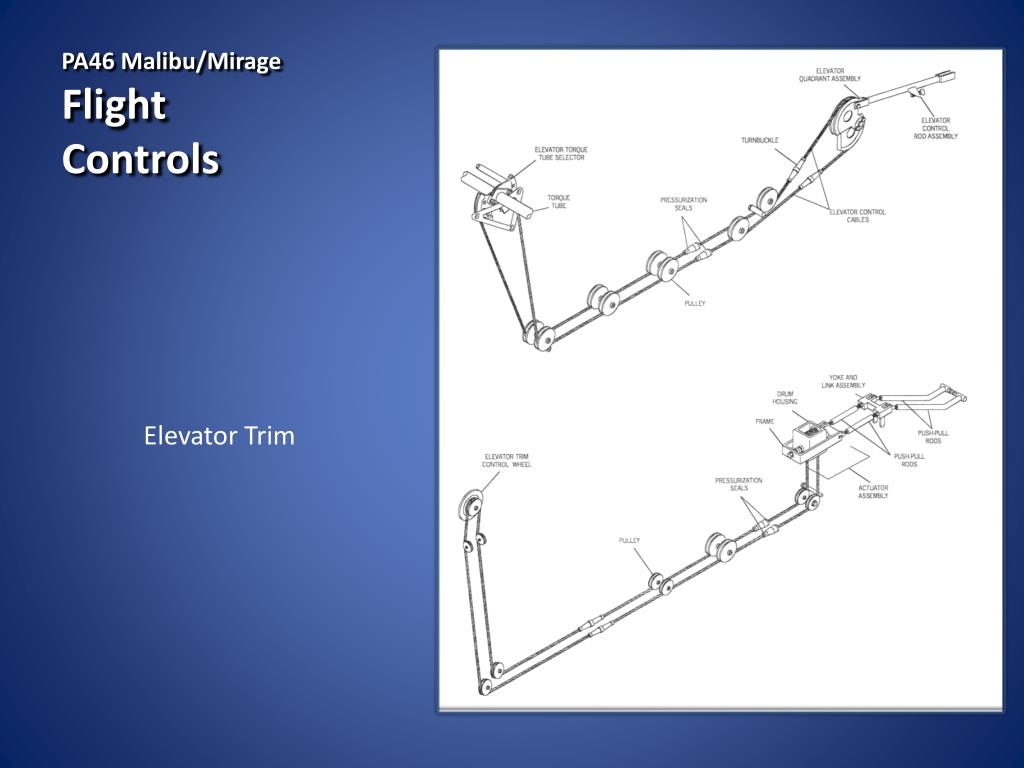

  5. PA46 Malibu/MirageFlightControls Elevator & Elevator Trim

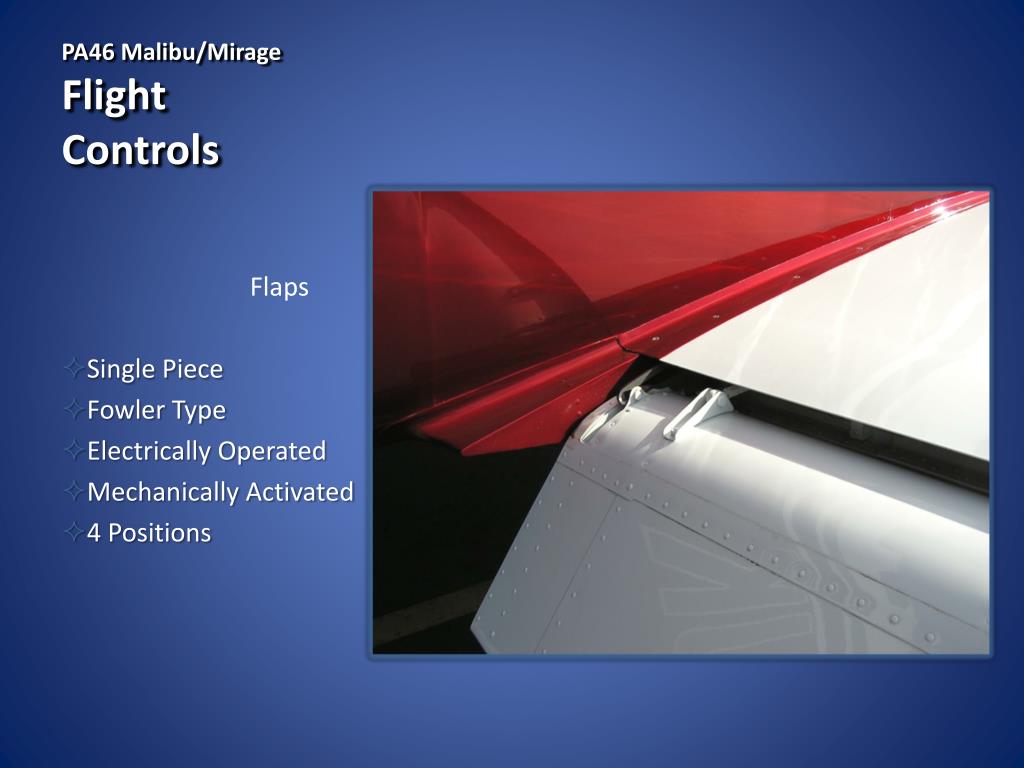

  6. PA46 Malibu/MirageFlightControls Flaps Single Piece Fowler Type Electrically Operated Mechanically Activated 4 Positions

  7. PA46 Malibu/MirageFlightControls FLAP DRIVE ASSEMBLY 28 volt flap motor Jackscrews Push/pull rods Bellcranks linkages Feedback Linkage 4 Position Detents Zero 10 degrees 25 degrees full flaps
