Alternative Solution Proposal for Tagging Methods in IEEE 802.11 and 802.1Q

This proposal, presented by Mark Hamilton of Spectralink, addresses challenges encountered in the current tagging methods defined in the IEEE 802.1Q protocol. Ongoing work on P802.1Qbz and P802.11ak has revealed the inadequacies of the existing scheme for managing VLAN tags over LLC media, particularly 802.11. The presentation outlines a simpler alternative solution for consideration by members, drawing from earlier works and emphasizing efficiency in tag translation processes. The goal is to enhance the networking capabilities for improved communication on wireless systems.

nibal
Télécharger la présentation

Alternative Solution Proposal for Tagging Methods in IEEE 802.11 and 802.1Q

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

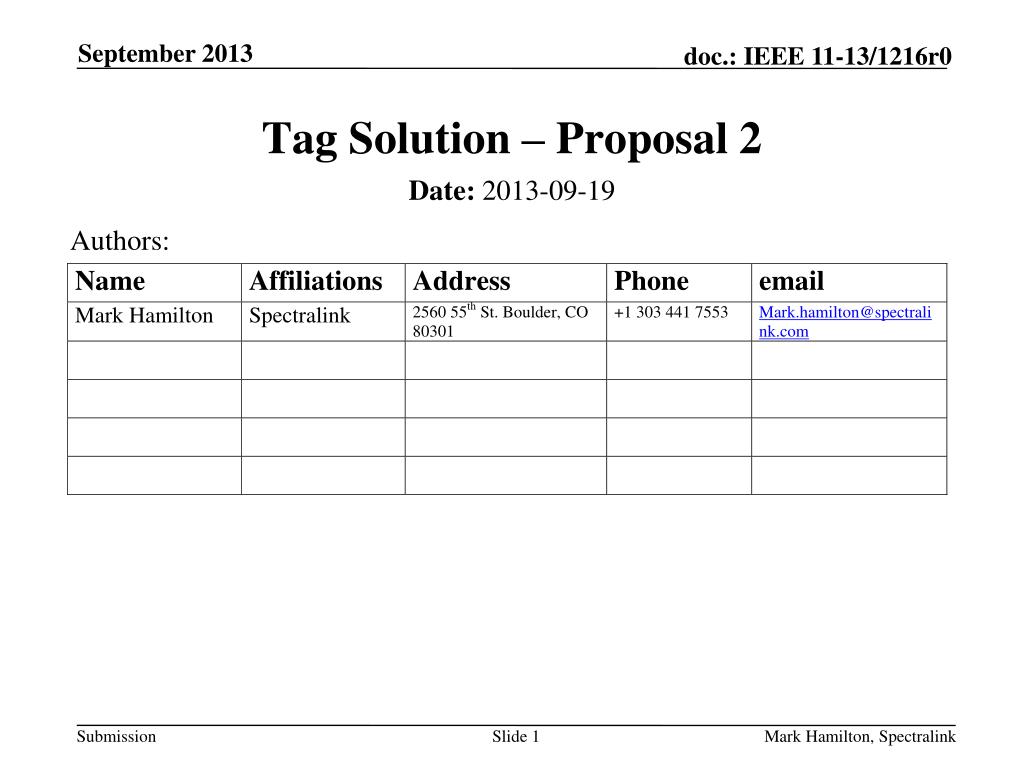

  1. Tag Solution – Proposal 2 Authors: • Date:2013-09-19 Mark Hamilton, Spectralink

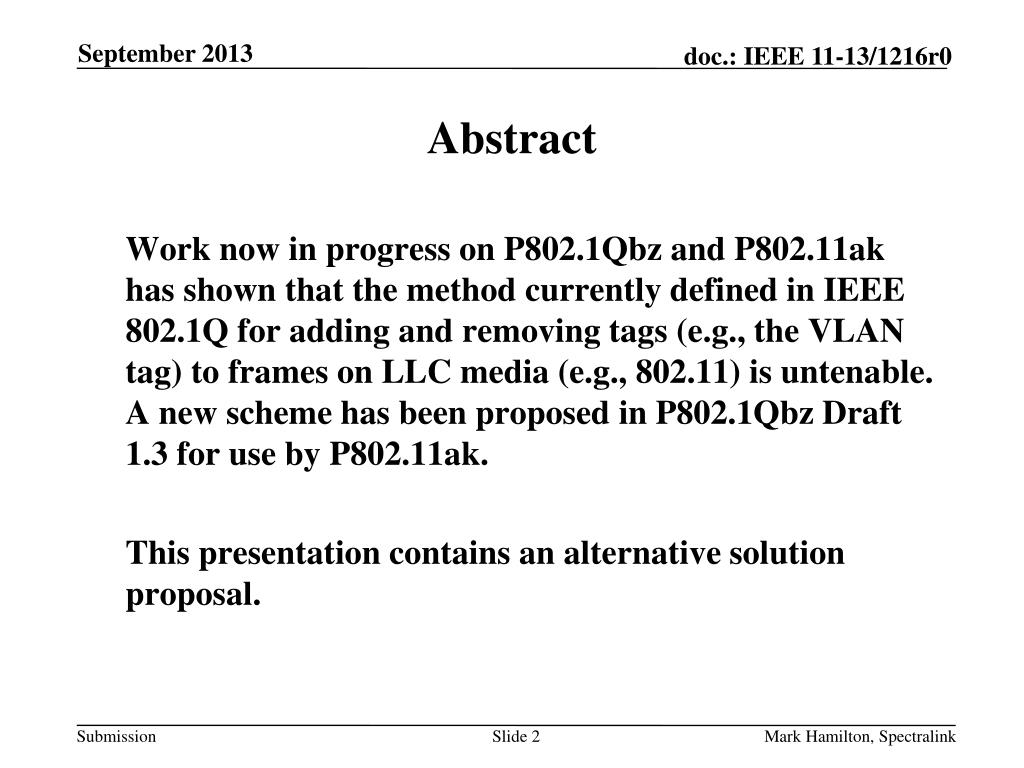

  2. Abstract • Work now in progress on P802.1Qbz and P802.11ak has shown that the method currently defined in IEEE 802.1Q for adding and removing tags (e.g., the VLAN tag) to frames on LLC media (e.g., 802.11) is untenable. A new scheme has been proposed in P802.1Qbz Draft 1.3 for use by P802.11ak. • This presentation contains an alternative solution proposal. Mark Hamilton, Spectralink

  3. References • This presentation is a variation of 11-13/1055, with an alternate (and hopefully much simpler) solution to be considered by members. • A more complete version of this presentation is document 11-13/0952r2. Mark Hamilton, Spectralink

  4. Translate only at “last hop” on 802.11All remaining tags must be translated by B5,but it does that today, and already knows how B1 B2 B3 B4 B5 E1 E2 Length/Type encodingon L/T media LLC encodingon LLC media BA BA L/T I I L/T CA CA CA CA L/T encoded, even on 802.11ak link L/T L/T CA L/T S S S S L/T CA L/T L/T LLC Q Q Q Q Q L/T L/T L/T L/T L/T LLC data data data data L/T data data L/T 802.1Q decoder ring: BA = Backbone Addresses, I = I-tag, CA = Customer Addresses, S = Service VLAN tags, Q = Customer VLAN tags. Mark Hamilton, Spectralink
