  1. KX-TDA200/100 System(Ver.1.0) Panasonic Communications Co., Ltd. Network Business Company Edition 1.1 27 Jan., 2003 Chapter 7.1Networking Operation

  2. Chapter 7.1Networking Operation 1. PBX Office Code Type 2. Extension Number Type 3. Restriction 4. Call Center Use 5. Direct Network Routing

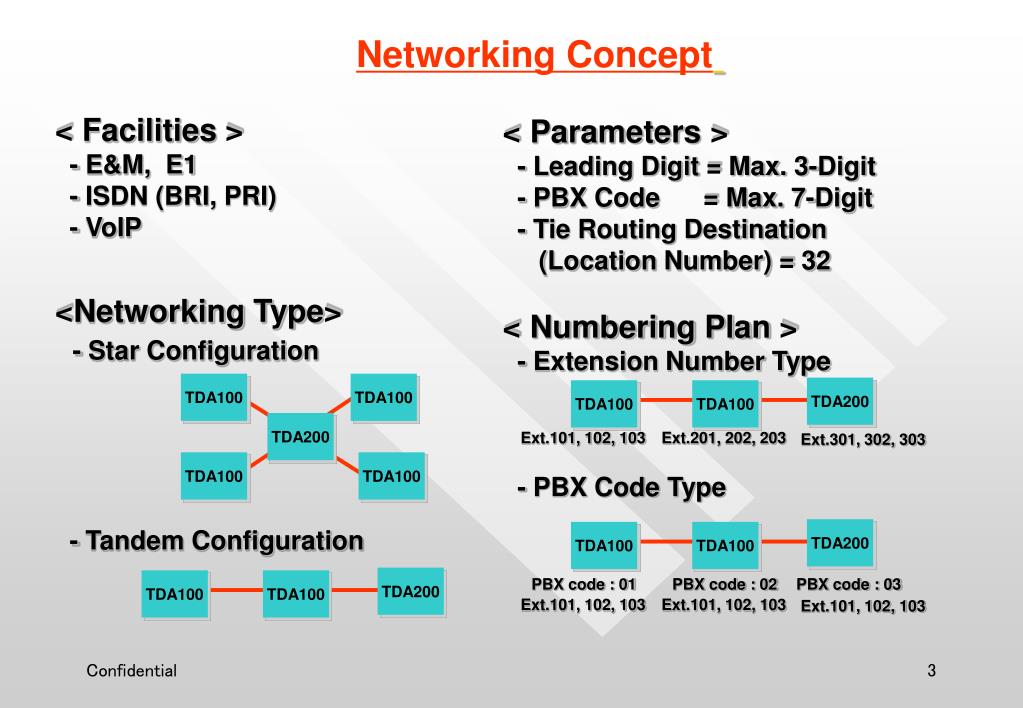

  3. Networking Concept < Facilities > - E&M, E1 - ISDN (BRI, PRI) - VoIP < Parameters > - Leading Digit = Max. 3-Digit - PBX Code = Max. 7-Digit - Tie Routing Destination (Location Number) = 32 < Numbering Plan > - Extension Number Type - PBX Code Type <Networking Type> - Star Configuration - Tandem Configuration TDA100 TDA100 TDA200 TDA100 TDA100 TDA200 Ext.101, 102, 103 Ext.201, 202, 203 Ext.301, 302, 303 TDA100 TDA100 TDA200 TDA100 TDA100 TDA200 PBX code : 01 PBX code : 02 PBX code : 03 TDA100 TDA100 Ext.101, 102, 103 Ext.101, 102, 103 Ext.101, 102, 103

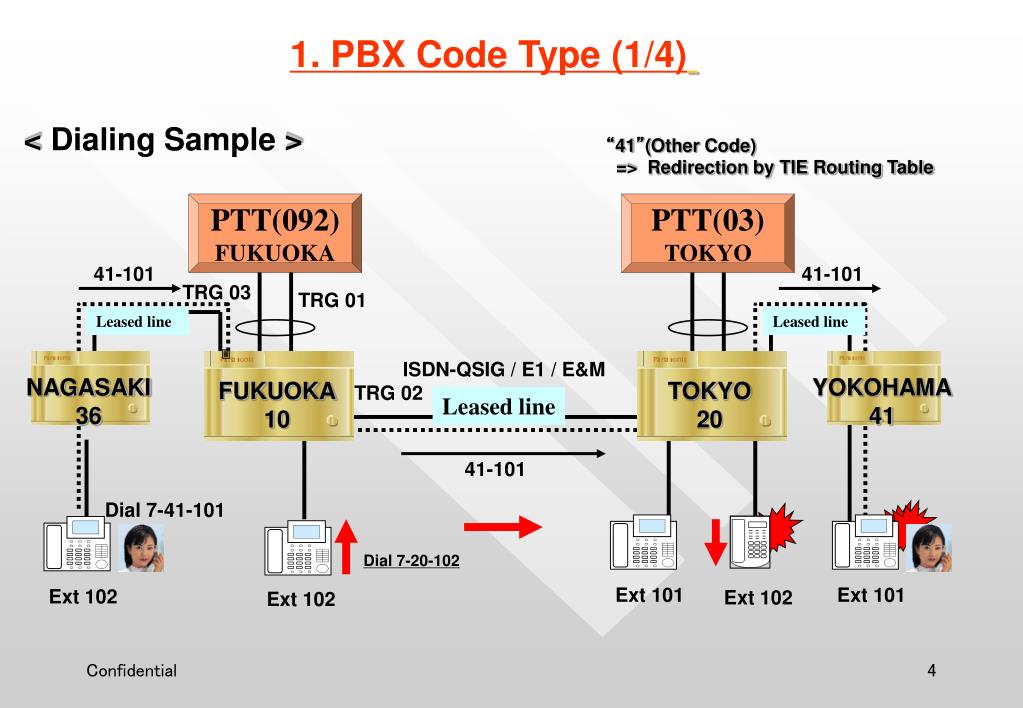

  4. YOKOHAMA41 NAGASAKI36 FUKUOKA10 TOKYO20 1. PBX Code Type (1/4) < Dialing Sample > “41”(Other Code) => Redirection by TIE Routing Table PTT(092)FUKUOKA PTT(03)TOKYO 41-101 41-101 TRG 03 TRG 01 Leased line Leased line ISDN-QSIG / E1 / E&M TRG 02 Leased line 41-101 Dial 7-41-101 Dial 7-20-102 Ext 101 Ext 101 Ext 102 Ext 102 Ext 102

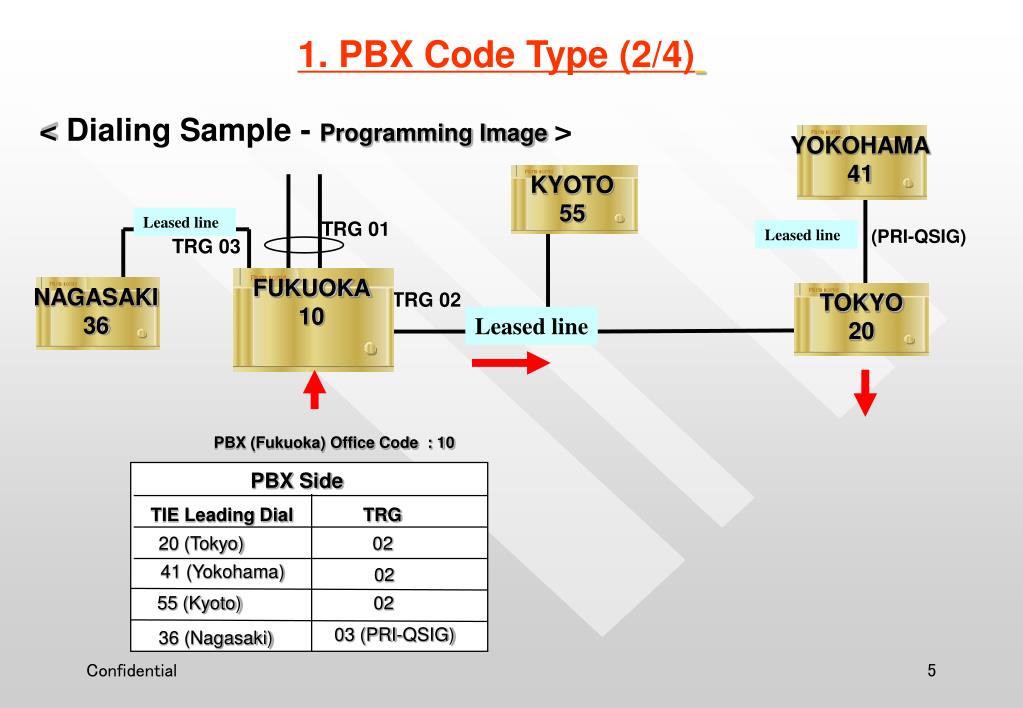

  5. FUKUOKA10 YOKOHAMA41 KYOTO55 NAGASAKI36 TOKYO20 1. PBX Code Type (2/4) < Dialing Sample - Programming Image > Leased line TRG 01 Leased line (PRI-QSIG) TRG 03 TRG 02 Leased line PBX (Fukuoka) Office Code : 10 PBX Side TIE Leading Dial TRG 20 (Tokyo) 02 41 (Yokohama) 02 55 (Kyoto) 02 03 (PRI-QSIG) 36 (Nagasaki)

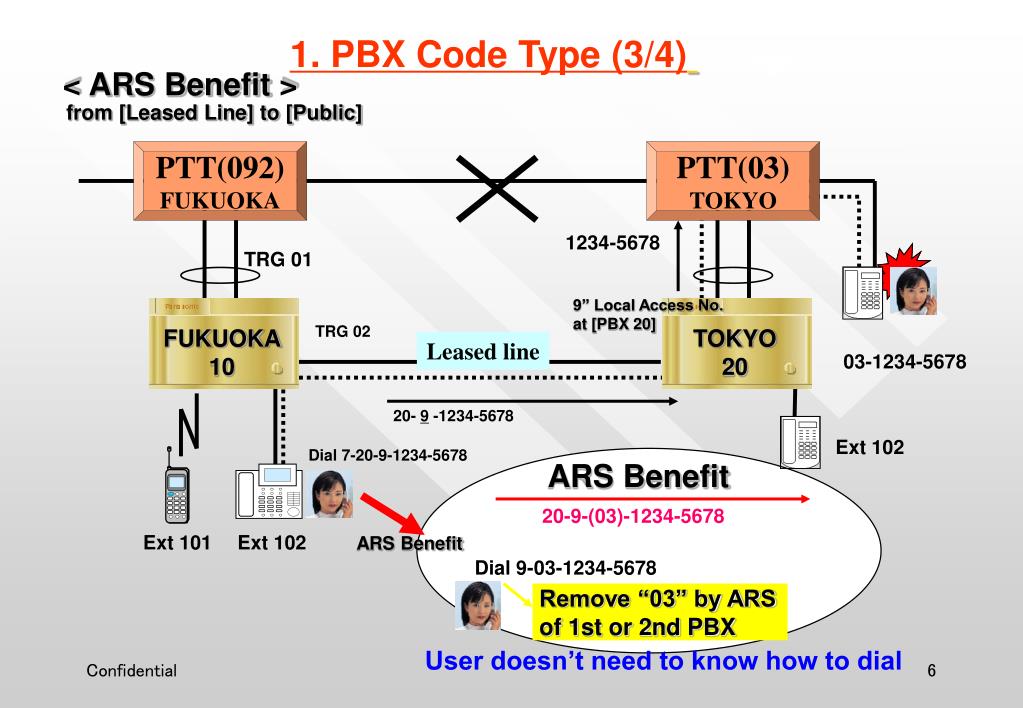

  6. FUKUOKA10 TOKYO20 Remove “03” by ARS of 1st or 2nd PBX 1. PBX Code Type (3/4) < ARS Benefit > from [Leased Line] to [Public] PTT(092)FUKUOKA PTT(03)TOKYO 1234-5678 TRG 01 9” Local Access No. at [PBX 20] TRG 02 Leased line 03-1234-5678 20- 9 -1234-5678 Ext 102 Dial 7-20-9-1234-5678 ARS Benefit 20-9-(03)-1234-5678 Ext 101 Ext 102 ARS Benefit Dial 9-03-1234-5678 User doesn’t need to know how to dial

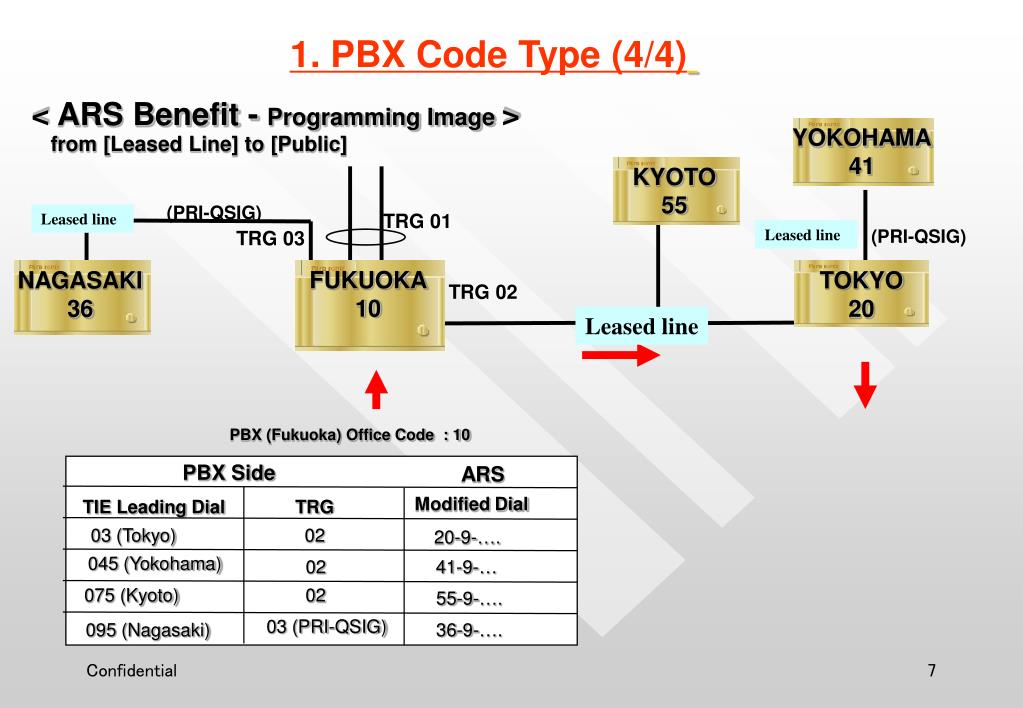

  7. FUKUOKA10 YOKOHAMA41 KYOTO55 NAGASAKI36 TOKYO20 1. PBX Code Type (4/4) < ARS Benefit - Programming Image > from [Leased Line] to [Public] (PRI-QSIG) TRG 01 Leased line Leased line (PRI-QSIG) TRG 03 TRG 02 Leased line PBX (Fukuoka) Office Code : 10 PBX Side ARS Modified Dial TIE Leading Dial TRG 03 (Tokyo) 02 20-9-…. 045 (Yokohama) 02 41-9-… 075 (Kyoto) 02 55-9-…. 03 (PRI-QSIG) 095 (Nagasaki) 36-9-….

  8. NAGASAKI3xx YOKOHAMA4xx FUKUOKA1xx TOKYO2xx 2. Extension Number Type (1/4) < Dialing Sample > PTT(092)FUKUOKA PTT(03)TOKYO 401 401 TRG 03 TRG 01 Leased line Leased line TRG 02 Leased line 401 Dial 401 Dial 202 Ext 102 Ext 201 Ext 302 Ext 202 Ext 401 “1” is “Self Ext.No.” “2”,”3”,”4” are “Other PBX Ext No.” in Flexible Numbering.

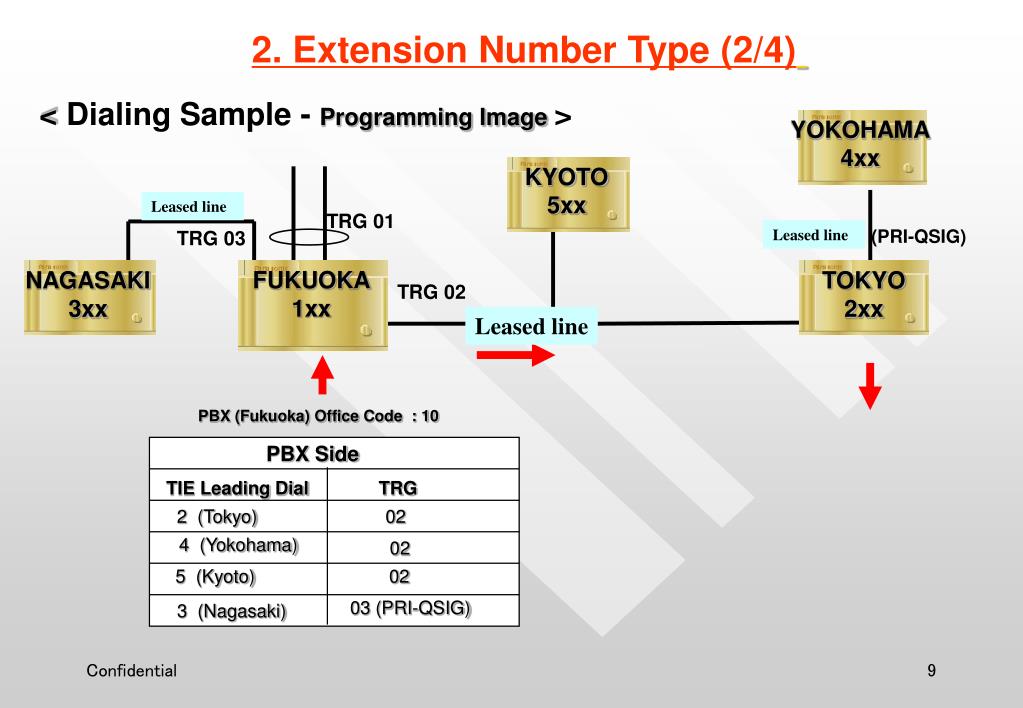

  9. FUKUOKA1xx YOKOHAMA4xx KYOTO5xx NAGASAKI3xx TOKYO2xx 2. Extension Number Type (2/4) < Dialing Sample - Programming Image > Leased line TRG 01 Leased line (PRI-QSIG) TRG 03 TRG 02 Leased line PBX (Fukuoka) Office Code : 10 PBX Side TIE Leading Dial TRG 2 (Tokyo) 02 4 (Yokohama) 02 5 (Kyoto) 02 03 (PRI-QSIG) 3 (Nagasaki)

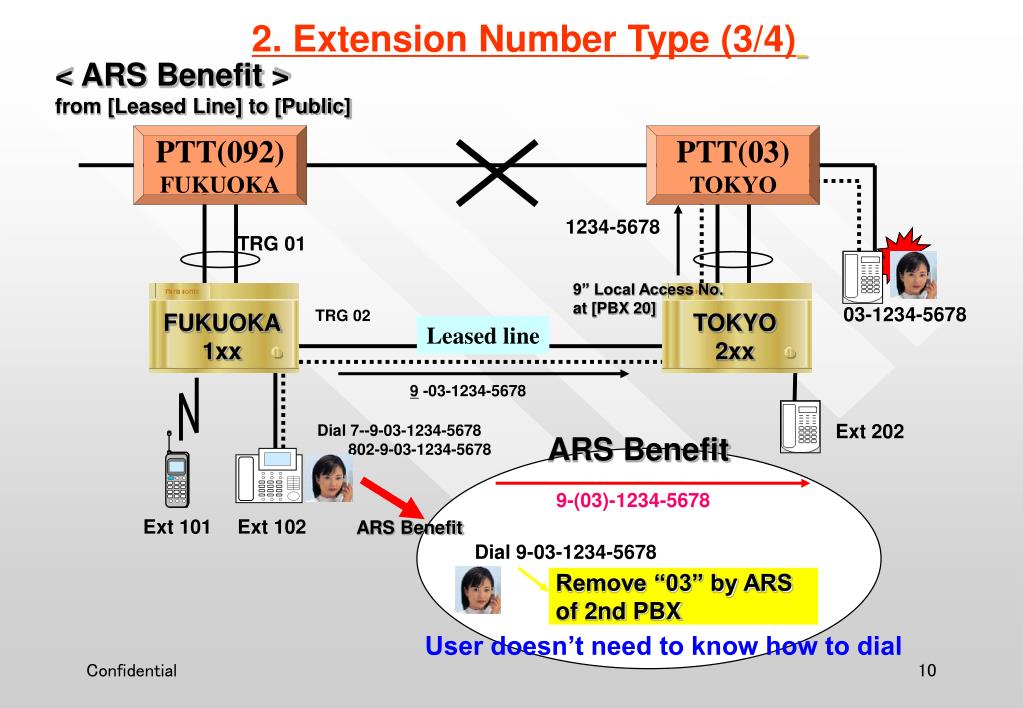

  10. FUKUOKA1xx TOKYO2xx Remove “03” by ARS of 2nd PBX 2. Extension Number Type (3/4) < ARS Benefit > from [Leased Line] to [Public] PTT(092)FUKUOKA PTT(03)TOKYO 1234-5678 TRG 01 9” Local Access No. at [PBX 20] 03-1234-5678 TRG 02 Leased line 9 -03-1234-5678 Ext 202 Dial 7--9-03-1234-5678 802-9-03-1234-5678 ARS Benefit 9-(03)-1234-5678 Ext 101 Ext 102 ARS Benefit Dial 9-03-1234-5678 User doesn’t need to know how to dial

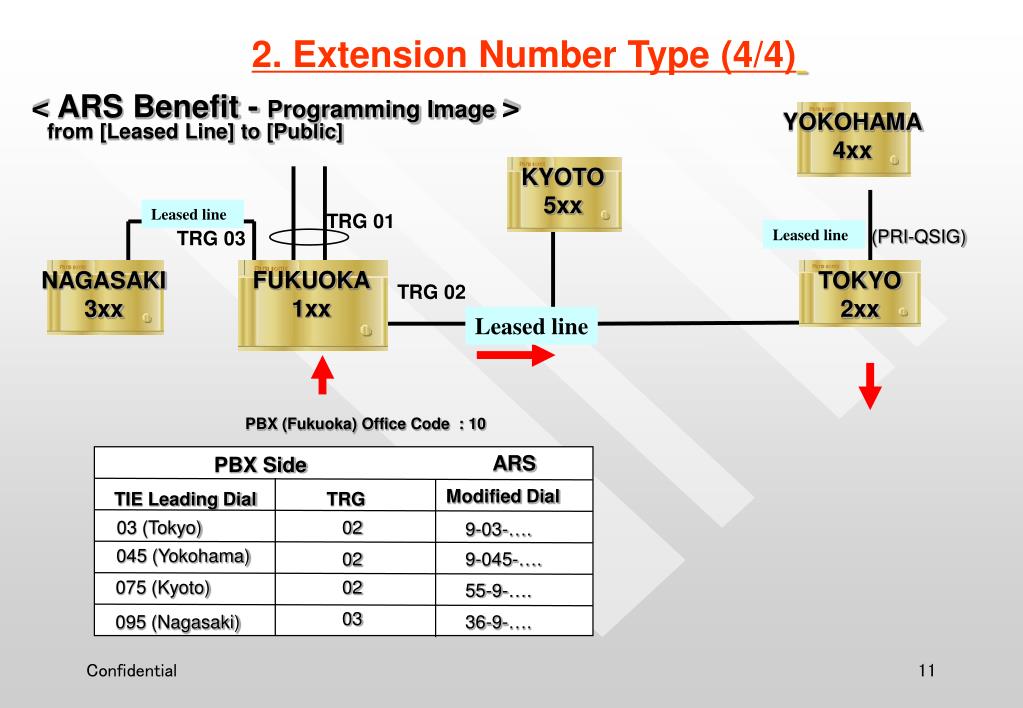

  11. FUKUOKA1xx YOKOHAMA4xx KYOTO5xx NAGASAKI3xx TOKYO2xx 2. Extension Number Type (4/4) < ARS Benefit - Programming Image > from [Leased Line] to [Public] Leased line TRG 01 Leased line (PRI-QSIG) TRG 03 TRG 02 Leased line PBX (Fukuoka) Office Code : 10 ARS PBX Side Modified Dial TIE Leading Dial TRG 03 (Tokyo) 02 9-03-…. 045 (Yokohama) 02 9-045-…. 075 (Kyoto) 02 55-9-…. 03 095 (Nagasaki) 36-9-….

  12. TOKYO COS-01 COS-02 COS-03 : TRG-01 Yes--Yes: TRG-02 YesYes-------: TRG-03 Yes--Yes: 3. Restriction (1/2) [COS -in]-[TRG-out] Restriction (COS based on Extension and Trunk Group) - Each Trunk Group can have COS to make Toll Restriction for Outgoing Calls. PTT(03)TOKYO TRG 01 TRG 03 Private -> Public Access Restriction TRG 02 (COS-03) Leased line Outgoing Trunk Grp ExtensionorIncoming Trunk Grp Ext 101 Ext 102 (COS-01) (COS-02)

  13. FUKUOKA10 / 1xx TOKYO20 / 2xx 3. Restriction (2/2) < Restriction Override by DISA > from [Leased Line] to [Public] PTT(03)TOKYO 1234-5678 TRG 02 03-1234-5678 Leased line DISAFloatingExt 250 250/(20-250) + ID + Password + 9-1234-5678 Dial 7- 250(DISA Ext No.)/(20-250) Ext 101 + ID + Password + 1234-5678 Ext 202 Walking COS Feature No. of the 2nd PBX + ID + Password (Combination with ARS is also possible)

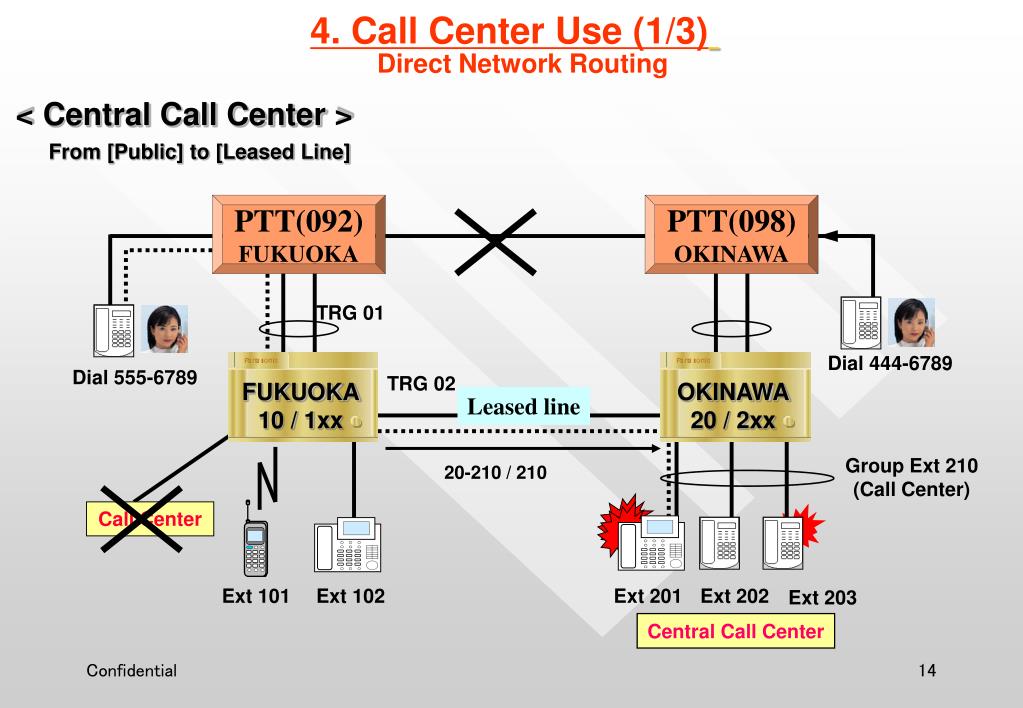

  14. FUKUOKA10 / 1xx OKINAWA20 / 2xx Call Center 4. Call Center Use (1/3) Direct Network Routing < Central Call Center > From [Public] to [Leased Line] PTT(092)FUKUOKA PTT(098)OKINAWA TRG 01 Dial 444-6789 Dial 555-6789 TRG 02 Leased line Group Ext 210(Call Center) 20-210 / 210 Ext 101 Ext 102 Ext 201 Ext 202 Ext 203 Central Call Center

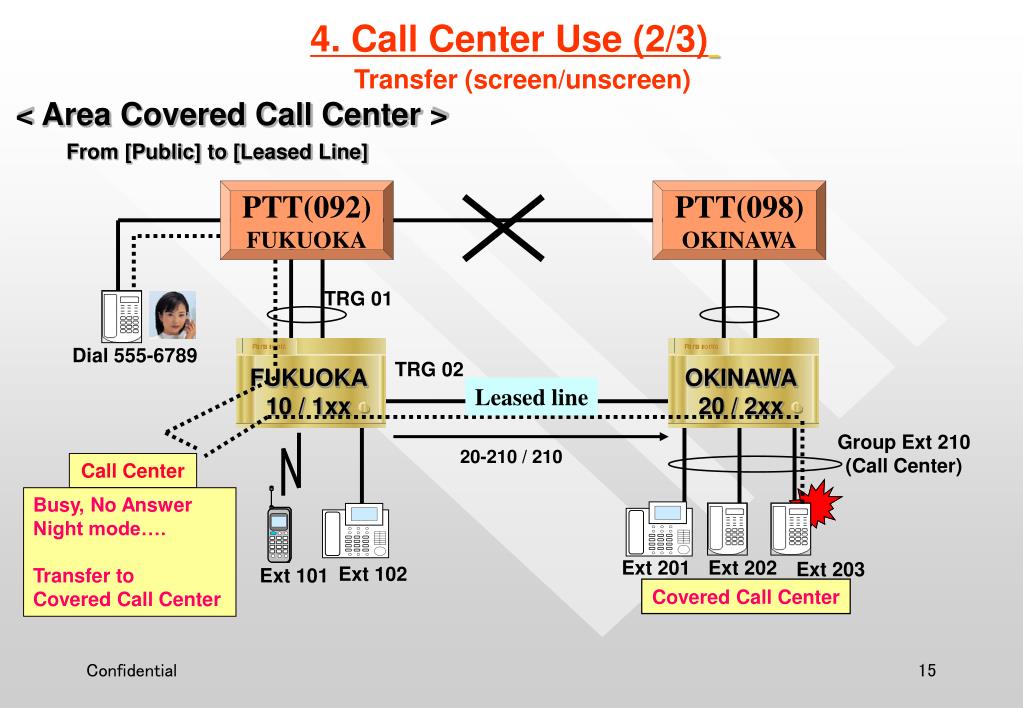

  15. FUKUOKA10 / 1xx OKINAWA20 / 2xx 4. Call Center Use (2/3) Transfer (screen/unscreen) < Area Covered Call Center > From [Public] to [Leased Line] PTT(092)FUKUOKA PTT(098)OKINAWA TRG 01 Dial 555-6789 TRG 02 Leased line Group Ext 210(Call Center) 20-210 / 210 Call Center Busy, No AnswerNight mode…. Transfer to Covered Call Center Ext 201 Ext 202 Ext 203 Ext 102 Ext 101 Covered Call Center

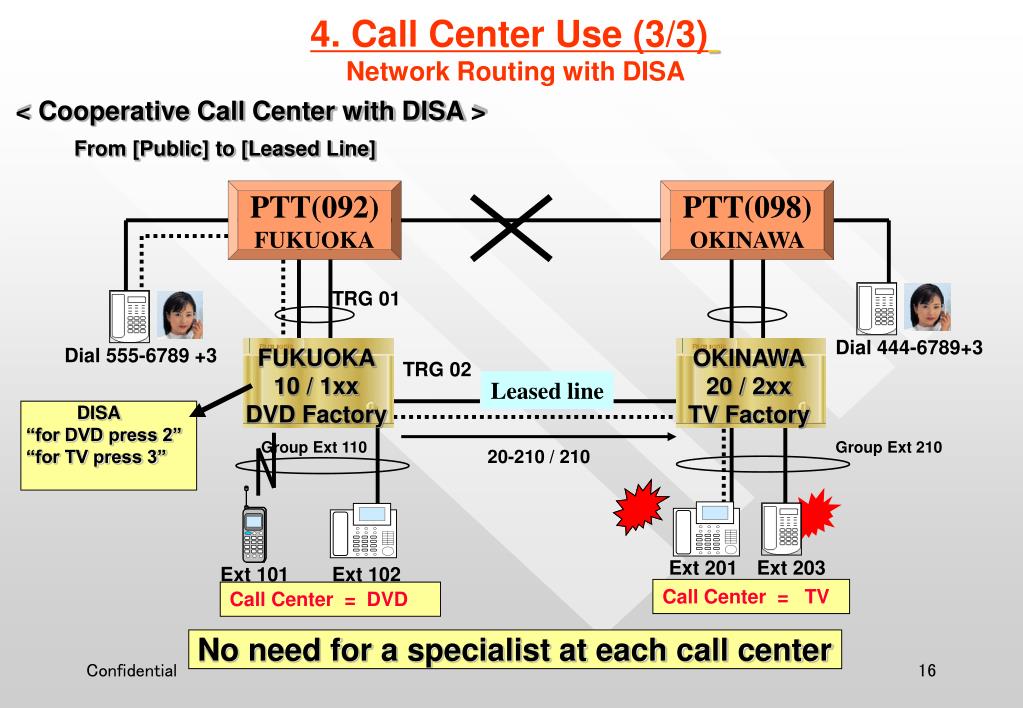

  16. FUKUOKA10 / 1xxDVD Factory OKINAWA20 / 2xxTV Factory 4. Call Center Use (3/3) Network Routing with DISA < Cooperative Call Center with DISA > From [Public] to [Leased Line] PTT(092)FUKUOKA PTT(098)OKINAWA TRG 01 Dial 444-6789+3 Dial 555-6789 +3 TRG 02 Leased line DISA “for DVD press 2” “for TV press 3” Group Ext 110 Group Ext 210 20-210 / 210 Ext 201 Ext 203 Ext 101 Ext 102 Call Center = TV Call Center = DVD No need for a specialist at each call center

  17. Flexible No. 1st Self Ext Other PBX Ext -1 Other PBX Ext -2 No.1 2 3 FUKUOKA1xx YOKOHAMA4xx NAGASAKI3xx TOKYO2xx 5. Direct Network Routing (1/3) < *1. Direct Network Routing - Programming Image> From [Public] to [Leased Line] (EXT. No. Type ) Destination “Other PBX Extension No.” is the destination of the incoming call (Max.4 digits Extension No.) EXT 101 555-5601 EXT 102 555-5602 555-5678 EXT 210 TRG 01 TRG 03 TRG 02 Leased line

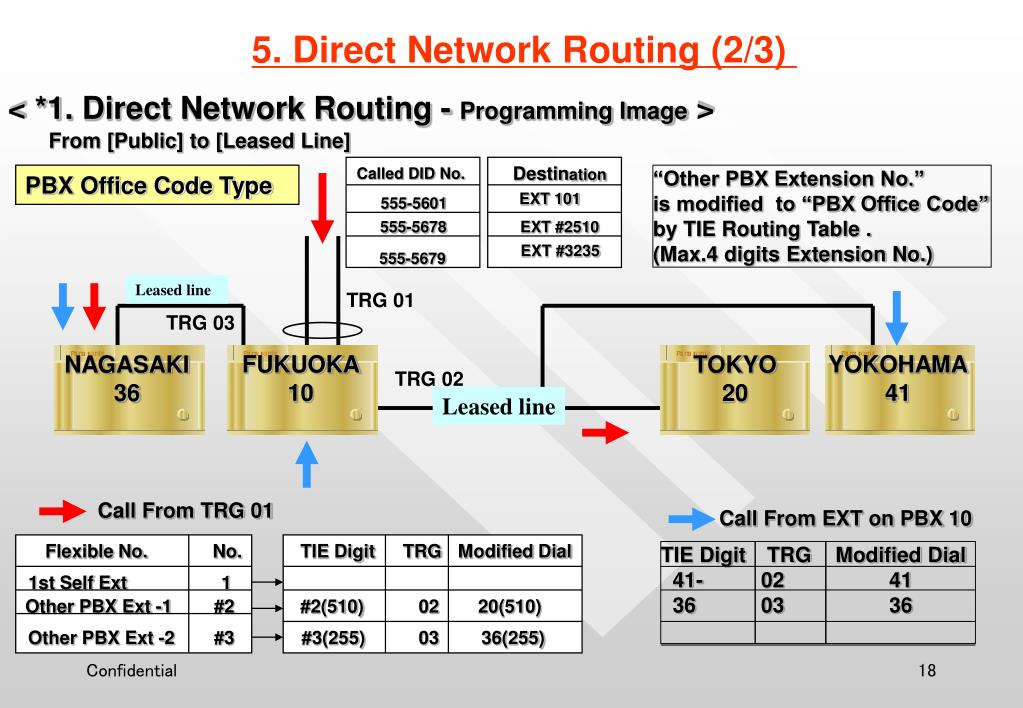

  18. FUKUOKA10 YOKOHAMA41 NAGASAKI36 TOKYO20 TIE Digit 41- 36 TRG 02 03 Modified Dial41 36 5. Direct Network Routing (2/3) < *1. Direct Network Routing - Programming Image> From [Public] to [Leased Line] Destination Called DID No. PBX Office Code Type “Other PBX Extension No.” is modified to “PBX Office Code” by TIE Routing Table . (Max.4 digits Extension No.) EXT 101 555-5601 555-5678 EXT #2510 EXT #3235 555-5679 Leased line TRG 01 TRG 03 TRG 02 Leased line Call From TRG 01 Call From EXT on PBX 10 Flexible No. No. TIE Digit TRG Modified Dial 1st Self Ext 1 Other PBX Ext -1 #2 #2(510) 02 20(510) Other PBX Ext -2 #3 #3(255) 03 36(255)

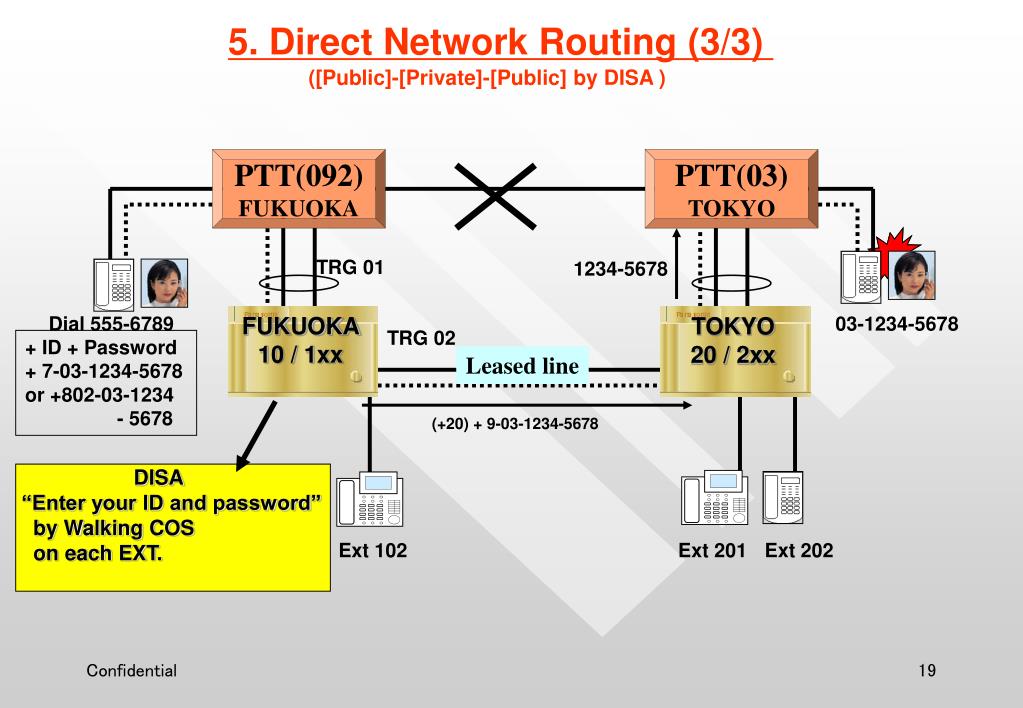

  19. FUKUOKA10 / 1xx TOKYO20 / 2xx 5. Direct Network Routing (3/3) ([Public]-[Private]-[Public] by DISA ) PTT(092)FUKUOKA PTT(03)TOKYO TRG 01 1234-5678 Dial 555-6789 03-1234-5678 TRG 02 + ID + Password+ 7-03-1234-5678 or +802-03-1234 - 5678 Leased line (+20) + 9-03-1234-5678 DISA “Enter your ID and password” by Walking COS on each EXT. Ext 102 Ext 201 Ext 202

  20. Chapter 7.1Networking Operation Thank you very much !
