Session VII Verifying Private Aids to Navigation. Private Aid Definition. Any signal placed in the navigable waterways of the United States by any person or institution other than the U.S. Coast Guard or other branch of the Armed Forces is considered to be a private aid to navigation .
E N D
Private Aid Definition Any signal placed in the navigable waterways of the United States by any person or institution other than the U.S. Coast Guard or other branch of the Armed Forces is considered to be a private aid to navigation.
NAVIGABLE WATERS • Coastal Waters below Mean High Water • Waters subject to tidal ebb and flow • Inland waters used for interstate or foreign commerce • Inland waters that with reasonable cost improvement could in the near future be used for commerce

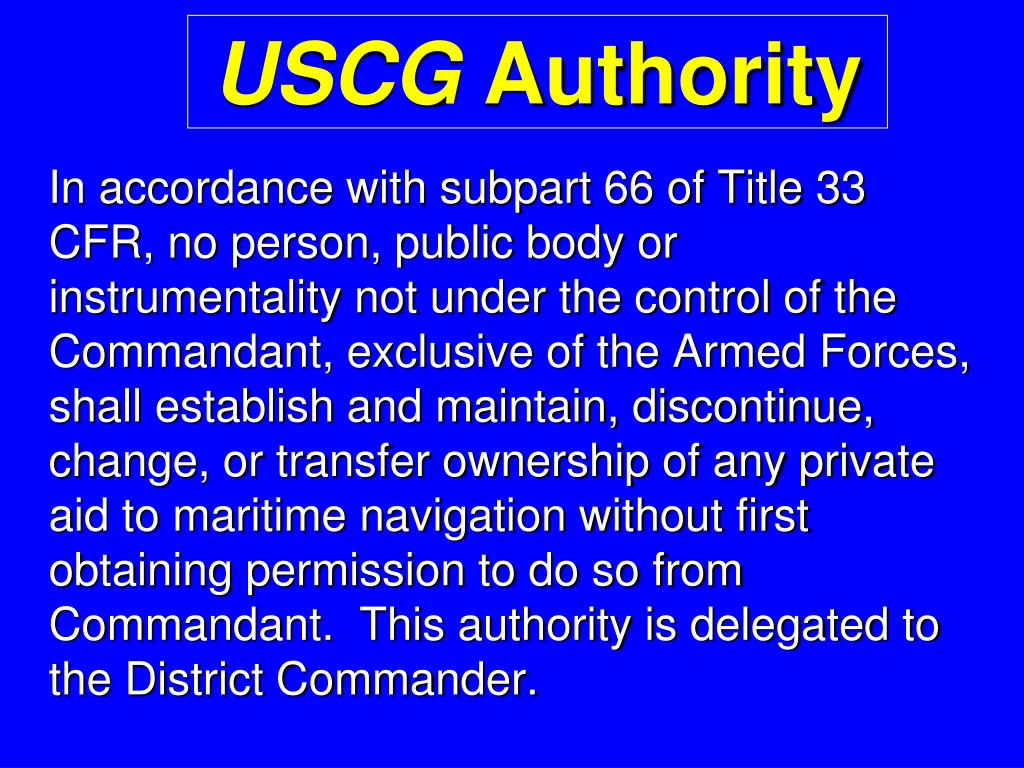

USCG Authority In accordance with subpart 66 of Title 33 CFR, no person, public body or instrumentality not under the control of the Commandant, exclusive of the Armed Forces, shall establish and maintain, discontinue, change, or transfer ownership of any private aid to maritime navigation without first obtaining permission to do so from Commandant. This authority is delegated to the District Commander.
PRIVATE AIDS • Must be maintained in good working order and painted with no expense to the Coast Guard • Must provide 30 days notice to the District Commander before removal • District Commander can order removal of aids that are no longer needed
PRIVATE AIDS • Aids are subject to inspection at any time without prior notice. • New aids should be verified for accuracy, soon after they are established. • Discontinued aids should be inspected for proper removal.
Private AtoN Regulations Failure to Comply: When repair is unreasonably delayed the CO/OinC of the inspecting unit may request, in writing, that CCGDONE revoke the owner’s authorization to operate private aids and to order the removal of the aids.

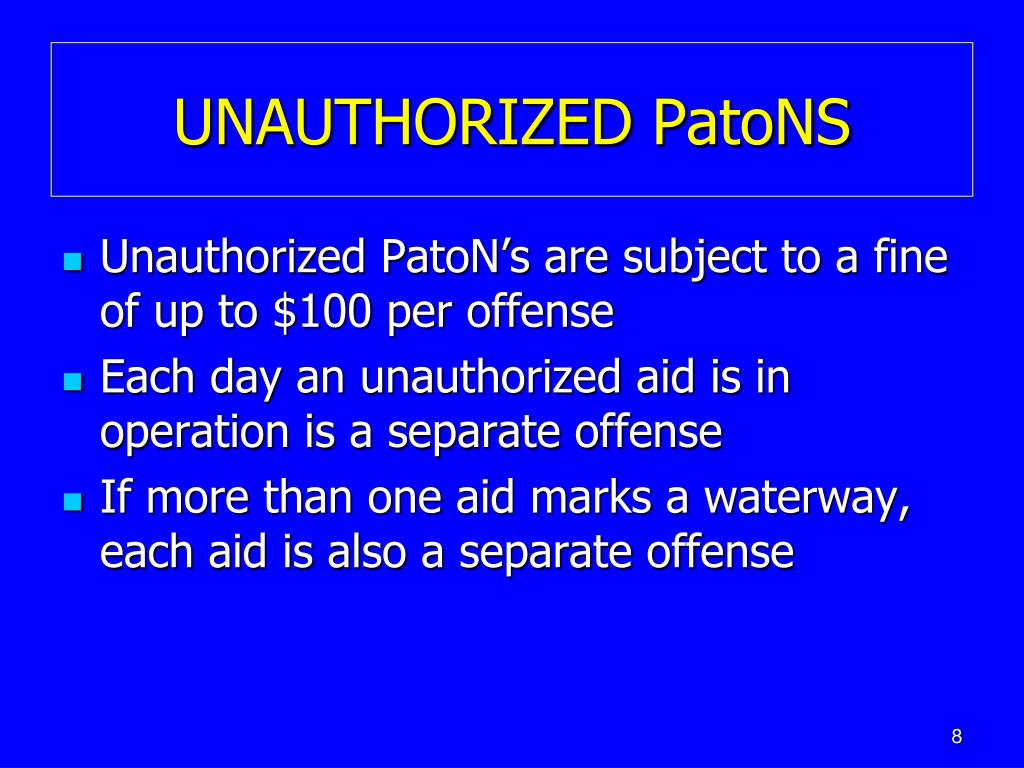

UNAUTHORIZED PatoNS • Unauthorized PatoN’s are subject to a fine of up to $100 per offense • Each day an unauthorized aid is in operation is a separate offense • If more than one aid marks a waterway, each aid is also a separate offense
Tools of the Trade • Digital Camera • Note book • Dividers • Plotter • Pencils and pens • GPS set • Forms • Binoculars • Sounding Device • Hand-bearing compass • Nautical charts • Coast Pilot • Light List • LNM • Tide Book • Watch/Timing device
Observe as if a Stranger • Pretend you have never been on this shore before. • Look at things from different locations. • Note what most impresses you or is unique to the area. • Look for changes in the skyline and check them out from seaward.

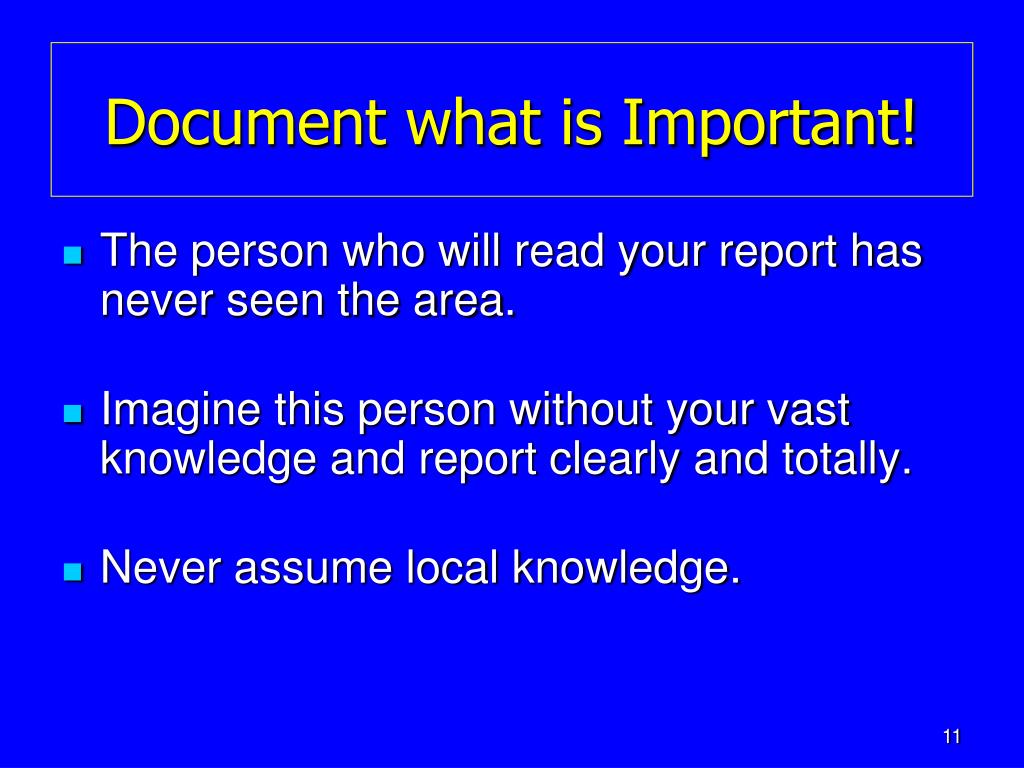

Document what is Important! • The person who will read your report has never seen the area. • Imagine this person without your vast knowledge and report clearly and totally. • Never assume local knowledge.

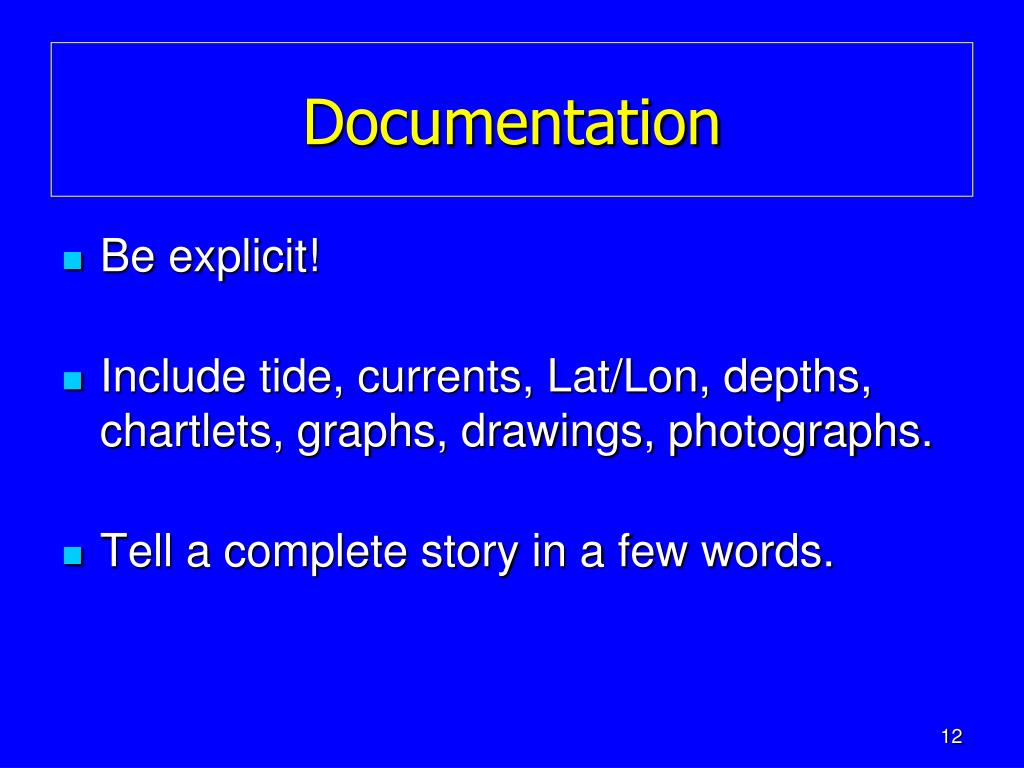

Documentation • Be explicit! • Include tide, currents, Lat/Lon, depths, chartlets, graphs, drawings, photographs. • Tell a complete story in a few words.
Private Aid Classifications Class I Class II Class III
Class I Private Aids Class I Private Aidsare aids to navigation on marine structures, including bridges or other works for which the owners are legally obligated to establish, maintain and operate as prescribed by the United States Coast Guard. Permanent aids are listed in the Light List and charted.

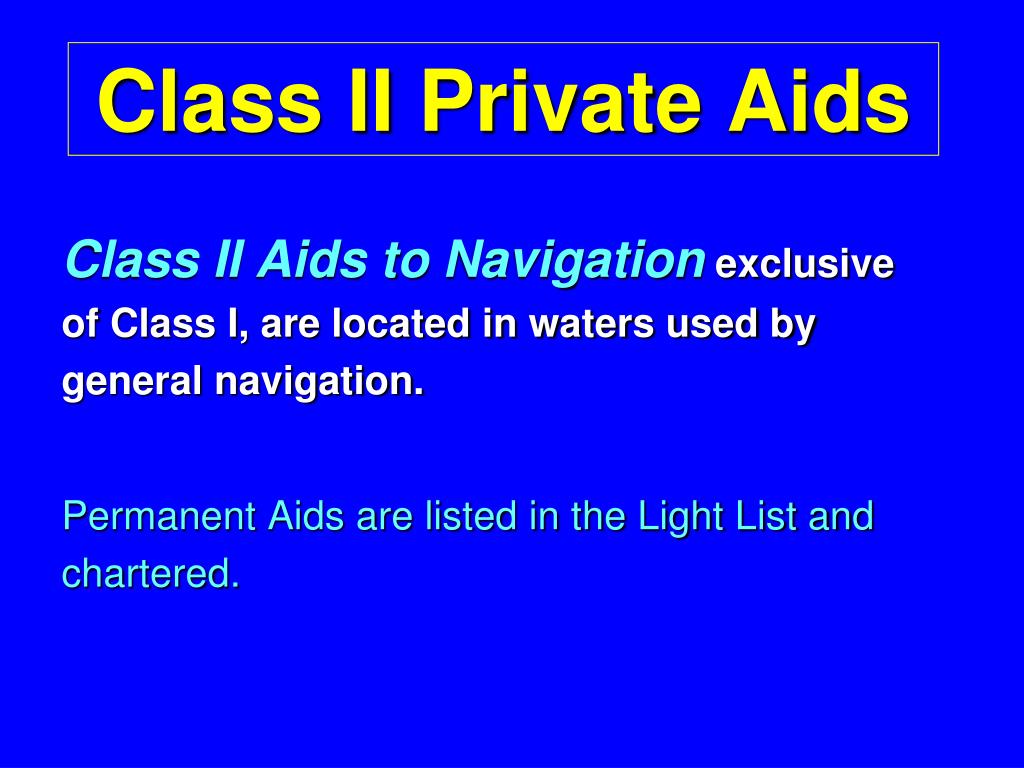

Class II Private Aids Class II Aids to Navigationexclusive of Class I, are located in waters used by general navigation. Permanent Aids are listed in the Light List and chartered.
Class III Private Aids Class III Aids to Navigationexclusive of Class I and Class II are located in waters not ordinarily used by general Navigation. Usually not found on charts or in the Light List.
DOs and DON’Ts for Aid Verifiers.

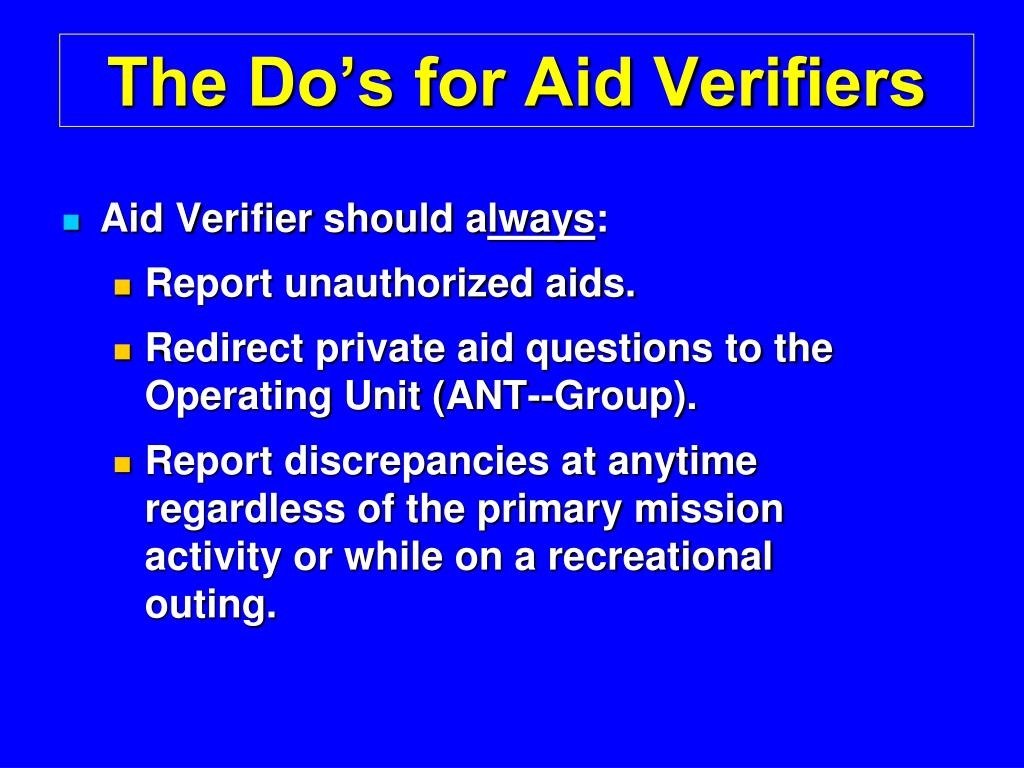

The Do’s for Aid Verifiers • Aid Verifier should always: • Report unauthorized aids. • Redirect private aid questions to the Operating Unit (ANT--Group). • Report discrepancies at anytime regardless of the primary mission activity or while on a recreational outing.
The DON’Ts for Aid Verifiers An Aid Verifier must never: • Attempt to move or fix a private aid. • Enter private property (trespass), even if to only visually verify an aid. • Contact a private aid owner. • Contact the ANT Unit. Follow chain of communications • Originate correspondence to a private aid owner.
The CG Auxiliary Job of Reporting PatoNs! Your job of reporting discrepancies to the Coast Guard should be completed within 24 hours from the time and date of the observation (both initial report and follow-up) Don’t bother to send outdated discrepancy or verification reports since they have no value and will be discarded.
ANY QUESTIONS ABOUT HOW TO REPORT PATON VERIFICATIONS TO THE COAST GUARD?
Verify the PatoN’s position GPS, DGPS, or WAAS Degrees-minutes-seconds Seaman’s Eye Local Knowledge
PatoN Verifications Check List • Does it conform to the PID List • Does it conform to the Light List • Does it conform to the Charts • Does it conform to the IALA-B System • Does it conform to the Coast Pilot • What Are there any Discrepancies • Is it an USCG authorized • Is it “WATCHING PROPERLY”

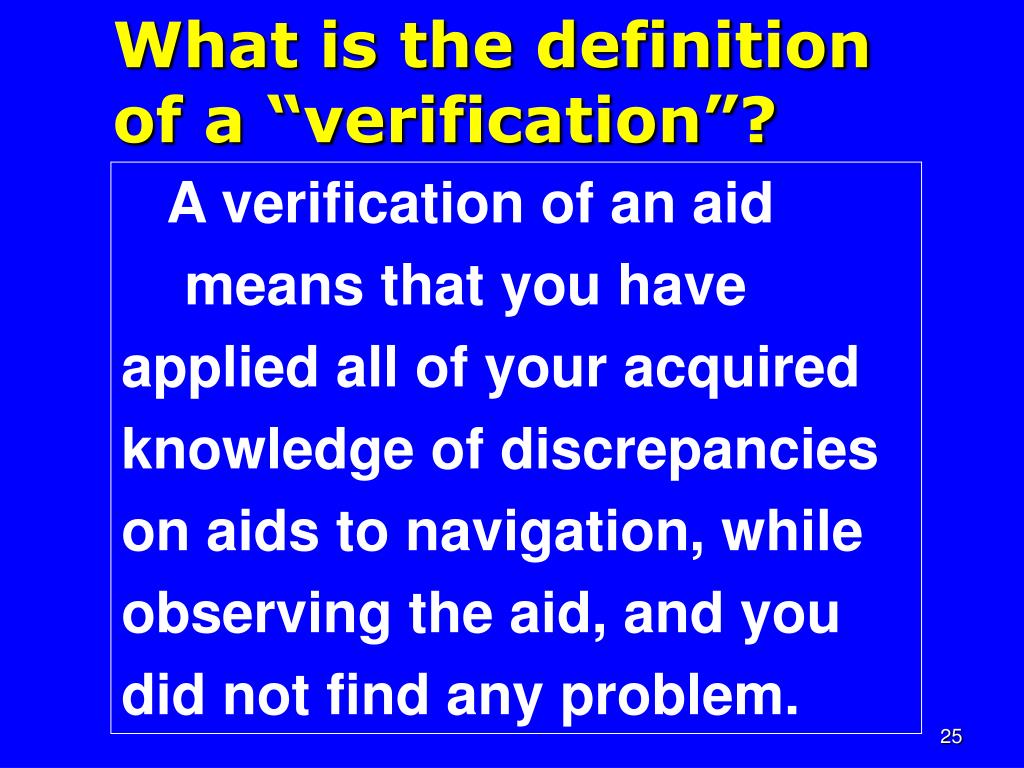

What is the definition of a “verification”? A verification of an aid means that you have applied all of your acquired knowledge of discrepancies on aids to navigation, while observing the aid, and you did not find any problem.

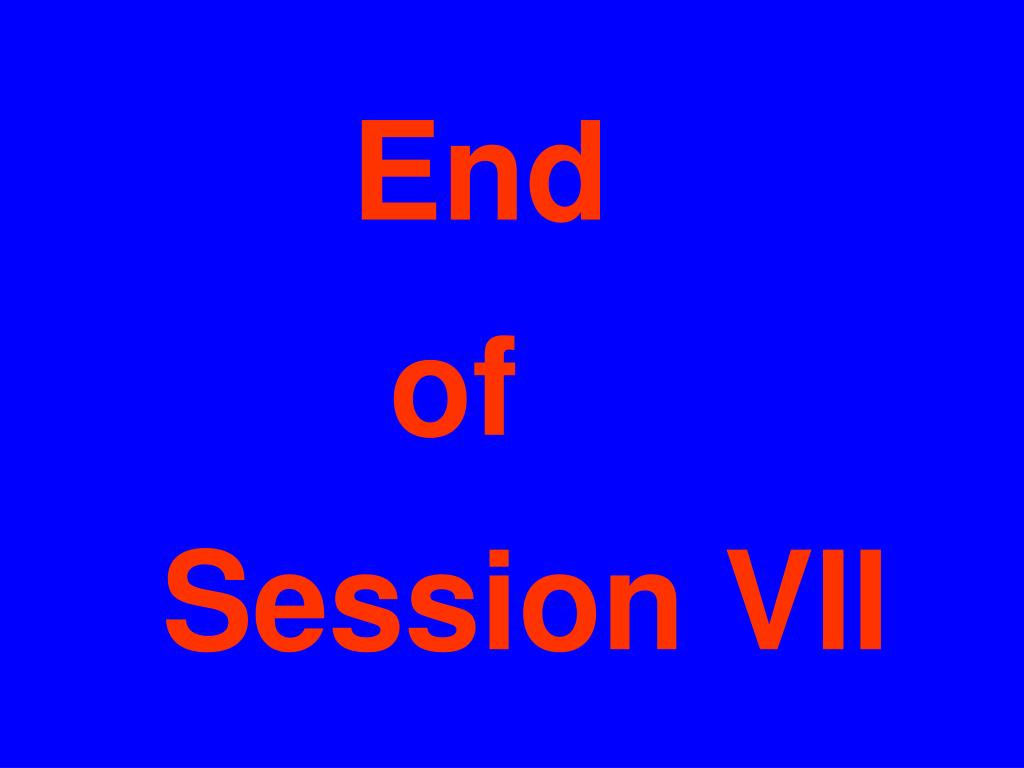

End of Session VII
