PID in Large Detector

This research discusses the improvements in K-p separation achieved through dE/dx measurements in a large detector setup, focusing on momentum ranges of 2 GeV/c to approximately 30 GeV/c. The study highlights the significance of fine-grained Time-of-Flight (TOF) counters and scintillator pads with SiPM readouts in effectively distinguishing particle types within jets. By utilizing a TOF resolution of under 100 ps in combination with a dE/dx resolution of 4.5%, seamless K-p separation can be attained, which is crucial for enhancing jet energy resolution and identifying D0/D0-bar particles.

nikki
Télécharger la présentation

PID in Large Detector

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PID in Large Detector 2004.11.5 Y. Sugimoto

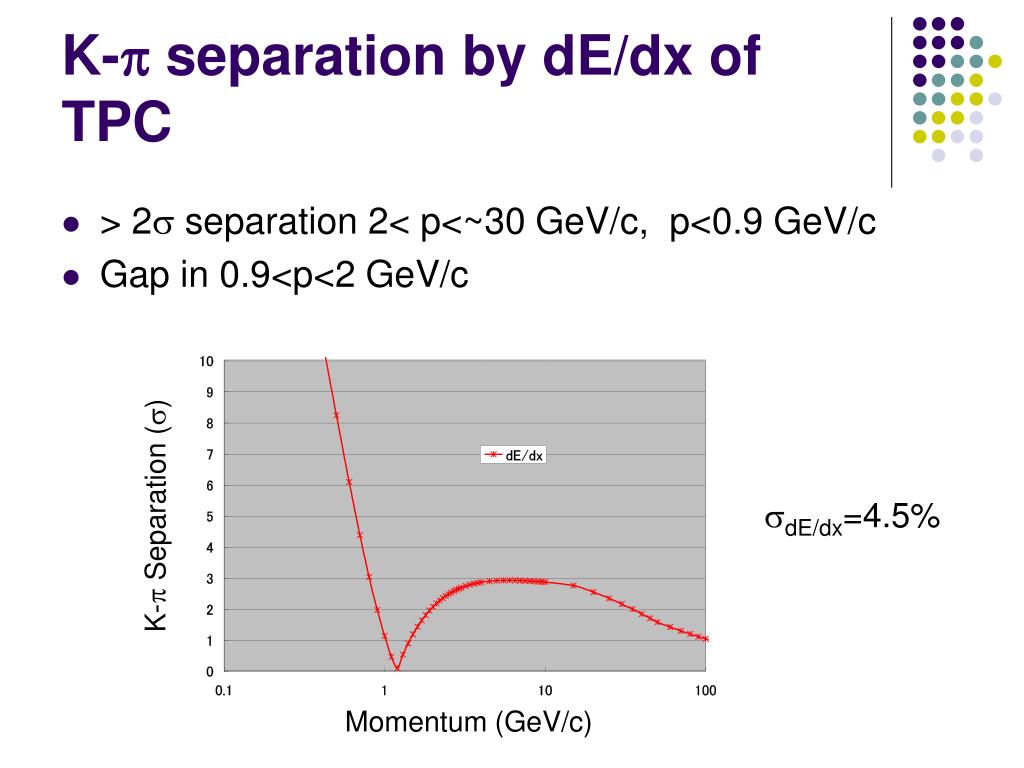

  2. K-p separation by dE/dx of TPC • > 2s separation 2< p<~30 GeV/c, p<0.9 GeV/c • Gap in 0.9<p<2 GeV/c sdE/dx=4.5% K-p Separation (s) Momentum (GeV/c)

  3. Effect of TOF • Large detector has long track path length (L>2m) and favorable for TOF • TOF counter with fine granularity is necessary to separate particles in a jet • Scintillator pads with SiPM readout (?) • Resistive plate counter: STAR TOF s~80ps

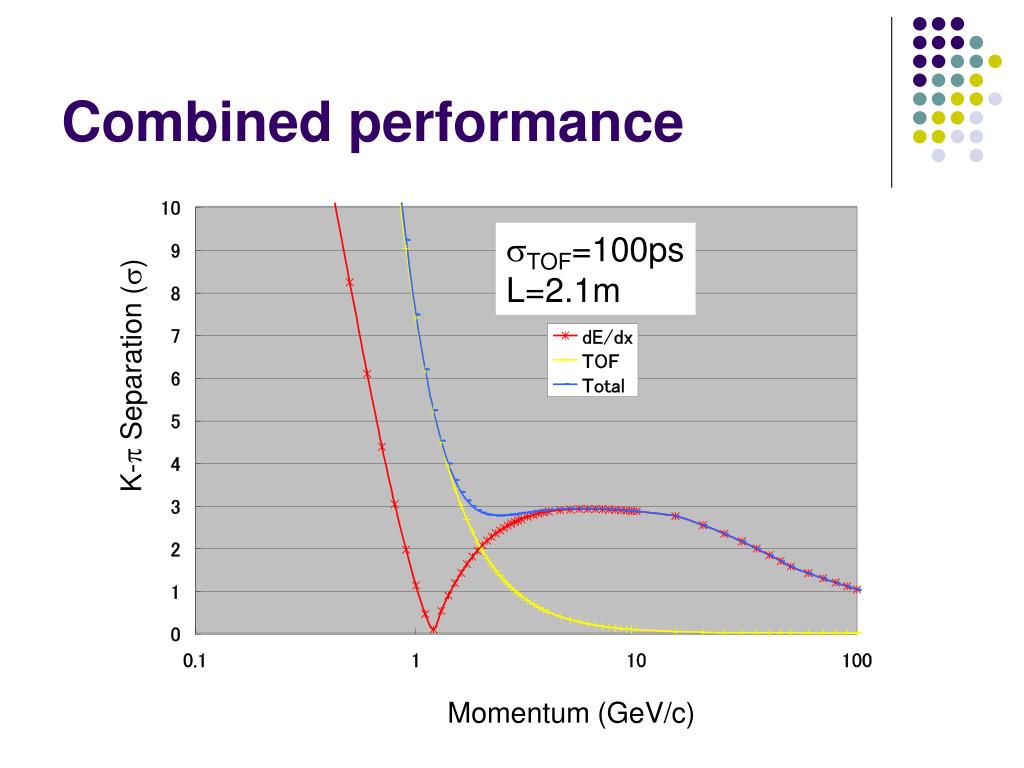

  4. Combined performance sTOF=100ps L=2.1m K-p Separation (s) Momentum (GeV/c)

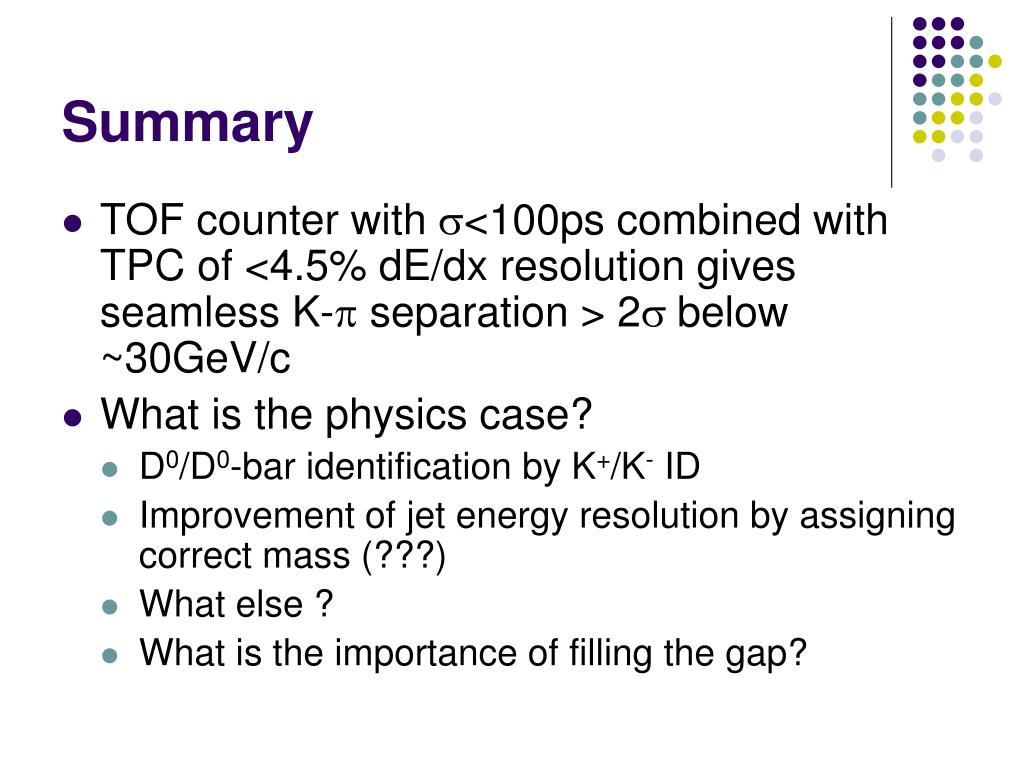

  5. Summary • TOF counter with s<100ps combined with TPC of <4.5% dE/dx resolution gives seamless K-p separation > 2s below ~30GeV/c • What is the physics case? • D0/D0-bar identification by K+/K- ID • Improvement of jet energy resolution by assigning correct mass (???) • What else ? • What is the importance of filling the gap?
