  1. Class AB - Protection • A short circuit output causes the current demand to rise beyond the design limit. • In practice, it rises just far enough to destroy the output device. • Protection is required.

  2. Short Circuit Protection • Normally, VRE» .05 V (<< 0.5V) so Q4 stays off and does not interfere. • If IC1 rises above the normal maximum, however, VRE rises and Q4 turns on, diverting Ibias and, therefore, switching off Q1.

  3. Scary Example – mA741C Op-Amp

  4. Class C Operation Iout Time One device conducts for a small portion of the a.c. cycle. Conduction angle << 180 °.

  5. A Class C Output Stage • Class C power amplifier relies on a narrow band tuned load. • Transistor only conducts when vin > VBIAS + VBE. • For the remainder of the a.c. cycle, current circulates around the tuned load.

  6. Class C Output Waveforms Input Output

  7. Transistor Dissipation Three operating regions:

  8. Class C Efficiency • For most of the a.c. cycle, the transistor is off – i.e. zero power dissipation. • When it is on, it is close to saturation – i.e. VCE is low implying low power dissipation. • Average power dissipation is much lower than output power so efficiency can be > 99 %.

  9. Class D Operation • A Class D amplifier varies its output voltage using pulse width modulation. • The mark-space ratio of a high frequency square wave is set to be proportional to the required output. • The average output voltage can be recovered by a low pass filter.

  10. A Class D Output Stage P.W.M. L.P.F RL

  11. Class D Efficiency • Each of the two transistors in a class D output stage is always either fully on (saturated) or fully off. • When on, VCE is close to zero so power dissipation is approximately zero. • When off, IC is zero so power dissipation is zero again. • In theory, efficiency ≈ 100 %.

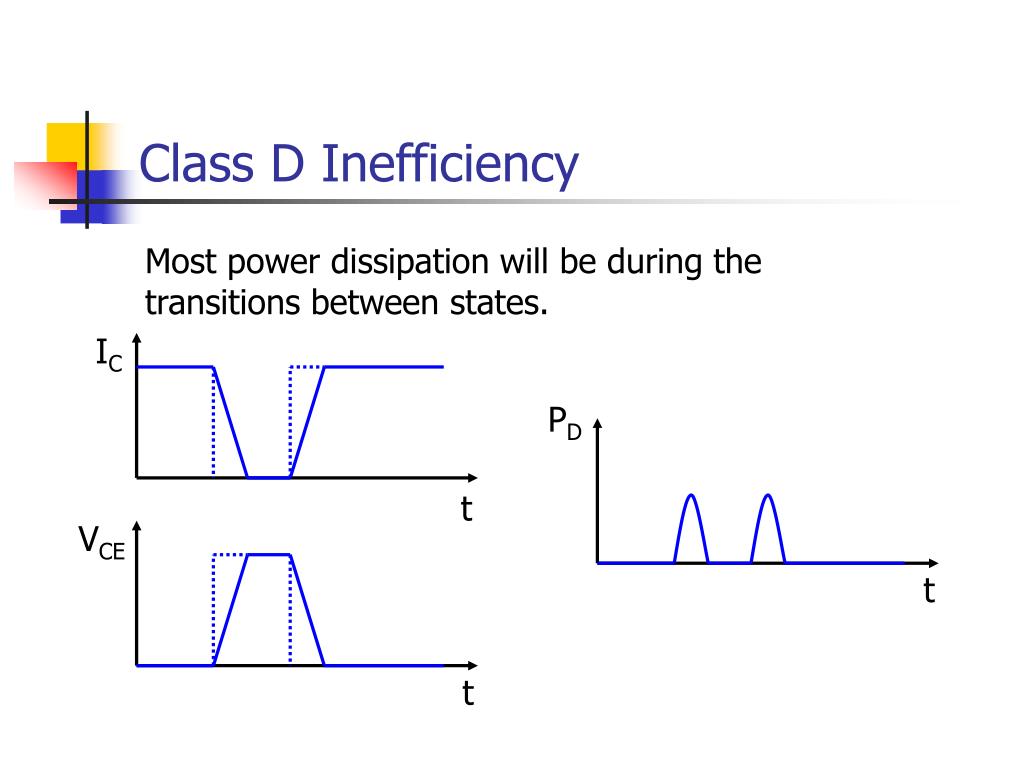

  12. PD t Class D Inefficiency Most power dissipation will be during the transitions between states. IC t VCE t

  13. Minimising Class D Inefficiency • Fast switching is essential for low power dissipation. • Low PWM frequency implies fewer transitions and lower power dissipation… • …but PWM frequency shouldn’t be so low that the output is distorted.

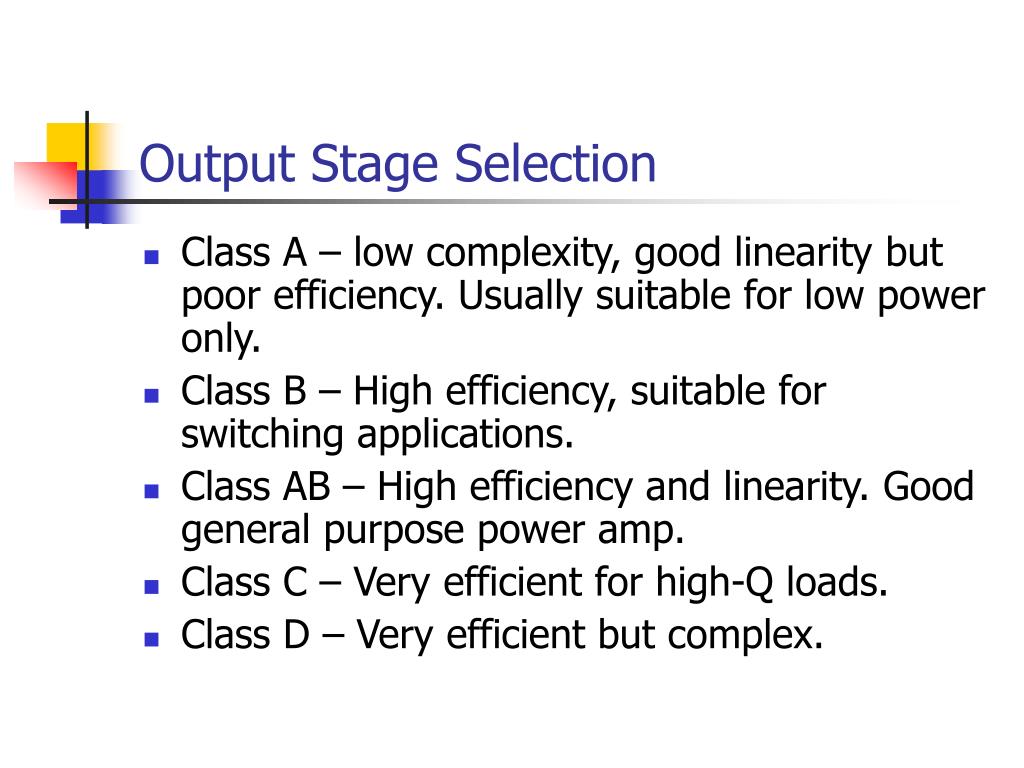

  14. Output Stage Selection • Class A – low complexity, good linearity but poor efficiency. Usually suitable for low power only. • Class B – High efficiency, suitable for switching applications. • Class AB – High efficiency and linearity. Good general purpose power amp. • Class C – Very efficient for high-Q loads. • Class D – Very efficient but complex.

  15. Power Amplifiers – Key Issues • Output Stage Selection. • Linearity / Distortion • Efficiency • Power Dissipation. • Heatsink Requirements. • Thermal resistance • Junction temperature • Biasing / Thermal Runaway. • Class AB design of Vbias • Protection.
