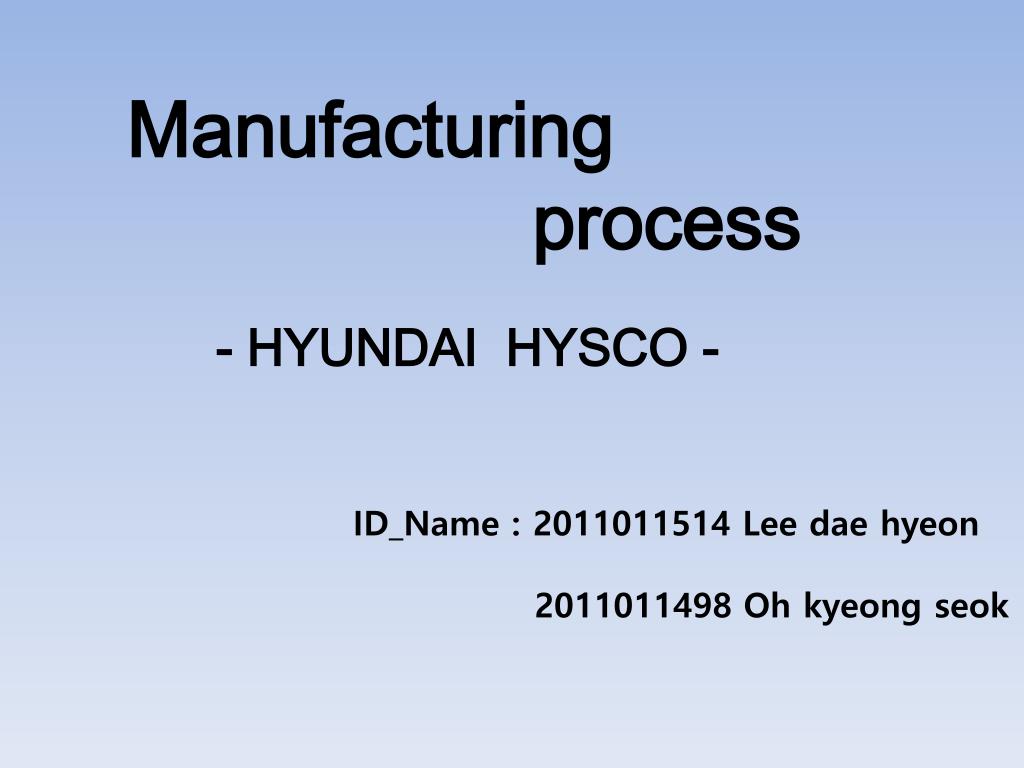

  1. Manufacturing process - HYUNDAI HYSCO - ID_Name : 2011011514 Lee daehyeon 2011011498 Oh kyeongseok

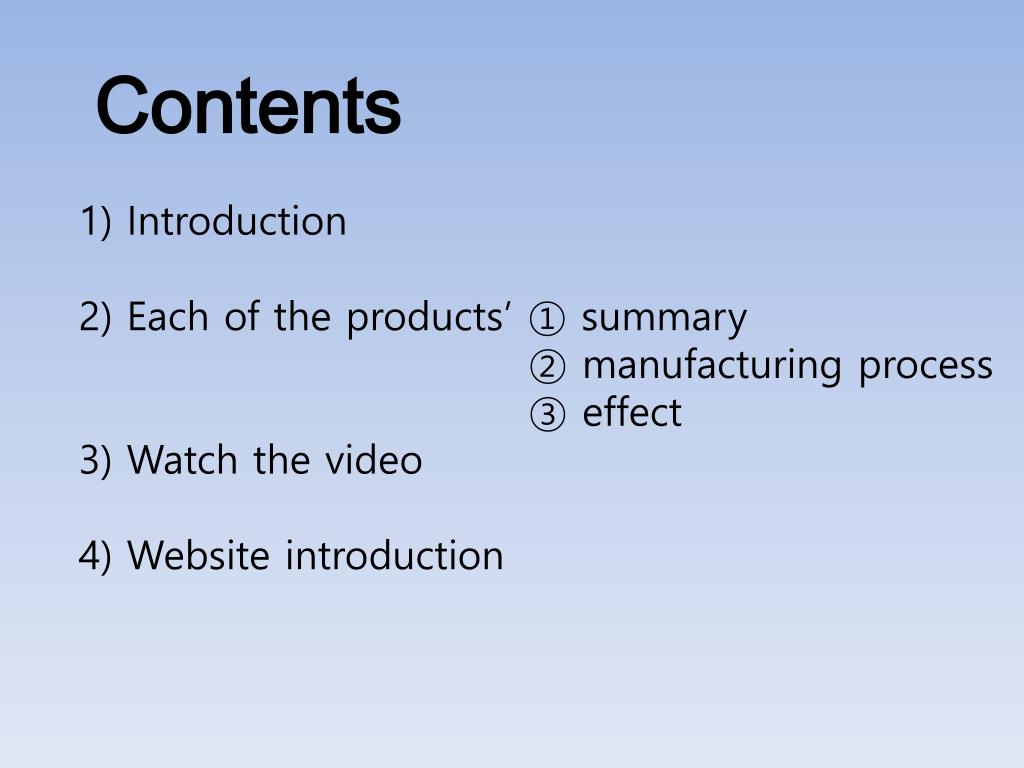

  2. Contents 1) Introduction 2) Each of the products’ ① summary ② manufacturing process ③ effect 3) Watch the video 4) Website introduction

  3. 1. Introduction Company name : HYUNDAI HYSCO Product : Reduce Automobile weight product 1. TWB 2.Hydro forming 3. Hot stamping

  4. 2 - 1 TWB • Summary : TWB stands for Tailor Welded Blank • Manufacturing process : boards in different material quality and thickness are blanked and laser welded • Effect : Initial cost decrease <Use of TWB product> <Companies look & material>

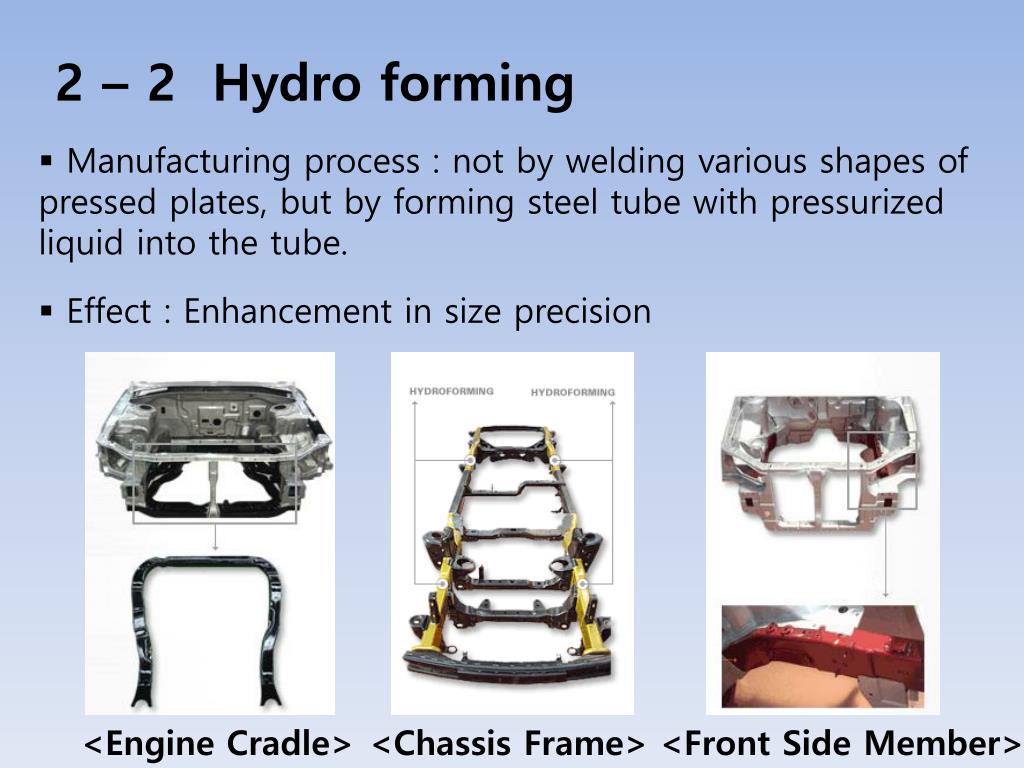

  5. 2 – 2 Hydro forming • Manufacturing process : not by welding various shapes of pressed plates, but by forming steel tube with pressurized liquid into the tube. • Effect : Enhancement in size precision <Engine Cradle> <Chassis Frame> <Front Side Member>

  6. < Manufacturing procedure of Hydro forming>

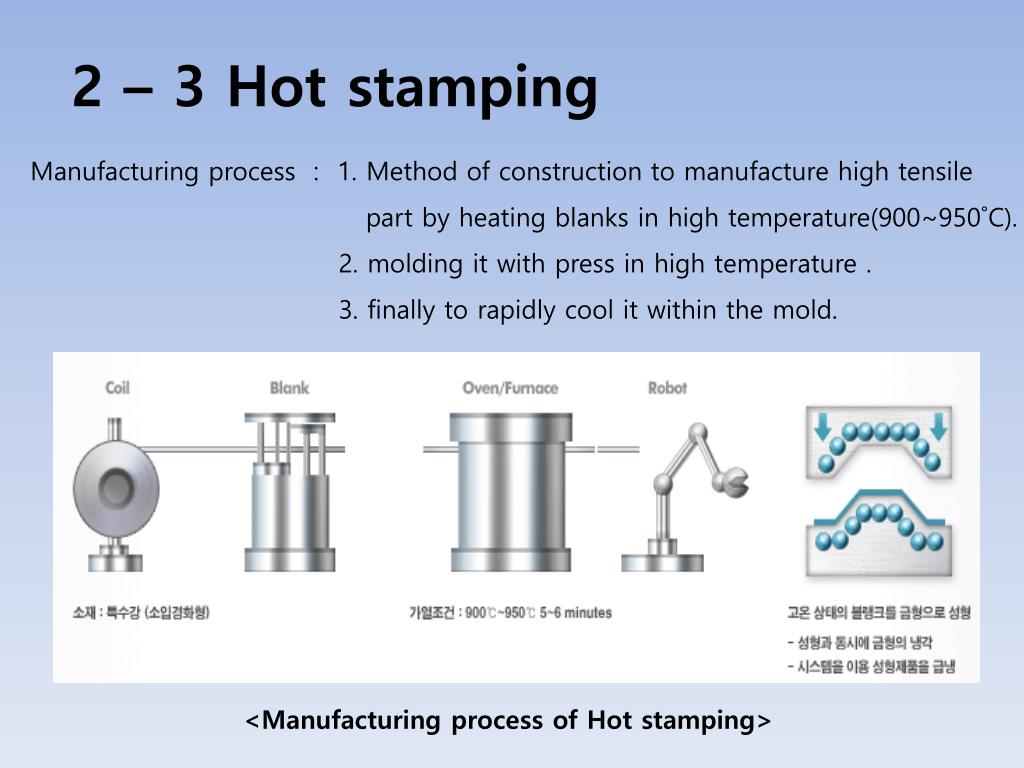

  7. 2 – 3 Hot stamping Manufacturing process : 1. Method of construction to manufacture high tensile part by heating blanks in high temperature(900~950˚C). 2. molding it with press in high temperature . 3. finally to rapidly cool it within the mold. <Manufacturing process of Hot stamping>

  8. <Completely Developed Part of Hot stamping>

  9. 3. Video

  10. ※ Website : http://hysco.com

  11. Thank you
