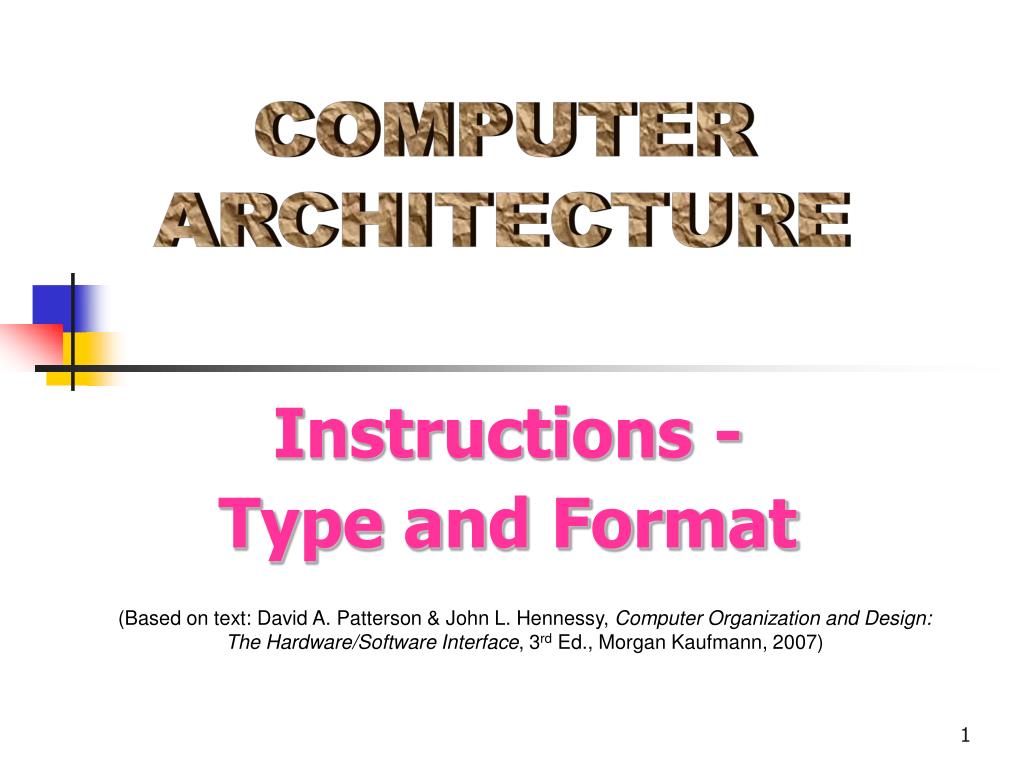

  1. COMPUTER ARCHITECTURE Instructions - Type and Format (Based on text: David A. Patterson & John L. Hennessy, Computer Organization and Design: The Hardware/Software Interface, 3rd Ed., Morgan Kaufmann, 2007)

  2. COURSE CONTENTS • Introduction • Instructions • Computer Arithmetic • Performance • Processor: Datapath • Processor: Control • Pipelining Techniques • Memory • Input/Output Devices

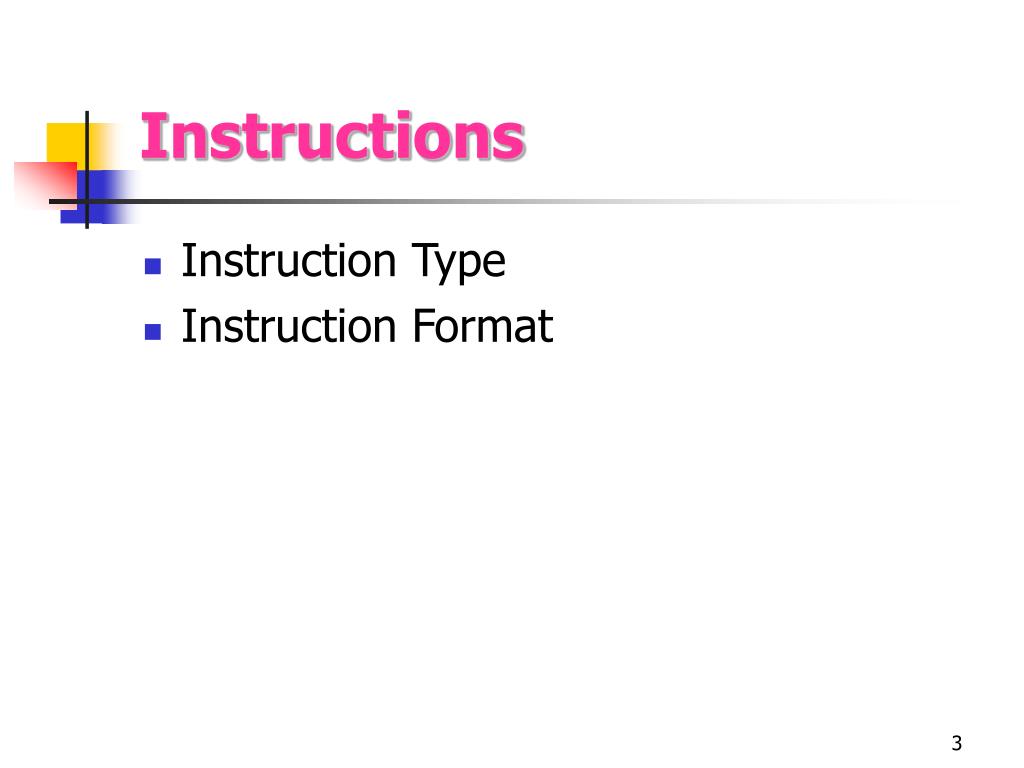

  3. Instructions • Instruction Type • Instruction Format

  4. Introduction • Instruction: Words of machine’s language • Instruction Set: Set of instruction • RISC (Reduced Instruction Set Computer) Design Principles: • Principle 1: Simplicity favors regularity • Principle 2: Smaller is faster • Principle 3: Good design demands good compromises • Principle 4: Make the common case fast • We’ll be working with MIPS architecture • Used by NEC, Nintendo, Cisco, Silicon Graphics, Sony, …

  5. Registers $0 - $31 PC Hi Lo MIPS Instruction Set Arch.: Registers • Registers - 32 general purpose registers, 3 special purpose registers, each 32 bits • $zero (0): constant 0 • $at (1): reserved for assembler • $v0-v1 (2-3): values for results & expression evaluation • $a0-a3 (4-7): arguments • $t0-t7 (8-15): temporaries • $s0-s7 (16-23): saved • $t8-t9 (24-25): more temporaries • $gp (28): global pointer • $sp (29): stack pointer • $fp (30): frame pointer • $ra (31): return address • 3 special purpose registers • PC: program counter • Hi, Lo: for multiply and divide

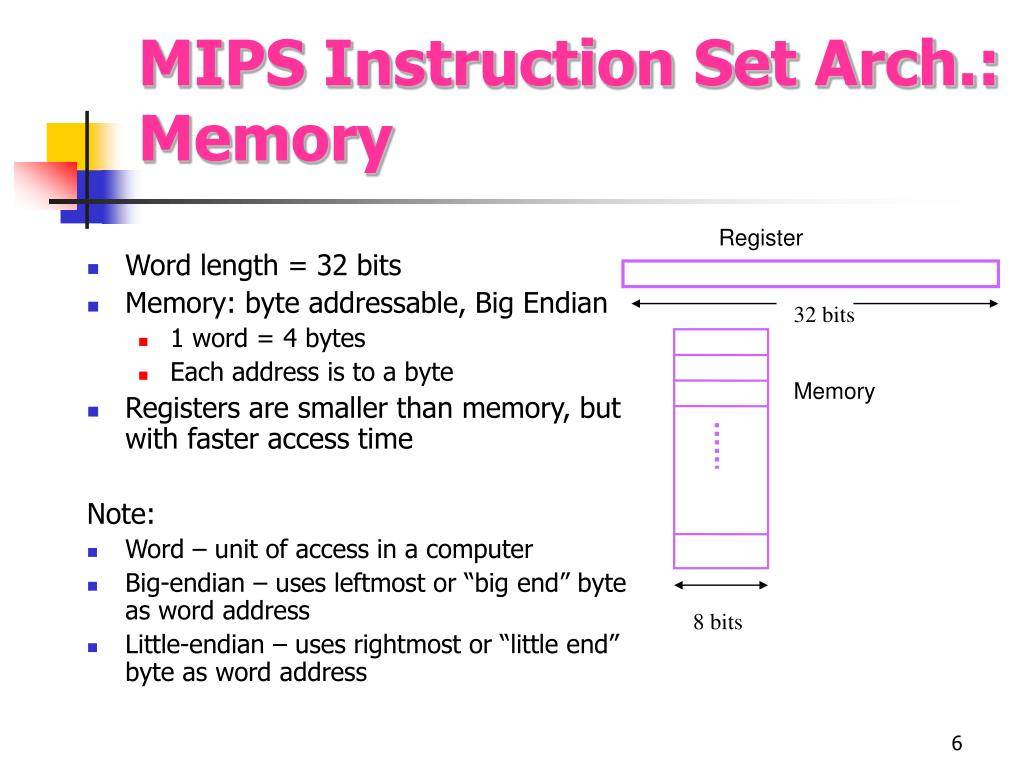

  6. Register 32 bits Memory 8 bits MIPS Instruction Set Arch.:Memory • Word length = 32 bits • Memory: byte addressable, Big Endian • 1 word = 4 bytes • Each address is to a byte • Registers are smaller than memory, but with faster access time Note: • Word – unit of access in a computer • Big-endian – uses leftmost or “big end” byte as word address • Little-endian – uses rightmost or “little end” byte as word address

  7. Control Input Memory Datapath Output Processor I/O Registers vs. Memory • Arithmetic instructions operands must be registers, • Only 32 registers provided • Compiler associates variables with registers • What about programs with lots of variables

  8. Instructions • Load and store instructions • Example: • C code: A[12] = h + A[8]; • MIPS code: lw $t0, 32($s3) add $t0, $s2, $t0 sw $t0, 48($s3) • Can refer to registers by name (e.g., $s2, $t2) instead of number • Store word has destination last • Remember arithmetic operands are registers, not memory! • Can’t write: add 48($s3), $s2, 32($s3)

  9. Our First Example • Can we figure out the code? swap: muli $2, $5, 4 add $2, $4, $2 lw $15, 0($2) lw $16, 4($2) sw $16, 0($2) sw $15, 4($2) jr $31 swap(int v[], int k); { int temp; temp = v[k] v[k] = v[k+1]; v[k+1] = temp; }

  10. MIPS Instruction Types • Arithmetic & logic (AL)add $s1, $s2, $s3 # $s1  $s2 + $s3 sub $s1, $s2, $s3 # $s1  $s2 - $s3 • each AL inst. has exactly 3 operands, all in registers addi $s1, $s2, 100 # s1  $s2 + 100 • the constant is kept in the instruction itself • Data transfer (load & store) lw $s1, 100($s2) # $s1  memory [$s2+100] (load word) sw $s1, 100($s2) # memory[$s2+100]  $s1 (store word) lb $s1, 100($s2) # $s1  memory [$s2+100] (load byte) sb $s1, 100($s2) # memory[$s2+100]  $s1 (store byte) • load/store bytes commonly used for moving characters (ASCII)

  11. MIPS Instruction Types • Conditional Branch beq $s2, $s3, L1 # branch to L1 if $s2 = $s3bne $s2, $s3, L1 # branch to L1 if $s2 $s3beq $s1, $s2, 25 # branch to PC + 4 + 100 (=4x25) if $s1 = $s2 slt $s2, $s3, $s4 # if ($s3) < ($s4) then $s2  1; # else $s2  0 (set on less than) • Unconditional Branch j Loop # go to Loop (jump) j 2500 # go to 4x2500=10000 (jump) jr $t1 # go to $t1 (jump register) jal Proc1 # $ra  PC + 4; go to Proc1 (jump & link)

  12. Compiling a HighLevel Language • Assignment statement (operands in registers, operands in memory) • Assignment statement (operands with variable array index) • If-then-else statement • Loop with variable array index • While loop • Case / switch statement • Procedure that doesn’t call another procedure • Nested procedures • Using strings • Using constants • Putting things together

  13. Compiling a HighLevel Language • Arithmetic instructions • useful for assignment statements • Data transfer instructions • useful for arrays or structures • Conditional branches • useful for if-then-else statements & loops • Unconditional branches • Case / switch statements, procedure calls and returns

  14. Basic Blocks • A basic block is a sequence of instructions • without branches except possibly at the end, and • without branch targets or branch labels, except possibly at the beginning • One of the first early phases of compilation is breaking the program into basic blocks

  15. Procedure Call • Use the following registers • $a0-a3: to pass parameters • $v0-v1: to return values for results & expression evaluation • $ra: return address • $sp: stack pointer (points to top of stack) • $fp: frame pointer • Use the following instructions • jal ProcedureAddress # it jumps to the procedure address and saves # the return address (PC + 4) in register $ra • jr $ra # return jump; jump to the address stored in register $ra • Use stack • a part of memory • to save the registers needed by the callee

  16. $fp $fp $sp $sp Nested Procedures • Use stack to preserve values ($a0-a3, $s0-s7, $sp, $ra, stack above $sp, and $fp & $gp if need to use them) • No need to preserve $t0-t9, $v0-v1, stack below $sp • Frame pointer serves as stable base register within procedure for local references • Procedure frame (activation record): High address $fp Arg. registers Return address Saved registers Local arrays & structures Low address $sp

  17. Op rs rt rd shamt funct Op rs rt address/immediate Op target address Instruction Format • All instructions are 32 bits • 3 types of formats: R-type (Regular)I-type (Immediate)J-type (Jump) • Fields (# of bits) • op (6): opcode (basic operation) • rs (5): 1st register source operand • rt (5): 2nd register source opd. • rd (5): register destination opd. • shamt (5): shift amount • funct (6): function (select specific variant of operation in op field) • address/immediate (16) • target address (26)

  18. Instruction Format (Examples) - 1 • R-type Examples: • add $t0, $s2, $t0 • sub $s1, $s2, $s3 • slt $s1, $s2, $s3 • jr $ra #0s in rt, rd, and shamt fields • I-type Examples: • lw $s1, 100($s2) #100 appears in address/immediate field • sw $s1, 100($s2) #100 appears in address/immediate field • beq $s1, $s2, 25 # 25 appears in address/immediate field (eqv. to 100) • J-type Examples: • j 2500 #2500 appears in target address field (eqv. to 4x2500=10000) • jal 2500 #2500 appears in target address field (eqv. to 4x2500=10000)

  19. Op=0 rs=18 rt=8 rd=8 shamt=0 funct=32 000000 10010 01000 01000 00000 100000 Op=35 rs=18 rt=17 100 Op=2 2500 Instruction Format (Examples) - 2 • R-type Example: • add $t0, $s2, $t0 • I-type Example: • lw $s1, 100($s2) • J-type Example: • j 2500

  20. Motivation for I-type Instructions • For many operations, one operand = constant C compiler gcc: 52% Spice 69% • Design principle: Make the common case fast

  21. J-Type Instructions • Example: j 200 # go to location 800 (=200*4) • Other J type instruction: jal 200 # jump & link, go to location 800 (=200*4) # $31(ra)  PC + 4

  22. Assembly Language vs. Machine Language • Assembly provides convenient symbolic representation • much easier than writing down numbers • e.g., destination first • Machine language is the underlying reality • e.g., destination is no longer first • Assembly can provide ‘pseudoinstructions’ • e.g., “move $t0, $t1” exists only in Assembly • would be implemented using “add $t0, $t1, $zero” • When considering performance you should count real instructions

  23. Summary • Instruction Type • Instruction Format • RISC Design Principles • Assembly vs. Machine Language
