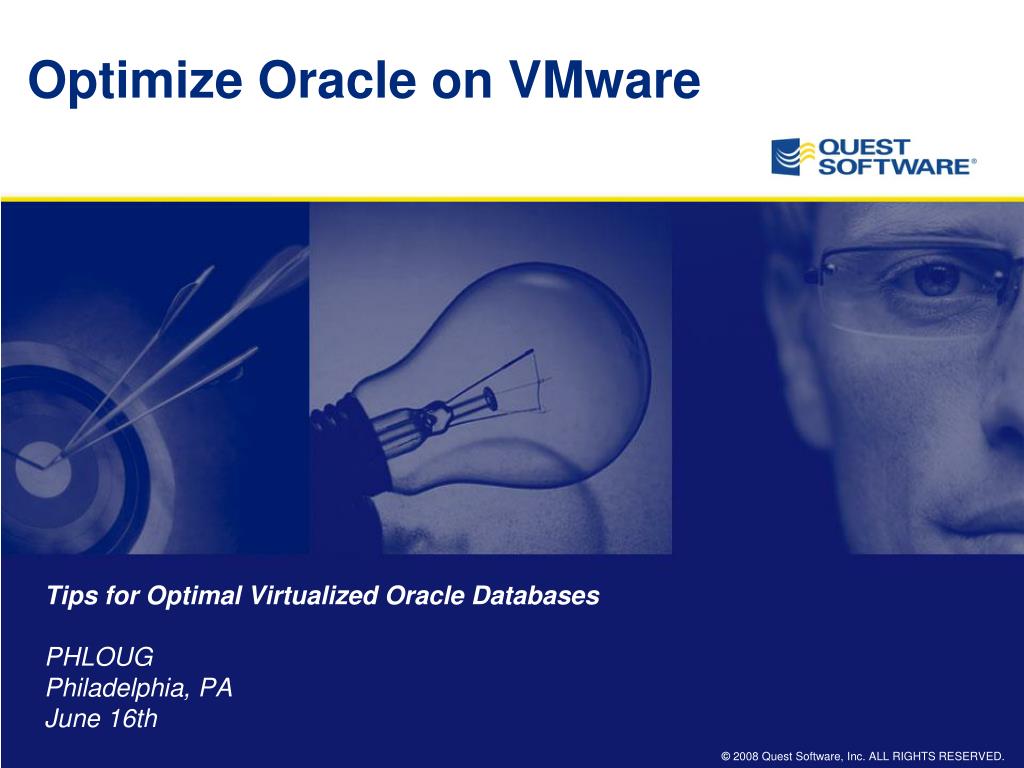

  1. Optimize Oracle on VMware • Tips for Optimal Virtualized Oracle Databases • PHLOUG • Philadelphia, PA • June 16th

  2. Bert Scalzo … Database Expert & Product Architect for Quest Software Oracle Background: Worked with Oracle databases for over two decades (starting with version 4) Work history includes time at both “Oracle Education” and “Oracle Consulting” Academic Background: Several Oracle Masters certifications BS, MS and PhD in Computer Science MBA (general business) Several insurance industry designations Key Interests: Data Modeling Database Benchmarking Database Tuning & Optimization "Star Schema" Data Warehouses Oracle on Linux – and specifically: RAC on Linux Articles for: • Oracle’s Technology Network (OTN) • Oracle Magazine, • Oracle Informant • PC Week (eWeek) Articles for: • Dell Power Solutions Magazine • The Linux Journal • www.linux.com • www.orafaq.com 2

  3. Books by Bert … Coming in 2009 … 3

  4. Couple of Questions… • How many people are doing Oracle on • VMware Server (freeware) • VMware Workstation 6.x • VMware ESXi (freeware) • VMware Infrastructure 3 • Other Virtual Platforms • Virtual Box • Hyper Visor • Zen Server • Oracle VM Server • Sun xVM

  5. Agenda Discuss the Virtualization Trend Challenge: Shared Resources Used Quest Tools to Simplify & Maximize Results • Foglight for VMware • Foglight Database Performance Analysis • Benchmark Factory for Databases 440% Database Improvement on Same Hardware! How is that possible – What Black Magic was used? Result = Easy Best Practices for Oracle on VMware

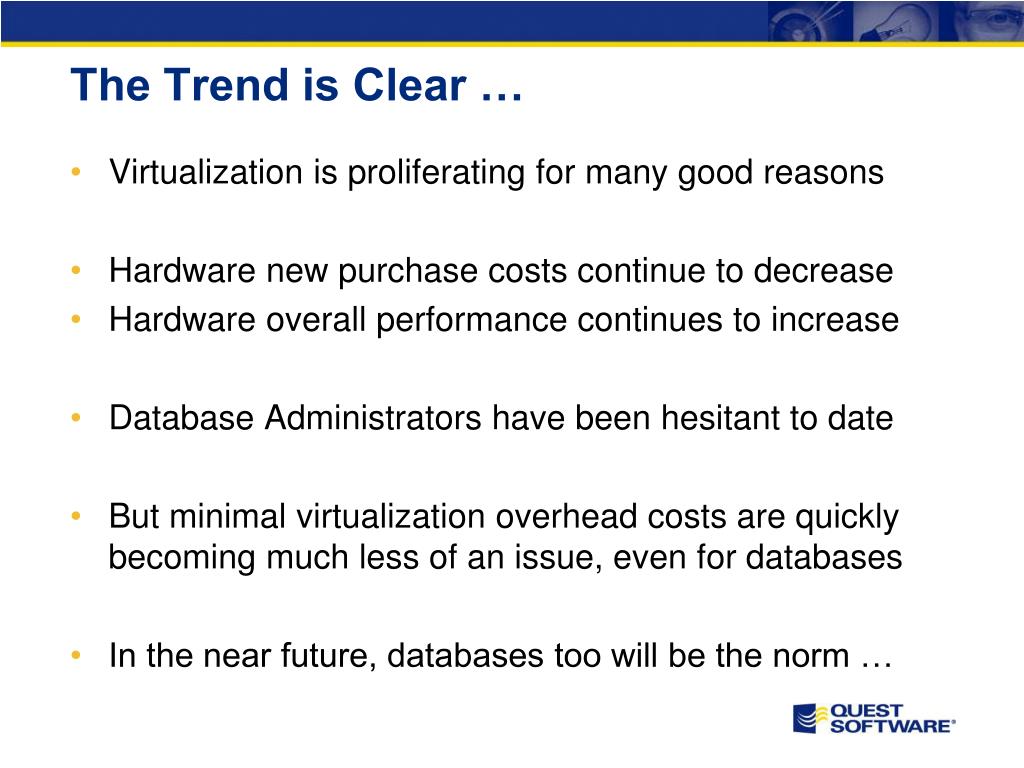

  6. The Trend is Clear … Virtualization is proliferating for many good reasons Hardware new purchase costs continue to decrease Hardware overall performance continues to increase Database Administrators have been hesitant to date But minimal virtualization overhead costs are quickly becoming much less of an issue, even for databases In the near future, databases too will be the norm …

  7. Fundamental ChallengeUnderstanding the impact of resource sharing CPUMulti-Core Processors Network Shared Connectivity Load Balancing Redundancy Core 4 Resources Memory Sharing Over-commitment Disk Shared storageFiber, iSCSI, NAS

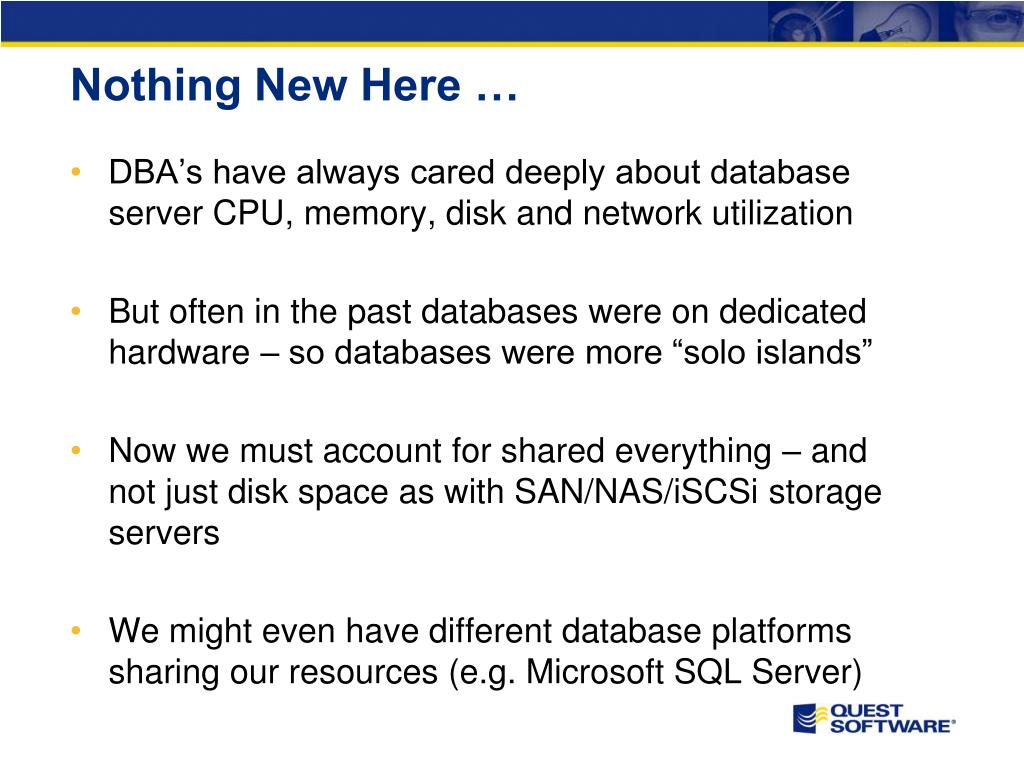

  8. Nothing New Here … DBA’s have always cared deeply about database server CPU, memory, disk and network utilization But often in the past databases were on dedicated hardware – so databases were more “solo islands” Now we must account for shared everything – and not just disk space as with SAN/NAS/iSCSi storage servers We might even have different database platforms sharing our resources (e.g. Microsoft SQL Server)

  9. Some Tools I used … Not pitching or selling anything here – just disclosure There are lot’s of good tools out there - pick whatever In brief – here’s what I used and why (its purpose): • Load Generator = Benchmark Factory for Databases • Virtualization Monitor = Foglight for VMware • Database Performance = Foglight Database Performance Analysis • Database Ad-Hoc Diagnostics = Spotlight for Oracle

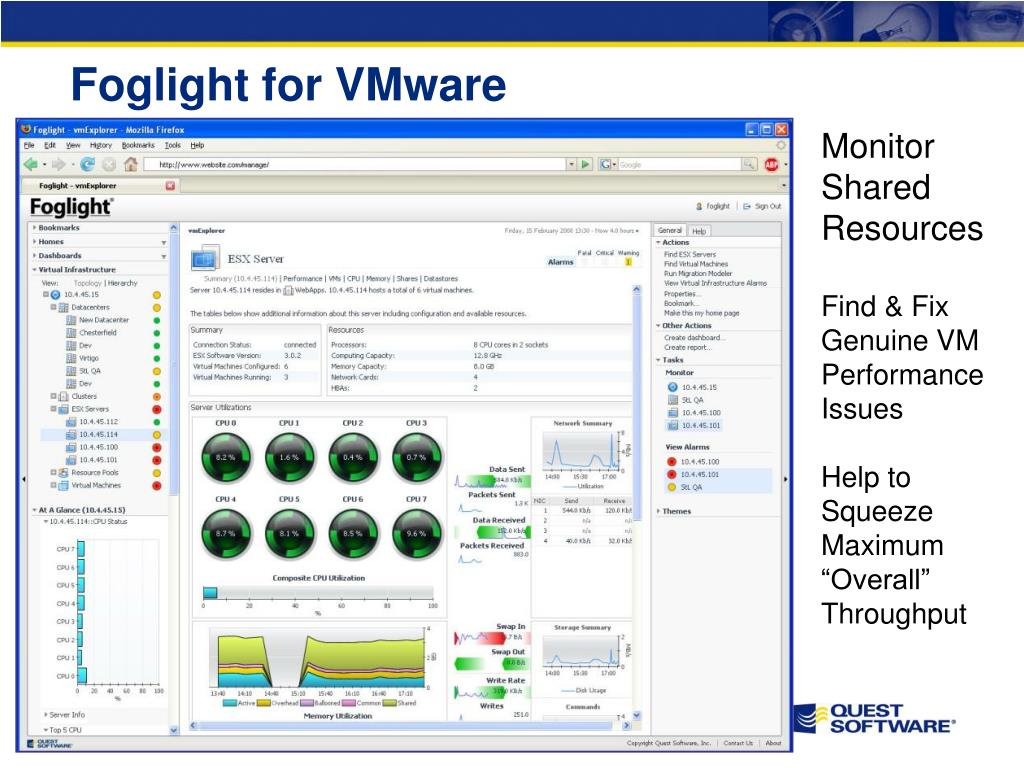

  10. Foglight for VMware Monitor Shared Resources Find & Fix Genuine VM Performance Issues Help to Squeeze Maximum “Overall” Throughput

  11. Foglight for Database Analysis Monitor Database Resources Find & Fix Genuine DB Performance Issues Help to Squeeze Maximum “Database” Throughput

  12. Benchmark Factory for Databases Generate Database Workload Stress the Database Introduce Performance Issues Help to Expose Potential Candidates Each step above is an individual test for my proposed best practices – and their results

  13. 440% Improvement for Proper Setup 1080 ms Average Response Time 200 ms Average Response Time

  14. The Top Ten Tricks Applied … Obtain a baseline test for relative comparisons On the VM host, exclude VM clients from active, online virus scans Remove Windows Indexing Service (because really don’t need fast file system searches for an Oracle database) Remove other extraneous Windows services (there are lots) Change the VM host registry settings to improve file system IO for databases Optimize the VM host configuration and options Optimize the VM client OS configuration and options for Oracle database Remove other extraneous VM client OS services and daemons Change VM client file system settings to improve IO performance for databases Adjust VM client file system block size to more closely match Oracle block size

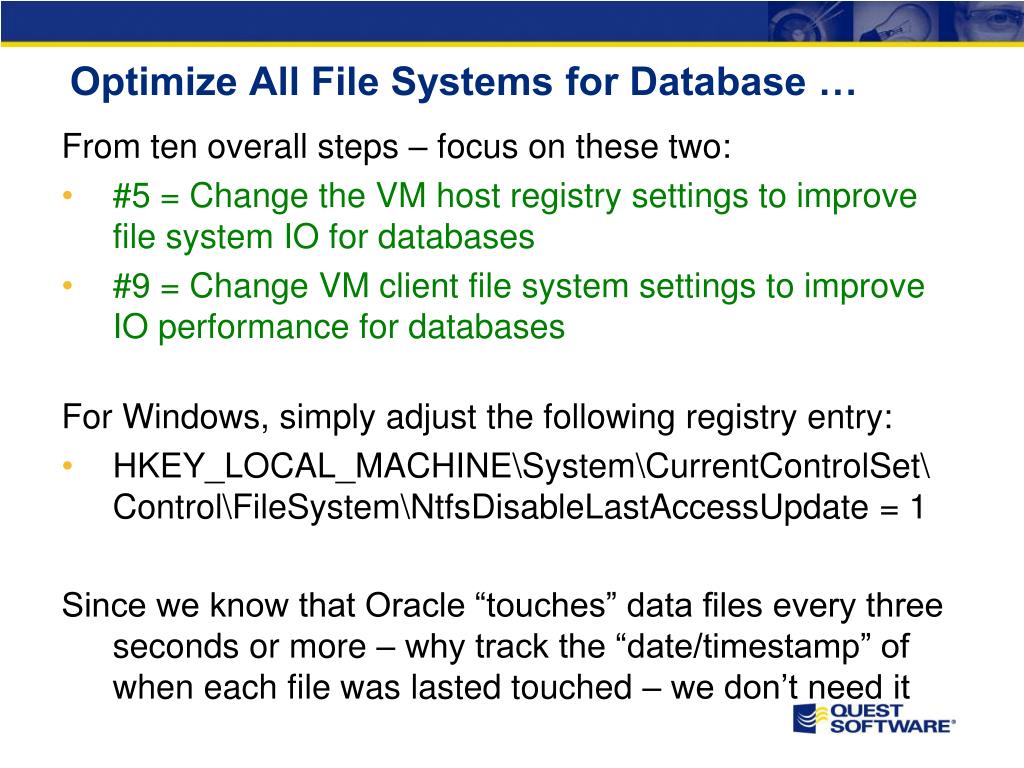

  15. Optimize All File Systems for Database … From ten overall steps – focus on these two: #5 = Change the VM host registry settings to improve file system IO for databases #9 = Change VM client file system settings to improve IO performance for databases For Windows, simply adjust the following registry entry: HKEY_LOCAL_MACHINE\System\CurrentControlSet\ Control\FileSystem\NtfsDisableLastAccessUpdate = 1 Since we know that Oracle “touches” data files every three seconds or more – why track the “date/timestamp” of when each file was lasted touched – we don’t need it

  16. Can do this from some PC tools …

  17. Let’s not Forget My Favorite - Linux … We can set the arrtibute for the individual Oracle files: chattr +A file_name Or we can do it for an entire directory: chattr –R +A directory_name However the best method (because it automatically handles any file additions) is to edit the /etc/fstab and add the NOATIME attribute: /dev/sda6 / ext3 defaults,noatime 1 1 /dev/sda1 /boot ext2 defaults,noatime 1 2 /dev/cdrom /mnt/cdrom iso9660 noauto,owner,ro 0 0 /dev/sda5 swap swap defaults 0 0

  18. Match File System & Database Block Size … From ten overall steps – focus on this one: #10 = Adjust VM client file system block size to more closely match Oracle block size Assume we have a Linux host running a Linux based Oracle database client. Let’s examine Scenario #2 from the chart next page. Start by assuming that the host file system using the default block size: 2K. Further assume that the client file system also using the default block size: 2K. But that the Oracle DBA sets the DB block size to 4K – so we have a mismatch. Thus each Oracle physical IO requests asks the client OS for two IO’s, and each client IO asks the host for one IO. That’s a total of four logical IO requests (although only two physical IO’s in reality – but note that there’s overhead for each logical IO request, so larger numbers are worse)

  19. Services, Services, Services … From ten overall steps – focus on this one: #4 = Remove other extraneous Windows services (there are lots) #8 = Remove other extraneous VM client OS services and daemons This step is very, very subjective – do so with great care Your situation & needs will dictate what can be turned off No two scenarios will be 100% alike – so mileage will vary Therefore take my next two slides with a “grain of salt” ….

  20. Lessons Learned (i.e. Best Practices) Tons of “low hanging fruit” (i.e. easy no-brainer stuff) Optimize each of the four major VM platform stacks • Optimize the Host Machine (BIOS too) • Optimize the Host VMware Setup • Optimize the Guest VM Configuration • Optimize the Guest Operating System Remember: 440% improvement for practically free 

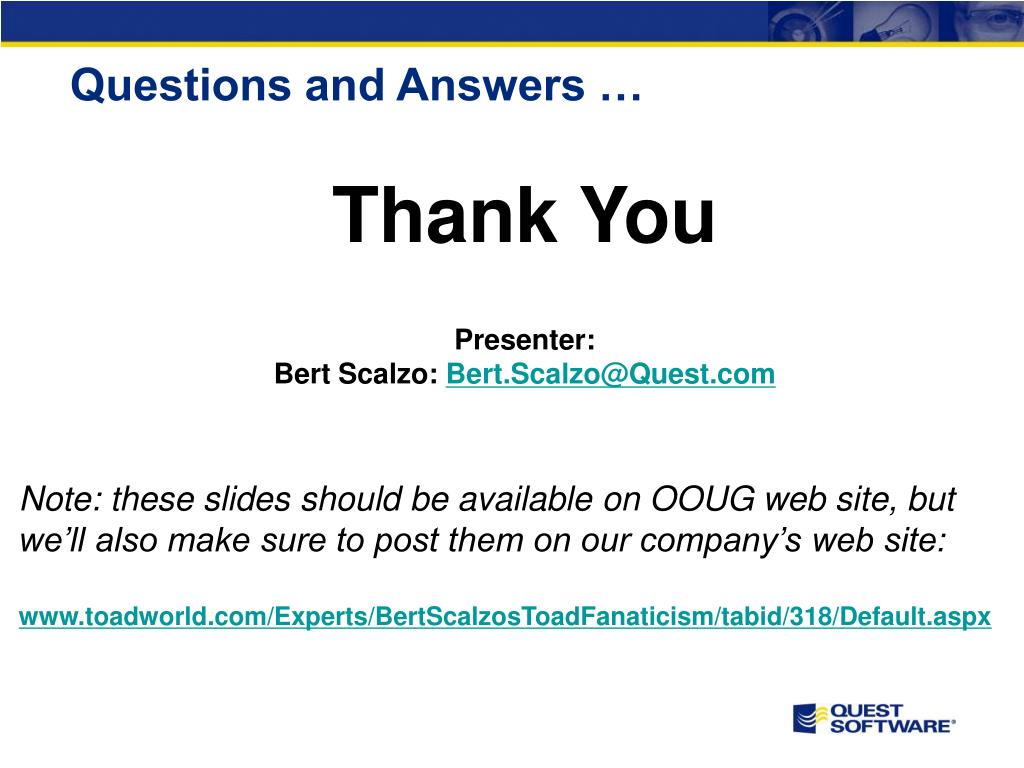

  21. Questions and Answers … Thank You Presenter: Bert Scalzo: Bert.Scalzo@Quest.com Note: these slides should be available on OOUG web site, but we’ll also make sure to post them on our company’s web site: www.toadworld.com/Experts/BertScalzosToadFanaticism/tabid/318/Default.aspx
