Advances in H-Mode Operation and Hybrid Scenarios for ITER: Summary of Recent Progress

This session presents significant advancements in improved H-mode operations and hybrid scenarios related to ITER. Key highlights include Y. Sakamoto's insights on JT-60U and JET's 2006-2007 campaigns, highlighting long pulse sustainment with optimal confinement parameters. X. Litaudon discusses CRONOS simulations and progress in ASDEX Upgrade. E. Doyle shares hybrid operation outcomes on DIII-D, while V. Mukhovatov addresses accessibility of improved H-mode in ITER. Overall, the session underscores progress in high-density regimes, confinement, and stability, paving the way for future ITER experiments.

nitesh
Télécharger la présentation

Advances in H-Mode Operation and Hybrid Scenarios for ITER: Summary of Recent Progress

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

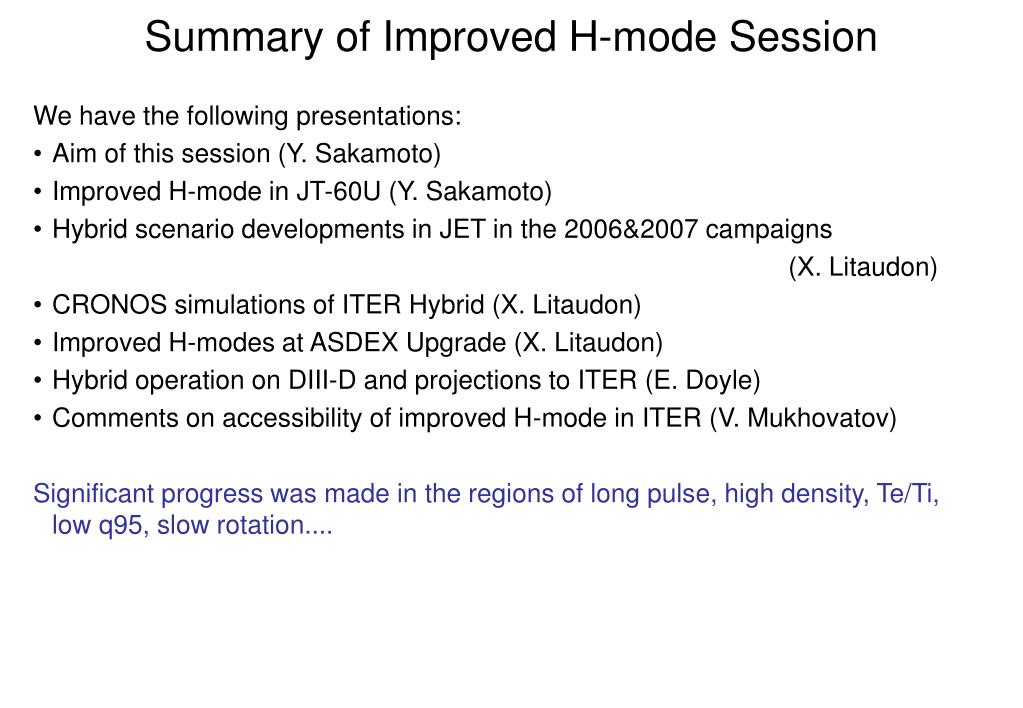

  1. We have the following presentations: • Aim of this session (Y. Sakamoto) • Improved H-mode in JT-60U (Y. Sakamoto) • Hybrid scenario developments in JET in the 2006&2007 campaigns • (X. Litaudon) • CRONOS simulations of ITER Hybrid (X. Litaudon) • Improved H-modes at ASDEX Upgrade (X. Litaudon) • Hybrid operation on DIII-D and projections to ITER (E. Doyle) • Comments on accessibility of improved H-mode in ITER (V. Mukhovatov) • Significant progress was made in the regions of long pulse, high density, Te/Ti, low q95, slow rotation.... Summary of Improved H-mode Session

  2. RED: recent development

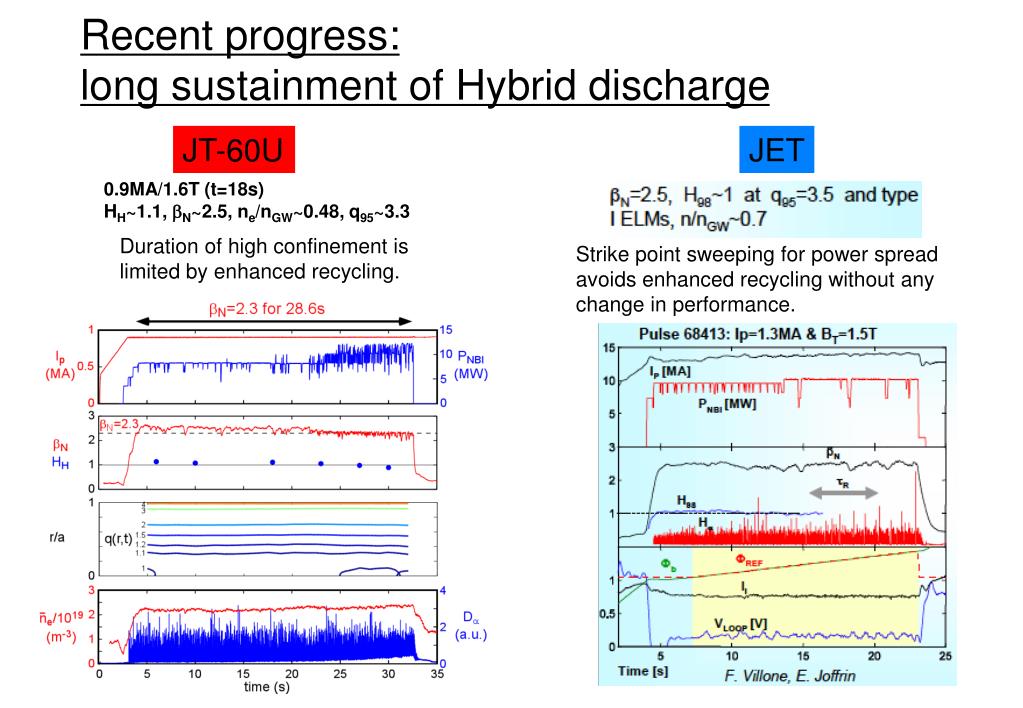

  3. Recent progress:long sustainment of Hybrid discharge JT-60U JET 0.9MA/1.6T (t=18s) HH~1.1, bN~2.5, ne/nGW~0.48, q95~3.3 Duration of high confinement is limited by enhanced recycling. Strike point sweeping for power spread avoids enhanced recycling without any change in performance.

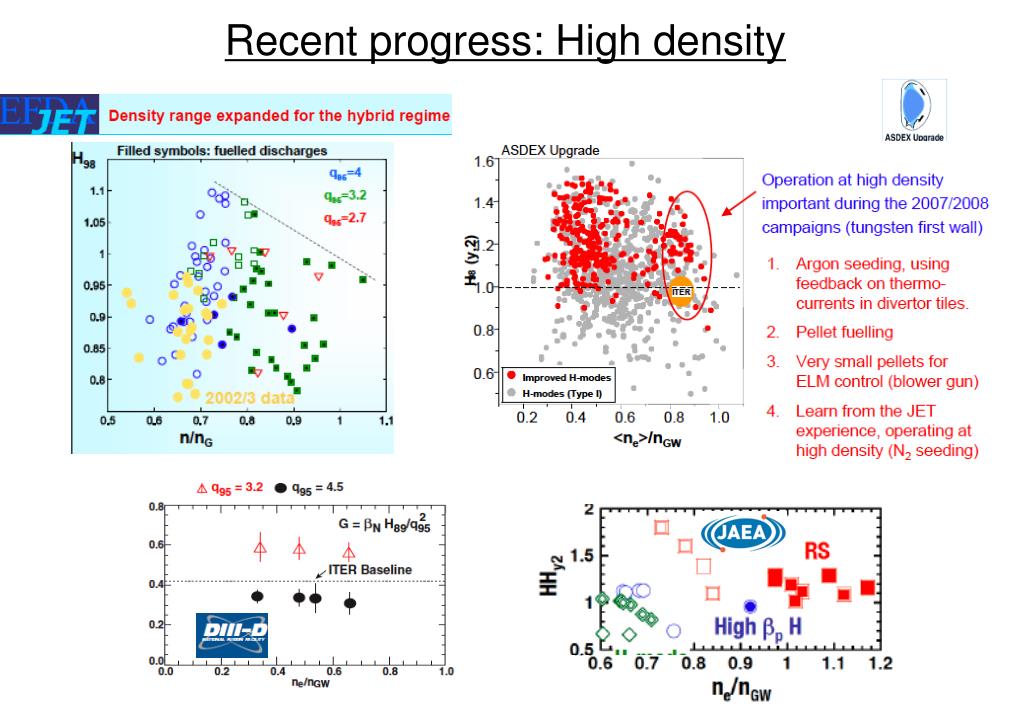

  4. Recent progress: High density

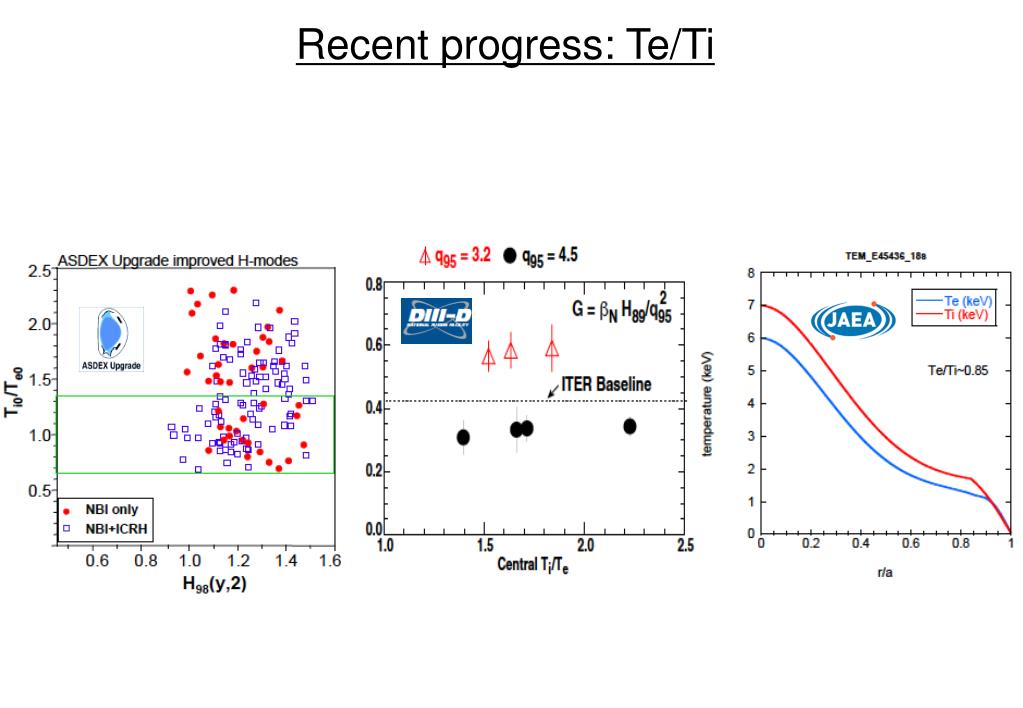

  5. Recent progress: Te/Ti

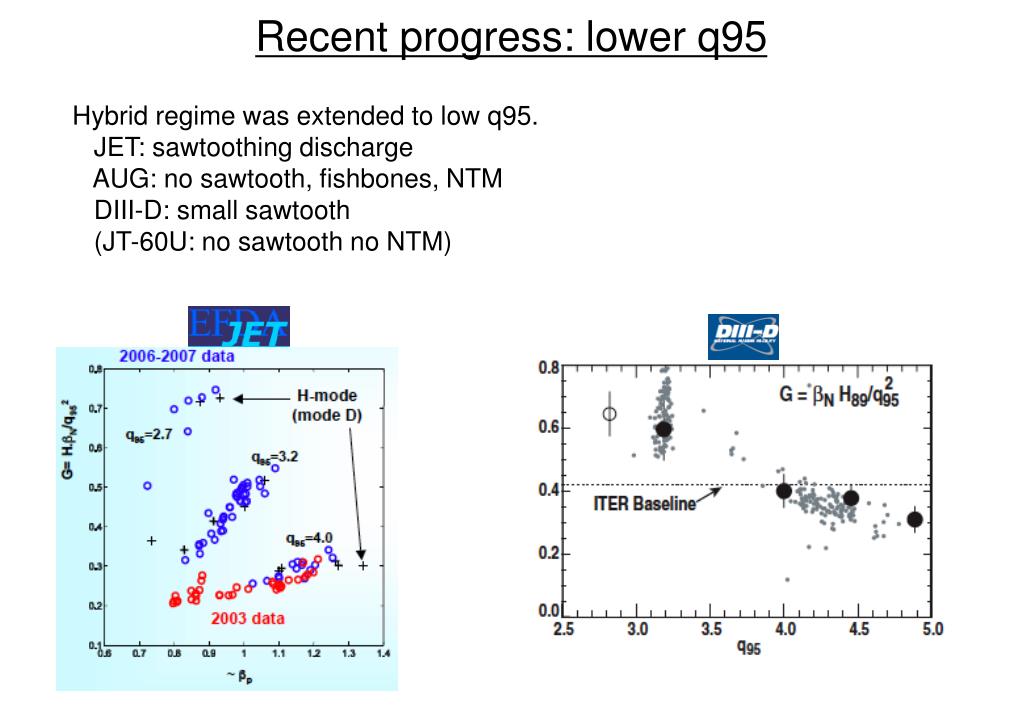

  6. Recent progress: lower q95 Hybrid regime was extended to low q95. JET: sawtoothing discharge AUG: no sawtooth, fishbones, NTM DIII-D: small sawtooth (JT-60U: no sawtooth no NTM)

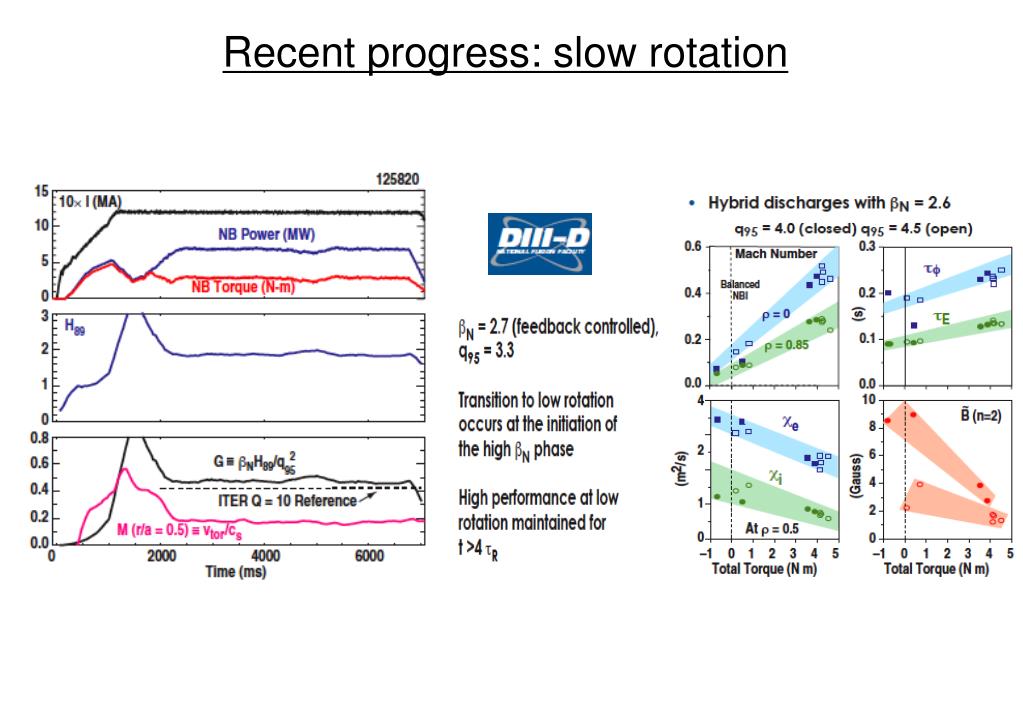

  7. Recent progress: slow rotation

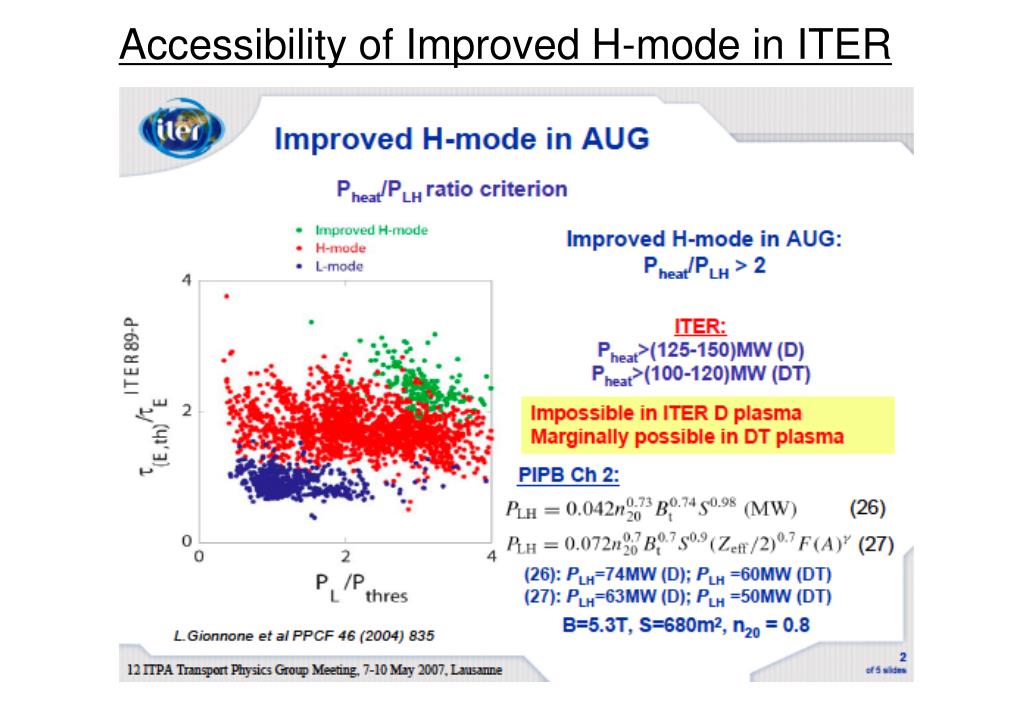

  8. Accessibility of Improved H-mode in ITER
