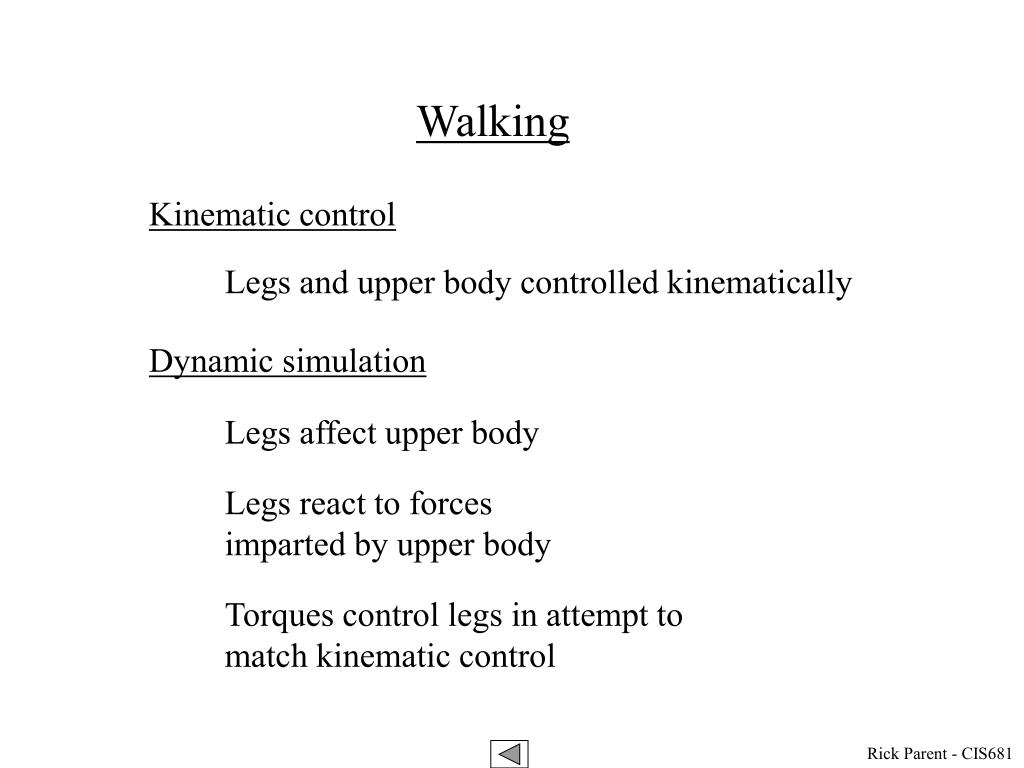

Walking. Kinematic control. Legs and upper body controlled kinematically. Dynamic simulation. Legs affect upper body. Legs react to forces imparted by upper body. Torques control legs in attempt to match kinematic control. Walking. Pelvic rotation over point of contact.

noble-conway
Télécharger la présentation

Walking

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Walking Kinematic control Legs and upper body controlled kinematically Dynamic simulation Legs affect upper body Legs react to forces imparted by upper body Torques control legs in attempt to match kinematic control

  2. Walking Pelvic rotation over point of contact Pelvic rotation about vertical axis Pelvic list Knee flexion Toe hinge

  3. Walking: Phases RTL LHD RHD LTL Double support Single support Double support Right stance phase Left swing phase One-half cycle

  4. Walking: kinematics • Specify joint angle functions of time for each joint • Empirical clinic data • Designed by the animation • Specify time-space curves for pelvis and feet • Use inverse kinematics to position leg at each time step

  5. Walking: dynamics • Kinematically control some parameters • Use dynamics to fill in rest of parametric values • Dynamic simplifications • Ignore some dynamics, e.g. swing leg on balance • Ignore temporal variations, e.g., upward force of stance leg • Replace complexes by simpler ones, e.g., leg by telescoping joint • Decouple forces and sum affect, e.g. hor. and vert. components

  6. Dynamcis for animation Aid to the animator, not an obstacle Can be easily overridden Kinematics used as hard or soft constraints

  7. Walking: forward dynamics Phase changes induce joint torques Simulates body sensors turning on/off muscles Can use empirically collected data (gait lab data)
