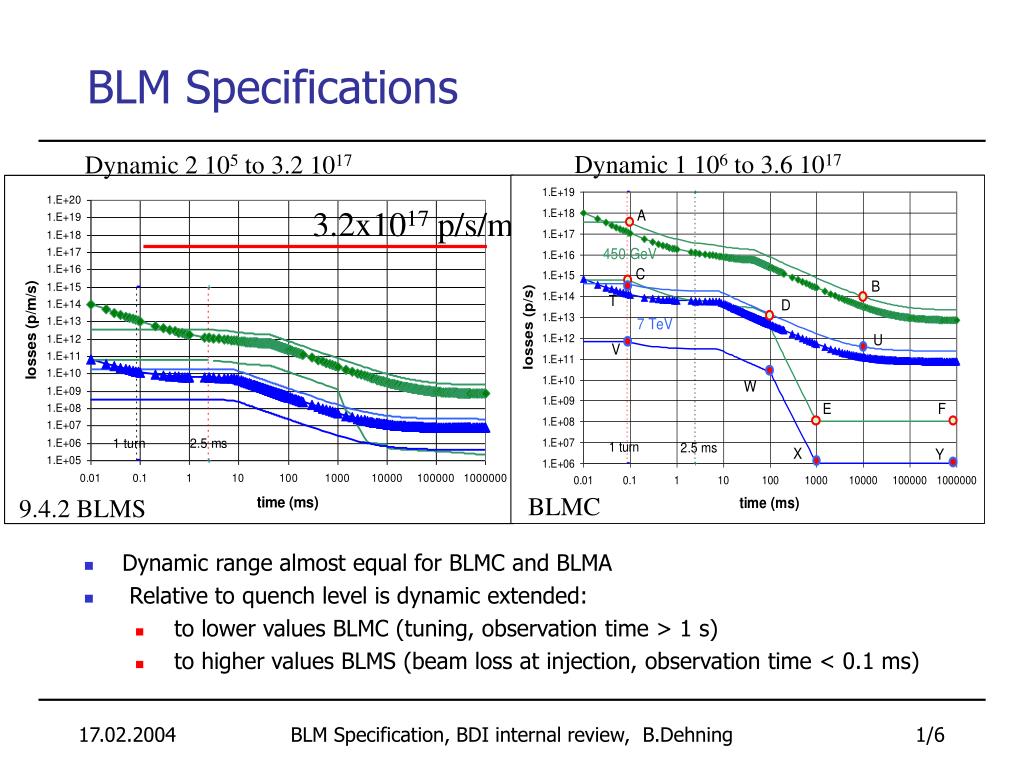

Dynamic 1 10 6 to 3.6 10 17. Dynamic 2 10 5 to 3.2 10 17. 3.2x10 17 p/s/m. BLMC. BLM Specifications. 9.4.2 BLMS. Dynamic range almost equal for BLMC and BLMA Relative to quench level is dynamic extended: to lower values BLMC (tuning, observation time > 1 s)

noel
Télécharger la présentation

BLM Specifications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Dynamic 1 106 to 3.6 1017 Dynamic 2 105 to 3.2 1017 3.2x1017 p/s/m BLMC BLM Specifications 9.4.2 BLMS • Dynamic range almost equal for BLMC and BLMA • Relative to quench level is dynamic extended: • to lower values BLMC (tuning, observation time > 1 s) • to higher values BLMS (beam loss at injection, observation time < 0.1 ms) BLM Specification, BDI internal review, B.Dehning

  2. Loss Levels and Required Accuracy • Some comments: • Fast losses, transient losses: assume 5 turns to reach quench level = > increase per turn 0.2 => 3 – 4 turns between dump und quench level (delay of dump 3 – 4 turns) BLM Specification, BDI internal review, B.Dehning

  3. Reliability and Time Resolution Definition (specs): By criticality, we mean that the system must be 100% operational to allow beam injection and that the beam is dumped if it fails. In general hardware interlocks that cannot be removed enforce this strategy. • In case of a non working monitor this monitor has to be repaired before the next injection BLM Specification, BDI internal review, B.Dehning

  4. Some more Specification Requirements • BEAM 1/BEAM 2 DISCRIMINATION • If this would not be possible, the collimators of the two rings would have to be operated one after the other and the search for aperture limitations carried out with a single beam. • DATA FOR THE CONTROL ROOM AND THE LOGGING SYSTEM • The loss rates should be normalized with respect to the quench level, i.e. the calibration should be energy and integration time-dependent. Abnormal, higher local rates can thereby be spotted easily [30]. • Updated frequently, typically every second • provide coincidence signals from several close-by quadrupoles • frequency analysis • long term summation for comparison with data on integrated radiation doses all around the machine • POST-MORTEM ANALYSIS • buffered for the last 100 - 1000 turns • average rates of all monitors should be easily available for time scales of a few seconds to 10 minutes before a beam-dump • Reliability • fault rate of less than one per month • A set of movable BLM’s BLM Specification, BDI internal review, B.Dehning

  5. Ions Specification: • PROTONS VERSUS IONS • These two quantities (Ion bunch and ion beam energy) are very close to respectively a pilot bunch and a proton beam of intermediate intensity (5 109and 2.2 1012). It can be concluded that no particular properties need be added to the present specification with respect to ion beams. • Ion loss and fluence calculation before final decision on detector location, ... BLM Specification, BDI internal review, B.Dehning

  6. Ionisation chamber currents (1 litre) BLM Specification, BDI internal review, B.Dehning
