  1. MPF / JLOTS Overview

  2. MPF org chart

  3. SLRP (Survey Liaison Recon Party) O-9 Airfield 4 3 ACB2 SLRP could include the following reps: - S3, S3A, S4, S7A, A3, B6, B3, C3, EA1 SLRP responsibilities: Gather detailed info on conditions within the AAA - Hydrographic analysis of the beach - Location of HN sources for construction materials - Location of covered storage and hardstand - Designation of MSR and MHE requirements - Location of HN emergency medical facilities - HN public telephone/satellite communications - Analysis on effects of customs/traditions - HN translator - Location of HN military, police & intel agencies 2 1 0 K SUPPORT -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  4. OPP (Off-load Preparation Party) O-4 Airfield 4 3 2 OPP team includes reps from the MAGTF subordinate elements and NSE OPP responsibilities: OPP is tasked with the preparation of the equipment onboard the Maritime Prepositioning Ships (MPS) for debarkation at the AAA Typical OPP team consists of ~100 personnel per MPS ~84 from MEF FWD ~16 from NSE (~5 from ACB2) 1 0 K SUPPORT -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  5. Advanced Party O-4 Airfield 4 SECURITY - AP arranges the reception of the Main Body in coordination with the Tanker Airlift Control Element (TALCE) - Consists of AAOG, AAOE, LFSP, NSE and security elements to provide protection - AP team includes: 150 Security 200 NCW 210 NAVCHAPGRU 18 (2 boat crews) 110 Camp Support 688 - Arrival Airfield Control Group is operational - Tanker Airlift Control Element operational - Beach/Port/Airfield security is established 3 Red Beach 2 1 Green Beach 0 K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  6. Seaward Security (NCW) O-2 Airfield SEC SEC 4 SECURITY - MPSRON arrives in the AAA - Seaward security is established at Beach/Port - Arrival and Assembly organizations functional: AAOG (Arrival Assembly Operations Group) AAOE (Arrival Assembly Operations Element) LFSP (Landing Force Support Party) POG (Port Operations Group) BOG (Beach Operations Group) MCC(Movement Control Center) AACG(Arrival Airfield Control Group) 3 Red Beach 2 1 Green Beach 0 K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  7. Navy Day O-1 Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party SEC SEC 4 SECURITY - Splash lighterage at beach - Off-load systems ready - Voice and Data Communications established and tested 3 CF Red Beach RRDF 2 CF 1 Green Beach - MPS ready for off-load - Cargo Handling Systems prepared - Causeway ferries assembled - Connect RRDF CF CF 0 K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  8. Roll On Roll Off Discharge Facility (RRDF) • Purpose: Used for In-Stream off-load. Allows for quick discharge of rolling stock and mobile loaded material onto lighterage for transport to shore. • Capacity: 100 tons per section • Operating Limits: Sea State 2 • Installation: Approx. 36 hrs. • Crew: (Approx. 60 personnel) • OPS: 2 shifts of 13 personnel (26 total) • SLWT’s: 2 crews (16 personnel) • Craft: • (2) SLWT (Bring to the ship) • (1) SLWT (support)

  9. Roll On Roll Off Discharge Facility (RRDF) • Equipment: • (6) CIN’s • (1) COS (optional) • (3) Tricons • (3) ISO Containers • RRDF kit (Lights, Zodiak, Easy, Dunnage, Flexors, Side Shear Connectors, 3 bumpers) • Acronyms • PCO – Primary Control Officer • OCO – Offload Control Officer • LCO – Lighterage Control Officer • LSO – Lighterage Supply Officer • POG – Port Ops Group • AAOG – Arrival Assembly Ops Group • USNS Martin (6 CINs, 1 SLWT) • CPF (Causeway Platform Facility)

  10. O - Day Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party SEC SEC 4 - Rolling stock, container and fuel off-load begins - Main Body begins arriving ~315 - 80 ACB - 60 BMU - 100 NCW - 10 CNBG - 65 ACU - Splash AAVs - Offload NSE equipment - Instream off-load begins SECURITY 3 Red Beach 2 Causeway Ferry Staging or Marshalling Area 1 Green Beach Causeway Ferry RRDF 0 Causeway Ferry K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  11. O +1 Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party SEC SEC 4 - Initial water capability - Main Body continues to arrive SECURITY 3 Red Beach Causeway Ferry 2 Staging or Marshalling Area LCM-8 RRDF 1 Green Beach Causeway Ferry LCM-8 0 Causeway Ferry K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  12. O +2 Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party AABFS SEC SEC 4 - Issue habitability/capability sets - MRE issue point established - Install AABWS/AABFS SECURITY 3 Red Beach Causeway Ferry RRDF 2 Staging or Marshalling Area LCM-8 Causeway Ferry 1 Green Beach Causeway Ferry LCM-8 0 K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  13. Amphibious Assault Bulk Fuel System (AABFS) • Crew Size: 12 (Including BIU Crew and Boat Crew) • Length: 10,000 ft Capability (5,000 ft per hosereel) • Hose: 6 in. diameter • Install: 10 hrs – 10,000 ft • Rate of delivery: 700 gal/min @ 5,000 ft hose length (700,000 gal/day) • Craft: SLWT/CSP/BF+1/LCU/LCM8 • Operating Limits: • install – sea state 2, operate – sea state 3 • Intended for 30 days or less • 600 GPM pump (in-line booster pump) • Hose comes in 100 ft sections • 2 zodiacs standing by for operations and maintenance • Make sure hose has not been used for fuel or non-potable water

  14. Amphibious Assault Bulk Fuel System (AABFS) • BIU – Beach Interface Unit (Place 150 ft above high water mark) • Installation: 1. Place BIU at beach 2. Place 2 sections (200 ft) on beach 3. Install riding saddle approx. 100 ft from beach 4. Pay out hose from shore 5. Anchor every 150 ft. 6. Light buoy every 100 ft

  15. Amphibious Assault Bulk Water System (AABWS) • Crew Size: 12 (Including BIU Crew and Boat Crew) • Length: 10,000 Per Hosereel • Hose: 4 in. diameter • Install: 10 hrs – 10,000 ft • Rate of delivery: 300 gal/min @ 10,000 ft hose length (700,000 gal/day) • Craft: SLWT/CSP/BF+1/LCU/LCM8 • Hose comes in 150 ft sections • 2 zodiacs standing by for operations and maintenance • Make sure hose has not been used for fuel or non-potable water

  16. O +4 Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party AABFS SEC SEC 4 - Main Body FIE complete - MAGTF self-deploying aircraft begins arriving - Instream rolling stock off-load complete SECURITY 3 Red Beach Causeway Ferry RRDF 2 Staging or Marshalling Area LCM-8 Causeway Ferry 1 Green Beach Causeway Ferry LCM-8 0 K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  17. O +6 through O+9 Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party AABFS SEC SEC 4 - Container off-load complete O+6 - MAGTF operationally ready O+9 SECURITY 3 Red Beach Causeway Ferry 2 Staging or Marshalling Area LCM-8 Causeway Ferry 1 Green Beach Causeway Ferry LCM-8 0 K SUPPORT CAMP -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 O +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 +13 +14 +15 +16 +17 +18 +19 +20 +21 +22

  18. Joint Logistics Over The Shore (JLOTS)

  19. Pre-JLOTS MPS MPS Airfield MPS LCM-8 HLPS Crane ship HLPS MPS LCM-8 LCM-8 AABFS MPS SUPPORT COMBAT SEC SEC 1 2 345 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) Red Beach Causeway Ferry Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Causeway Ferry Green Beach BCU K APOD ABN BDE Closes PREPO Ashore BDE Closes Prepo Afloat ADVON arrives APS 3 P.O.P. Arrives MPS Discharge

  20. Pre-JLOTS MPS MPS Airfield LCM-8 Causeway Ferry MPS Causeway Ferry LCM-8 MPS ABLTS MPS MPS SUPPORT COMBAT SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach BCU P. O. P. K APOD Discharge P.O.P. Assemble RRDF Floating pier MPS Discharge

  21. Pre-JLOTS MPS MPS MPS MPS Airfield Causeway Ferry LCM-8 MPS Crane ship HLPS HLPS LCM-8 Causeway Ferry MPS ABLTS MPS SUPPORT COMBAT SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach BCU K APOD MPS Discharge Establish port/beach for APS Discharge

  22. JLOTS Prep LMSR LMSR LMSR LMSR MPS MPS Airfield LMSR LMSR MPS Floating Pier Crane ship MPS AABFS MPS SUPPORT COMBAT SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach JLCC (Joint literage control center) BCU K APOD MPS Discharge JLCC APS 3 Arrives

  23. JLOTS Prep LMSR LMSR LMSR LMSR MPS MPS MPS Airfield LMSR LMSR Causeway Ferry LCM-8 MPS AMMO AMMO AMMO Container Ship Container Ship Floating Pier Crane ship Causeway Ferry LCM-8 MPS AABFS MPS SUPPORT COMBAT SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area MPS BCU (Beach Clearance Unit) LSV Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach BCU K APOD Remaining APS 3 Arrives Additional Trans Gp. Arr LSV Arrives MPS Discharge

  24. JLOTS Prep LMSR LMSR LMSR LMSR MPS MPS Airfield LMSR LMSR MPS AMMO Container Ship AMMO AMMO Container Ship Floating Pier Crane ship MPS AABFS MPS OPDS SUPPORT COMBAT SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP OPDS arrives - delivers up to 1.2M gal of product SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) LSV Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach JLCC (Joint literage control center) BCU K APOD MPS Discharge OPDS Arr.

  25. OPDS (Offshore Petroleum Distribution System) • Crew: ( approx. 50 per shift) • ACB2 – 100 personnel • Other – 76 personnel • Total: 176 personnel • Equipment: • Modified Medium Tanker • 4 nautical miles of hose (6” diameter) • Single Anchor Leg Moor System (SALM) (30o list to drop) • OPDS Jewelry for SLWT conversion • 4 modified SLWTs or 5 OUBs (OPDS Utility Boats) • UCT support for installation and maintenance • Length: • 4 nautical miles – 1 product • 2 nautical miles – 2 products • Capacity: 1.2 Million Gallons/ 20 hour Day

  26. OPDS (Offshore Petroleum Distribution System) • Operating Limits: • water depths of 35 – 200 ft • 1.5 knot currents, 16 knot winds • sea bottom made up of sand, mud, coral (not rock) • Planning Factors: • 48 hrs to convert craft • 48 hrs after tanker arrival, deliver 1.2 MG/20 hr day using 4 point mooring • 7 days after tanker arrival to have SALM system operational intended for 180 day installation • 5 OUB’s on each tanker (1 repair barge, 3 tow tugs, 1 dive boat) • BTU (Beach Termination Unit) each tanker carries 2 (crew size 4) • SALM will survive 55 knot winds

  27. JLOTS Prep LMSR LMSR LMSR LMSR MPS MPS Airfield LMSR LMSR MPS Container Ship AMMO AMMO AMMO Container Ship Floating Pier Crane ship MPS AABFS MPS OUB OUB OUB OUB OPDS SUPPORT COMBAT OUB SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) LSV Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach JLCC (Joint literage control center) BCU K APOD MPS Discharge Establish OPDS

  28. JLOTS Prep LMSR LMSR LMSR LMSR Airfield LMSR MPS Container Ship Container Ship AMMO AMMO AMMO Floating Pier Crane ship LMSR MPS OUB OUB OUB OUB OPDS SUPPORT COMBAT OUB IPDS SEC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area BCU (Beach Clearance Unit) LSV Red Beach Staging or Marshalling Area SLCP(ship literage control point) BLCP (Beach literage Cont Pt) Green Beach JLCC (Joint literage control center) BCU K APOD Est. IPDS/ MPS Discharge Begin APS 3 Discharge at SPOD

  29. JLOTS LMSR LMSR LMSR LMSR Airfield BCU LMSR BLCP AMMO Container Ship Container Ship AMMO AMMO Floating Pier Crane ship BCU LMSR SLCP BLCP OUB OUB OUB OUB OPDS SUPPORT COMBAT OUB IPDS SEC 1 2 3 4 5 6 7 8 91011 1213 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area LSV Red Beach Staging or Marshalling Area Green Beach JLCC (Joint literage control center) K APOD MPS Complete Transfer Responsibility PREPO Afloat Main Body Arriving

  30. JLOTS LMSR LMSR LMSR Airfield BCU Red Beach BLCP AMMO Container Ship AMMO AMMO Container Ship Crane ship RRDF RRDF BCU Green Beach BLCP OUB OUB OUB OUB OPDS SUPPORT COMBAT OUB IPDS SEC 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP SECURITY Staging or Marshalling Area LMSR LSV LMSR LCU-2000 Staging or Marshalling Area Floating Pier LCM-8 LCU-2000 JLCC (Joint literage control center) LMSR LCM-8 SLCP K APOD Begin Instream Discharge of APS 3

  31. JLOTS LMSR LMSR LMSR Airfield BCU Red Beach BLCP AMMO Container Ship AMMO AMMO Container Ship Floating Pier Crane ship RRDF RRDF BCU Green Beach BLCP ELCAS (Elevated Causeway) OUB OUB OUB OUB OPDS SUPPORT COMBAT Fuel Farm OUB SEC 1 2 3 4 5 6 7 8 9 1011 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CAMP ELCAS(M) arrives - critical to throughput across the beach SECURITY Staging or Marshalling Area LMSR LMSR Staging or Marshalling Area JLCC (Joint literage control center) LMSR SLCP K APOD IPDS OPDS In Operation LT Division Closes PREPO BDE Closes ELCAS Arrives

  32. Elevated Causeway System (ELCAS(M) ) • Crew Size: • Erection: 120 (2-60 man crews) • Operation: 54 (2-27 man crews) • SLWT: 32 (4-8 man crews) • Length: Goal: Pier Head outside of surf zone with at least 20 ft. depth of water. • Description: 8’x 40’x 5’ (pontoon) modular sections cantilevered over the water • Operational Requirements: (Erect 3000 ft. in 7 days) • handle cargo from both sides of pier head • erect from shore using cantilever erection with 175 ton cranes • operate in sea state 3 (5ft waves) , survive sea state 5 (12 ft waves) • beach gradient (not less than 1:24 or greater than 1:300)

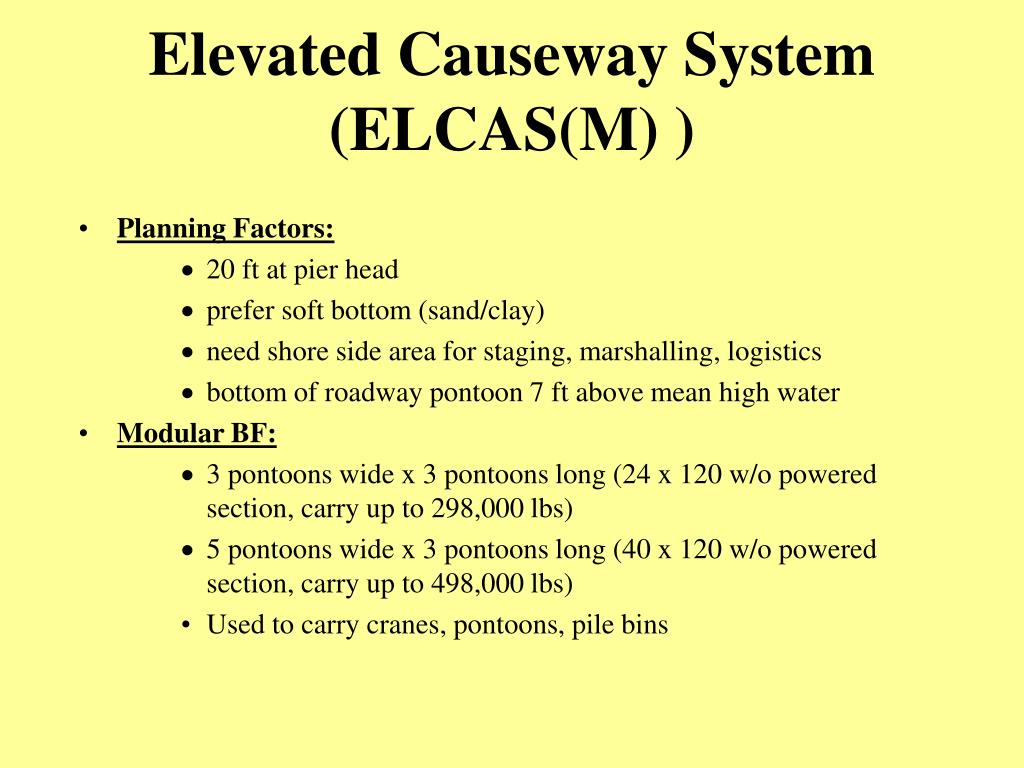

  33. Elevated Causeway System (ELCAS(M) ) • Planning Factors: • 20 ft at pier head • prefer soft bottom (sand/clay) • need shore side area for staging, marshalling, logistics • bottom of roadway pontoon 7 ft above mean high water • Modular BF: • 3 pontoons wide x 3 pontoons long (24 x 120 w/o powered section, carry up to 298,000 lbs) • 5 pontoons wide x 3 pontoons long (40 x 120 w/o powered section, carry up to 498,000 lbs) • Used to carry cranes, pontoons, pile bins

  34. Elevated Causeway System (ELCAS(M) ) Equipment: (2) 175 Ton Cranes (2) Tractor trailer turntables (48,000 lbs) (1) 30T Rough Terrain Mobile Crane (2) 25 Ton RTCH (3) Welding Machines (1) 15,000 lb RT Forklift (2) Diesel hammers (1) 6,000 lb RT extended boom forklift (2) Portable floodlight trailers (1) Hydraulic vibratory extractor • Various Slings • Beveling Machines • Pile Welding Fixture • Matting • Beach Ramp (6 pontoons) • Roadway (201 pontoons) • Pierhead (66 pontoons)

  35. Elevated Causeway System (ELCAS(M) ) • Marshalling Yard (7 areas): (Crew: 44, 22 man shifts at 12 hrs each) • Receiving staging, used for inspecting pontoons • Storage for 20’ ISO’s containing ELCAS(M) components • Equipment Storage/Maintenance • Staging Pontoons and Piles (Beach Ramp Location) • Welded Pile Stowage, Pile Welding Stations • Pile bin stowage • Pontoon Stowage • Pile Size: 24” OD (1/2” thickness) steel piles in 38 ft length ( fits in ISO containers)

  36. Elevated Causeway System (ELCAS(M) ) • Installation: • Bring ELCAS (M) materials ashore using 3 or 5 wide MCWF or other lighterage • Prepare marshalling areas and beach ramp site. Beach ramp hole is 79 ft back from high-water mark and 7 ft above above high water mark. • (6) P40G Pontoon sections (3 wide x 2 long) are placed for beach ramp. Maintain 7.5o angle. 6 piles are used to secure ramp. Piles are cut 3 ft above deck. • Roadway consists of 3 wide P40G pontoons (201 for 3000 ft). Transition from beach ramp to roadway is via 9 angled connectors. Fasten 2 pontoons side by side, lift them into place, cantilevered out, add third section. • Construct pier head once the proper distance is obtained. Pier head piles are cut 2 inches below the deck level. Pierhead crane piles cut 1 inch above deck level. (Specific pontoons in certain locations) • The turntables, lights, throughput cranes. (installation of 175 ton cranes), navigation lights, life lines, nets, life ring buoys (every 80 ft opposite sides) • OPS: The turned tractor trailer is loaded on the turntable. Vehicle traffic is on the left hand side.

  37. JLOTS SURGE SURGE Airfield BCU Red Beach SURGE BLCP Container Ship Container Ship Container Ship Floating Pier Crane ship Crane ship BCU Green Beach SURGE BLCP OPDS SUPPORT COMBAT Fuel Farm SEC 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 35 40 45 50 55 60 65 70 75 80 CAMP SECURITY End User SPOD Staging or Marshalling Area LSV End User LCU-2000 Staging or Marshalling Area LCM-8 LCU-2000 JLCC (Joint literage control center) Staging or Marshalling Area LCM-8 End User SLCP ELCAS (Elevated Causeway) K APOD IPDS End User 1st Hvy Div 2nd Hvy Div 3rd Hvy Div 5 1/3rd Hvy Div

  38. JLOTS Sustainment Airfield BCU Red Beach BLCP Container Ship Container Ship Container Ship Container Ship Container Ship Container Ship Container Ship Container Ship Floating Pier Crane ship Crane ship BCU Green Beach BLCP OPDS SUPPORT COMBAT Fuel Farm SEC 25 26 27 28 29 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110 115 120 125 130 135 140 CAMP SECURITY End User Staging or Marshalling Area LSV End User LCU-2000 Staging or Marshalling Area LCM-8 LCU-2000 JLCC (Joint literage control center) Staging or Marshalling Area LCM-8 End User SLCP ELCAS (Elevated Causeway) K APOD IPDS End User Resupply / Regeneration

  39. JTF CDR *** MTMC Tiger tm NAVFOR MARFOR AFFOR ARFOR Support TSC JLOTS CDR** MSC LNO TRANS GROUP Support APSRON MSCO NSE * TRUCK BN CDR FSO LNO TERM BN JLCC FSO * TACON BSC NAVY LIGHTERAGE CREWS BPT OPDS CDR * WHEN U|W LSO SSO NSE LNO APS TACON DURING OPDS OPS AACG MUAET Other Support CAMP BSWO OPDS OIC * ARMY LIGHTERAGE CREWS OPDS TANKER LNO TACON TACON DURING PUMPING IPDS BN BCU ELCAS CDR * BLCP PHASE 4 START: MPF complete TRANSITION: Army Corps has closed ELCAS OIC SDO SLCP * Debark TMs

  40. Regeneration Airfield Shore Party LCT (lighterage control team) BPT (Beach Party Team) Shore Party AABFS SEC SEC 4 - Retrograde, washdown and backload operations commence - Navy backloads lighterage - MPSRON deploys - Redeployment SECURITY 3 Red Beach Causeway Ferry 2 Staging or Marshalling Area LCM-8 Causeway Ferry 1 Green Beach Causeway Ferry LCM-8 0 K SUPPORT CAMP +20 +21 +22+23+24+25+26+27+28+29+30+31+32+33+34+35+36+37+38+39+40+41+42+43+44+45+46+47+48+49
