Method of Least Squares. Least Squares. Method of Least Squares : Deterministic approach The inputs u(1), u(2), ..., u(N) are applied to the system The outputs y(1), y(2), ..., y(N) are observed Find a model which fits the input - output relation to a ( linear ?) curve , f(n,u(n))

nuncio
Télécharger la présentation

Method of Least Squares

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Method of Least Squares

  2. Least Squares • Method of LeastSquares: • Deterministicapproach • Theinputs u(1), u(2), ..., u(N) areappliedtothesystem • Theoutputs y(1), y(2), ..., y(N) areobserved • Find a model whichfitstheinput-outputrelationto a (linear?) curve, f(n,u(n)) • ‘best’ fit byminimisingthesum of thesqures of thedifference f - y

  3. Least Squares • The curve fitting problem can be formulated as • Error: • Sum-of-error-squares: • Minimum (least-squares of error) is achieved when the gradient is zero observations model variable

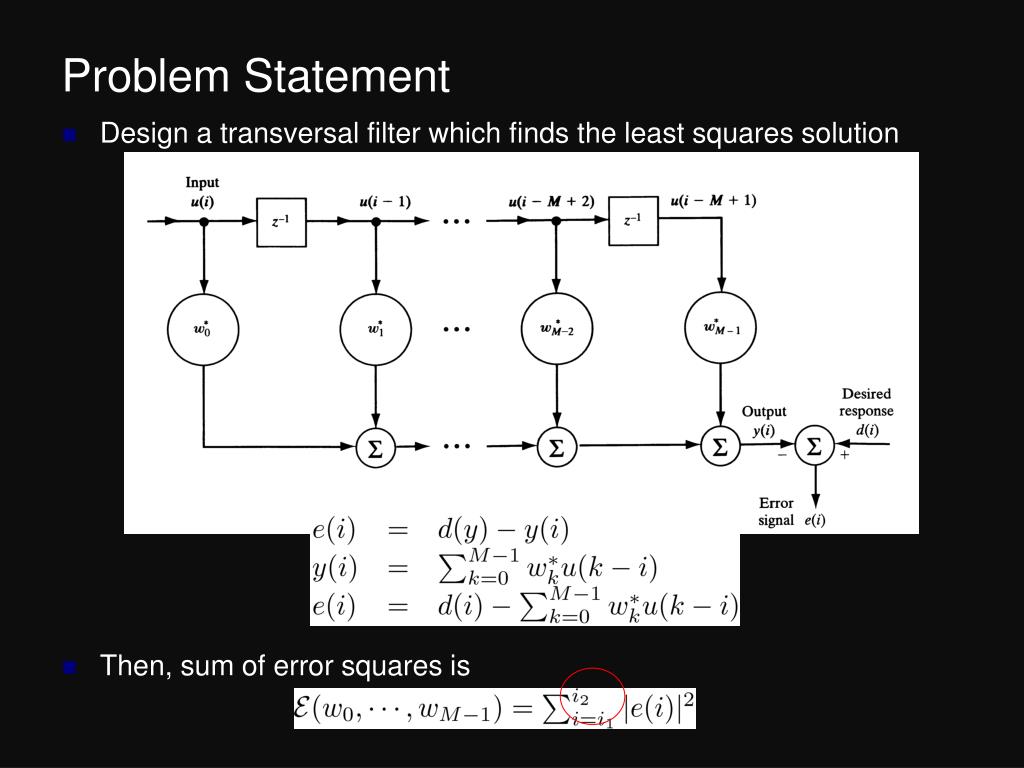

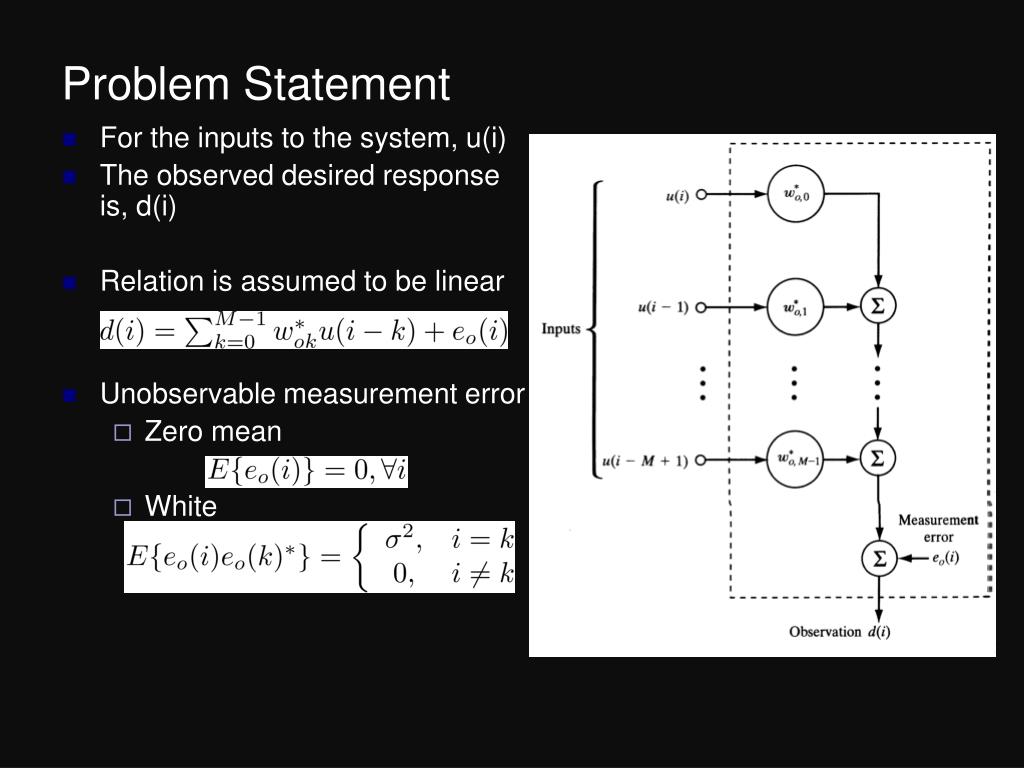

  4. Problem Statement • Fortheinputstothesystem, u(i) • Theobserveddesiredresponse is, d(i) • Relation is assumedto be linear • Unobservablemeasurementerror • Zeromean • White

  5. Problem Statement • Design a transversalfilterwhichfindstheleastsquaressolution • Then, sum of errorsquares is

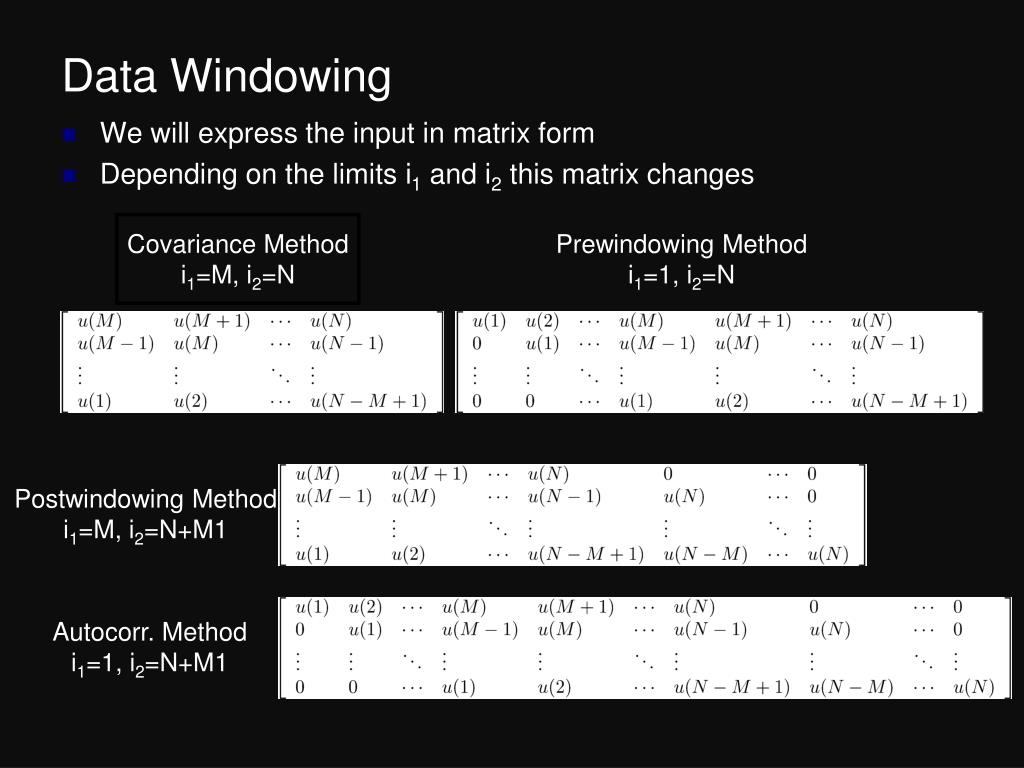

  6. Data Windowing • We will express the input in matrix form • Depending on the limits i1 and i2 this matrix changes Covariance Method i1=M, i2=N Prewindowing Method i1=1, i2=N Postwindowing Method i1=M, i2=N+M1 Autocorr. Method i1=1, i2=N+M1

  7. Principle of Orthogonality • Error signal • Least squares (minimum of sum of squares) is achieved when • i.e., when • The minimum-error time series emin(i) is orthogonal to the time series of the input u(i-k) applied to tap k of a transversal filter of length M for k=0,1,...,M-1 when the filter is operating in its least-squares condition. !Time averaging! (For Wiener filtering) (this was ensemble average)

  8. Corollary of Principle of Orthogonality • LS estimate of the desired response is • Multiply principle of orthogonality by wk* and take summation over k • Then • When a transversal filter operates in its least-squares condition, the least-squares estimate of the desired response -produced at the output of the filter- and the minimum estimation error time series are orthogonal to each other over time i.

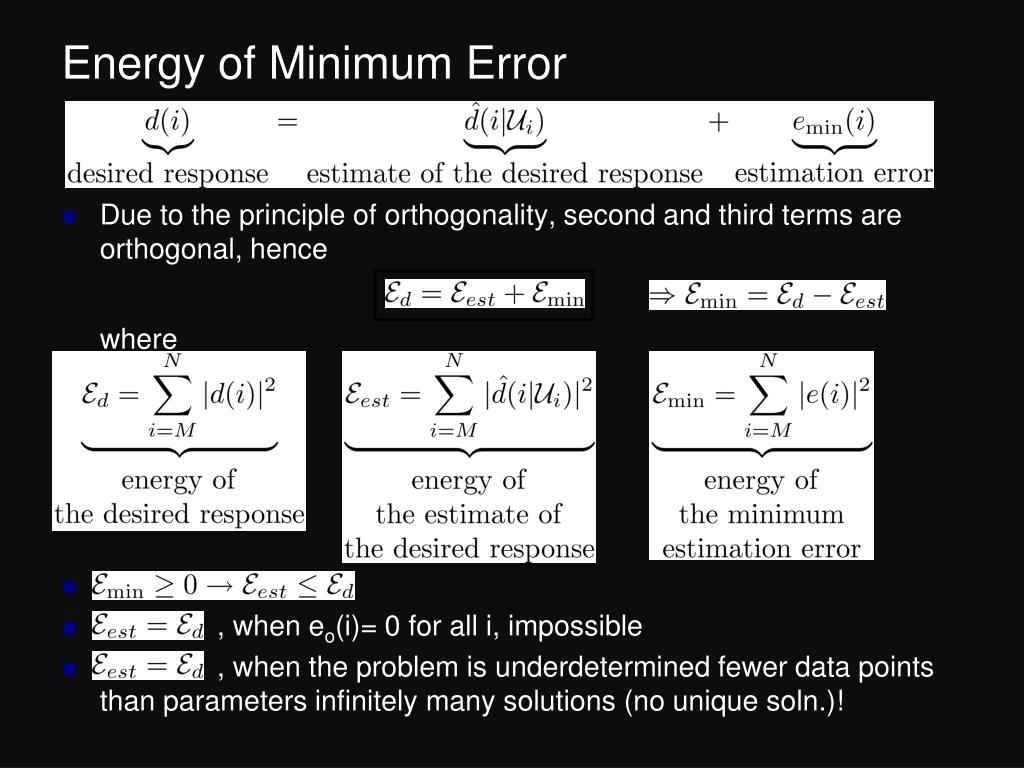

  9. Energy of Minimum Error • Due to the principle of orthogonality, second and third terms are orthogonal, hence where • , when eo(i)= 0 for all i, impossible • , when the problem is underdetermined fewer data points than parameters infinitely many solutions (no unique soln.)!

  10. Normal Equations Principle of Orthogonality Minimum error: • Hence, Expanded system of the normal equations for linear least-squares filters. → z(-k), 0 ≤k ≤M-1 time-average cross-correlation bw the desired response and the input (t,k), 0≤(t,k) ≤M-1 time-average autocorrelation function of the input

  11. Normal Equations (Matrix Formulation) • Matrix form of the normal equations for linear least-squares filters: • Linear least-squares counterpart of the Wiener-Hopf eqn.s. • Here  and z are time averages, whereas in Wiener-Hopf eqn.s they were ensemble averages. (if -1 exists!)

  12. Minimum Sum of Error Squares • Energy contained in the time series is • Or, • Then the minimum sum of error squares is

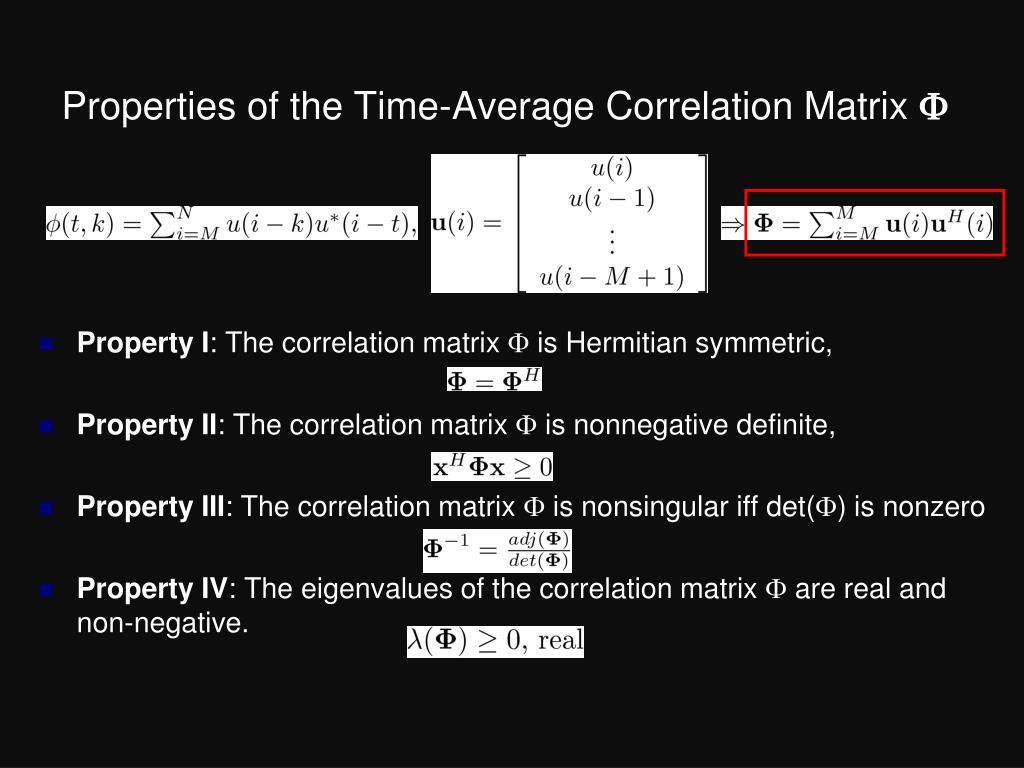

  13. Properties of the Time-Average Correlation Matrix  • Property I: The correlation matrix  is Hermitian symmetric, • Property II: The correlation matrix  is nonnegative definite, • Property III: The correlation matrix  is nonsingular iff det() is nonzero • Property IV: The eigenvalues of the correlation matrix  are real and non-negative.

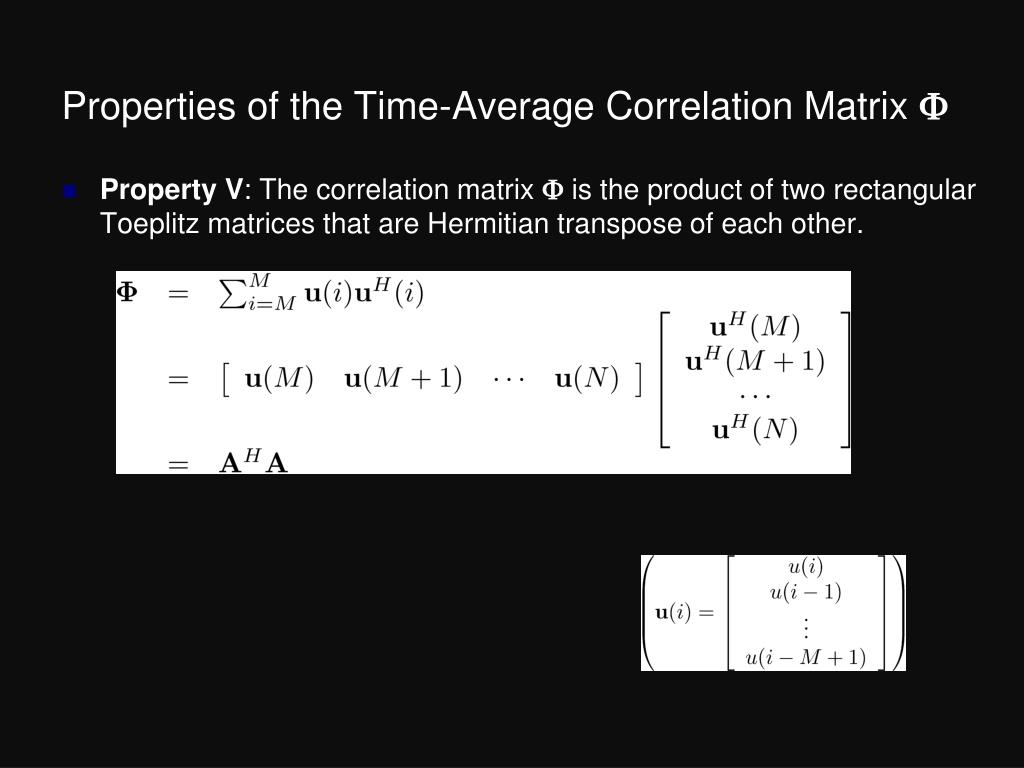

  14. Properties of the Time-Average Correlation Matrix  • Property V: The correlation matrix  is the product of two rectangular Toeplitz matrices that are Hermitian transpose of each other.

  15. Normal Equations (Reformulation) • But we know that which yields • Substituting into the minimum sum of error squares expression gives then ! Pseudo-inverse !

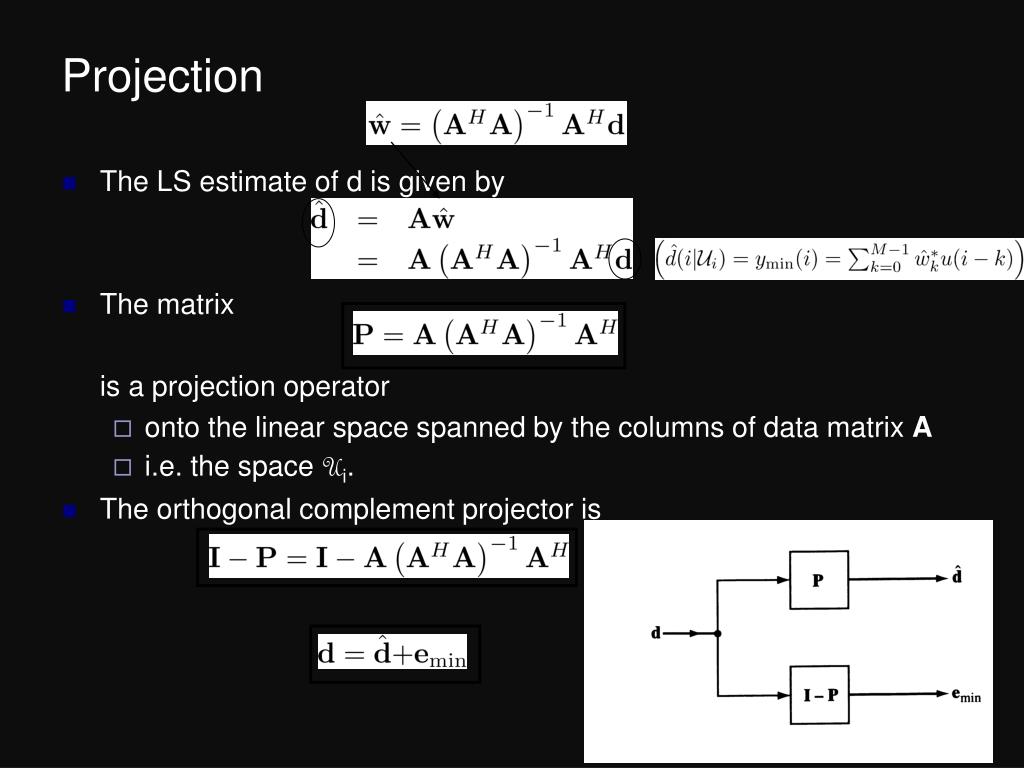

  16. Projection • The LS estimate of d is given by • The matrix is a projection operator • onto the linear space spanned by the columns of data matrix A • i.e. the space Ui. • The orthogonal complement projector is

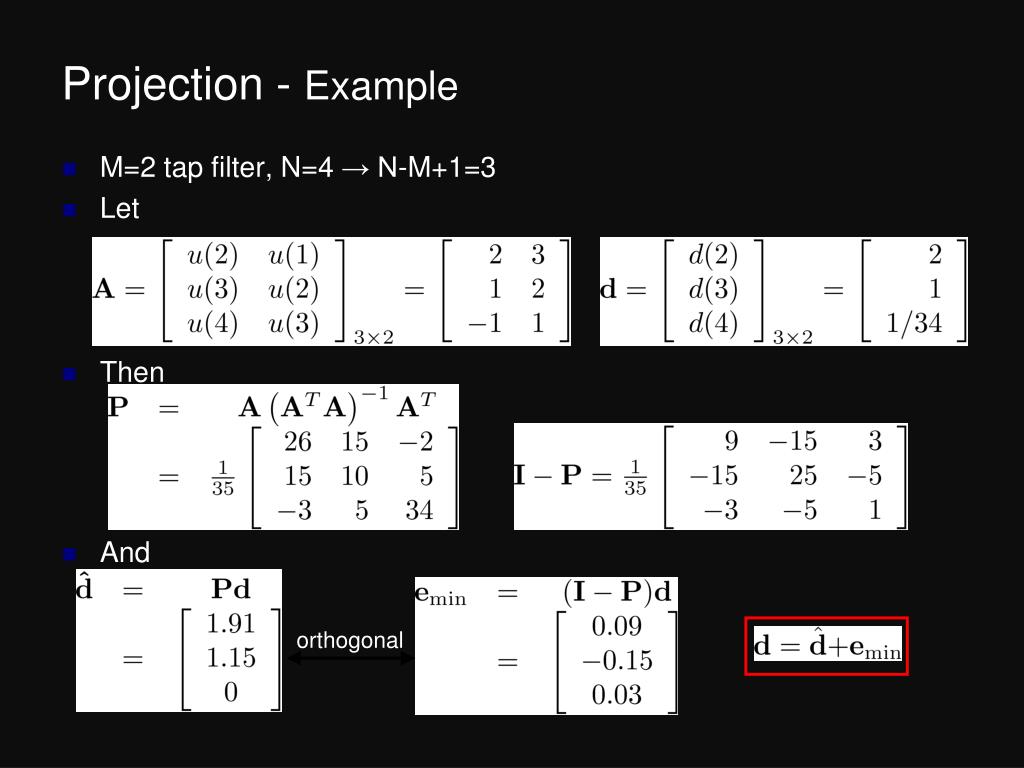

  17. Projection - Example • M=2 tap filter, N=4 → N-M+1=3 • Let • Then • And orthogonal

  18. Projection - Example

  19. Uniqueness of the LS Solution • LS always has a solution, is that solution unique? • The least-squares estimate is unique if and only if the nullity (the dimension of the null space) of the data matrix A equals zero. • AKxM, (K=N-M+1) • Solution is unique when A is of full column rank, K≥M • All columns of A are linearly independent • Overdetermined system (more eqns. than variables (taps)) • (AHA)-1 nonsingular → exists and unique • Infinitely many solutions when A has linearly dependent columns, K<M • (AHA)-1 is singular

  20. Properties of the LS Estimates • Property I: Theleast-squaresestimate is unbiased, providedthatthemeasurementerrorprocesseo(i) has zeromean. • Property II: Whenthemeasurementerrorprocesseo(i) is whitewithzeromeanandvariance2, thecovariancematrix of theleast-squaresestimateequals2-1. • Property III: Whenthemeasurementerrorprocesseo(i) is whitewithzeromean, theleastsquaresestimate is thebestlinearunbiasedestimate. • Property IV: Whenthemeasurementerrorprocesseo(i) is whiteandGaussianwithzeromean, theleast-squaresestimateachievestheCramer-Raolowerboundforunbiasedestimates.

  21. Computation of the LS Estimates • The rank (W) of an KxN (K≥N or K<N) matrix A gives • The number of linearly independent columns/rows • The number of non-zero eigenvalues/singular values • The matrix is said to be full rank (full column or row rank) if • Otherwise, it is said to be rank-deficient • Rank is an important parameter for matrix inversion • If K=N (square matrix) and the matrix is full rank (W=K=N) (non-singular) inverse of the matrix can be calculated, A-1=adj(A)/det(A) • If the matrix is not square (K≠N), and/or it is rank-deficient (singular), A-1 does not exist, instead we can use the pseudo-inverse (a projection of the inverse), A+

  22. SVD • We can calculate the pseudo-inverse using SVD. • Any KxN matrix (K≥N or K<N) can be decomposed using the Singular Value Decomposition (SVD) as follows:

  23. SVD • The system of eqn.s, • is overdetermined if K>N, more eqn.s than unknowns, • Unique solution (if A is full-rank) • Non-unique, infinitely many solutions (if A is rank-deficient) • is underdetermined if K<N, more unknowns than eqn.s, • Non-unique, infinitely many solutions • In either case the solution(s) is(are) where

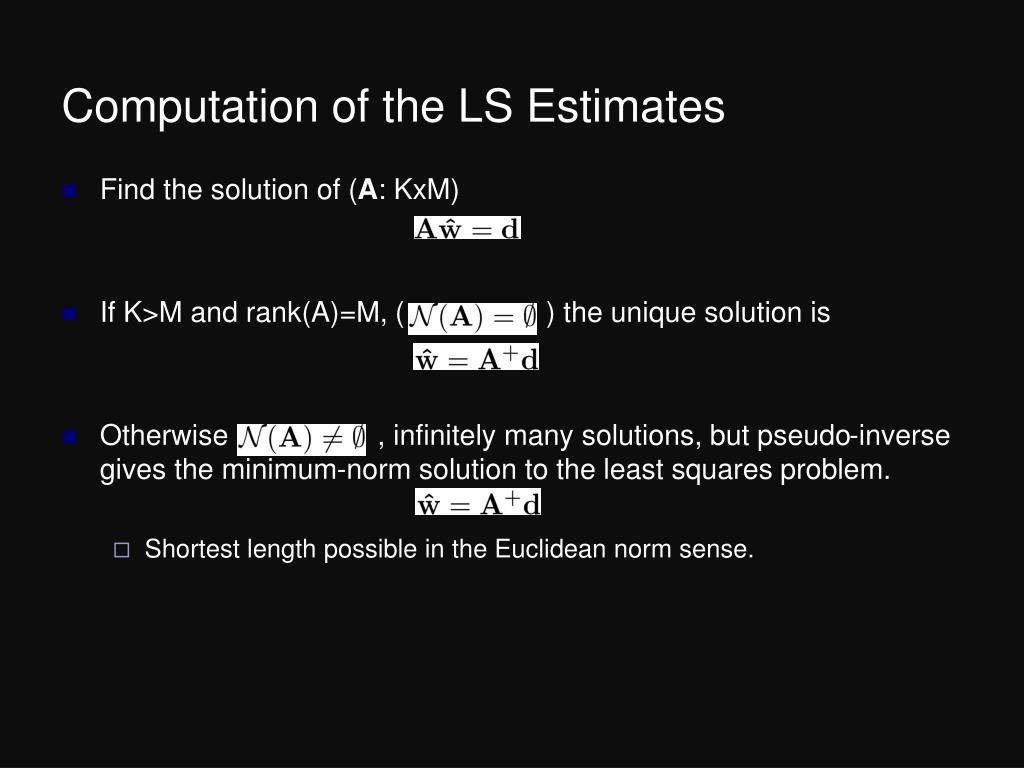

  24. Computation of the LS Estimates • Find the solution of (A: KxM) • If K>M and rank(A)=M, ( ) the unique solution is • Otherwise , infinitely many solutions, but pseudo-inverse gives the minimum-norm solution to the least squares problem. • Shortest length possible in the Euclidean norm sense.
