1. Method of Least Squares ELE 774 - Adaptive Signal Processing

2. Least Squares • Method of Least Squares: • Deterministic approach • The inputs u(1), u(2), ..., u(N) are applied to the system • The outputs y(1), y(2), ..., y(N) are observed • Find a model which fits the input-output relation to a (linear?) curve, f(n,u(n)) • ‘best’ fit by minimising the sum of the squres of the difference f - y ELE 774 - Adaptive Signal Processing

3. Least Squares • The curve fitting problem can be formulated as • Error: • Sum-of-error-squares: • Minimum (least-squares of error) is achieved when the gradient is zero observations model variable ELE 774 - Adaptive Signal Processing

4. Problem Statement • For the inputs to the system, u(i) • The observed desired response is, d(i) • Relation is assumed to be linear • Unobservable measurement error • Zero mean • White • Then deterministic ELE 774 - Adaptive Signal Processing

5. Problem Statement • Design a transversal filter which finds the least squares solution • Then, sum of error squares is ELE 774 - Adaptive Signal Processing

6. Data Windowing • We will express the input in matrix form • Depending on the limits i1 and i2 this matrix changes Covariance Method i1=M, i2=N Prewindowing Method i1=1, i2=N Postwindowing Method i1=M, i2=N+M1 Autocorr. Method i1=1, i2=N+M1 ELE 774 - Adaptive Signal Processing

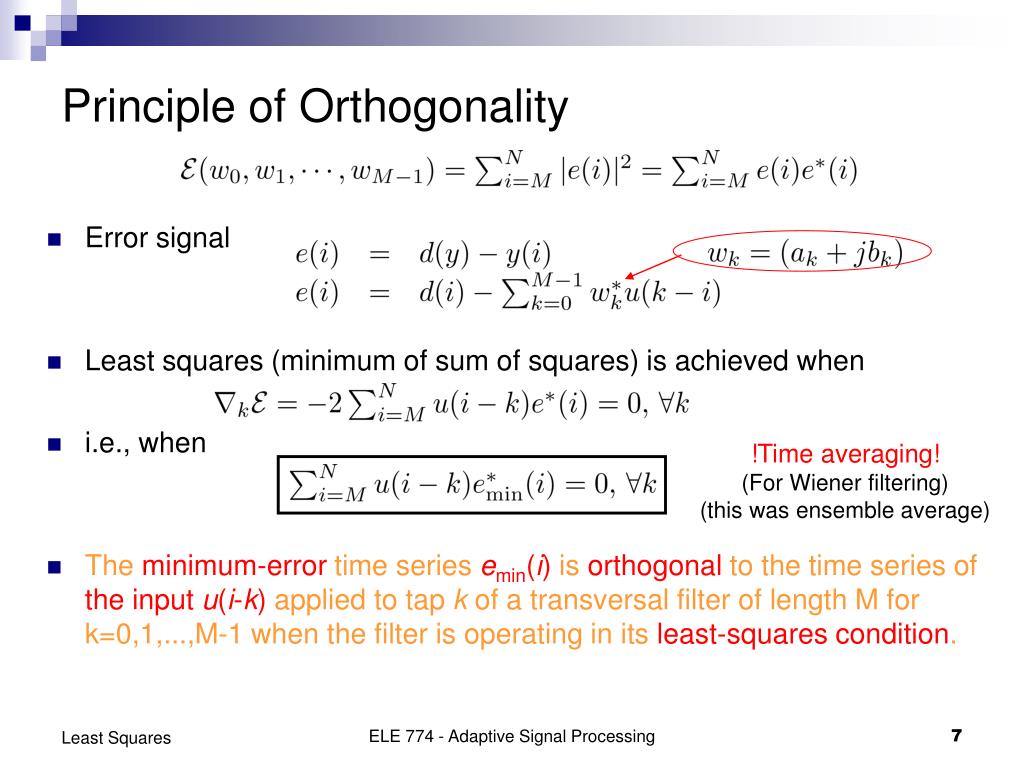

7. Principle of Orthogonality • Error signal • Least squares (minimum of sum of squares) is achieved when • i.e., when • The minimum-error time series emin(i) is orthogonal to the time series of the input u(i-k) applied to tap k of a transversal filter of length M for k=0,1,...,M-1 when the filter is operating in its least-squares condition. !Time averaging! (For Wiener filtering) (this was ensemble average) ELE 774 - Adaptive Signal Processing

8. Corollary of Principle of Orthogonality • LS estimate of the desired response is • Multiply principle of orthogonality by wk* and take summation over k • Then • When a transversal filter operates in its least-squares condition, the least-squares estimate of the desired response-produced at the output of the filter- and the minimum estimation error time series are orthogonal to each other over time i. ELE 774 - Adaptive Signal Processing

9. Energy of Minimum Error • Due to the principle of orthogonality, second and third terms are orthogonal, hence where • , when eo(i)= 0 for all i, impossible • , when the problem is underdetermined fewer data points than parameters infinitely many solutions (no unique soln.)! ELE 774 - Adaptive Signal Processing

10. Normal Equations Principle of Orthogonality Minimum error: • Hence, Expanded system of the normal equations for linear least-squares filters. → z(-k), 0 ≤k ≤M-1 time-average cross-correlation bw the desired response and the input (t,k), 0≤(t,k) ≤M-1 time-average autocorrelation function of the input ELE 774 - Adaptive Signal Processing

11. Normal Equations (Matrix Formulation) • Matrix form of the normal equations for linear least-squares filters: • Linear least-squares counterpart of the Wiener-Hopf eqn.s. • Here  and z are time averages, whereas in Wiener-Hopf eqn.s they were ensemble averages. (if -1 exists!) ELE 774 - Adaptive Signal Processing

12. Minimum Sum of Error Squares • Energy contained in the time series is • Or, • Then the minimum sum of error squares is ELE 774 - Adaptive Signal Processing

13. Properties of the Time-Average Correlation Matrix  • Property I: The correlation matrix  is Hermitian symmetric, • Property II: The correlation matrix  is nonnegative definite, • Property III: The correlation matrix  is nonsingular iff det() is nonzero • Property IV: The eigenvalues of the correlation matrix  are real and non-negative. ELE 774 - Adaptive Signal Processing

14. Properties of the Time-Average Correlation Matrix  • Property V: The correlation matrix  is the product of two rectangular Toeplitz matrices that are Hermitian transpose of each other. ELE 774 - Adaptive Signal Processing

15. Normal Equations (Reformulation) • But we know that which yields • Substituting into the minimum sum of error squares expression gives then ! Pseudo-inverse ! ELE 774 - Adaptive Signal Processing

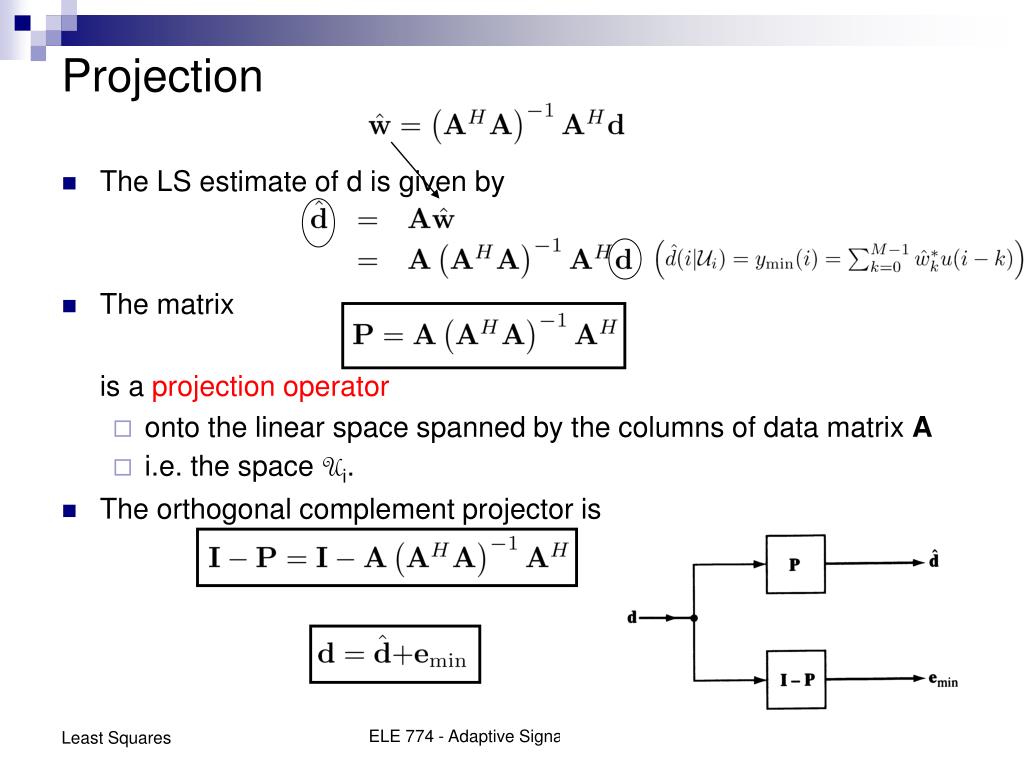

16. Projection • The LS estimate of d is given by • The matrix is a projection operator • onto the linear space spanned by the columns of data matrix A • i.e. the space Ui. • The orthogonal complement projector is ELE 774 - Adaptive Signal Processing

17. Projection - Example • M=2 tap filter, N=4 → N-M+1=3 • Let • Then • And orthogonal ELE 774 - Adaptive Signal Processing

18. Projection - Example ELE 774 - Adaptive Signal Processing

19. Uniqueness of the LS Solution • LS always has a solution, is that solution unique? • The least-squares estimate is unique if and only if the nullity (the dimension of the null space) of the data matrix A equals zero. • AKxM, (K=N-M+1) • Solution is unique when A is of full column rank, K≥M • All columns of A are linearly independent • Overdetermined system (more eqns. than variables (taps)) • (AHA)-1 nonsingular → exists and unique • Infinitely many solutions when A has linearly dependent columns, K<M • (AHA)-1 is singular ELE 774 - Adaptive Signal Processing

20. Properties of the LS Estimates • Property I: The least-squares estimate is unbiased, provided that the measurement error process eo(i) has zero mean. • Property II: When the measurement error process eo(i) is white with zero mean and variance 2, the covariance matrix of the least-squares estimate equals 2-1. • Property III: When the measurement error process eo(i) is white with zero mean, the least squares estimate is the best linear unbiased estimate. • Property IV: When the measurement error process eo(i) is white and Gaussian with zero mean, the least-squares estimate achieves the Cramer-Rao lower bound for unbiased estimates. ELE 774 - Adaptive Signal Processing

21. Computation of the LS Estimates • The rank (W) of an KxN (K≥N or K<N) matrix A gives • The number of linearly independent columns/rows • The number of non-zero eigenvalues/singular values • The matrix is said to be full rank (full column or row rank) if • Otherwise, it is said to be rank-deficient • Rank is an important parameter for matrix inversion • If K=N (square matrix) and the matrix is full rank (W=K=N) (non-singular) inverse of the matrix can be calculated, A-1=adj(A)/det(A) • If the matrix is not square (K≠N), and/or it is rank-deficient (singular), A-1 does not exist, instead we can use the pseudo-inverse (a projection of the inverse), A+ ELE 774 - Adaptive Signal Processing

22. SVD • We can calculate the pseudo-inverse using SVD. • Any KxN matrix (K≥N or K<N) can be decomposed using the Singular Value Decomposition (SVD) as follows: ELE 774 - Adaptive Signal Processing

23. SVD • The system of eqn.s, • is overdetermined if K>N, more eqn.s than unknowns, • Unique solution (if A is full-rank) • Non-unique, infinitely many solutions (if A is rank-deficient) • is underdetermined if K<N, more unknowns than eqn.s, • Non-unique, infinitely many solutions • In either case the solution(s) is(are) where ELE 774 - Adaptive Signal Processing

24. Computation of the LS Estimates • Find the solution of (A: KxM) • If K>M and rank(A)=M, ( ) the unique solution is • Otherwise , infinitely many solutions, but pseudo-inverse gives the minimum-norm solution to the least squares problem. • Shortest length possible in the Euclidean norm sense. ELE 774 - Adaptive Signal Processing

25. Minimum-Norm Solution • We know that • Then • min is achieved when where min is determined by c2(desired response, uncontrollable) min is independent of b2 ! ELE 774 - Adaptive Signal Processing

26. Minimum-Norm Solution • Then the optimum filter coefficients become • Norm of filter coeff.s is (VHV=I) which is minimum when then • Even when , the vector is unique in the sense that • it is the only tap-weight vector that simultaneously satisfy • Minimum sum-of-error-squares (LS solution) • The smallest Euclidean norm possible. • Hence, is called the minimum-norm LS solution. ≥0 ≥0 ELE 774 - Adaptive Signal Processing
