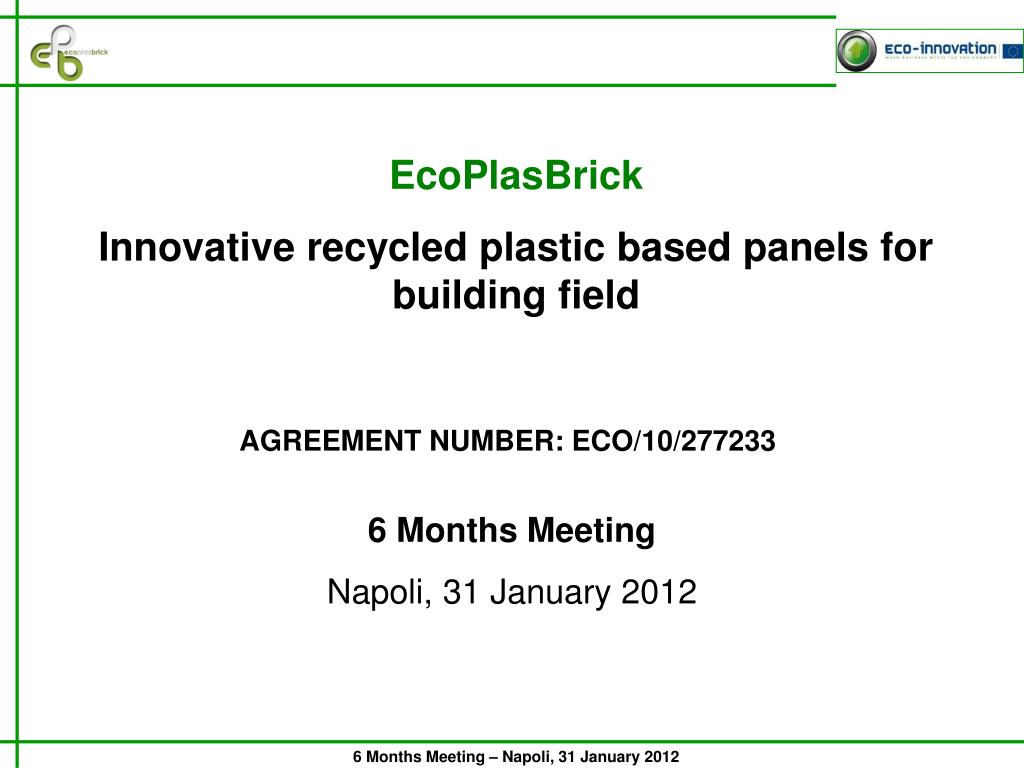

EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER: ECO/10/277233 6 Months Meeting Napoli, 31 January 2012
Agenda
Project logo
Project Plan Objectives Actions Project scope: to promote a new industrial process for eco sustainable building panels To manufacture two finished products
Plan Number of hours budgeted
Work programme: schedule
Consortium Agreement • Task 5.2 – Deliverable 5.2.1 Art. 8 “The Parties expressly recognize that the project results may be granted in non-exclusive licence to third parties, where this is expressed by the co-owners holding at least 30% of the ownership of the project and in any case involving Alessia Guarnaccia and / or Pandora GROUP”
WP2: Industrialization activities

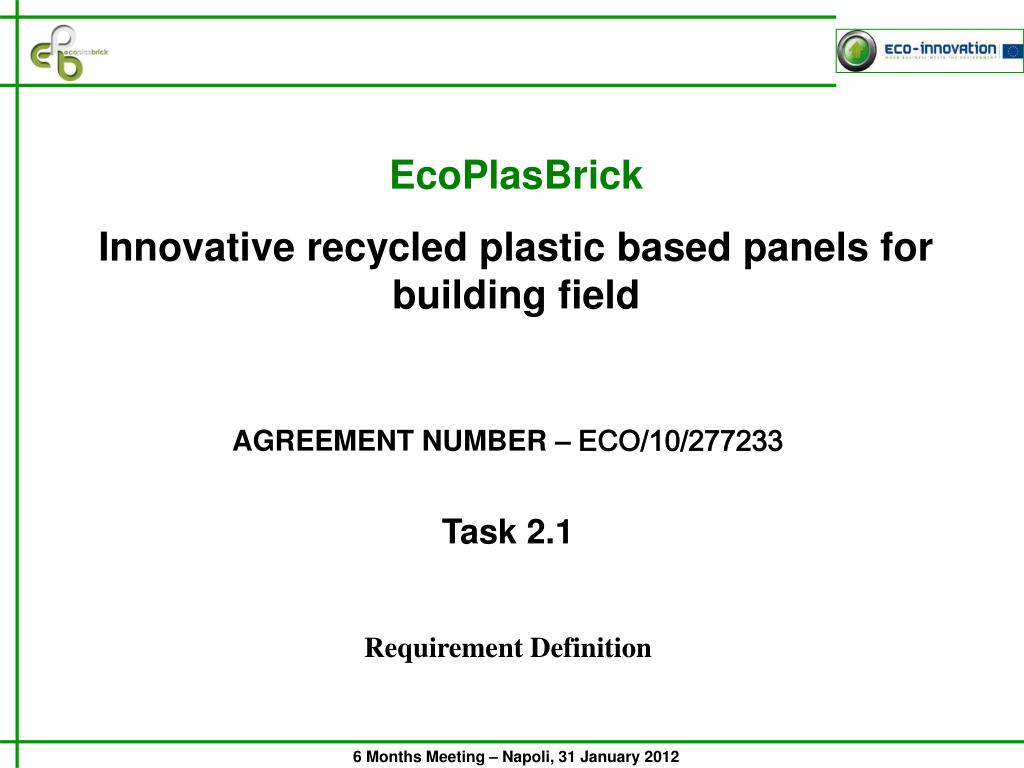

EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 2.1 Requirement Definition
Requirement Definition Ecoplasbrick is a panel made of a mixed plastic waste core with two face sheets of gres, or other materials to be identified. So, it can be considered a sandwich panel. As sandwich panel it can be tested according to the relevant ASTM standards.
Requirement Definition External wall claddings For the time being, there isn’t a European specific Standard for products used as outdoor cladding; however, in order to identify the Ecoplasbrick panel requirements, an analysis of the commercial products used for the same application was carried out. Depending on the identified material of Ecoplasbrick panel face sheets, the panel characterization according to the reference standard will be necessary.

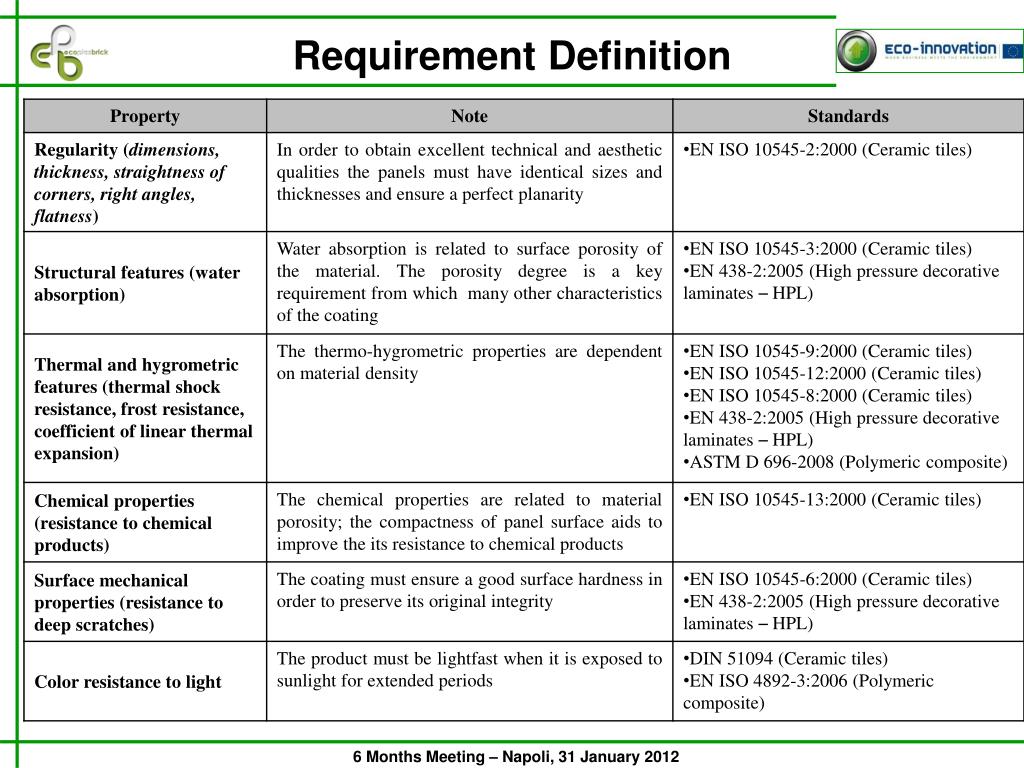

Requirement Definition
Requirement Definition Other interesting features for the complete characterization of the cladding are:
Requirement Definition Ventilated facades claddings There are no European standards for ventilated façades but a specific guideline, drafted by EOTA (European Organisation for Technical Approvals), is under preparation; in particular, the document ETAG034 – Part 1 (Edition May 2011) refers the external claddings and associated mechanical fixings intended to be used with a ventilated air space and lists the tests for panel characterisation: Content and/or release of dangerous content Pulsating load Dimensional stability of external cladding Immersion in water Freeze-thaw Chemical and biological resistance Corrosion UV radiation

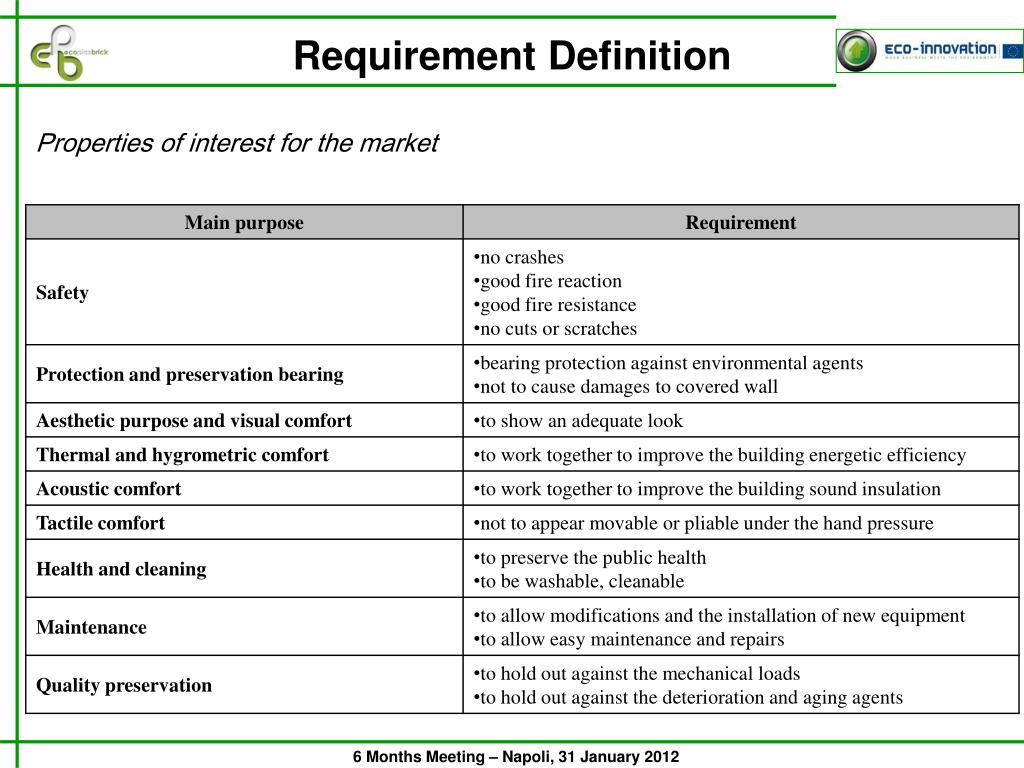

Requirement Definition Properties of interest for the market

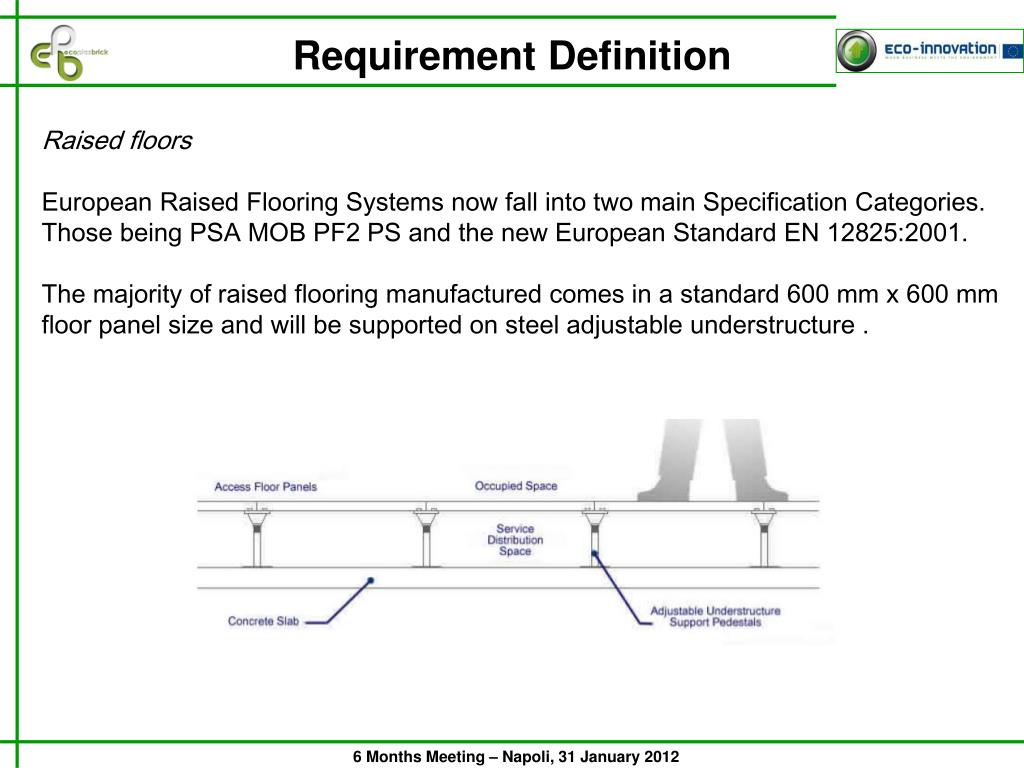

Requirement Definition Raised floors European Raised Flooring Systems now fall into two main Specification Categories. Those being PSA MOB PF2 PS and the new European Standard EN 12825:2001. The majority of raised flooring manufactured comes in a standard 600 mm x 600 mm floor panel size and will be supported on steel adjustable understructure .

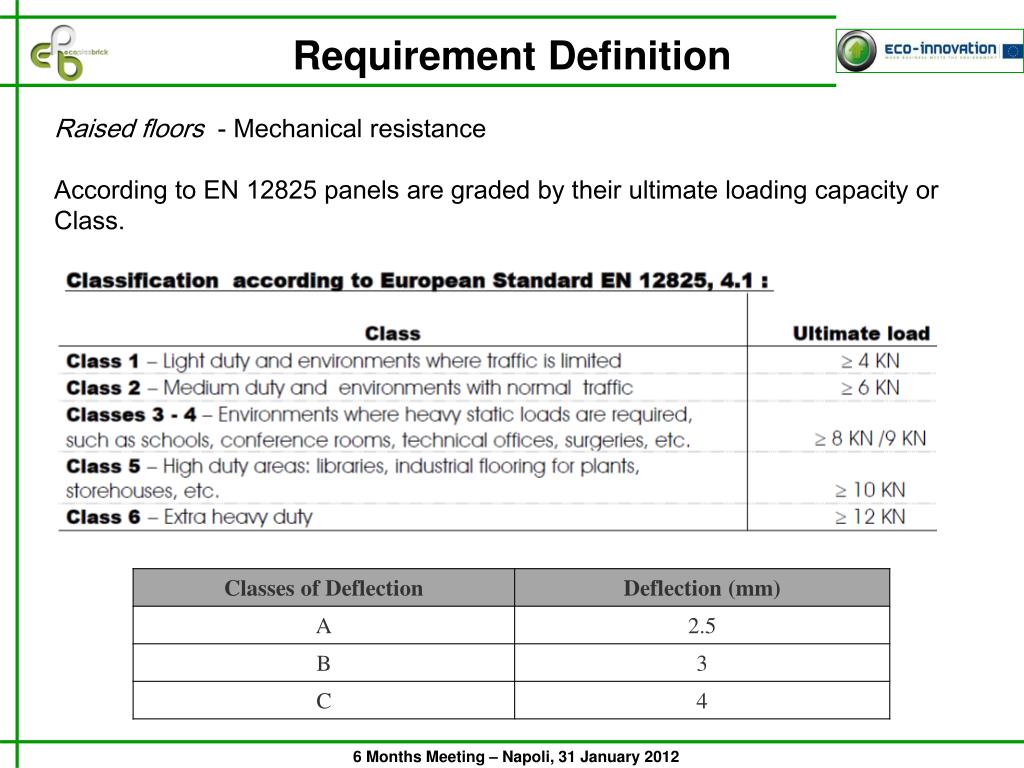

Requirement Definition Raised floors - Mechanical resistance According to EN 12825 panels are graded by their ultimate loading capacity or Class.
Requirement Definition • Raised floors • Fire ratings • Fire resistance EN 13501-2:2009 • Fire reaction EN 13501-1:2009 • Electrical characteristics: • A raised floor can be antistatic, conductive or insulating • EN 1081:2001 • Soundproofing • ISO Standard N. 140

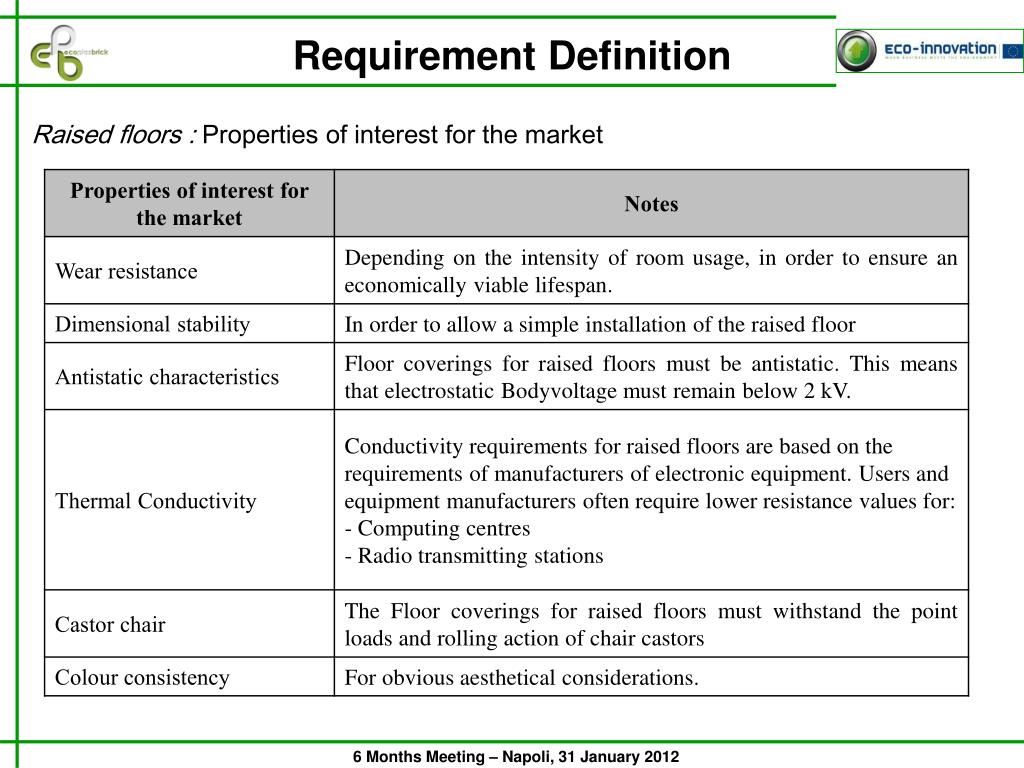

Requirement Definition Raised floors : Properties of interest for the market

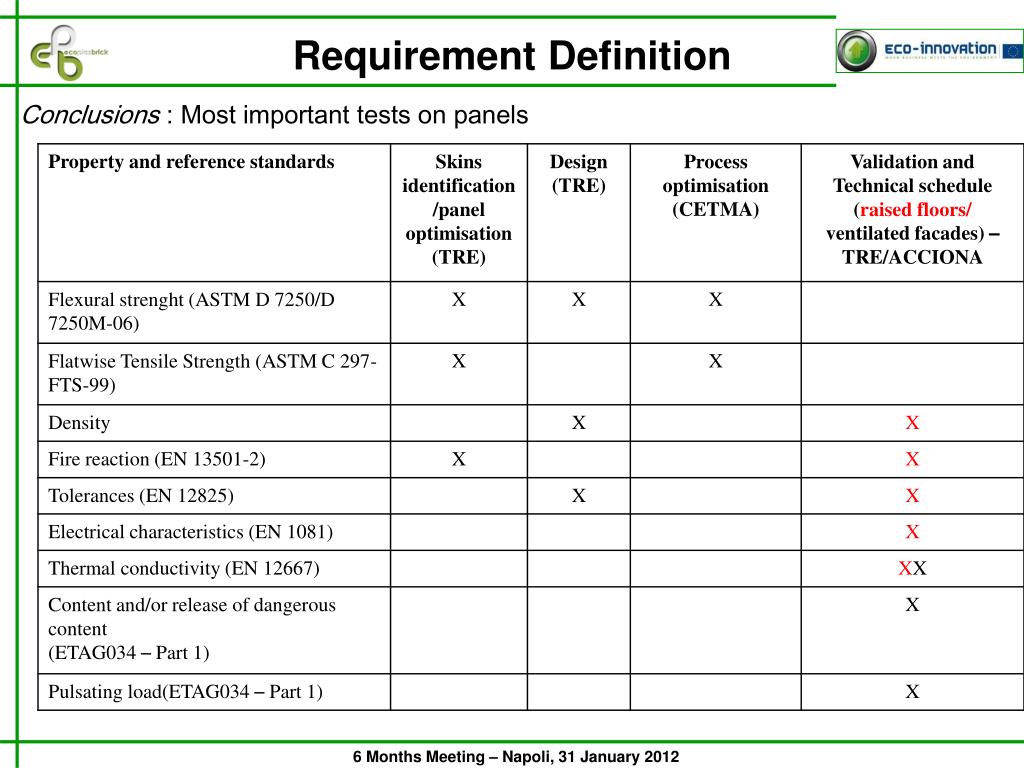

Requirement Definition Conclusions : Most important tests on panels

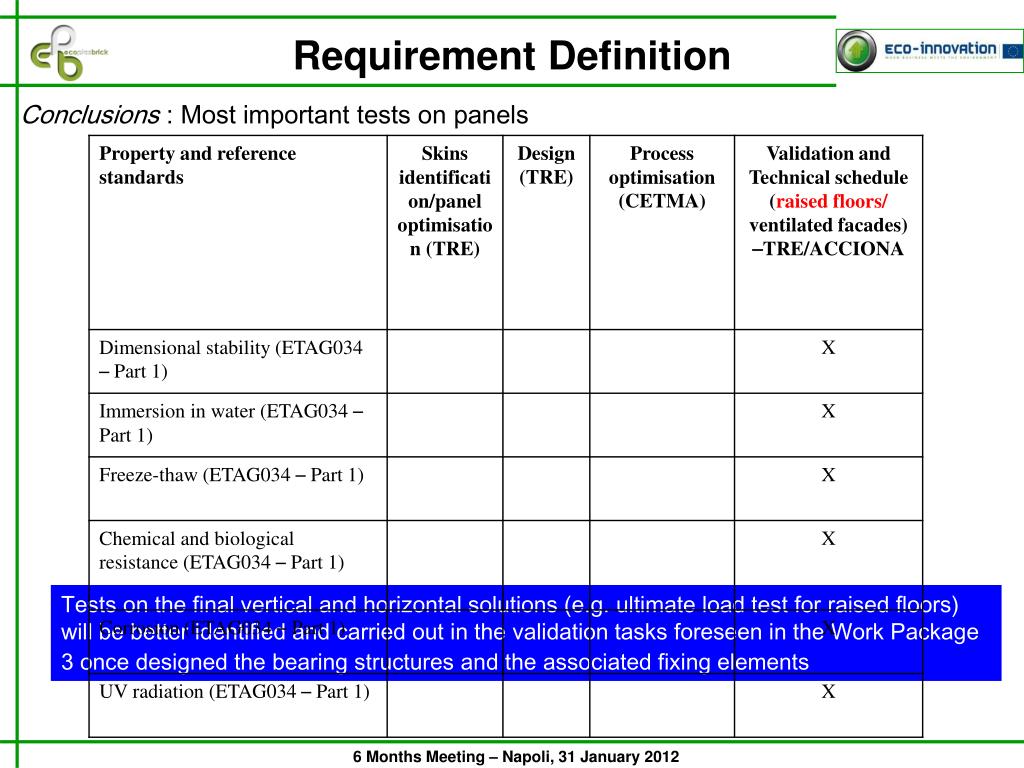

Requirement Definition Conclusions : Most important tests on panels Tests on the final vertical and horizontal solutions (e.g. ultimate load test for raised floors) will be better identified and carried out in the validation tasks foreseen in the Work Package 3 once designed the bearing structures and the associated fixing elements

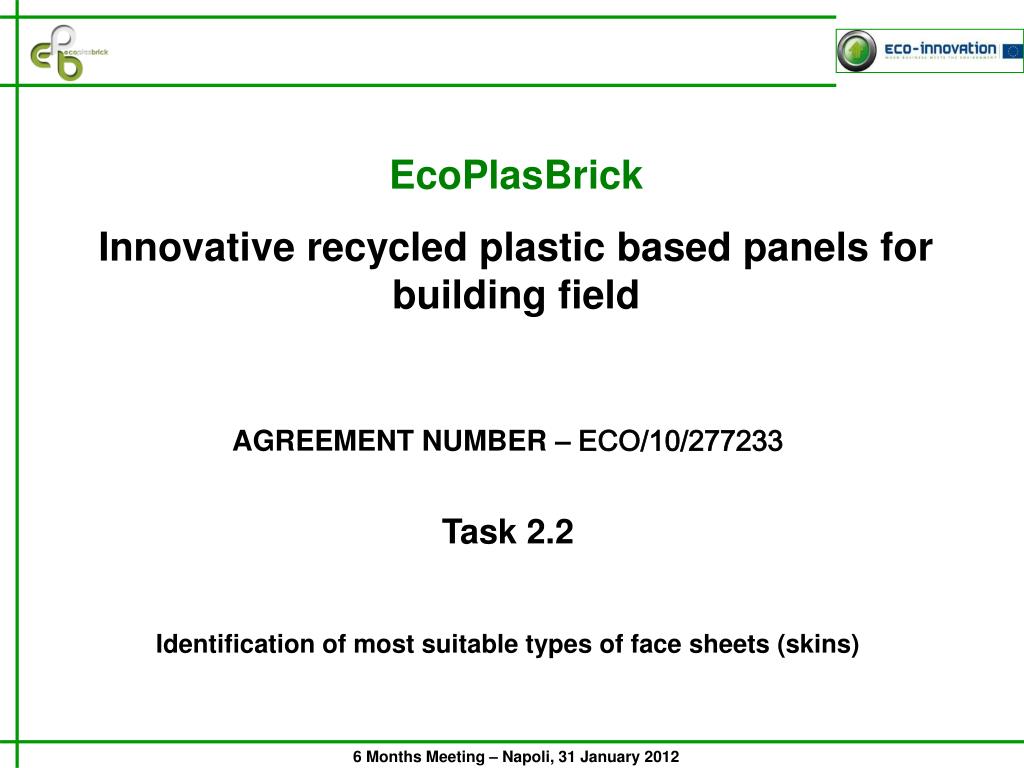

EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 2.2 Identification of most suitable types of face sheets (skins)

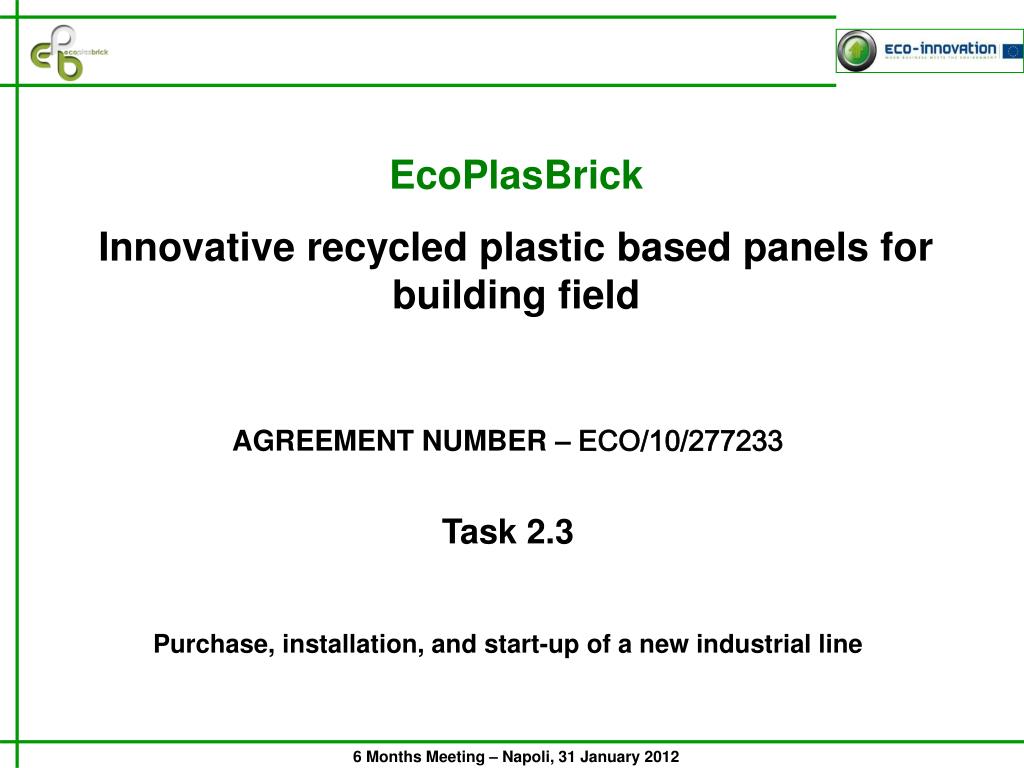

EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 2.3 Purchase, installation, and start-up of a new industrial line
EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 4.1 Requirements for Eco Label and EPD – First results

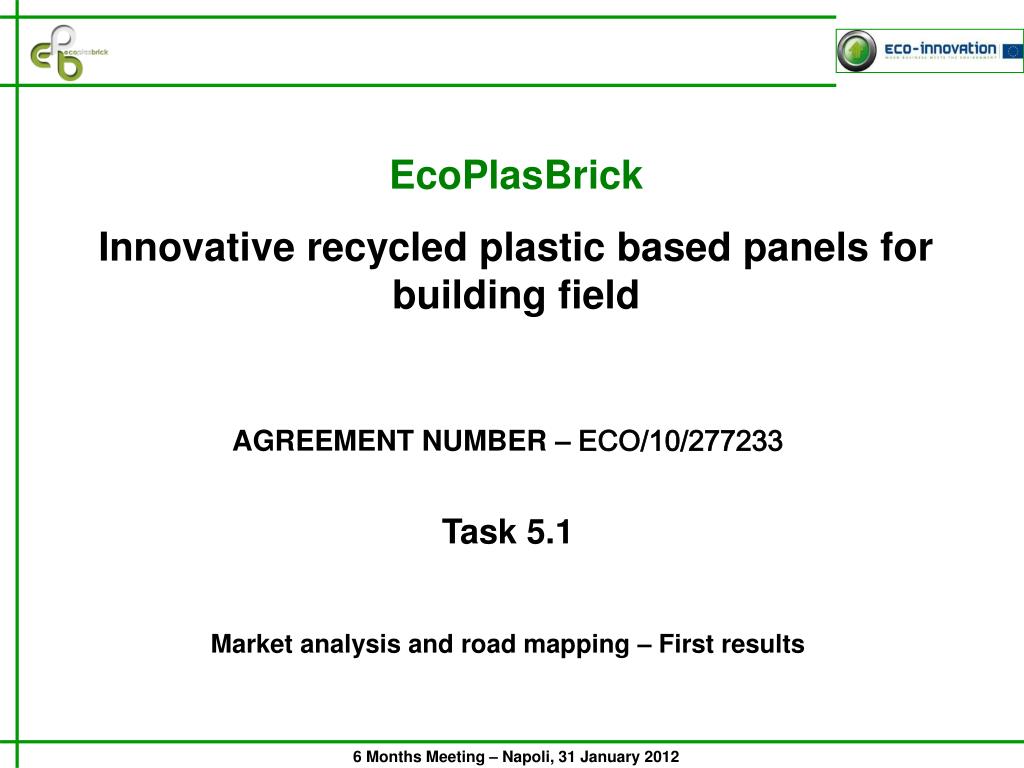

EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 5.1 Market analysis and road mapping – First results

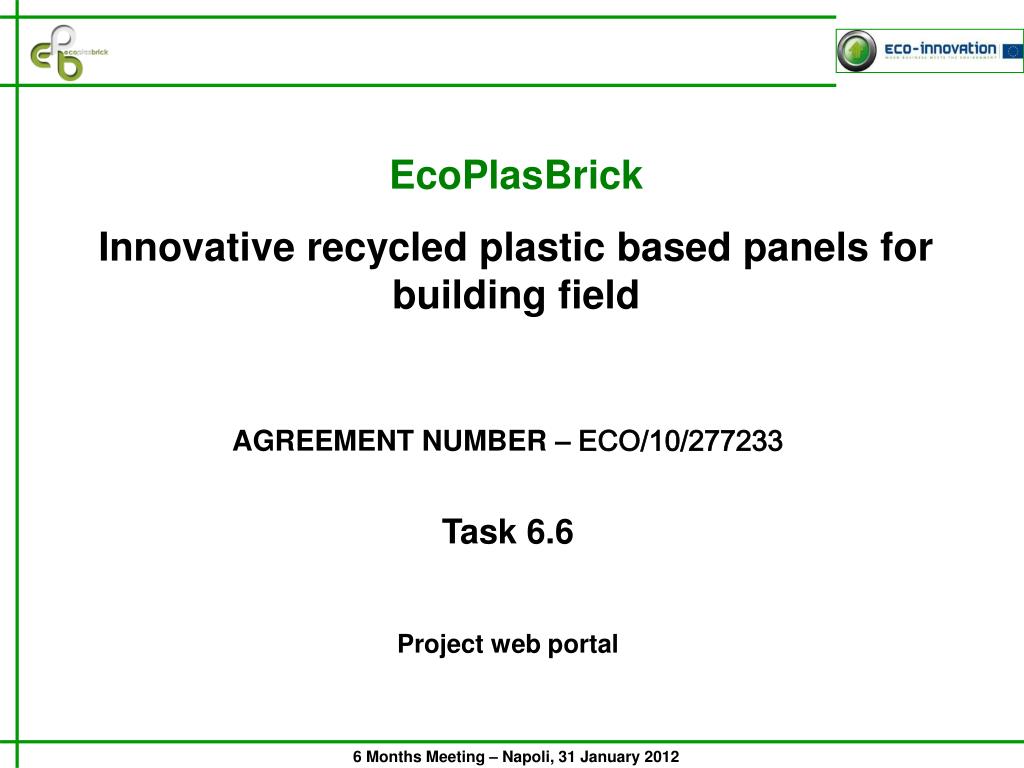

EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 6.6 Project web portal
Homepage contains all information on Ecoplasbrick Project : description, acronym, contract number, Eco- innovation logo, as indicated by the European guidelines on Cip-Eco-Innovation Projects. Structure of Page: Header: Title and Logo Horizontal navigation menu with links to single page Content of page Images are clickable to zoom them. 1. 2. 3. Homepage
Links to sections : Project Information Partner News-events Publications Gallery Contacts Private Area Navigation menu

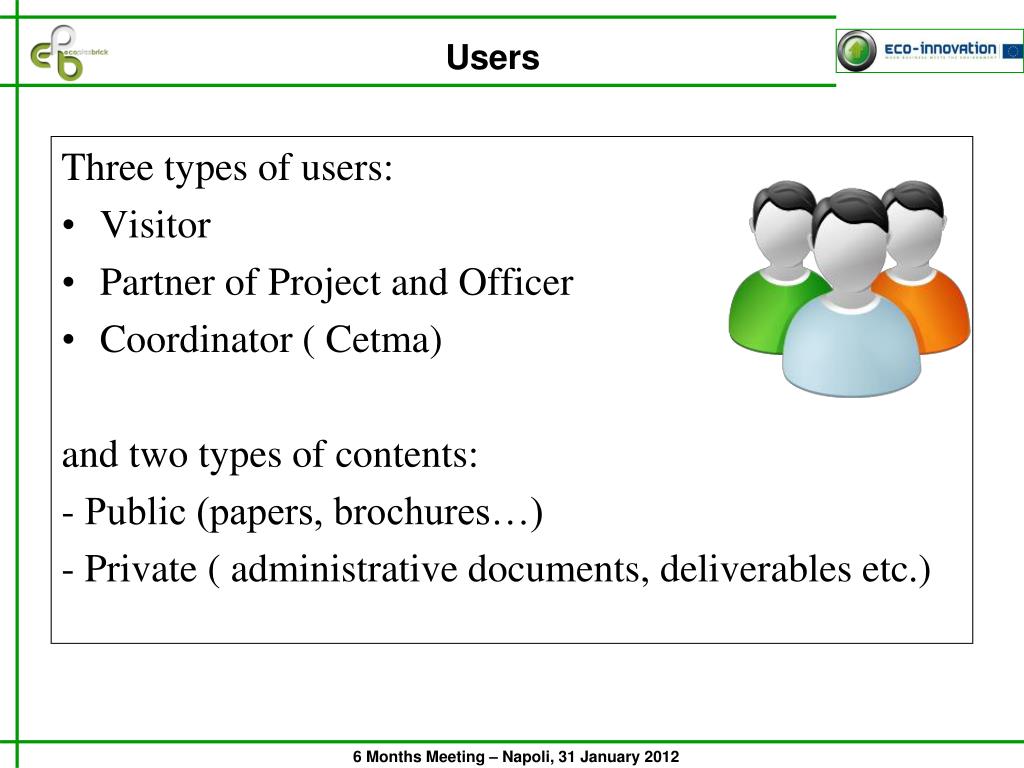

Three types of users: Visitor Partner of Project and Officer Coordinator ( Cetma) and two types of contents: - Public (papers, brochures…) - Private ( administrative documents, deliverables etc.) Users
Visitator can view only public content; Partners and Officer can view public and private content; Coordinator can view and modify all content, and can publish files. Users - 2
Private information is displayedafter logging in. Log-in The login page is accessible by link Private Area

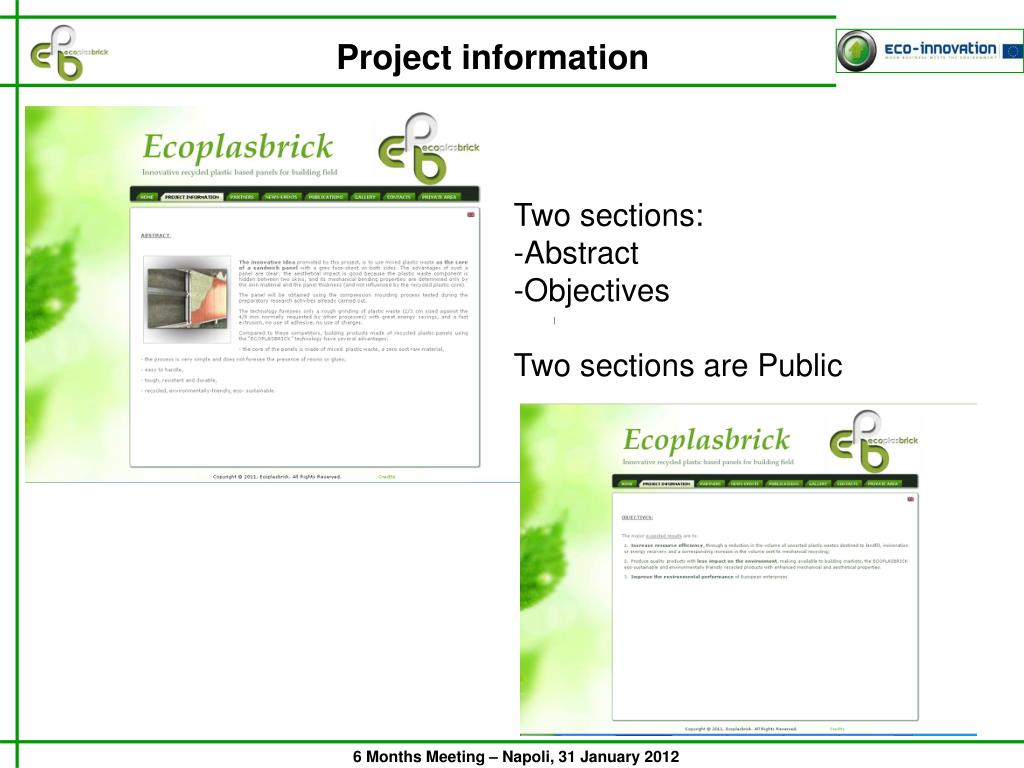

Project information • Two sections: • Abstract • Objectives • Two sections are Public
Partners • For each partner can be found : • Logo • Short description • Web site url • Email
This page lists news and events of interest News and events Title of news is a link to detailed description of news
List of documents: - public: visible to all users - private: visible to authorized users. Documents can be read and / or saved on local machine Publications

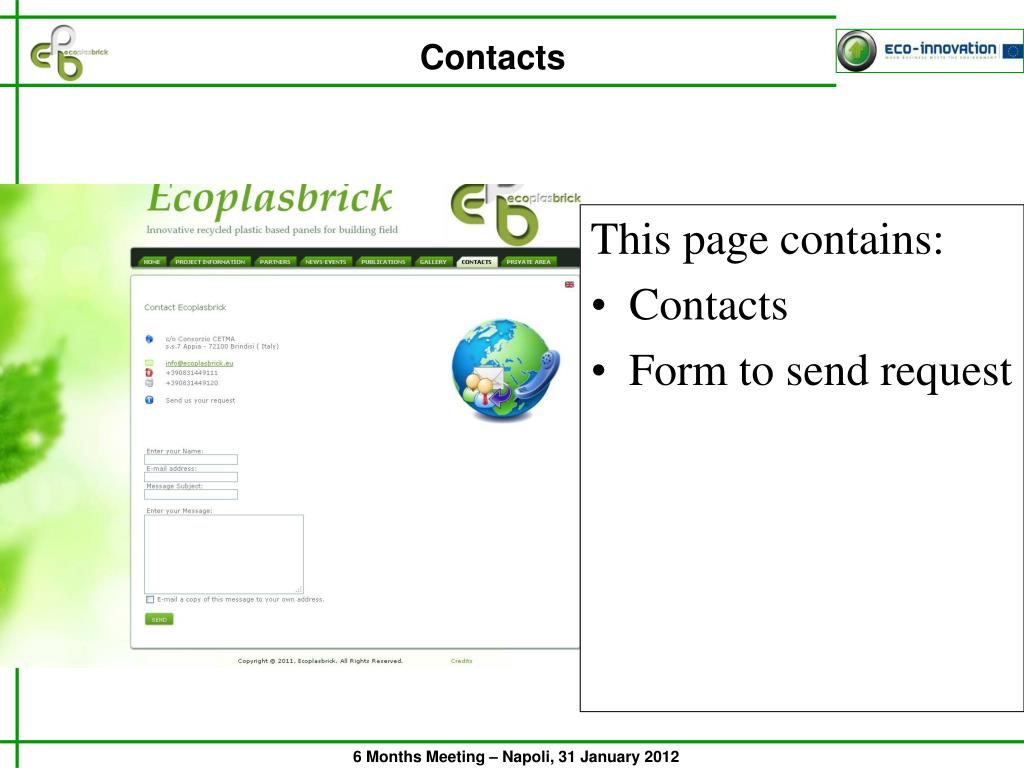

This page contains: Contacts Form to send request Contacts
EcoPlasBrick Innovative recycled plastic based panels for building field AGREEMENT NUMBER – ECO/10/277233 Task 6.7,6.8,6.9 First results on presentation of the project, fairs, promotion of contacts
Fairs COMPOTEC 8-10 February 2012
Planning of Next Activities

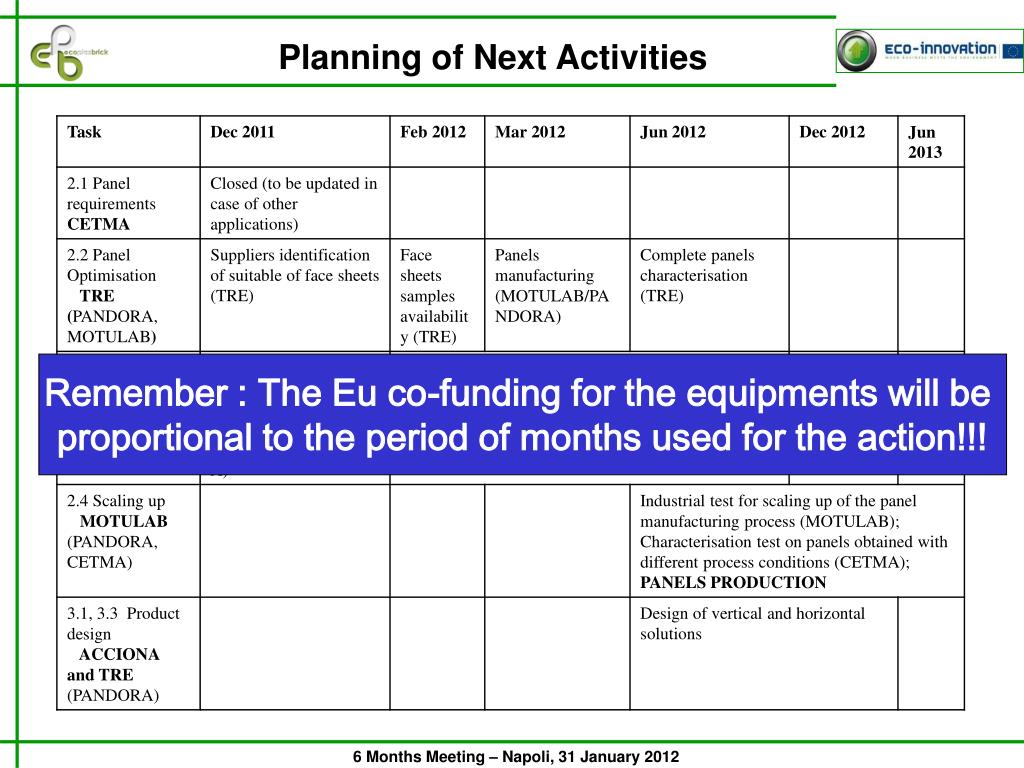

Planning of Next Activities Remember : The Eu co-funding for the equipments will be proportional to the period of months used for the action!!!

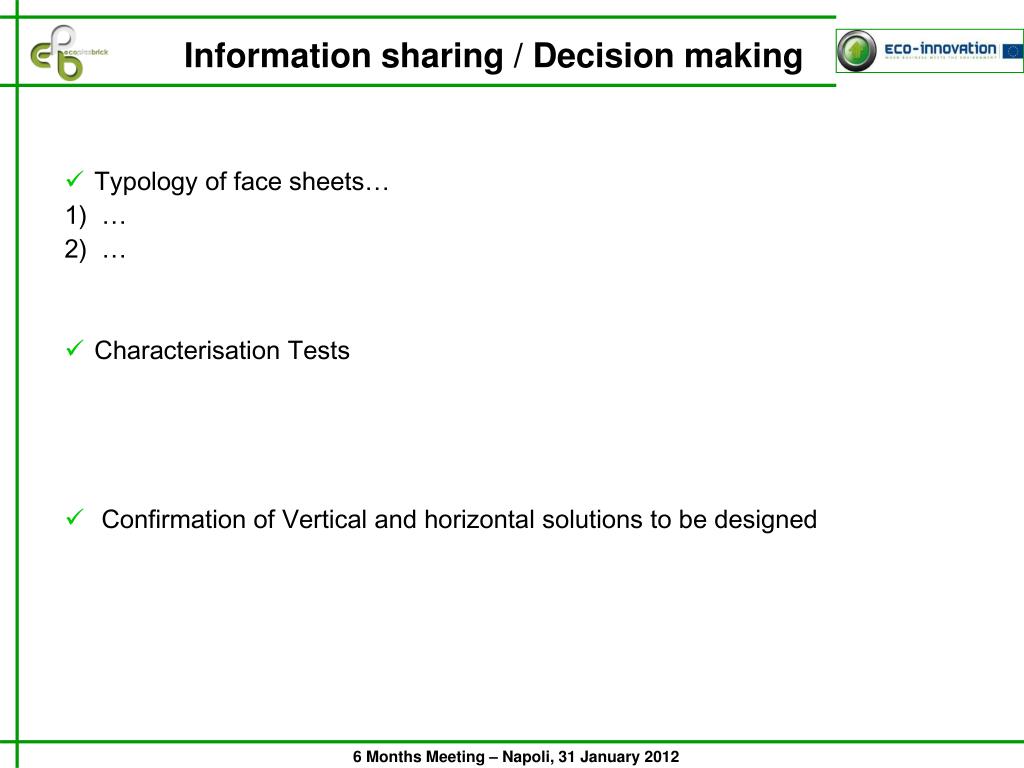

Information sharing / Decision making • Typology of face sheets… • … • … • Characterisation Tests • Confirmation of Vertical and horizontal solutions to be designed
Next Deliverables 1° Progress Report to be delivered to EACI with all closed deliverables at month 10, within 30 May 2012!!!
Planning of Next Activities Next meeting?? When: 3 July 2012 ? To be confirmed Where : MOTULAB srl (Ariccia-Rome) with the industrial line installed
