  1. Chapter 4 Antigen

  2. Definitions of antigen Antigen: non-self substances which can combine with TCR or BCR or Ab and have the potential of inducing immune response . Antigen: Tolerogen: an antigen that induces immunological tolerance Allergen : an antigen that elicits an immediate hypersensitivity.

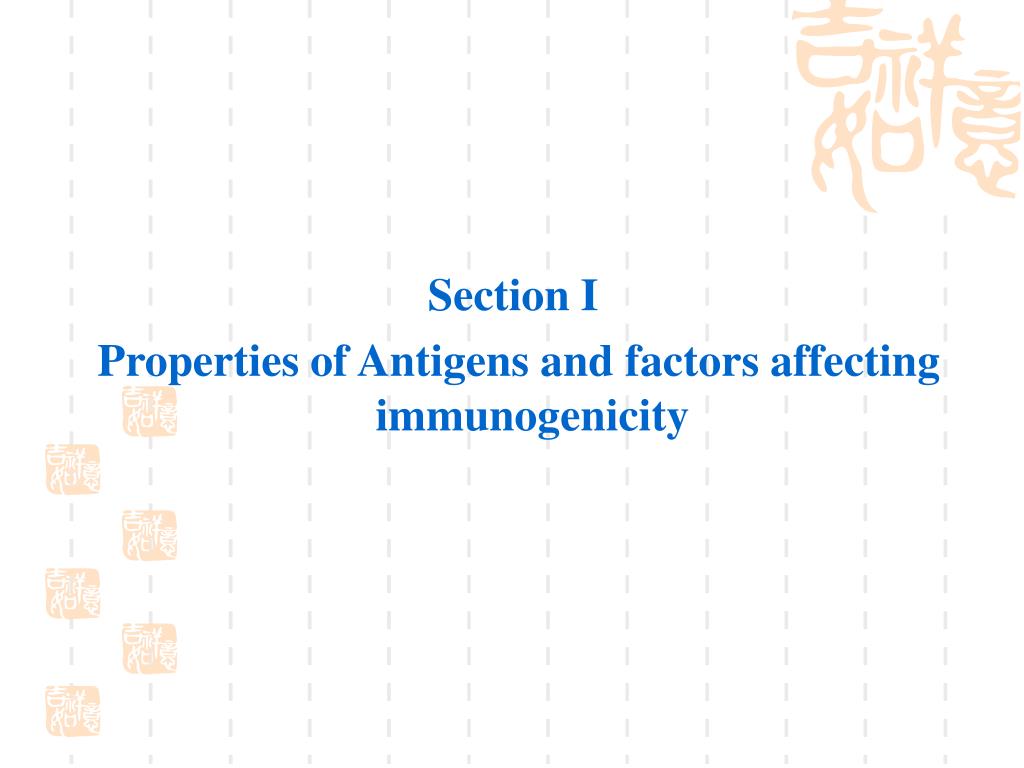

  3. Section I Properties of Antigens and factors affecting immunogenicity

  4. I. Properties of Ag • Immunogenicity An ability of antigen which can stimulate one individual to evoke a specific immune response (Ab or effector T cells). • Immunoreactivity (Antigenicity) An ability of antigen which can combine specifically with corresponding Ab or effector T lymphocyte.

  5. Ag B cells Ab T cells effective T cells Immunogenicity Immunoreactivity

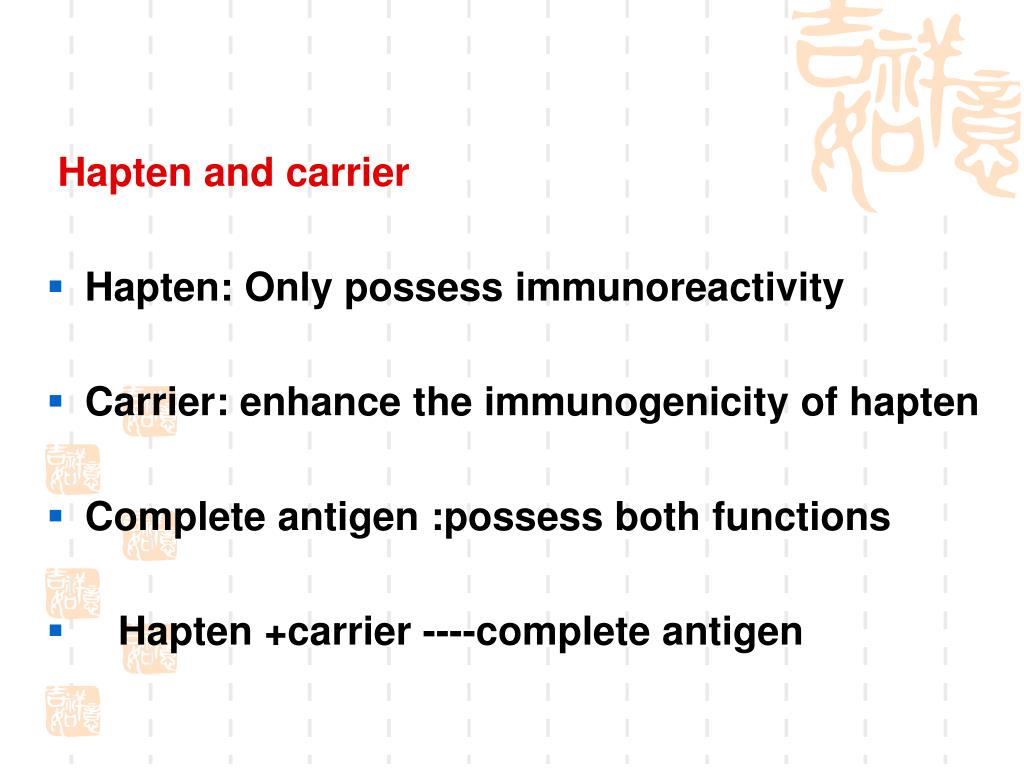

  6. Hapten and carrier • Hapten: Only possess immunoreactivity • Carrier: enhance the immunogenicity of hapten • Complete antigen :possess both functions • Hapten +carrier ----complete antigen

  7. II Factors of influencing immunogenicity 1. Factors related to antigens 1）Foreignness “Non-self ”substances: means substances which never contact with embryonic lymphocytes according to Burnet’s theory. • Xeno-substances (Various pathogens and their products, xeno-protein, etc.) • Allo-substances (ABO blood type, HLA, et al) • Self components - degeneration - release of sequester antigen - forbidden clone rejuvenate

  8. Burnet Clonal selection theory Various clones Clone deletion birth Clone selection

  9. 2. Certain physical and chemical properties • Molecular weight: Reasonable large molecule( >10.0 kd) • more stabilization • more surface structures for lymphocytes to recognize

  10. 2) chemical composition and structure Proteins >Polysaccharides >Nucleic Acids >Lipids aromatic ring ring > linear 3) physical nature polymer > monomer Particulate > Soluble Denatured > Native

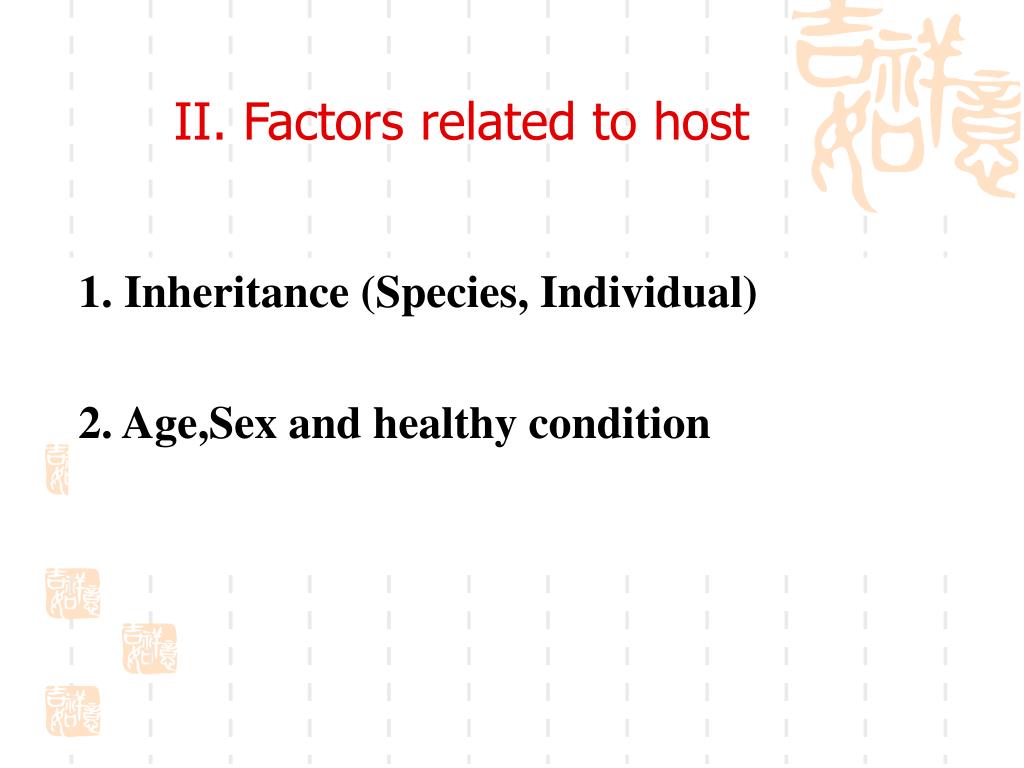

  11. II. Factors related to host 1. Inheritance (Species, Individual) 2. Age,Sex and healthy condition

  12. III) Methods of immunity 1. Dosage of antigen, times of injection 2. Ways (subcutaneous>intravenous>oral) 3. Adjuvant Certain substance which can enhance the Ir or change the type of Ir

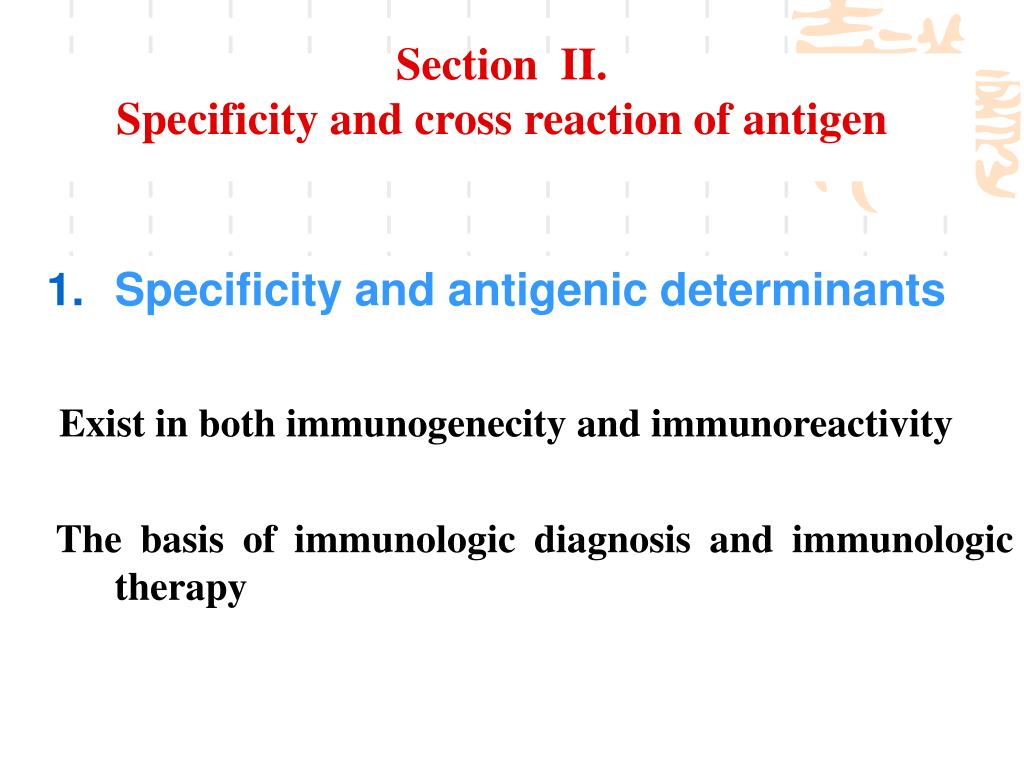

  13. Section II. Specificity and cross reaction of antigen • Specificity and antigenic determinants Exist in both immunogenecity and immunoreactivity The basis of immunologic diagnosis and immunologic therapy

  14. Specificity of Ag

  15. 2.Antigenic determinant 1)Antigen determinants (epitope) are small particular chemical groups existing in antigen which can be recognized by TCR/BCR or Ab. Polypeptide antigen----5-23 amino acid residues Polysaccharide antigen----5-7 monosaccharides Nuclear acid antigen----6-8 nucleotides

  16. Epitope: decide the specificity of the antigen a subtle change of antigenic determinant (characteristics, number and conformation) can influence the specificity of Ag. Antigen determinant is the combining site of Ag to Ab

  17. 氨甲基笨酸 苯胺

  18. The chemical component , arrangement and conformation affect the specificity of antigen

  19. 2) Antigenic valence: Total number of determinants which can be bound by antibody or antigenic receptor of lymphocytes is called antigenic valence. Most natural antigens are polyvalence antigen. Hapen is monovalence antigen.

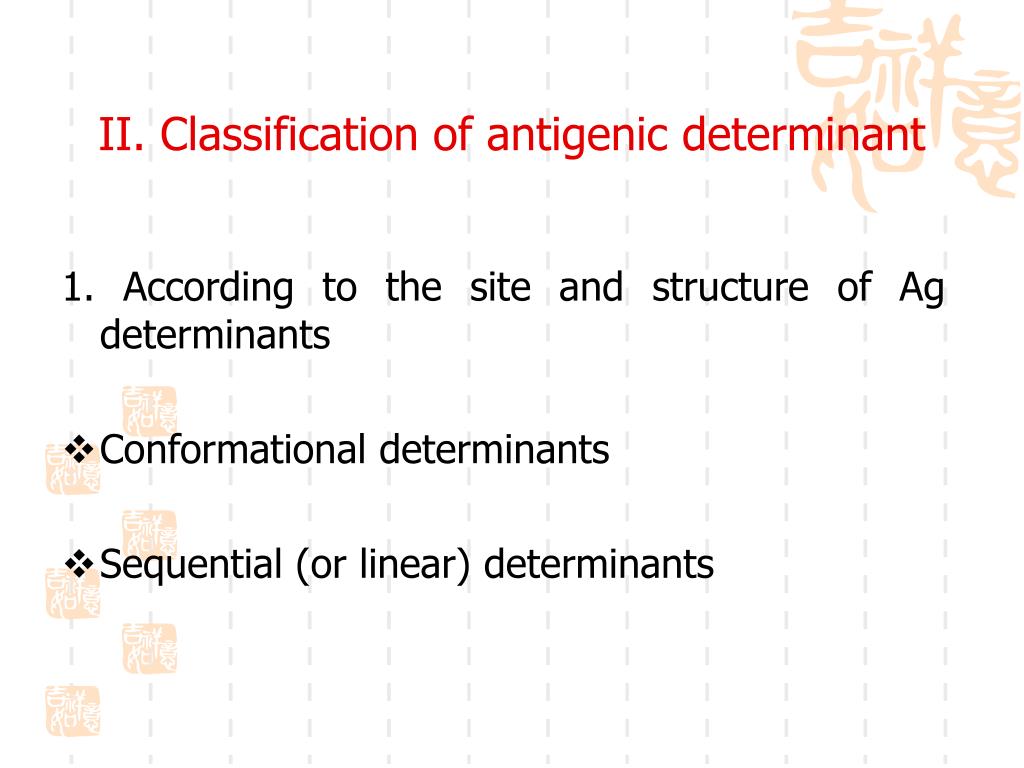

  20. II. Classification of antigenic determinant 1. According to the site and structure of Ag determinants • Conformational determinants • Sequential (or linear) determinants

  21. Conformational determinants • Conformational determinants are formed by amino acid residues that aren’t in a sequence but become spatially juxtaposed in the folded protein . • They are normally exist on the surface of antigen molecules. • They are recognized by B cells or antibody.

  22. Sequential (or linear) determinants • Epitopes formed by several adjacent aminoacid residues are called linear determinants. • They are exist on the surface of antigen molecules or inside molecules. • They are mainly recognized by T cells, but some also can be recognized by B cells.

  23. 2. According to types of cells recognizing antigenic determinants • T cell determinants(T cell epitopes) • B cell determinants(B cell epitopes): • Functional determinants • Hidden or Sequestered determinants

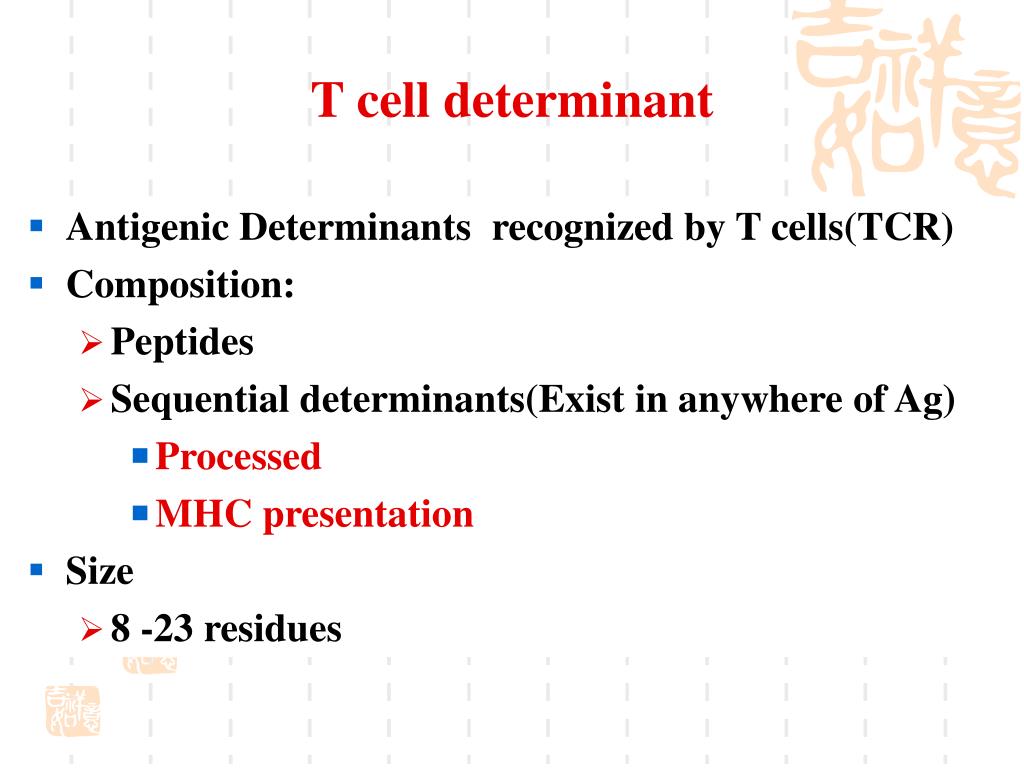

  24. T cell determinant • Antigenic Determinants recognized by T cells(TCR) • Composition: • Peptides • Sequential determinants(Exist in anywhere of Ag) • Processed • MHC presentation • Size • 8 -23 residues

  25. B cell Determinant • Antigenic Determinants Recognized by B cells and Ab • Composition • peptide, polysaccharides, nucleic acids • Sequential determinants or Conformational determinants (existed on the surface of Ag) • Recognized directly by B cells • No MHC • Size: 5-7 residues

  26. B cell determinants • Functional determinant: epitope existed on the surface of Ag which can be recognized by BCR or combined with Ab easily. • Hidden determinant: epitope existed inside of Ag which can not be recognized by BCR or combined with Ab easily.

  27. Comparison T cell epitope and B cell epitope T cell epitope B cell epitope Structure linear epitope conformational epitope or linear epitope Receptor TCR BCR Nature proteins proteins, polysaccharides Size 5-23 amino acid residues 5-15 amino acid residues or 5-7 monosaccharides or 5-8 nucleotides Position any position in antigen mostly exist on the surface of antigen MHC molecules yes no Presentation

  28. III. Common antigen and cross reaction • Common antigen : the same or similar determinants among various antigens are called common antigen. • Cross reaction: The antibodies induced by one kind of antigen can react with other antigen because of presence of common determinant between two antigens

  29. 2 2 A 1 B 3 Anti-2 Anti-2 Anti-A Anti-B Anti-1 Anti-3

  30. Mechanism of cross reaction ---common Ag determinants ---similar structure of Ag determinants • Significance: Because there are some common antigen determinants between different microbes, so the antiserum against one kind of Ag can also react with another Ag and cause a cross reaction . In clinic, existence of cross reaction may lead to wrong diagnosis.

  31. Section III. Classification of Ag I. Classification according to immunogenicity of the antigens • Complete Ag • Hapten

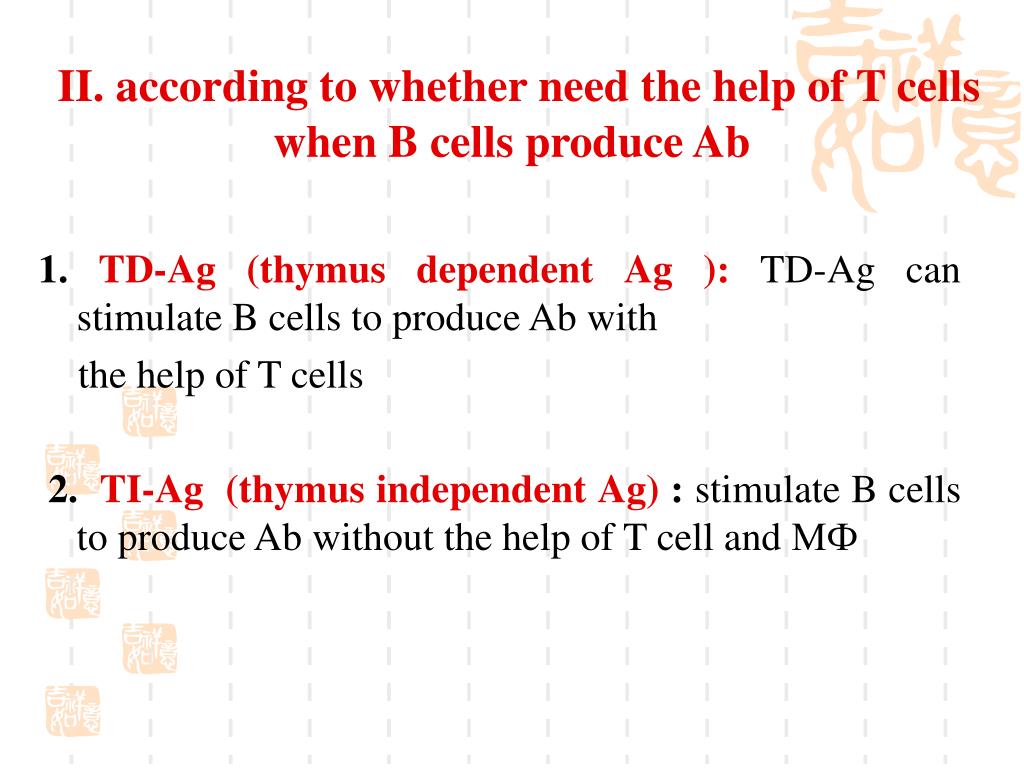

  32. II. according to whether need the help of T cells when B cells produce Ab 1.TD-Ag (thymus dependent Ag ):TD-Agcan stimulate B cells to produce Ab with the help of T cells 2. TI-Ag (thymus independent Ag) : stimulate B cells to produce Ab without the help of T cell and MФ

  33. 1.TD-Ag (thymus dependent Ag ):TD-Agcan stimulate B cells to produce Ab only with the help of T cells ---most of TD-Ag are protein ----more kinds of determinants, less number of each kind ---stimulate B cell to produce :IgG, IgM, IgA ---capable of inducing CMI ---immune memory

  34. 2. TI-Ag (thymus independent Ag) : stimulate B cells to produce Ab without the help of T cell and MФ ---most are polysaccharide ---there is more same repeat determinants ---only induce B cell to produce IgM ---can not induce CMI ---no memory

  35. TI and TD 抗 原 TI-1 抗原 TD-Ag CD4 2 1 1 2 CD40/CD40L B1 细胞 B2 细胞 Th细胞 Antigen TI-Ag

  36. III according to origin of antigens • xenoantigen • alloantigen • autoantigen

  37. Section IV. Important Ags in medicine I. Pathogens and their products 1.Pathogens : Surface antigen “Vi” Ag Somatic Ag “O” Ag Flagellar Ag “H” Ag Pillus Ag

  38. 2. Exotoxin and toxoid Exotoxin Produced by G+ bacteria Strong immunogenicity and pathogenicity Toxoid exotoxin which losses its toxicity and maintains its immunogenicity under suitable conditions Tetanus toxoid

  39. II. Immune serum of animal : animal serum contains Abs • Antibody activation: bind to antigen • Immunogenicity : hypersensitivity TAT: Tetanus anti-toxin

  40. III. Heterophilic Ag (forssman Ag) ----common Ags are shared by different species no specificity of species Such as: • Forssman Ag: SRBC and guinea pig organs • Heart or kidney of human and streptococcus • O14 of E. coli and colonic mucos • Ox19 of proteus and R. typhi -- Significance : immunopathology Diagnosis

  41. IV. Alloantigen 1.Antigen of red blood cell (blood typing) : ABO system -very important in transfusion Rh system (in Chinese >99% Rh+) ---heamolytic disease of the newborn(HDNB) 2. Human leukocyte antigen, HLA system -relate to transplantation -very important in immune regulation

  42. V. Autoantigen 1. Release of sequestered Ag 2. Modification of protein

  43. VI. Tumor antigen • Tumor specific Ag, TSA --only express on the tumor cells but on normal cells • Tumor associated Ag,TAA -- Express highly on tumor cells but lowly on normal cells, eg. AFP CEA

  44. Section V. Superantigen and adjuvant 1. Superantigen (SAg) :Substance that can non-specificallystimulate polyclonal T/B cells and induce a very strong immune response with a extremely low concentration

  45. Superantigen Conventional Antigen

  46. The mechanism of SAg is different from that of Ags. Superantigen MHC Antigen TCR

  47. T cell SAg: enterotoxin • B cell SAg: SPA (staphylococcal protein A) HIV:gp120

  48. Biological actions of superantigen • 1. activate immune response • 2. Immune suppression • 3. induce immune tolerance
