Tutorial / lab 2: Code instrumentation

Tutorial / lab 2: Code instrumentation. Goals of this session: Create some tests for a Java class. Measure the code coverage. Code Instrumentation Tools. Tools that modify production code for various purposes during code execution: Debuggers

octavius-booker
Télécharger la présentation

Tutorial / lab 2: Code instrumentation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

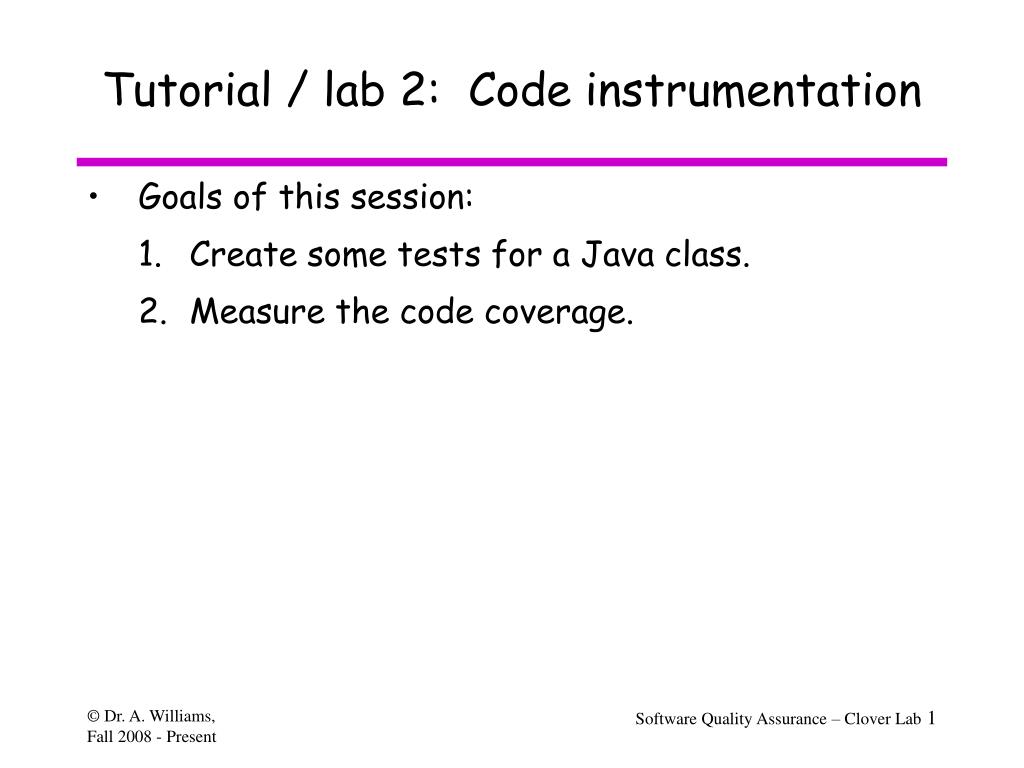

  1. Tutorial / lab 2: Code instrumentation • Goals of this session: • Create some tests for a Java class. • Measure the code coverage.

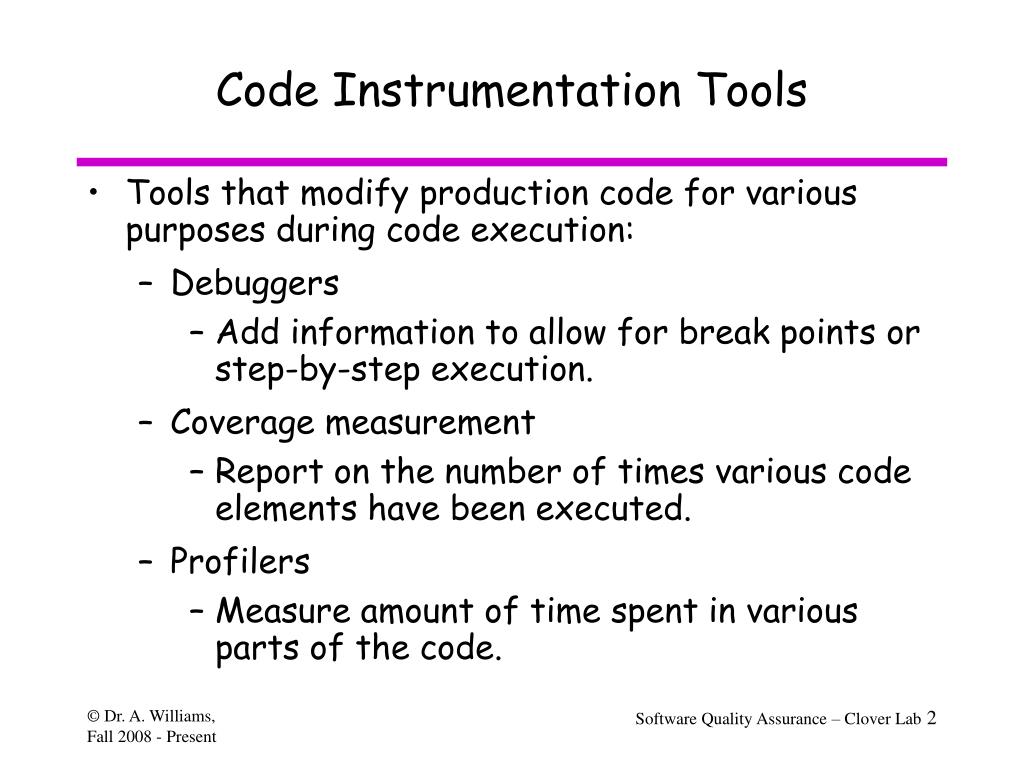

  2. Code Instrumentation Tools • Tools that modify production code for various purposes during code execution: • Debuggers • Add information to allow for break points or step-by-step execution. • Coverage measurement • Report on the number of times various code elements have been executed. • Profilers • Measure amount of time spent in various parts of the code.

  3. Coverage tools • Program is typically compiled with special options, to add extra source or object code. • Additional data structures, such as a flow graph, may also be created. • Program is run, possibly via test cases • During execution, information is accumulated and written to an output file. • Post-processing phase: • User report is generated from output file.

  4. How to measure coverage? • Instrument the source code before compilation • Instrument the virtual machine or object code. • The Apache Byte Code Engineering Library (BCEL) is used by several Java coverage tools • http://jakarta.apache.org/bcel • Use a customized virtual machine.

  5. Source code instrumentation • Create a copy of the source code, instrument the copy, and compile the instrumented copy to .class files. • This is the approach used by the Clover code coverage tool. • Typical method: • Set up an array of counters. • Insert source code at points of interest that increment specific counters. • Coverage tool calls main() method • After main method returns, dump values of counters.

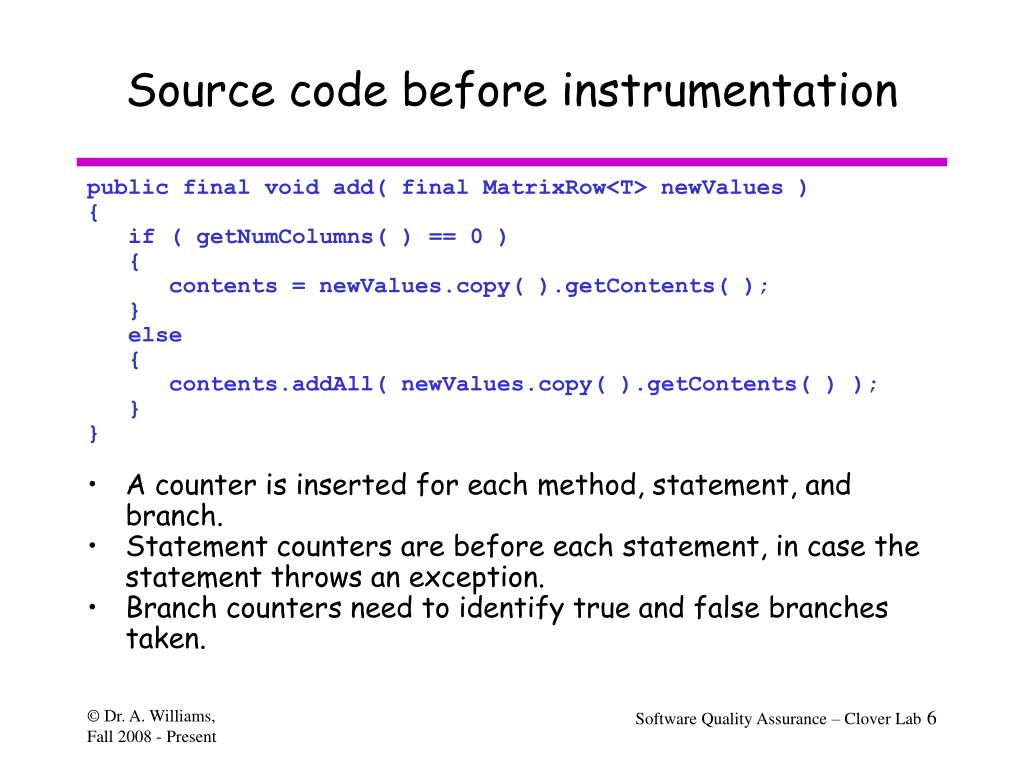

  6. Source code before instrumentation public final void add( final MatrixRow<T> newValues ) { if ( getNumColumns( ) == 0 ) { contents = newValues.copy( ).getContents( ); } else { contents.addAll( newValues.copy( ).getContents( ) ); } } • A counter is inserted for each method, statement, and branch. • Statement counters are before each statement, in case the statement throws an exception. • Branch counters need to identify true and false branches taken.

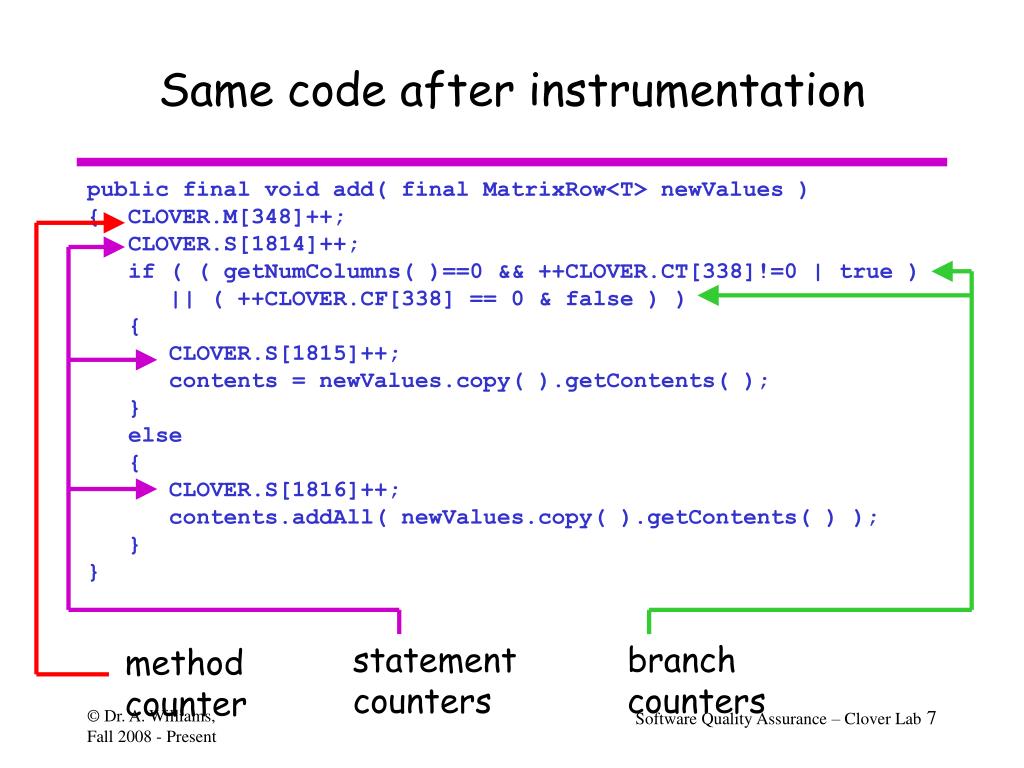

  7. Same code after instrumentation public final void add( final MatrixRow<T> newValues ) { CLOVER.M[348]++; CLOVER.S[1814]++; if ( ( getNumColumns( )==0 && ++CLOVER.CT[338]!=0 | true ) || ( ++CLOVER.CF[338] == 0 & false ) ) { CLOVER.S[1815]++; contents = newValues.copy( ).getContents( ); } else { CLOVER.S[1816]++; contents.addAll( newValues.copy( ).getContents( ) ); } } statement counters branch counters method counter

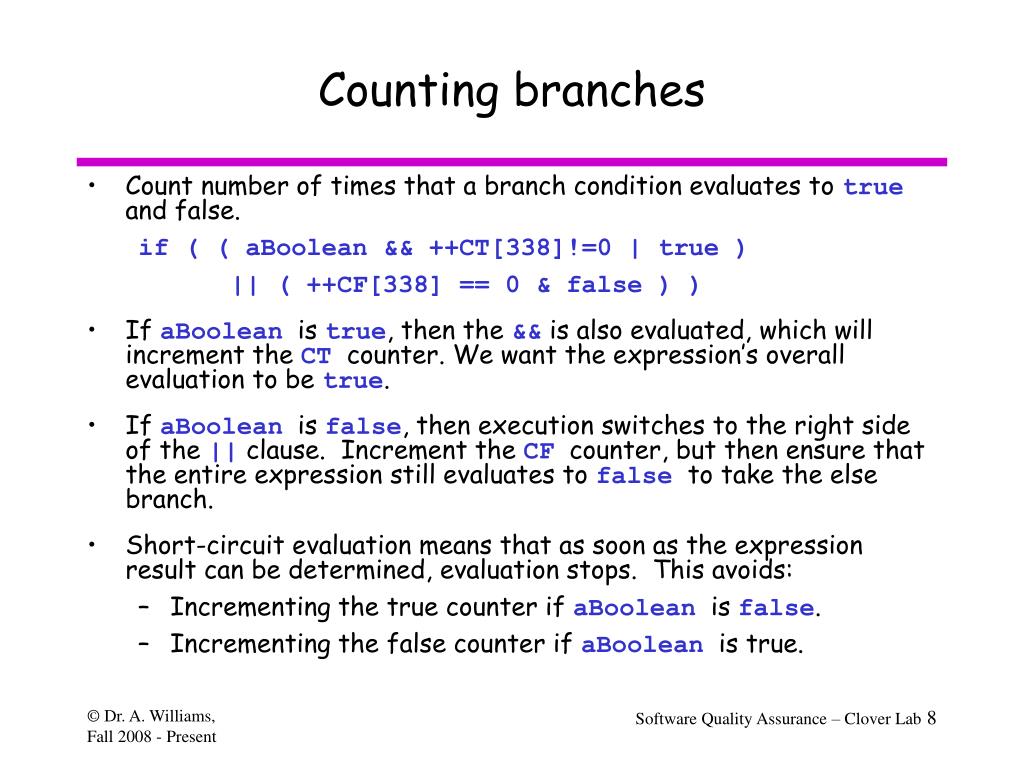

  8. Counting branches • Count number of times that a branch condition evaluates to true and false. if ( ( aBoolean && ++CT[338]!=0 | true ) || ( ++CF[338] == 0 & false ) ) • If aBoolean is true, then the && is also evaluated, which will increment the CT counter. We want the expression’s overall evaluation to be true. • If aBoolean is false, then execution switches to the right side of the || clause. Increment the CF counter, but then ensure that the entire expression still evaluates to false to take the else branch. • Short-circuit evaluation means that as soon as the expression result can be determined, evaluation stops. This avoids: • Incrementing the true counter if aBoolean is false. • Incrementing the false counter if aBoolean is true.

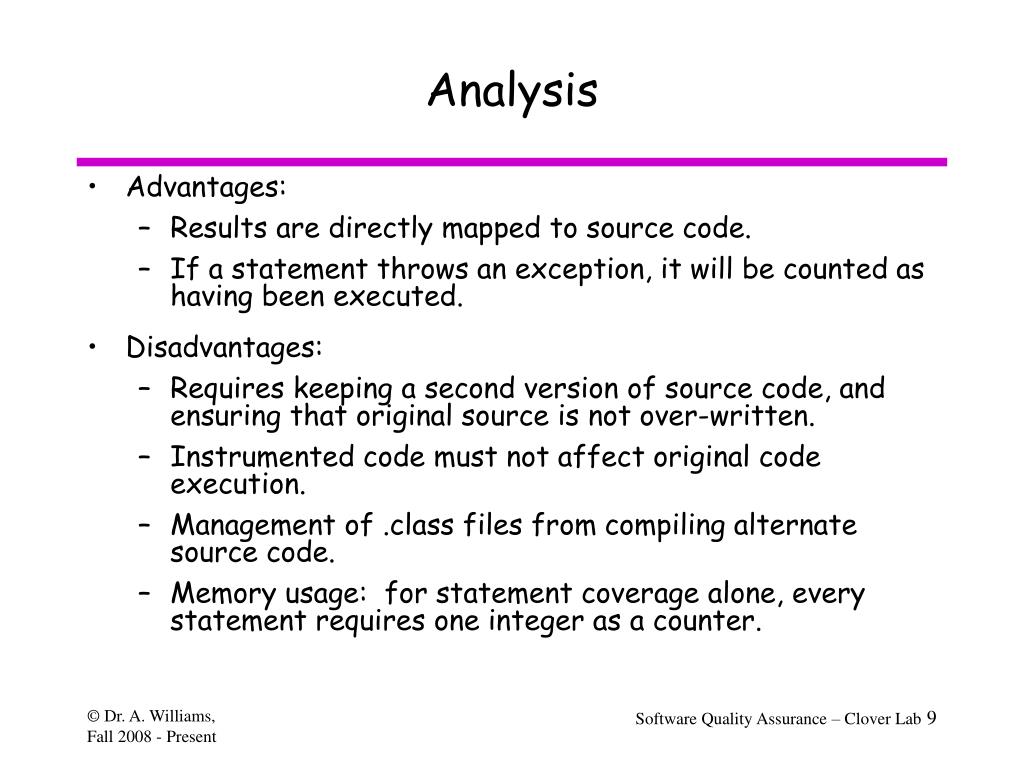

  9. Analysis • Advantages: • Results are directly mapped to source code. • If a statement throws an exception, it will be counted as having been executed. • Disadvantages: • Requires keeping a second version of source code, and ensuring that original source is not over-written. • Instrumented code must not affect original code execution. • Management of .class files from compiling alternate source code. • Memory usage: for statement coverage alone, every statement requires one integer as a counter.

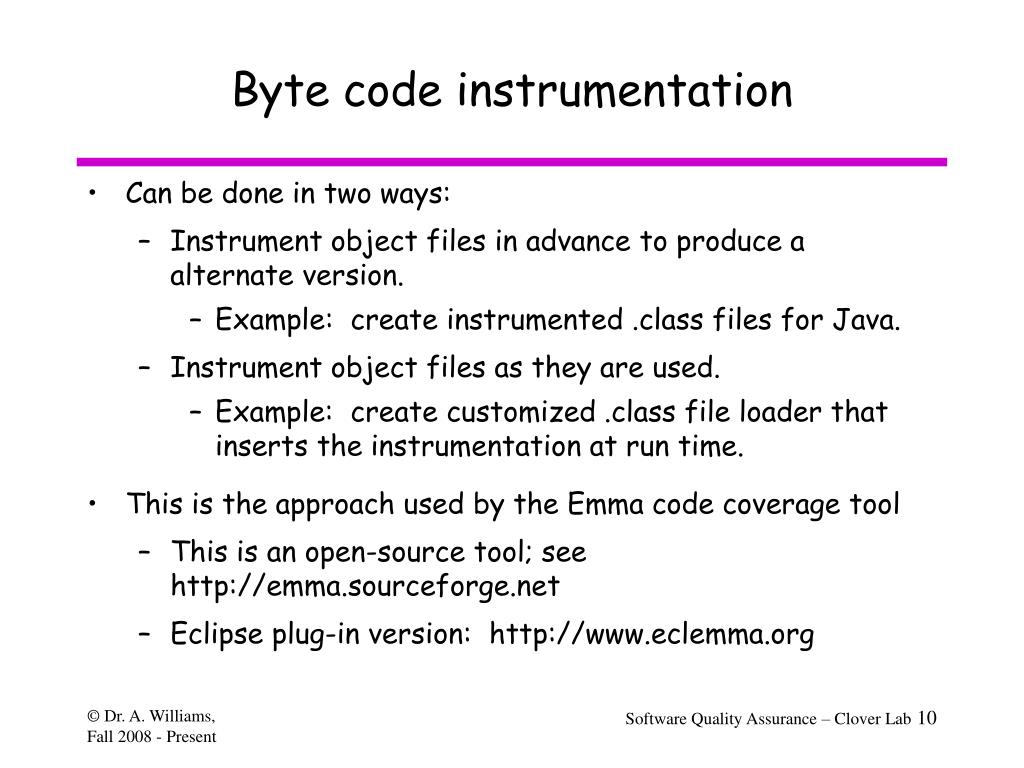

  10. Byte code instrumentation • Can be done in two ways: • Instrument object files in advance to produce a alternate version. • Example: create instrumented .class files for Java. • Instrument object files as they are used. • Example: create customized .class file loader that inserts the instrumentation at run time. • This is the approach used by the Emma code coverage tool • This is an open-source tool; see http://emma.sourceforge.net • Eclipse plug-in version: http://www.eclemma.org

  11. Analysis • Pre-instrumentation: • Advantages: • source code is not modified. • can be done as a batch process before execution • Disadvantages: • management of two .class file versions. • mapping of source code statements to/from object code • counting source code statements can be difficult • object code may need extra information such as special compiler options
