Graphical Models

This overview explores various types of graphical models, including Directed Graphical Models (DGMs) and Undirected Graphical Models (UGMs). We delve into the semantics of these models with practical examples, illustrating concepts such as boundary (bd) and closure (cl) of sets. Key topics include ancestral sets, moral and triangulated graphs, along with their implications in separating nodes. This resource serves as a foundational guide for students and professionals looking to deepen their understanding of graphical semantics in data representation.

odina
Télécharger la présentation

Graphical Models

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

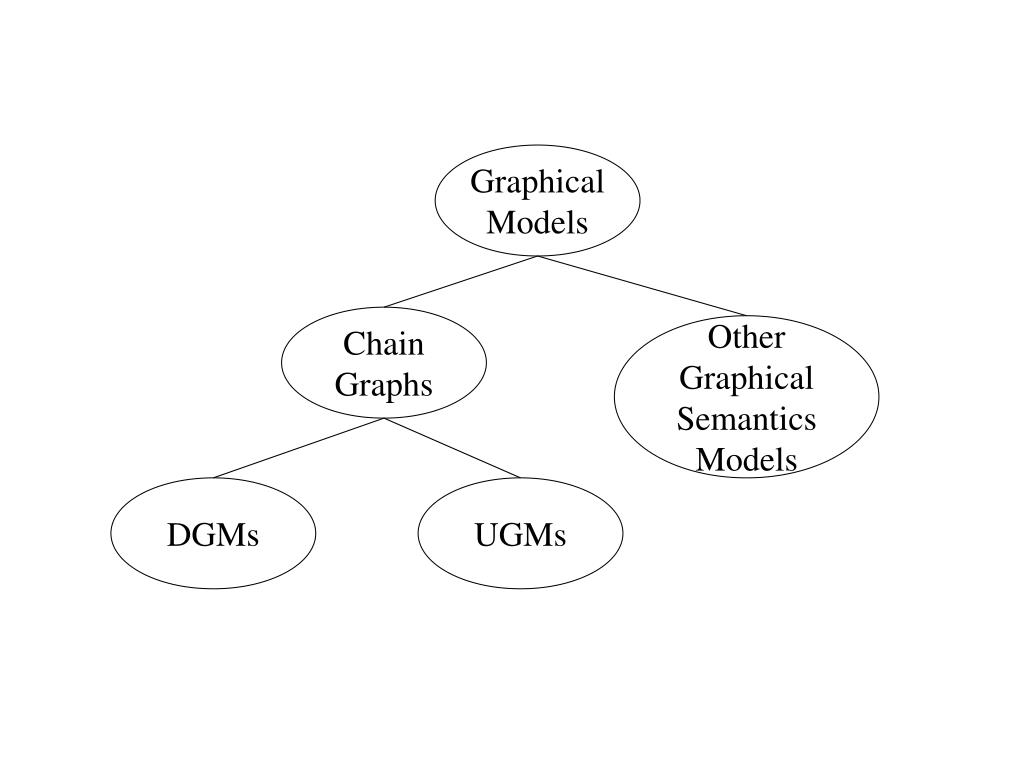

  1. Graphical Models Chain Graphs Other Graphical Semantics Models DGMs UGMs

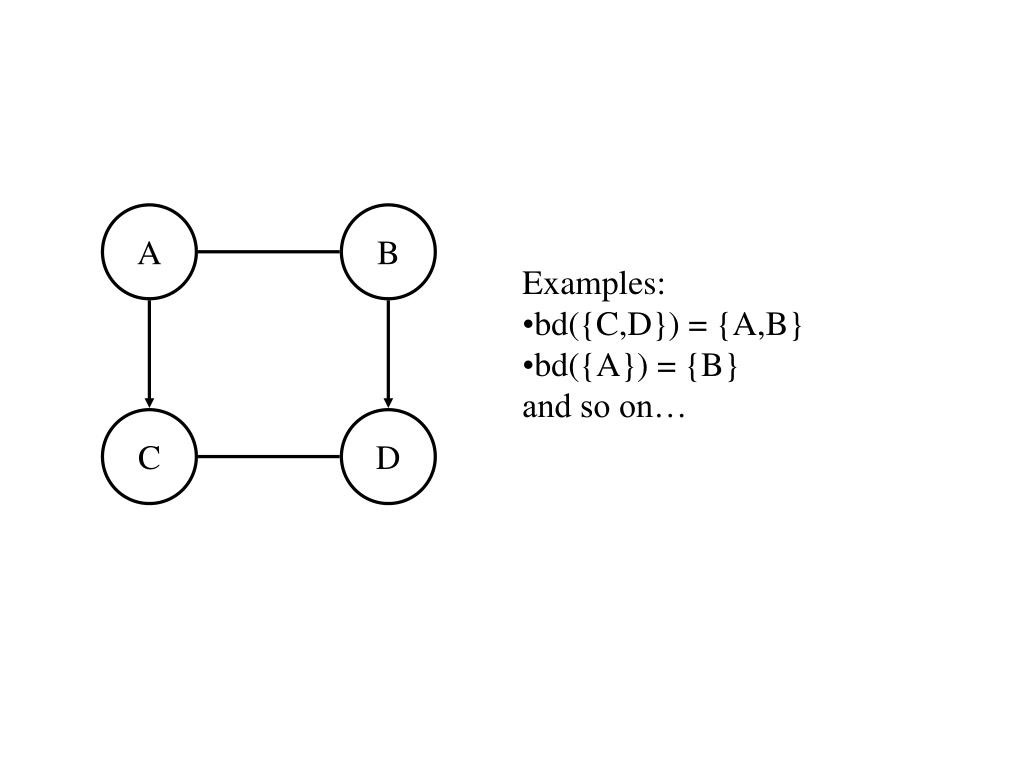

  2. A B • Examples: • bd({C,D}) = {A,B} • bd({A}) = {B} • and so on… C D

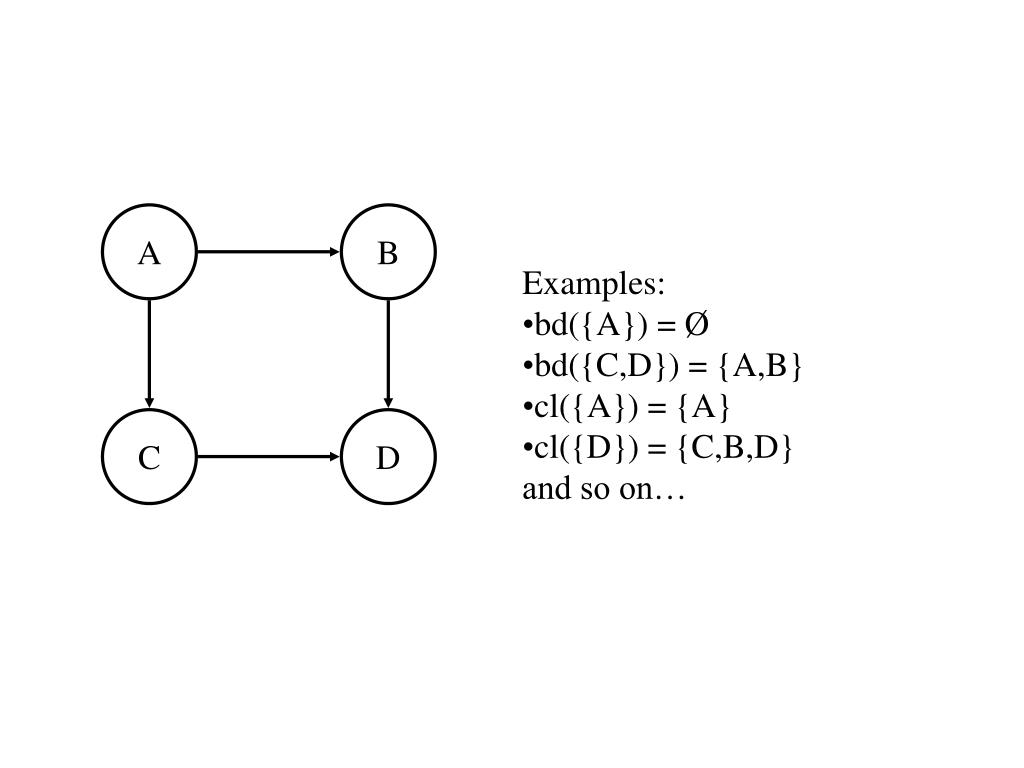

  3. A B • Examples: • bd({A}) = Ø • bd({C,D}) = {A,B} • cl({A}) = {A} • cl({D}) = {C,B,D} • and so on… C D

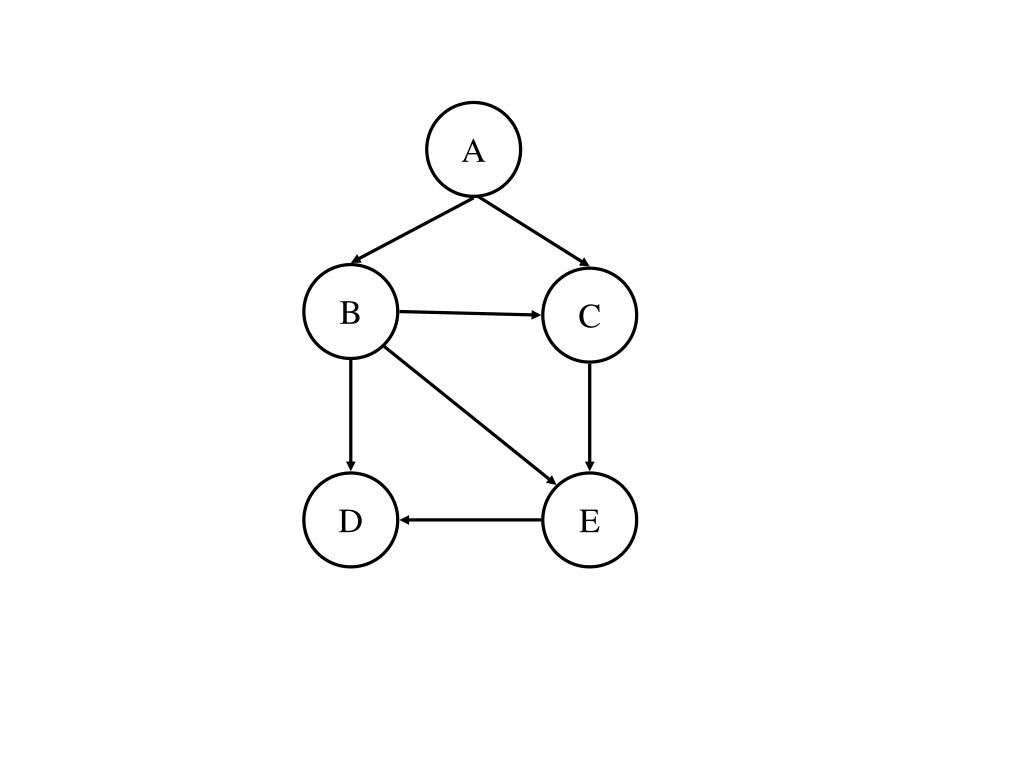

  4. A B C D E

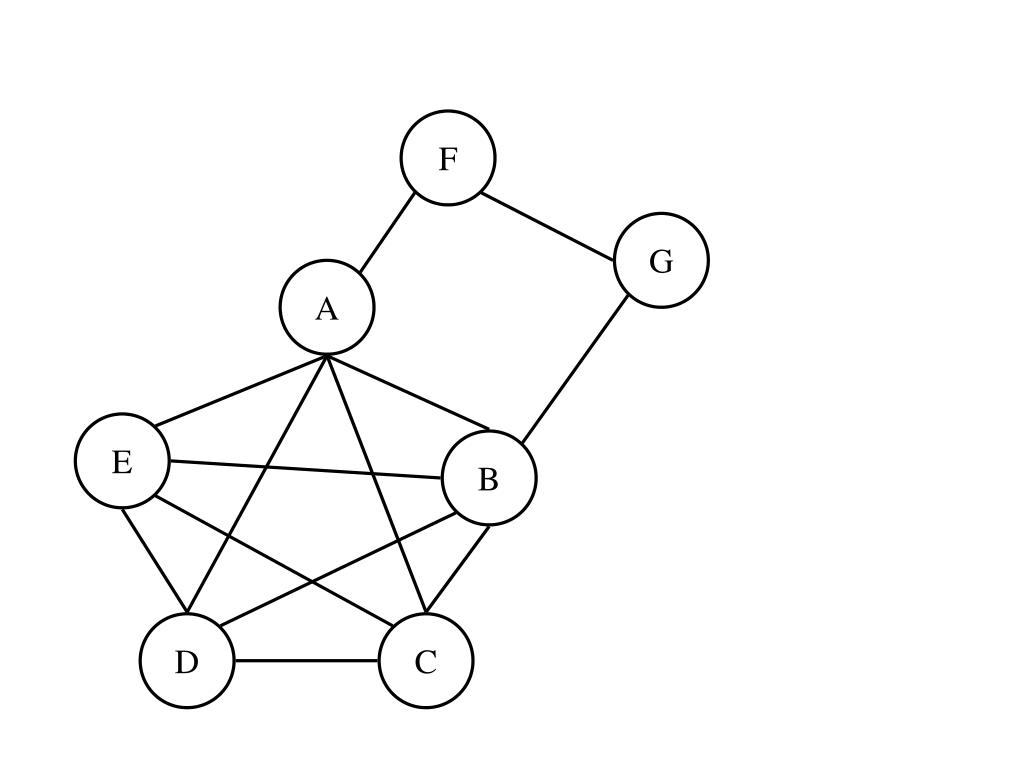

  5. F G A E B D C

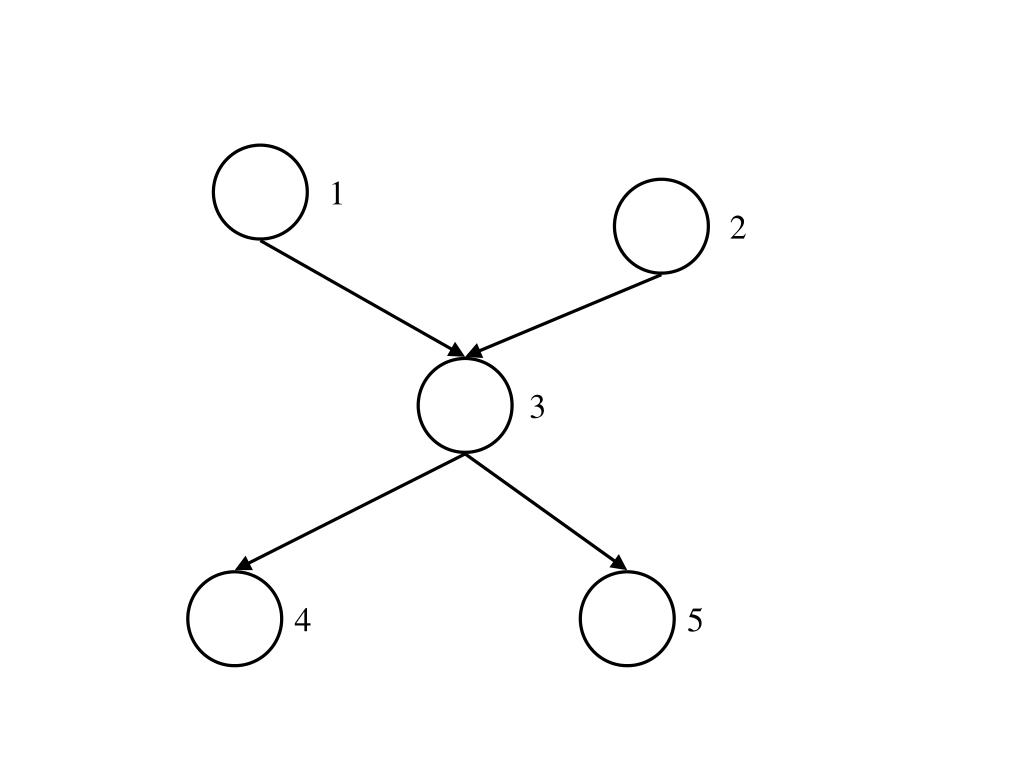

  6. 1 2 3 4 5

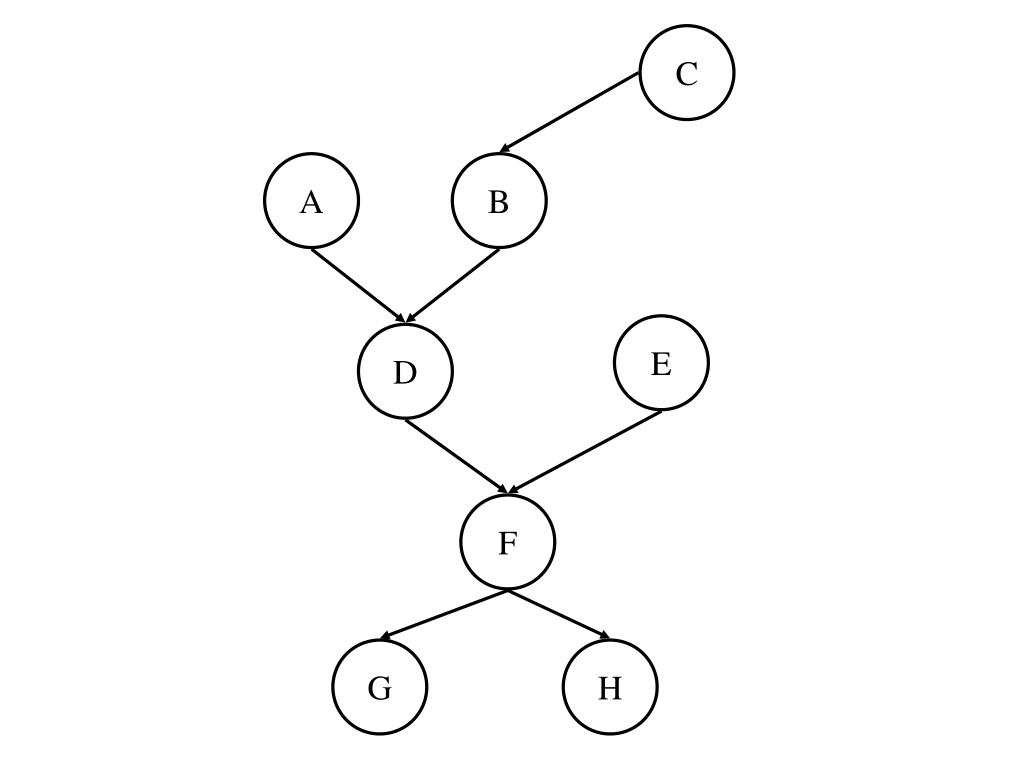

  7. C A B E D F G H

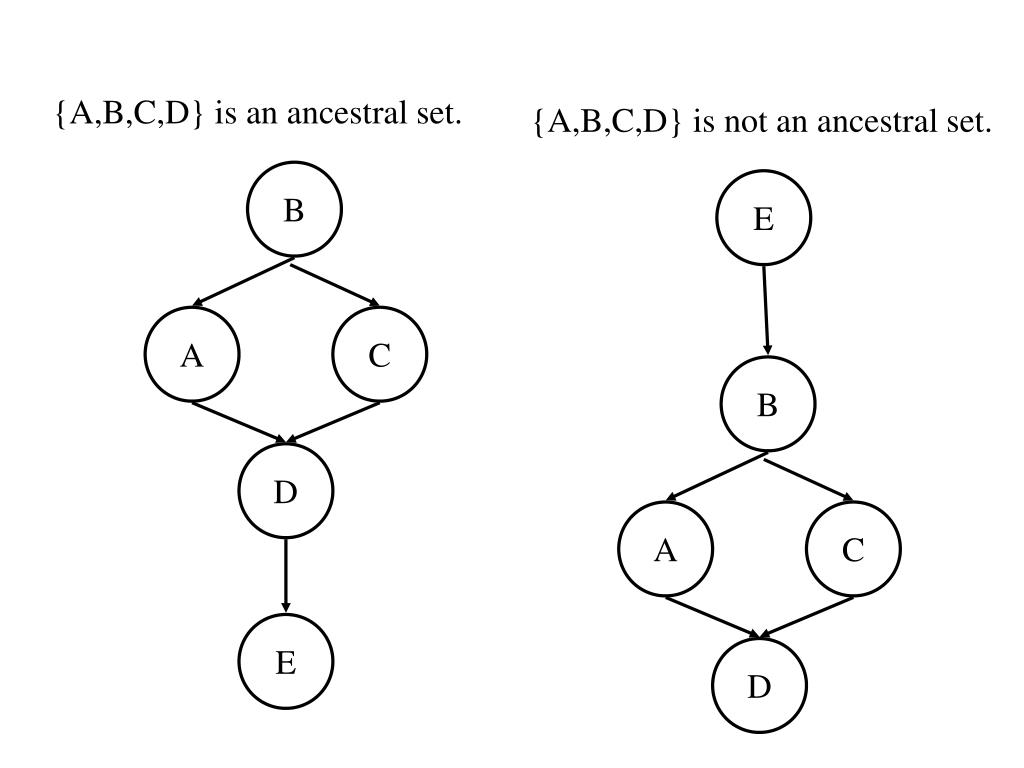

  8. {A,B,C,D} is an ancestral set. {A,B,C,D} is not an ancestral set. B E A C B D A C E D

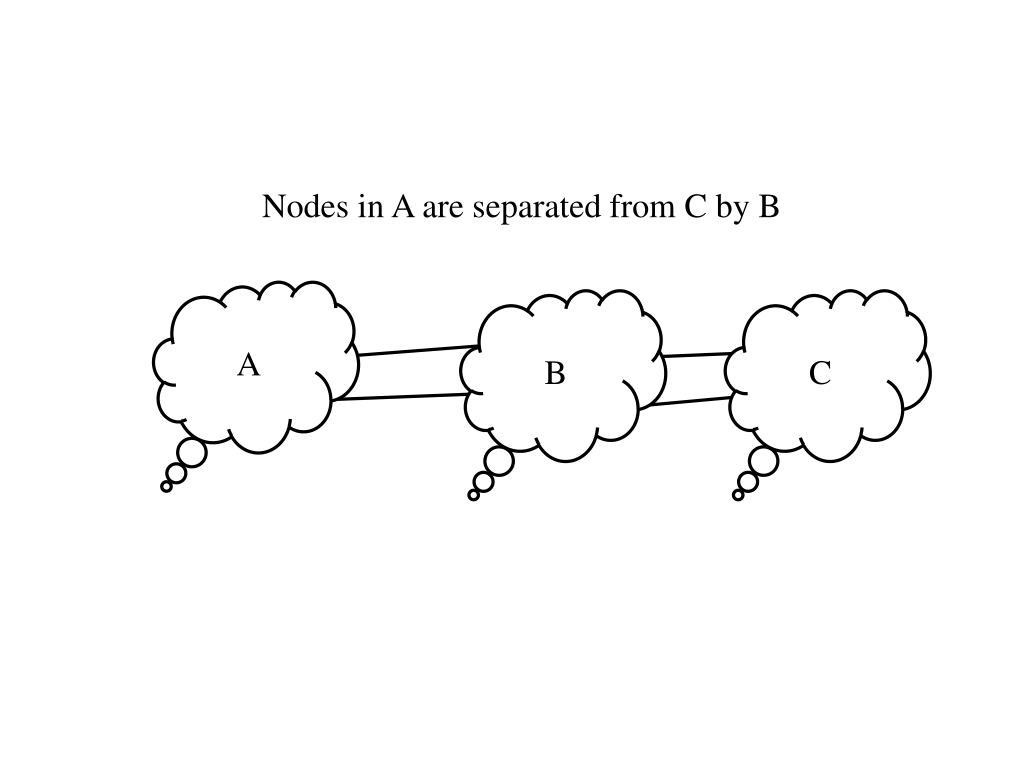

  9. Nodes in A are separated from C by B A B C

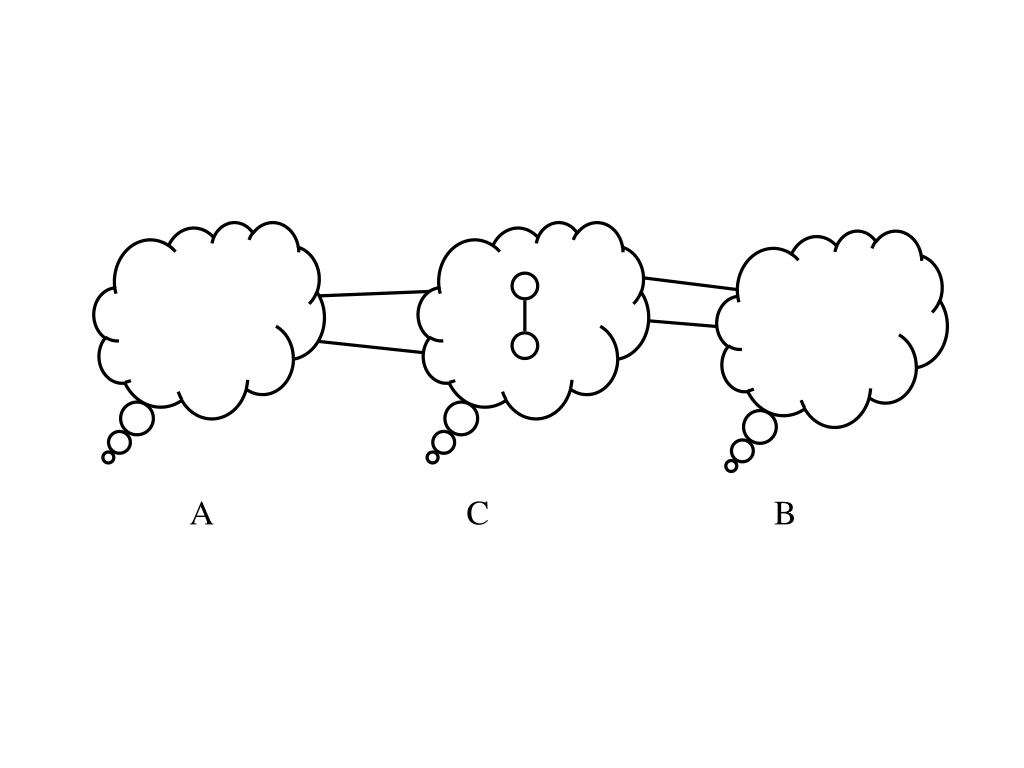

  10. A B C

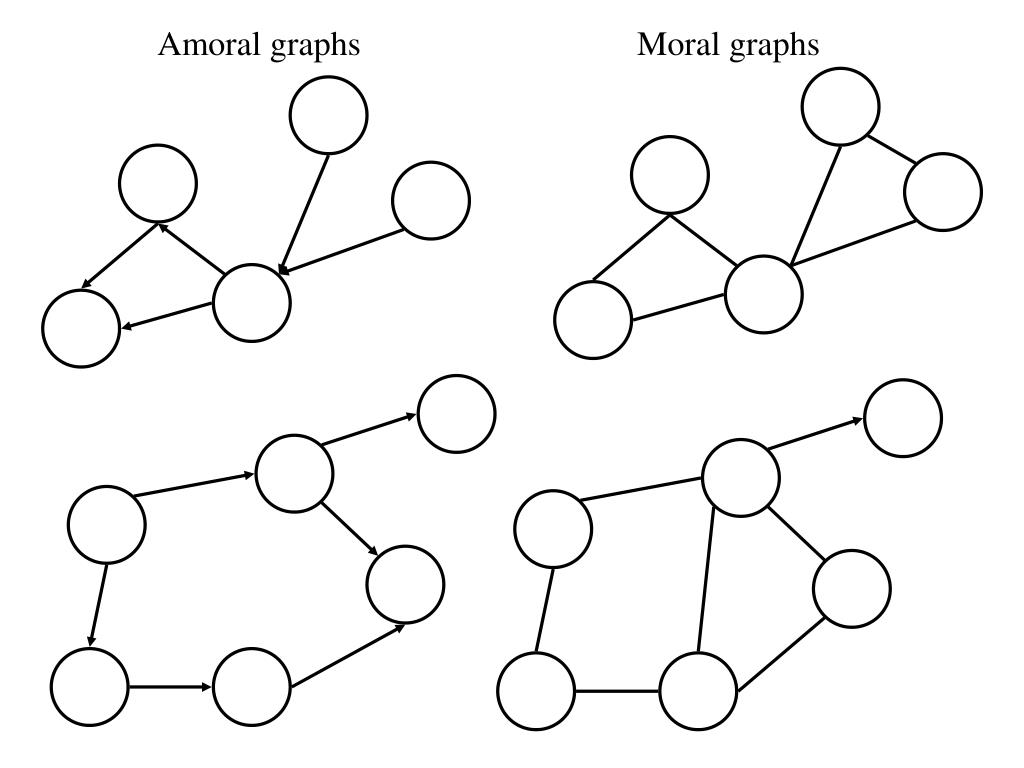

  11. Amoral graphs Moral graphs

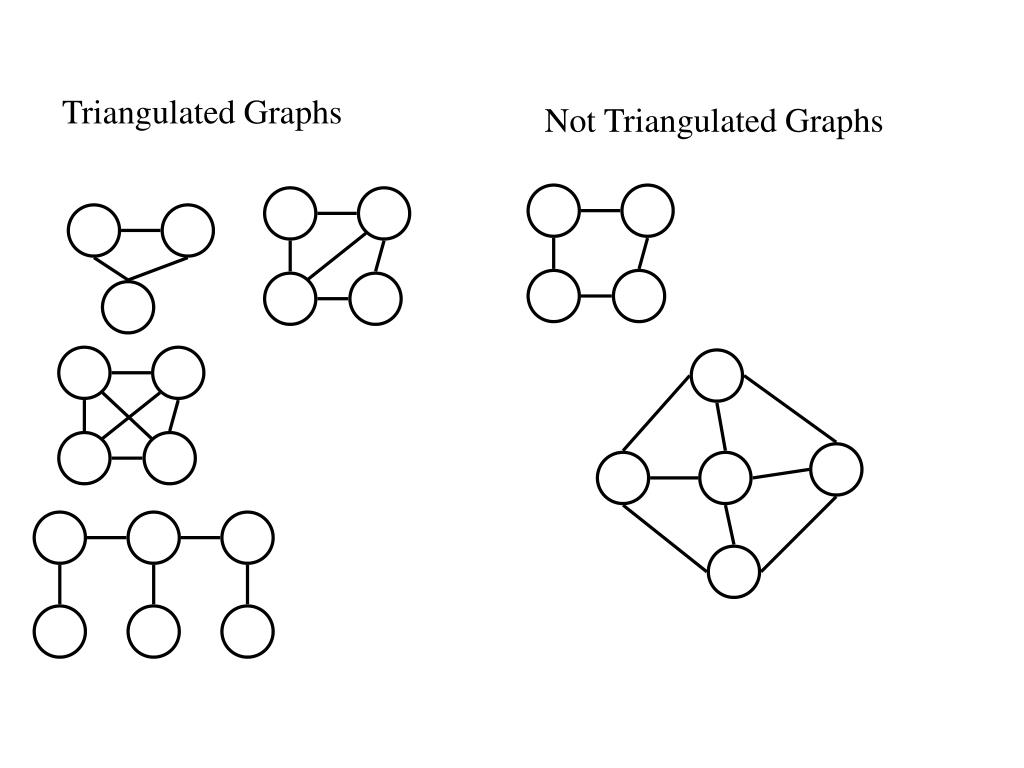

  12. Triangulated Graphs Not Triangulated Graphs

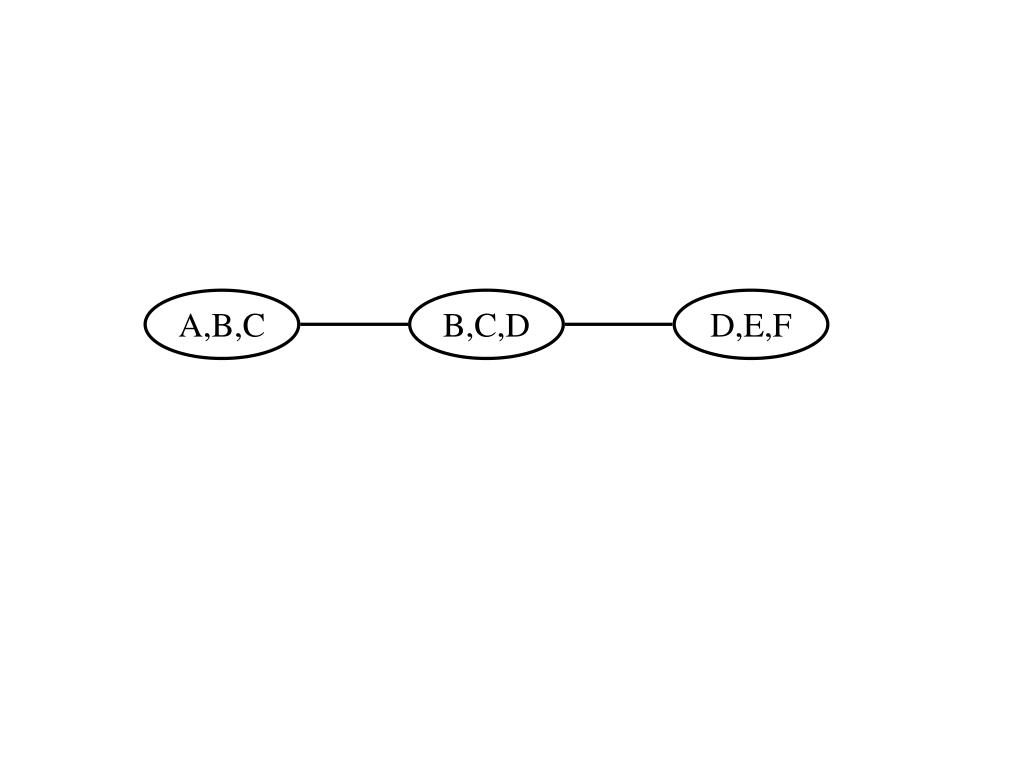

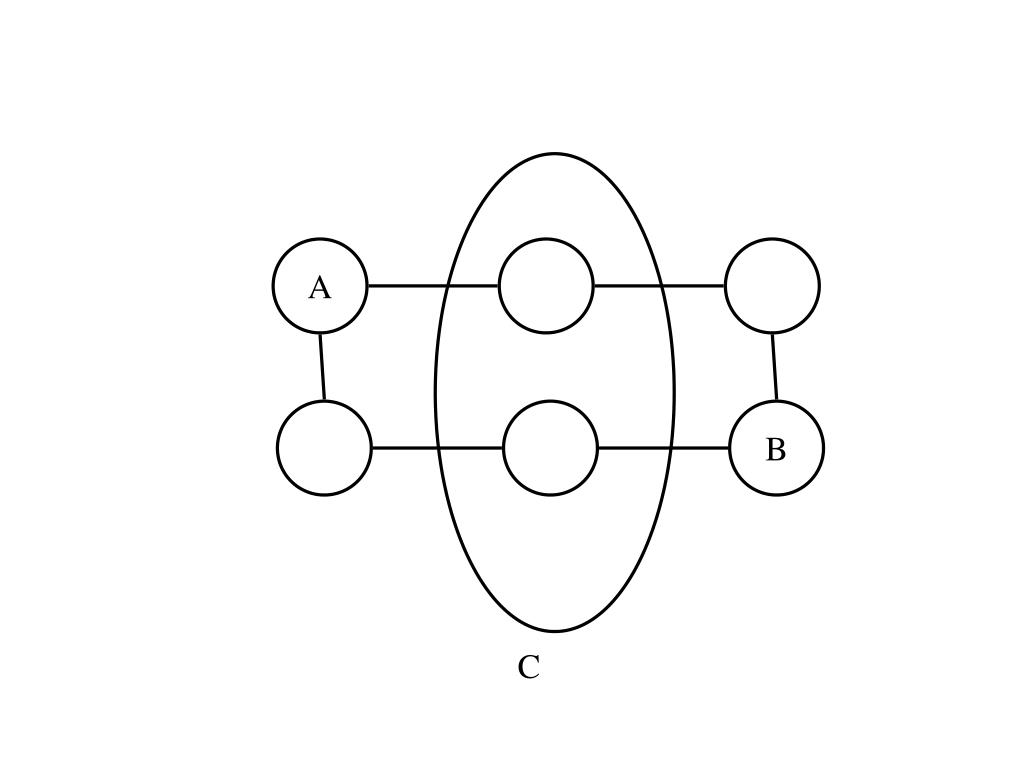

  13. A,B,C B,C,D D,E,F

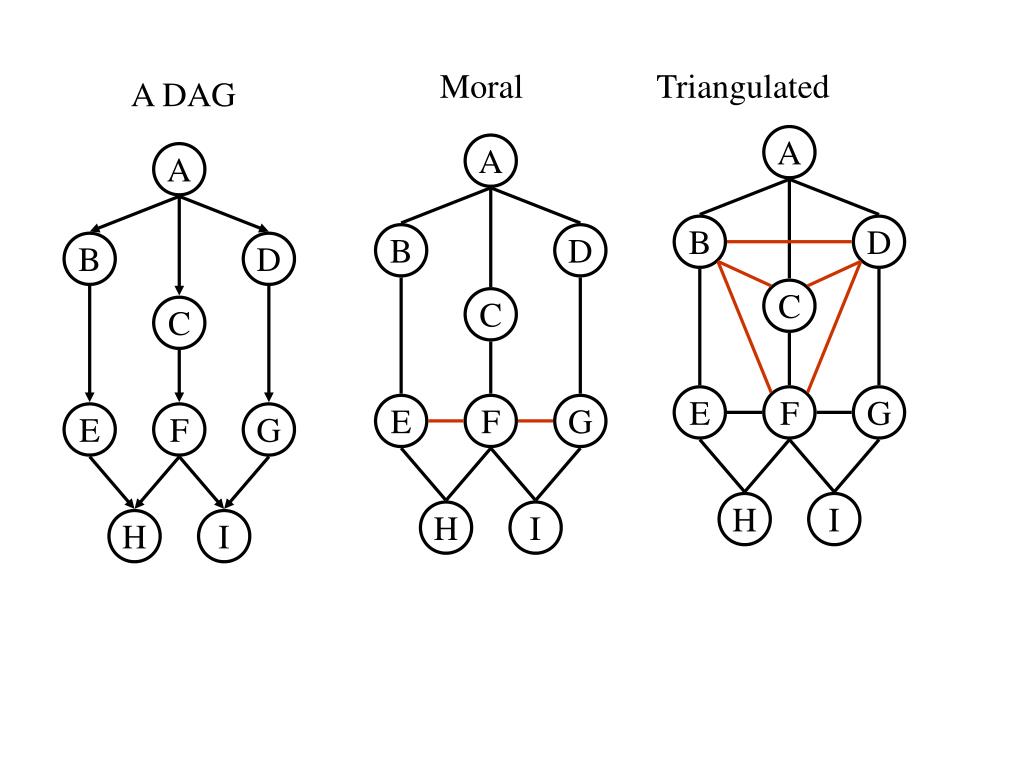

  14. Moral Triangulated A DAG A A A B D B D B D C C C E F G E F G E F G H I H I H I

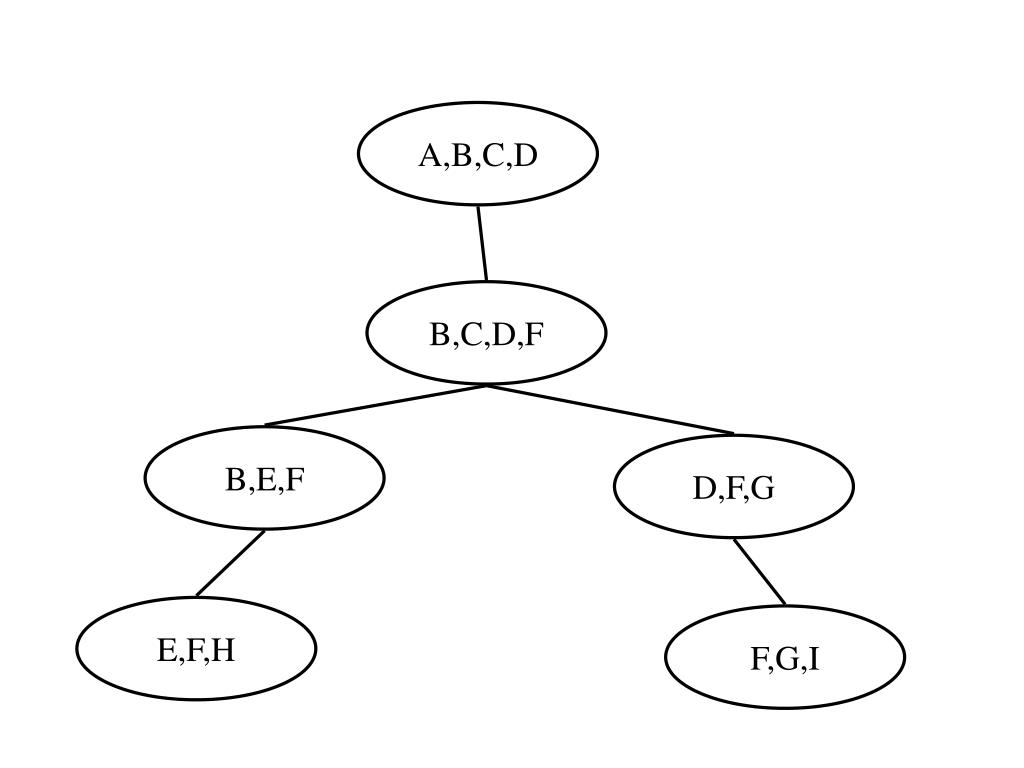

  15. A,B,C,D B,C,D,F B,E,F D,F,G E,F,H F,G,I

  16. A C B
