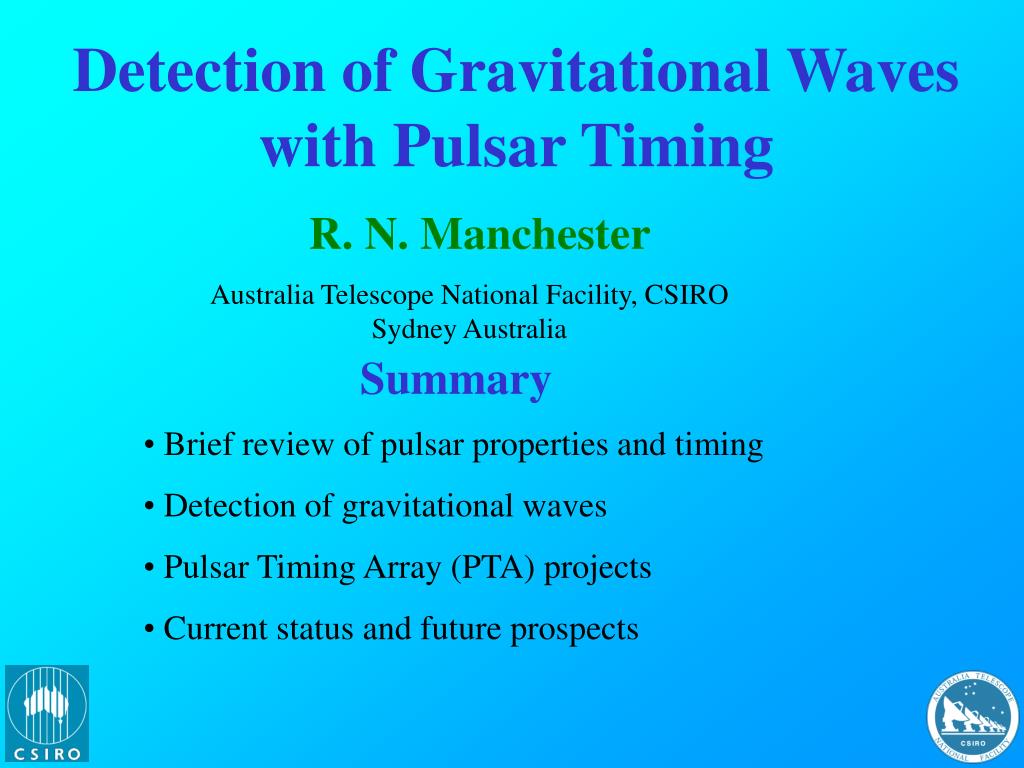

  1. Detection of Gravitational Waves with Pulsar Timing R. N. Manchester Australia Telescope National Facility, CSIRO Sydney Australia Summary • Brief review of pulsar properties and timing • Detection of gravitational waves • Pulsar Timing Array (PTA) projects • Current status and future prospects

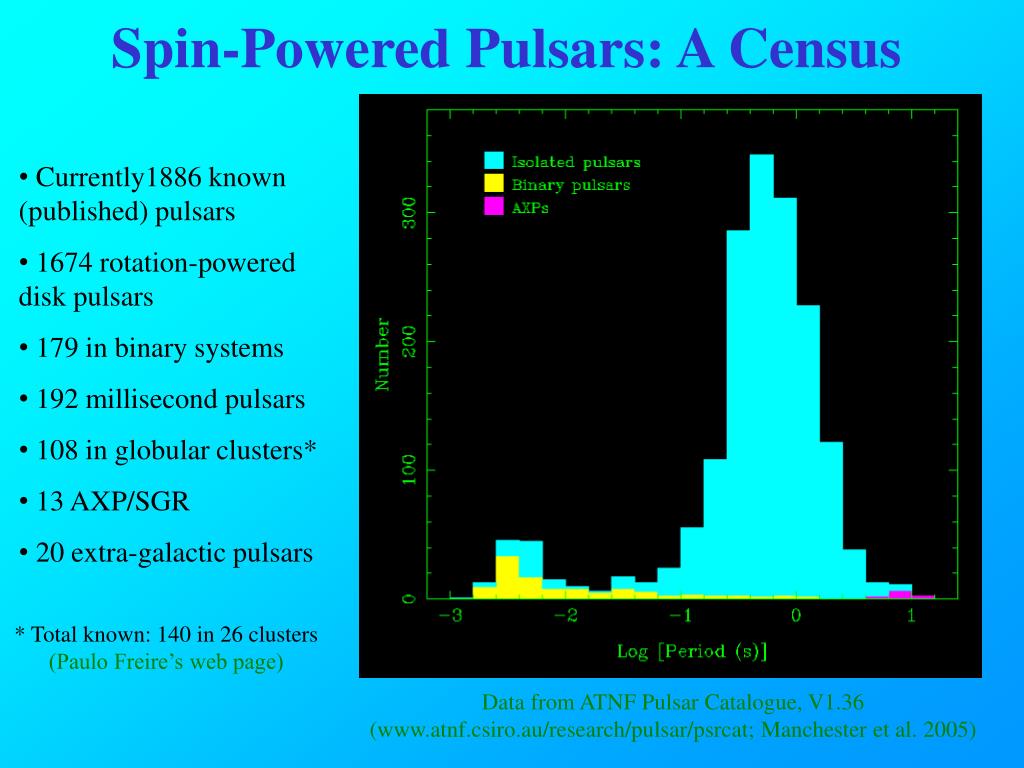

  2. Spin-Powered Pulsars: A Census • Currently1886 known (published) pulsars • 1674 rotation-powered disk pulsars • 179 in binary systems • 192 millisecond pulsars • 108 in globular clusters* • 13 AXP/SGR • 20 extra-galactic pulsars * Total known: 140 in 26 clusters (Paulo Freire’s web page) Data from ATNF Pulsar Catalogue, V1.36 (www.atnf.csiro.au/research/pulsar/psrcat; Manchester et al. 2005)

  3. Pulsar Origins Pulsars are believed to be rotating neutron stars – two main classes: Normal Pulsars: • Formed in supernova • Periods between 0.03 and 10 s • Relatively young (< 107 years) • Mostly single (non-binary) (ESO – VLT) Millisecond Pulsars (MSPs): • MSPs are very old (~109 years). • Mostly binary • They have been ‘recycled’ by accretion from an evolving binary companion. • This accretion spins up the neutron star to millisecond periods. • During the accretion phase the system may be detectable as an X-ray binary system.

  4. Pulsars as Clocks • Neutron stars are tiny (about 25 km across) but have a mass of about 1.4 times that of the Sun • They are incredibly dense and have gravity 1012 times as strong as that of the Earth • Because of this large mass and small radius, their spin rates - and hence pulsar periods - are incredibly stable e.g., PSR J0437-4715 had a period of : 5.757451831072007  0.000000000000008 ms • Although pulsar periods are very stable, they are not constant. Pulsars lose energy and slow down • Typical slowdown rates are less than a microsecond per year

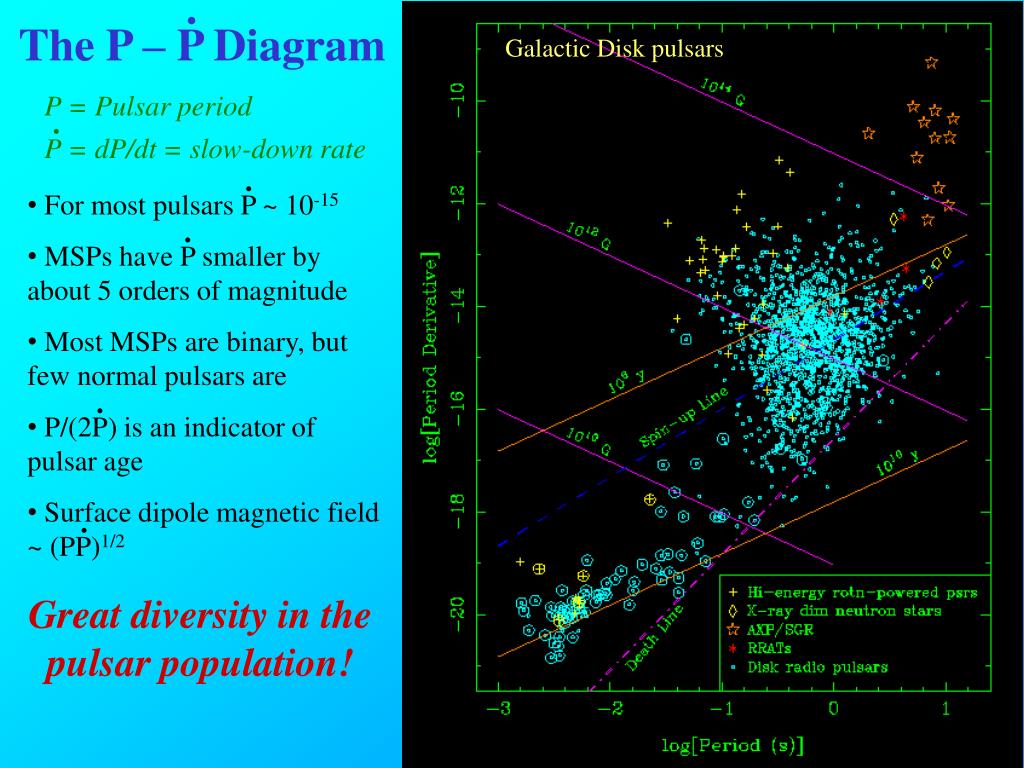

  5. . The P – P Diagram Galactic Disk pulsars P = Pulsar period P = dP/dt = slow-down rate . . • For most pulsars P ~ 10-15 • MSPs haveP smaller by about 5 orders of magnitude • Most MSPs are binary, but few normal pulsars are • P/(2P) is an indicator of pulsar age • Surface dipole magnetic field ~ (PP)1/2 . . . Great diversity in the pulsar population!

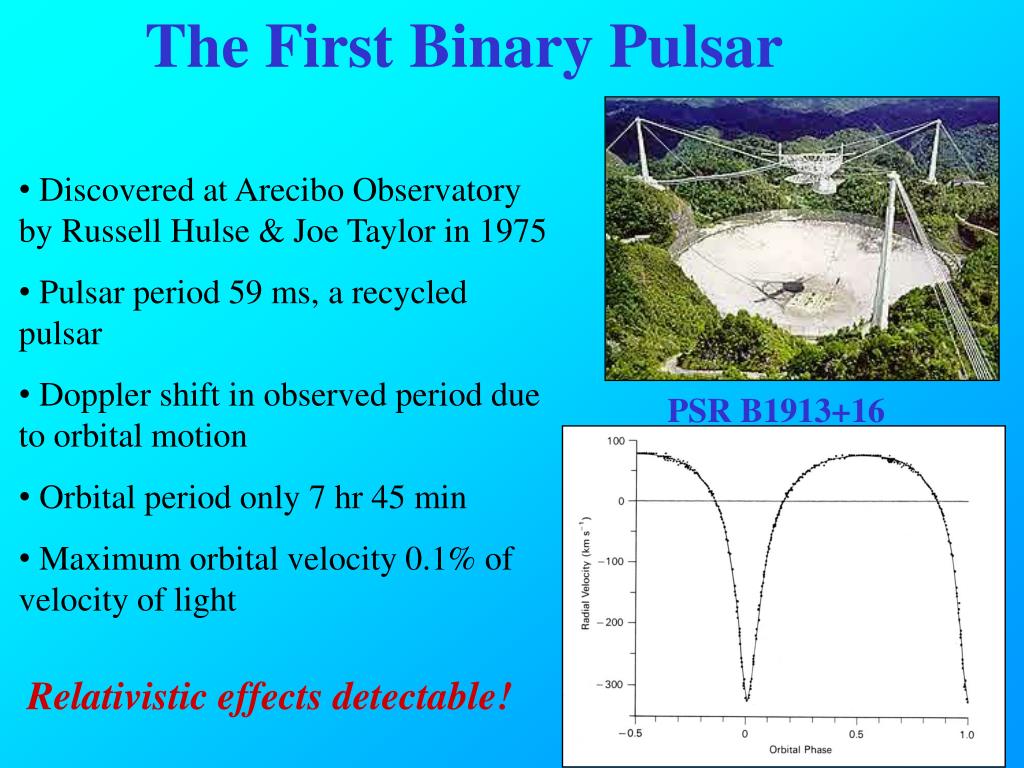

  6. The First Binary Pulsar • Discovered at Arecibo Observatory by Russell Hulse & Joe Taylor in 1975 • Pulsar period 59 ms, a recycled pulsar • Doppler shift in observed period due to orbital motion • Orbital period only 7 hr 45 min • Maximum orbital velocity 0.1% of velocity of light PSR B1913+16 Relativistic effects detectable!

  7. Orbital Decay in PSR B1913+16 • Rapid orbital motion of two stars in PSR B1913+16 generates gravitational waves • Energy loss causes slow decrease of orbital period • Can predict rate of orbit decay from known orbital parameters and masses of the two stars using general relativity • Ratio of measured value to predicted value = 1.0013  0.0021 PSR B1913+16 Orbit Decay • Confirmation of general relativity! • First observational evidence for gravitational waves! (Weisberg & Taylor 2005)

  8. Detection of Gravitational Waves • Prediction of general relativity and other theories of gravity • Generated by acceleration of massive object(s) • Astrophysical sources: • Inflation era fluctuations • Cosmic strings • BH formation in early Universe • Binary black holes in galaxies • Coalescing neutron-star binaries • Compact X-ray binaries (K. Thorne, T. Carnahan, LISA Gallery)

  9. Detection of Gravitational Waves • Generated by acceleration of massive objects in Universe, e.g. binary black holes • Huge efforts over more than four decades to detect gravitational waves • Initial efforts used bar detectors pioneered by Weber • More recent efforts use laser interferometer systems, e.g., LIGO, VIRGO, LISA LIGO LISA • Two sites in USA • Perpendicular 4-km arms • Spectral range 10 – 500 Hz • Initial phase now operating • Advanced LIGO ~ 2014 • Orbits Sun, 20o behind the Earth • Three spacecraft in triangle • Arm length 5 million km • Spectral range 10-4 – 10-1 Hz • Planned launch ~2020

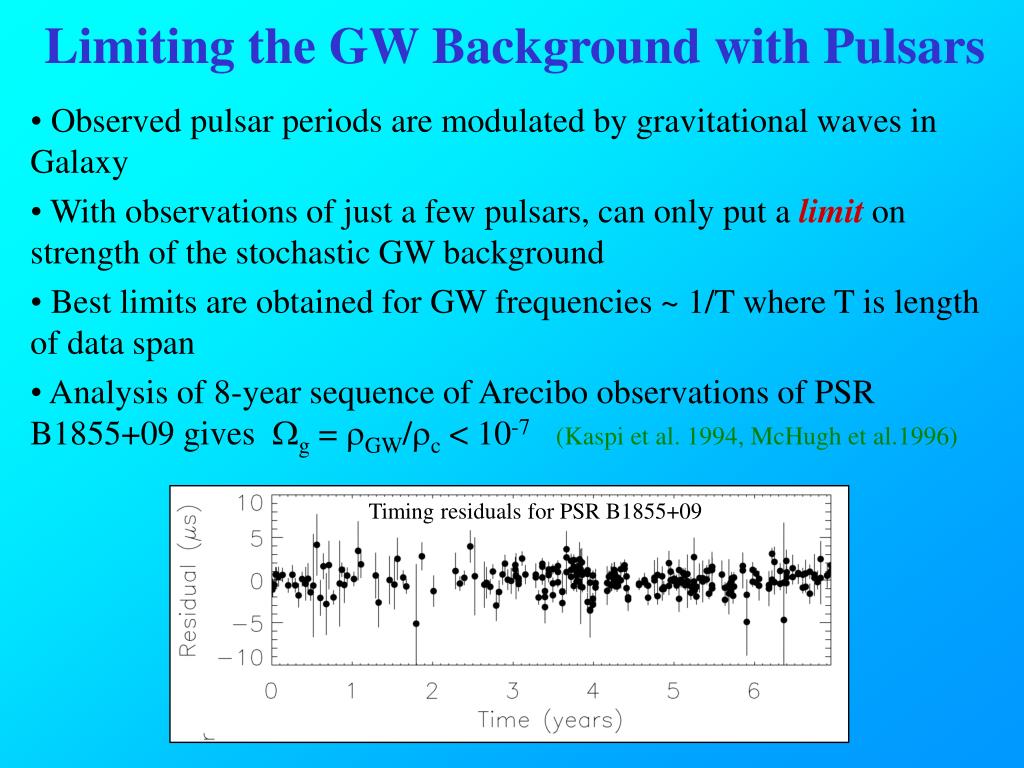

  10. Limiting the GW Background with Pulsars • Observed pulsar periods are modulated by gravitational waves in Galaxy • With observations of just a few pulsars, can only put a limit on strength of the stochastic GW background • Best limits are obtained for GW frequencies ~ 1/T where T is length of data span • Analysis of 8-year sequence of Arecibo observations of PSR B1855+09 gives Wg = rGW/rc < 10-7(Kaspi et al. 1994, McHugh et al.1996) Timing residuals for PSR B1855+09

  11. A Pulsar Timing Array (PTA) • With observations of many pulsars widely distributed on the sky can in principle detect a stochastic gravitational wave background • Gravitational waves passing over the pulsars are uncorrelated • Gravitational waves passing over Earth produce a correlated signal in the TOA residuals for all pulsars • Requires observations of ~20 MSPs over 5 – 10 years; could give the first direct detection of gravitational waves! • A timing array can detect instabilities in terrestrial time standards – establish a pulsar timescale • Can improve knowledge of Solar system properties, e.g. masses and orbits of outer planets and asteroids Idea first discussed by Hellings & Downs (1983), Romani (1989) and Foster & Backer (1990)

  12. Clock errors All pulsars have the same TOA variations: monopole signature • Solar-System ephemeris errors Dipole signature • Gravitational waves Quadrupolesignature Can separate these effects provided there is a sufficient number of widely distributed pulsars

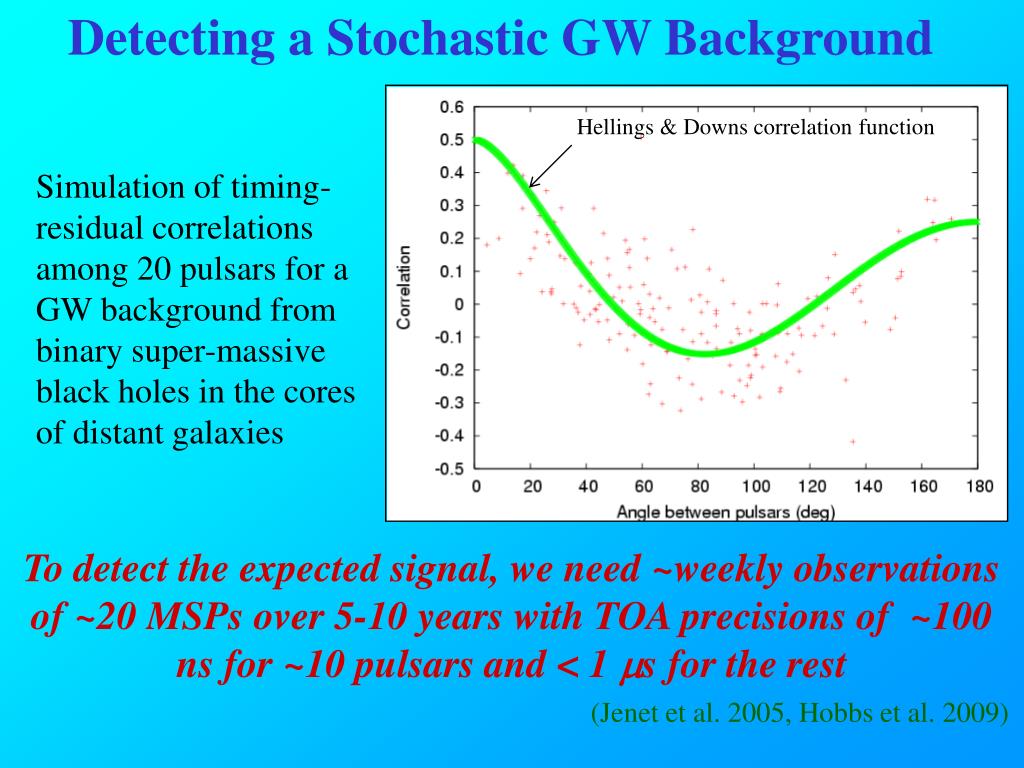

  13. Detecting a Stochastic GW Background Hellings & Downs correlation function Simulation of timing-residual correlations among 20 pulsars for a GW background from binary super-massive black holes in the cores of distant galaxies To detect the expected signal, we need ~weekly observations of ~20 MSPs over 5-10 years with TOA precisions of ~100 ns for ~10 pulsars and < 1 s for the rest (Jenet et al. 2005, Hobbs et al. 2009)

  14. Sky positions of all known MSPs suitable for PTA studies • In the Galactic disk (i.e. not in globular clusters) • Short period and relatively strong – circle radius ~ S1400/P • ~60 MSPs meet criteria, but only ~30 “good” candidates

  15. Major Pulsar Timing Array Projects • European Pulsar Timing Array (EPTA) • Radio telescopes at Westerbork, Effelsberg, Nancay, Jodrell Bank, (Cagliari) • Normally used separately, but can be combined for more sensitivity • High-quality data (rms residual < 2.5 ms) for 9 millisecond pulsars • North American pulsar timing array (NANOGrav) • Data from Arecibo and Green Bank Telescope • High-quality data for 17 millisecond pulsars • Parkes Pulsar Timing Array (PPTA) • Data from Parkes 64m radio telescope in Australia • High-quality data for 20 millisecond pulsars Observations at two or three frequencies required to remove the effects of interstellar dispersion

  16. The Parkes Pulsar Timing Array Project • Using the Parkes 64-m radio telescope to observe 20 MSPs • ~25 team members – principal groups: Swinburne University (Melbourne; Matthew Bailes), University of Texas (Brownsville; Rick Jenet), University of California (San Diego; Bill Coles), ATNF (Sydney; RNM) • Observations at 2 – 3 week intervals at three frequencies: 685 MHz, 1400 MHz and 3100 MHz • New digital filterbank systems and baseband recorder system • Regular observations commenced in mid-2004 • Timing analysis – PSRCHIVE and TEMPO2 • GW simulations, detection algorithms and implications, galaxy evolution studies

  17. The PPTA Pulsars

  18. Best result so far – PSR J0437-4715 at 10cm • Observations of PSR J0437-4715 at 3100 MHz • 1 GHz bandwidth with digital filterbank system • 1.2 years data span • 211 TOAs, each 64 min observation time • Weighted fit for nine parameters using TEMPO2 • No dispersion correction • Reduced 2 = 2.87 Rms timing residual 56 ns!!

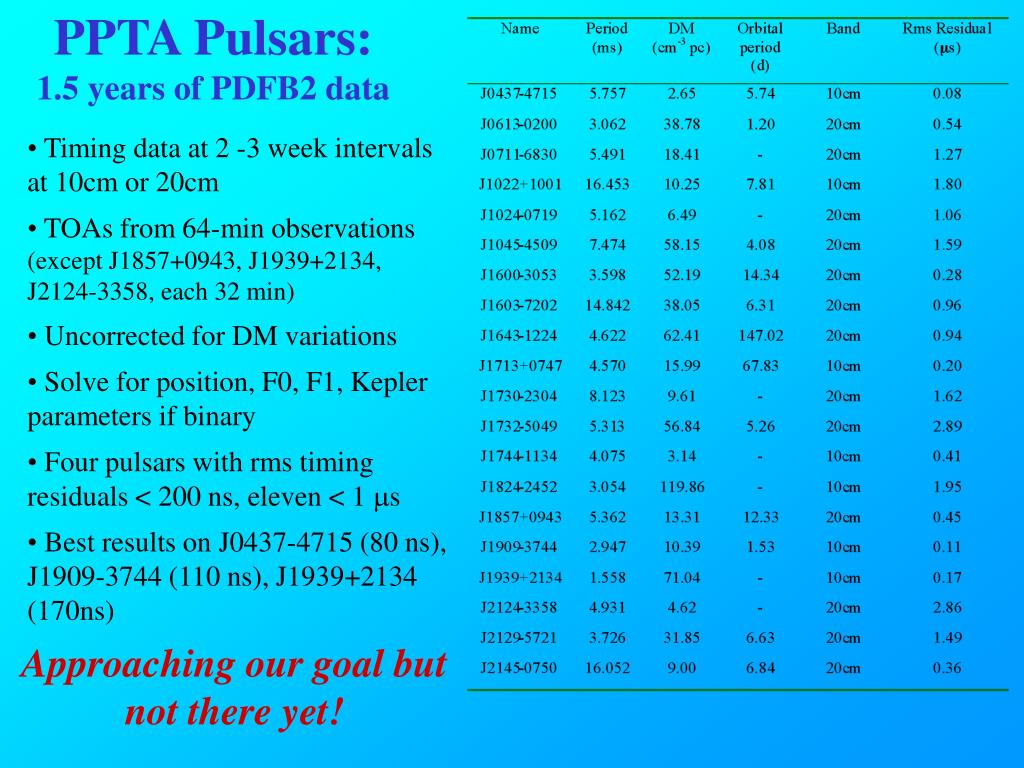

  19. PPTA Pulsars: 1.5 years of PDFB2 data • Timing data at 2 -3 week intervals at 10cm or 20cm • TOAs from 64-min observations (except J1857+0943, J1939+2134, J2124-3358, each 32 min) • Uncorrected for DM variations • Solve for position, F0, F1, Kepler parameters if binary • Four pulsars with rms timing residuals < 200 ns, eleven < 1 s • Best results on J0437-4715 (80 ns), J1909-3744 (110 ns), J1939+2134 (170ns) Approaching our goal but not there yet!

  20. Timing Stability of MSPs • 10-year data span for 20 PPTA MSPs • Includes 1-bit f/b, Caltech FPTM and CPSR2 data • sz: frequency stability at different timescales t • For “white” timing residuals, expect sz ~ t-3/2 • Most pulsars roughly consistent with this out to 10 years • Good news for PTA projects! 10 ms 100 ns (Verbiest et al. 2009)

  21. The Stochastic GW Background • Super-massive binary black holes in the cores of galaxies – formed by galaxy mergers • GW in PTA range when orbital period ~10 years 8 nHz 100 nHz Expect detectable signal with current PTAs! • Strongest signal from galaxies with z ~ 1 • BH masses ~ 109 – 1010 M • Range of predictions depending on assumptions about BH mass function etc (Sesana, Vecchio & Colacino 2008)

  22. Current and Future Limits on the Stochastic GW Background • Arecibo data for PSR B1855+09 (Kaspi et al. 1994)and recent PPTA data • Monte Carlo methods used to determine detection limit for stochastic background described by hc = A(f/1yr) (where  = -2/3 for SMBH, ~ -1 for relic radiation, ~ -7/6 for cosmic strings) (Jenet et al. 2006) • Current limit: gw(1/8 yr) ~ 2  10-8 • For full PPTA (100ns, 5 yr): ~ 10-10 • Currently consistent with all SMBH evolutionary models (Jaffe & Backer 2003; Wyithe & Loeb 2003, Enoki et al. 2004, Sesana et al. 2008) • If no detection with full PPTA, all current models ruled out • Already limiting EOS of matter in epoch of inflation (w = p/ > -1.3)and tension in cosmic strings (Grishchuk 2005; Damour & Vilenkin 2005) Timing Residuals 10 s

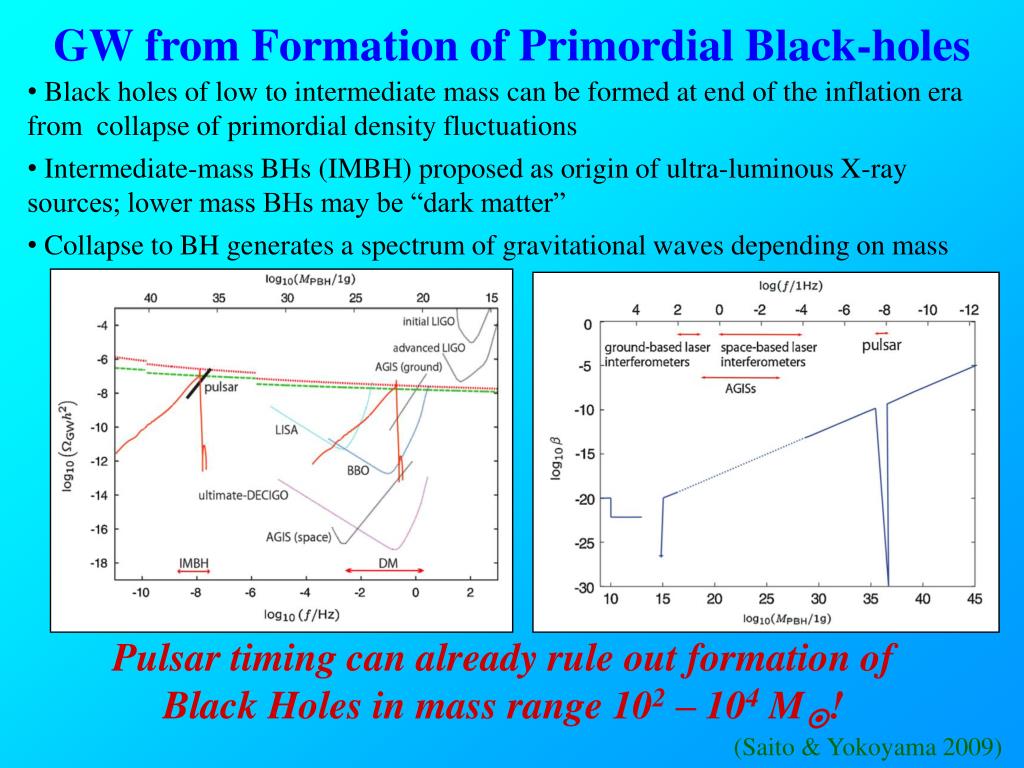

  23. GW from Formation of Primordial Black-holes • Black holes of low to intermediate mass can be formed at end of the inflation era from collapse of primordial density fluctuations • Intermediate-mass BHs (IMBH) proposed as origin of ultra-luminous X-ray sources; lower mass BHs may be “dark matter” • Collapse to BH generates a spectrum of gravitational waves depending on mass Pulsar timing can already rule out formation of Black Holes in mass range 102 – 104 M! (Saito & Yokoyama 2009)

  24. Single-source Detection Localisation with PPTA Sensitivity PPTA SKA Predicted merger rates for 5 x 108 M binaries (Wen et al. 2009, Sesana et al. 2009) (Anholm et al. 2008) Need better sky distribution of pulsars - international PTA collaborations are important! PPTA can’t detect individual binary systems - but SKA will!

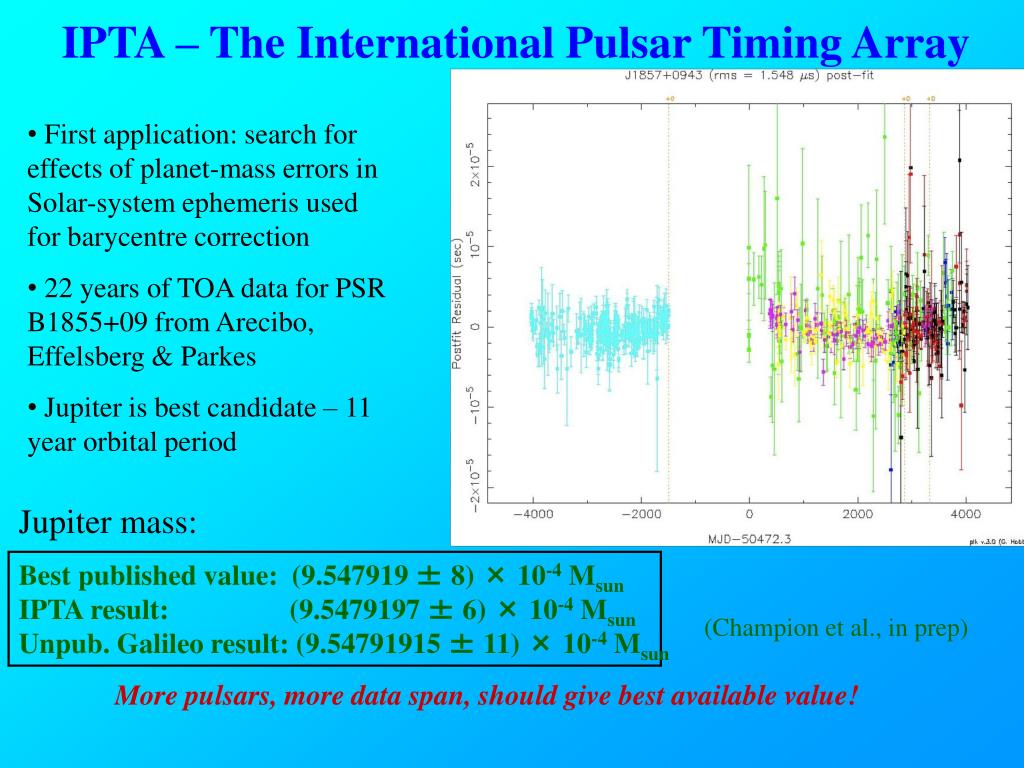

  25. IPTA – The International Pulsar Timing Array • First application: search for effects of planet-mass errors in Solar-system ephemeris used for barycentre correction • 22 years of TOA data for PSR B1855+09 from Arecibo, Effelsberg & Parkes • Jupiter is best candidate – 11 year orbital period Jupiter mass: Best published value: (9.547919 ± 8) × 10-4 Msun IPTA result: (9.5479197 ± 6) × 10-4 Msun Unpub. Galileo result: (9.54791915 ± 11) × 10-4 Msun (Champion et al., in prep) More pulsars, more data span, should give best available value!

  26. A Pulsar Timescale • Terrestrial time defined by a weighted average of caesium clocks at time centres around the world • Comparison of TAI with TT(BIPM03) shows variations of amplitude ~1 s even after trend removed • Revisions of TT(BIPM) show variations of ~50 ns • Pulsar timescale is not absolute, but can reveal irregularities in TAI and other terrestrial timescales • Current best pulsars give a 10-year stability (z) comparable to TT(NIST) - TT(PTB) • Full PPTA will define a pulsar timescale with precision of ~50 ns or better at 2-weekly intervals and model long-term trends to 5 ns or better (Petit 2004)

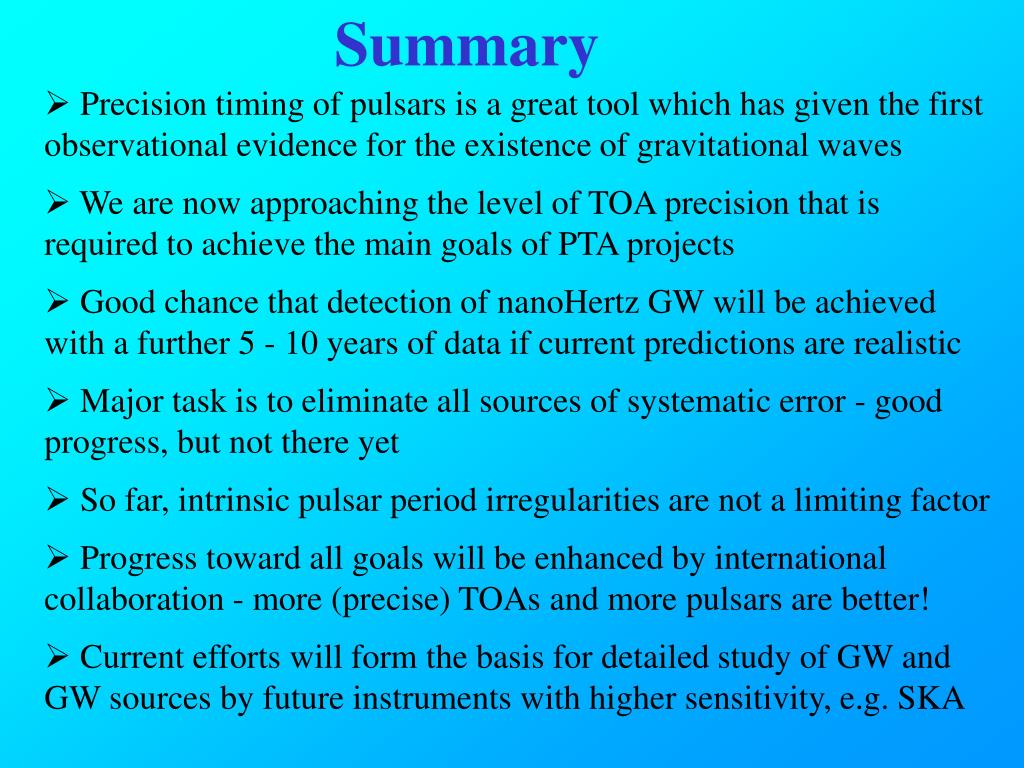

  27. Summary • Precision timing of pulsars is a great tool which has given the first observational evidence for the existence of gravitational waves • We are now approaching the level of TOA precision that is required to achieve the main goals of PTA projects • Good chance that detection of nanoHertz GW will be achieved with a further 5 - 10 years of data if current predictions are realistic • Major task is to eliminate all sources of systematic error - good progress, but not there yet • So far, intrinsic pulsar period irregularities are not a limiting factor • Progress toward all goals will be enhanced by international collaboration - more (precise) TOAs and more pulsars are better! • Current efforts will form the basis for detailed study of GW and GW sources by future instruments with higher sensitivity, e.g. SKA

  28. The Gravitational Wave Spectrum

  29. Dispersion Corrections • DFB for 10cm/20cm • CPSR2 for 50cm • About 6 yr data span At 20cm, DM of 10-4 cm-3 pc corresponds to t = 210 ns • Will be applied to pipeline processing Algorithm development by Xiaopeng You, George Hobbs and Stefan Oslowski

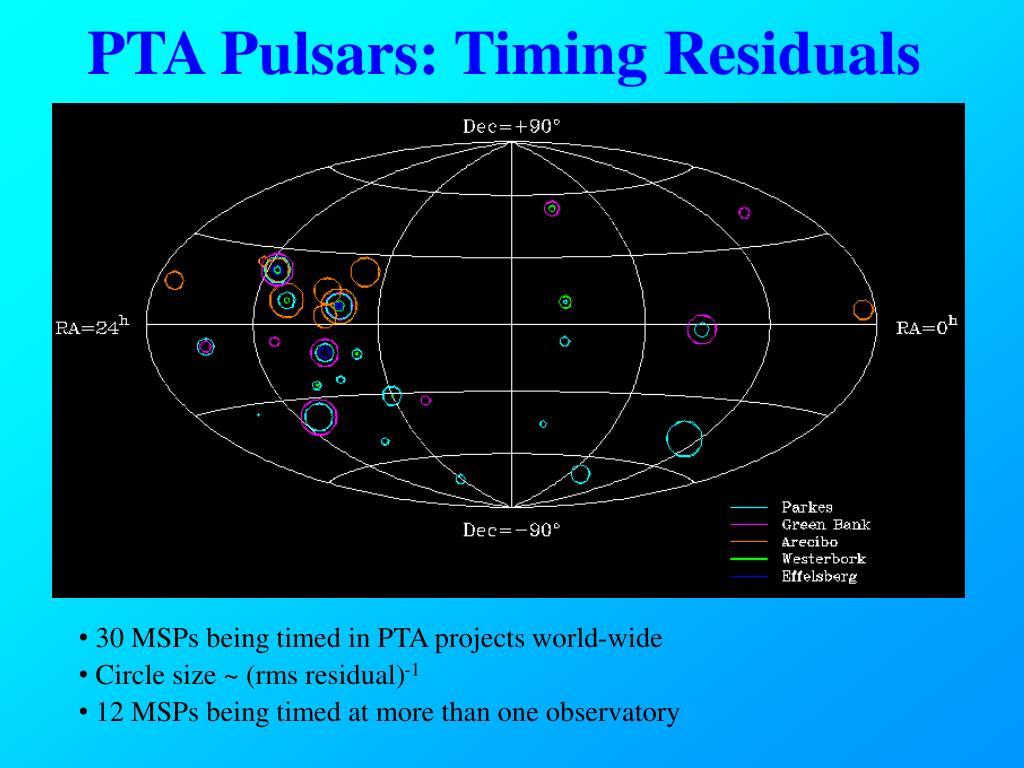

  30. PTA Pulsars: Timing Residuals • 30 MSPs being timed in PTA projects world-wide • Circle size ~ (rms residual)-1 • 12 MSPs being timed at more than one observatory
