  1. Department of Computer and Information Science,School of Science, IUPUI Mergesort Dale Roberts, Lecturer Computer Science, IUPUI E-mail: droberts@cs.iupui.edu

  2. Why Does It Matter? Run time(nanoseconds) 1.3 N3 10 N2 47 N log2N 48 N Time tosolve aproblemof size 1000 1.3 seconds 10 msec 0.4 msec 0.048 msec 10,000 22 minutes 1 second 6 msec 0.48 msec 100,000 15 days 1.7 minutes 78 msec 4.8 msec million 41 years 2.8 hours 0.94 seconds 48 msec 10 million 41 millennia 1.7 weeks 11 seconds 0.48 seconds Max sizeproblemsolvedin one second 920 10,000 1 million 21 million minute 3,600 77,000 49 million 1.3 billion hour 14,000 600,000 2.4 trillion 76 trillion day 41,000 2.9 million 50 trillion 1,800 trillion N multiplied by 10,time multiplied by 1,000 100 10+ 10

  3. Orders of Magnitude Seconds Equivalent Meters PerSecond ImperialUnits Example 1 1 second 10-10 1.2 in / decade Continental drift 10 10 seconds 10-8 1 ft / year Hair growing 102 1.7 minutes 10-6 3.4 in / day Glacier 103 17 minutes 10-4 1.2 ft / hour Gastro-intestinal tract 104 2.8 hours 10-2 2 ft / minute Ant 105 1.1 days 1 2.2 mi / hour Human walk 106 1.6 weeks 102 220 mi / hour Propeller airplane 107 3.8 months 104 370 mi / min Space shuttle 108 3.1 years 106 620 mi / sec Earth in galactic orbit 109 3.1 decades 108 62,000 mi / sec 1/3 speed of light 1010 3.1 centuries . . . forever Powersof 2 210 thousand 1021 age ofuniverse 220 million 230 billion

  4. Impact of Better Algorithms • Example 1: N-body-simulation. • Simulate gravitational interactions among N bodies. • physicists want N = # atoms in universe • Brute force method: N2 steps. • Appel (1981). N log N steps, enables new research. • Example 2: Discrete Fourier Transform (DFT). • Breaks down waveforms (sound) into periodic components. • foundation of signal processing • CD players, JPEG, analyzing astronomical data, etc. • Grade school method: N2 steps. • Runge-König (1924), Cooley-Tukey (1965).FFT algorithm: N log N steps, enables new technology.

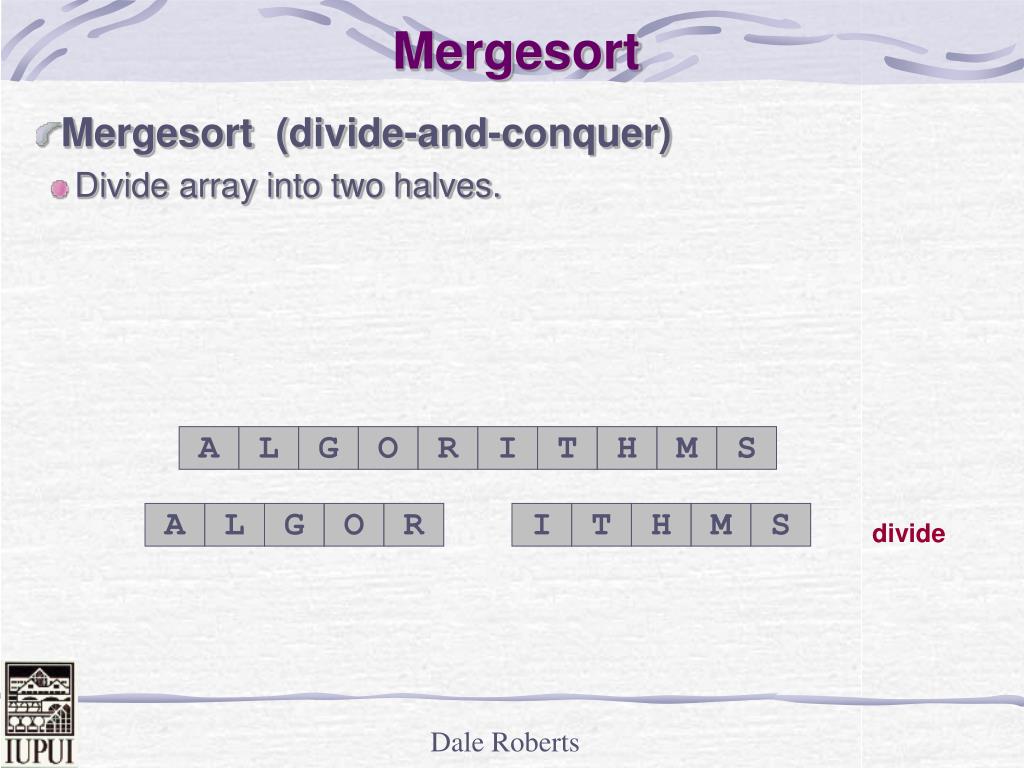

  5. A L G O R I T H M S divide Mergesort • Mergesort (divide-and-conquer) • Divide array into two halves. A L G O R I T H M S

  6. Mergesort • Mergesort (divide-and-conquer) • Divide array into two halves. • Recursively sort each half. A L G O R I T H M S A L G O R I T H M S divide A G L O R H I M S T sort

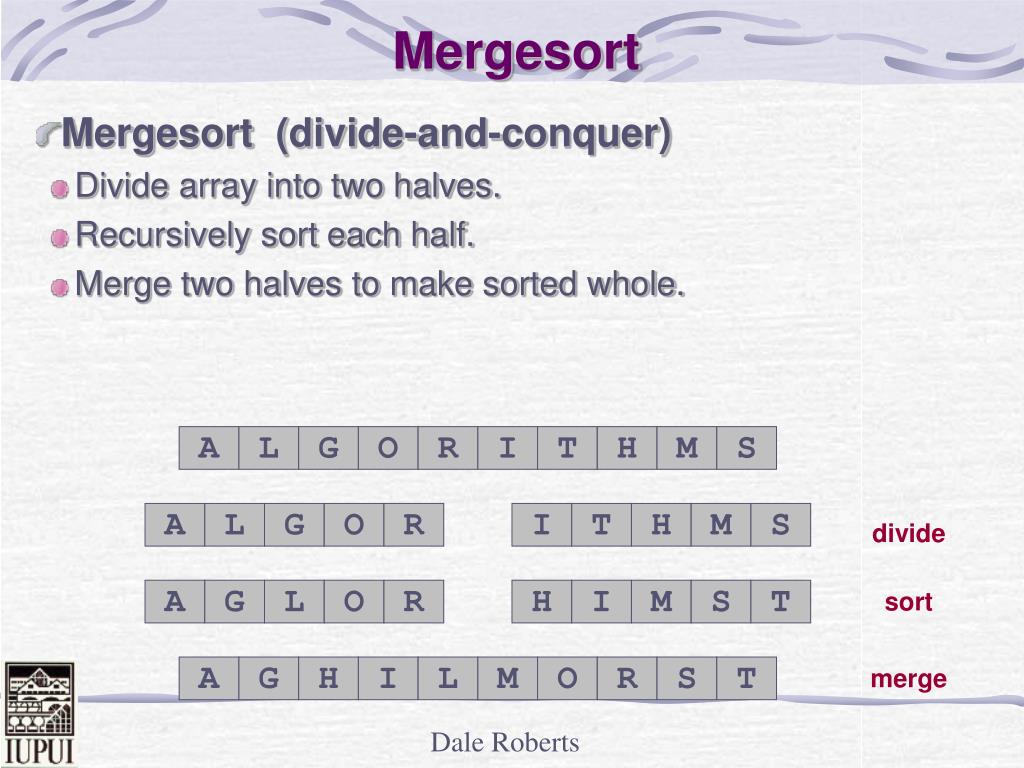

  7. Mergesort • Mergesort (divide-and-conquer) • Divide array into two halves. • Recursively sort each half. • Merge two halves to make sorted whole. A L G O R I T H M S A L G O R I T H M S divide A G L O R H I M S T sort A G H I L M O R S T merge

  8. A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. smallest smallest A auxiliary array

  9. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G auxiliary array

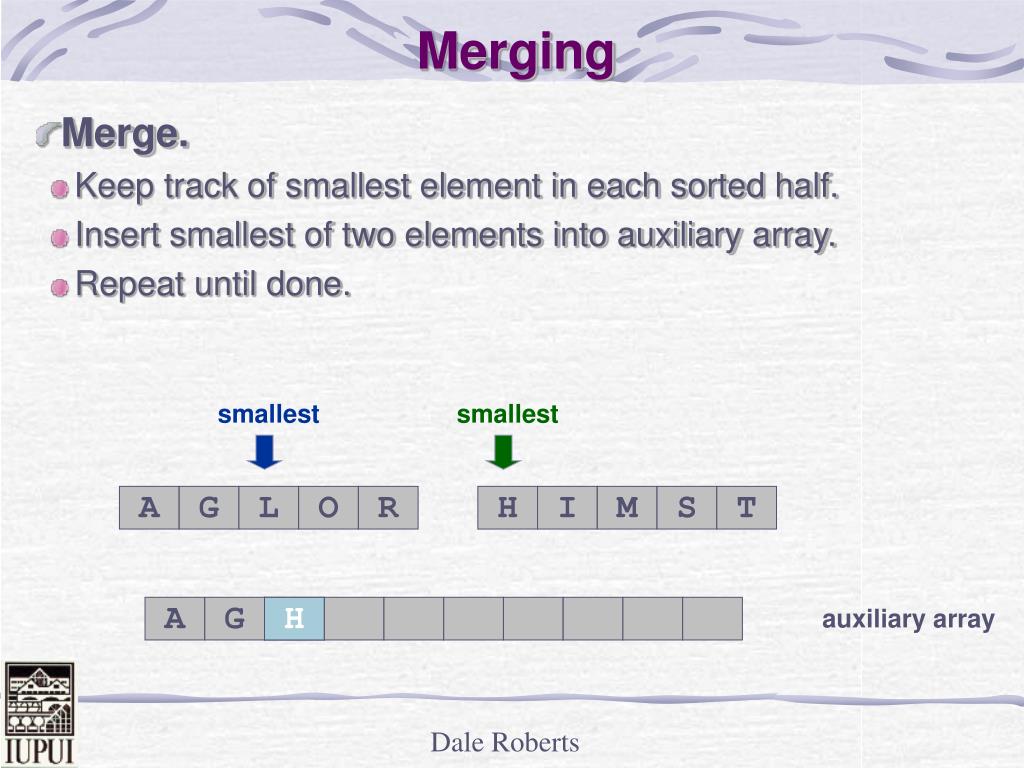

  10. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G H auxiliary array

  11. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G H I auxiliary array

  12. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G H I L auxiliary array

  13. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G H I L M auxiliary array

  14. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G H I L M O auxiliary array

  15. smallest smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. A G H I L M O R auxiliary array

  16. smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. first halfexhausted A G H I L M O R S auxiliary array

  17. smallest A G L O R H I M S T Merging • Merge. • Keep track of smallest element in each sorted half. • Insert smallest of two elements into auxiliary array. • Repeat until done. first halfexhausted A G H I L M O R S T auxiliary array

  18. Item aux[MAXN]; void mergesort(Item a[], int left, int right) { int mid = (right + left) / 2; if (right <= left) return; mergesort(a, left, mid); mergesort(a, mid + 1, right); merge(a, left, mid, right); } mergesort (see Sedgewick Program 8.3) Implementing Mergesort uses scratch array

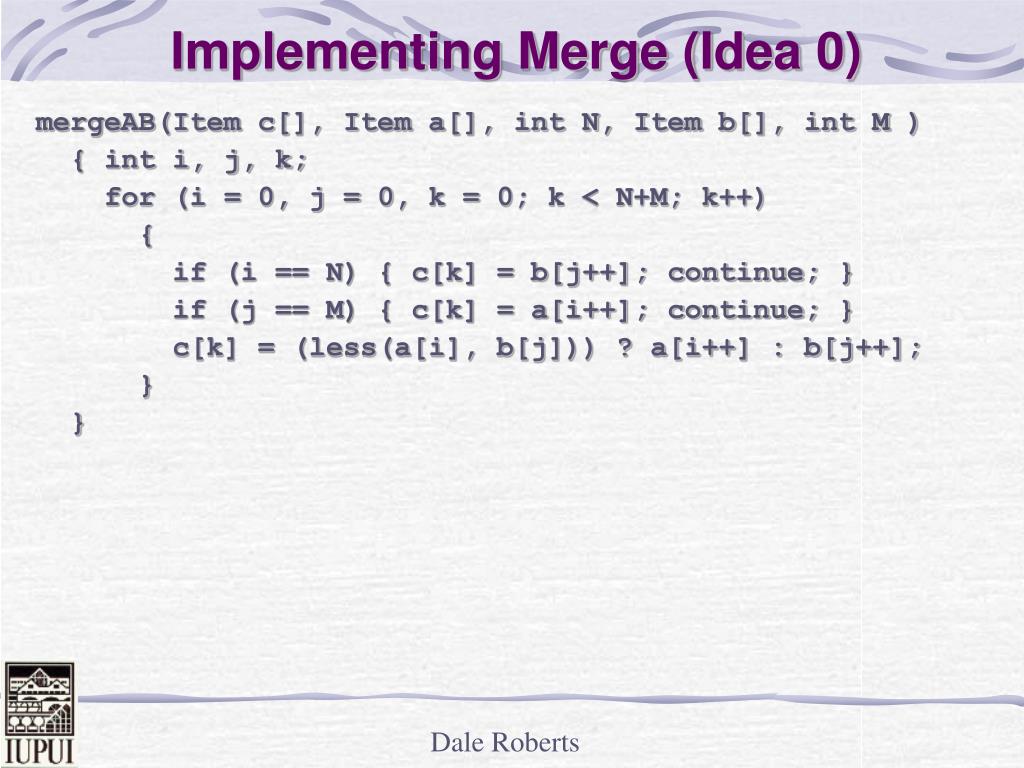

  19. Implementing Merge (Idea 0) mergeAB(Item c[], Item a[], int N, Item b[], int M ) { int i, j, k; for (i = 0, j = 0, k = 0; k < N+M; k++) { if (i == N) { c[k] = b[j++]; continue; } if (j == M) { c[k] = a[i++]; continue; } c[k] = (less(a[i], b[j])) ? a[i++] : b[j++]; } }

  20. void merge(Item a[], int left, int mid, int right) { int i, j, k; for (i = mid+1; i > left; i--) aux[i-1] = a[i-1]; for (j = mid; j < right; j++) aux[right+mid-j] = a[j+1]; for (k = left; k <= right; k++) if (ITEMless(aux[i], aux[j])) a[k] = aux[i++]; else a[k] = aux[j--]; } merge (see Sedgewick Program 8.2) Implementing Mergesort copy to temporary array merge two sorted sequences

  21. Mergesort Demo • Mergesort The auxilliary array used in the merging operation is shown to the right of the array a[], going from (N+1, 1) to (2N, 2N). • The demo is a dynamic representation of the algorithm in action, sorting an array a containing a permutation of the integers 1 through N. For each i, the array element a[i] is depicted as a black dot plotted at position (i, a[i]). Thus, the end result of each sort is a diagonal of black dots going from (1, 1) at the bottom left to (N, N) at the top right. Each time an element is moved, a green dot is left at its old position. Thus the moving black dots give a dynamic representation of the progress of the sort and the green dots give a history of the data-movement cost.
