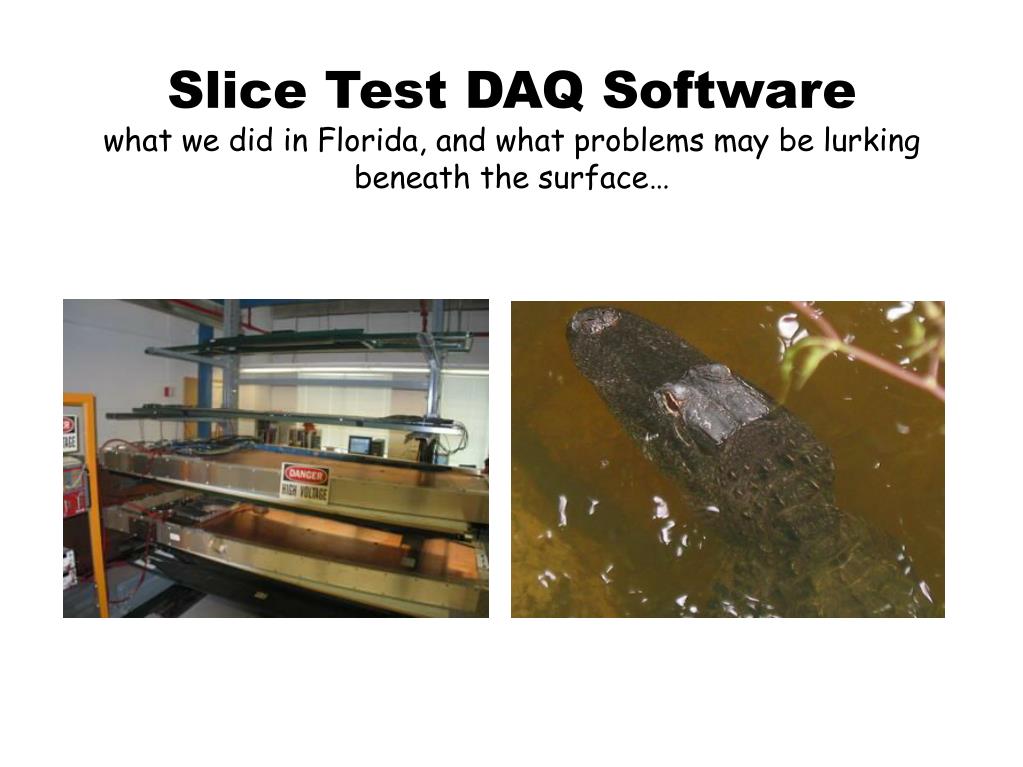

  1. Slice Test DAQ Softwarewhat we did in Florida, and what problems may be lurking beneath the surface…

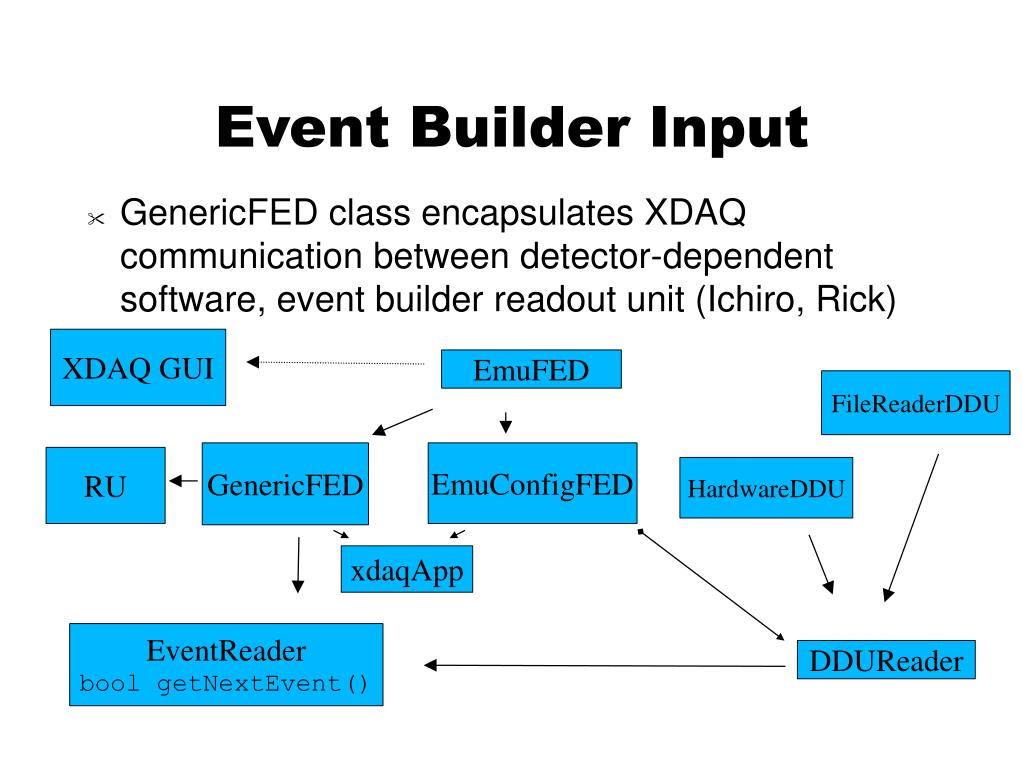

  2. Event Builder Input • GenericFED class encapsulates XDAQ communication between detector-dependent software, event builder readout unit (Ichiro, Rick) XDAQ GUI EmuFED FileReaderDDU GenericFED EmuConfigFED RU HardwareDDU xdaqApp EventReader bool getNextEvent() DDUReader

  3. Event Builder w/Trackfinder • Only need an EventReader::getNextEvent() routine • Writing a routine which reads (destructively) the Sector Processor FIFOs, stores in memory, and parses events • File-reading version already exists (Holger/Darin) • Just need to merge with the HAL interface • After that's done, the XDAQ-ification is easy.

  4. Event Builder Output • Format is ORCA-readable (G. Bruno) Event Header Readout Unit Header (Chamber data: DCC) FED Header (DDU) DDU data FED Trailer Readout Unit Trailer Readout Unit Header (Trackfinder crate) Trackfinder data Readout Unit Trailer Event Trailer

  5. Issues: Event Synchronization • Right now, the Event Builder assumes the events all come in the same order from all inputs • Not always the case: events can get lost • We need to make some phony TriggerInterface for the EVB which tells it which trigger number to do next. Maybe based on the level 1 accepts in the chamber data?

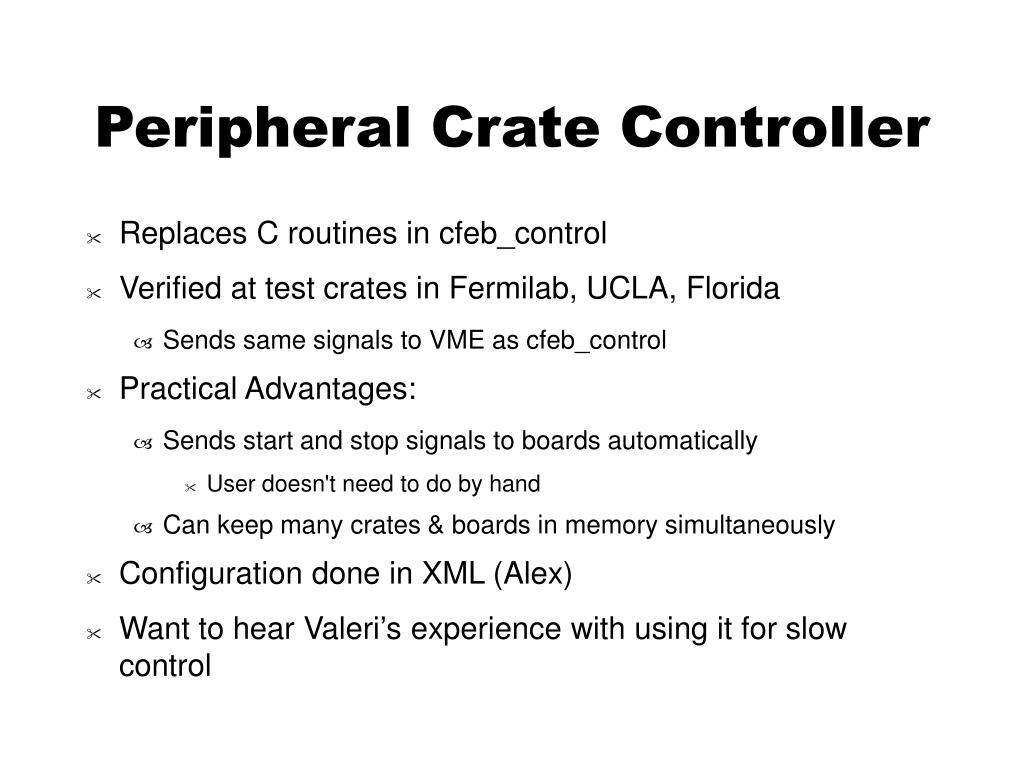

  6. Peripheral Crate Controller • Replaces C routines in cfeb_control • Verified at test crates in Fermilab, UCLA, Florida • Sends same signals to VME as cfeb_control • Practical Advantages: • Sends start and stop signals to boards automatically • User doesn't need to do by hand • Can keep many crates & boards in memory simultaneously • Configuration done in XML (Alex) • Want to hear Valeri’s experience with using it for slow control

  7. Peripheral Crate Controller Singleton CrateSetup CCB TMB ALCTController VMEModule Crate DAQMB VMEController DDU MPC

  8. XDAQ Crate Control • Only three buttons: • Configure • Enable • Disable

  9. XDAQ Crate Control + Event Builder

  10. Issues: Winning market share • Cfeb_control is a huge GUI with a button for almost every subroutine in the system. • Do we need to compete with that? • How else can we get the electronics experts to use (and develop and maintain) the new code?

  11. Issues: Maintaining Crate Code? • I claim our code makes the correct VME calls for five kinds of boards. • I don’t claim to understand any board’s VME calls. • Who can provide? • Meaningful names for all those hardcoded register and address numbers? • All boards • Cleanup of vestigal code? • Especially ALCT • This code will be in CMS longer than many of us! • It should correspond explicitly to the hardware manuals • A HAL rewrite may be in order someday

  12. Slice Test Software Summary • XDAQ/C++ Crate Control  • Event Data Structure  • Including Sector Processor data  • Expect to be done soon • Combined Event Building  • Just need to deal with event synchronization
