1. On the Impact of Route Monitor Selection Ying Zhang* Zheng Zhang# Z. Morley Mao* Y. Charlie Hu# Bruce M. Maggs^ University of Michigan* Purdue University# Carnegie Mellon and Akamai Technologies^

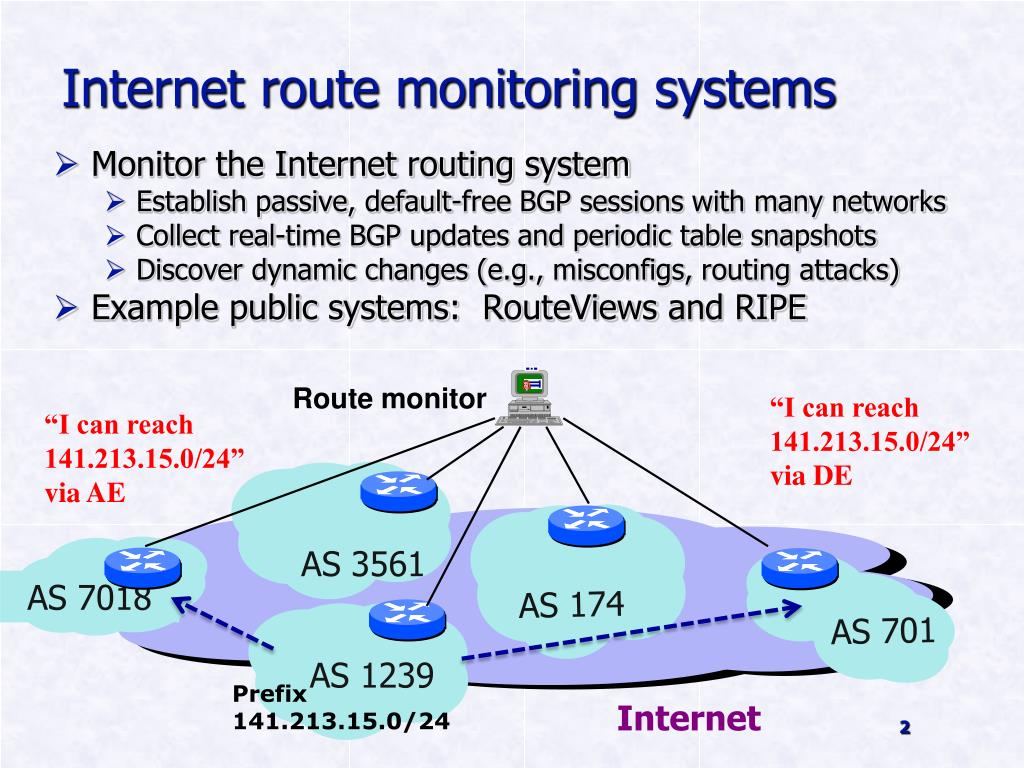

2. AS 7018 Internet route monitoring systems • Monitor the Internet routing system • Establish passive, default-free BGP sessions with many networks • Collect real-time BGP updates and periodic table snapshots • Discover dynamic changes (e.g., misconfigs, routing attacks) • Example public systems: RouteViews and RIPE Route monitor “I can reach 141.213.15.0/24” via DE “I can reach 141.213.15.0/24” via AE AS 3561 AS 174 AS 701 AS 1239 Prefix 141.213.15.0/24 Internet

3. AS 7018 Limited coverage • Coverage and representativeness • Only monitor a subset of ASes in the Internet • Only monitor at most one router in each AS • Difficulties in obtaining full coverage • Scalability and privacy concerns “I can reach 141.213.15.0/24” via CFG Route monitor “I can reach 141.213.15.0/24” via CDG AS 174 AS 3561 AS 701 AS 1239 AS 237 AS 105 Internet

4. AS 7018 Limited visibility on IP Hijacking detection • The accuracy of detection depends on route monitor systems’ visibility • Example problems caused by limited visibility • IP prefix hijacking: ASG hijacks ASE’s prefix • Missed The route monitor system does not cover polluted ASes Route monitor Prefix p’s origin AS is E Prefix p’s origin AS has changed to be G Path[p] = CE Path[p] = BE Path[p] = CE Path[p] = AG Path[p] = DE Path[p] = BE Path[p] = ABE AS 174 Path[p] = DE AS 3561 AS 701 AS 1239 Hijack: Path[p] = G AS 237 AS 105 Prefix p Path[p] = FG Path[p] = G Path[p] = E Path[p] = FGDE Path[p] = GDE

5. Motivation • Many research studies rely on BGP data from public route monitors: • Network topology discovery, AS relationship inference, AS level path prediction, etc. • The limitation of coverage and representativeness of the monitors is critical to their results. • Obtaining full coverage is difficult in practice. • Understanding limitation can assist improved route monitor placement.

6. Outline • Motivation • Methodology • Discovery of static network properties • Discovery of dynamic network properties • Inference of network properties

7. Methodology • Data collection • Public BGP monitoring vantage points: RouteViews and RIPE • Private peering vantage points: 200 distinct ASes • Comparison across different combinations of vantage points • Monitor selection schemes • Random: select monitor nodes randomly • Degree based: select the node with largest degree • Greedy: select the node with largest unobserved links • Address block based: select the node originating largest IP addresses

8. Outline • Motivation • Methodology • Discovery of static network properties • Discovery of dynamic network properties • Inference of network properties

9. Static network properties • Network topology discovery • IP prefix to origin AS mappings • Identifying stub AS and its providers • Multi-homed ASes • Observed AS paths

10. Network topology discovery • The number of observed AS level links • Greedy based selection performs best

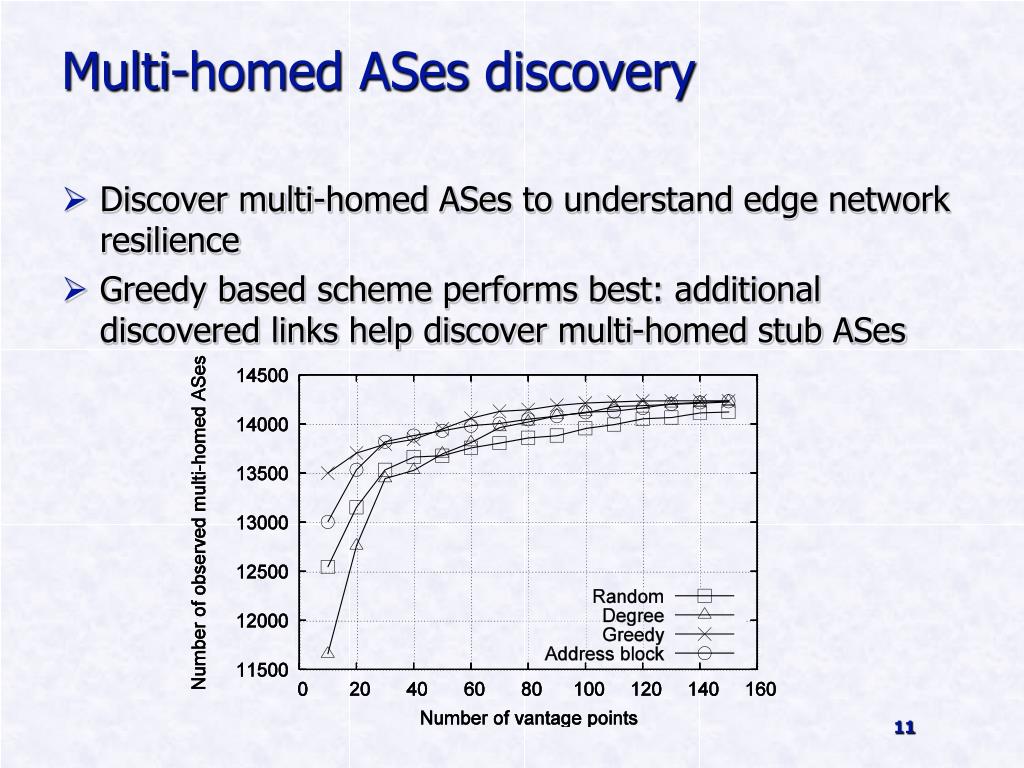

11. Multi-homed ASes discovery • Discover multi-homed ASes to understand edge network resilience • Greedy based scheme performs best: additional discovered links help discover multi-homed stub ASes

12. Outline • Motivation • Methodology • Discovery of static network properties • Discovery of dynamic network properties • Inference of network properties

13. Dynamic network properties • Routing instability monitoring • Number of routing updates observed • IP prefix hijacking detection • The visibility of inconsistent origin ASes across routing updates

14. Routing instability monitoring • Fraction of BGP routing events observed by the set of vantage points • Huge difference between random and other three: core networks are more likely to observe network instabilities

15. IP Prefix hijacking detection • Detected hijacking: as long as one vantage point can observe hijacked routes • Greedy based scheme performs slightly better With 10 vantage points deployed, 0.35% of all possible attacker- victim pairs can evade detection

16. Outline • Motivation • Methodology • Discovery of static network properties • Discovery of dynamic network properties • Inference of network properties

17. Inference of network properties • AS relationship inference • Commonly used Gao’s degree-based relationship inference [Gao00] • AS-level path prediction • AS-relationship based profit-driven AS path inference [Mao05] • AS-relationship-independent path prediction [Muhlbauer06]

18. AS relationship inference and path prediction • Accuracy: comparing the predicted paths with the observed paths • More vantage points may not increase the accuracy

19. AS relationship inference and path prediction – further explanation • More vantage points may not increase the accuracy • It may be due to nature of the degree-based relationship inference • We study the changes of the top degree node per path • More vantage points do not consistently improve the estimation of the top degree nodes

20. Conclusion • Examined the route monitor placement impact on various applications • Evaluated four simple placement schemes • Demonstrated the limitation of studies relying on the existing monitoring system • Future work: develop a better placement technique.

21. Thank you! Questions?

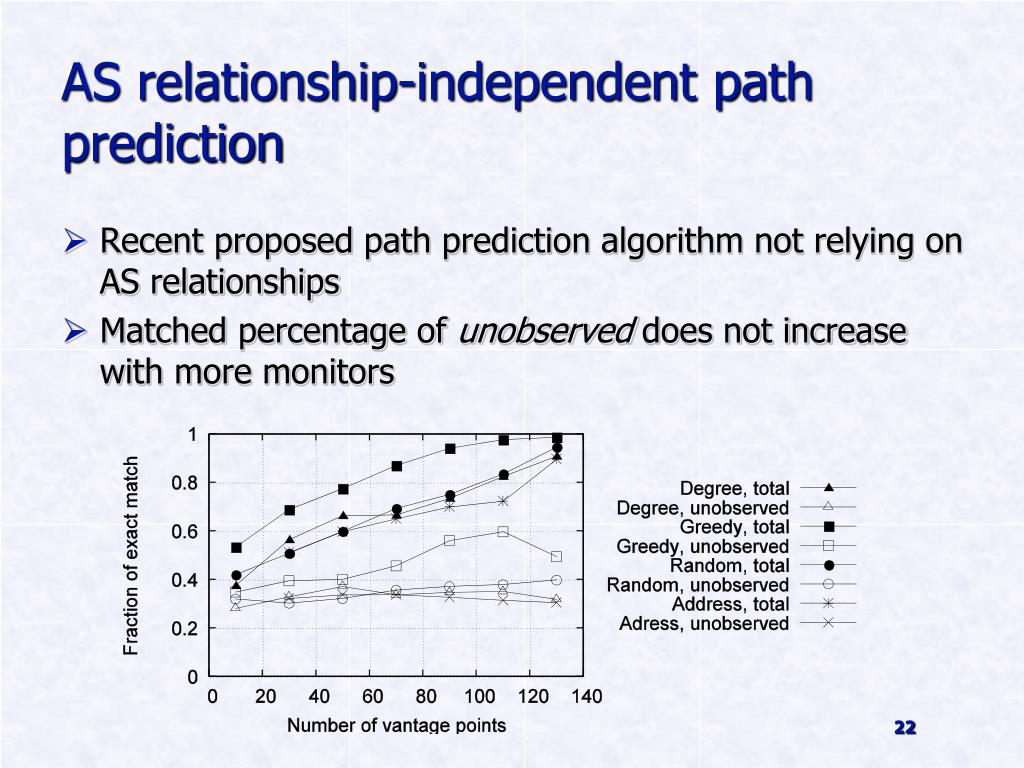

22. AS relationship-independent path prediction • Recent proposed path prediction algorithm not relying on AS relationships • Matched percentage of unobserved does not increase with more monitors
