  1. NWSRFS users group workshop 2003 Estelle van Niekerk Joyce Mathole Department Water Affairs and Forestry, Republic of South Africa

  2. Contents • Background of the RSA • The RSA NWSRFS • Development of the RSA NWSRFS • Hydro-meteorological data collection • Data flow in the RSA NWSRFS • Problems experienced in implementation and calibration • Key organisations involved in the establishment of the RSA NWSRFS • The way forward

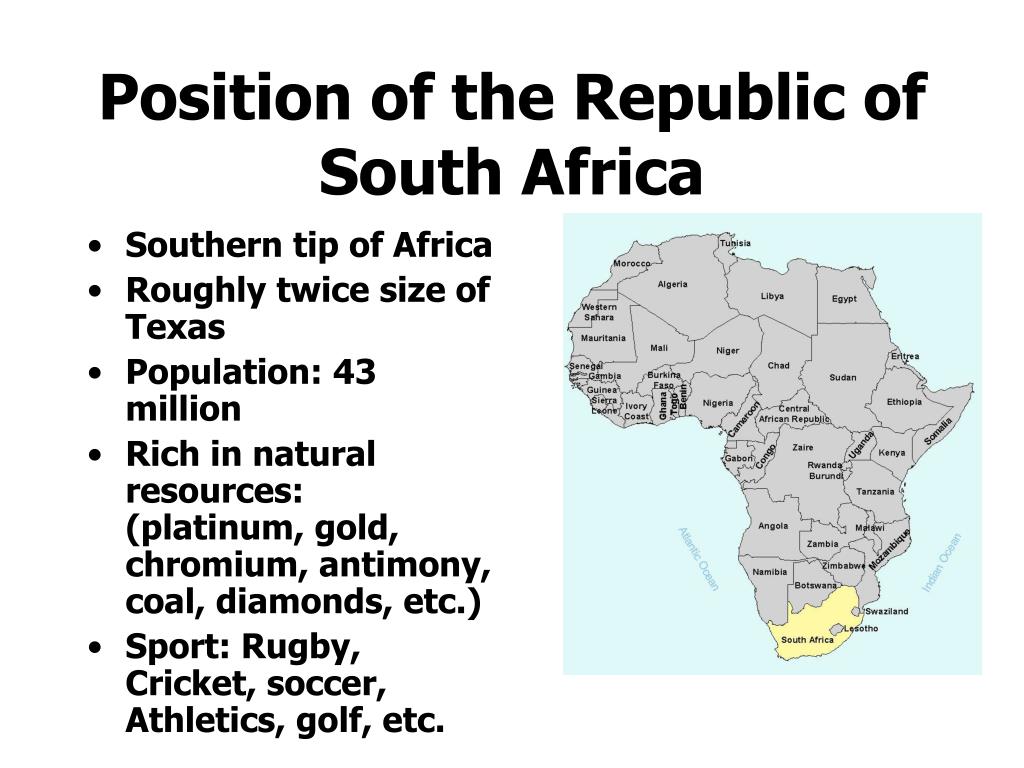

  3. Position of the Republic of South Africa • Southern tip of Africa • Roughly twice size of Texas • Population: 43 million • Rich in natural resources: (platinum, gold, chromium, antimony, coal, diamonds, etc.) • Sport: Rugby, Cricket, soccer, Athletics, golf, etc.

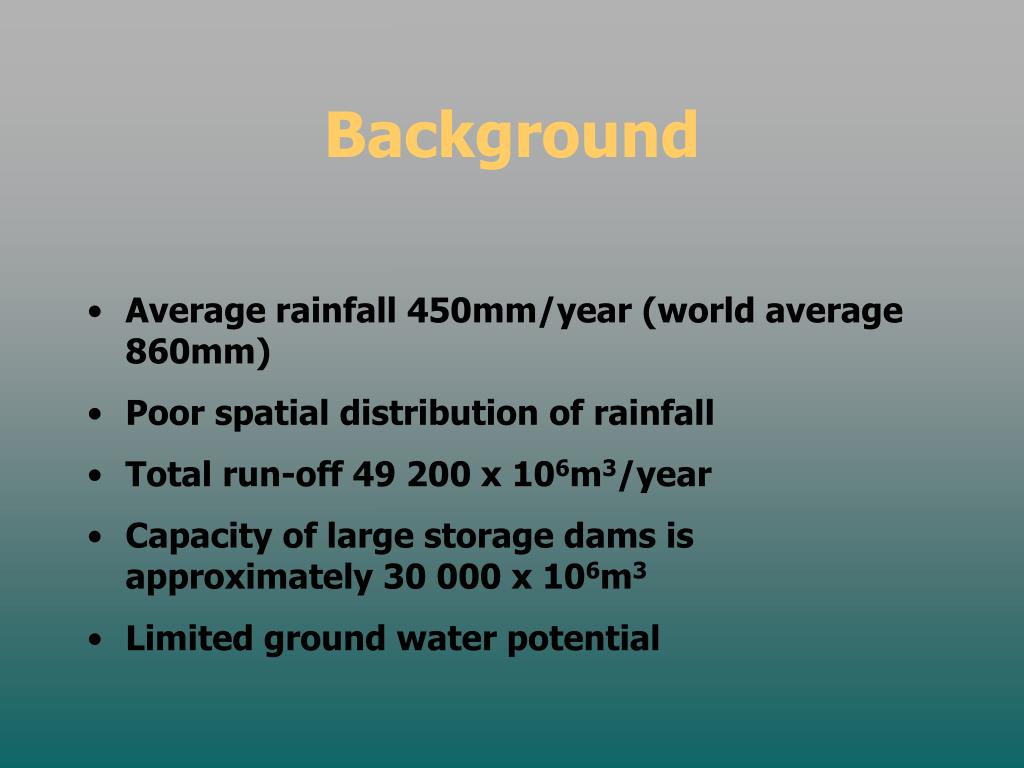

  4. Background • Average rainfall 450mm/year (world average 860mm) • Poor spatial distribution of rainfall • Total run-off 49 200 x 106m3/year • Capacity of large storage dams is approximately 30 000 x 106m3 • Limited ground water potential

  5. RSA:Mean Annual Evaporation

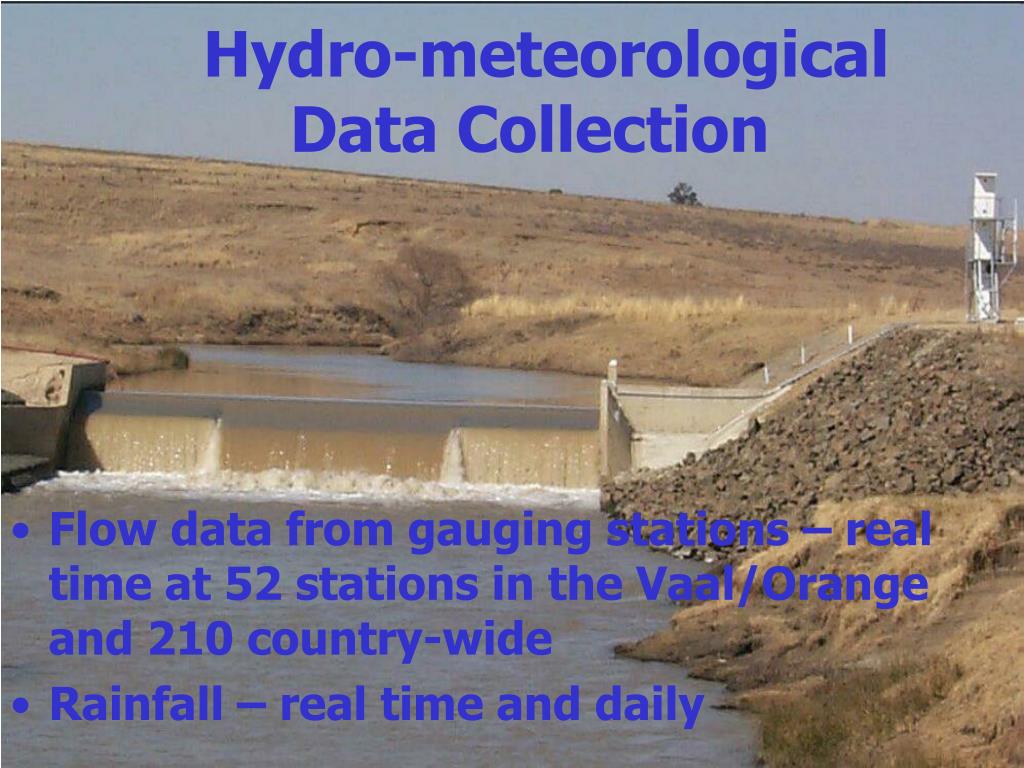

  6. Hydro-meteorological Data Collection • Flow data from gauging stations – real time at 52 stations in the Vaal/Orange and 210 country-wide • Rainfall – real time and daily

  7. Data flow in the SA NWSRFS Flow DCP Rainfall Telemetry SAWS Databank & DWAF stations Databank Internal Software SHEF SHEF NWSRFS NWSRFS

  8. History of the RSA NWSRFS • 1996 initiated by a USA delegation from NWS during a visit to the RSA • Decision taken to implement the USA NWSRFS in the Vaal /Orange River system • Previously RSA flood forecasting system comprised only a flood routing model

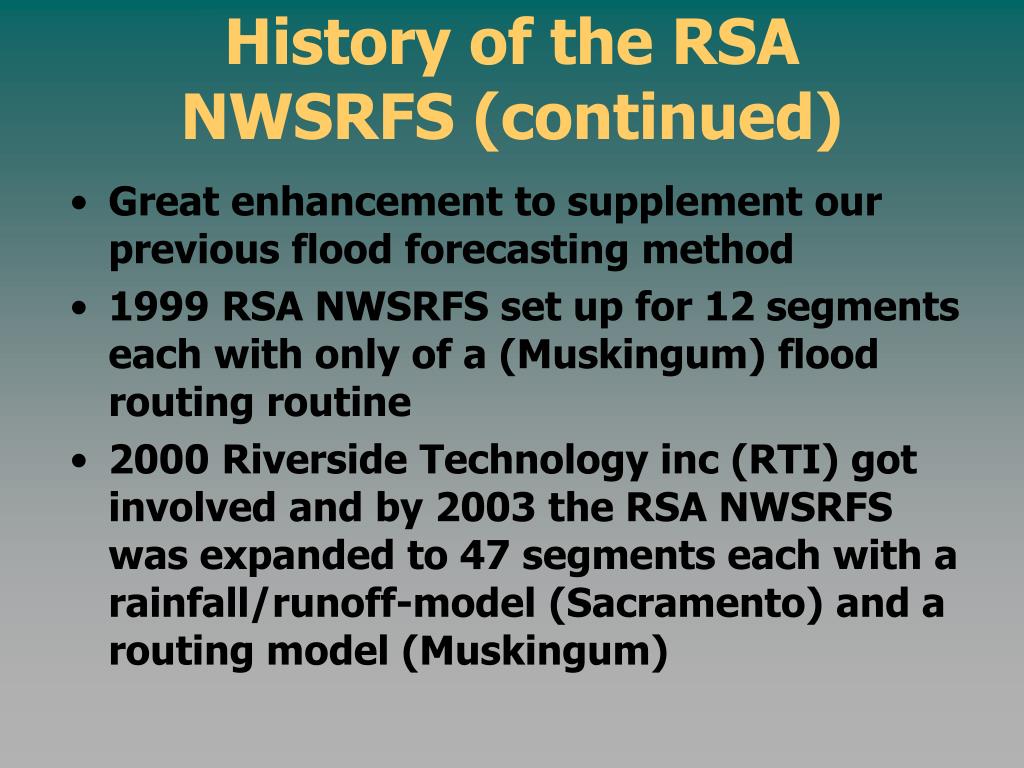

  9. History of the RSA NWSRFS (continued) • Great enhancement to supplement our previous flood forecasting method • 1999 RSA NWSRFS set up for 12 segments each with only of a (Muskingum) flood routing routine • 2000 Riverside Technology inc (RTI) got involved and by 2003 the RSA NWSRFS was expanded to 47 segments each with a rainfall/runoff-model (Sacramento) and a routing model (Muskingum)

  10. Key organisations in the establishment of the RSA NWSRFS • RSA: • Department of Water Affairs and Forestry (DWAF) • South African Weather Services (SAWS) • Water Research Commission (WRC) • USA • NWS • US AID • Public Affairs Section of the USA Embassy

  11. Problems with current RSA NWSRFS • Calibration • Rain depth – inconsistencies between radar and point-rainfall • Calibration of Sacramento-Soil Moisture Accounting model – Insufficient input of land and water-use data: • Farm dams (total capacity of 150 x 106 m3 in Vaaldam catchment alone) • Urban run-off increases • Return flow • Water transfer schemes • Transmission losses • Spatial and temporal distribution of real-time flow and rainfall data should be expanded to cover whole of RSA • Improved weather forecasts – ongoing research

  12. The way forward • Priority to improve data input (e.g. spatial rainfall data) • Improved Sacramento model calibration through dedicated help • Expand our current RSA NWSRFS • Capacity building
