Uniflair Smart Key pCO Manager

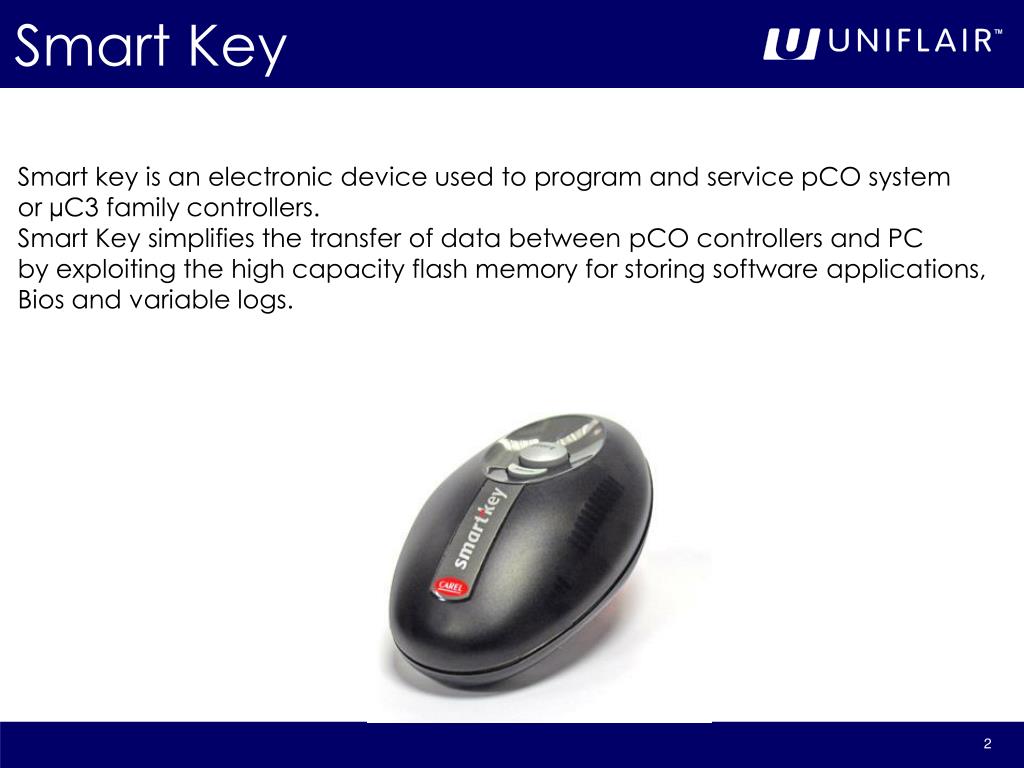

Smart Key Smart key is an electronic device used to program and service pCO system or µC3 family controllers. Smart Key simplifies the transfer of data between pCO controllers and PC by exploiting the high capacity flash memory for storing software applications, Bios and variable logs.
Hardware Features • Smart Key is the new programming key compatible with all pCO controllers (pCOXS, pCOC, pCO1, pCO2 and pCO3) • Connects to pCO‘s pLAN port • Battery is not needed. Power directly supplied by pCO controller or by PC (in the last case using USB adapter) • MicroProcessor based
Software Features • Different operating modes, configurable via PC as: • uploading only • downloading only • historical data only • a mix of the above • Possibility to store multiple applications (pLAN applications or multiple singles) • Automatic download to controller at pLAN address recognition • Upload / download password protected
pLAN serial port connection Smart Key is compatible with all pCO controllers The connection is easy and fast: the smart key must be connected only through a telephonic without any kind of others connections.
Looking inside.. • Upload / download password protected • Possibility to upload / download more than one software application or historical data logged (by pLAN address recognition) • Software checks for preventing a not correct files upload in the pCO controller
pCO Manager • pCO Manager is a tool created to transfer data between the computer to the Smart Key and directly to the pCO motherboards • pCO Manager is composed of 2 sub-programs: Winload SmartKey programmer
Winload • WinLoad32 is the software for PC that manages communication between the PC and the pCO Sistema family controllers • (pCO3, pCO2, pCO1, pCO1XS, pCOC). • The following operations can be performed using this software: • - Updating the firmware and the software of the controller; • Acquiring data from the board, such as the configuration parameters and the • data logged; • - Define the logic for logging the events saved on the board.
Winload These are the flash and the Bios (it must be installed as first) These are the languages you can choose Folder where select the files It must be always flagged They must be correct in order to permit the connection Status of the connection
Smart Key Programmer • Smart Key programmer is a software that permits the complete management of the key. • Through this program it is possible to: • Protect the key from not requested uses through a password • Transfer the software from the computer to the key • Transfer the software from the key to the computer • Download the historical events from the pCO motherboard to the key.
Smart Key Programmer Here I select the files that compose the kit to upload Here I select the kit that I want to upload It must be correct in order to permit the connection Here I can download the historical events Occupied memory Status of the connection
What I need if…. I WANT TO TRANSFER FILES FROM THE COMPUTER TO THE SMARTKEY In order to permit the transfer of the data from the computer to the Smartkey, it is necessary to use the Smartkey usb converter (the white one). Through this converter the key will take the supply from the computer. When the leds of this converter will start blinking, it means that the connection is ok. If it’s the first time the converter is used, the drivers are mandatory and must be installed once connected the converter. It’s important selecting the correct serial port, otherwise the connection won’t start. Smart key has a sufficient memory, able to store a kit with a lot of languages, but it can save only one kit per time.
What I need if…. I WANT TO TRANSFER FILES FROM THE COMPUTER TO THE pCO In order to permit the transfer of the data from the computer to the Smartkey, what is needed is only the USB convert. This converter permits permits the connection between USB and RS485. If it’s the first time the converter is used, the drivers are mandatory and must be installed once connected the converter. It’s important selecting the correct serial port, otherwise the connection won’t start. If there is the need to upload also the bios, it is important to install as first the bios, and then the application files.

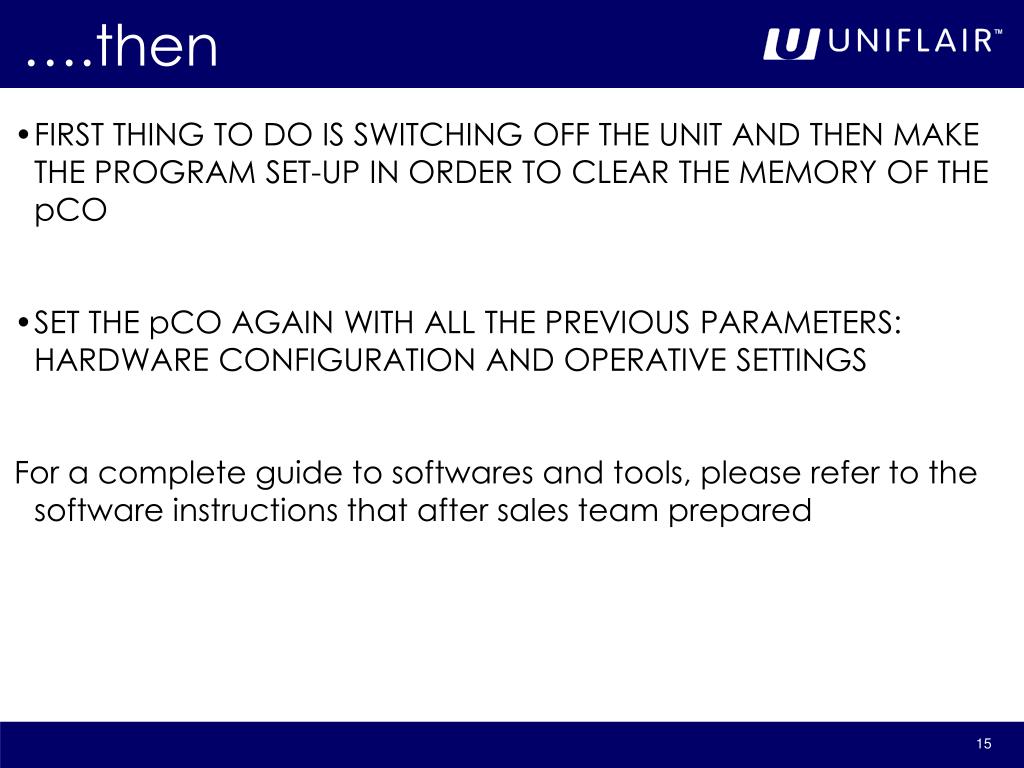

….then • FIRST THING TO DO IS SWITCHING OFF THE UNIT AND THEN MAKE THE PROGRAM SET-UP IN ORDER TO CLEAR THE MEMORY OF THE pCO • SET THE pCO AGAIN WITH ALL THE PREVIOUS PARAMETERS: HARDWARE CONFIGURATION AND OPERATIVE SETTINGS • For a complete guide to softwares and tools, please refer to the software instructions that after sales team prepared
